APL Architectural Series ThermalHEART® Sliding Windows
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

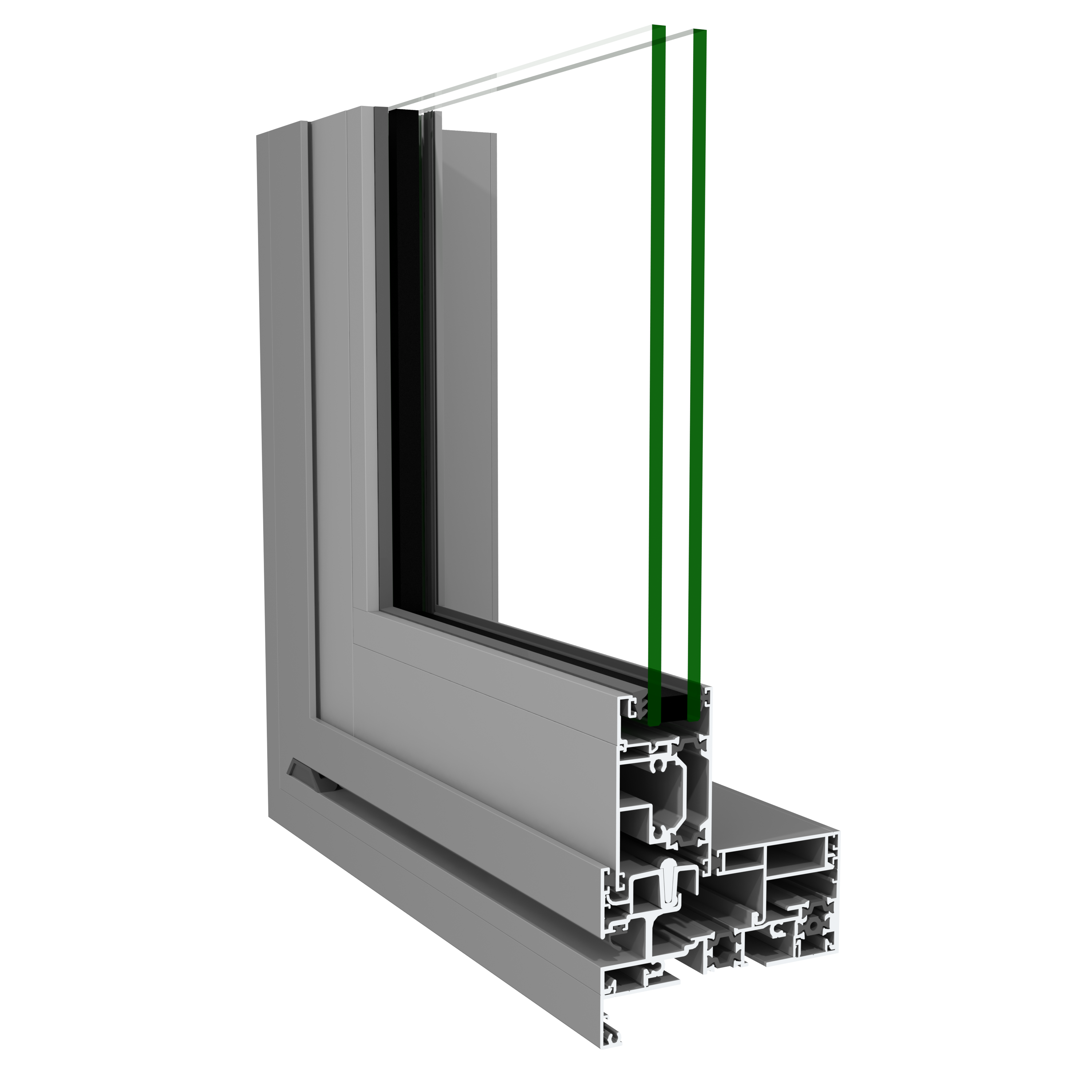

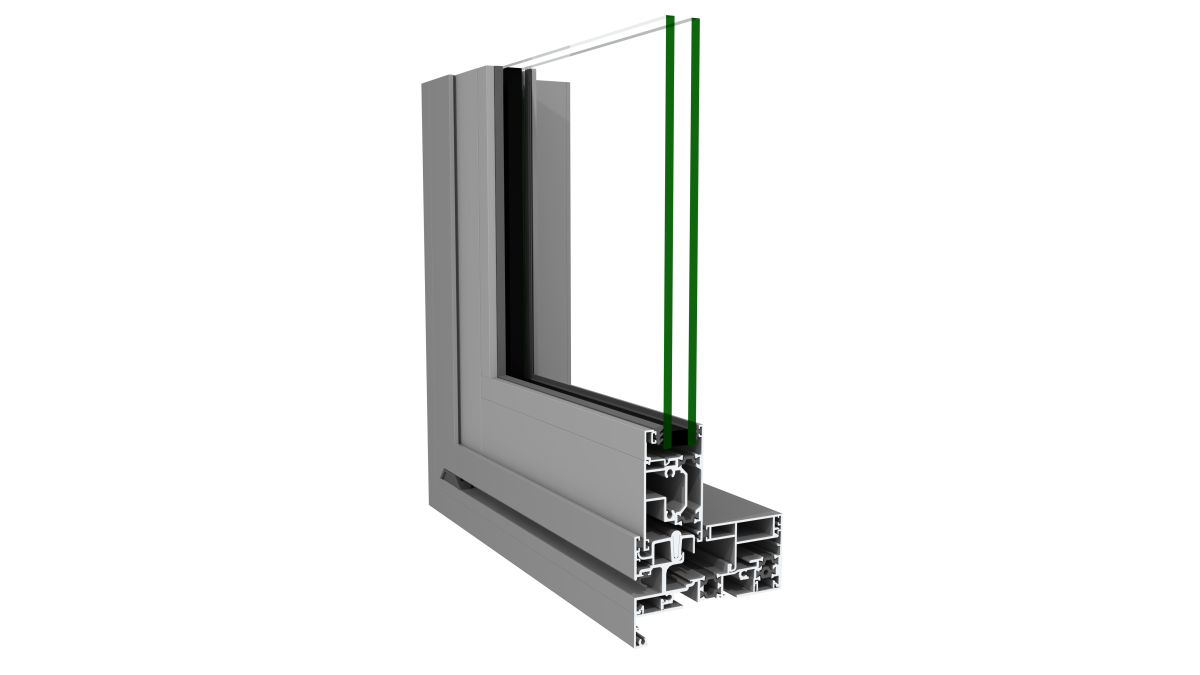

ASTH SW1
Sliding window sill – single slider with applied facings

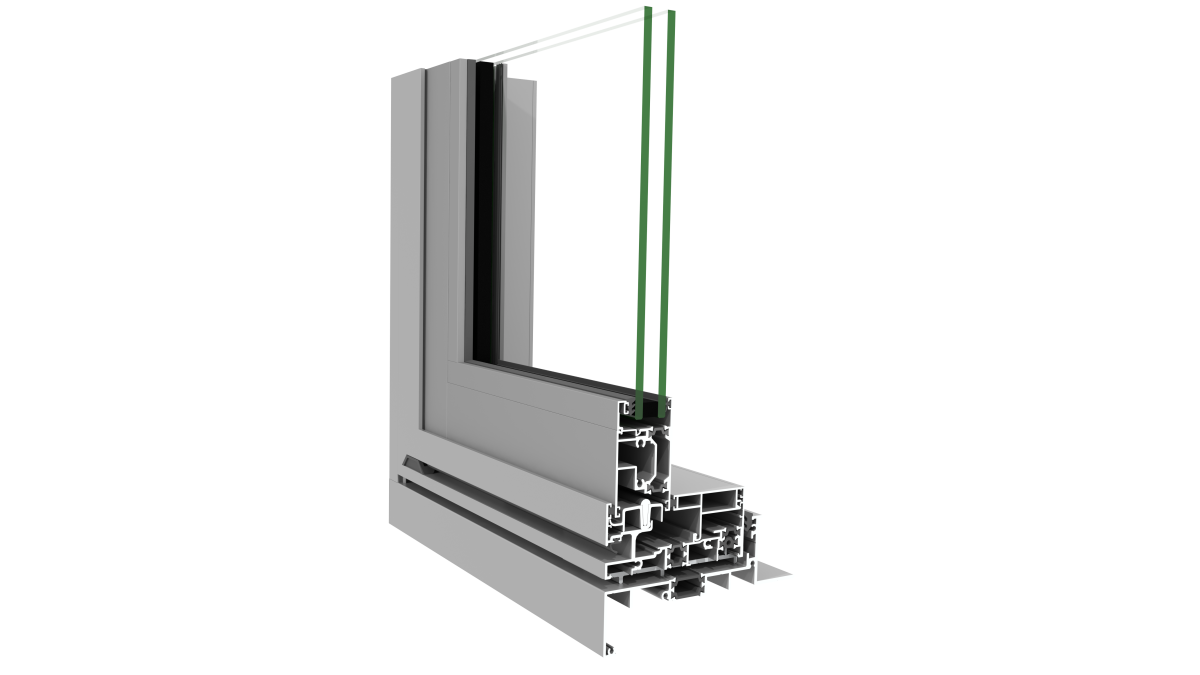

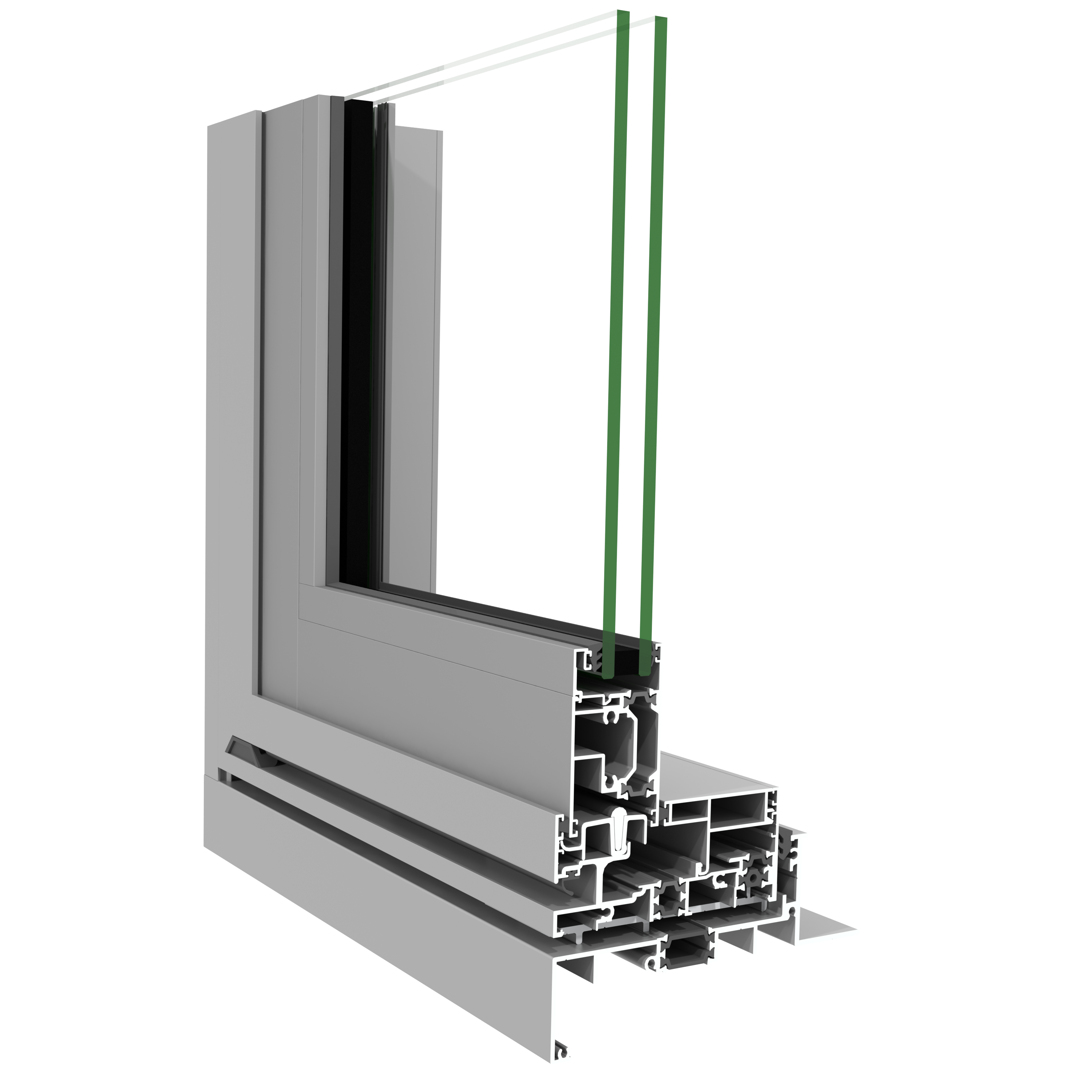

ASTH SW2
Sliding window sill with sill tray

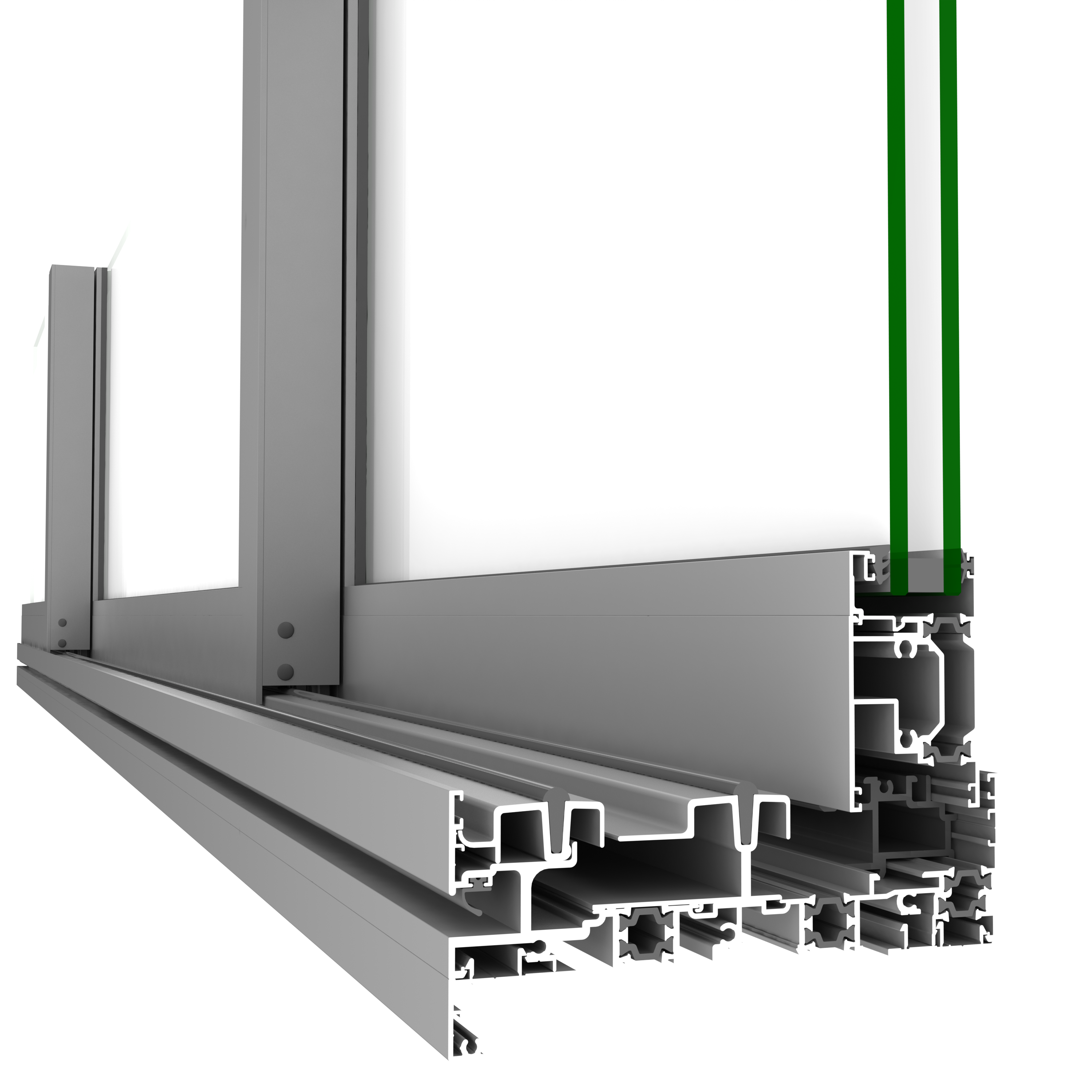

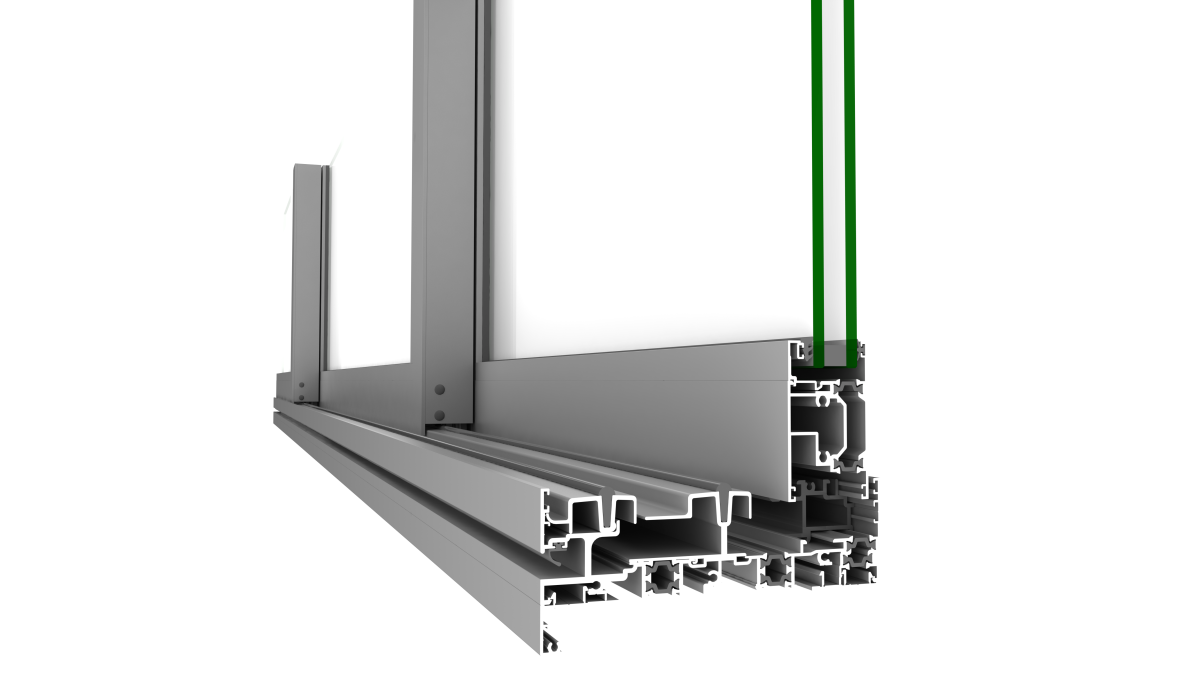

ASTH SW3
Stacker sliding sill

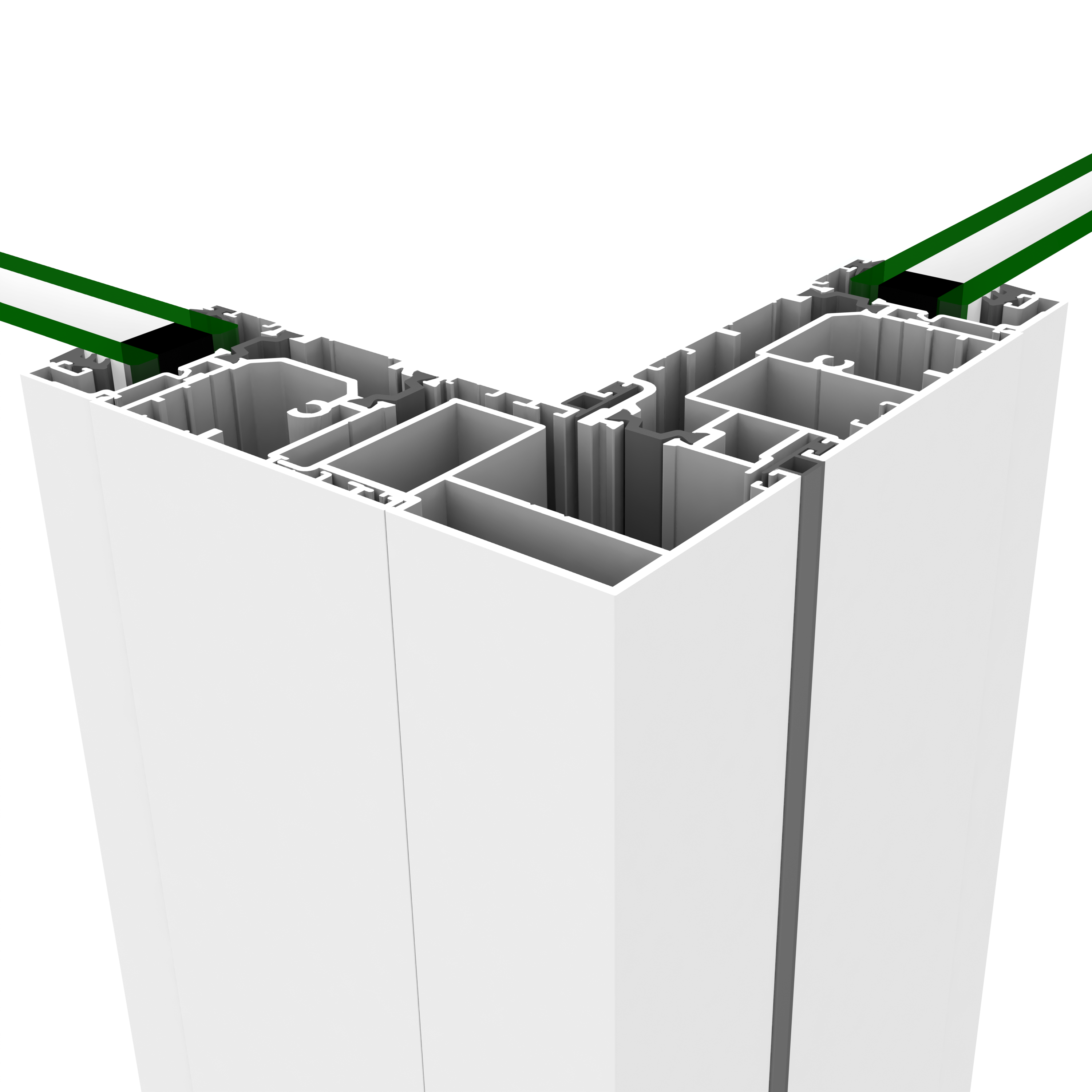

ASTH SW4
90° corner meeting stiles
Description

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • An exterior sliding track as standard
  • Ideal for non-projecting or servery windows
  • Smooth sliding action
  • Wide opening is possible in bi-parting or stacking configurations.
  • Stiles and rails feature slender sightlines
  • Corner sliding windows (90°) are available with no corner post (exterior and interior corners)
  • Maximum glass thickness of 32mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Categories
Sliding Windows
Ranges
APL Architectural Series ThermalHEART®
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
Limitations on Use
  • Recommended in maximum sizes
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Launched in 2023
  • New range rolling out nationally
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • News
Documents
Full Specification Guide: APL Architectural Series ThermalHEART®
docx
Specification Guide: APL Architectural Series ThermalHEART® Sliding Windows
docx
Span Tables
pdf
Data Sheet: APL Architectural Series ThermalHEART®

2023

pdf
APL and Sustainability
URL
Declare Label
pdf
Manufacturer Contact List
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Specifier Guide

2023

URL
Vantage Brochure
URL
Vantage Care, Maintenance & Warranty Brochure (with AGP)
URL
Vantage on Masterspec
URL
WGANZ Guide to E2/AS1
pdf
CAD/PDF Details
View full
APL Architectural Thermal Heart Sliding Window Drawings pdf
APL Architectural Series ThermalHEART® Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf
zip

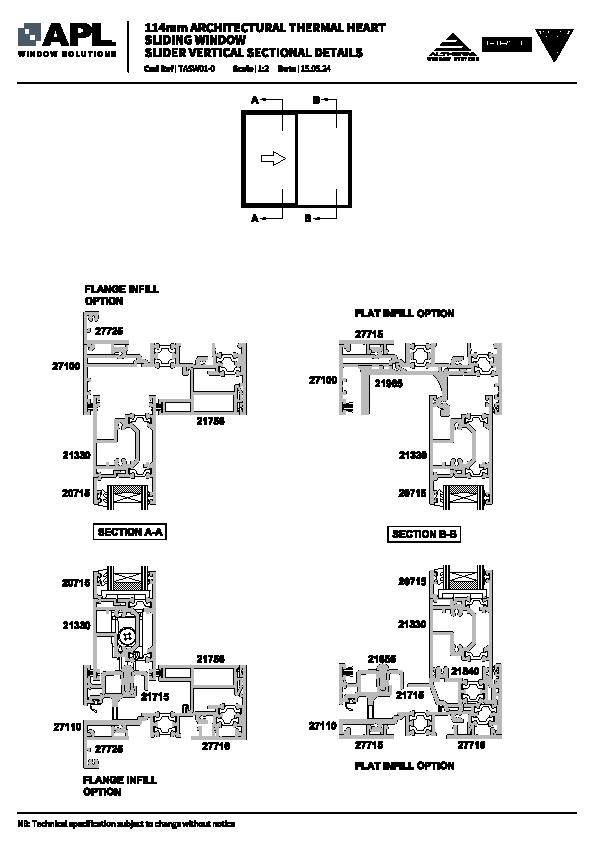

TASW01 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Window - Slider Vertical Sectional Details

TASW01

dwg
dxf
pdf
TASW02 0 pdf

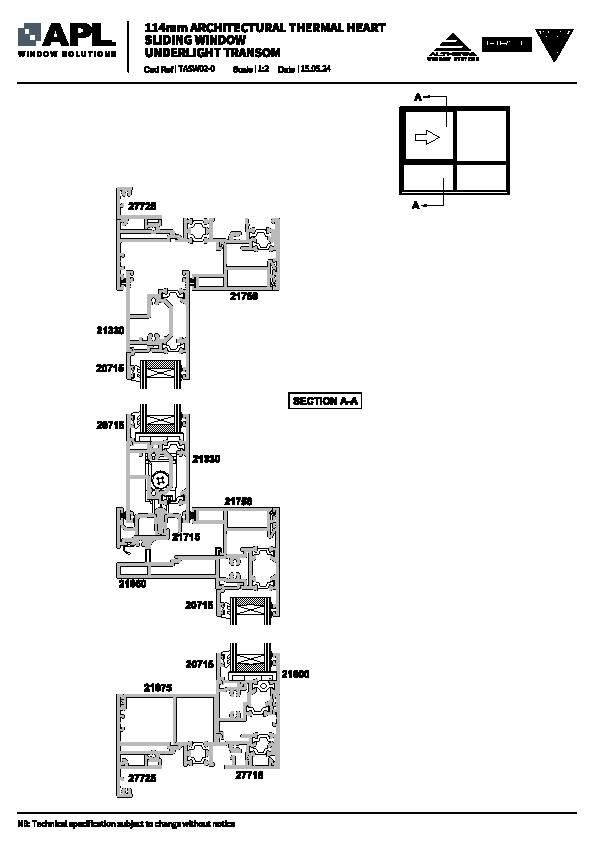

114mm APL Architectural Series ThermalHEART® Sliding Window - Underlight Transom

TASW02

dwg
dxf
pdf
TASW03 0 pdf

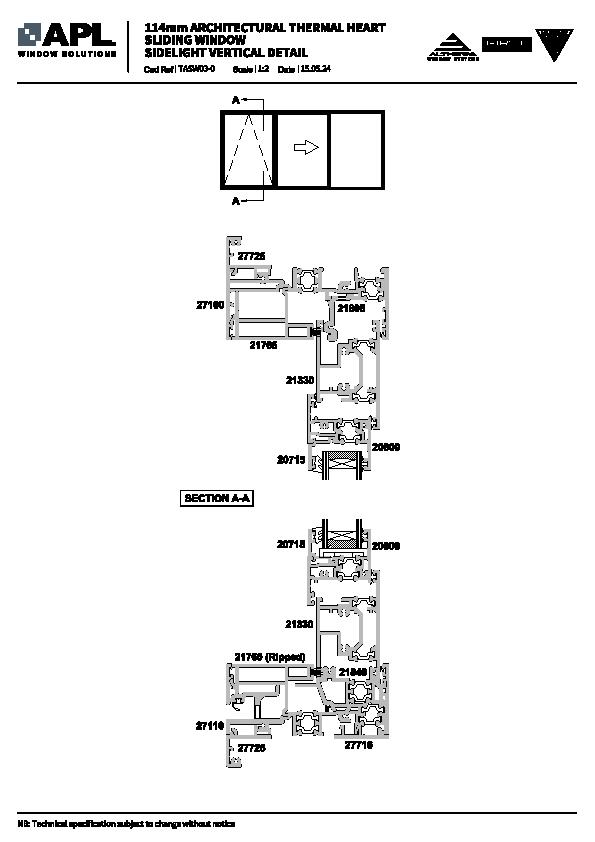

114mm APL Architectural Series ThermalHEART® Sliding Window - Sidelight Vertical Detail

TASW03

dwg
dxf
pdf

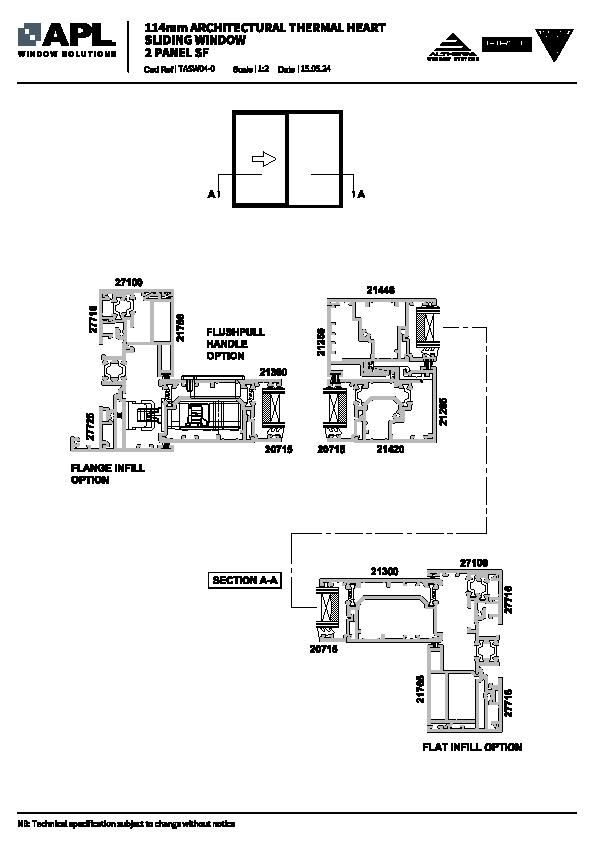

TASW04 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Window - 2 Panel SF

TASW04

dwg
dxf
pdf

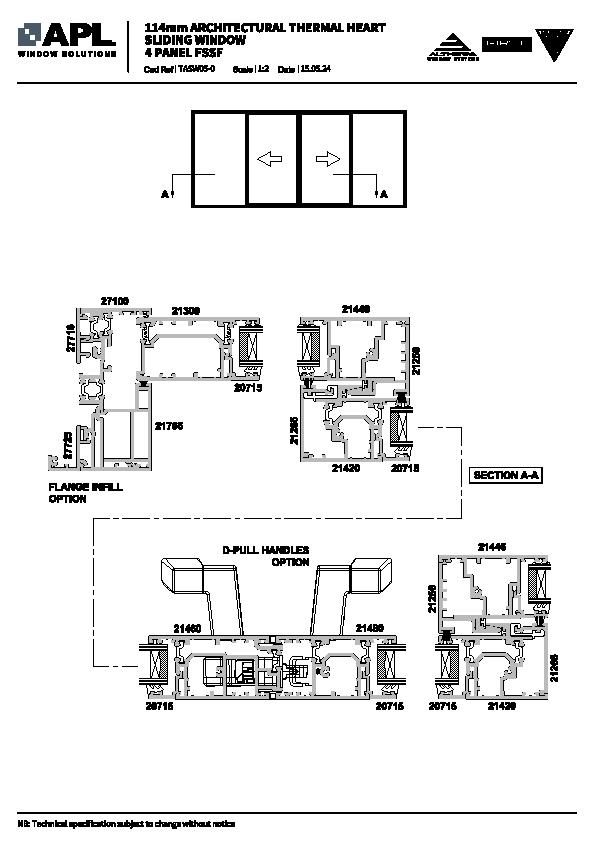

TASW05 0 pdf
114mm APL Architectural Series ThermalHEART® Sliding Window - 4 Panel FSSF

TASW05

dwg
dxf
pdf

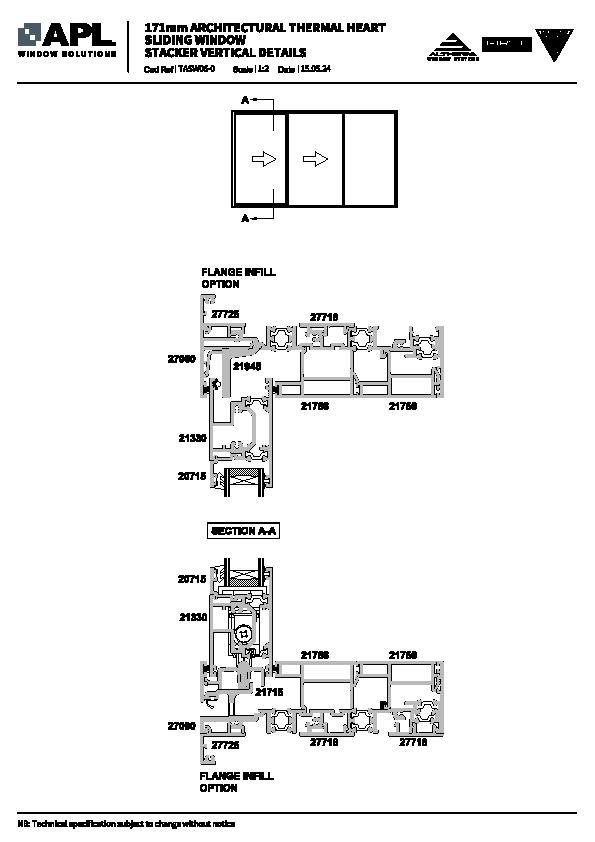

TASW06 0 pdf
171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker Vertical Details

TASW06

dwg
dxf
pdf
TASW07 0 pdf

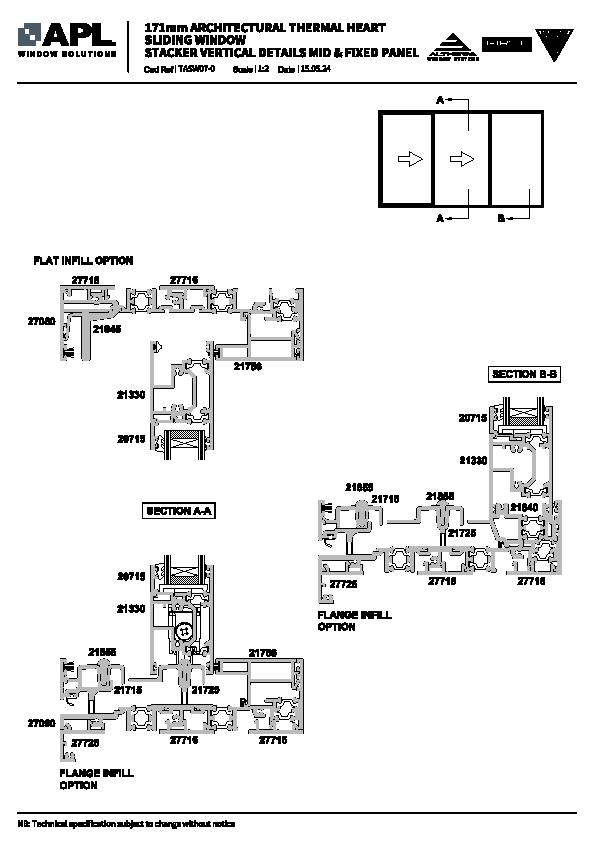

171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker Vertical Details Mid & Fixed Panel

TASW07

dwg
dxf
pdf

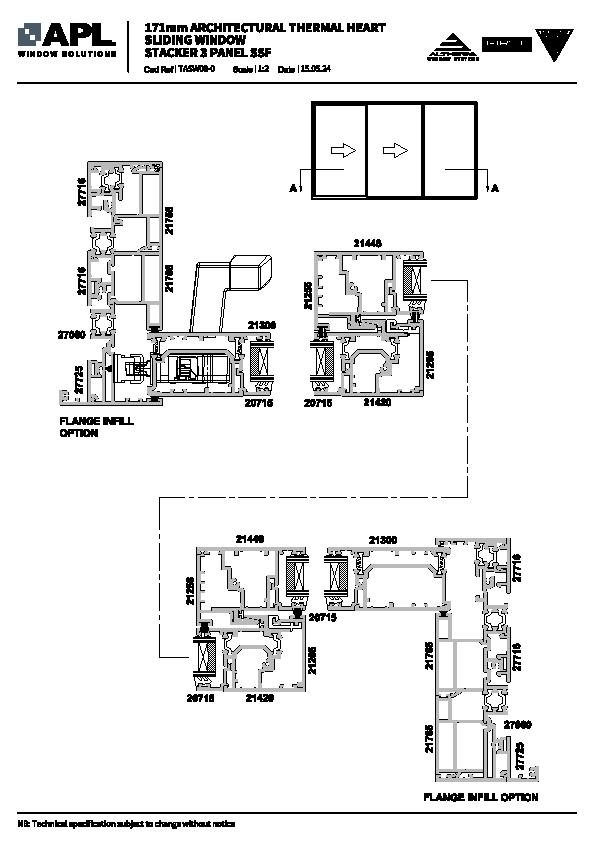

TASW08 0 pdf
171mm APL Architectural Series ThermalHEART® Sliding Window - Stacker 3 Panel SSF

TASW08

dwg
dxf
pdf
Installation Details
View full
TA114SWBB pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Board & Batten

TA114SWBB

dwg
pdf
TA114SWBV pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Brick Veneer

TA114SWBB

dwg
pdf
TA114SWBW pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Bevelback Weatherboard

TA114SWBW

dwg
pdf
TA114SWFS pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Flat Sheet

TA114SWFS

dwg
pdf
TA114SWPM pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Profile Metal

TA114SWPM

dwg
pdf
TA114SWRW pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Rusticated Weatherboard

TA114SWRW

dwg
pdf
TA114SWST pdf v3
APL Architectural Series ThermalHEART® 114mm Sliding Window on Stucco

TA114SWST

dwg
pdf
TA171SWBB pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Board & Batten

TA171SWBB

dwg
pdf
TA171SWBV pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Brick Veneer

TA171SWBV

dwg
pdf
TA171SWBW pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Bevelback Weatherboard

TA171SWBW

dwg
pdf
TA171SWFS pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Flat Sheet

TA171SWFS

dwg
pdf
TA171SWPM pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Profile Metal

TA171SWPM

dwg
pdf
TA171SWRW pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Rusticated Weatherboard

TA171SWRW

dwg
pdf
TA171SWST pdf v3
APL Architectural Series ThermalHEART® 171mm Sliding Window on Stucco

TA171SWST

dwg
pdf
