APL Architectural Series ThermalHEART® Awning & Casement Windows by VANTAGE Windows & Doors

APL Architectural Series ThermalHEART® Awning & Casement Windows

VANTAGE Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

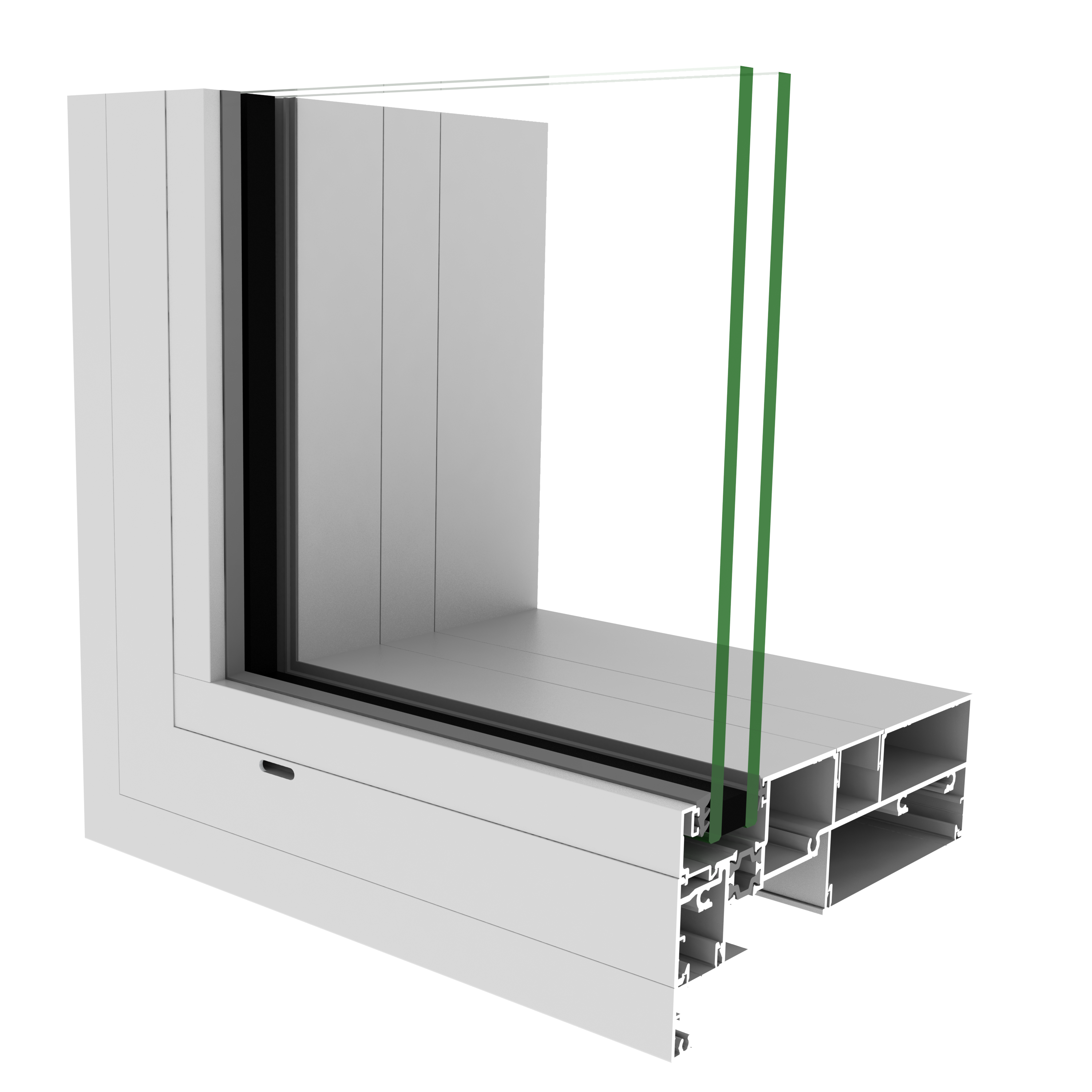

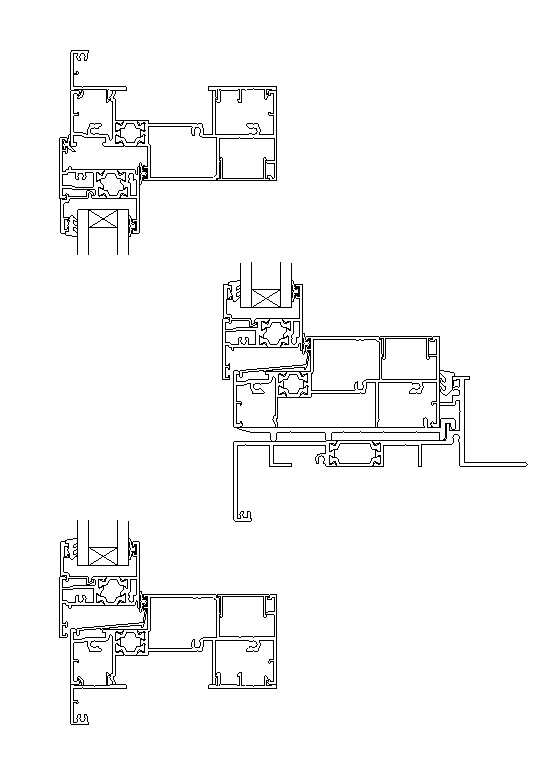

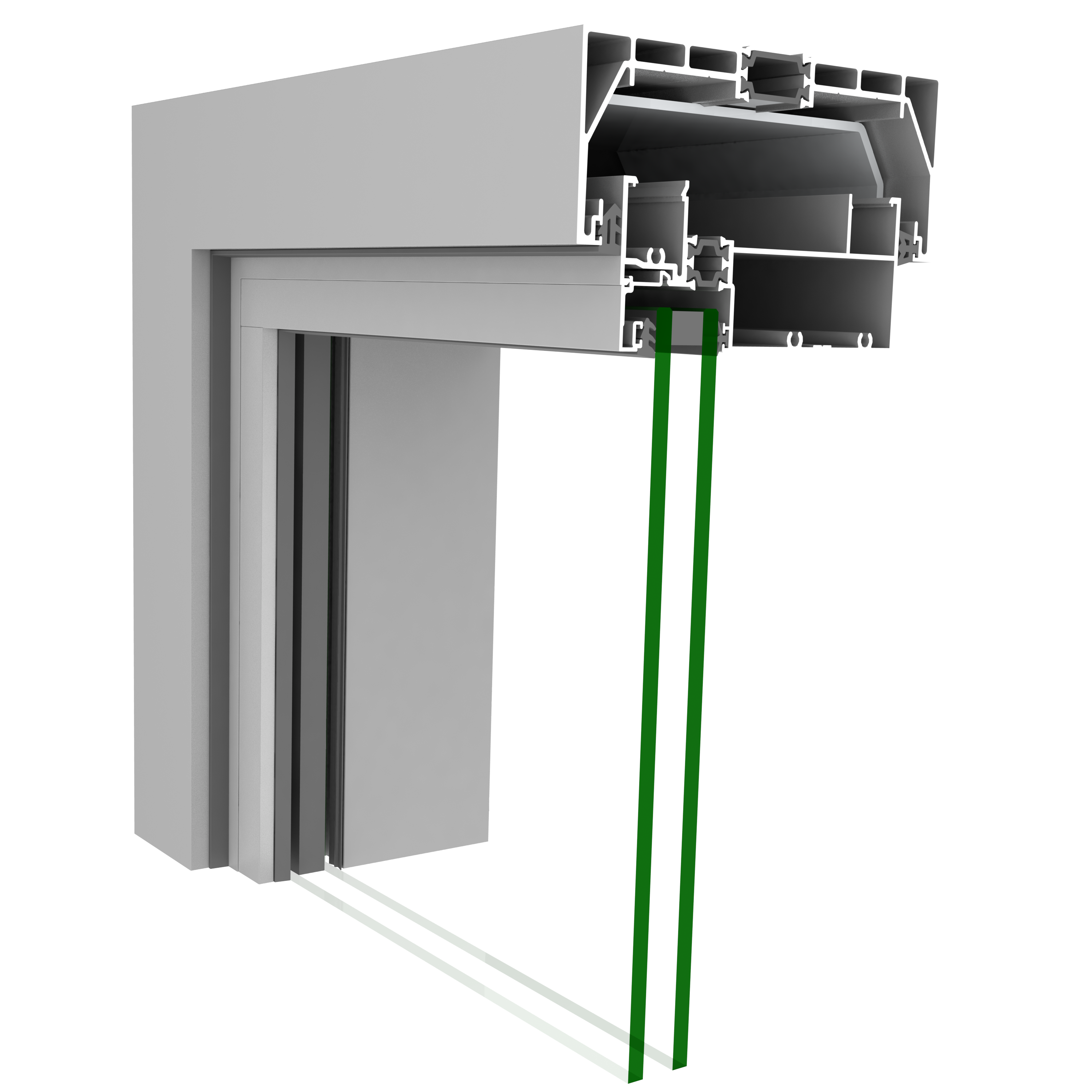

Standard window frame (114mm option) with sill tray

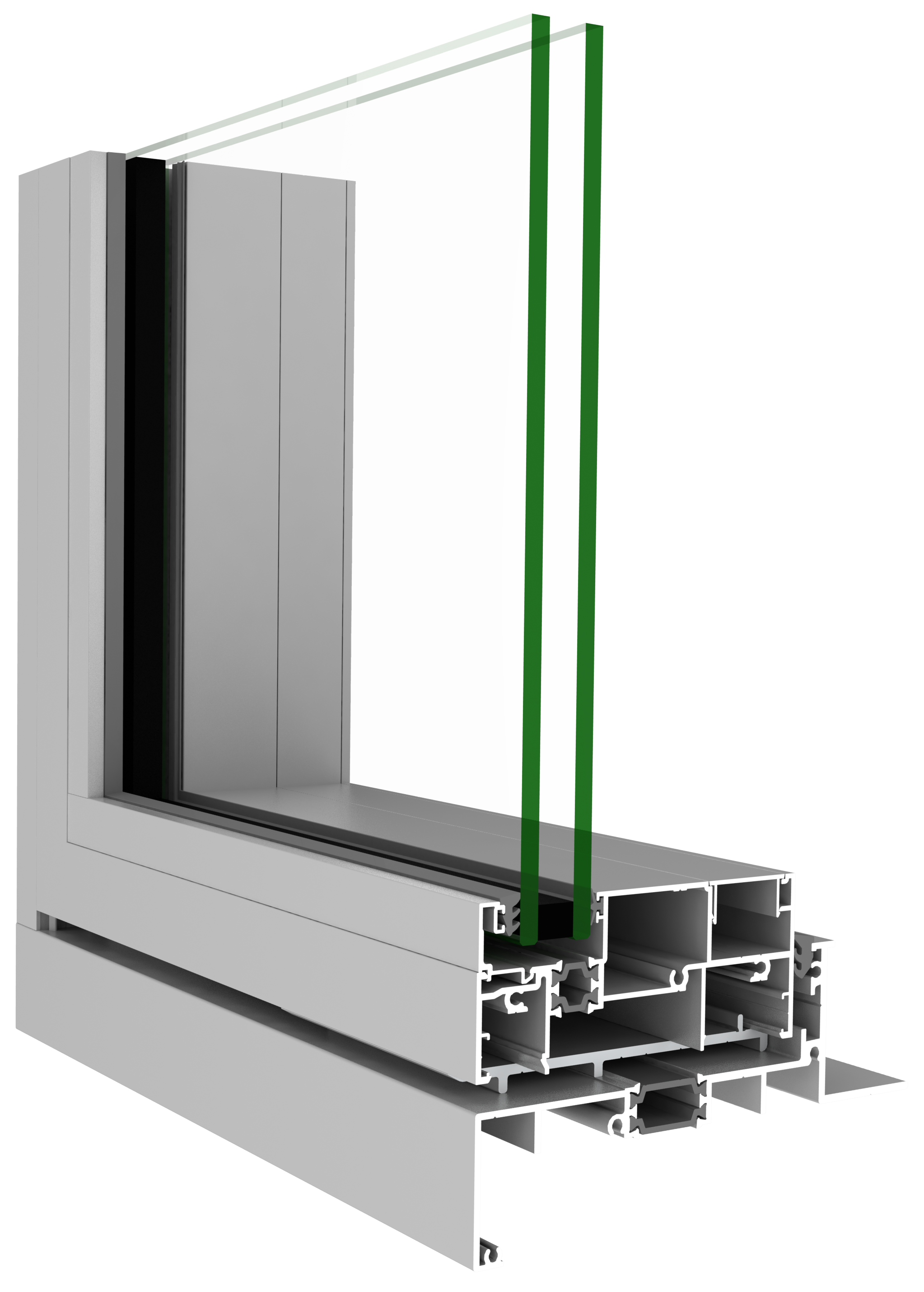

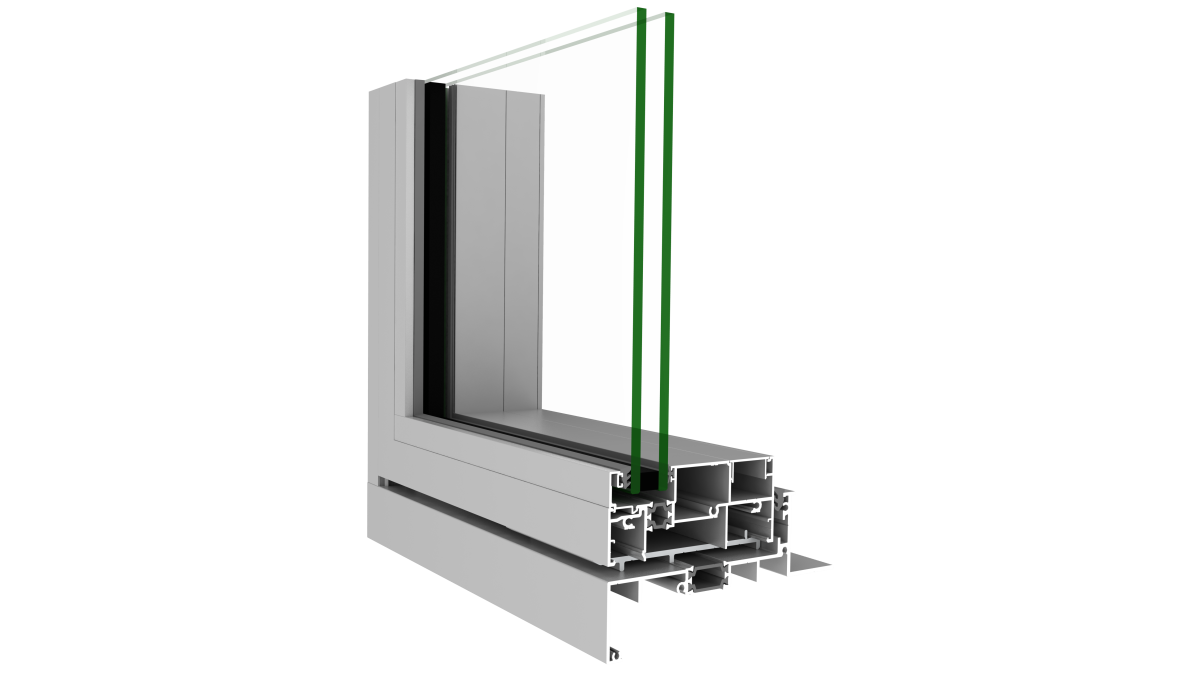

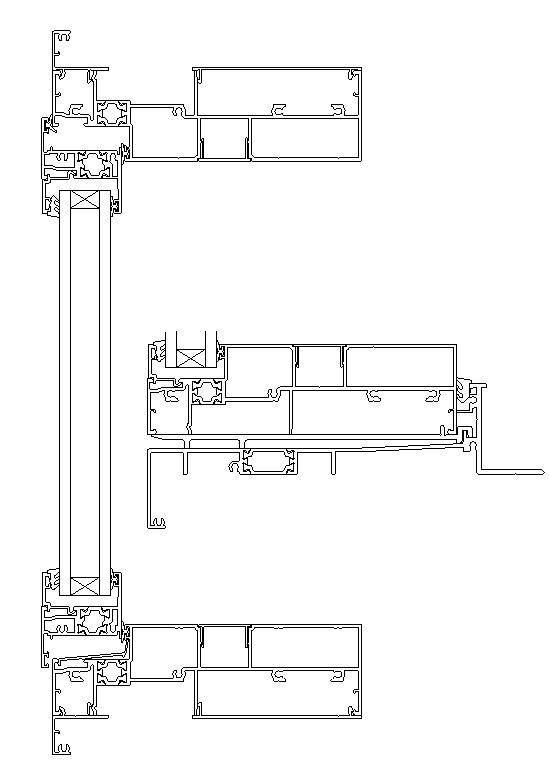

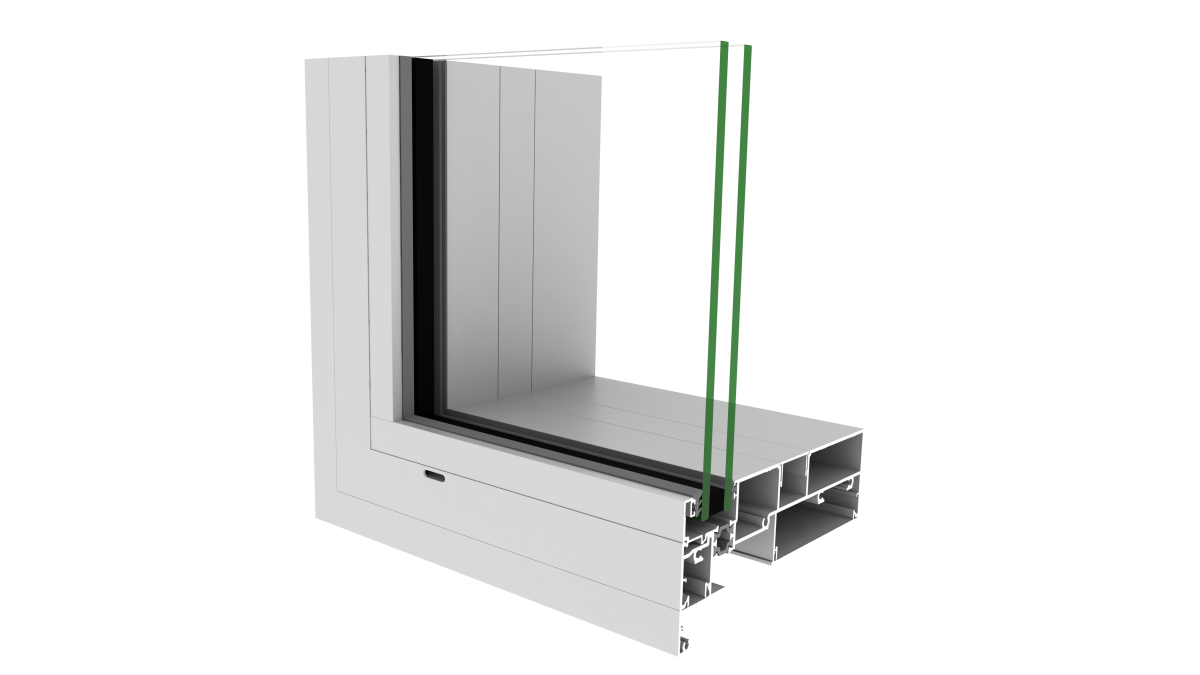

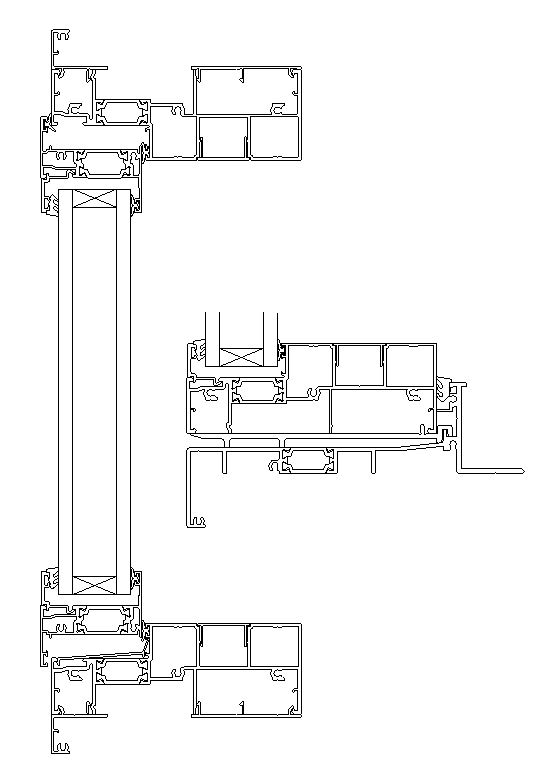

171mm awning window frame with sill applied facings

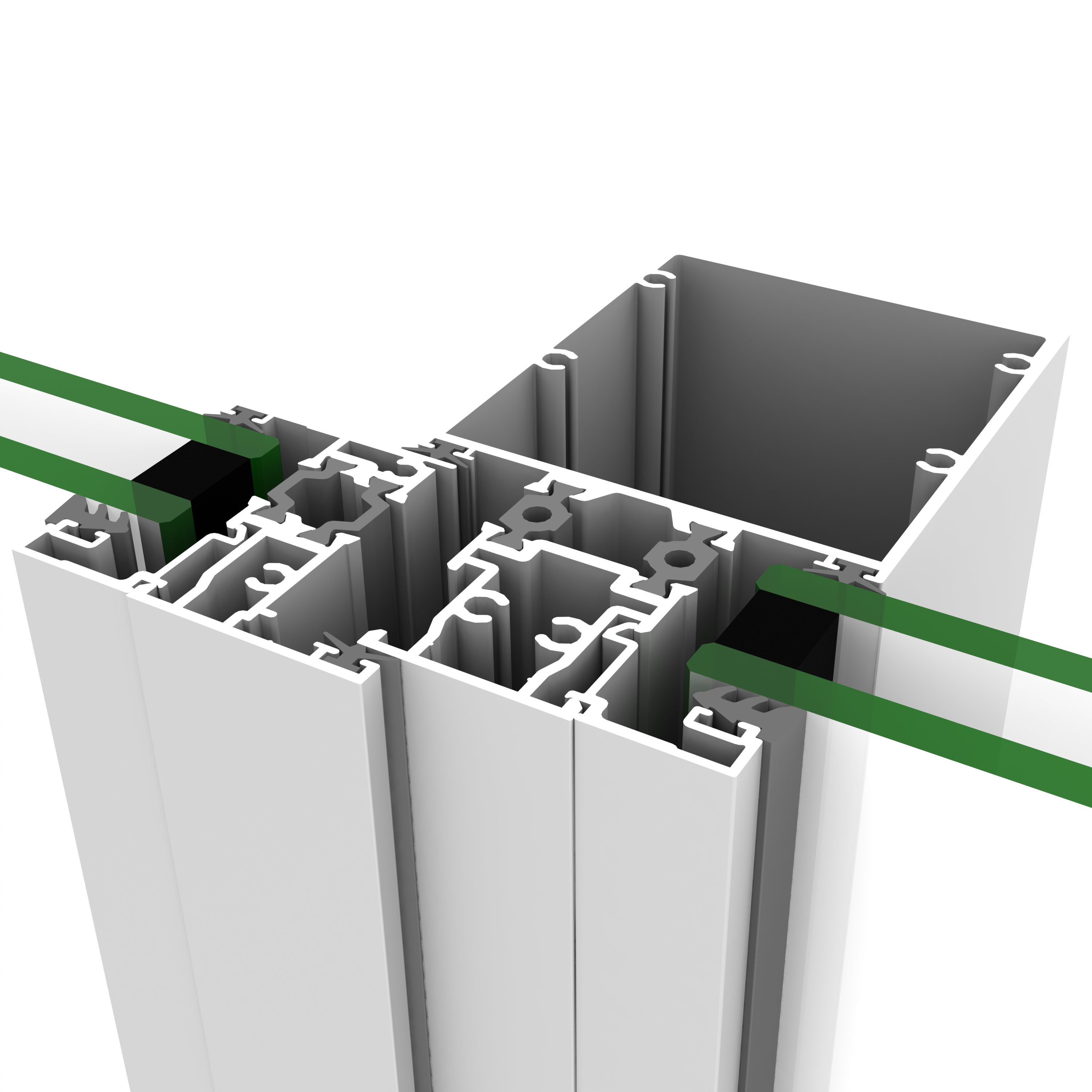

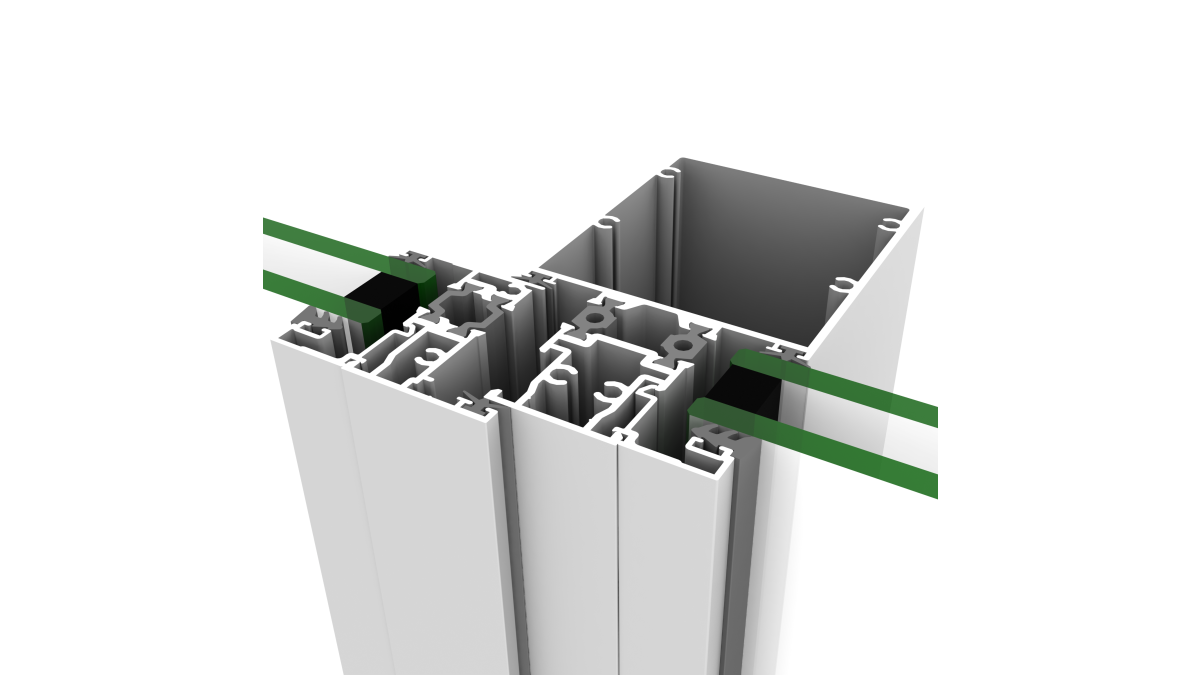

Internal box mullion – sash on left

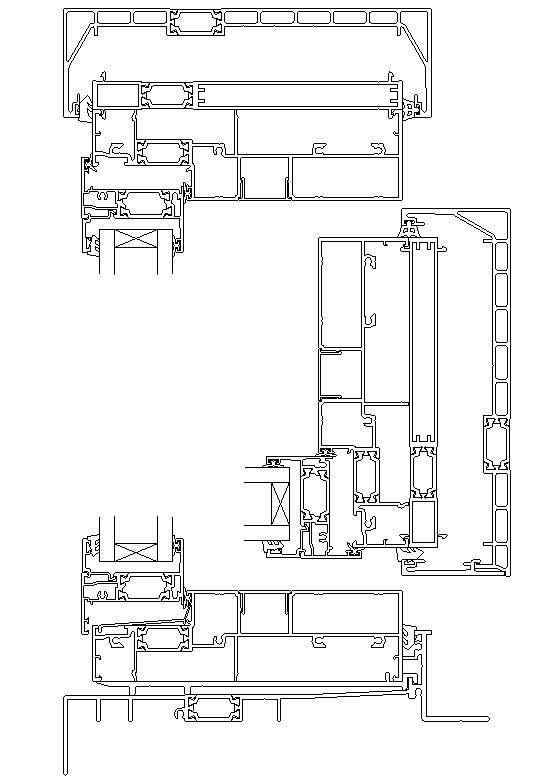

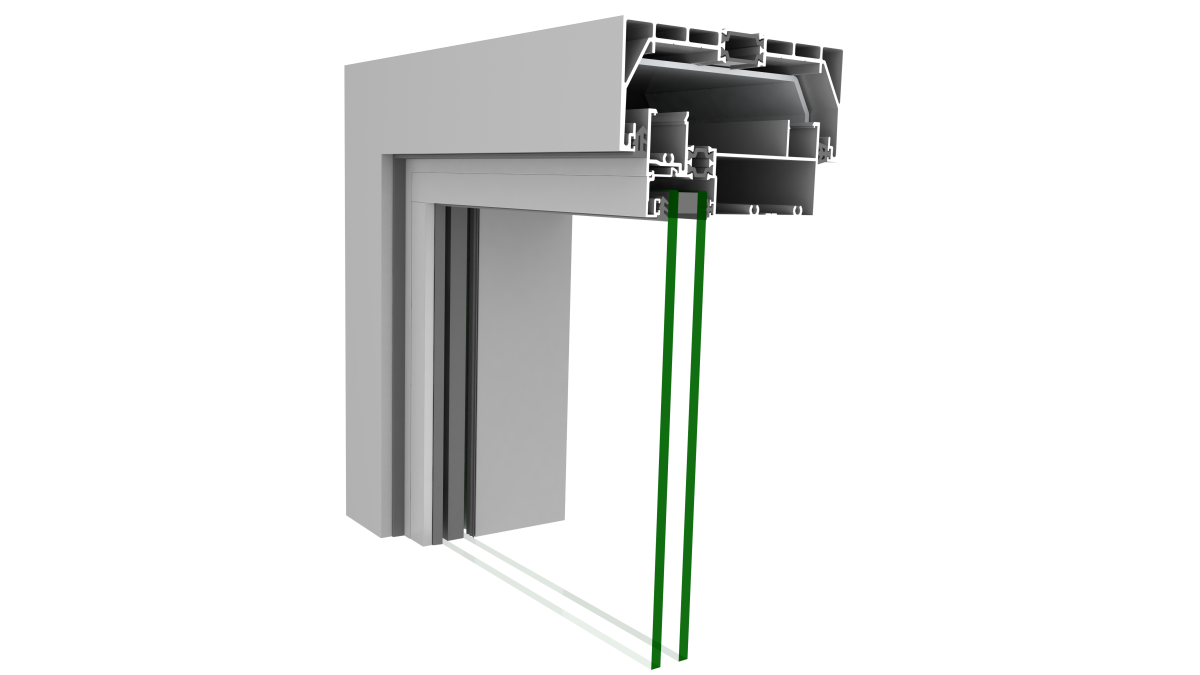

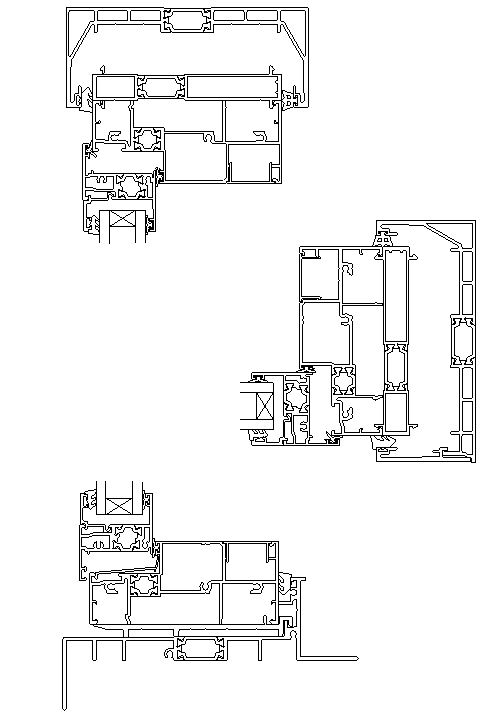

Seismic frame option at head with fixed light

Product Enquiries

Description

Awning and casement windows have clean lines and a visual aesthetic that matches the entire product range. There is a choice of facing and flush, non-facing options. Designed for suitability in large sizes in demanding exposures.

Key Features

Window frame is available in two options, 114mm and 171mm, which couple with adjoining door frames for a continuous interior edge
Awning and casement sashes have a facing sash option, though a non-facing sash option is available
Frames have facing adaptors which allow 20mm of weather cover if desired
A full range of sill trays and seismic frames are available
Mullions and transoms have stiffening boxes which project to the interior

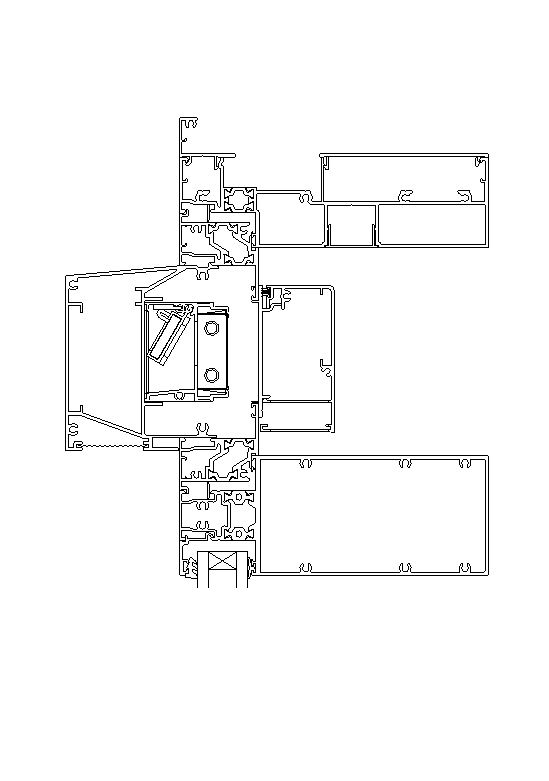

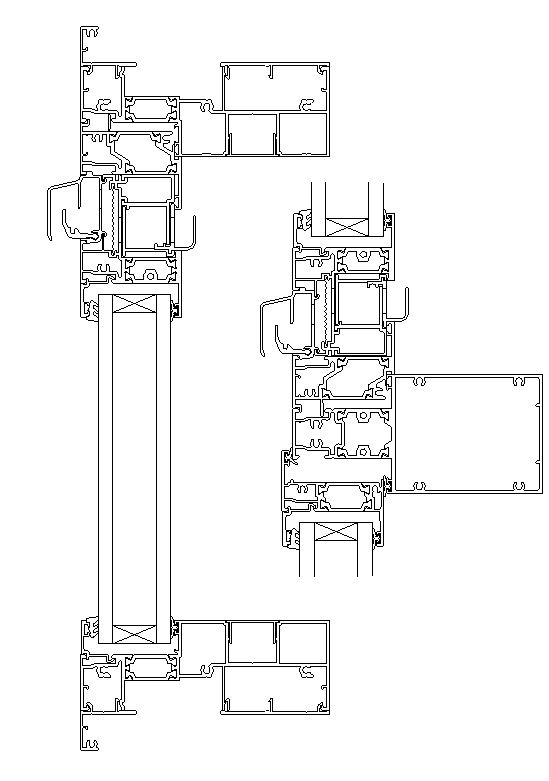

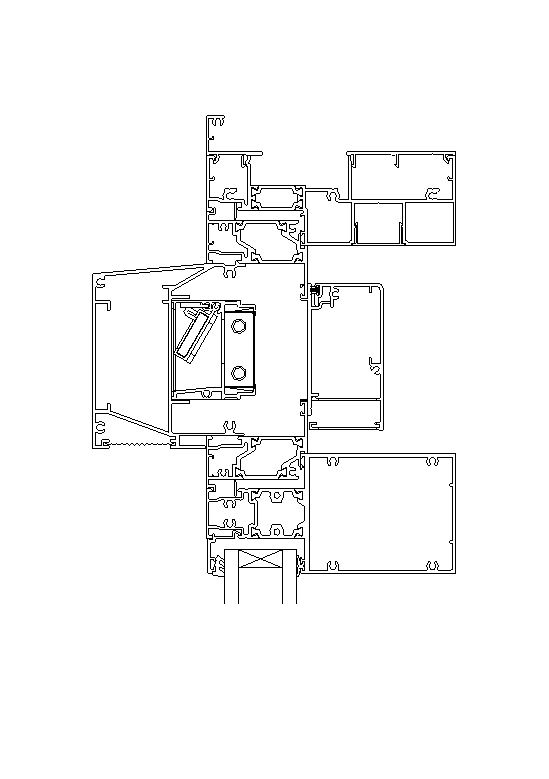

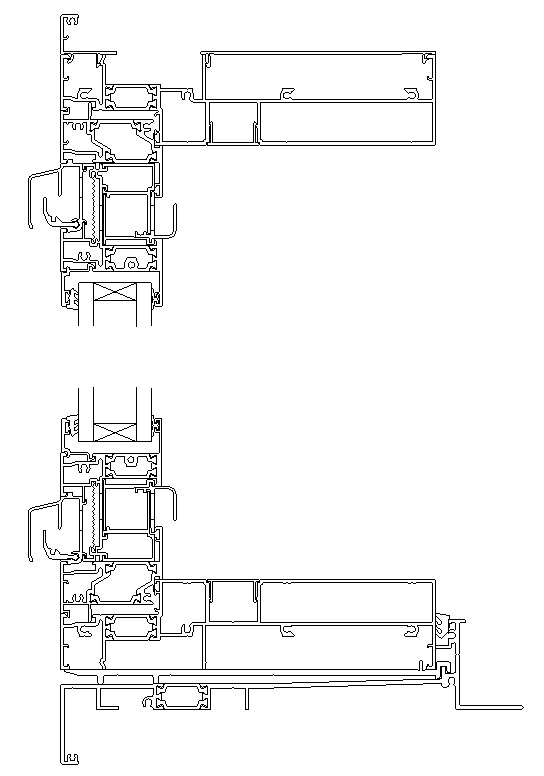

Vent options — Aerovent, SashVent and Ventient

Ranges

APL Architectural Series ThermalHEART®

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure

Limitations on Use

Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
Consider a horizontal sliding window to protect walkways
Caution is required for the use of casements which open directly into prevailing winds
Casements beyond benches may have top fasteners that are hard to reach
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Launched in 2023
New range rolling out nationally

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. APL Architectural Series ThermalHEART® products can have a different colour on the interior and exterior faces as an optional choice.
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

News

ThermalHEART Windows and Doors Now Extended to APL Architectural Series

VANTAGE Windows & Doors

September 2023

New Products

Documents

Full Specification Guide: APL Architectural Series ThermalHEART®

docx

Specification Guide: APL Architectural Series ThermalHEART® Awning & Casement Windows

docx

Span Tables

pdf

Data Sheet: APL Architectural Series ThermalHEART®

2023

pdf

APL and Sustainability

URL

Declare Label

pdf

Manufacturer Contact List

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

Specifier Guide

2023

URL

Vantage Brochure

URL

Vantage Care, Maintenance & Warranty Brochure (with AGP)

URL

Vantage on Masterspec

URL

WGANZ Guide to E2/AS1

pdf

CAD/PDF Details

View full

APL Architectural Thermal Heart Awning Window Drawings pdf v3

APL Architectural Series ThermalHEART®️ Awning & Casement Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf

zip

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Option

TAAW01

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Jamb Options

TAAW02

dwg

dxf

pdf

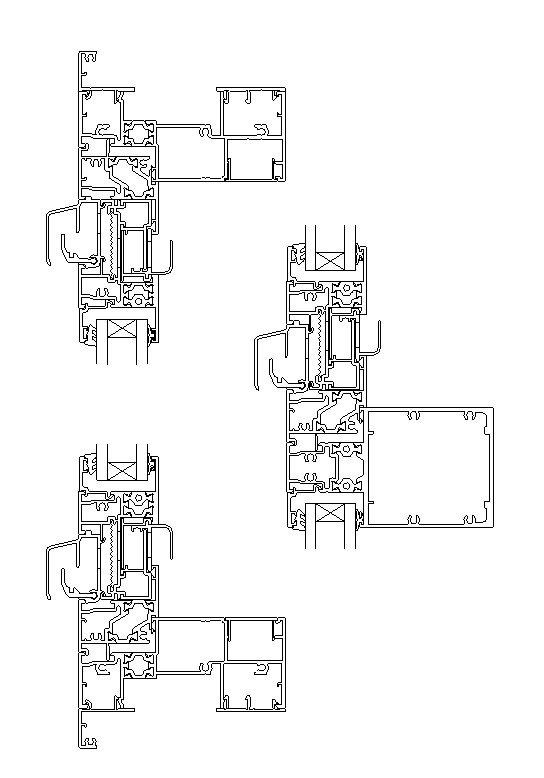

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Aerovent Options

TAAW03

dwg

dxf

pdf

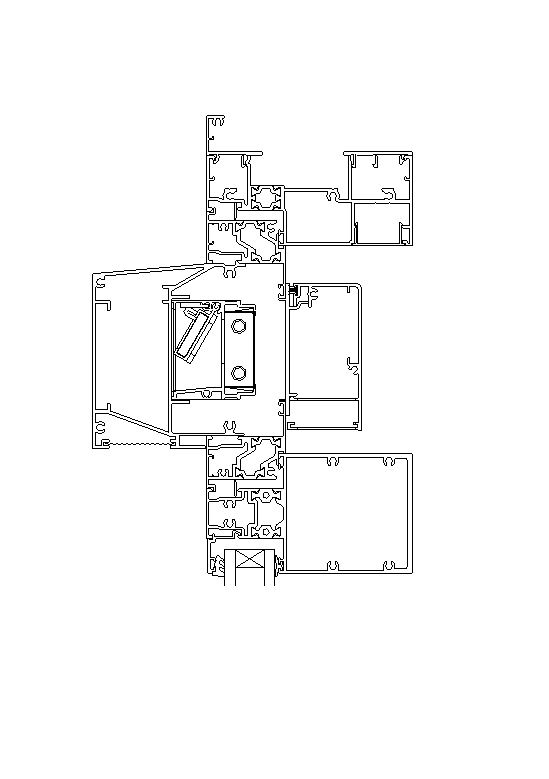

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Ventient Options

TAAW04

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame

TAAW05

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame Jambs

TAAW06

dwg

dxf

pdf

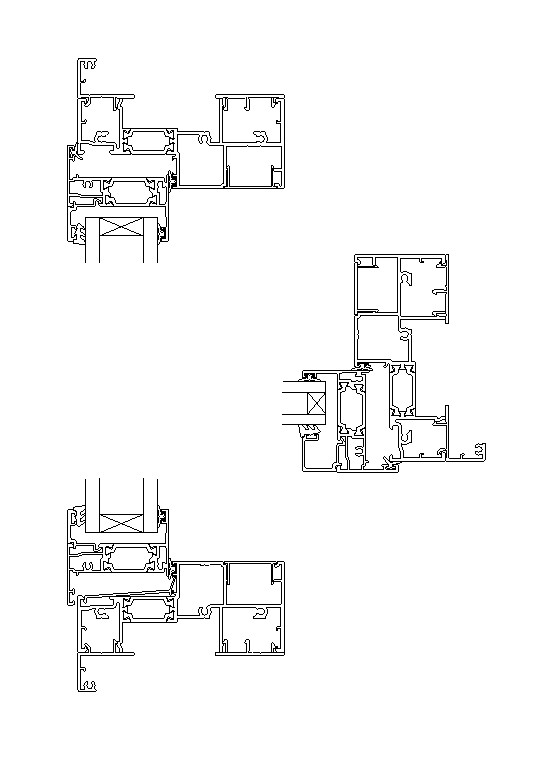

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Option

TAAW10

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Jamb Options

TAAW11

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Aerovent Options

TAAW12

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Ventient Options

TAAW13

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Head/Sill

TAAW14

dwg

dxf

pdf

114mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Jamb

TAAW15

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Flange Facing Infill

TAAW20

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Flat Facing Infill

TAAW21

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Jamb/Mullion Options

TAAW22

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Aerovent Options

TAAW23

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Ventient Options

TAAW24

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Head/Sill Option

TAAW25

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 44mm Seismic Frame Jamb/Mullion Options

TAAW26

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Flange Facing Infill

TAAW30

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Head/Sill Flat Facing Infill

TAAW31

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Jamb/Mullion Options

TAAW32

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Aerovent Options

TAAW33

dwg

dxf

pdf

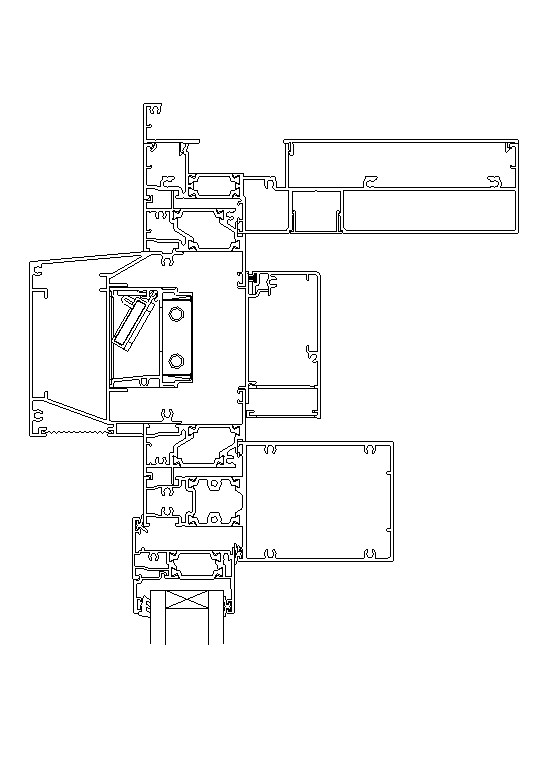

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Ventient Options

TAAW34

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Head/Sill Options

TAAW35

dwg

dxf

pdf

171mm APL Architectural Series ThermalHEART®️ Awning Window 56mm Seismic Frame Jamb/Mullion Options

TAAW36

dwg

dxf

pdf

Installation Details

View full

APL Architectural Series ThermalHEART® 114mm Awning Window on Board & Batten

TA114AWBB

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Brick Veneer

TA114AWBV

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Bevelback Weatherboard

TA114AWBW

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Flat Sheet

TA114AWFS

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Rusticated Weatherboard

TA114AWRW

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Stucco

TA114AWST

dwg

pdf

APL Architectural Series ThermalHEART® 114mm Awning Window on Profile Metal

TA114SWPM

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Board & Batten

TA171AWBB

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Brick Veneer

TA171AWBV

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Bevelback Weatherboard

TA171AWBW

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Flat Sheet

TA171AWFS

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Profile Metal

TA171AWPM

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Rusticated Weatherboard

TA171AWRW

dwg

pdf

APL Architectural Series ThermalHEART® 171mm Awning Window on Stucco

TA171AWST

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Board & Batten

TA171SDBB

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Brick Veneer

TA171SDBV

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Flat Sheet

TA171SDFS

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Profile Metal

TA171SDPM

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Rusticated Weatherboard

TA171SDRW

dwg

pdf

APL Architectural Series ThermalHEART® - 171mm Sliding Door on Stucco

TA171SDST

dwg

pdf

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.
