Clearview Capped Balustrade
Spectrum
All products

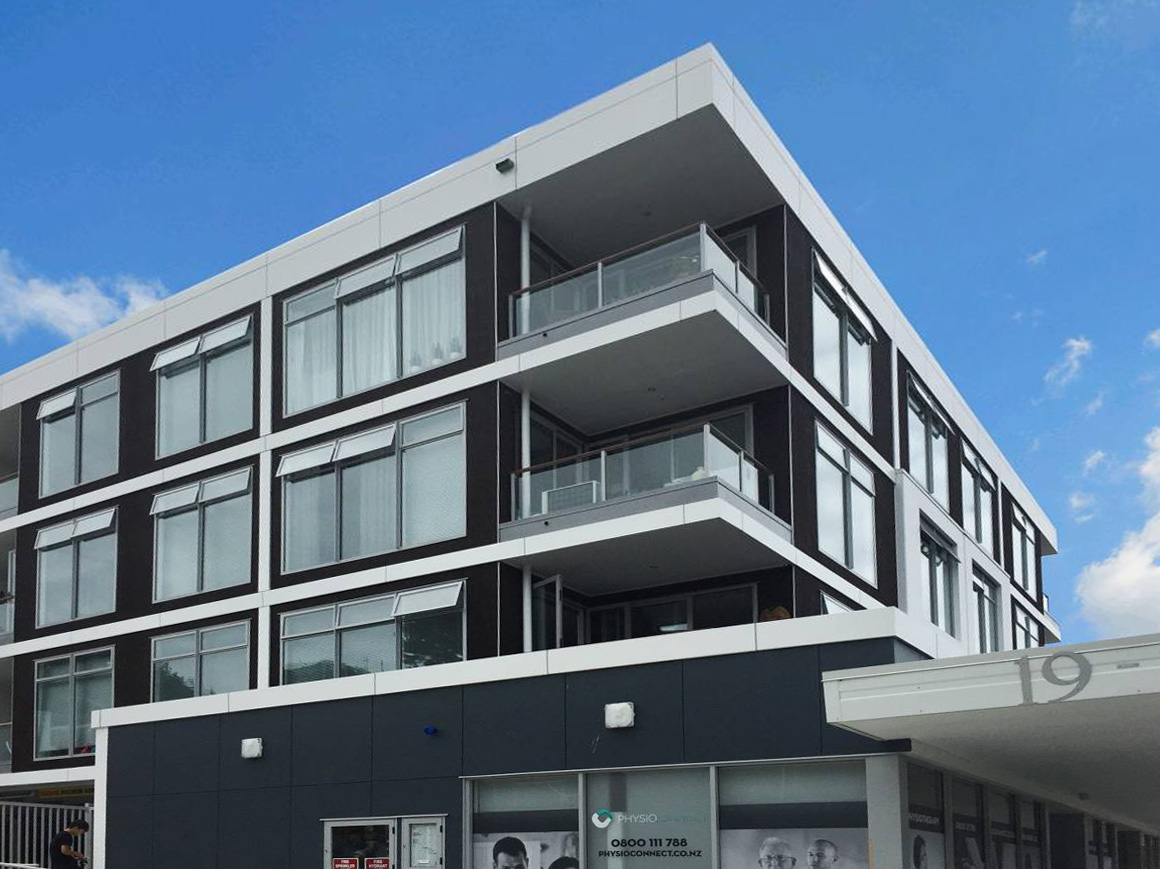

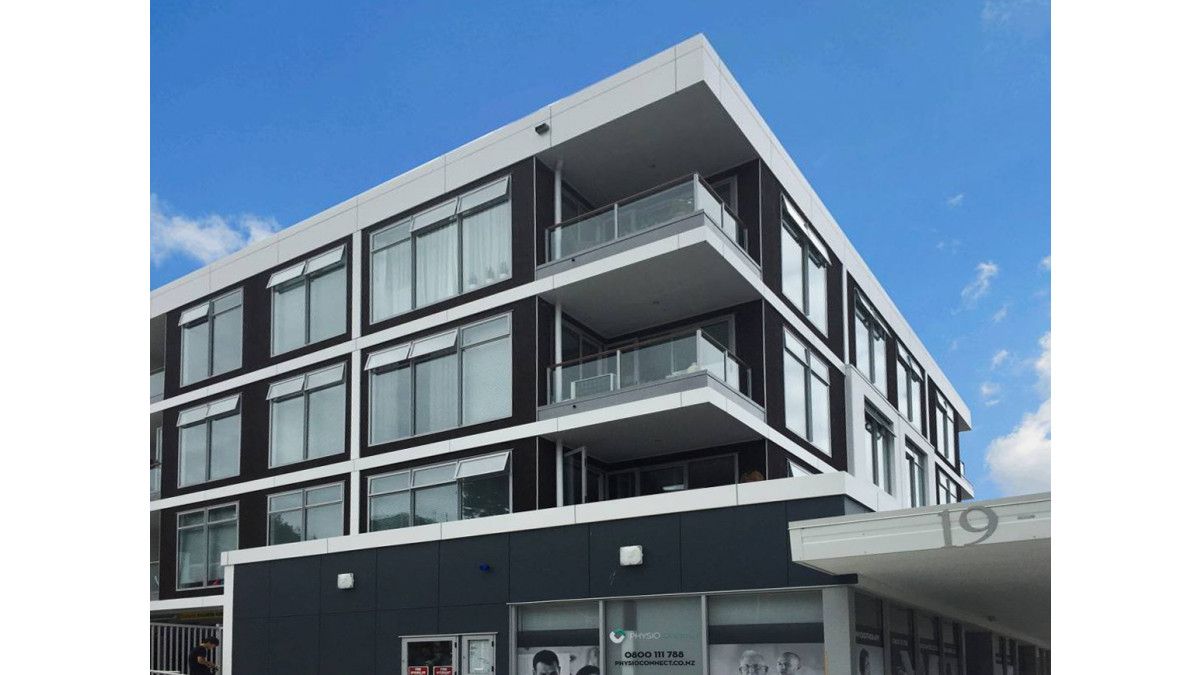

Clearspan Capped 3

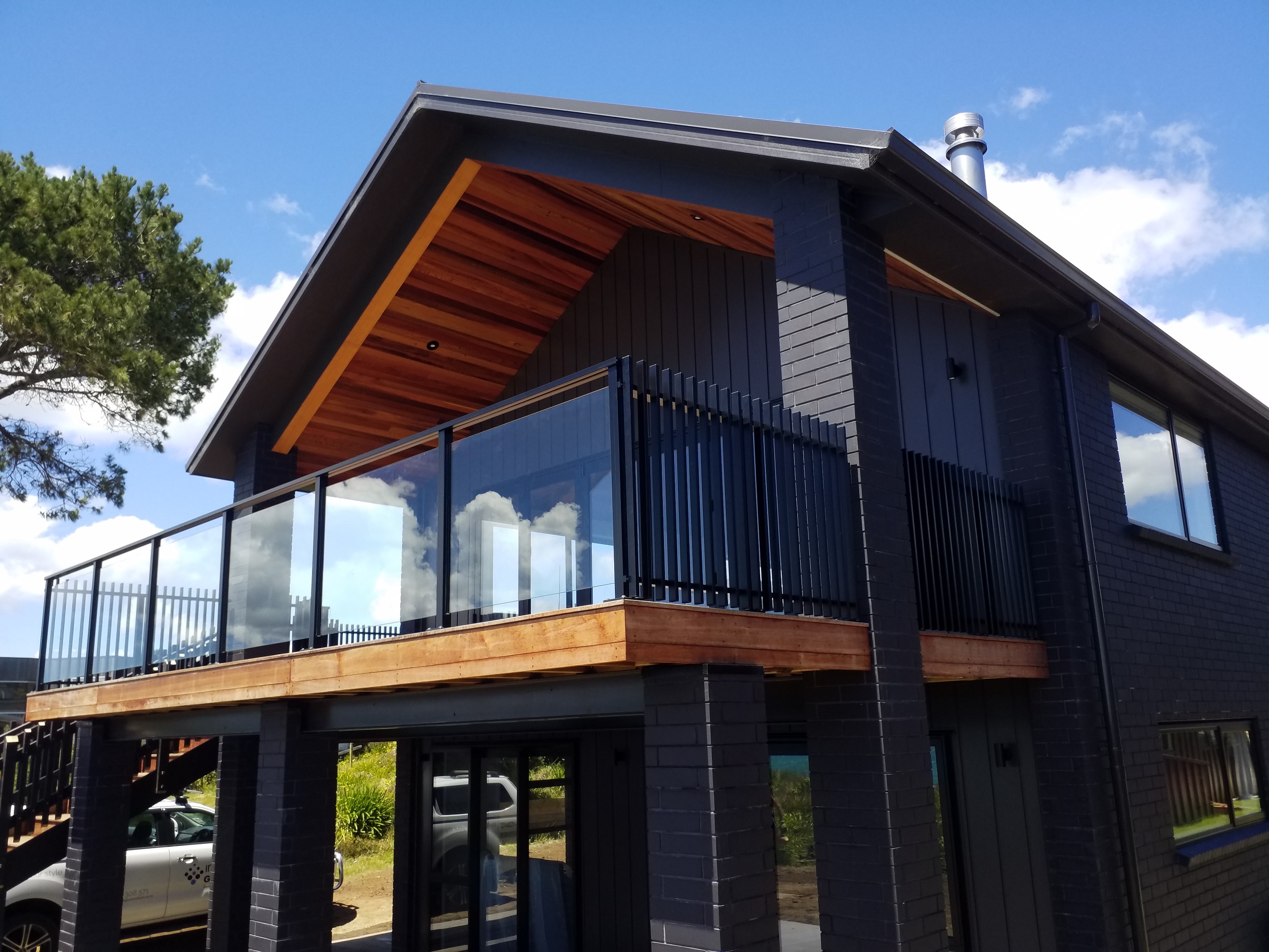

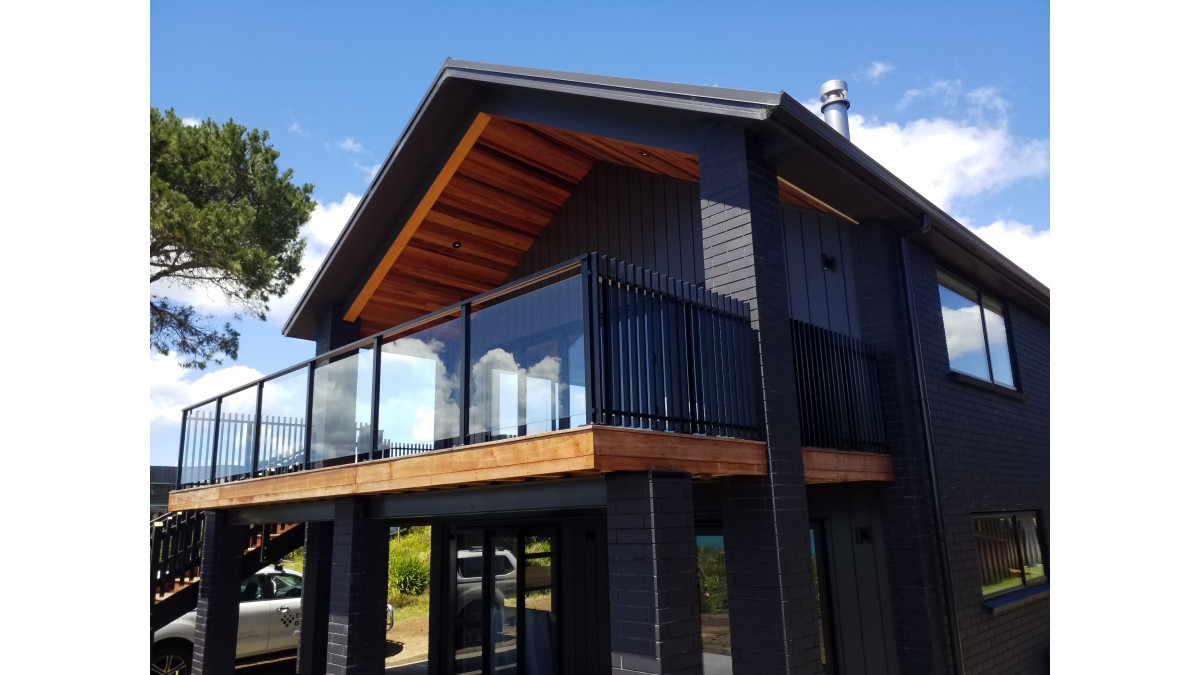

Clearview capped Face Hung Fin

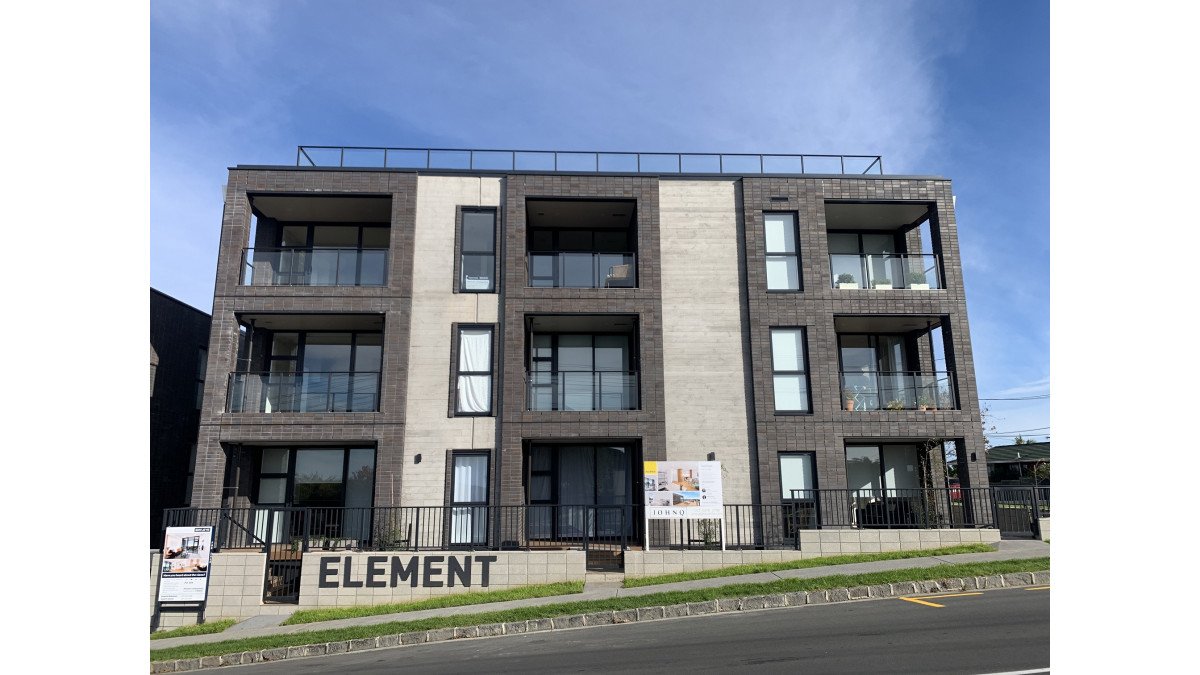

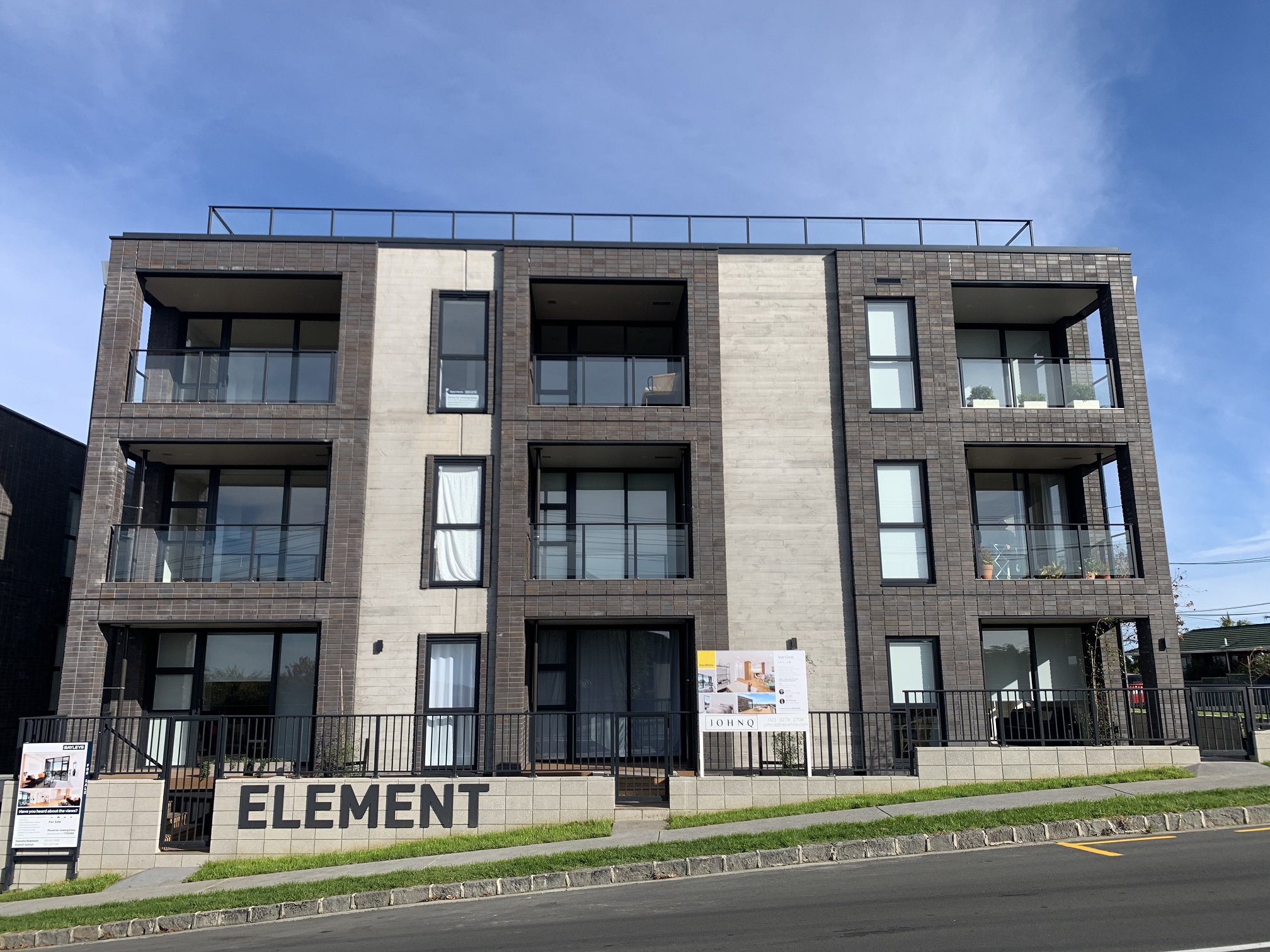

Element

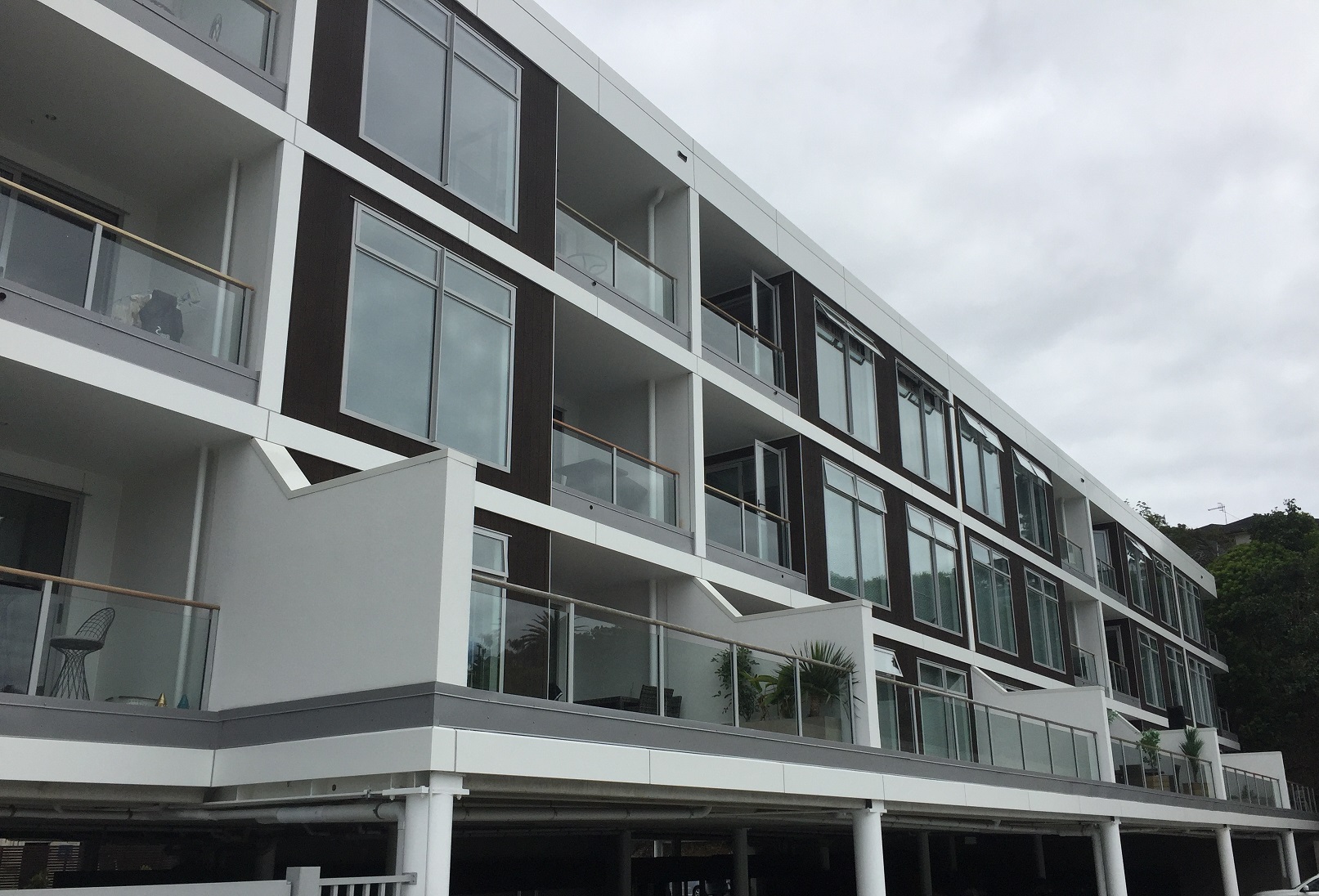

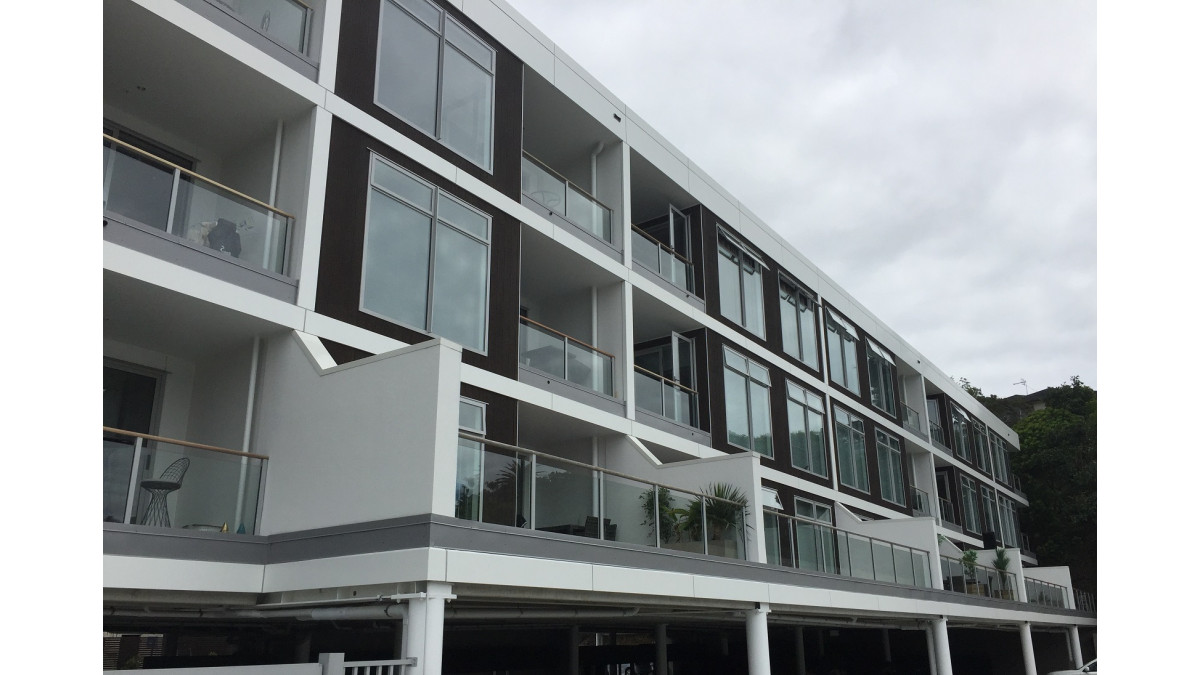

Norfolk Bute
Description

Clearview Capped Balustrade is a semi-frameless glass balustrade offering a great balance of unobstructed views and security. Clearview Capped has an interlinking handrail fixed to the top of the balustrade post. Toughened Safety Glass is used with the handrail to achieve compliance as a balustrade.

Key Features
  • Great visibility through semi-frameless glass balustrade
  • Toughened Safety Glass
  • Interlinking handrail fixed to the top of the balustrade post for security and compliance
  • Varying handrail shape options
  • Various fixing methods possible
  • Aluminium is extruded locally and fixings are high grade 316 stainless steel
  • Seven year material defects warranty and two year workmanship warranty available
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Pool Fencing
Ranges
Balustrades – Semi-frameless Glass
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

The system is suitable for:

  • Residential and commercial
  • External and internal
  • Pool fence applications
Limitations on Use

As of June 2016 Clearview semi-frameless balustrades must have a handrail or top capping on toughened glass or approved alternative glass solution to comply with NZS 4223.3 2016.

This system is not suitable for the following occupancy types:

  • C1/C2: Areas where people may congregate with tables and fixed seating (e.g. restaurants, bars)
  • C5: Areas susceptible to over-crowding
  • D: Retail areas
Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

  • Clause B1 Structure
  • Clause B2 Durability
  • Clause D1 Access Routes
  • Clause E2 External Moisture
  • Clause F2 Hazardous Building Materials
  • Clause F4 Safety from Falling
Other Performance Attributes

Spectrum Balustrade Systems meets and exceeds all reference standards:

  • NZS 8500:2006: Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
  • AS/NZS 1170:2011: Structural Design Actions
Documents
Material Safety Data Sheet
pdf
Producer Statement
pdf
Maintenance Instructions
pdf
Warranty
pdf
Brochure

Rev A 8.6.20

pdf
CAD/PDF Details
View full
Face Fixed to Timber 90deg Corner
dwg
pdf
Clearspan Face fixed to timber Coachscrew

3.1.1

dwg
dxf
pdf
Clearspan Top fixed to steel

3.1.11

dwg
dxf
pdf
Clearspan Top fixed to narrow steel

3.1.12

dwg
dxf
pdf
BL-3-1-13-Clearspan-or-Clearview-Face-Fixed-to-Timber-Coachscrew-with-Castaway-Bracket-9-9-19-pdf.jpg
Clearspan - Castaway face fixed to timber (Coachscrew)

3.1.13

dwg
dxf
pdf
BL 3 1 14 Clearspan or Clearview Face Fixed to Timber Bolt with Castaway Bracket 10 5 22 pdf
Clearspan - Castaway face fixed to timber (Bolt through)

3.1.14

dwg
dxf
pdf
BL-3-1-15-Clearspan-or-Clearview-Face-Fixed-to-Concrete-with-Castaway-Bracket-16-8-19-pdf.jpg
Clearspan - Castaway face fixed to concrete

3.1.15

dwg
dxf
pdf
BL-3-1-16-Clearspan-or-Clearview-Face-Fixed-to-Steel-with-Castaway-Bracket-16-12-20-pdf.jpg
Clearspan - Castaway face fixed to steel

3.1.16

dwg
dxf
pdf
Clearspan - face fixed to 160mm concrete

3.1.17

dwg
dxf
pdf
Clearspan Face fixed to timber Bolt

3.1.2

dwg
dxf
pdf
BL 3 1 21 Clearspan Face Fixed to Dry Timber Bolt through with stiffener 19 1 22 pdf
Clearspan - face fixed to dry timber (bolt through with stiffener)

3.1.21

dwg
dxf
pdf
BL 3 1 22 Clearspan Face Fixed to Wet Timber Bolt through with stiffener 19 1 22 pdf
Clearspan - Castaway face fixed to wet timber (bolt through with stiffener)

3.1.22

dwg
dxf
pdf
Clearspan - Top fixed to 75mm steel (2x M12)

3.1.24

dwg
dxf
pdf
BL-3-1-25-Clearspan-or-Clearview-Face-Fixed-to-Steel-RHS-with-Rivnut-14-12-20-pdf.jpg
Clearspan - face fixed to steel RHS with Rivnut

3.1.25

dwg
pdf
Clearspan Face fixed to 200mm concrete

3.1.3

dwg
dxf
pdf
Clearspan Face fixed to steel

3.1.4

dwg
dxf
pdf
Clearspan Top fixed to timber

3.1.5

dwg
dxf
pdf
Clearspan Top fixed to concrete

3.1.7

dwg
dxf
pdf
Clearspan Top fixed to thin concrete

3.1.9

dwg
dxf
pdf
3.1.9 Thumbnail
Clearspan Top fixed to thin concrete

3.1.9

dwg
dxf
pdf
