Clearspan Inline Fin Balustrade
Spectrum
All products

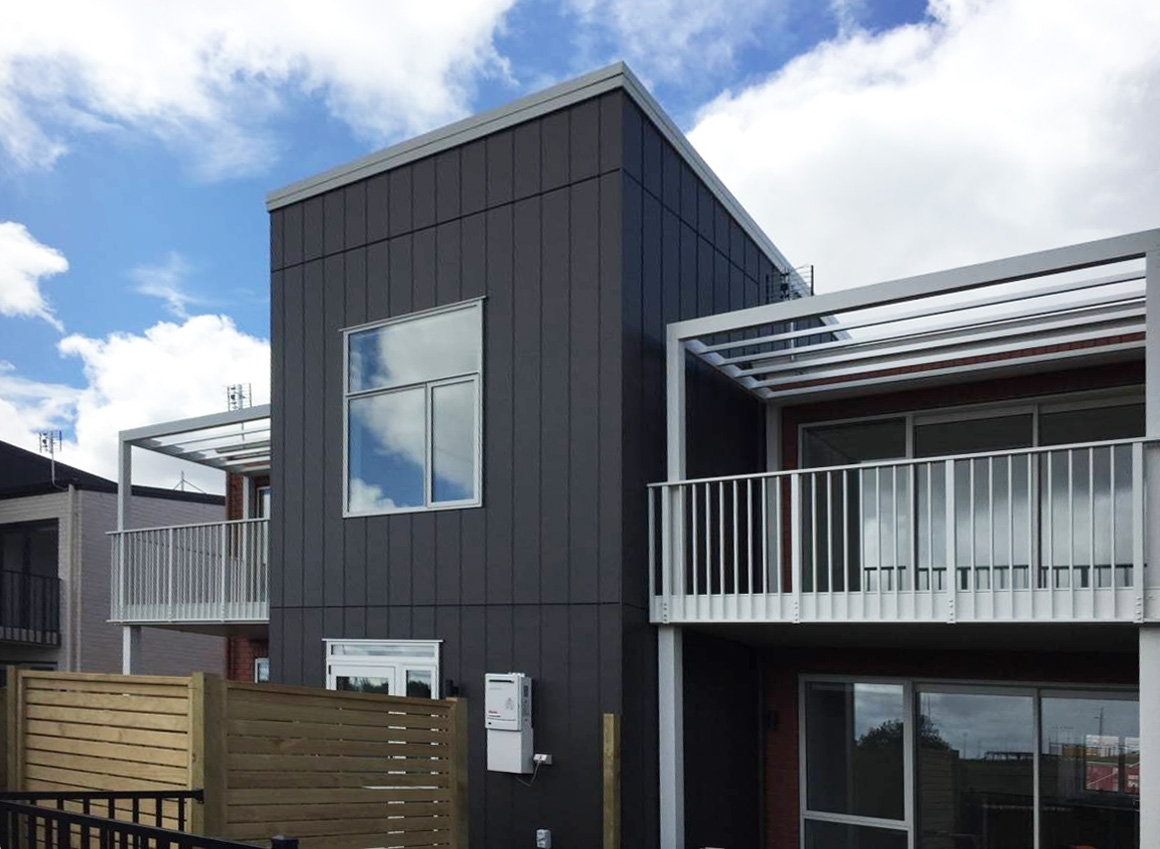

Clearspan Inline Fin 3

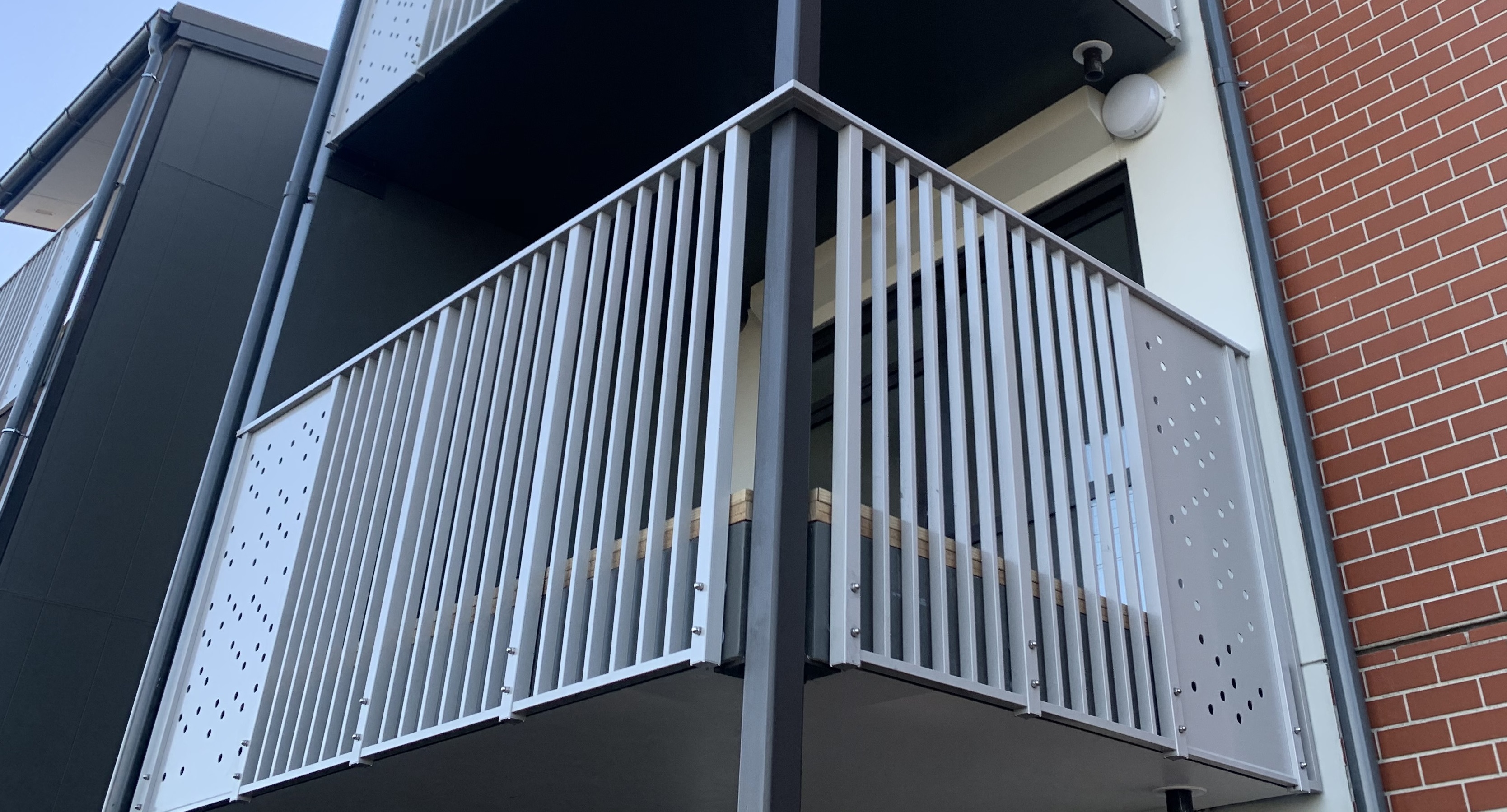

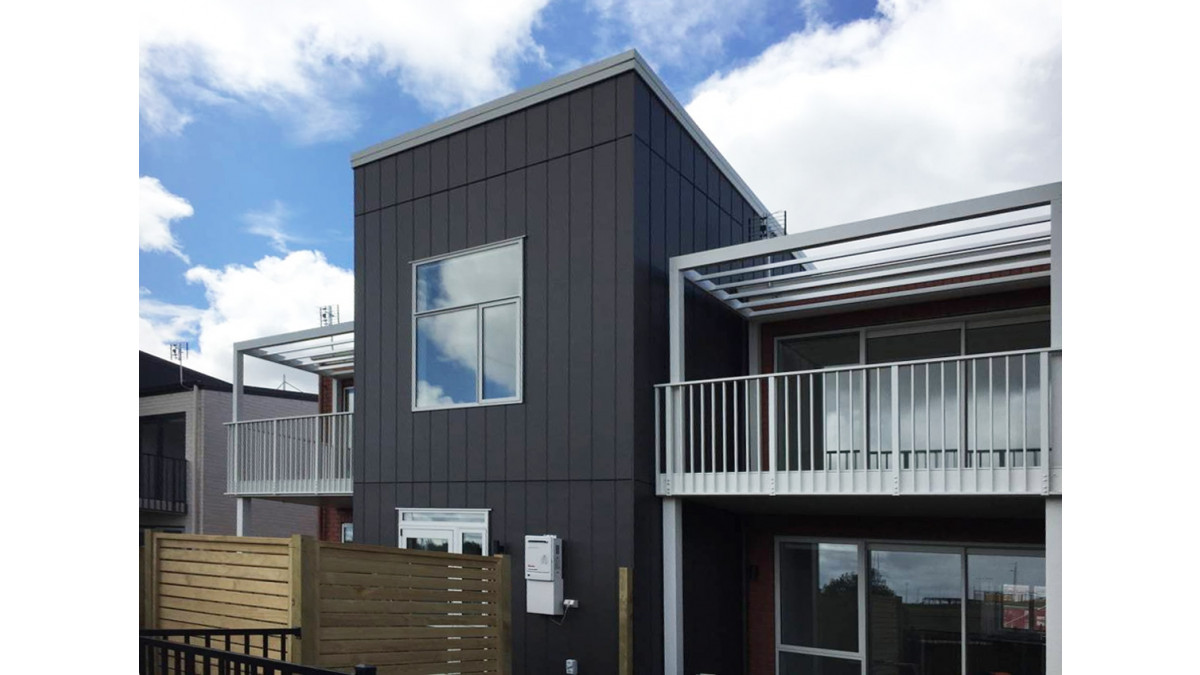

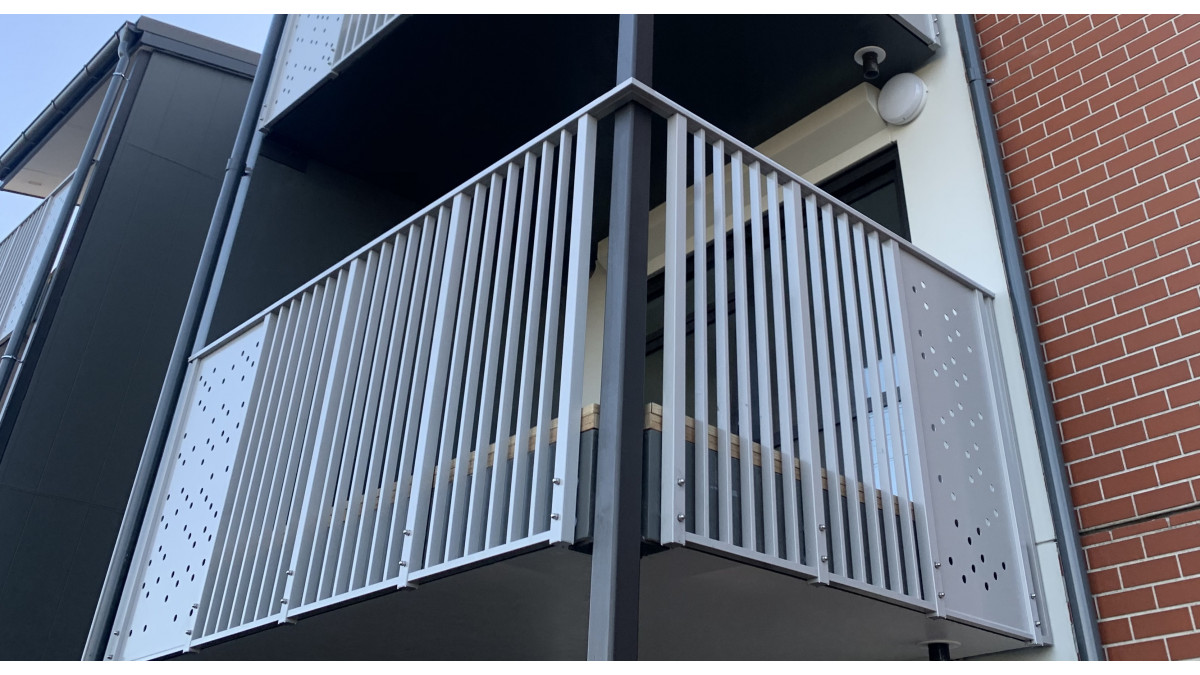

Inline Fin main1

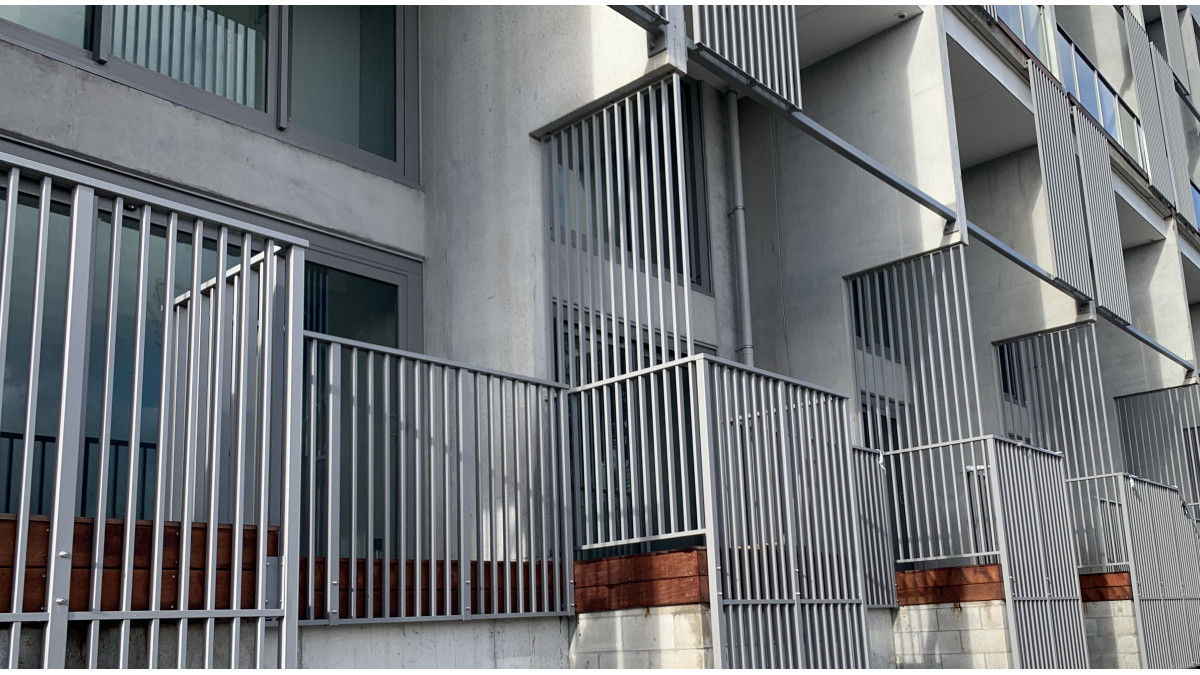

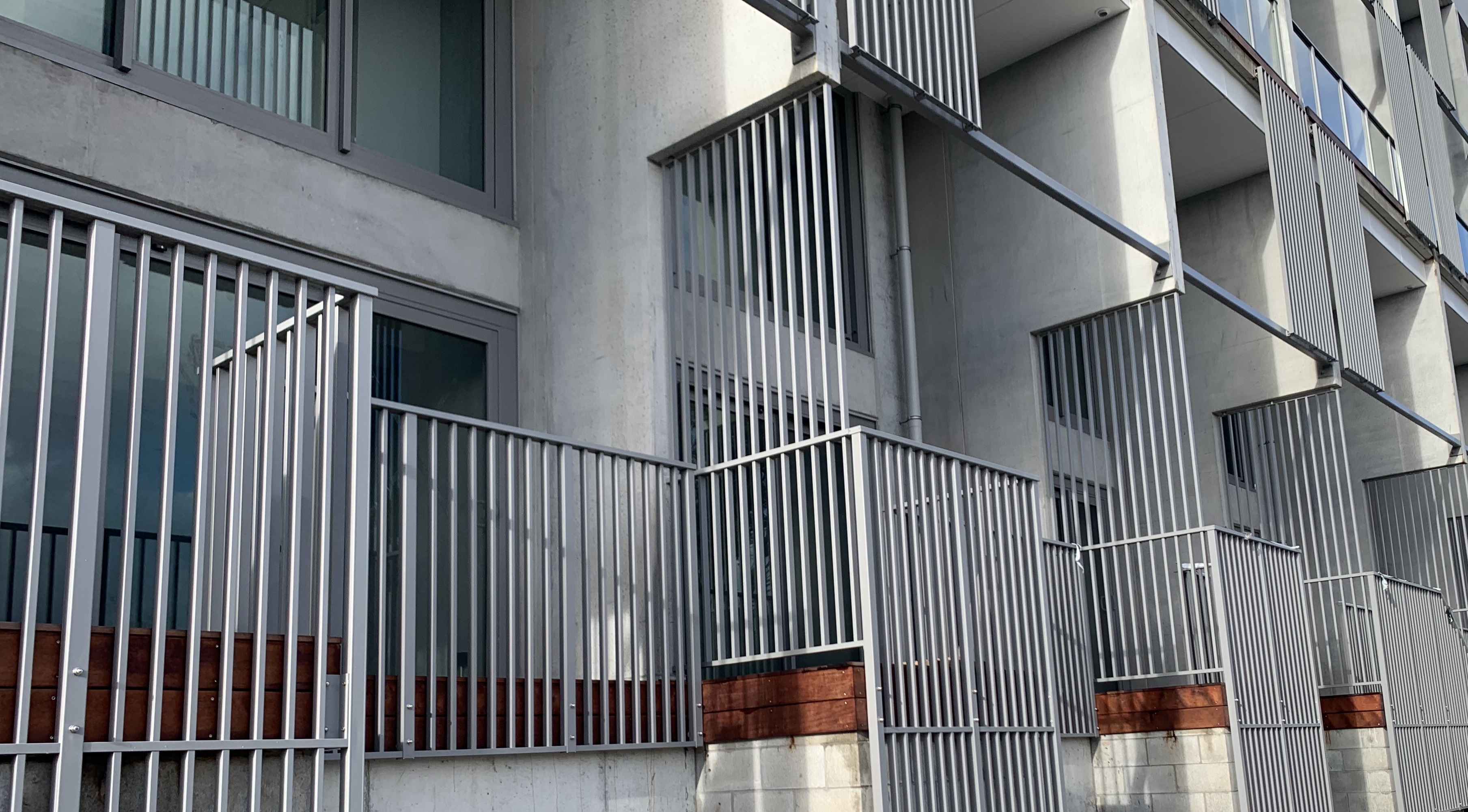

Inline Fin Union Green

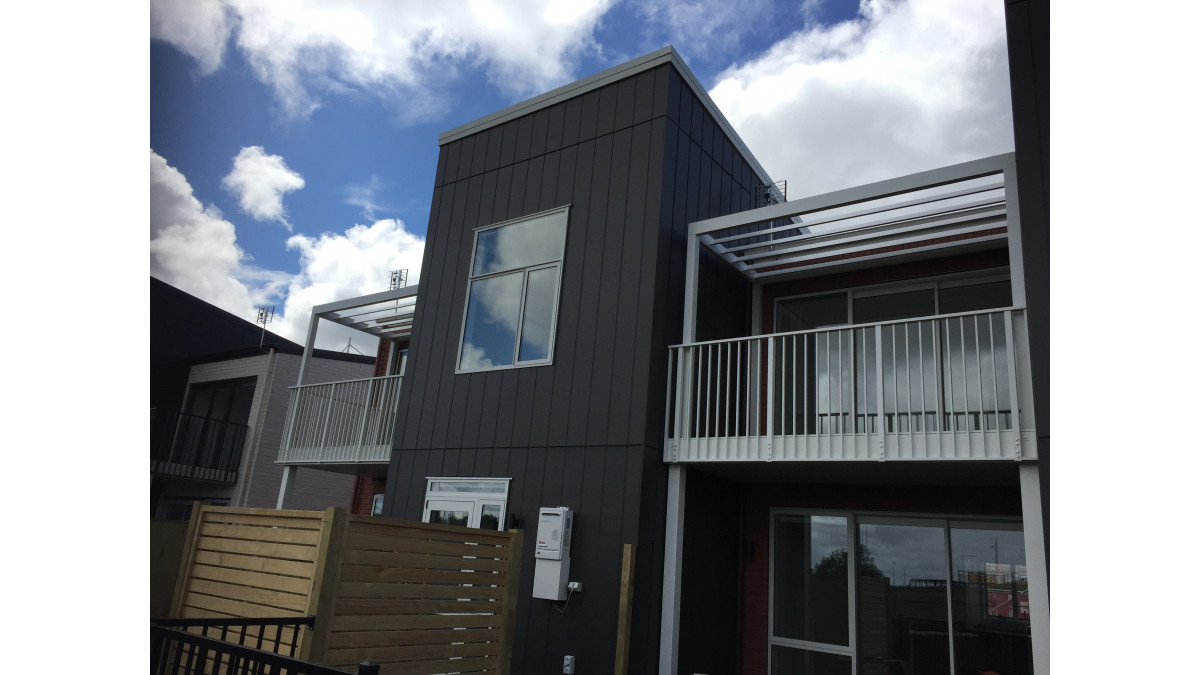

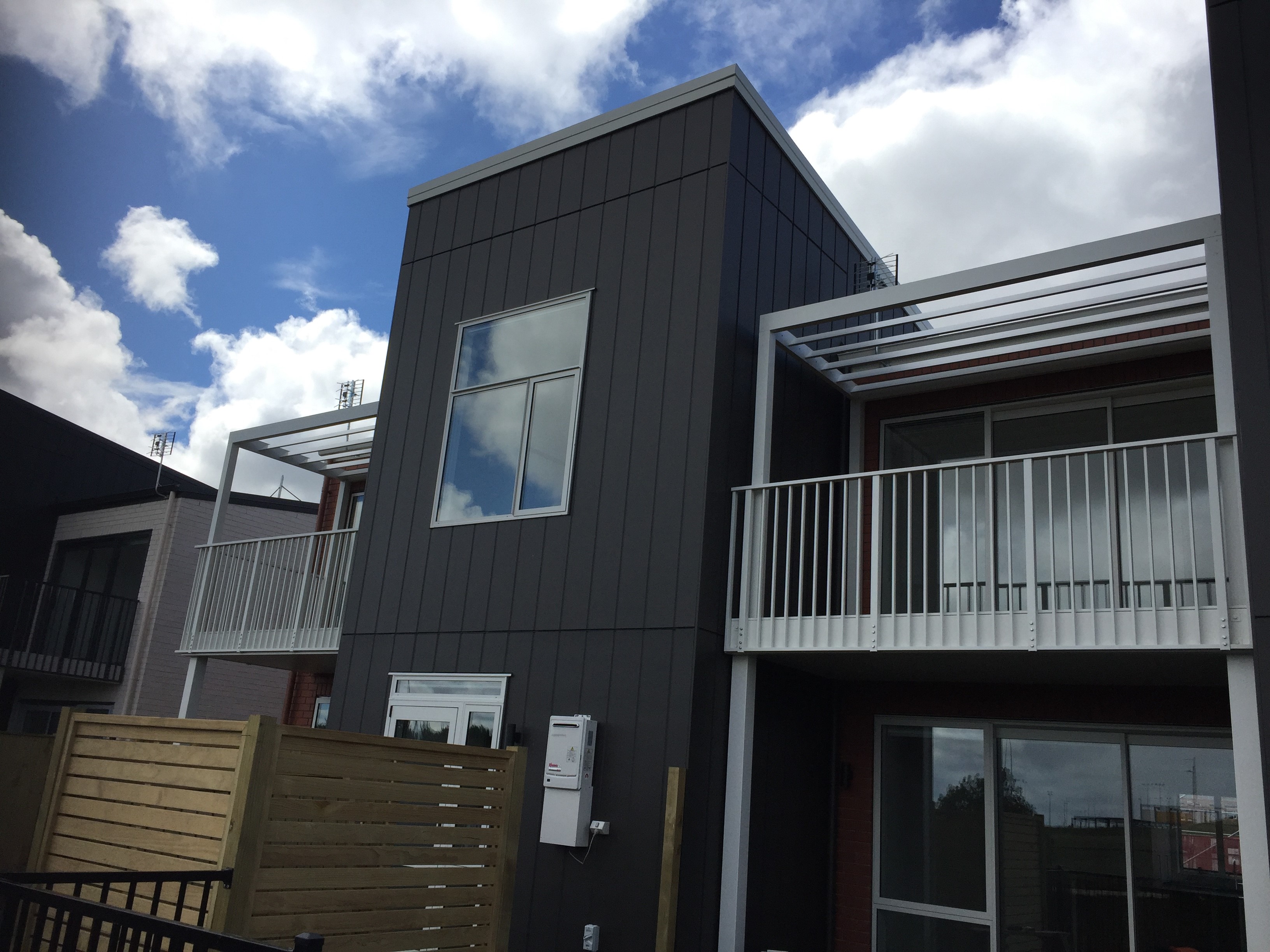

Fletcher Living

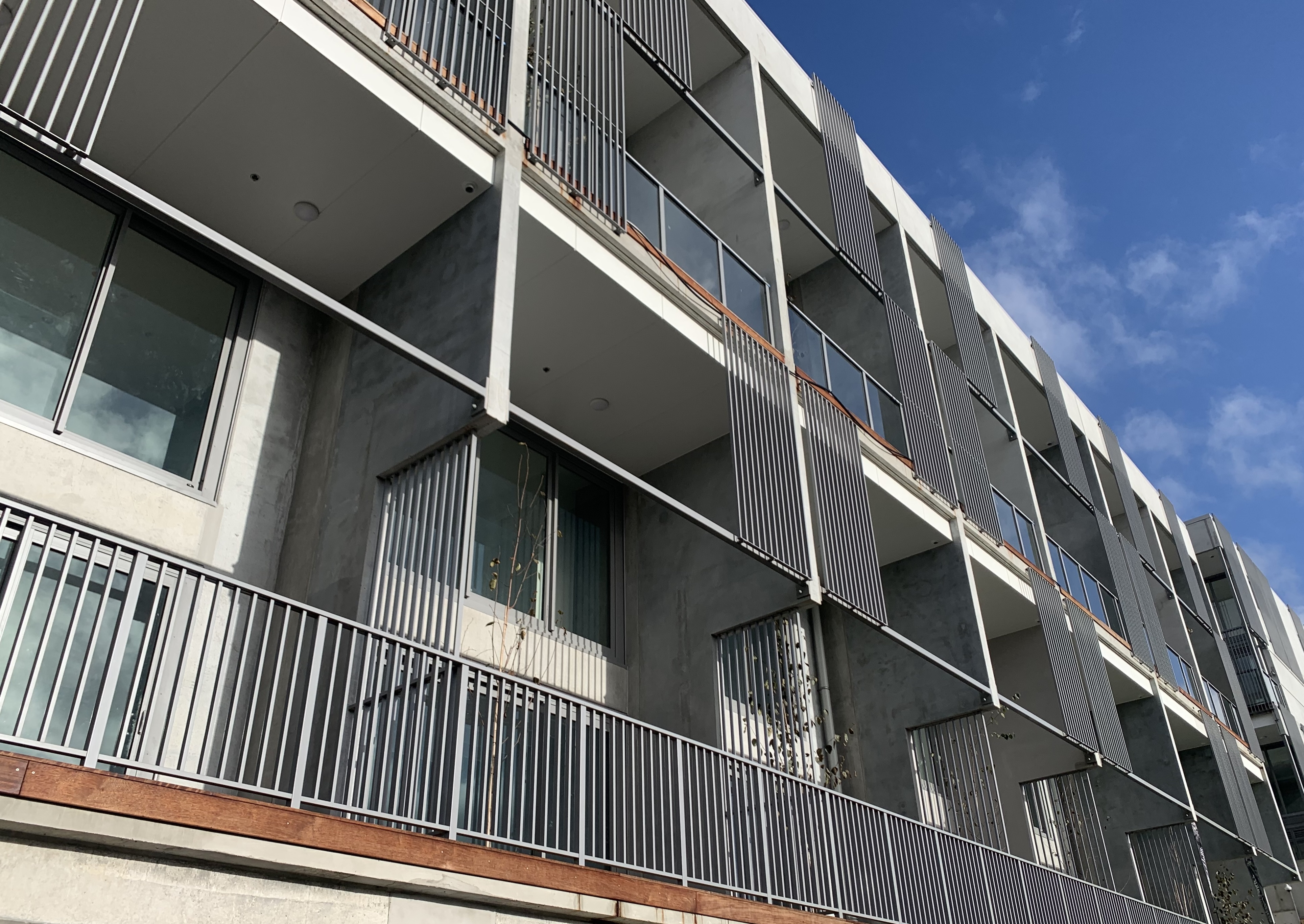

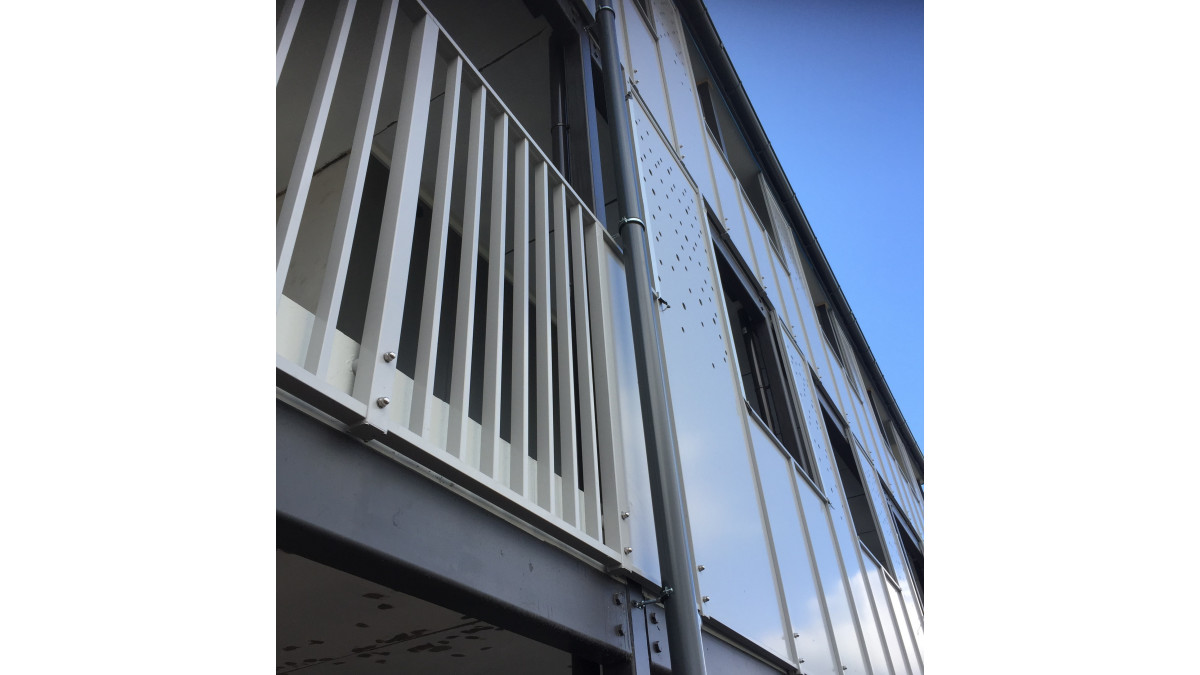

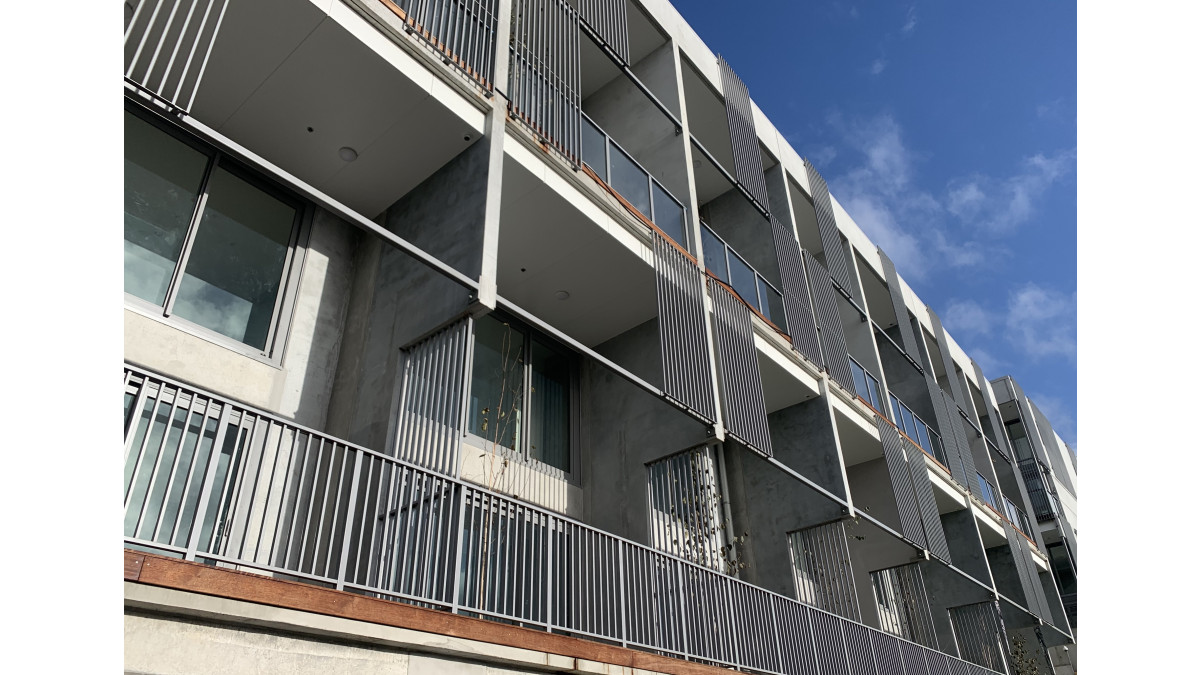

Inline Fin Screens Union Green

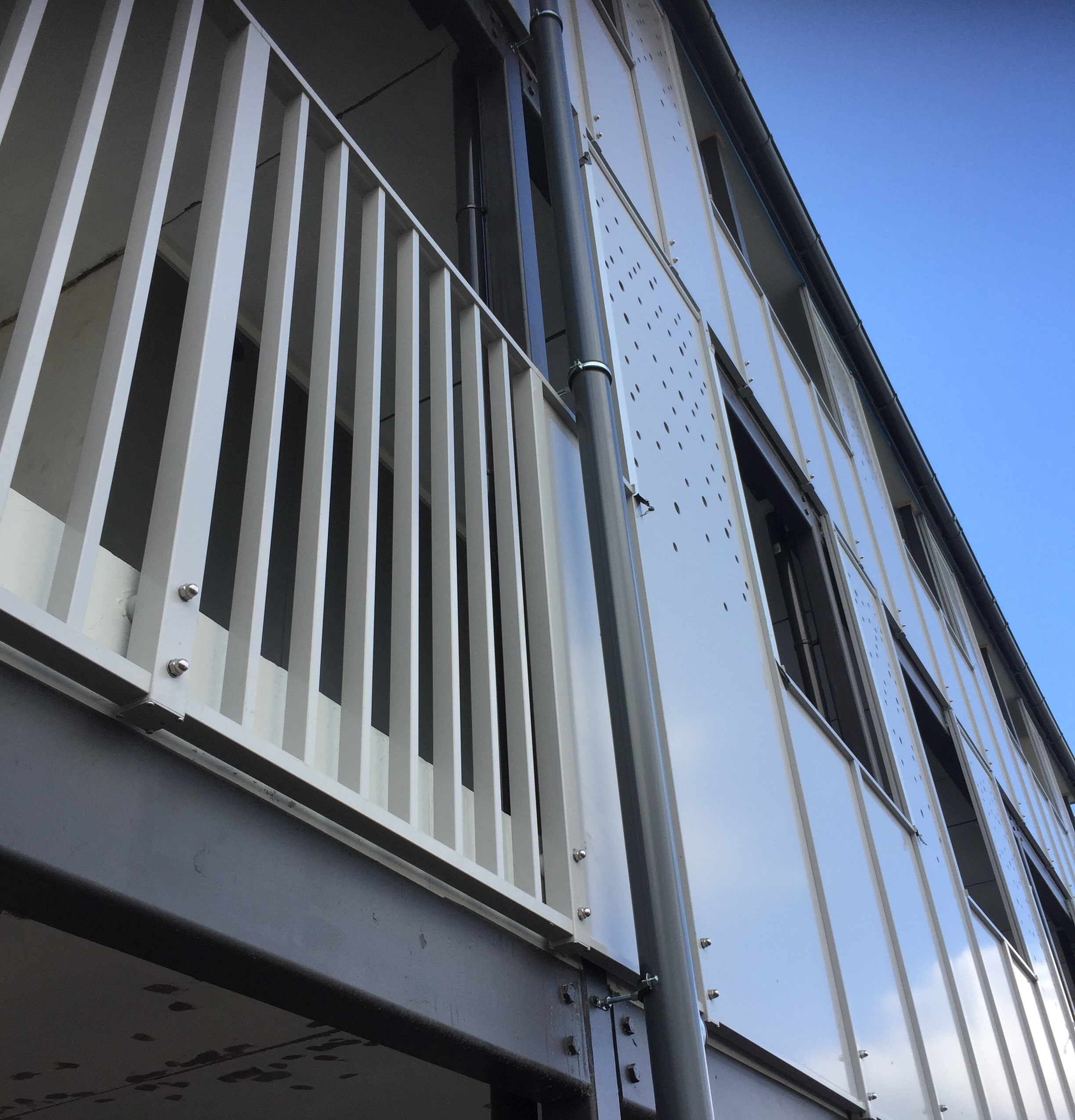

Inline Fin Screen
Description

Clearspan Inline Fin is a traditional balustrade with a modern twist. In place of square balusters, vertical fins are used.

The system system uses the popular clearspan post/fixing details. The fins attach between the handrail and subrail providing depth to the system. When face fixed to the deck it allows the fins to cover the face of the deck and/or be integrated into privacy screens.

Key Features
  • Fins can cover deck edge and/or extend to make privacy screens
  • Longer fin spans can be achieved
  • Fin size and spacing can be varied
  • All components are made using the highest grades of aluminium and stainless steel
  • Speed of installation
  • Seven year material defects warranty and two year workmanship warranty available
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Pool Fencing
Ranges
Balustrades - Fin & Slat
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • The system is suitable for residential, commercial, external, internal and pool fence applications.
Limitations on Use

This system is not suitable for the following occupancy types:

  • C1/C2: Areas where people may congregate with tables and fixed seating (e.g. restaurants, bars)
  • C5: Areas susceptible to over-crowding
  • D: Retail areas
Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

  • Clause B1 Structure
  • Clause B2 Durability
  • Clause D1 Access Routes
  • Clause E2 External Moisture
  • Clause F2 Hazardous Building Materials
  • Clause F4 Safety from Falling
Other Performance Attributes

Spectrum Balustrade Systems meets and exceeds all reference standards:

  • NZS 8500:2006: Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
  • AS/NZS 1170:2011: Structural Design Actions

Warranty:

  • Seven year material defects warranty and two year workmanship warranty available
  • Case Studies
  • News
Documents
Material Safety Data Sheet
pdf
Producer Statement
pdf
Maintenance Instructions
pdf
Warranty
pdf
Brochure

Rev A. 30.4.20

pdf
CAD/PDF Details
View full

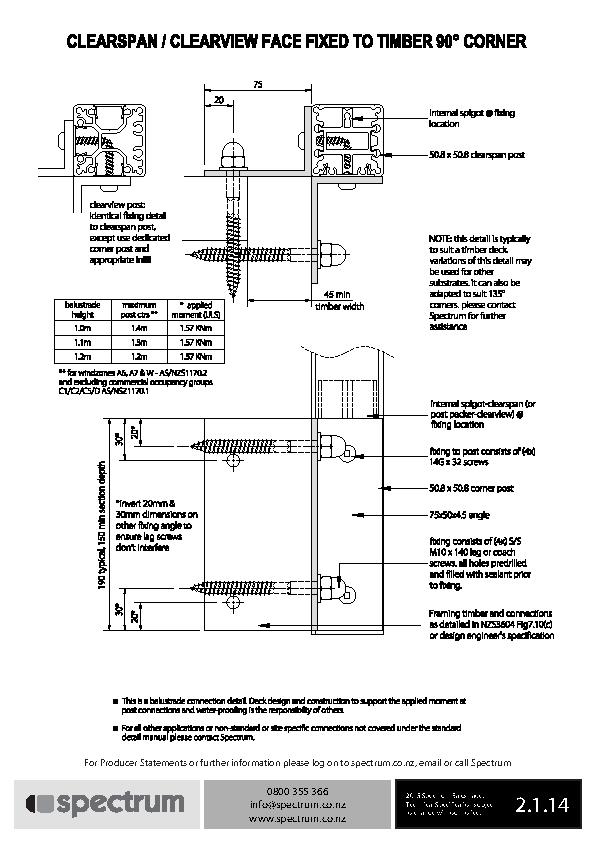

Face Fixed to Timber 90deg Corner
dwg
pdf

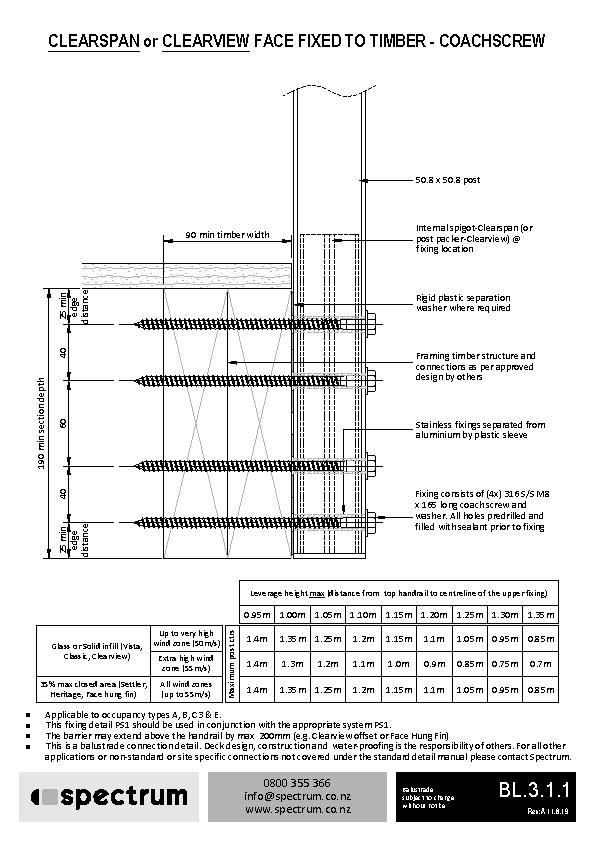

Clearspan Face fixed to timber Coachscrew

3.1.1

dwg
dxf
pdf

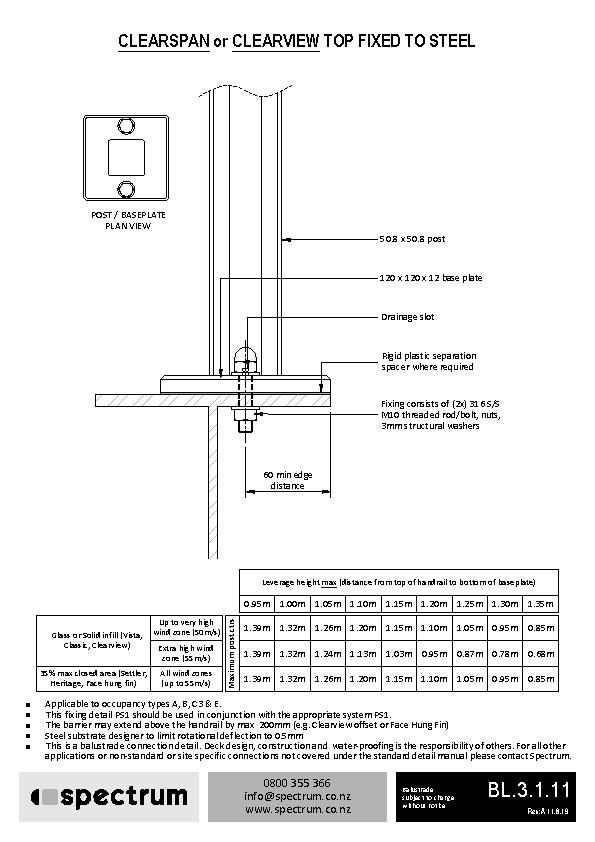

Clearspan Top fixed to steel

3.1.11

dwg
dxf
pdf

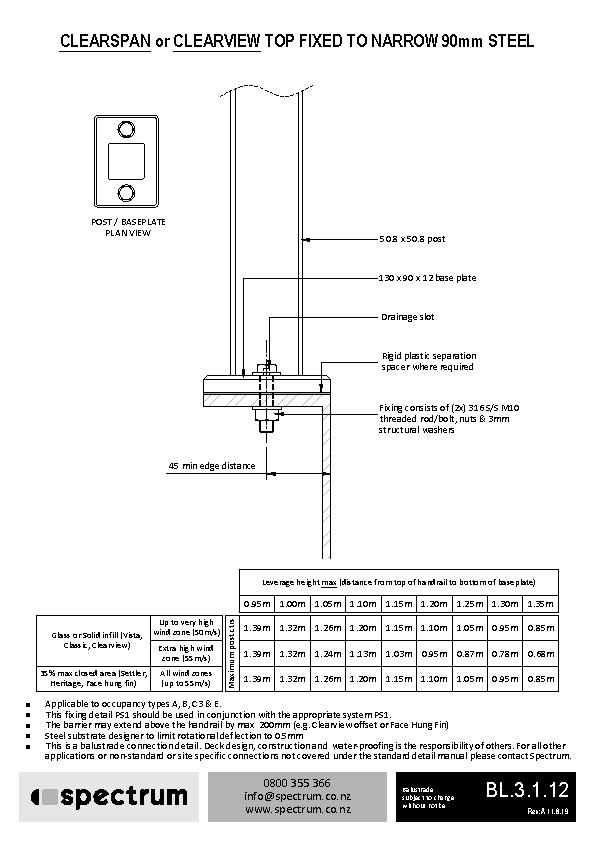

Clearspan Top fixed to narrow steel

3.1.12

dwg
dxf
pdf
BL-3-1-13-Clearspan-or-Clearview-Face-Fixed-to-Timber-Coachscrew-with-Castaway-Bracket-9-9-19-pdf.jpg
Clearspan - Castaway face fixed to timber (Coachscrew)

3.1.13

dwg
dxf
pdf
BL 3 1 14 Clearspan or Clearview Face Fixed to Timber Bolt with Castaway Bracket 10 5 22 pdf
Clearspan - Castaway face fixed to timber (Bolt through)

3.1.14

dwg
dxf
pdf
BL-3-1-15-Clearspan-or-Clearview-Face-Fixed-to-Concrete-with-Castaway-Bracket-16-8-19-pdf.jpg
Clearspan - Castaway face fixed to concrete

3.1.15

dwg
dxf
pdf
BL-3-1-16-Clearspan-or-Clearview-Face-Fixed-to-Steel-with-Castaway-Bracket-16-12-20-pdf.jpg

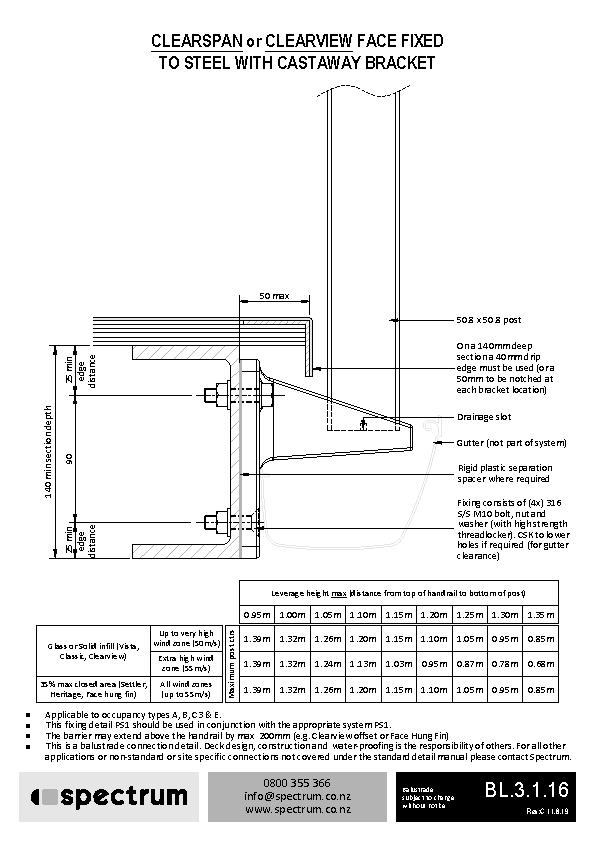

Clearspan - Castaway face fixed to steel

3.1.16

dwg
dxf
pdf

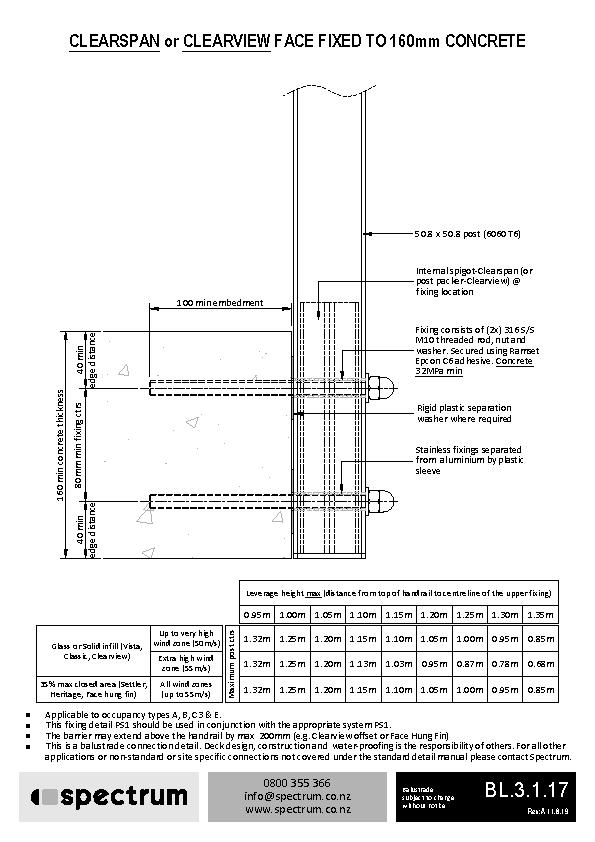

Clearspan - face fixed to 160mm concrete

3.1.17

dwg
dxf
pdf

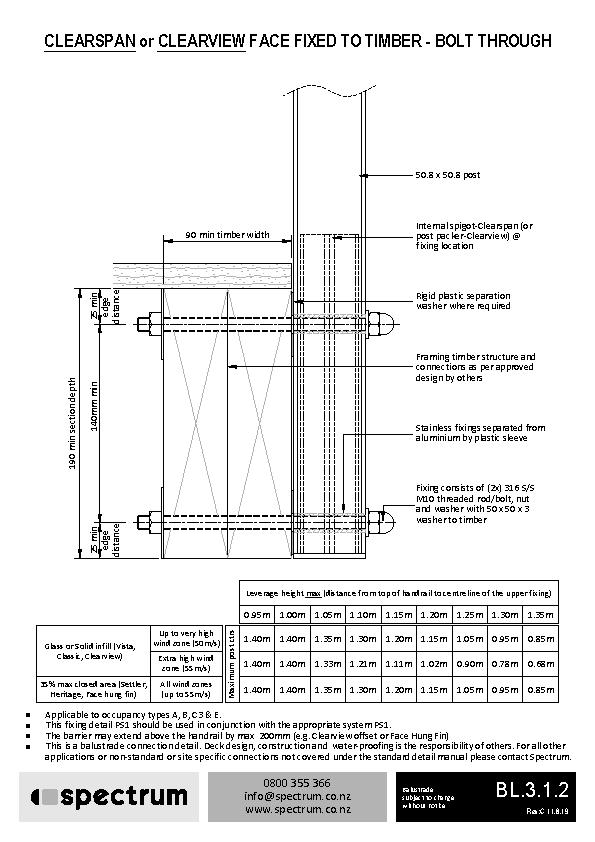

Clearspan Face fixed to timber Bolt

3.1.2

dwg
dxf
pdf
BL 3 1 21 Clearspan Face Fixed to Dry Timber Bolt through with stiffener 19 1 22 pdf
Clearspan - face fixed to dry timber (bolt through with stiffener)

3.1.21

dwg
dxf
pdf
BL 3 1 22 Clearspan Face Fixed to Wet Timber Bolt through with stiffener 19 1 22 pdf
Clearspan - Castaway face fixed to wet timber (bolt through with stiffener)

3.1.22

dwg
dxf
pdf

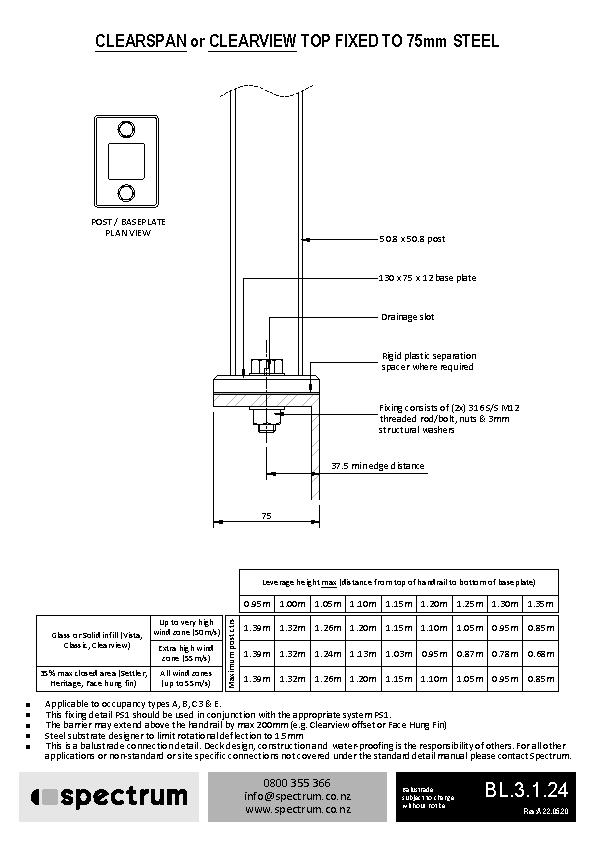

Clearspan - Top fixed to 75mm steel (2x M12)

3.1.24

dwg
dxf
pdf
BL-3-1-25-Clearspan-or-Clearview-Face-Fixed-to-Steel-RHS-with-Rivnut-14-12-20-pdf.jpg

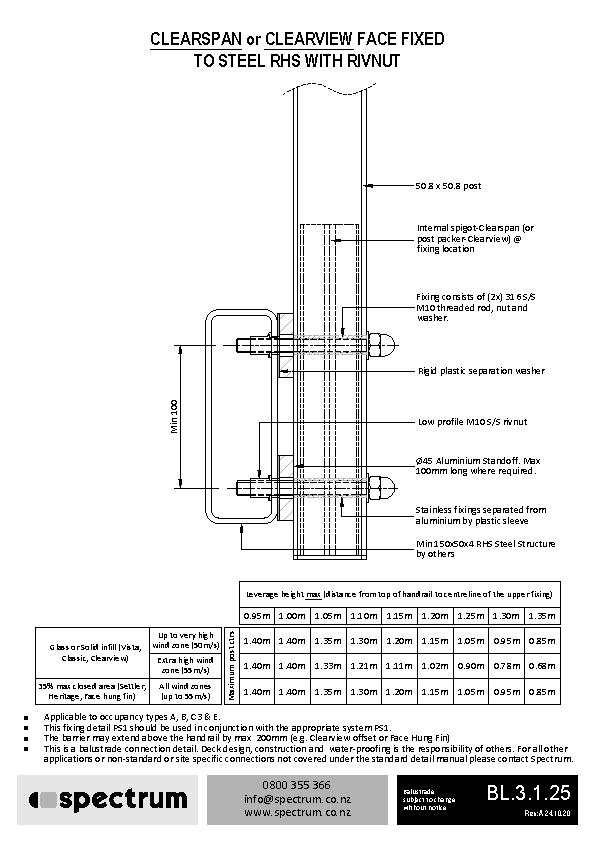

Clearspan - face fixed to steel RHS with Rivnut

3.1.25

dwg
pdf

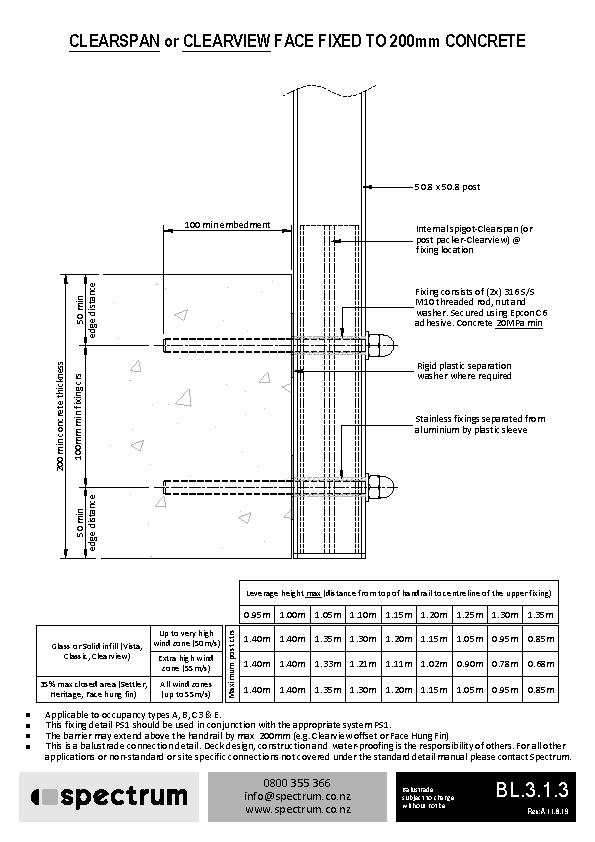

Clearspan Face fixed to 200mm concrete

3.1.3

dwg
dxf
pdf
Clearspan Face fixed to steel

3.1.4

dwg
dxf
pdf

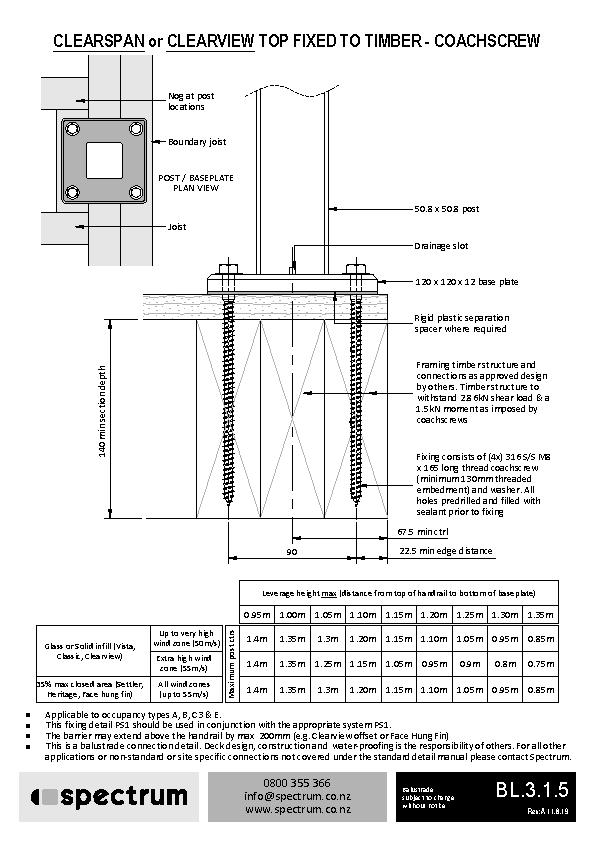

Clearspan Top fixed to timber

3.1.5

dwg
dxf
pdf

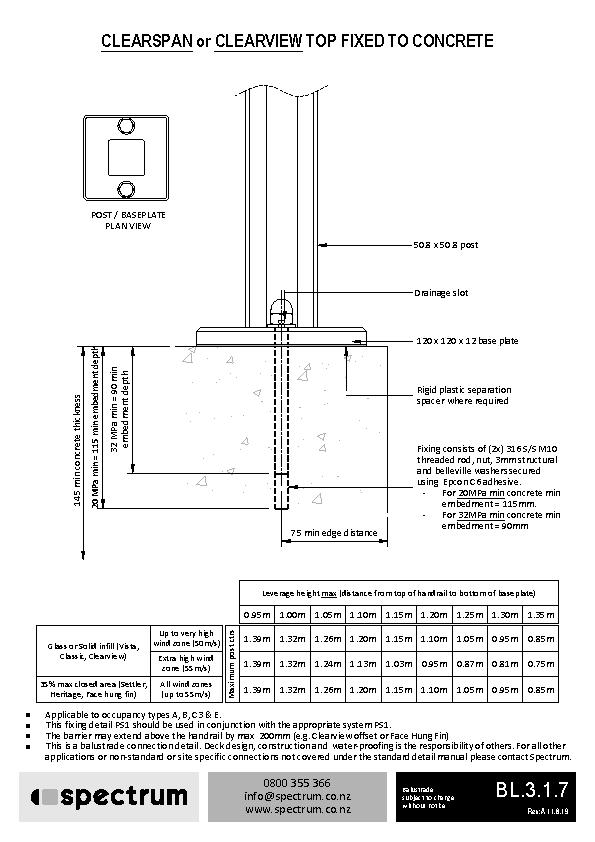

Clearspan Top fixed to concrete

3.1.7

dwg
dxf
pdf
3.1.9 Thumbnail

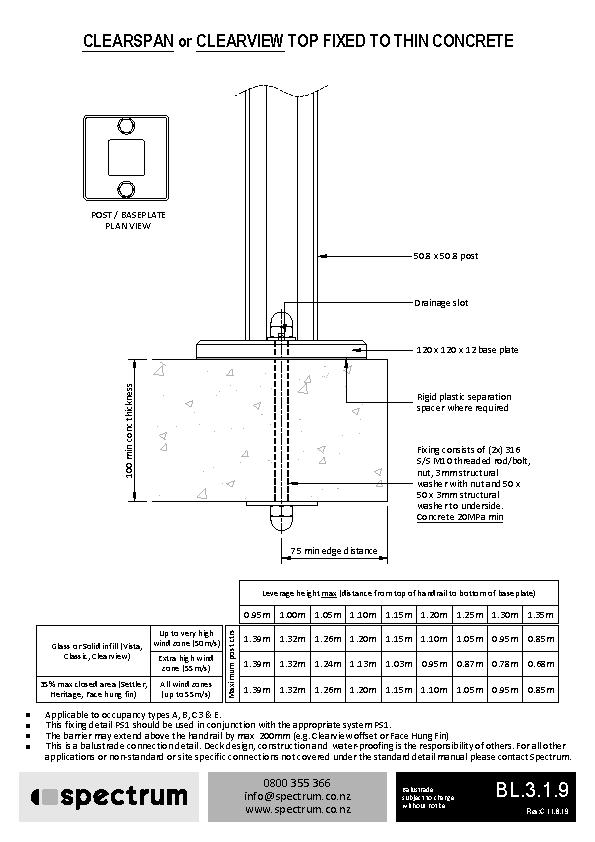

Clearspan Top fixed to thin concrete
