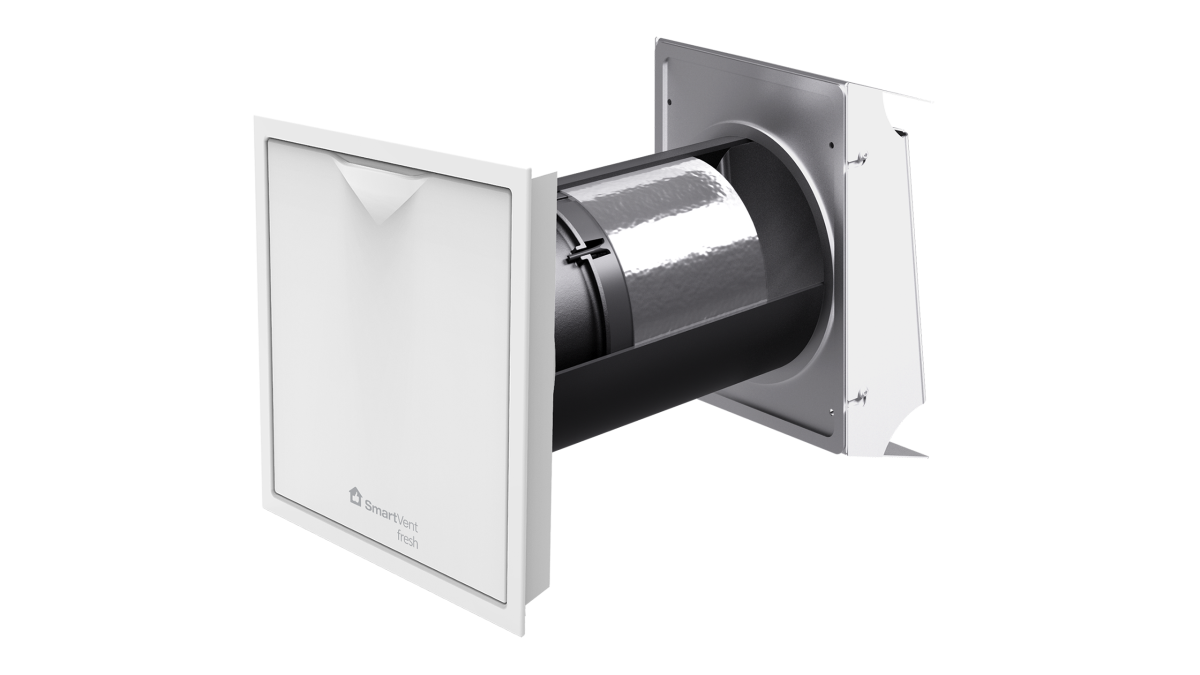

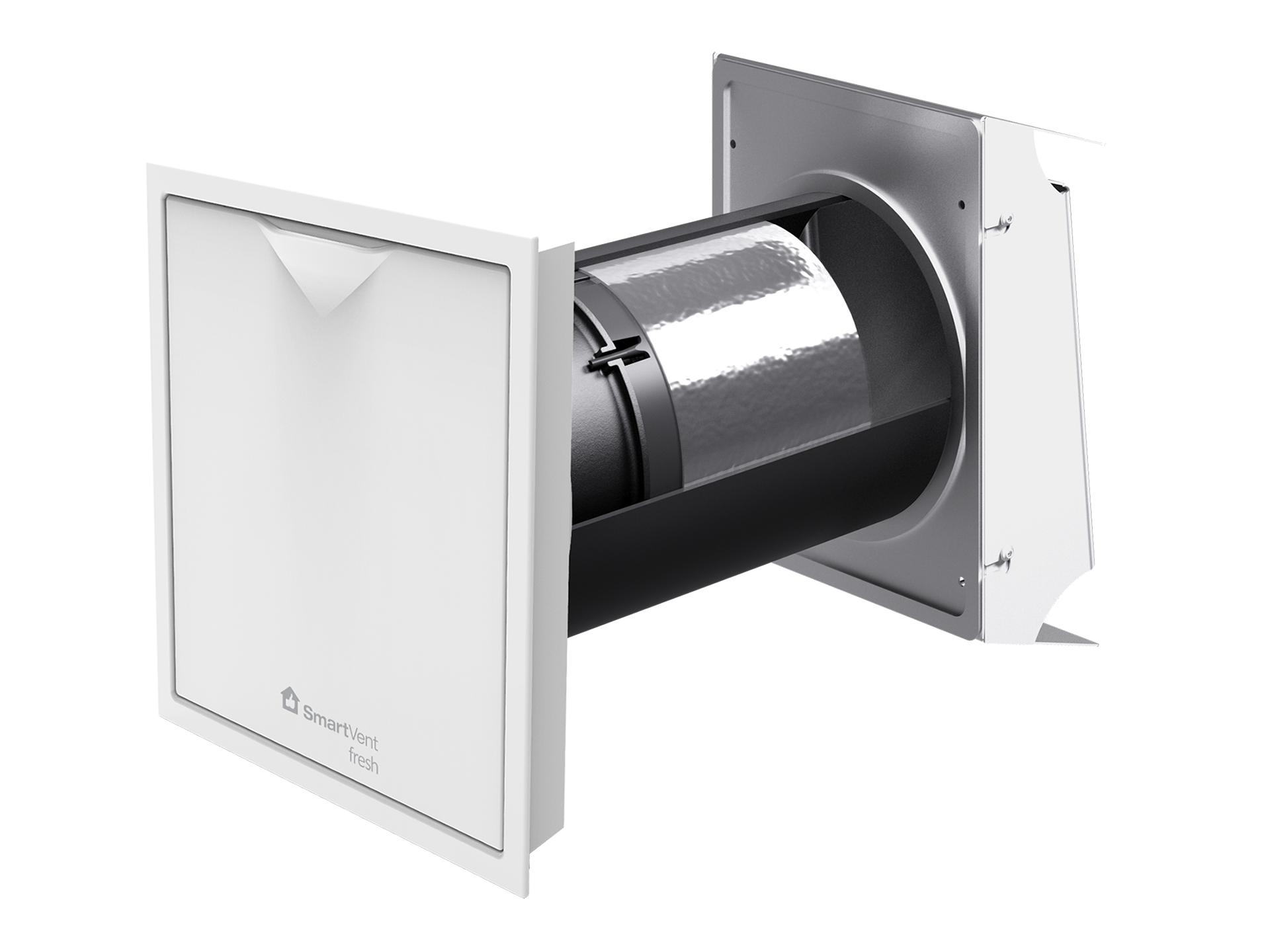

The Fresh is a through wall ventilation system designed to supply and extract air from a space while maintaining a comfortable temperature indoors through heat recovery. Designed with townhouses, apartments, and homes without roof cavities in mind, the SmartVent Fresh can be used to mitigate internal moisture and mould all year round and ease overheating during summer.

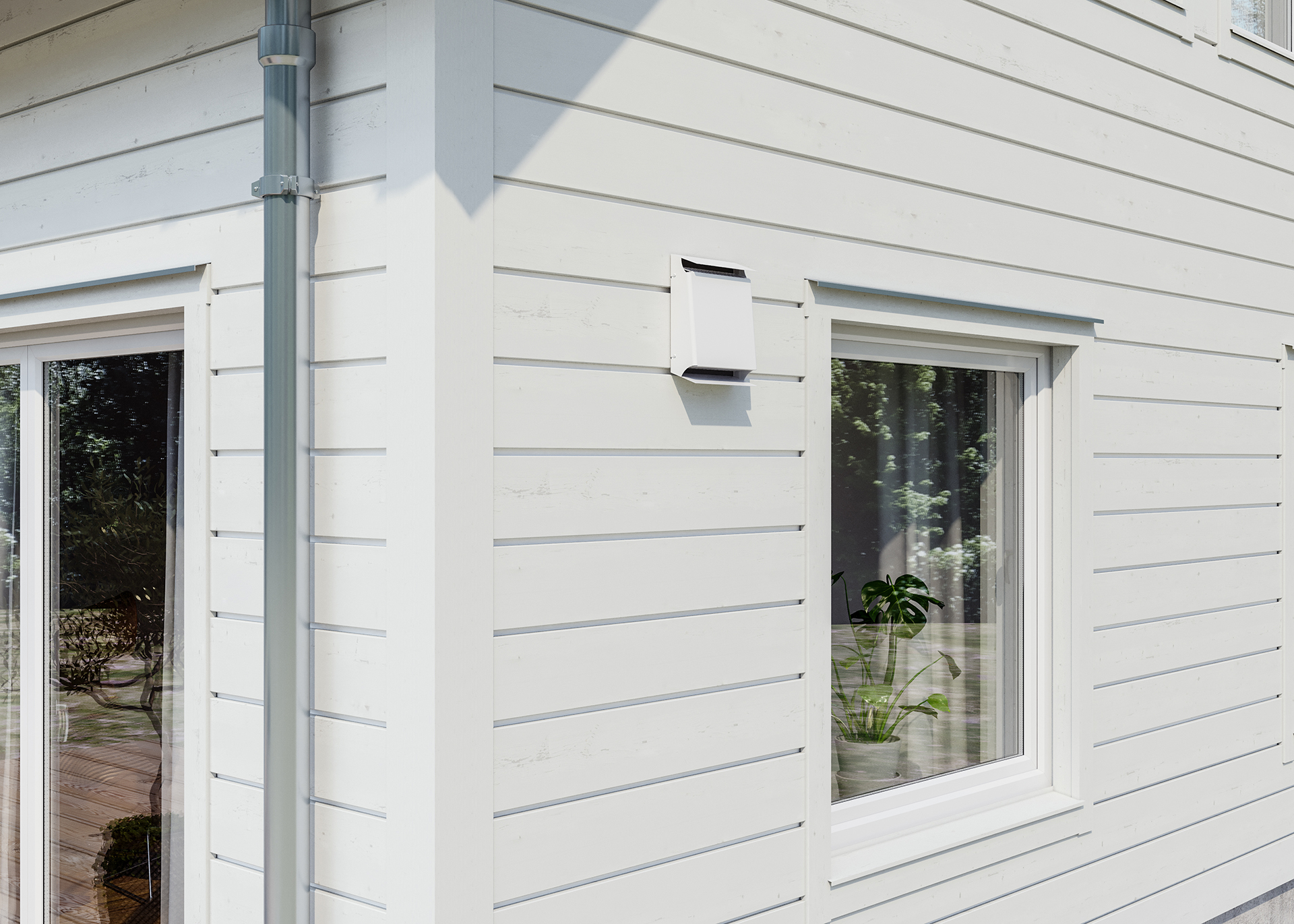

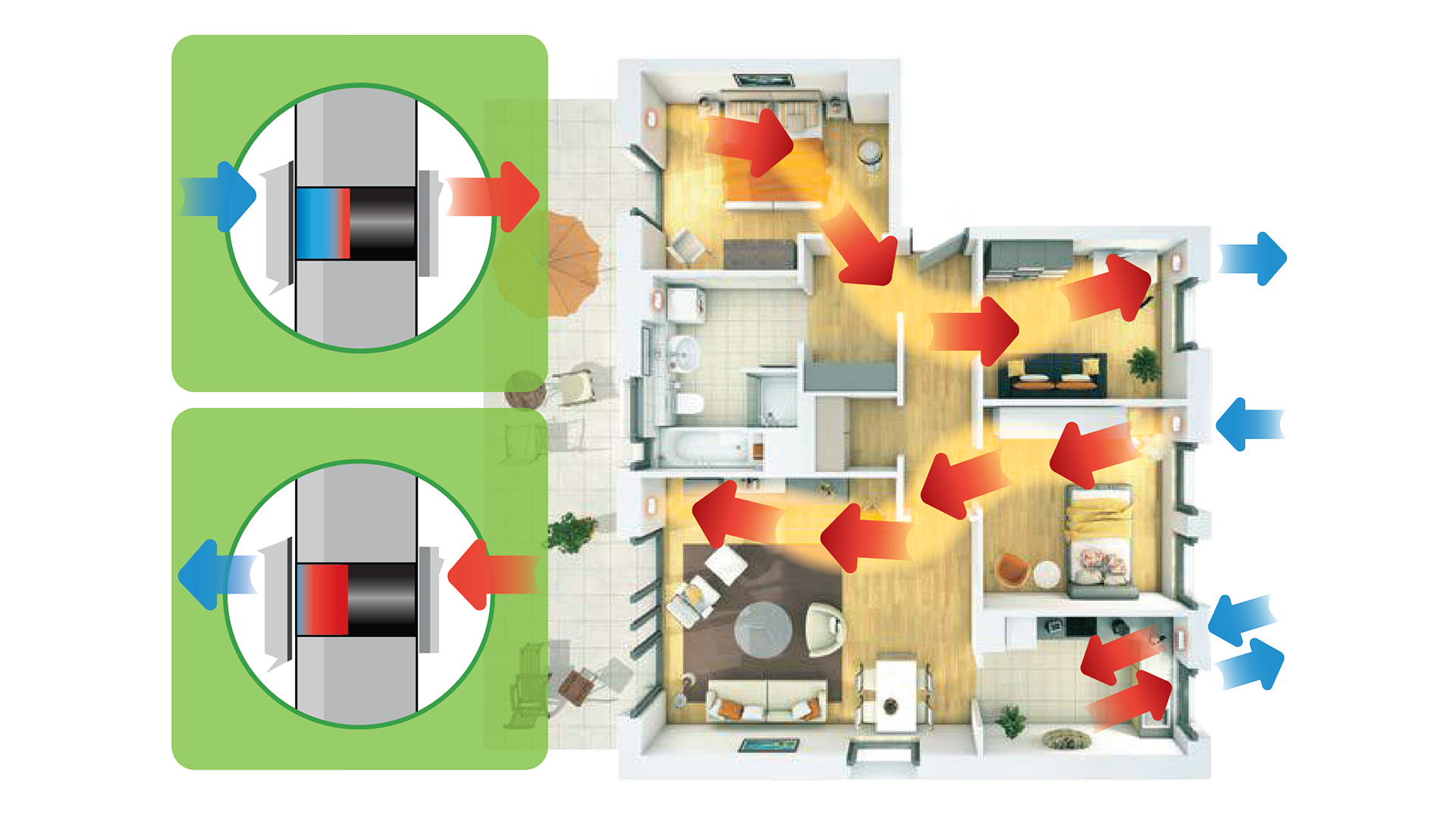

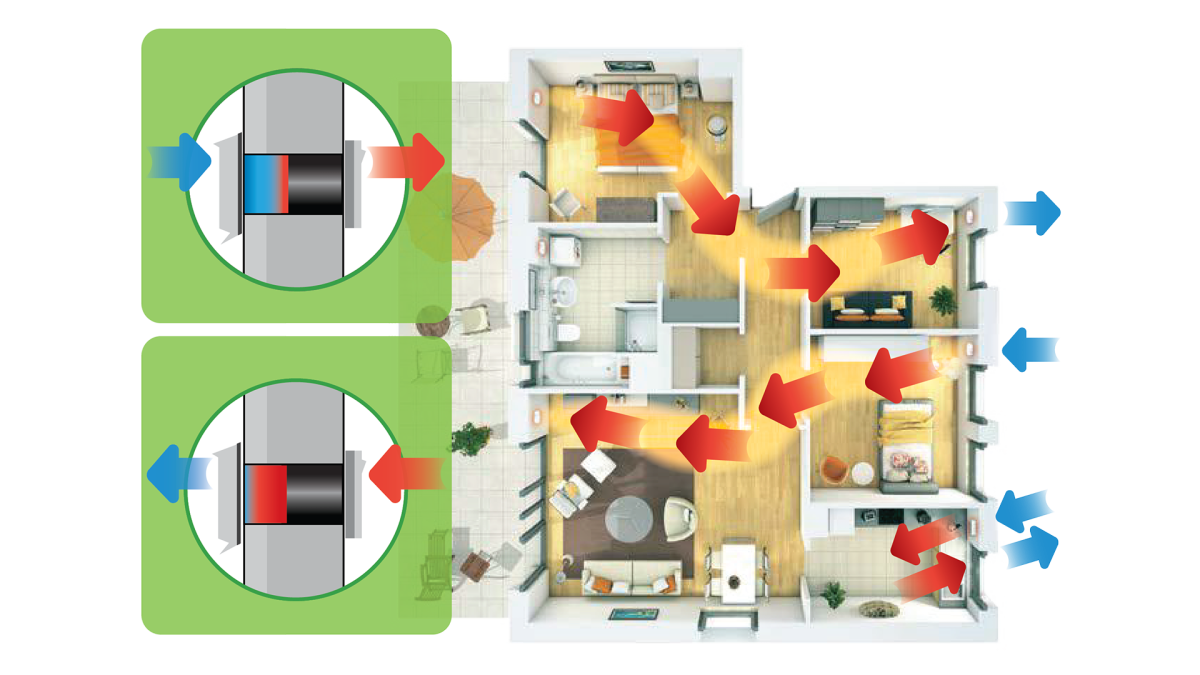

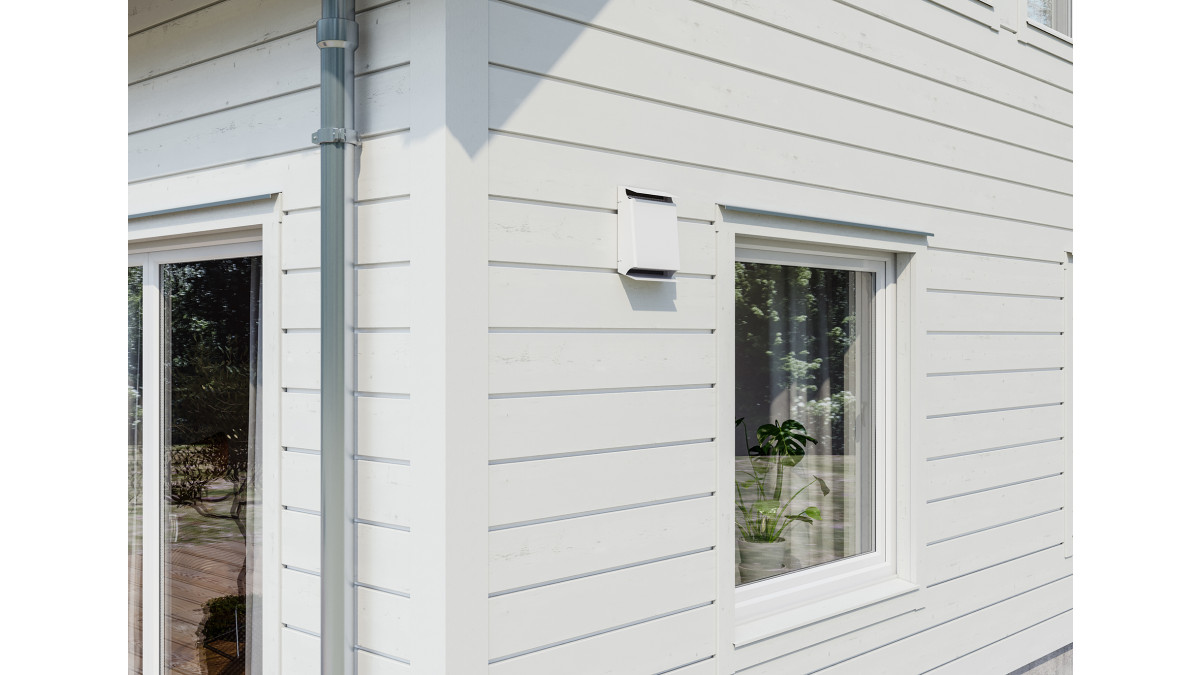

The SmartVent Fresh is designed to be installed as a through-wall solution through an exterior wall to ventilate a room. While it can operate individually, the SmartVent Fresh is designed to operate in pairs spread throughout the home for maximum airflow efficiency.
Fresh is suitable to install in new build and airtight properties, as well as in renovations. Ideal for properties where a traditional ventilation system will not fit.
Like other mechanical ventilation solutions, Fresh is an excellent choice for regions with environmental conditions that necessitate closed windows. This includes hot and cold climates, medium to high background noise areas, or regions with strong odours.
Suitable for:
The SmartVent team is also able to provide free custom designs and solutions for domestic dwellings.
The SmartVent Fresh is designed to comply with NZ Building code, although correct design and installation is required in order to meet these standards.
The acceptable solutions for G4 (G4/AS1) outlines specific ventilation requirements in homes. If natural activities or environmental conditions produce any of the types of air pollution outlined in NZBC G4 3.3 , mechanical ventilation is required.
Additionally; as per table 2 in NZS4303:1990, private dwellings require 0.35 air changes per hour, but no less than 7.5 L/s per person when openable windows aren’t available.
In a typical installation, SmartVent Fresh is designed to meet these standards.
SmartVent Fresh also meets the NZ healthy homes ventilation standards for fresh air.
The SmartVent Fresh was developed in Germany and follows a decentralised heat recovery model for a ceramic thermal core first developed in 1999. dMVHR solutions are popular in Europe.
A range of system add-ons are available to improve the systems effectiveness or ease of use. This includes a wireless wall controller, indoor and outdoor temperature/ humidity sensors, and an indoor CO₂ sensor. All add-ons integrate with the Fresh to increase the systems responsiveness to the conditions around the property.
All SmartVent systems feature a 5-year warranty.
Note that the product must be operated and maintained in accordance with the manufacturer’s instructions contained in the operating & installation instructions provided with the product. The warranty on the entire system is void if non-genuine SmartVent parts (including but not limited to; controller, filter, duct, fan(s) and grilles) are used as this may affect performance.
