ESYLUX SVENJA Pendant Light by Simx
Description

Surface or suspended mounting slim circular luminaire with direct/indirect light components.

Options available delivering up to 9600 lumens for higher mounting heights and including DALI-2 approved and Tuneable White versions.

High light quality, visual comfort through perfect glare suppression, and easy mounting: This is what characterises SVENJA.

Key Features

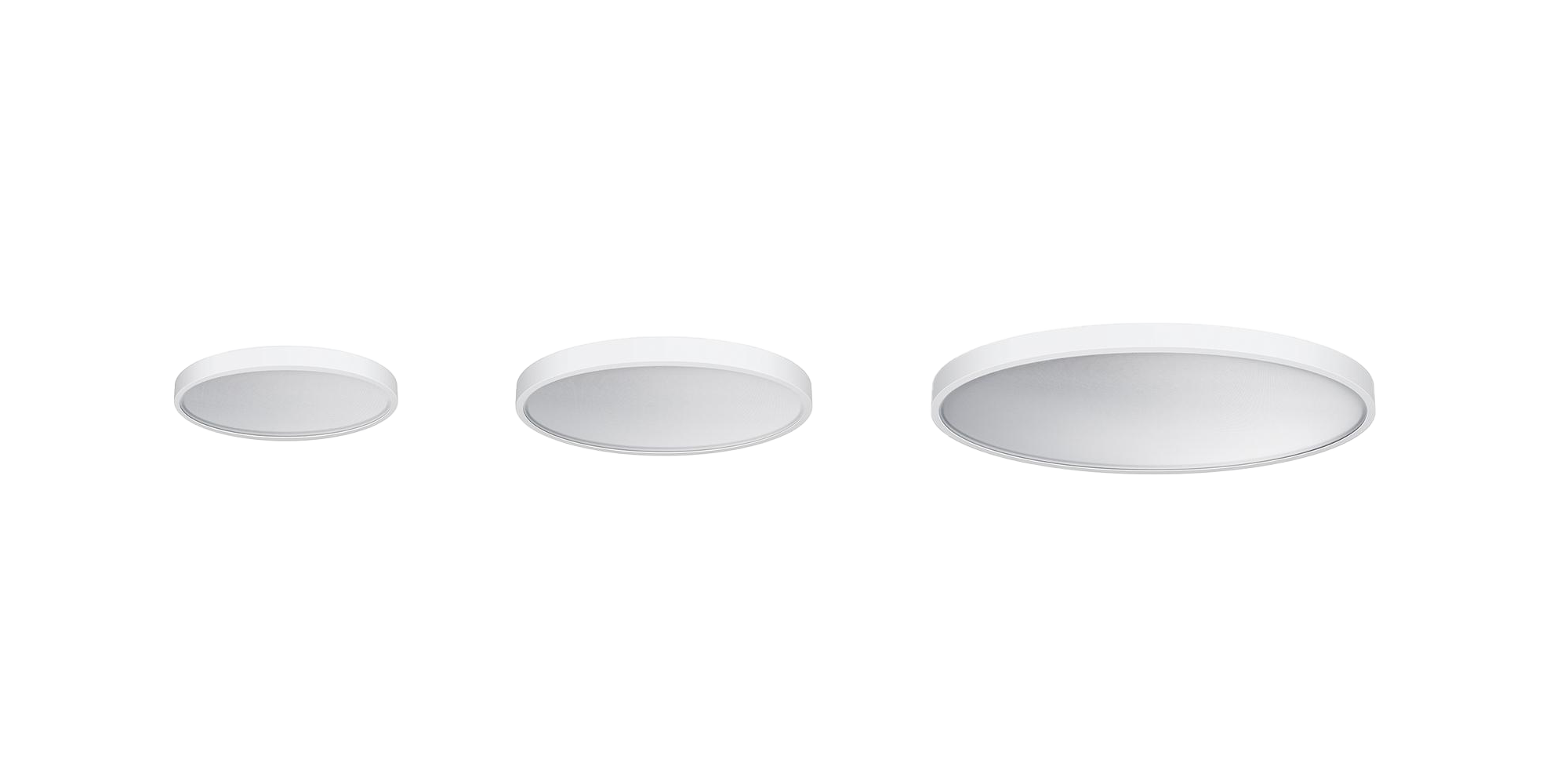

  • Three form dimensions of 450mm, 600mm, and 900mm
  • 35% indirect light enhances the room atmosphere in reducing contrast and making rooms look larger
  • Homogeneous light output with a UGR glare rating of >19 suitable for office applications
  • DALI-2 variants with SwitchDIM function for simple 230V manual dimming and colour temperature adjustment of the LED’s via intuitive DALI push button
  • Tuneable White variants with wide colour spectrum selection of 2700k-6500k for changing room ambience for multi-use spaces
  • High light quality with LED colour tolerance of SDCM 3
  • High circuit efficacy up to 122lm/w
  • White finish with opal lens for classic modern appearance
  • Optional mounting by 2m suspension wire or 1m rod as accessories
Scope of Use

Particularly suitable for use in communal areas such as foyers, auditoriums, break areas, common rooms and canteens.

Daylight dependant constant light control can be employed through DALI-2 variants in schools, retirement facilities, hospitals and offices. This maintains compliant lighting levels whilst minimising energy demand.

  • Can be mounted to both ceilings and walls, although wall mounting may incur unwanted direction of light output
  • Optional mounting by 2m suspension wire or 1m rod as accessories



Limitations on Use
  • Not suitable for wet or exterior locations
  • Not suitable for mounting heights lower than 2m
Statement of Building Code Compliance

Product compliance to EN55015; EN61547; EN61000-3.2 & 3.3; IEC61598-1 & 2.1.

Additionally conforms to REACH, WEEE and RoHs directives.

The manufacturer, ESYLUX Gmbh is an ISO9001 and ISO14001 accredited company. ESYLUX have manufactured sensors and automation controls for over 30 years.







In-Service History

Recently launched by ESYLUX Gmbh, SVENJA is already installed into multiple facilities across Europe.

Simx have proudly been the exclusive distributor of ESYLUX products in New Zealand since 2015.

Other Performance Attributes
  • High quality LED circuitry in conjunction with careful luminaire design offers L70B10 projected lifetime of 93000 hours
  • A 5 year manufacturer warranty provides assurance of high quality
Documents
Installation manual: SVENJA
Brochure: SVENJA
