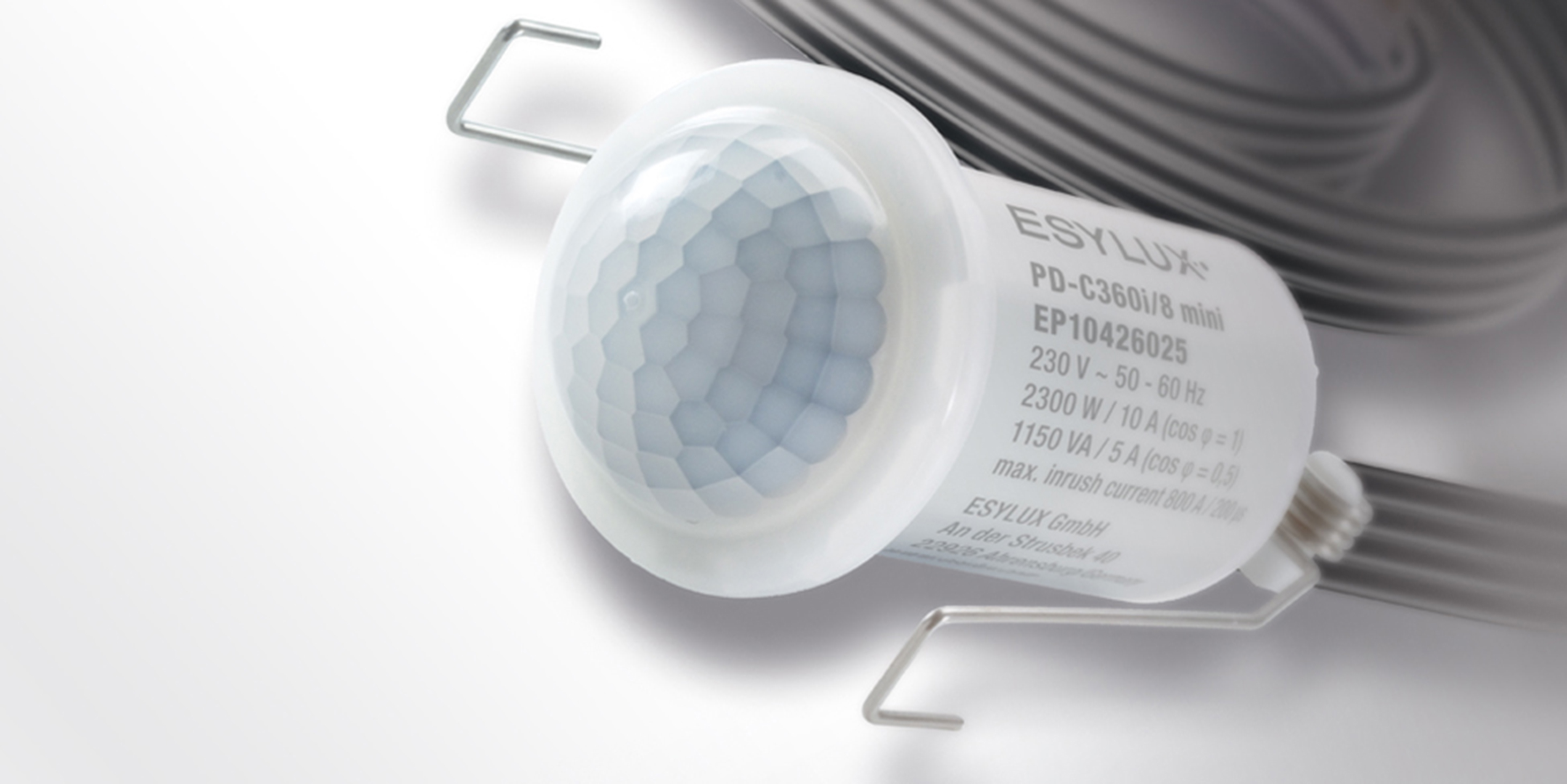

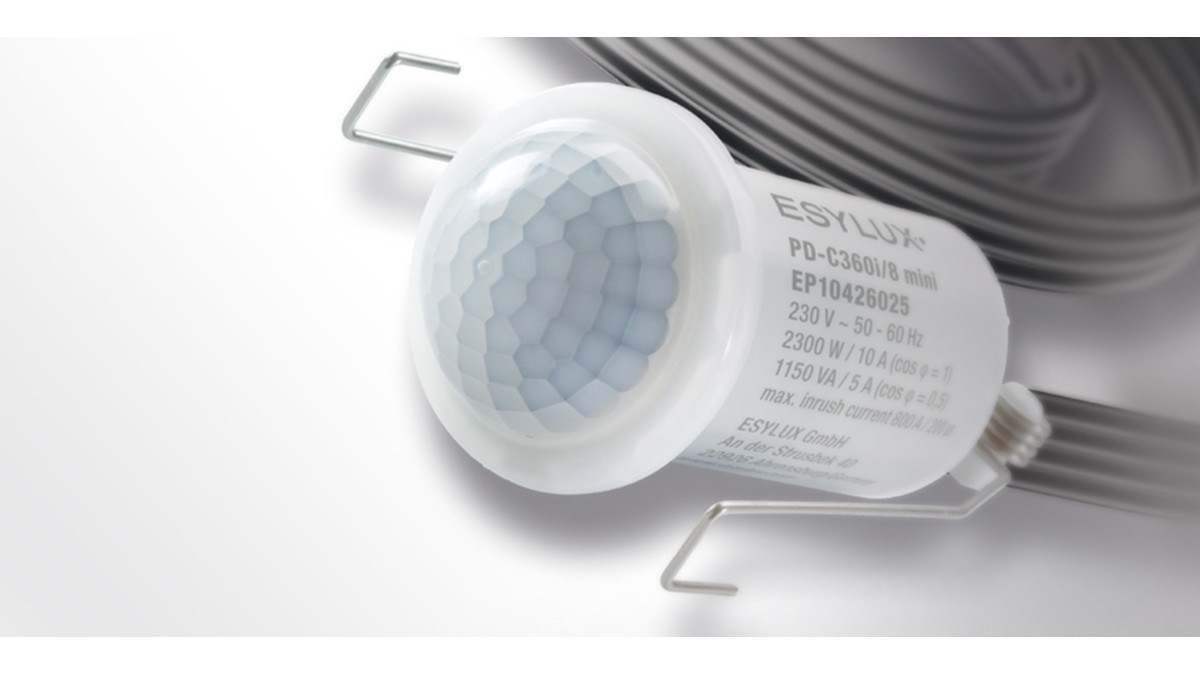

Due to its compact form, MINI is popular when a sensor is needed, but without being seen. A Black lens version, to camouflage against dark back grounds is available in DALI-2 and KNX variants.

Applications range from residential housing to commercial and institutional applications. Common room applications include corridors, meeting rooms, entrance foyers, toilets, and hotels.

Complete polycarbonate construction engineered to IP55 for exterior unprotected locations, also commonly used internally as well.

As MINI is a single housing device, the smallest configuration can be integrated easily into luminaires. Mounting mechanisms supplied include options for both suspended and solid plaster ceilings, and additionally to metal sheet down to 1.5mm thickness.

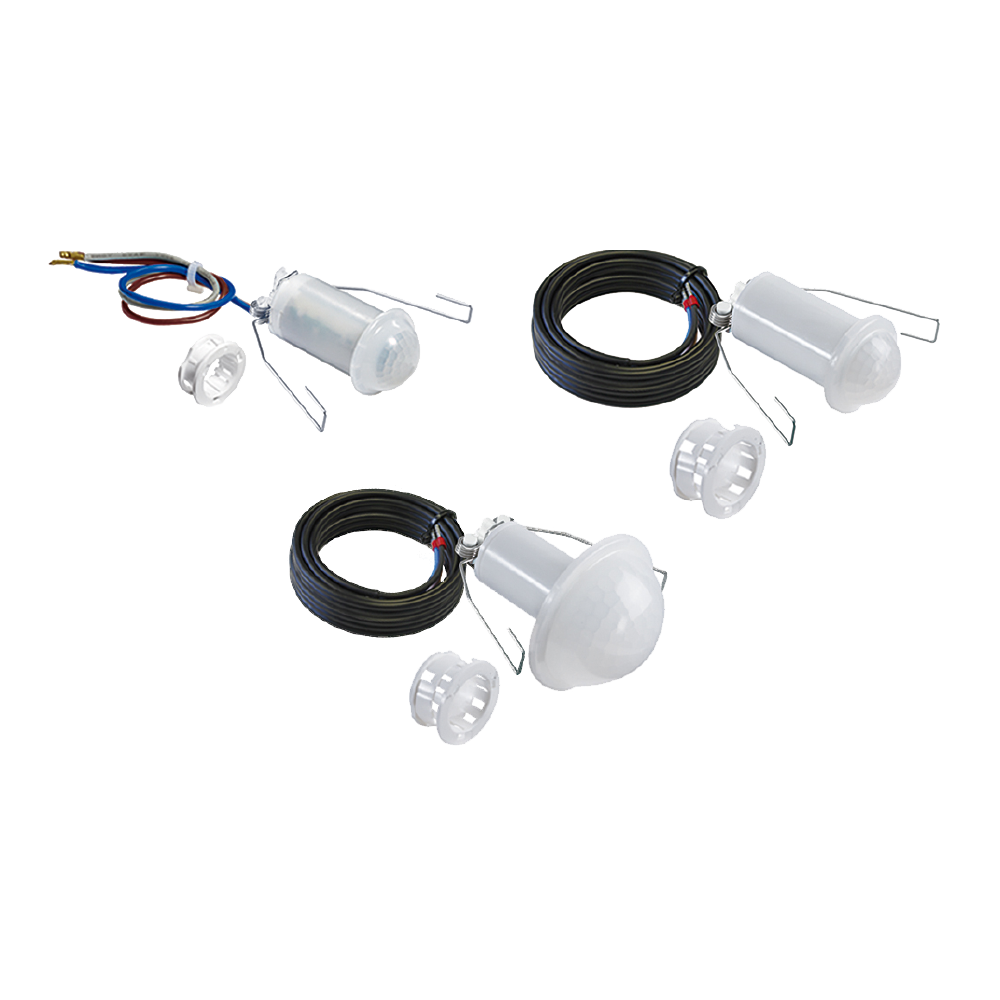

MINI is available in multiple control formats (230VAC, 12VDC, DALI, DALI-2, KNX), models can be used in a multitude of applications from basic switching to full building management systems.

12-36V AC/DC variants can be used within any existing BMS system.

Careful selection of control format allows relatively unrestricted use.

Each MINI sensor is supplied with a lens mask to reduce overall detection angles and distances as required. As an example of this consider using MINI in a hotel room for courtesy light activation, mounting the sensor into the wall at 100mm AFL, and using the lens mask to detect only foot fall with no detection above horizontal.

This German engineered sensor is compliant to EN55015; EN61547, EN61000-3.2 & 3.3. Additionally conforms to REACH, WEEE and RoHs directives.

The manufacturer, ESYLUX Gmbh is an ISO9001 and ISO14001 accredited company. ESYLUX have manufactured sensors and automation controls for over 30 years.

ESYLUX MINI sensors have been sold worldwide since 2011.

Simx have proudly been the exclusive distributor of ESYLUX products in New Zealand since 2015.

• Complete polycarbonate construction engineered to IP55
• A 5 year replacement warranty is provided as standard with ESYLUX MINI sensors
