SD50 Double Disc Balustrade System
Description

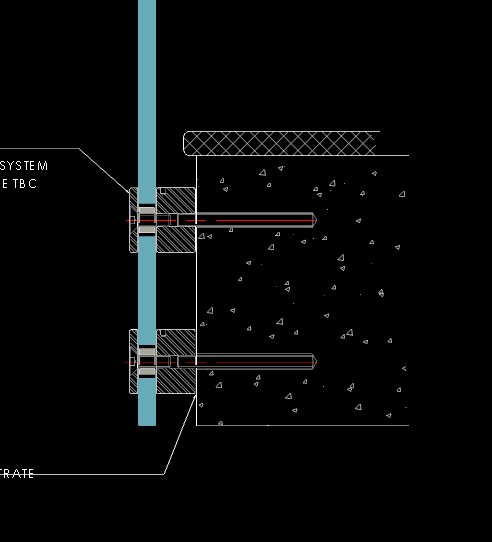

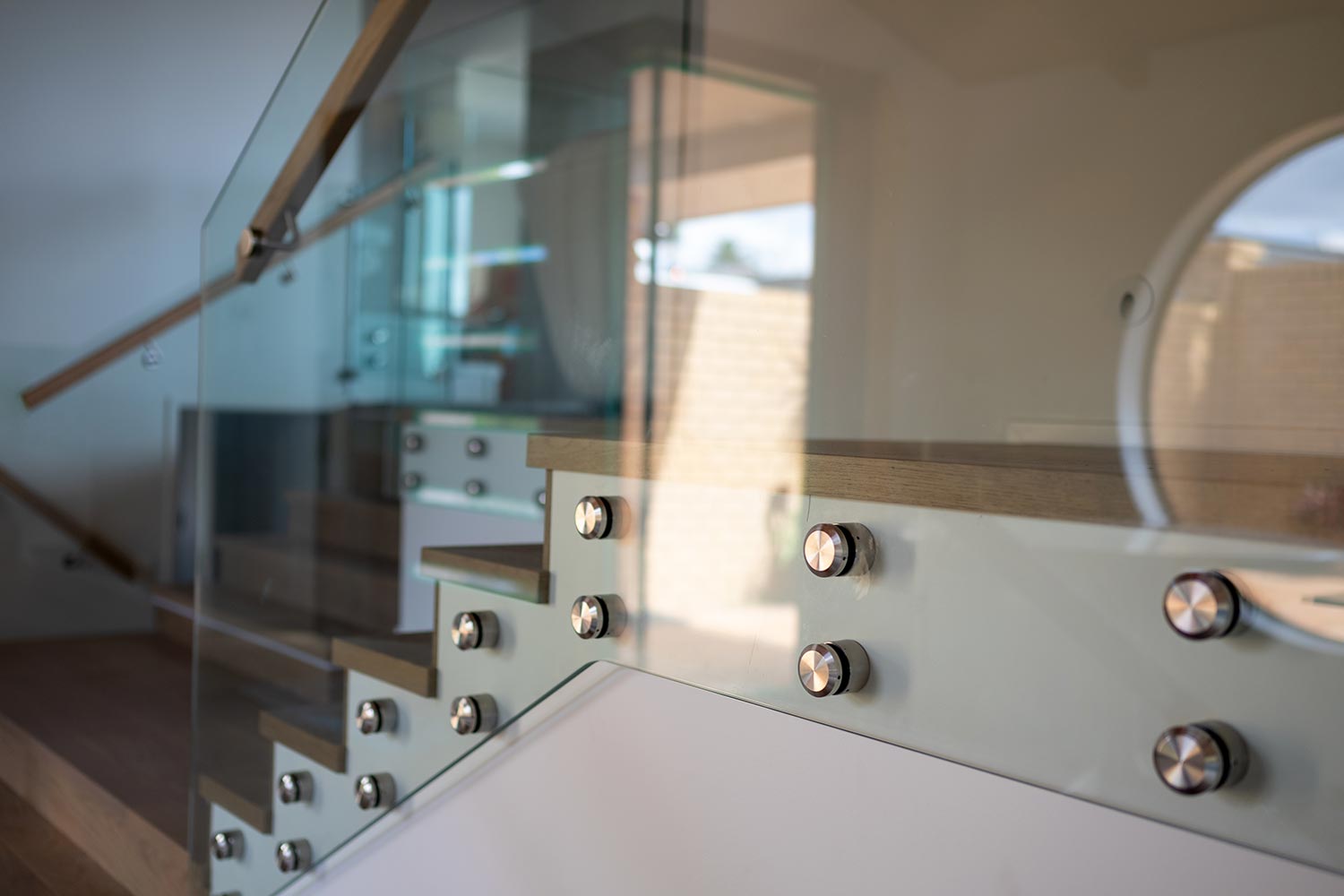

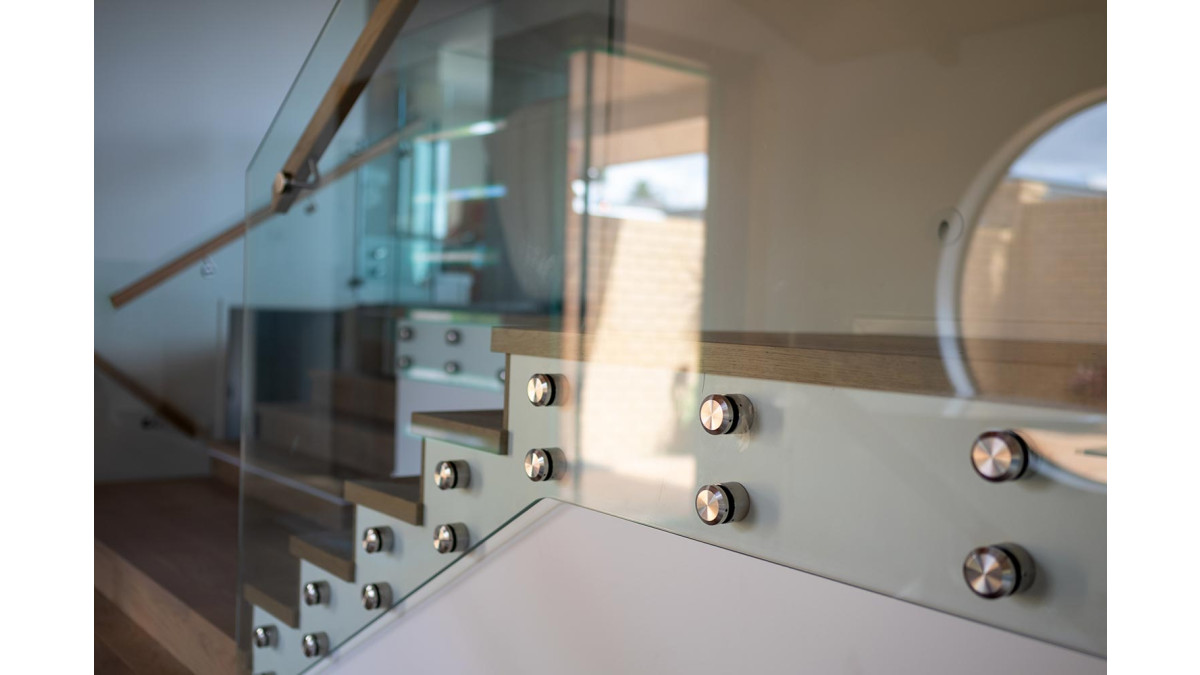

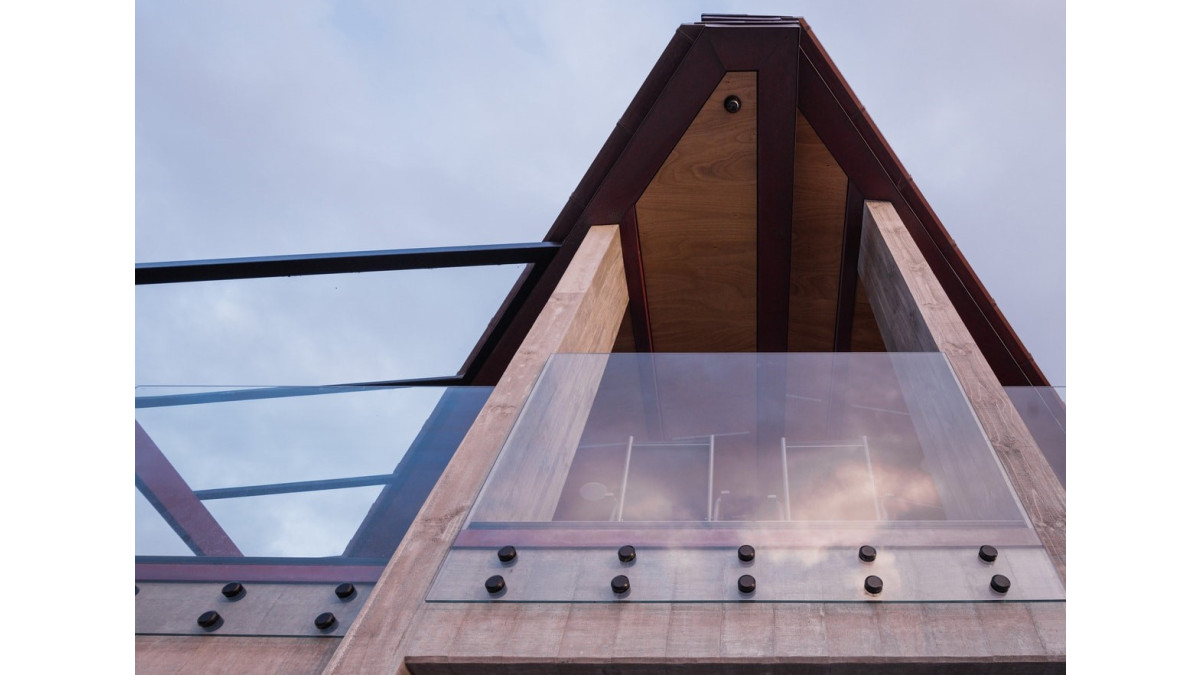

The SD50 Double Disc system is a 50mm diameter traditional stainless steel anchor fixing offering, ideal for those seeking a more industrial frameless glass balustrade aesthetic. The standoff body sets the glass panels out from the deck to assist with water draining and cleaning.

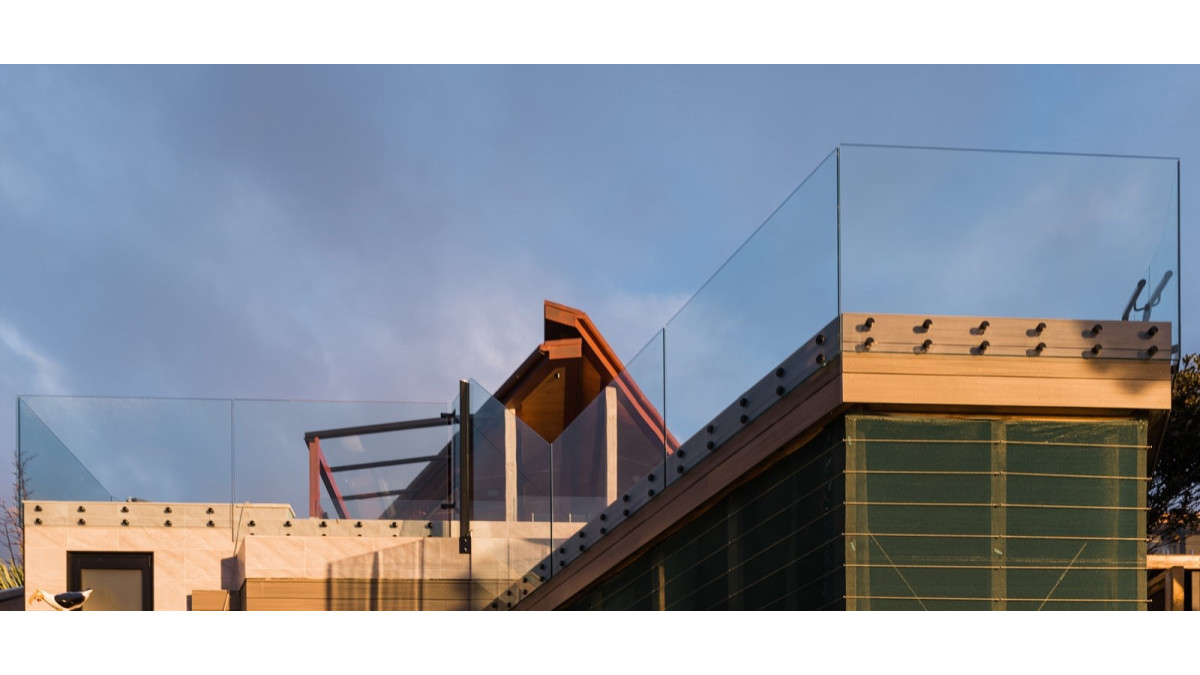

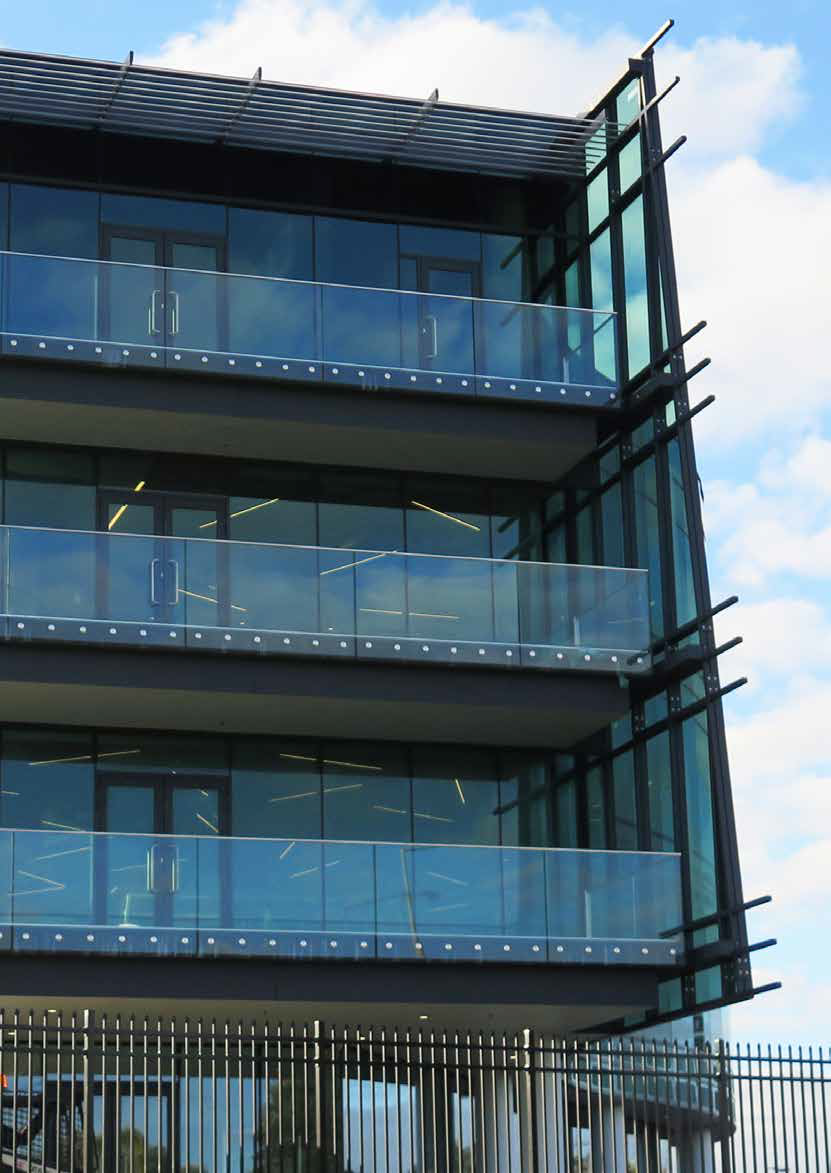

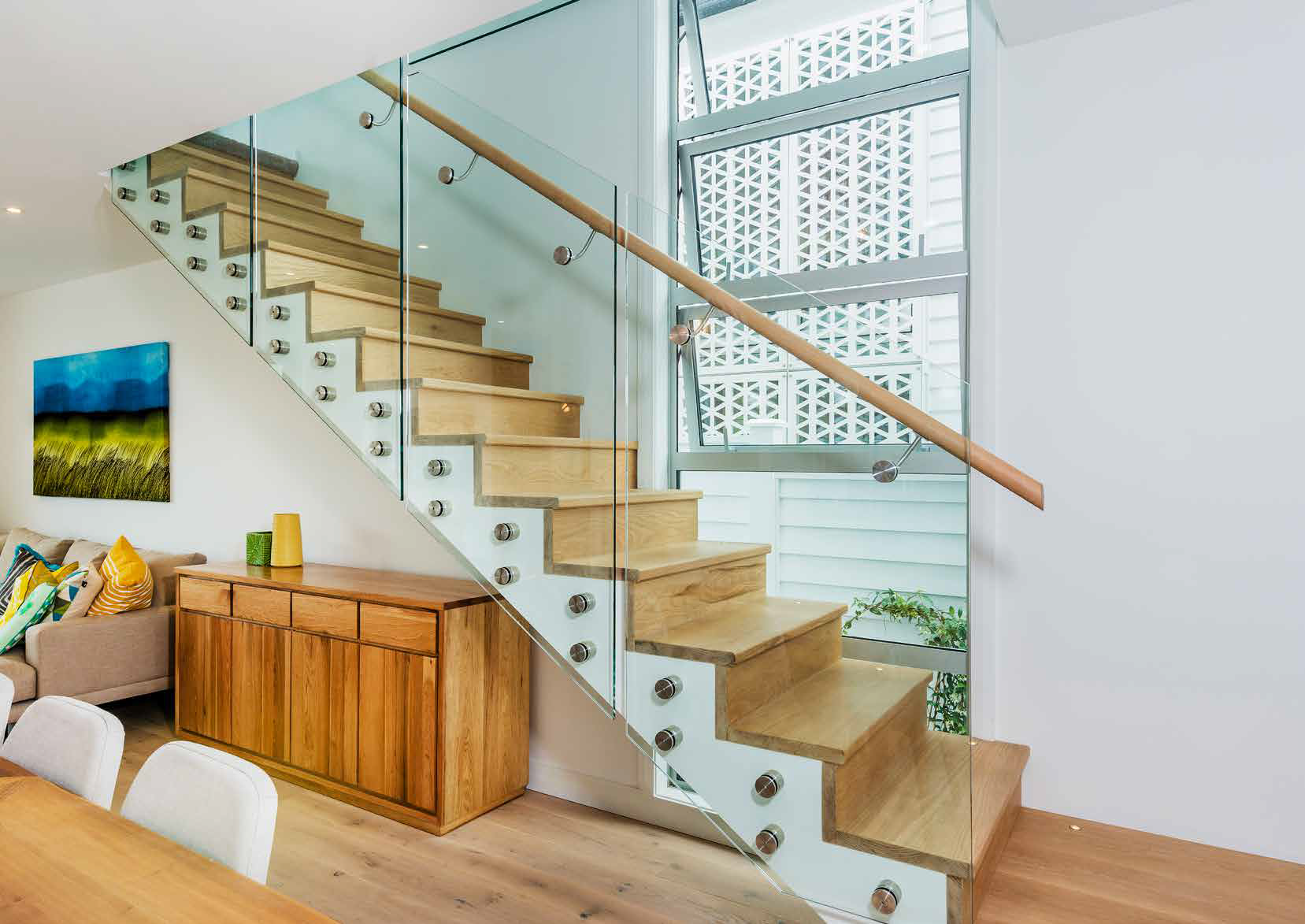

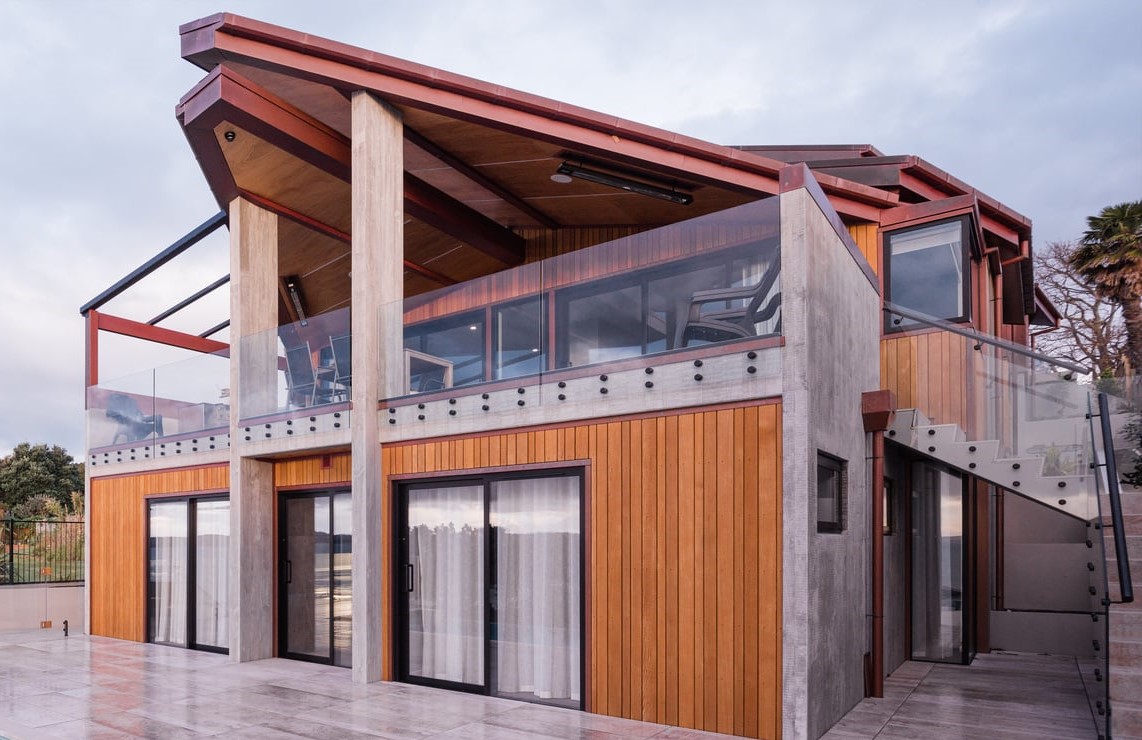

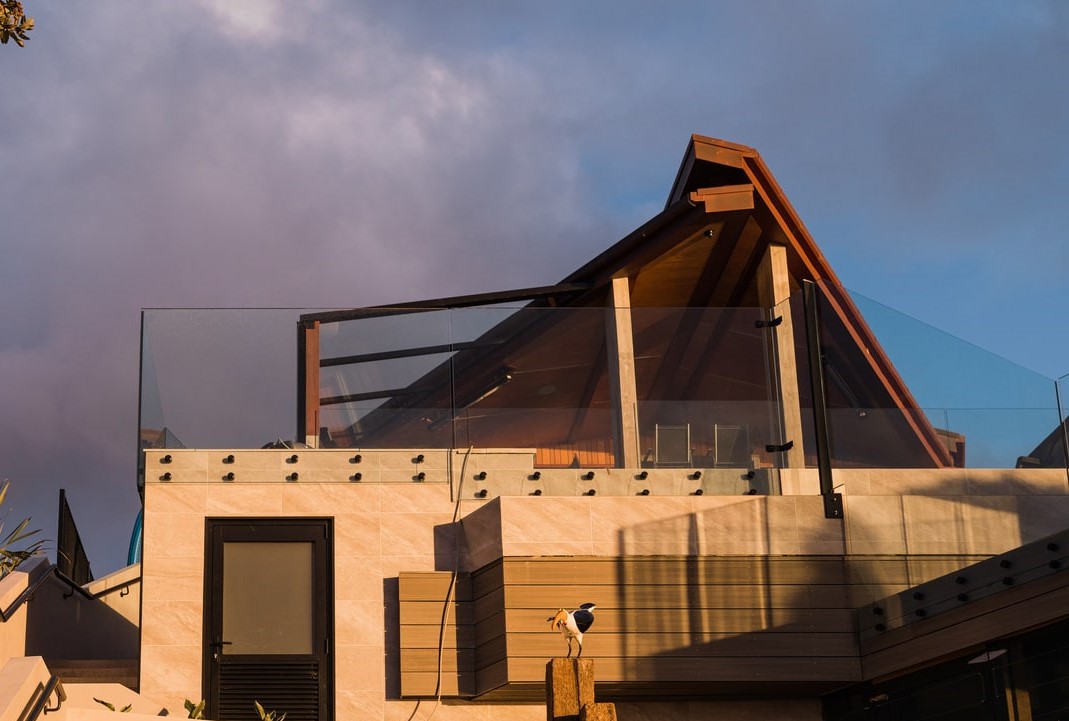

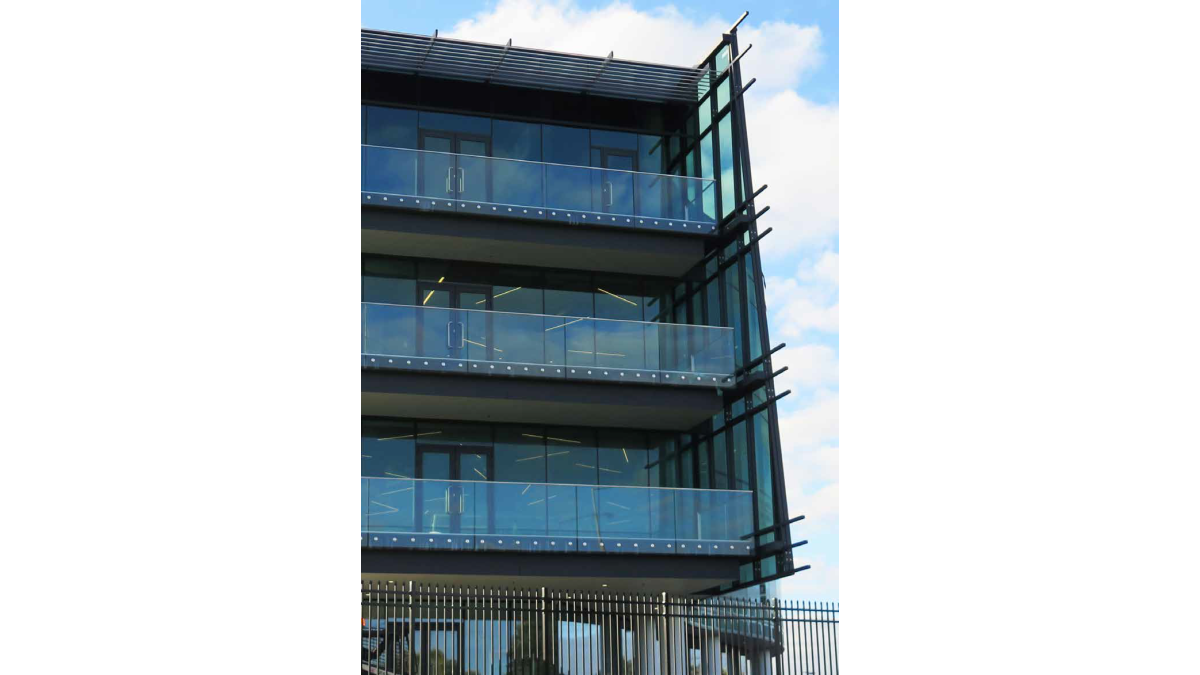

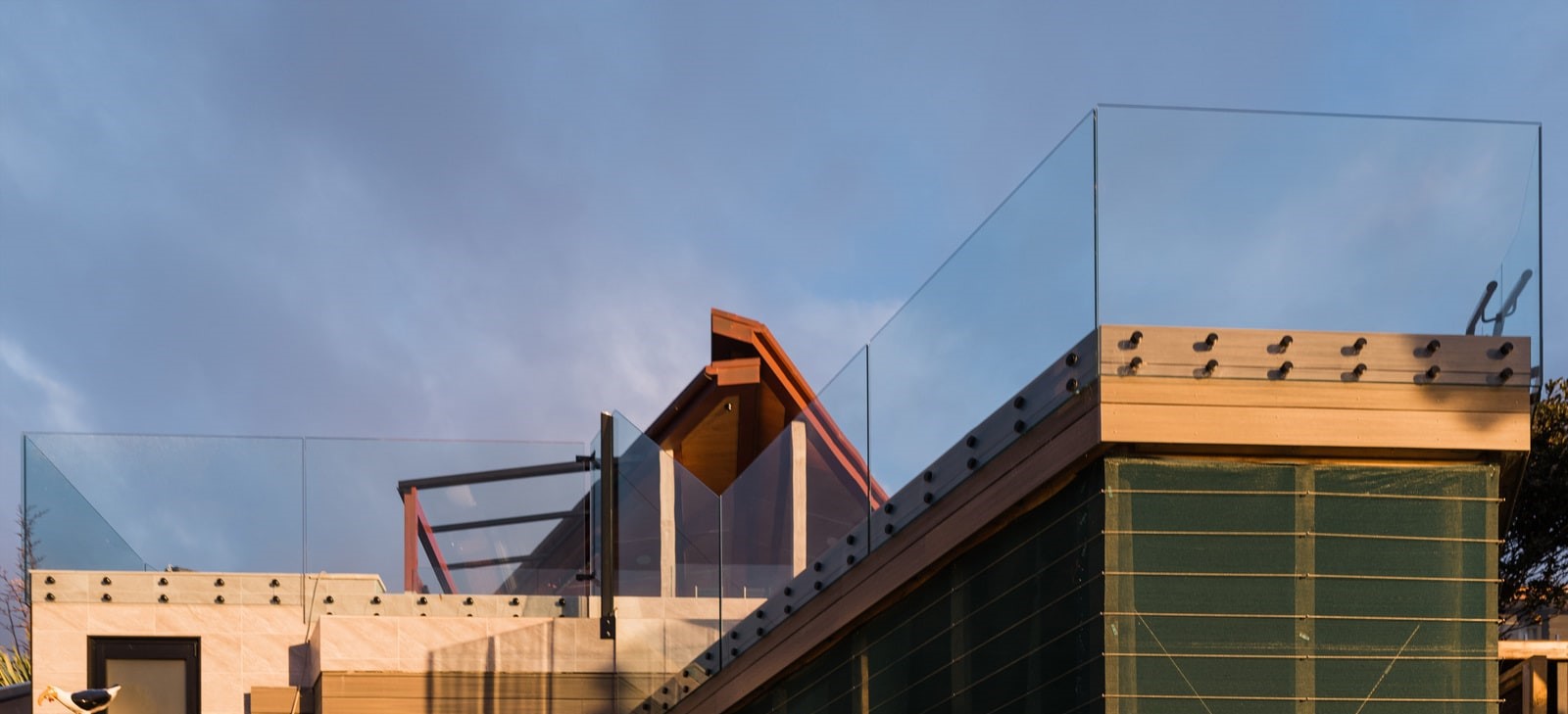

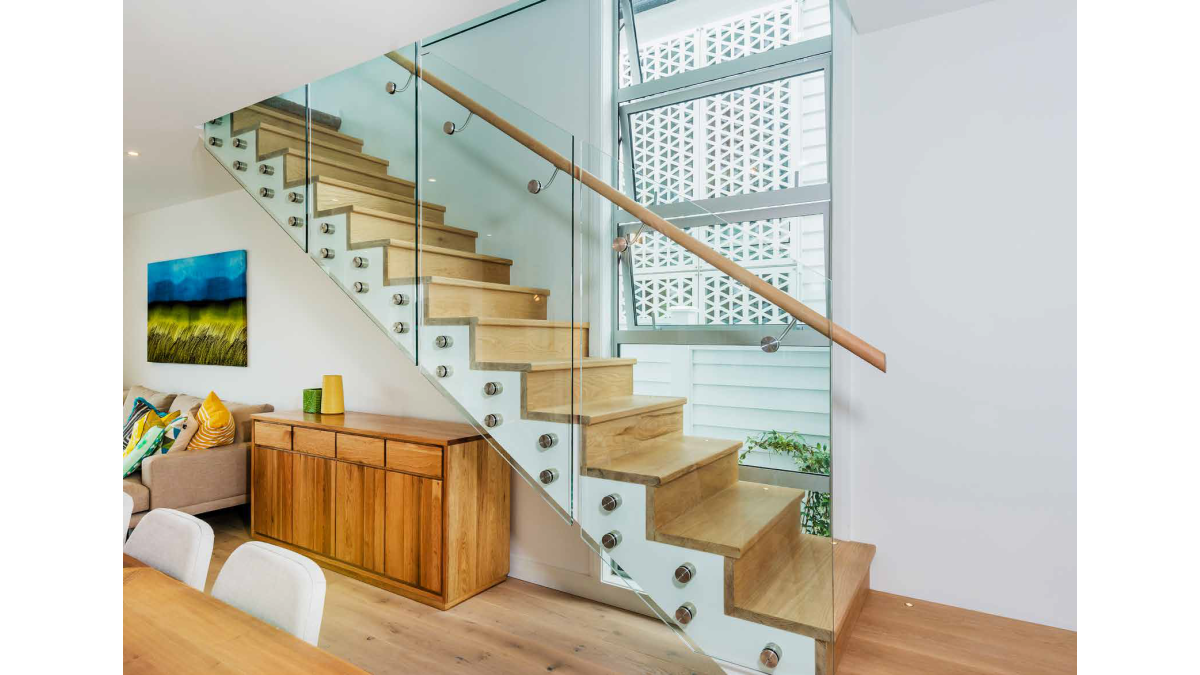

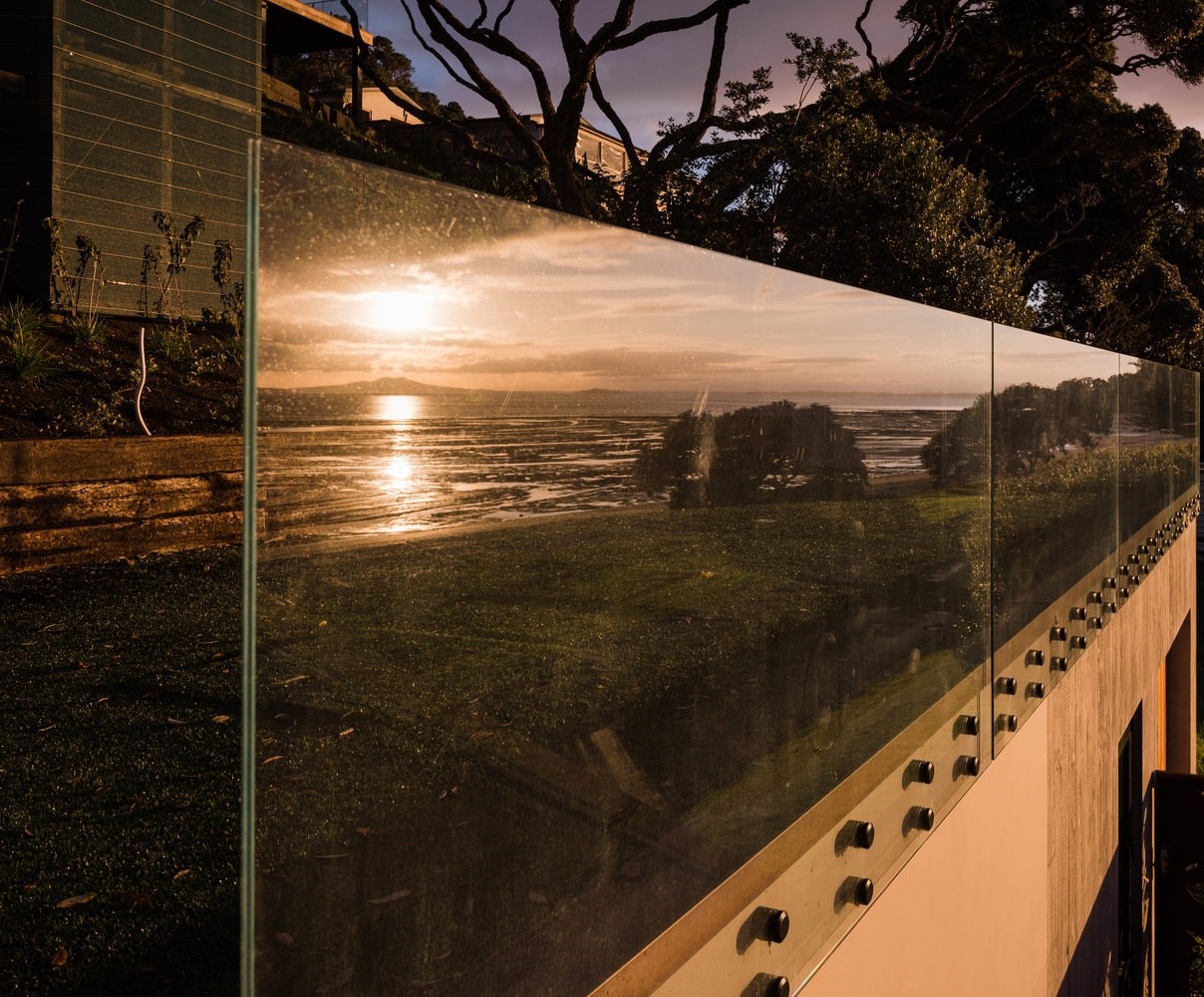

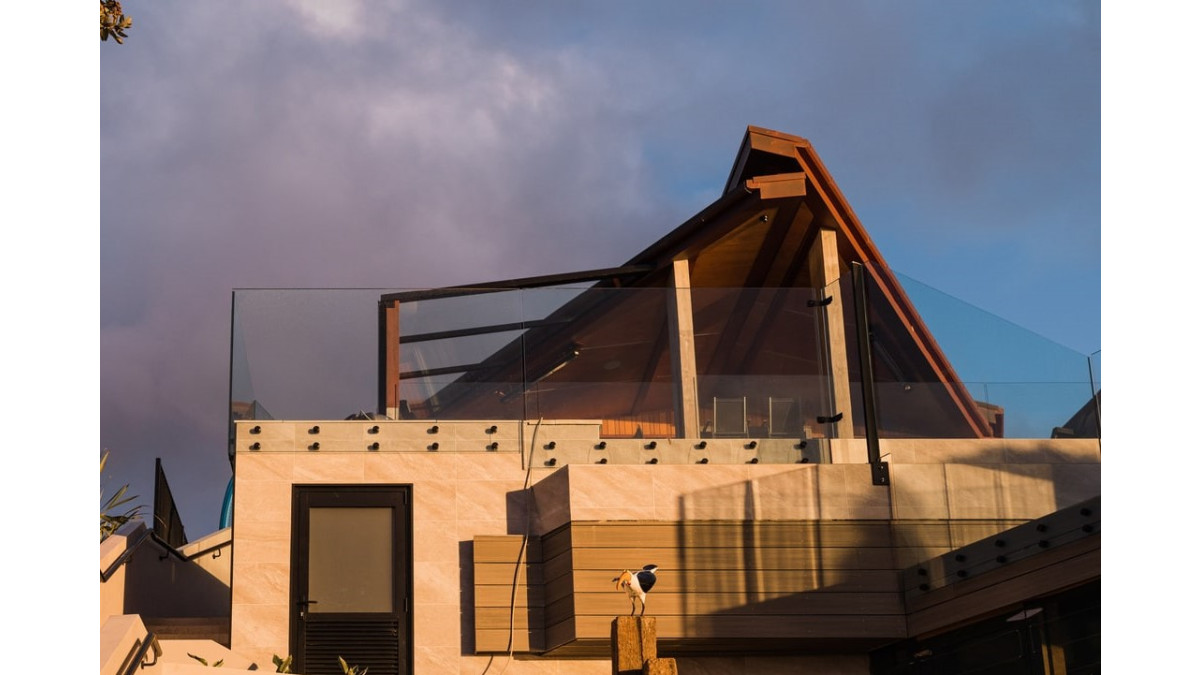

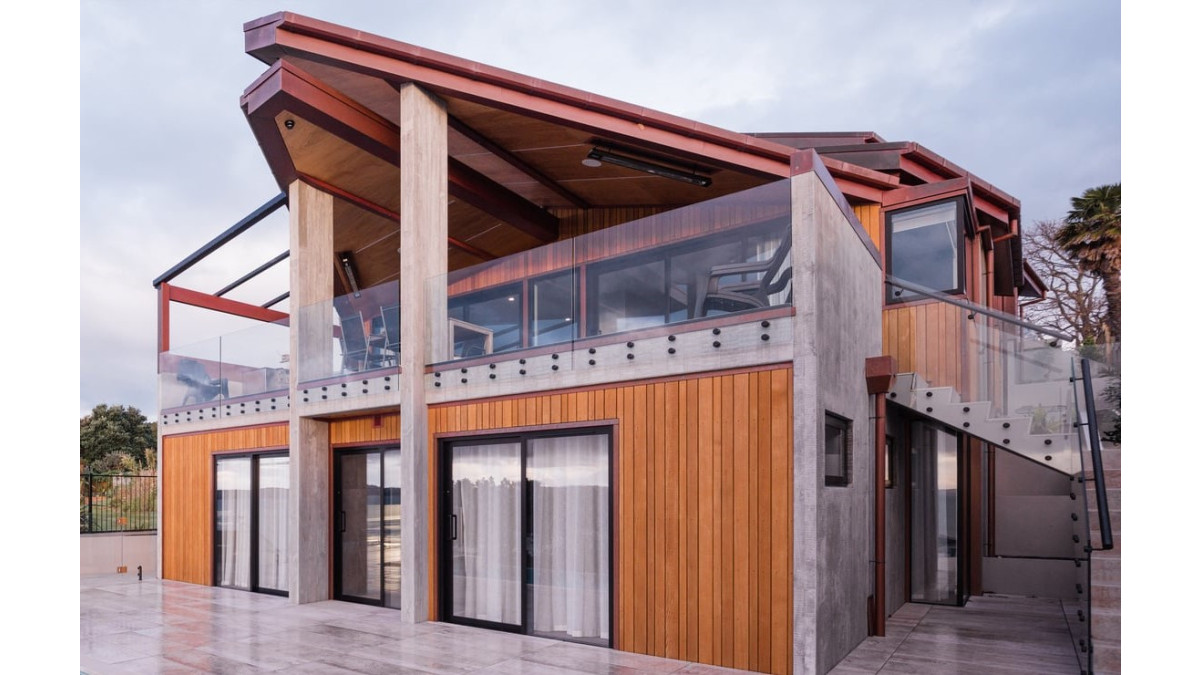

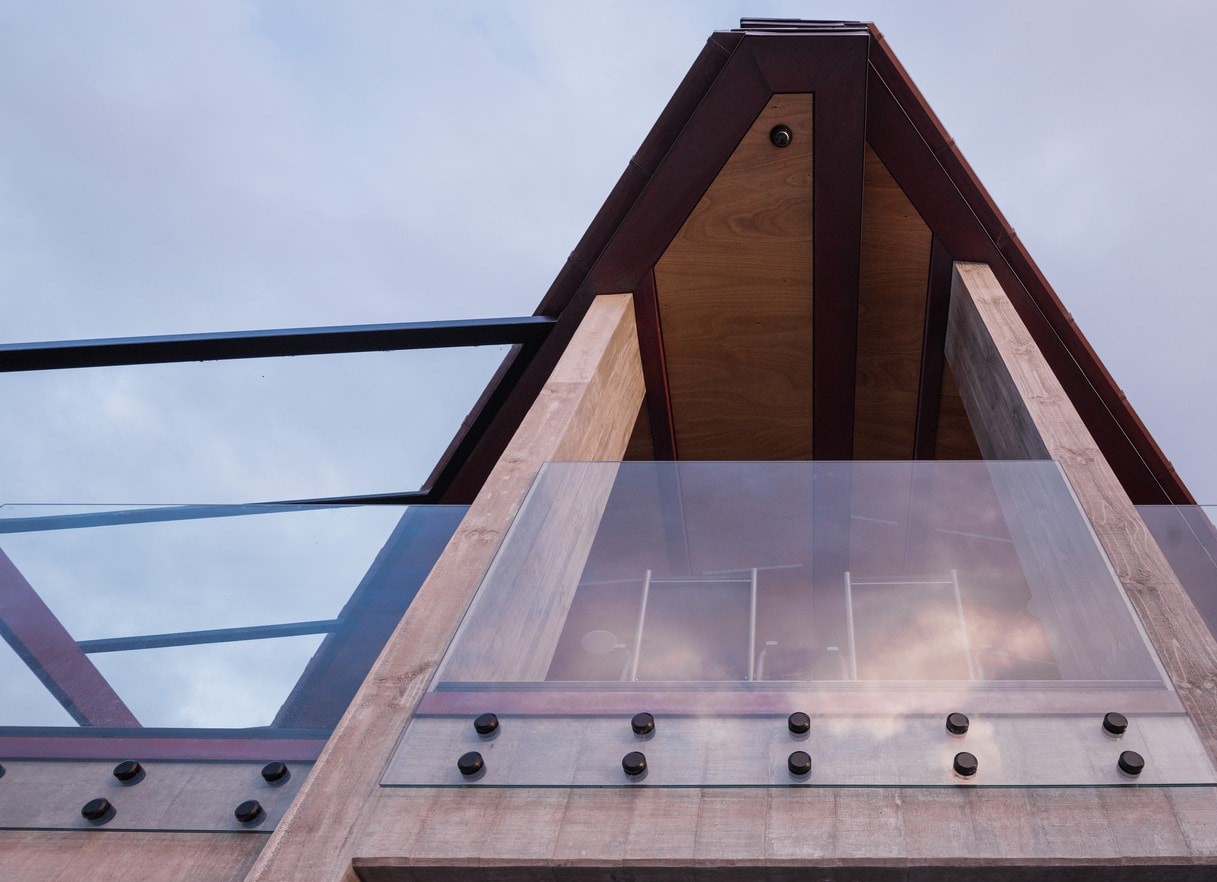

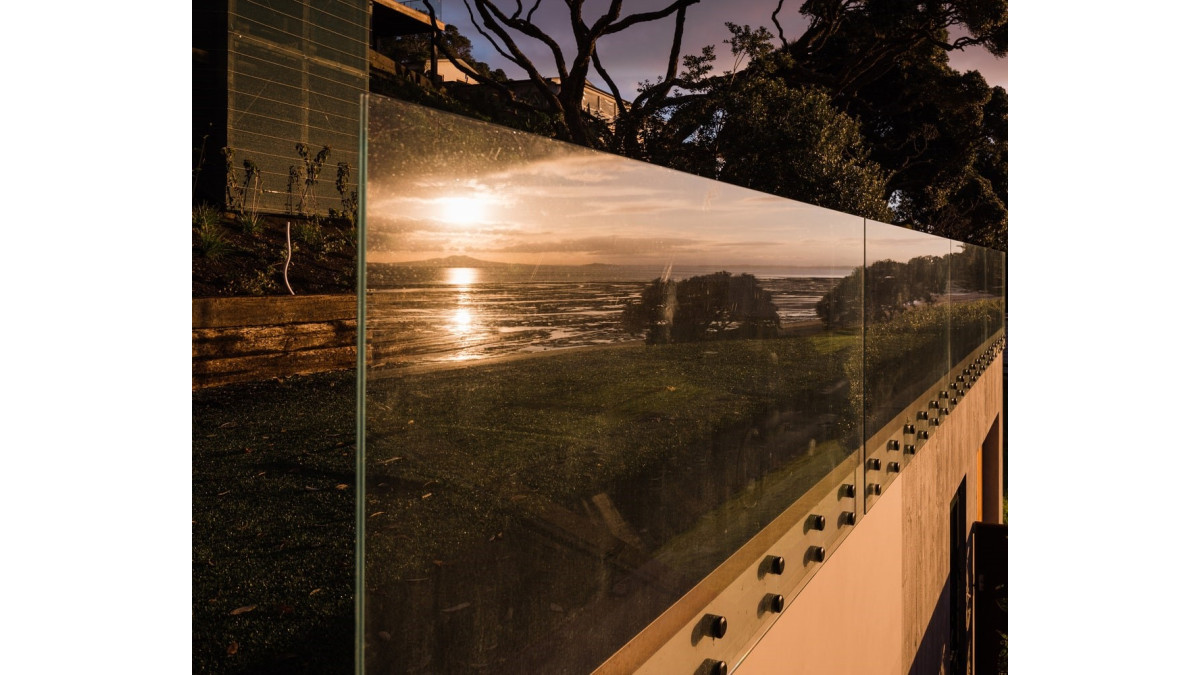

The system is ideal for external/internal balconies, stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces and is finished with an interlinking top rail (where required) in a choice of stainless steel or powder coat colours to suit.

Key Features
  • The SD50 Double Disc System can be side fixed into timber, steel or concrete
  • Available in 4 standard styles and up to 6 different models (availability TBC)
  • Suitable for residential and commercial situations.
  • Suitable for up to Extra High wind zones (subject to glass requirements)
  • Accommodates 12mm to 17.52mm glass types (and larger on request)
  • Simple to install align and adjust
  • Comes standard in Polished or Satin Stainless
  • Can be powdercoated to colour of choice (POA)
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for residential and commercial balustrades, and residential pool fencing
  • Occupancy Type: A, B, E, C3 & Pool Fences
  • Up to (and including) Extra High wind zone
  • Disc/button side fixed into timber, steel or concrete
  • Accommodates 12mm to 17.52mm glass types (and larger on request)
  • Frameless or with interlinking top rail
  • Powdercoated to suit aesthetic
Limitations on Use
  • Not suitable for D or C5 occupancy (unless specific design to suit application)
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Low suitable
Low Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance
  • B1 Structure
  • F2 Hazardous Building Materials
  • F4 Safety from Falling
  • F9 Restricting Access to Residential Pools
  • Occupancy Type: A, B, E, C3
B1 Structure compliant
Structure
B2 Durability compliant
Durability
D1 Access Routes compliant
Access Routes
D2 Mechanical Installations for Access compliant
Mechanical Installations for Access
Test Results
Test Results
Documents
Double Disc SD50 System Guide

2024

Double Disc SD50 Installation Guide

v1 2023

Opus Hardware Warranty & Maintenance Guide

v1 2024

Product Guide: Balustrade & Pool
Additional Information

Opus Hardware is a New Zealand-owned and family-run business specializing in frameless glass hardware products including balustrades, commercial doors, showers, facades, and canopies.
