Resolute Post Balustrade System
Opus Hardware
All products

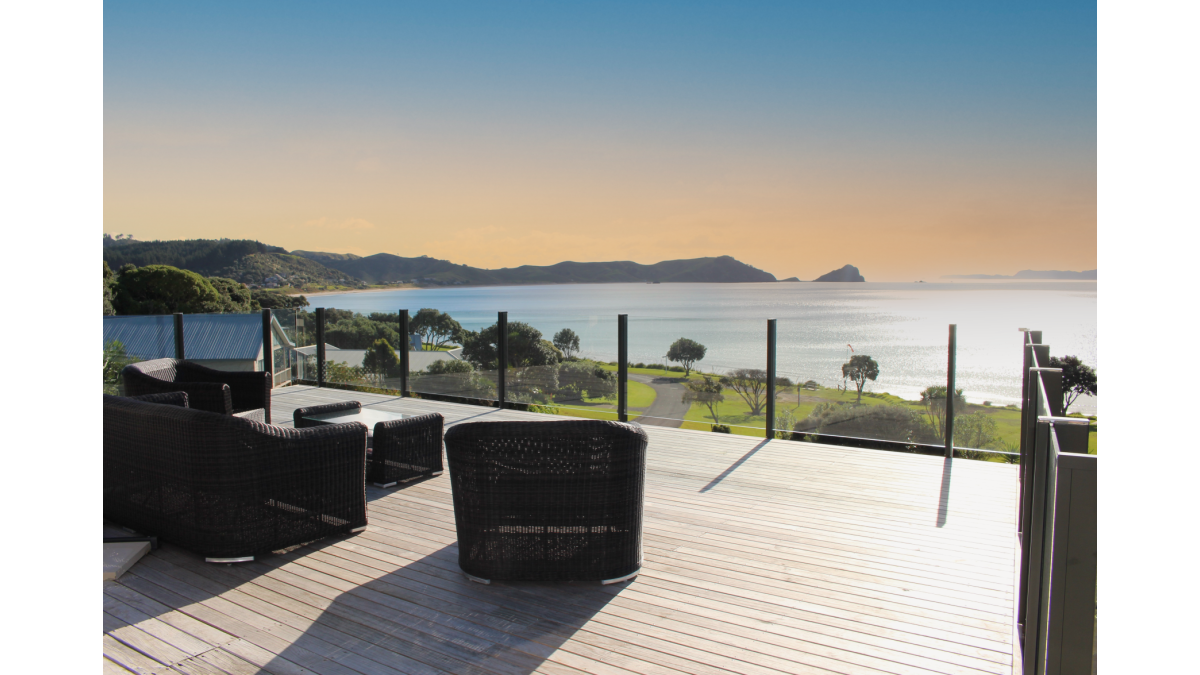

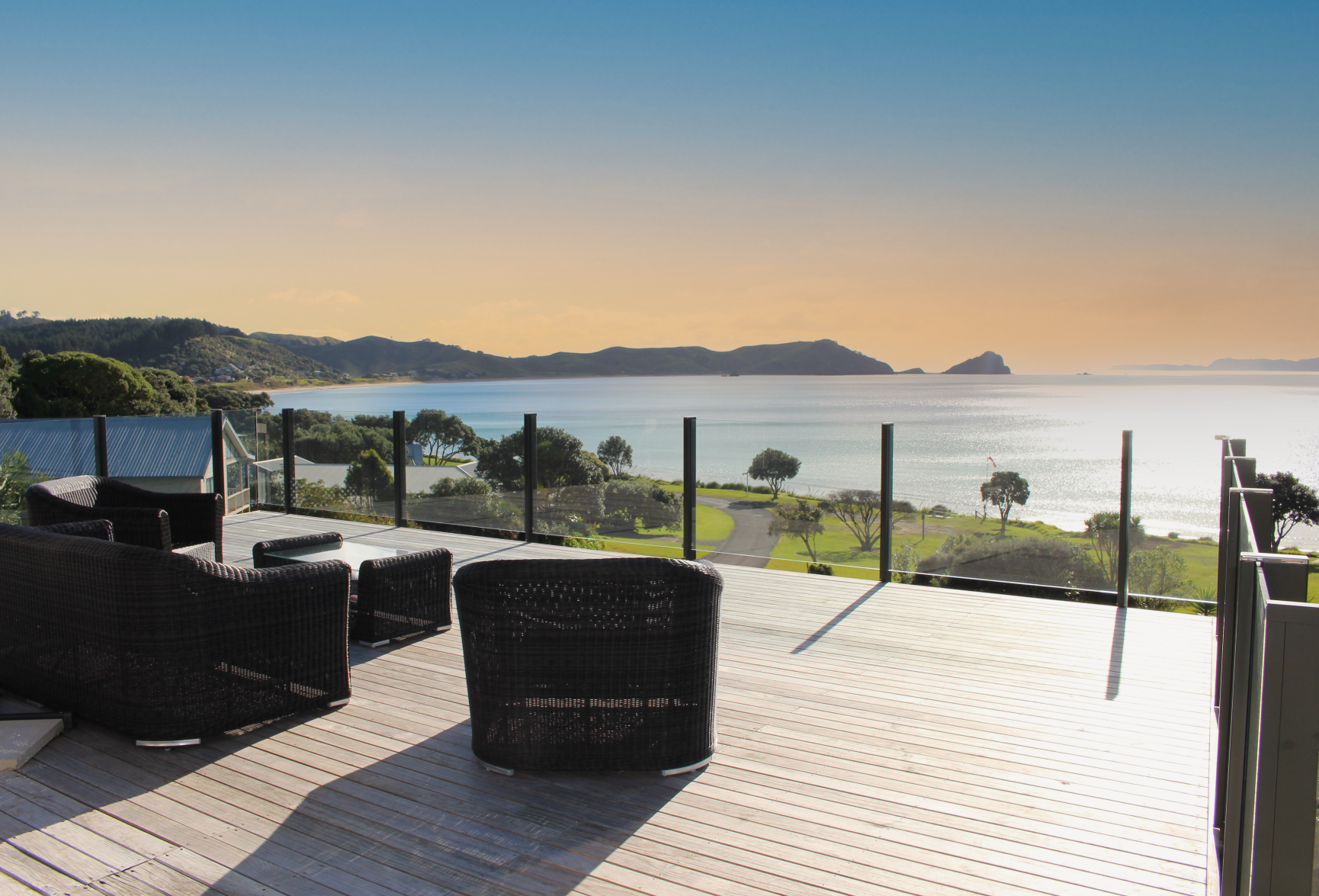

OB101 1
OB101 2

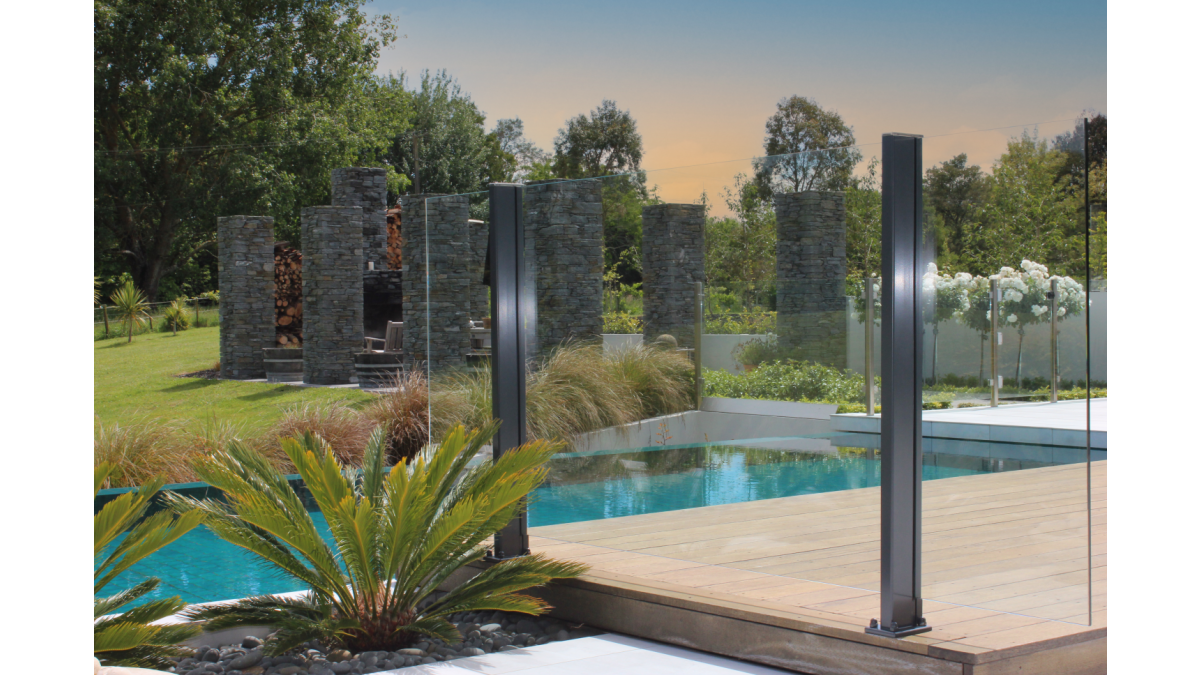

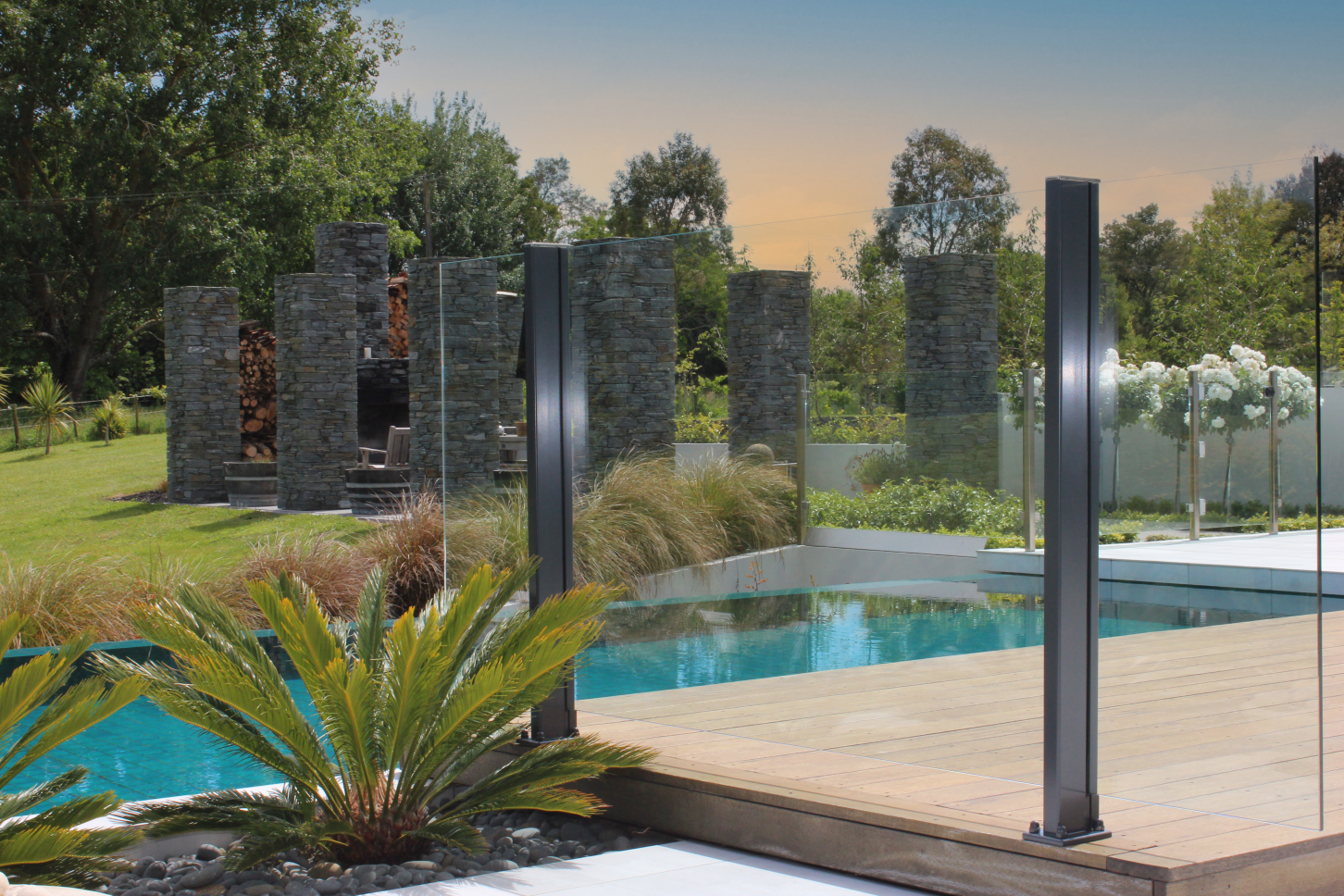

OB100 5

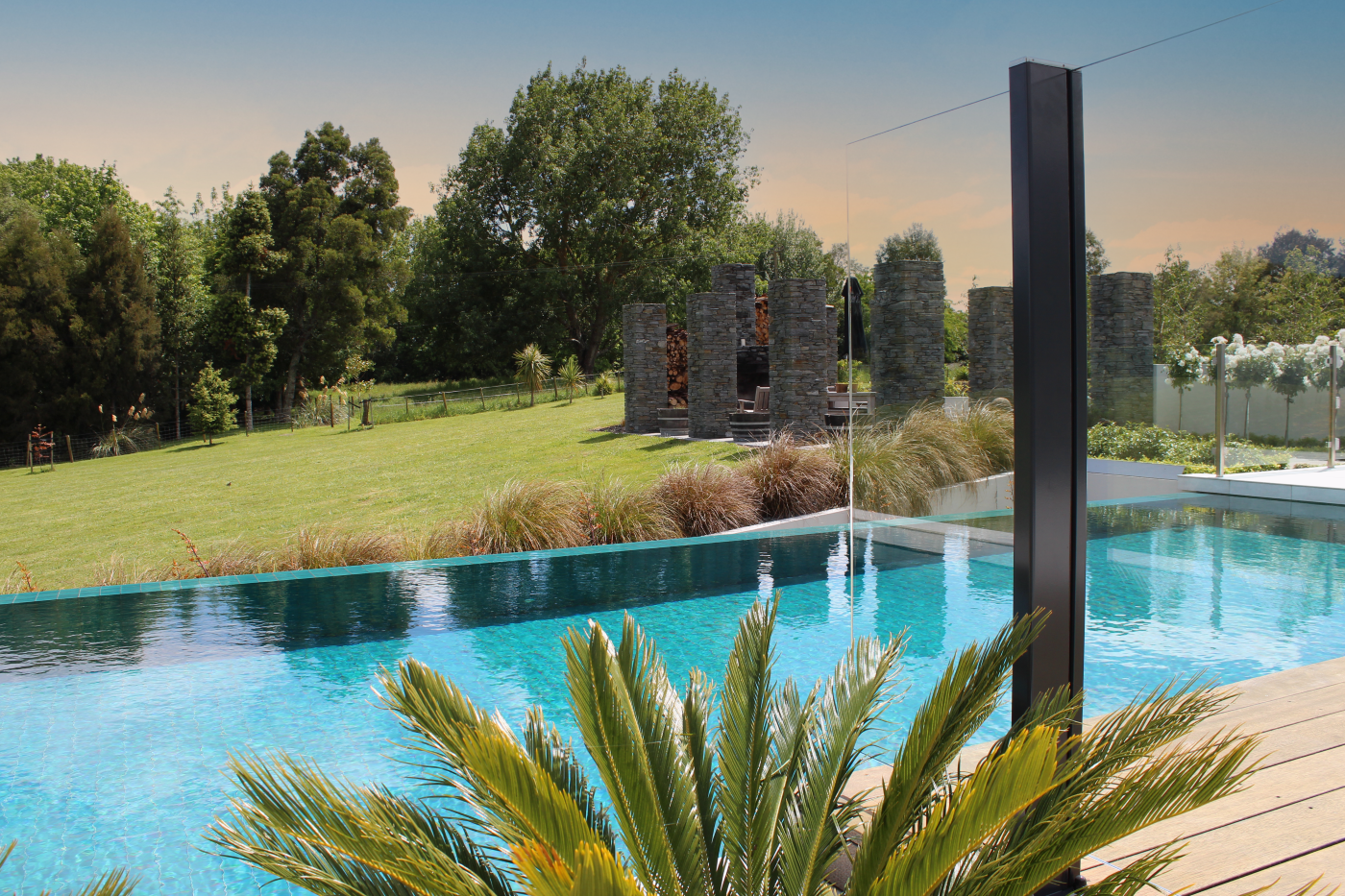

OB100 3

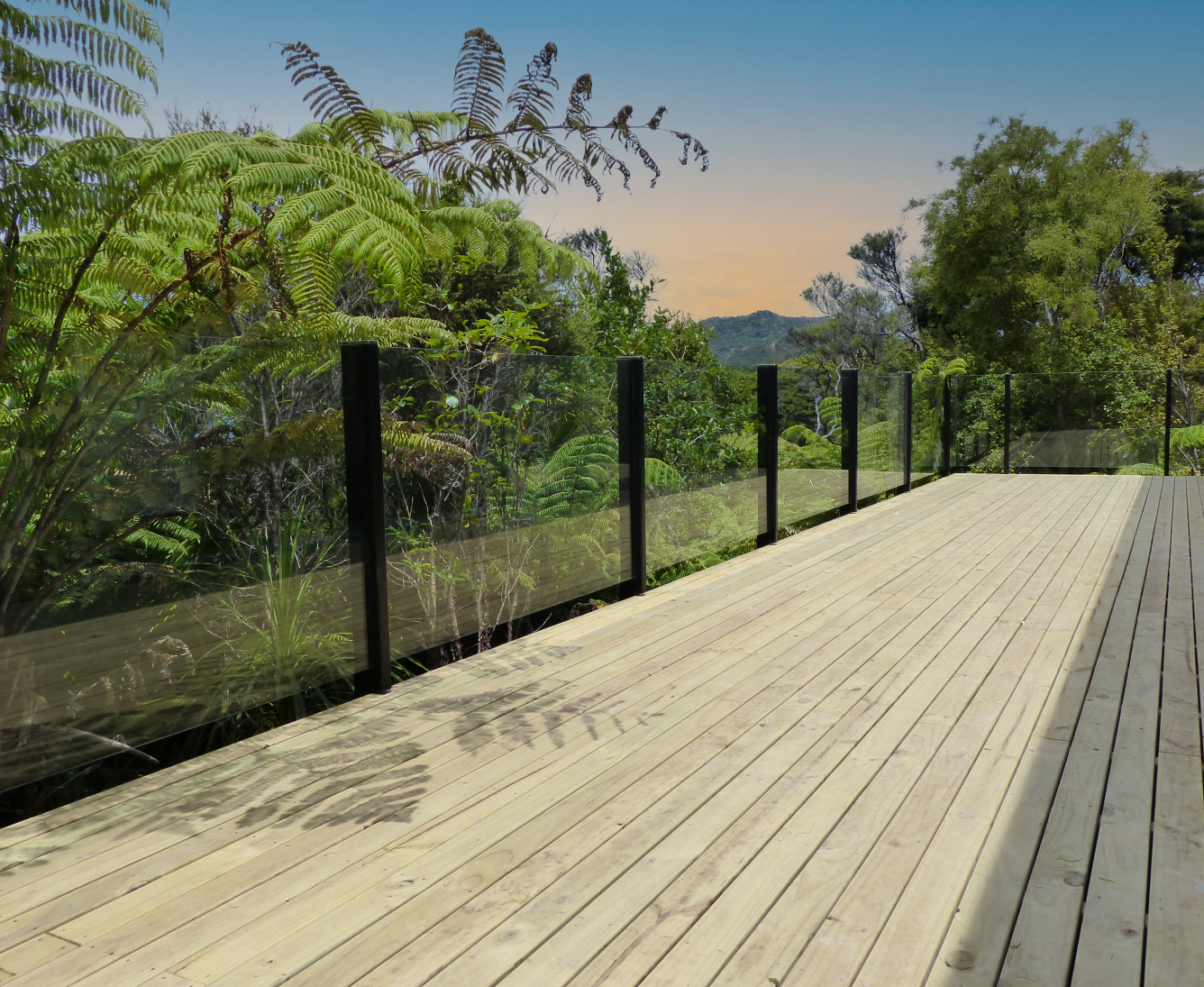

OB101 3

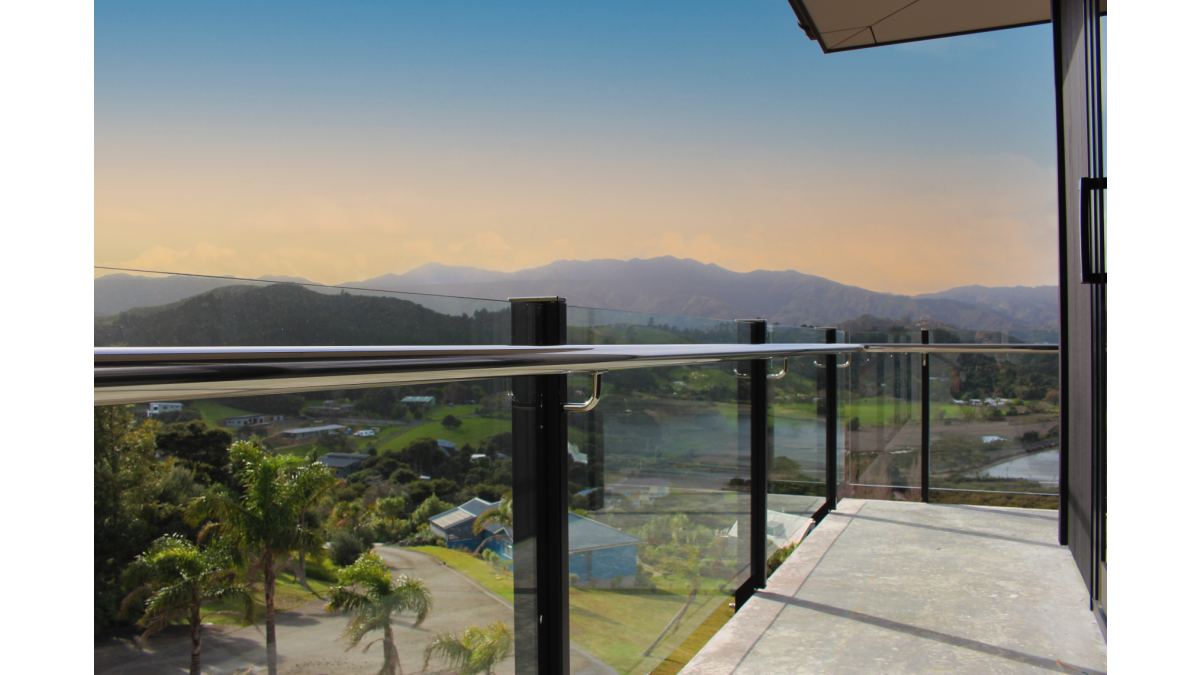

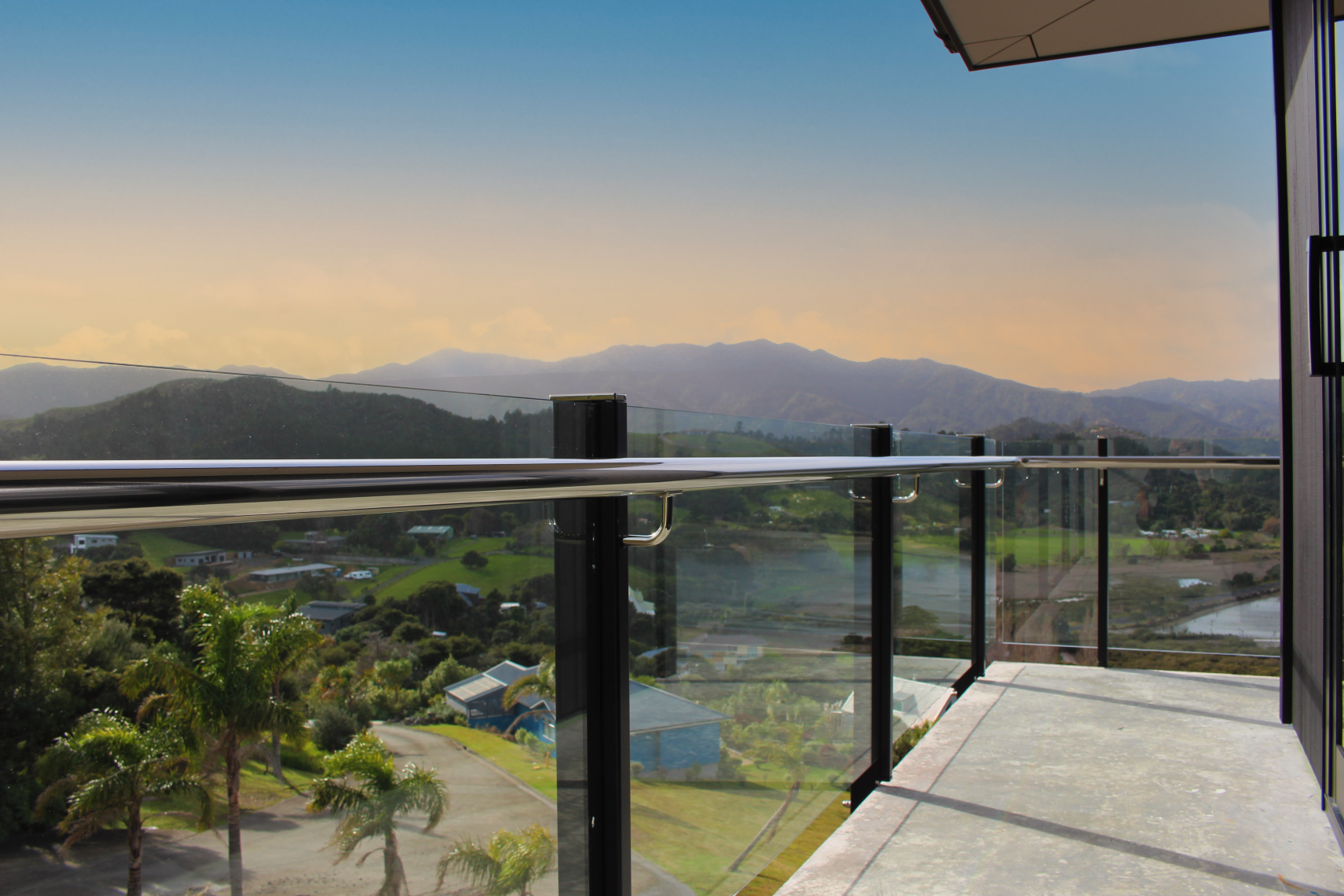

OB101 4

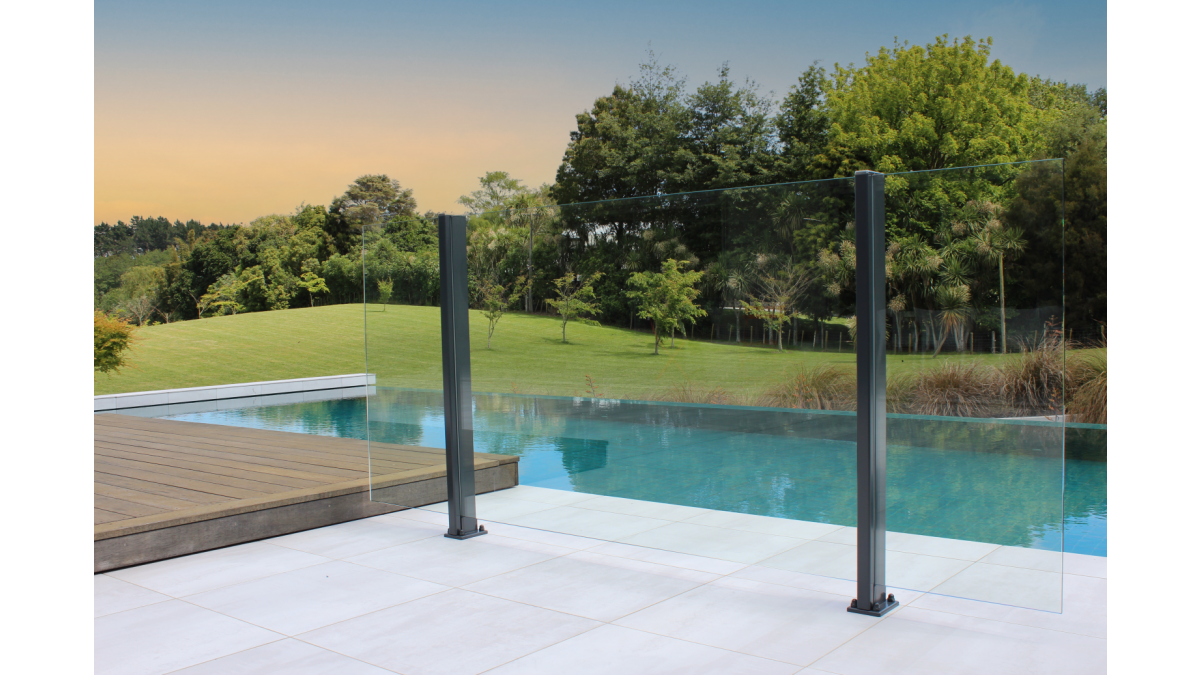

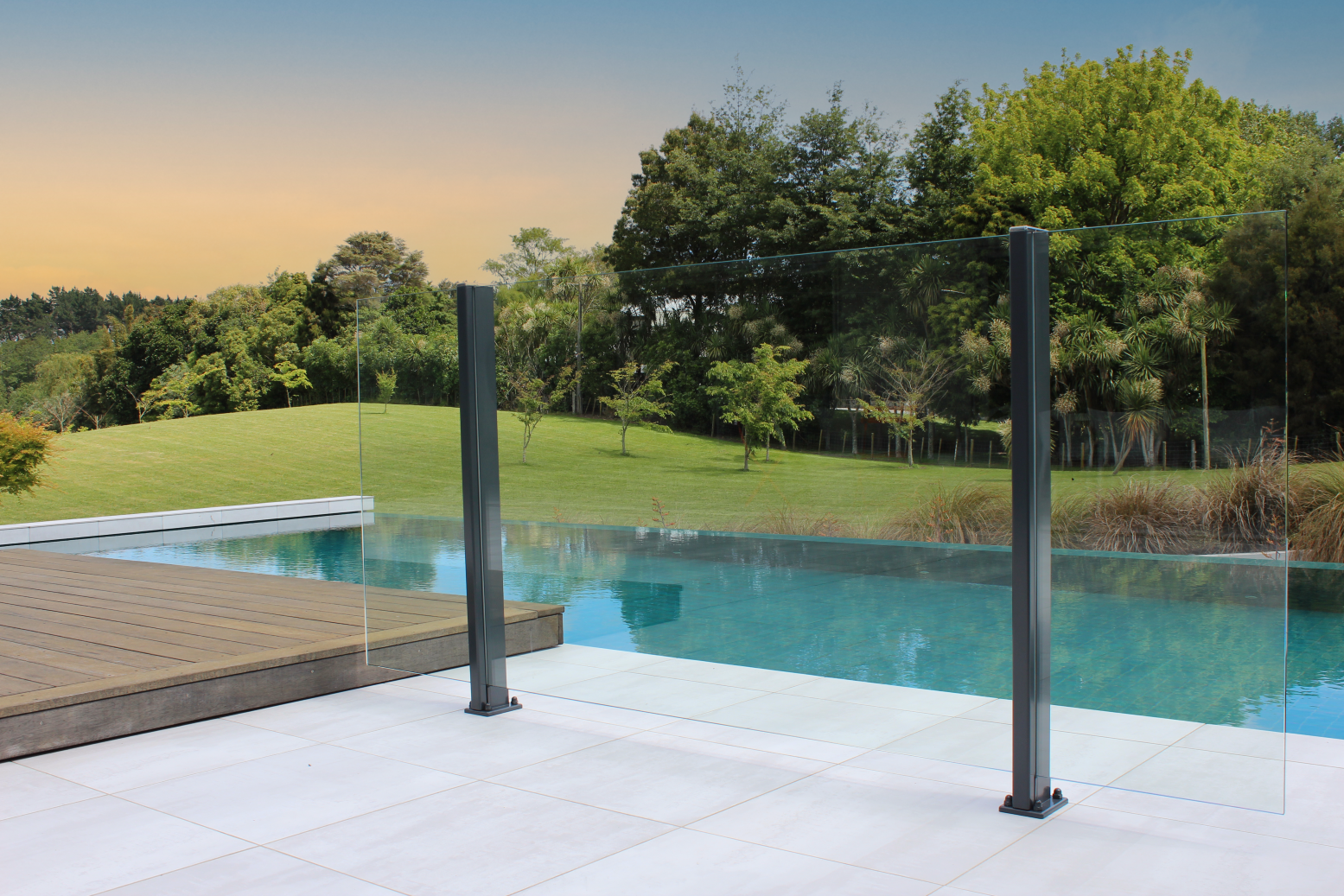

OB100 7

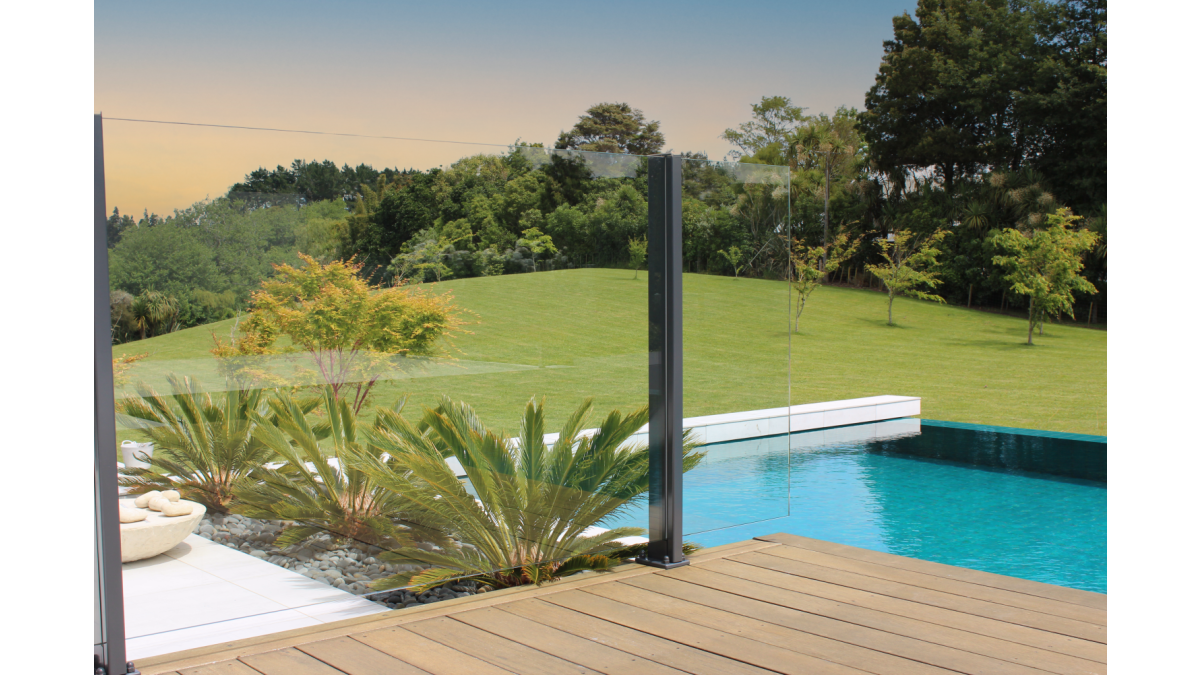

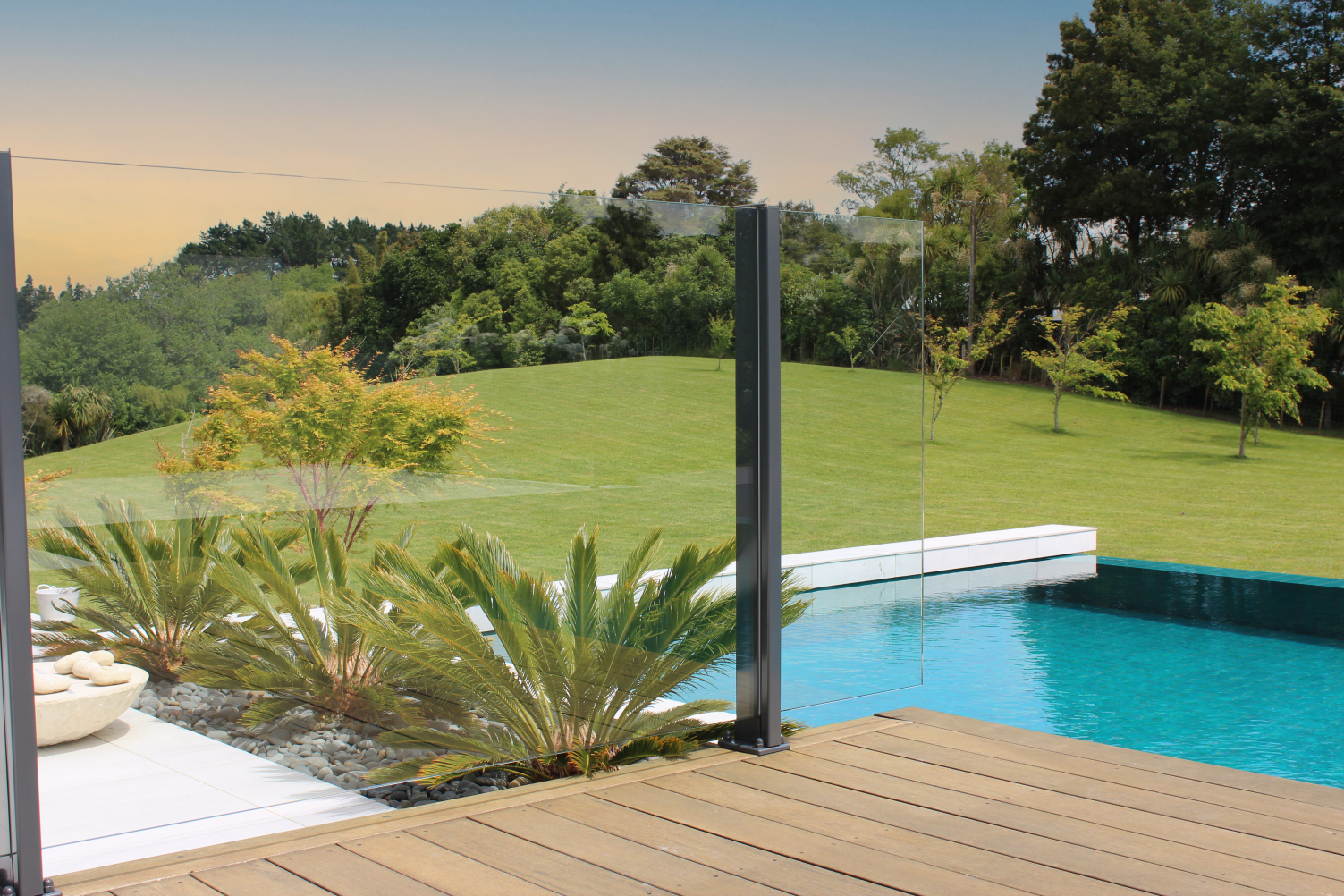

OB100 9

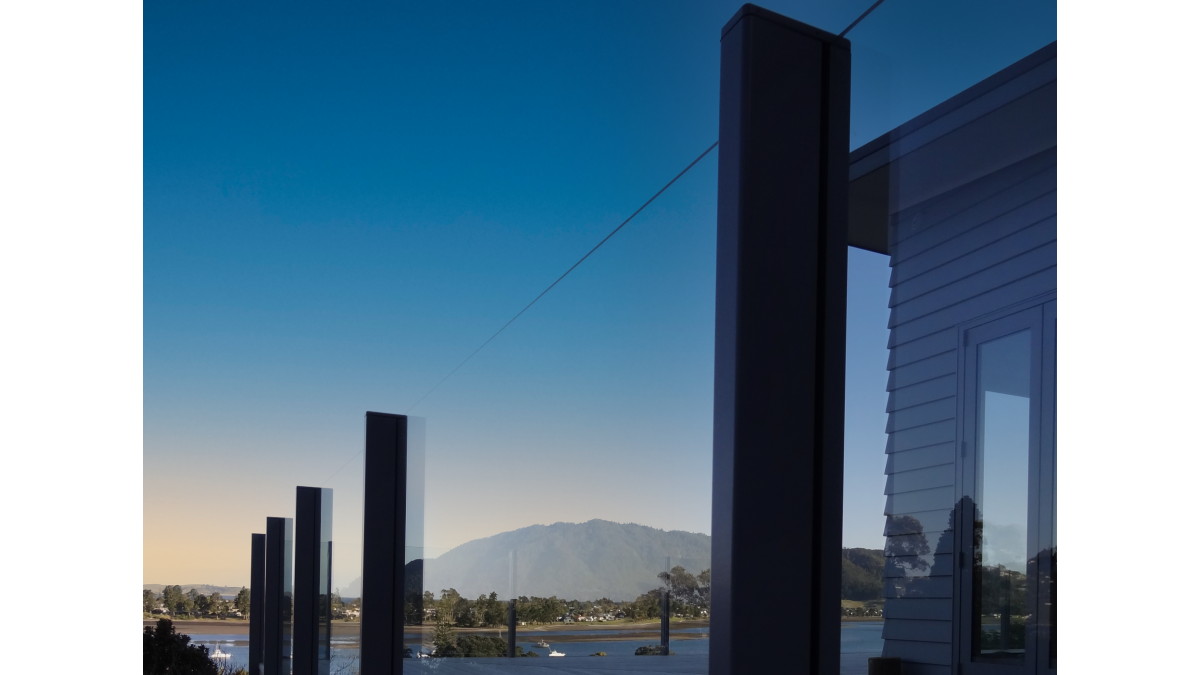

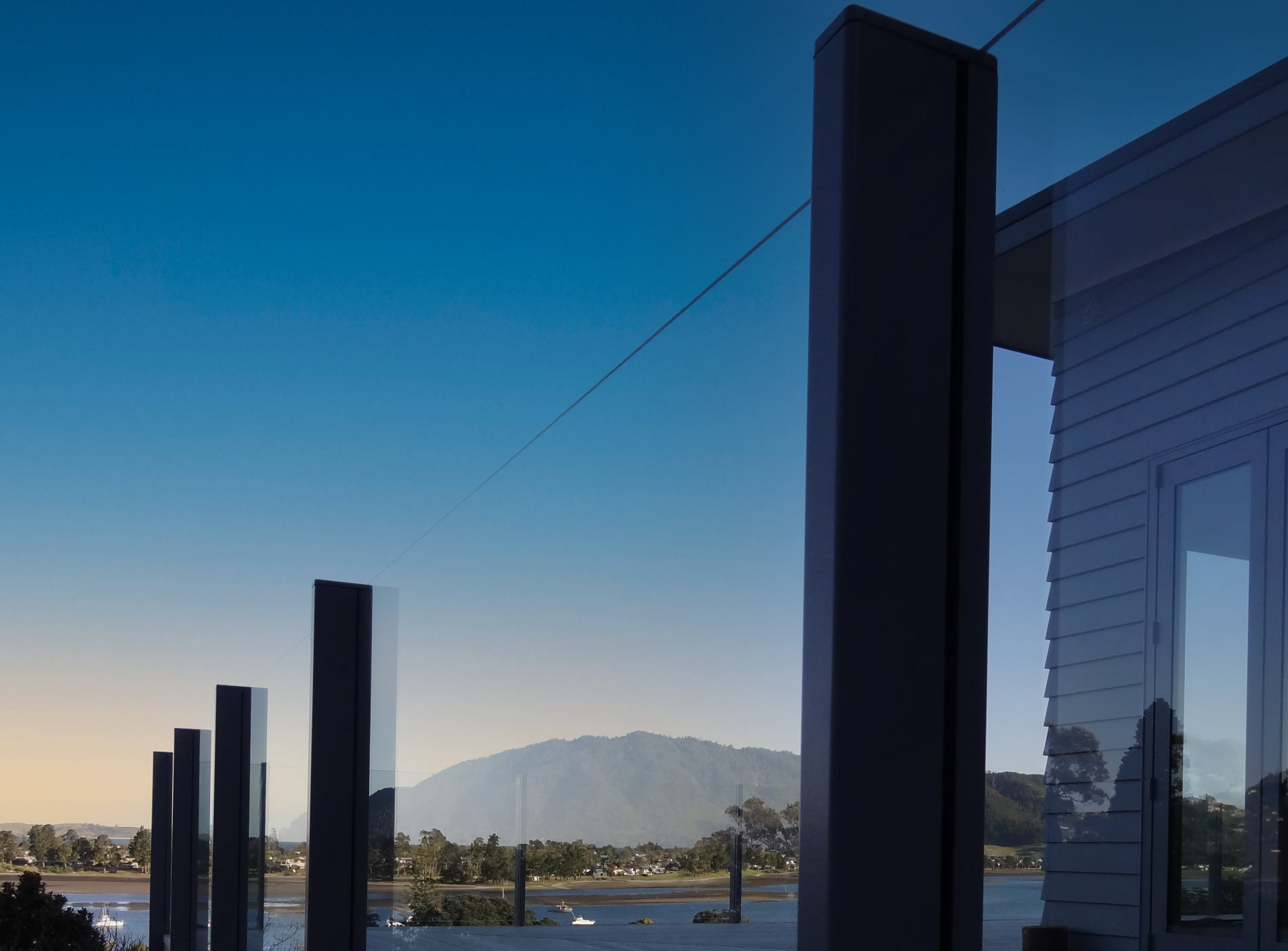

OB101 6

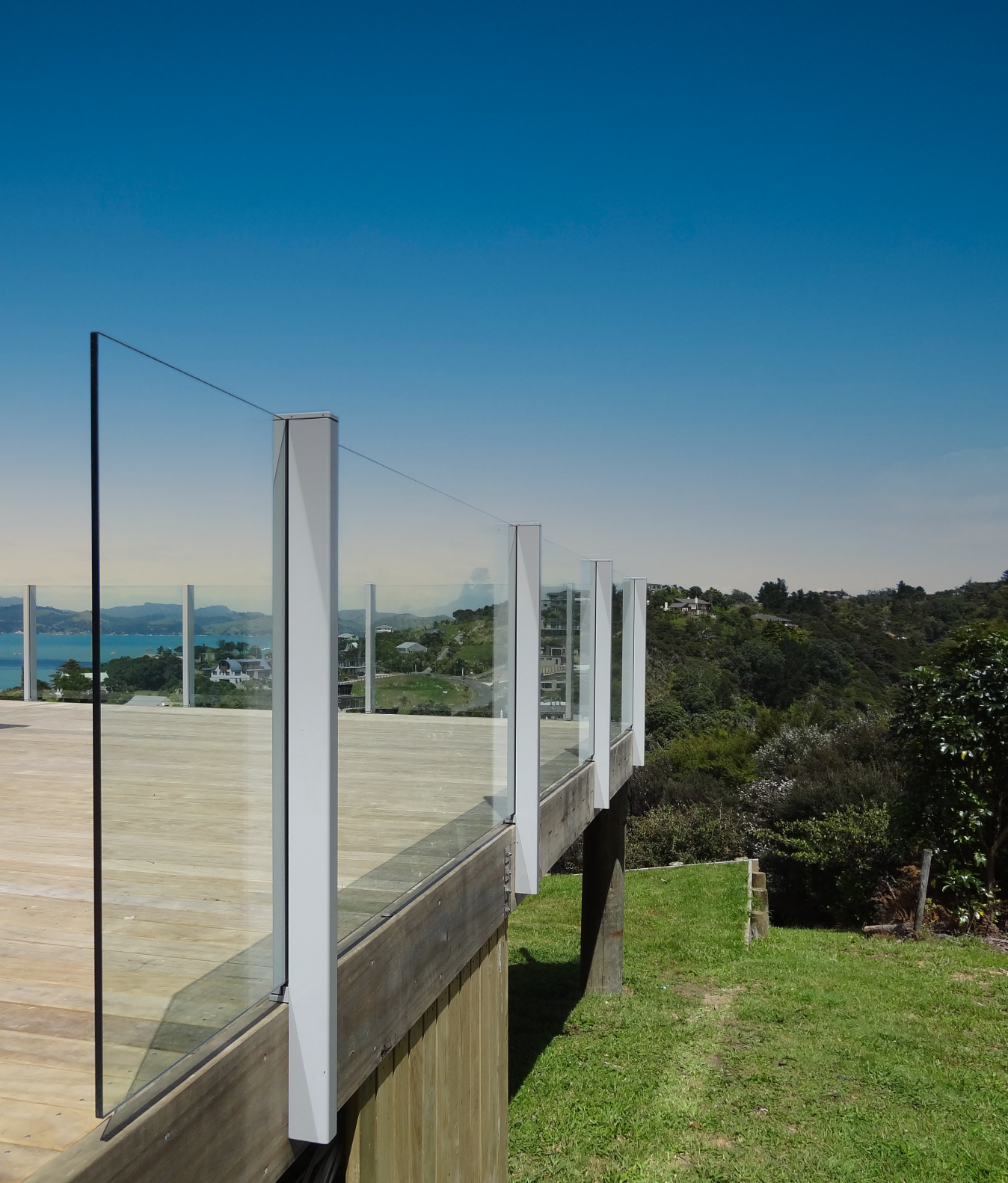

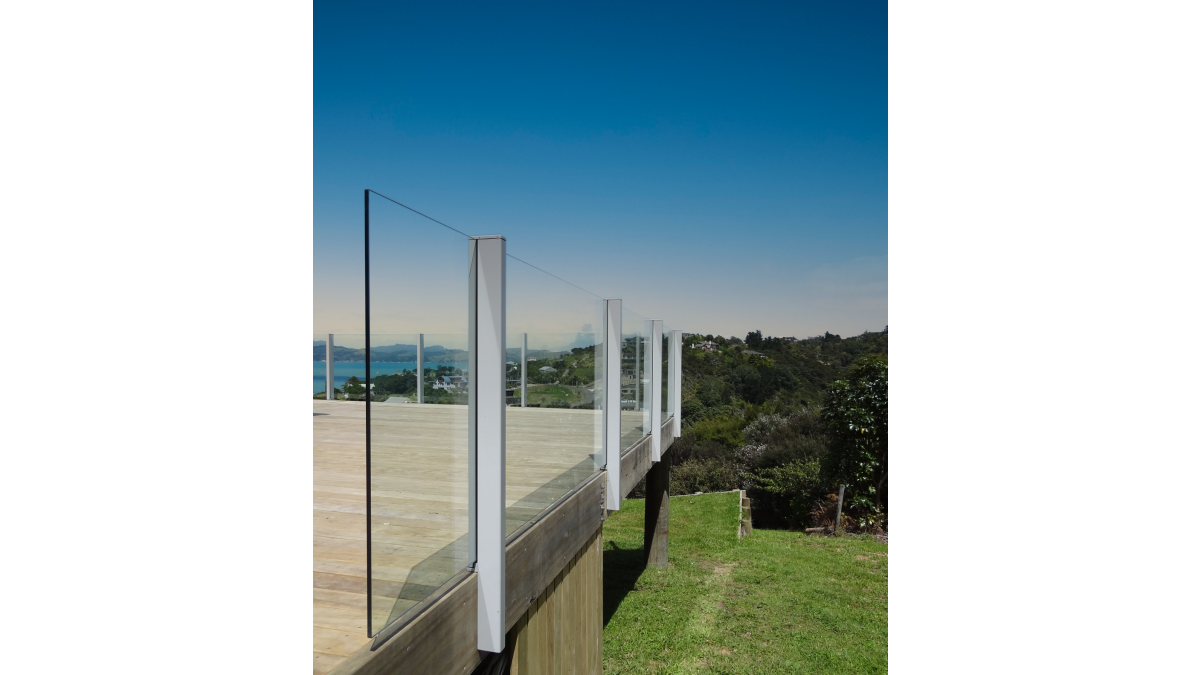

OB101 8

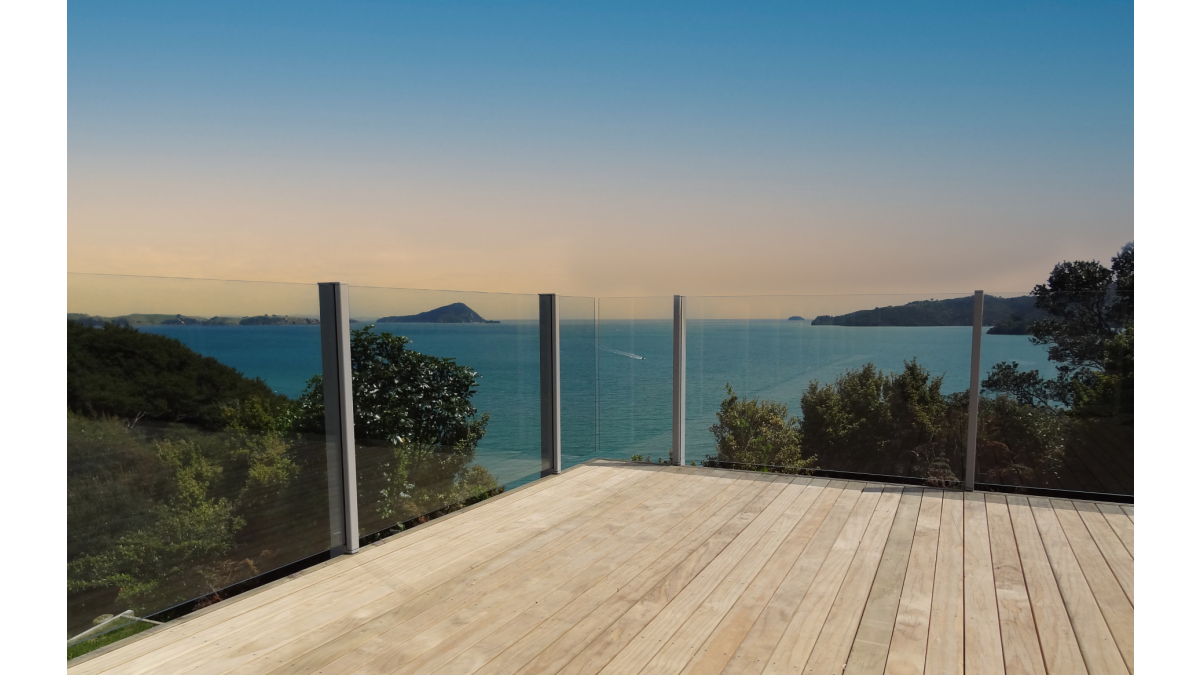

OB101 7

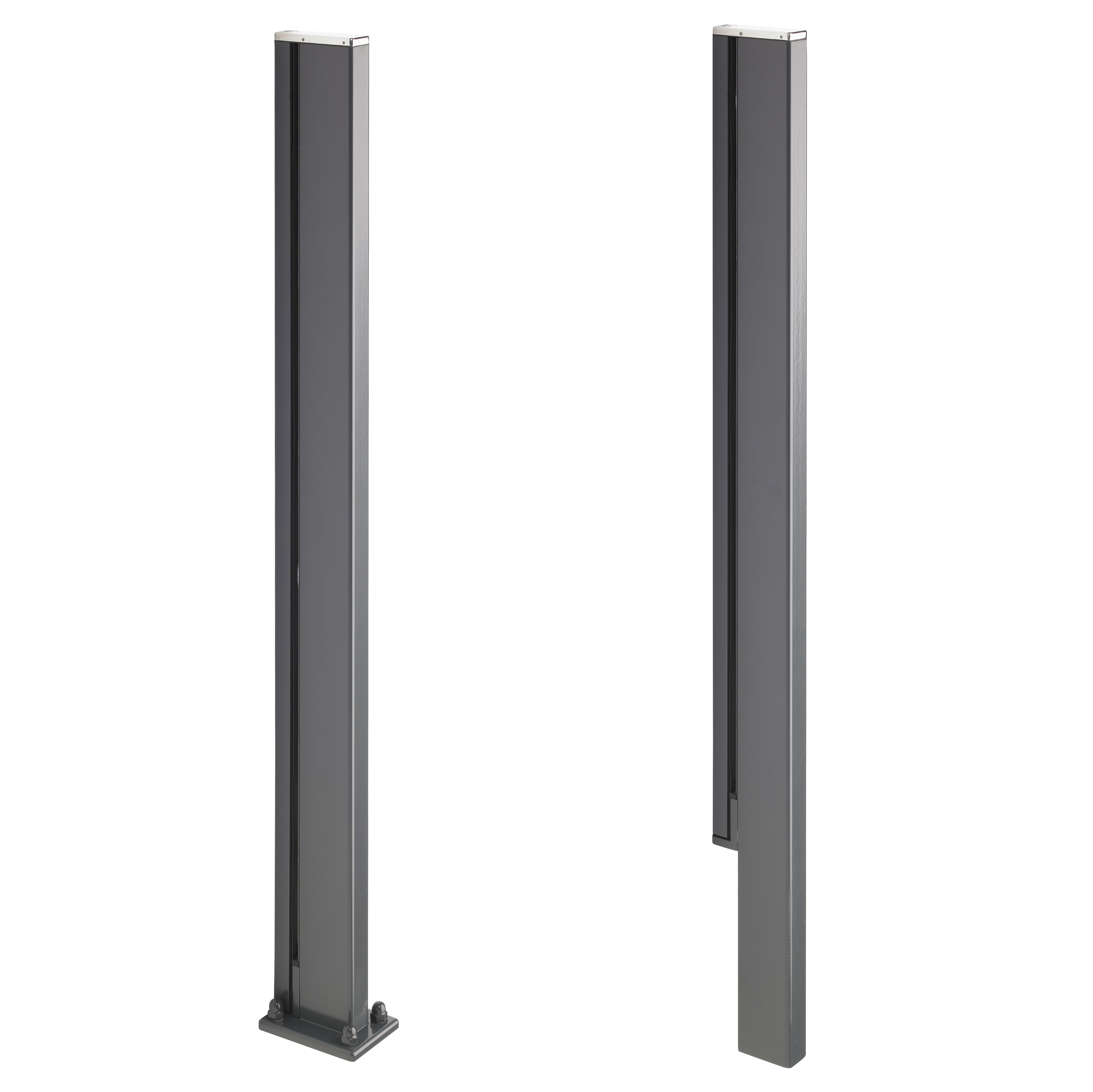

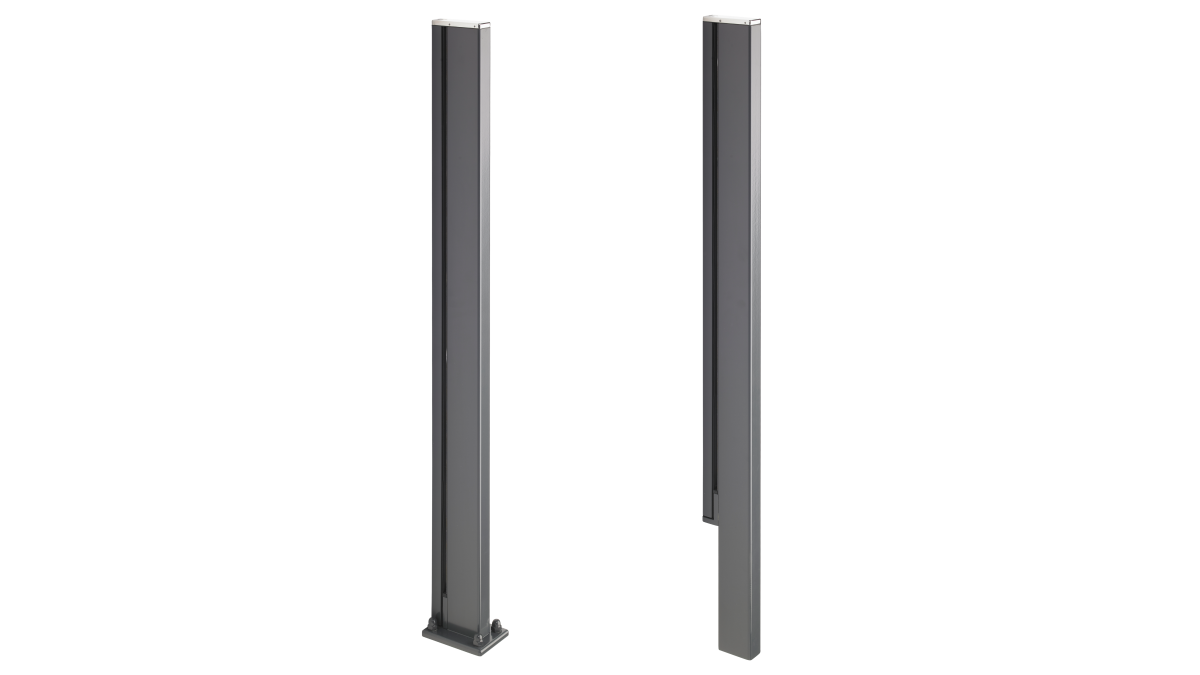

OB100 OB101

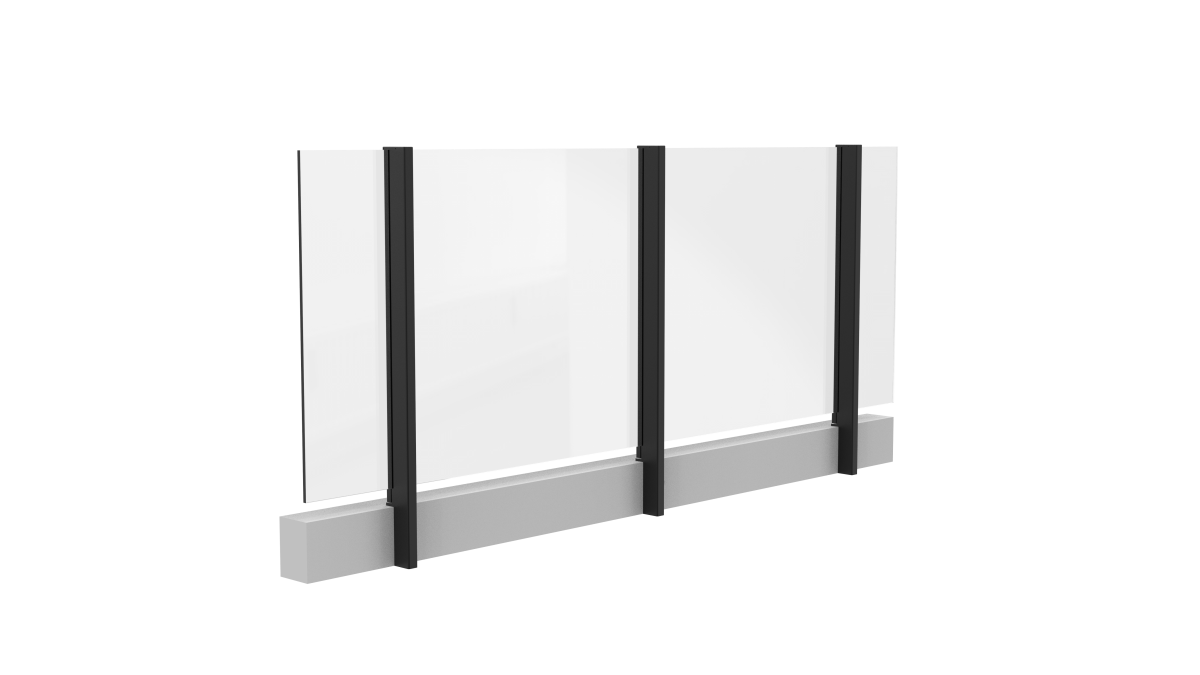

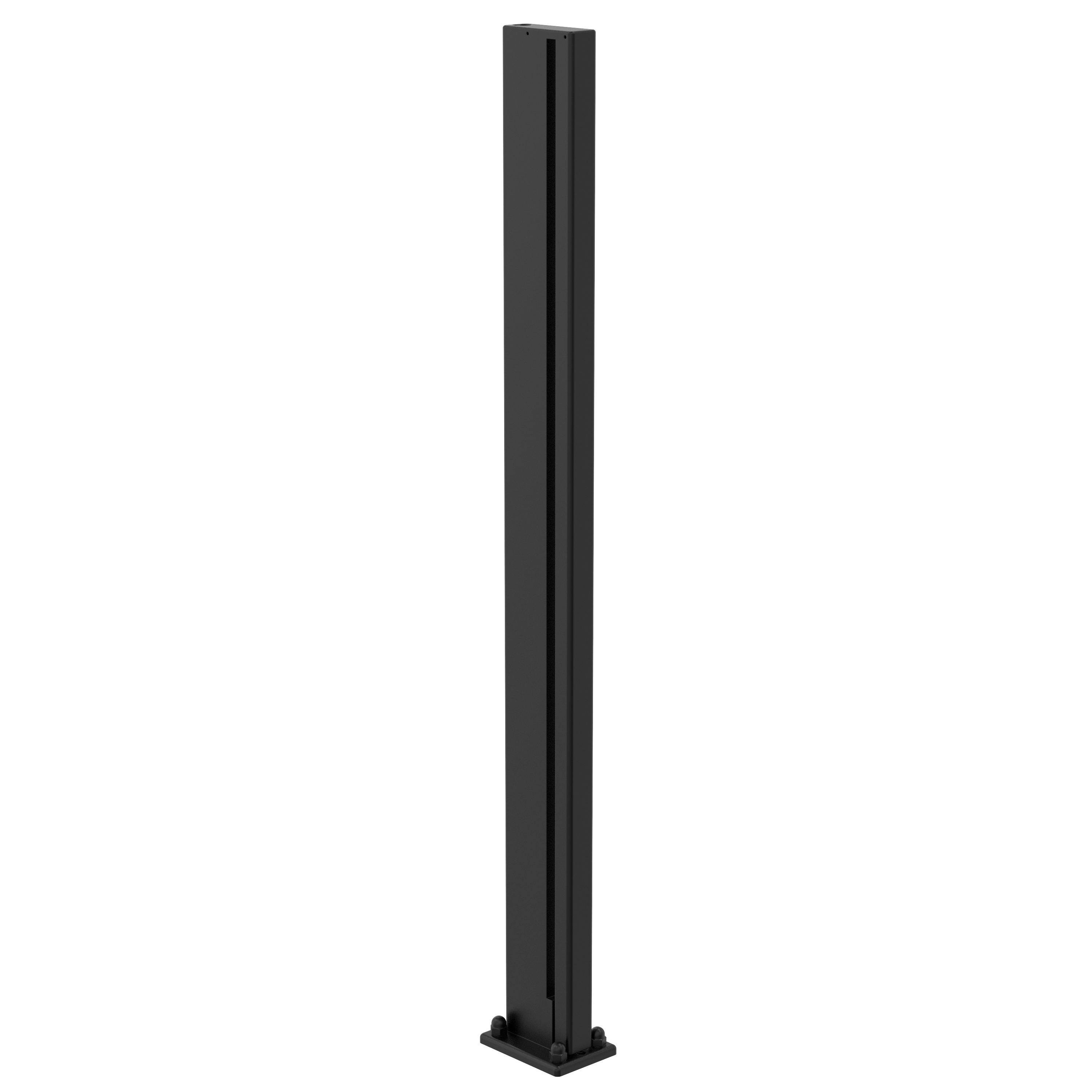

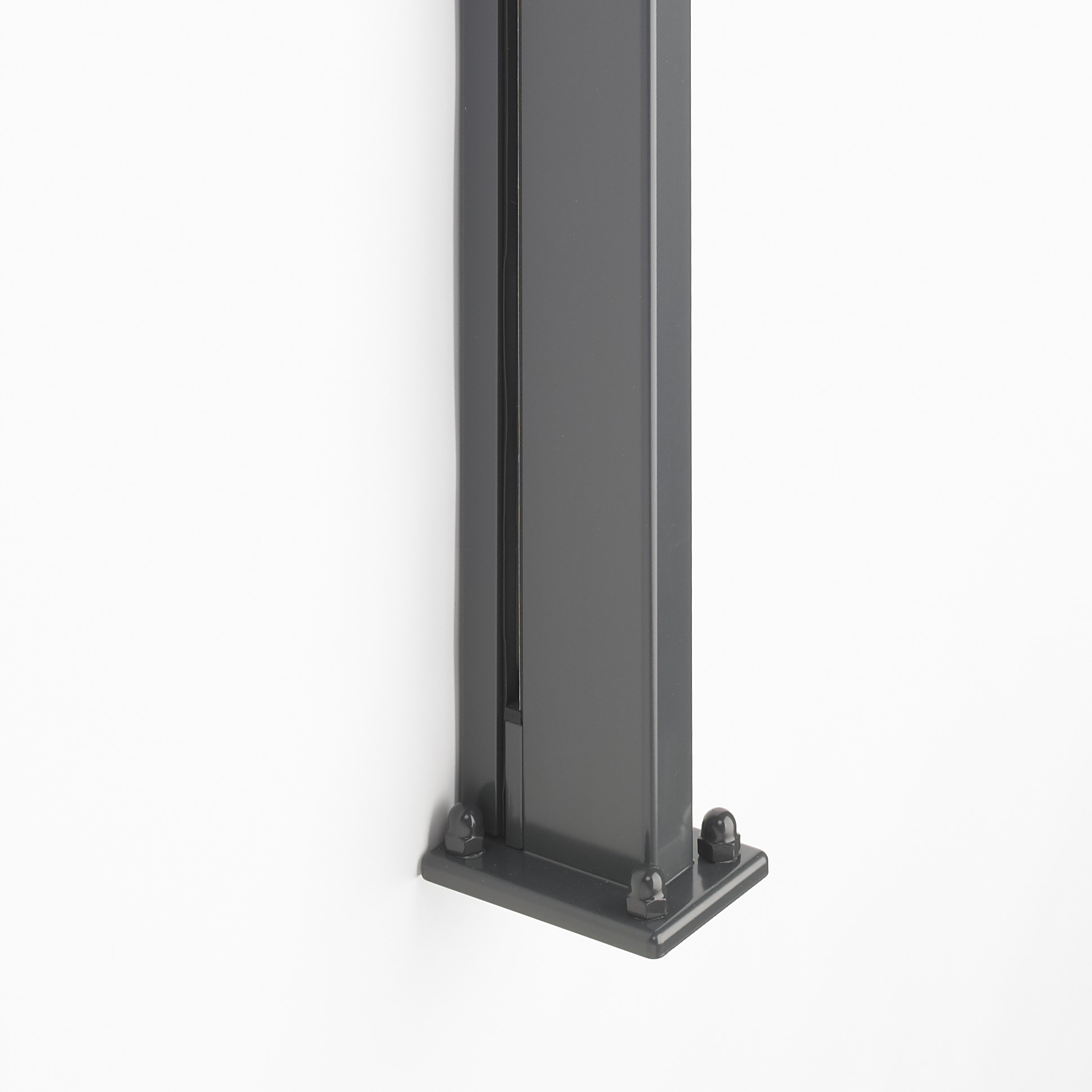

OB100

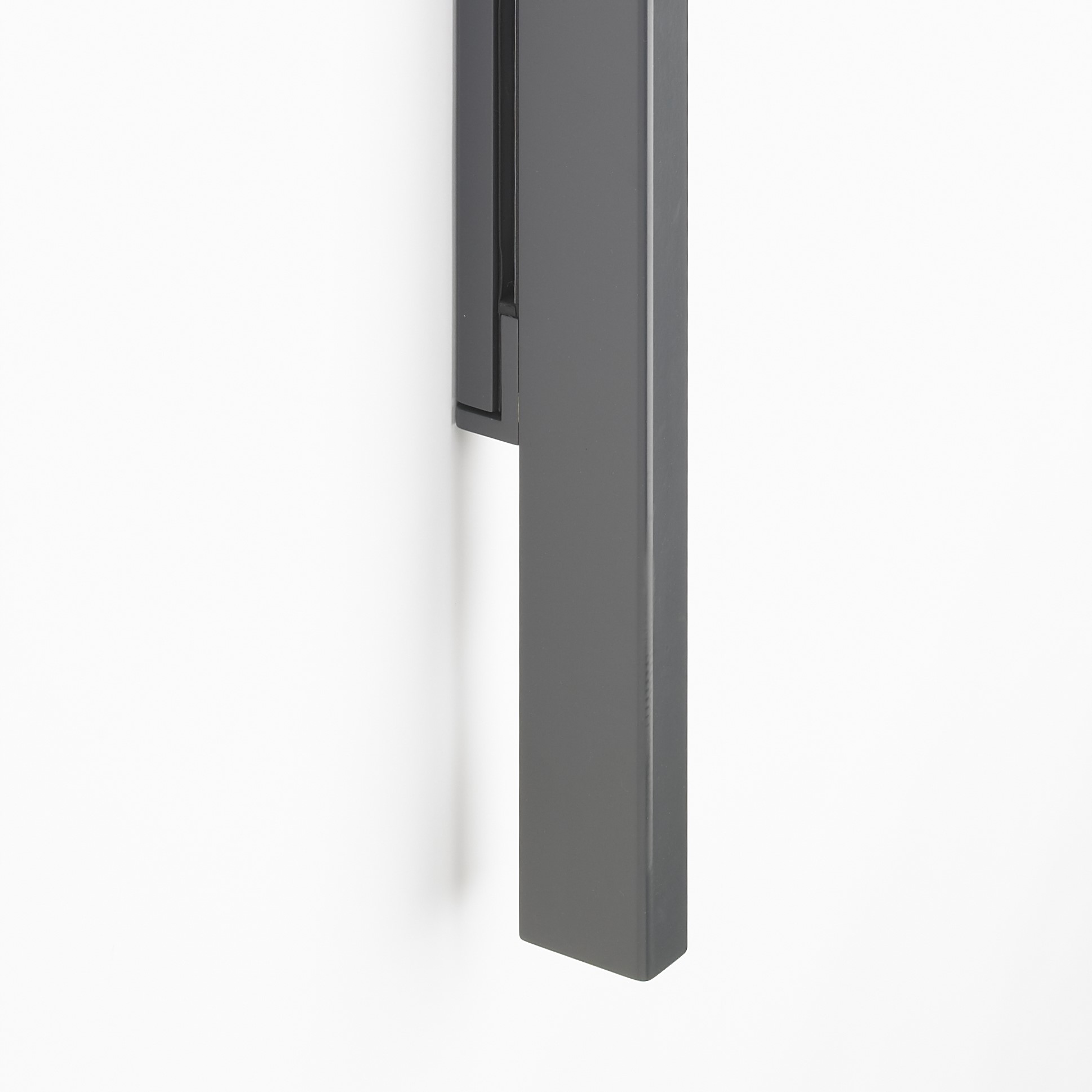

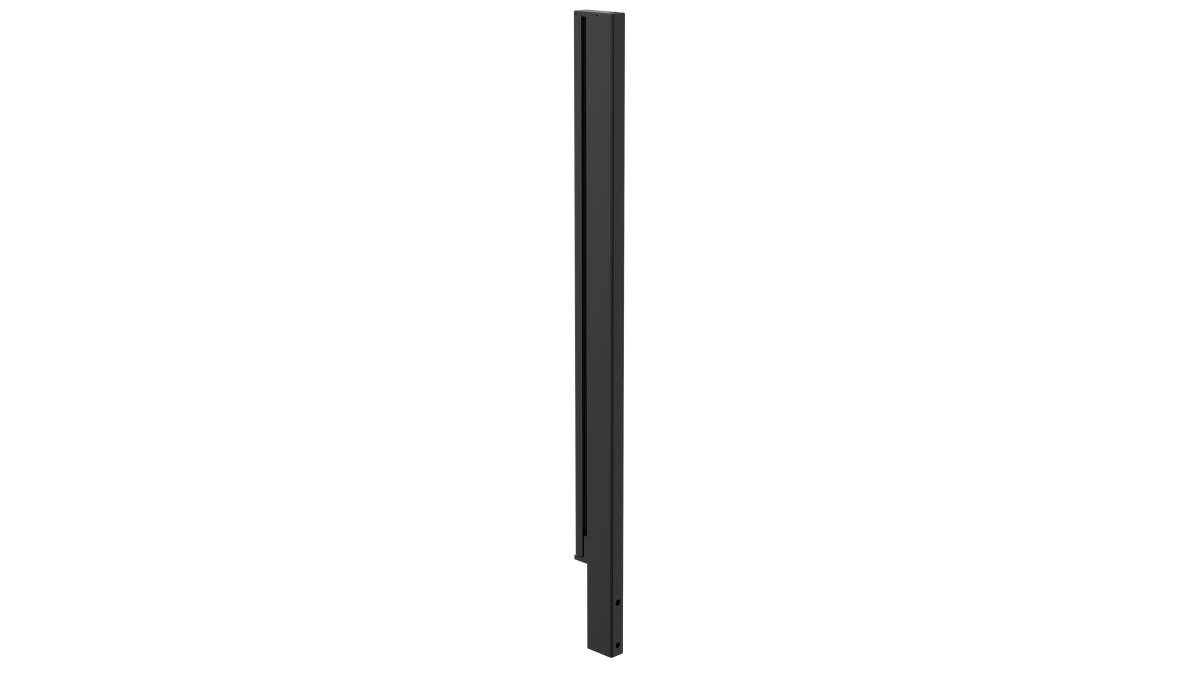

OB101 C

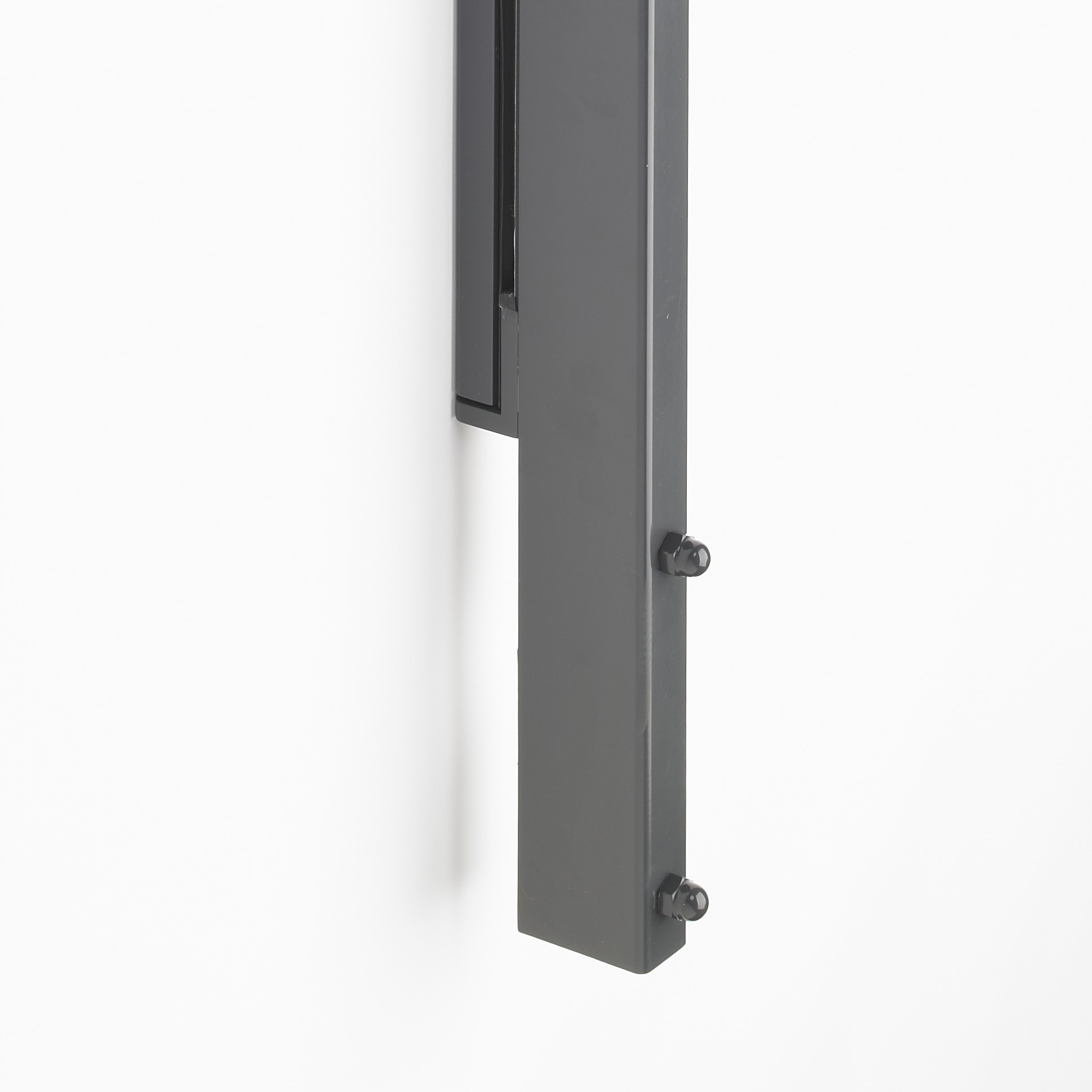

OB101 BOLT
Description

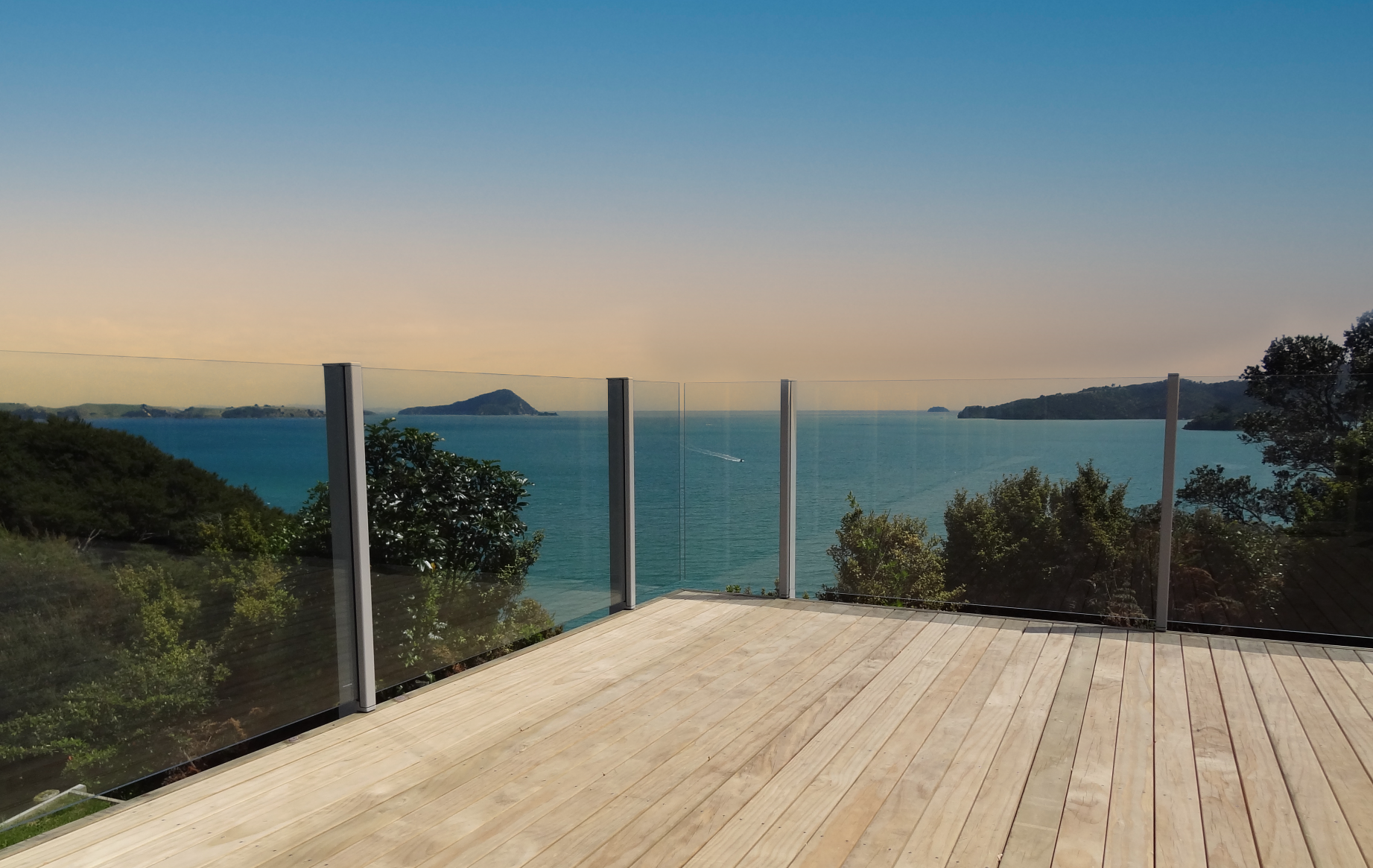

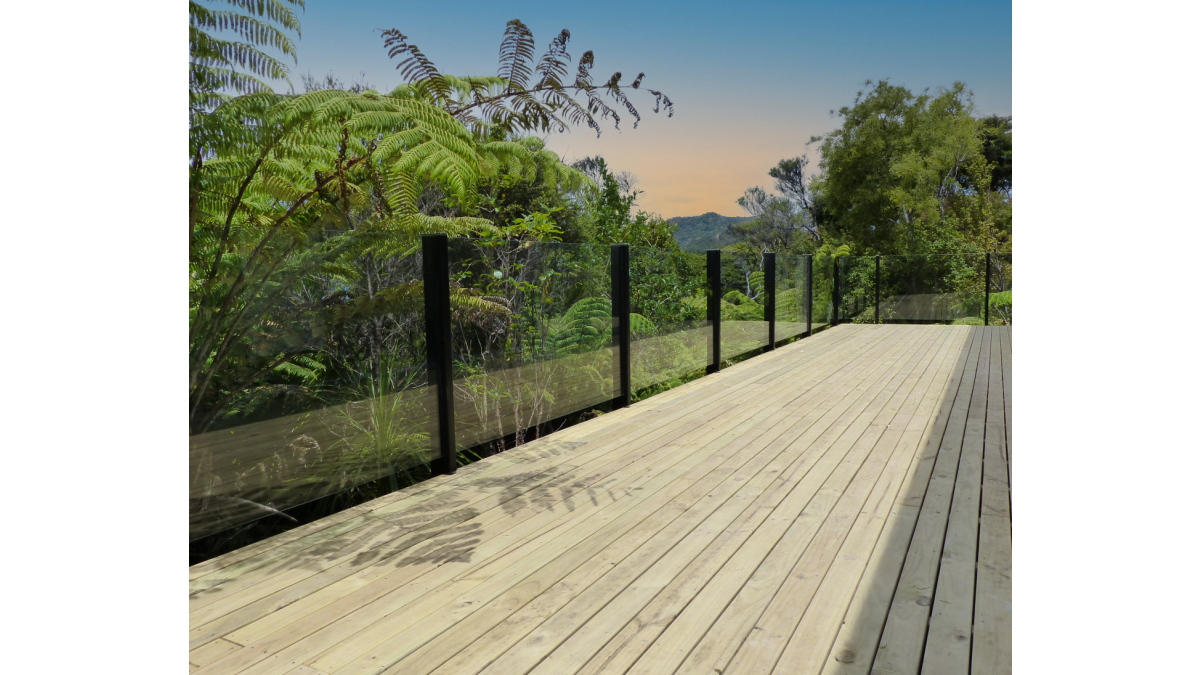

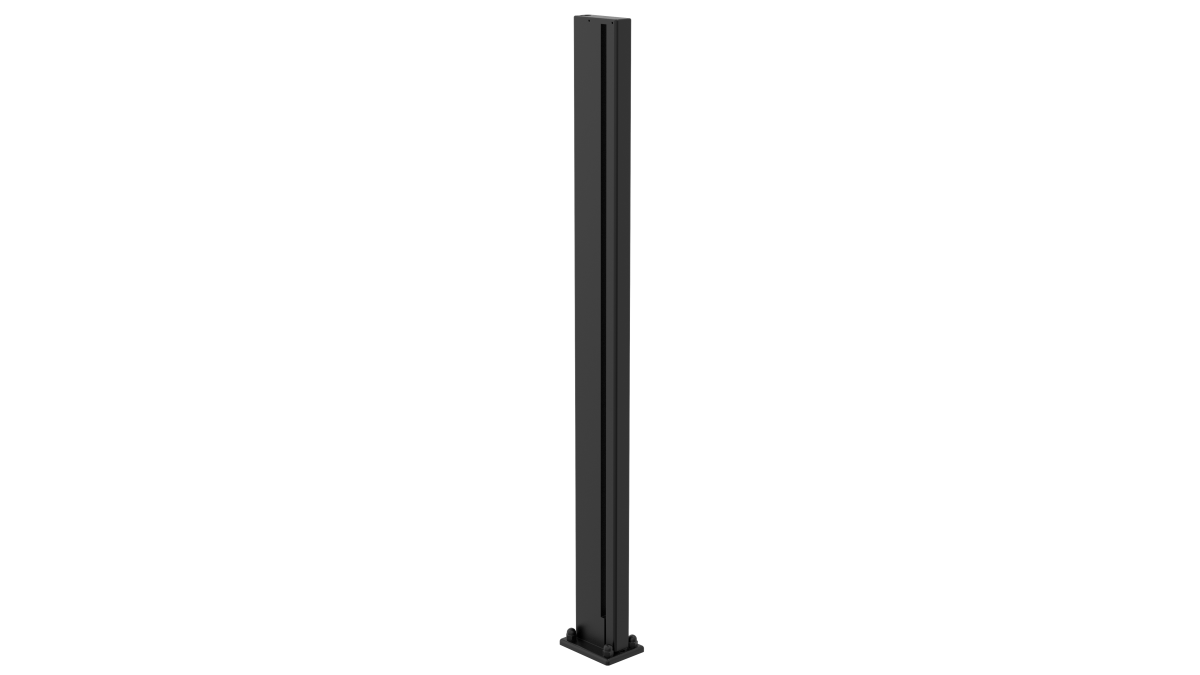

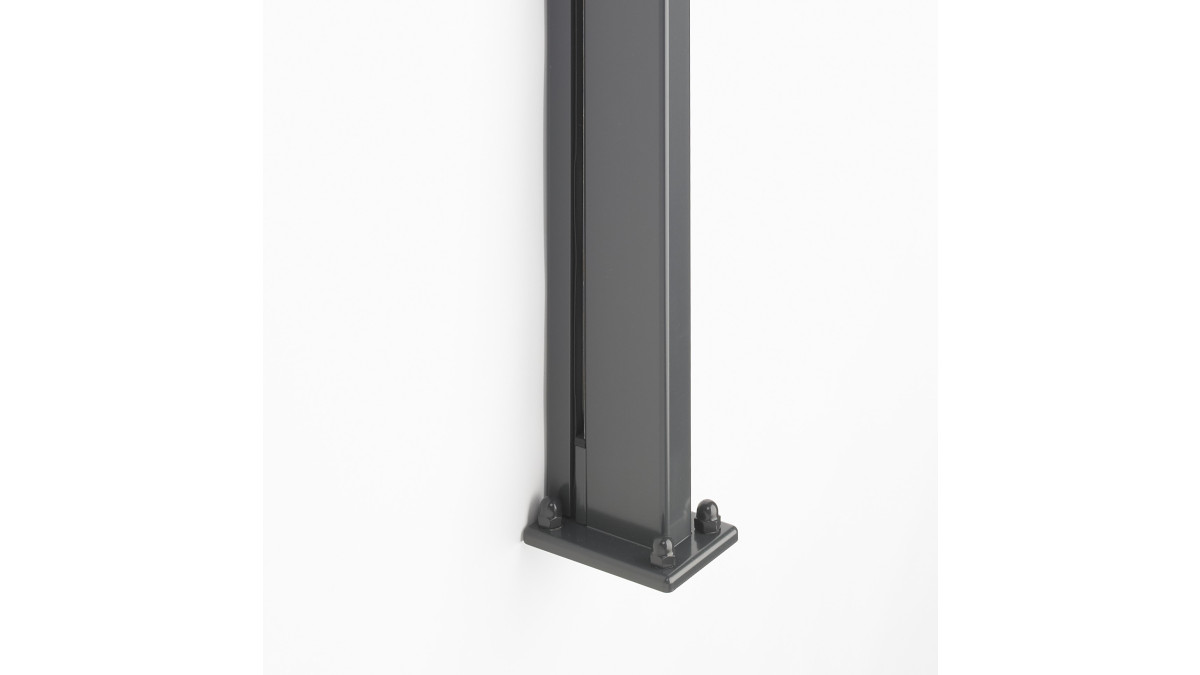

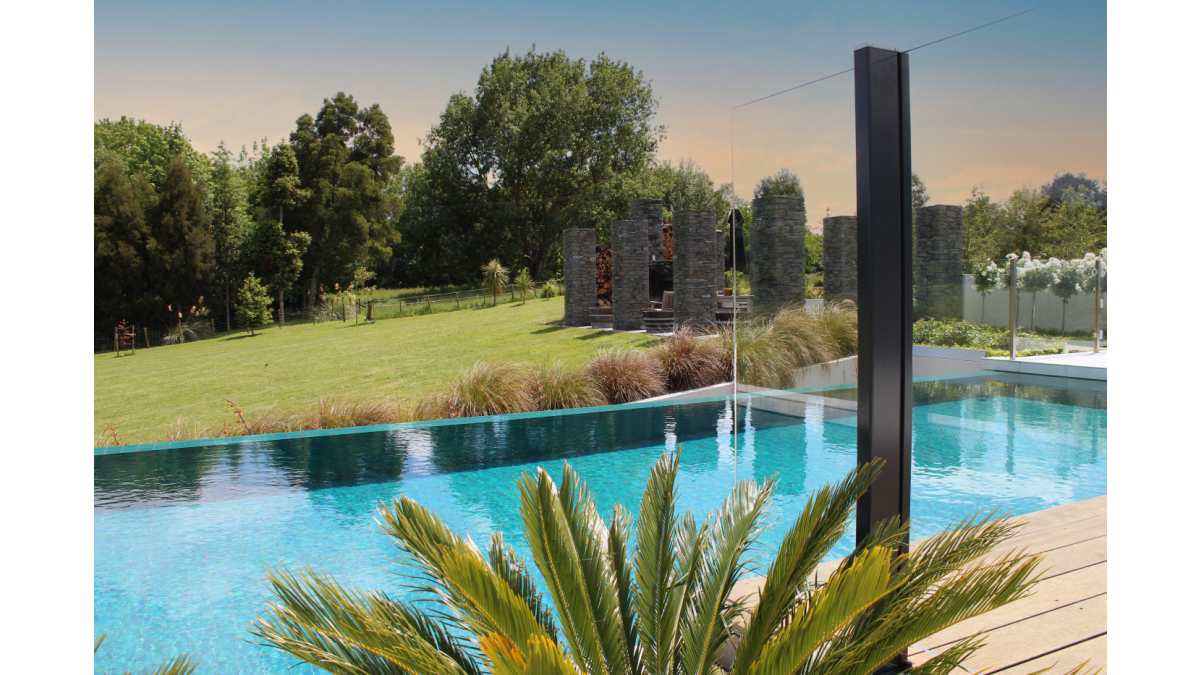

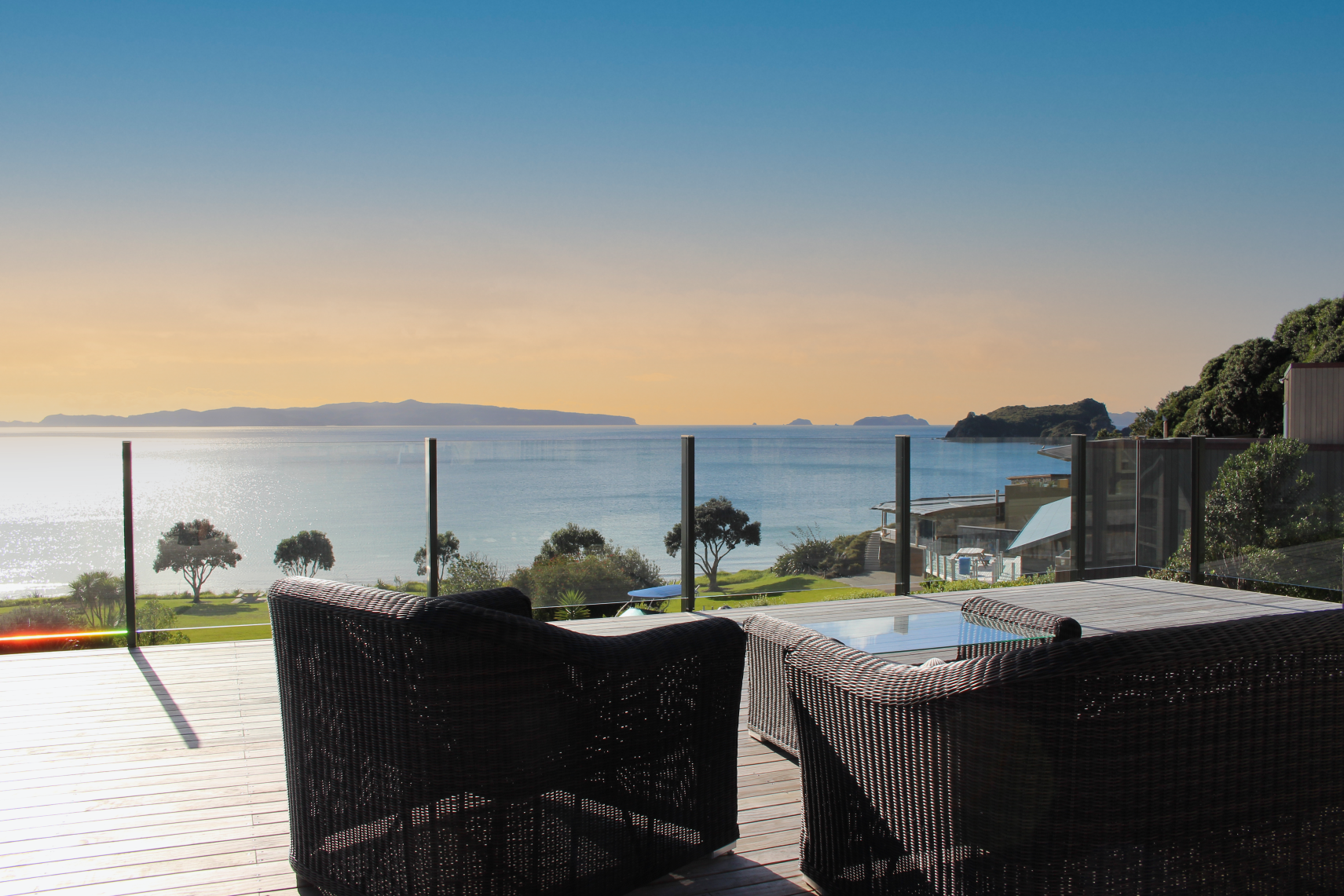

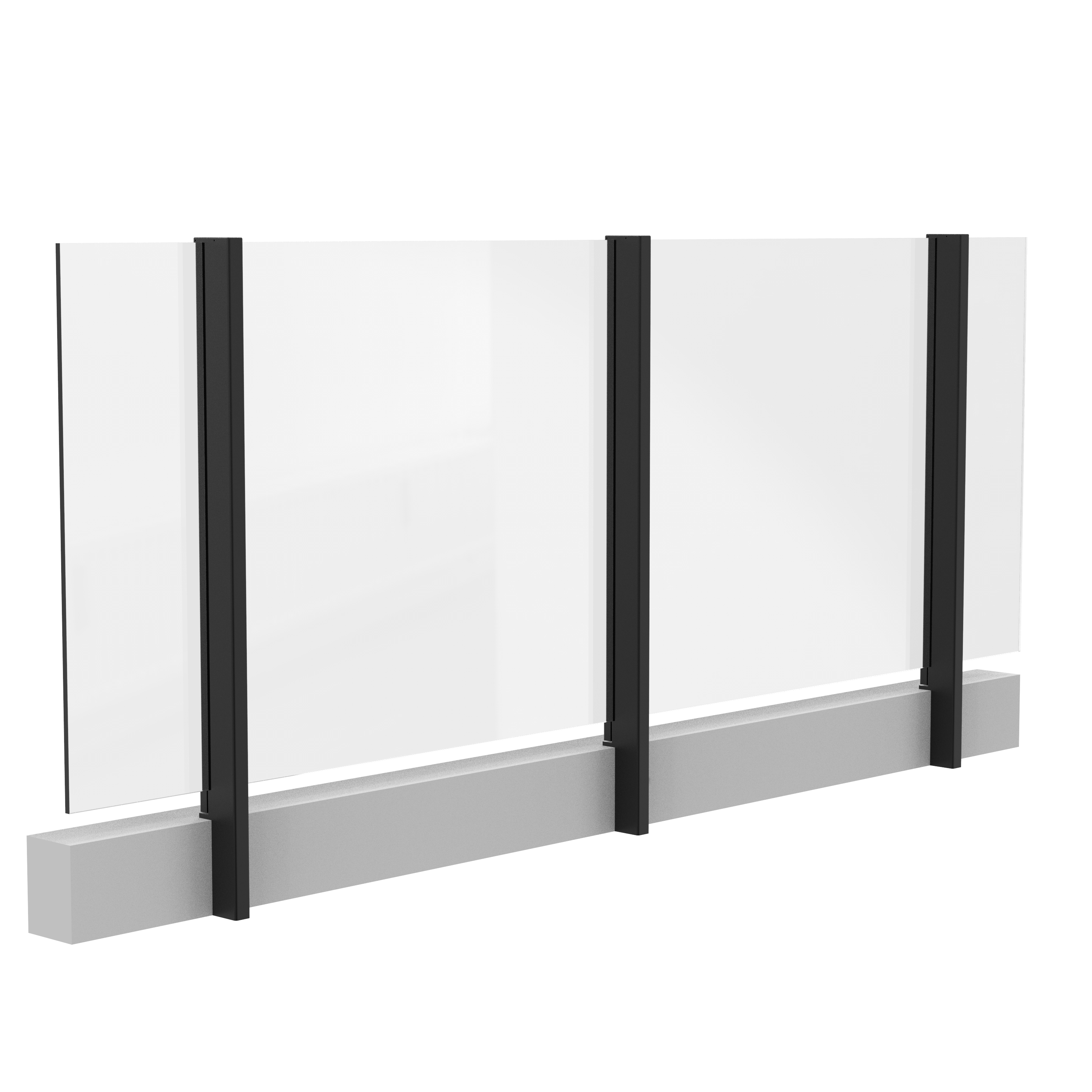

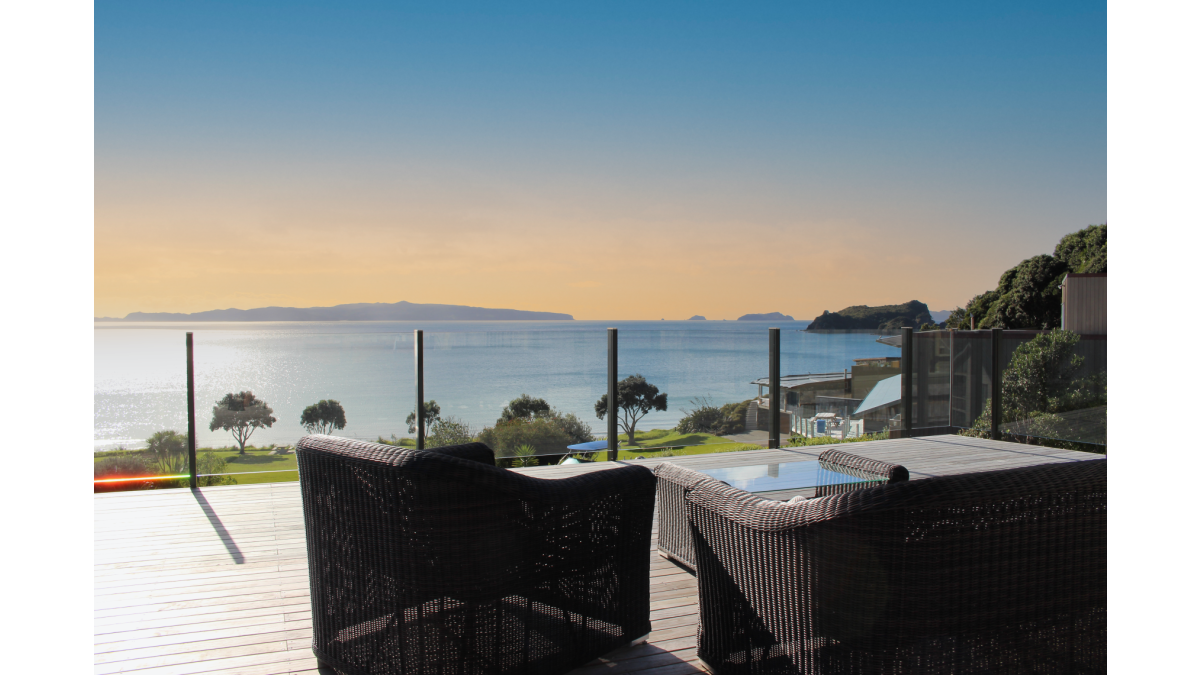

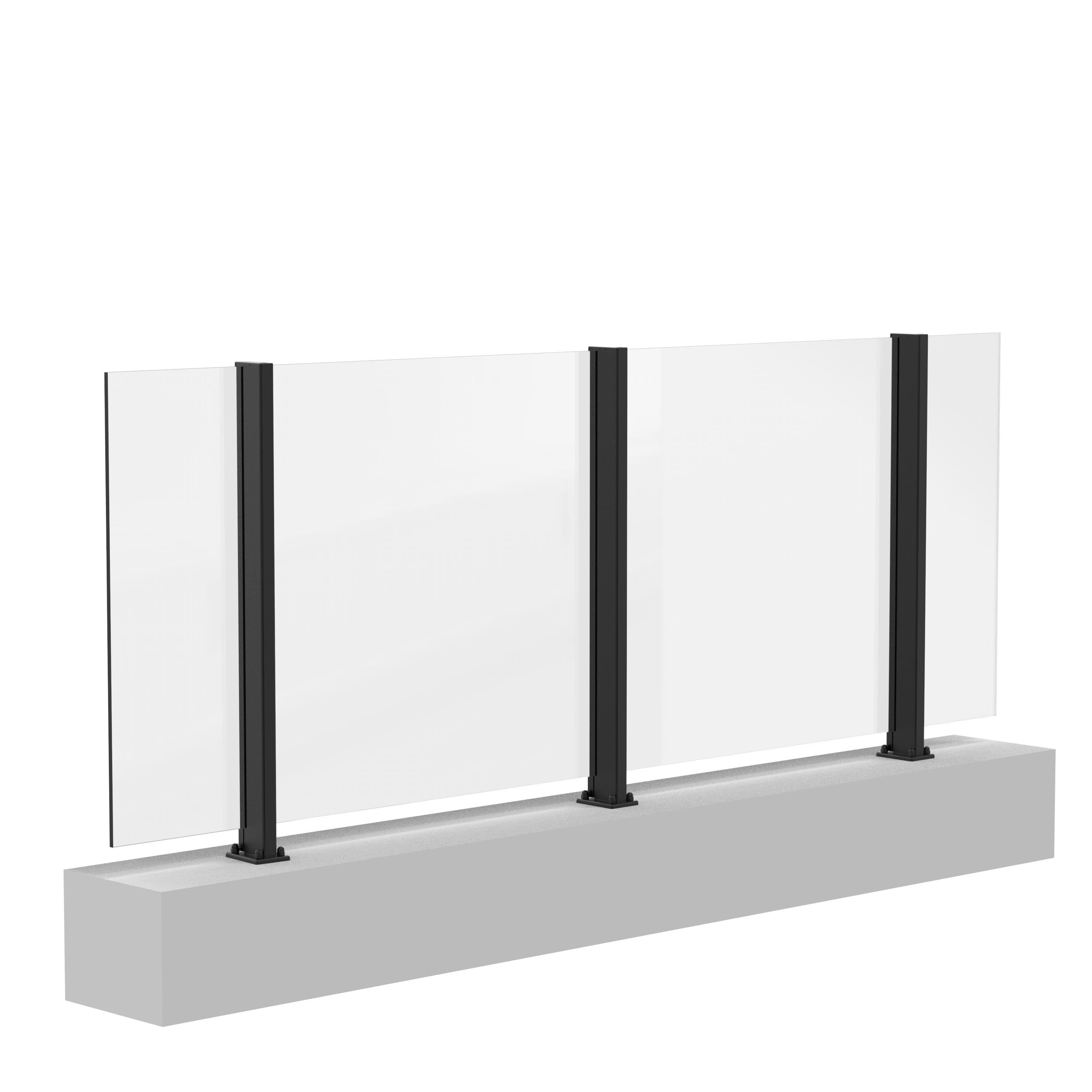

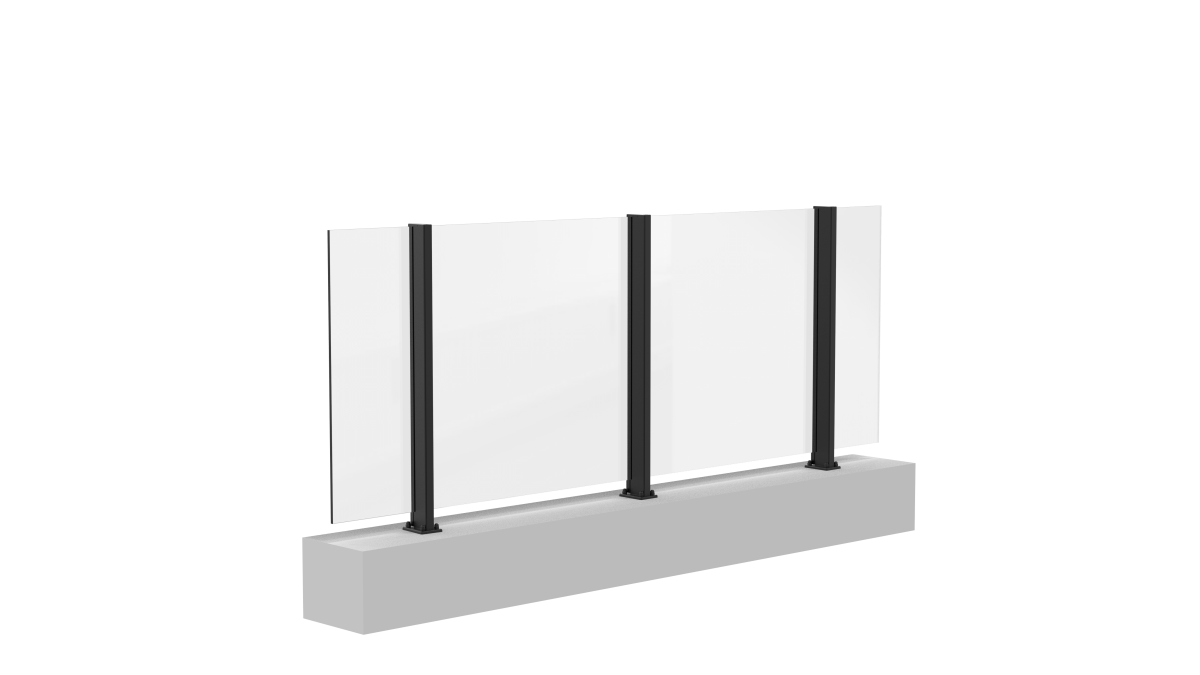

The Opus Resolute Post Balustrade System is a semi-frameless full height post system where the top and bottom edges of the glass are exposed. Resolute Posts can be used as a pool fence, wind break, deck balustrade, and glass barrier.

Can accommodate glass up to 2m high, and is suitable for residential, commercial, and retail applications including C5 occupancy.

Key Features
  • Suitable for residential, commercial and retail situations
  • Suitable for glass barriers up to 2000mm high (C5 occupancy)
  • Accommodates glass panels up to 2730mm wide (per 2x posts)
  • No holes or notches required — glass is clamped to the post
  • Can be fixed into timber/steel and concrete by way of top/face fixed options
  • Comes preassembled & powdercoated to any colour of choice
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Pool Fencing
Ranges
Balustrade & Pool Systems
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Suitable for residential & commercial/retail applications
  • Wind break, balustrade, glass barrier, pool fencing
  • Occupancy Type: A, B, C1, C2, C3, C5, D
  • Suitable for up to (and including) Extra High wind zones
  • Suitable for glass barriers up to 2000mm high (C5 occupancy)
  • Accommodates glass panels up to 2730mm wide (per 2x posts)
  • Can be fixed into timber/steel and concrete by way of top/face fixed options
Limitations on Use
  • C5 use by specific design only
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Low suitable
Low Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance
  • B1 Structure
  • F2 Hazardous Building Materials
  • F4 Safety from Falling
  • F9 Restricting Access to Residential Pools
  • Occupancy Type: A, B, C1, C2, C3, C5, D
B1 Structure compliant
Structure
B2 Durability compliant
Durability
D1 Access Routes compliant
Access Routes
D2 Mechanical Installations for Access compliant
Mechanical Installations for Access
Test Results
Test Results
Documents
Opus Hardware Warranty & Maintenance Guide

v1 2024

pdf
Product Guide: Balustrade & Pool
pdf
Additional Information
URL
Installation Details
View full
OB100+ +Concrete+Tech+Page pdf

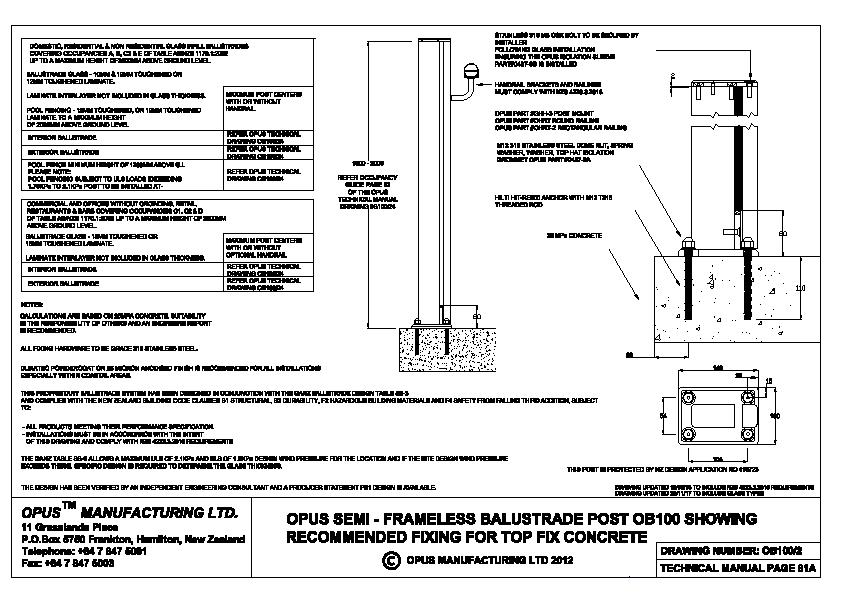

Fixing Specs: Base/Top Fix — Concrete

OB100/2

pdf
OB100+ +Timber++Steel+Tech+Page pdf

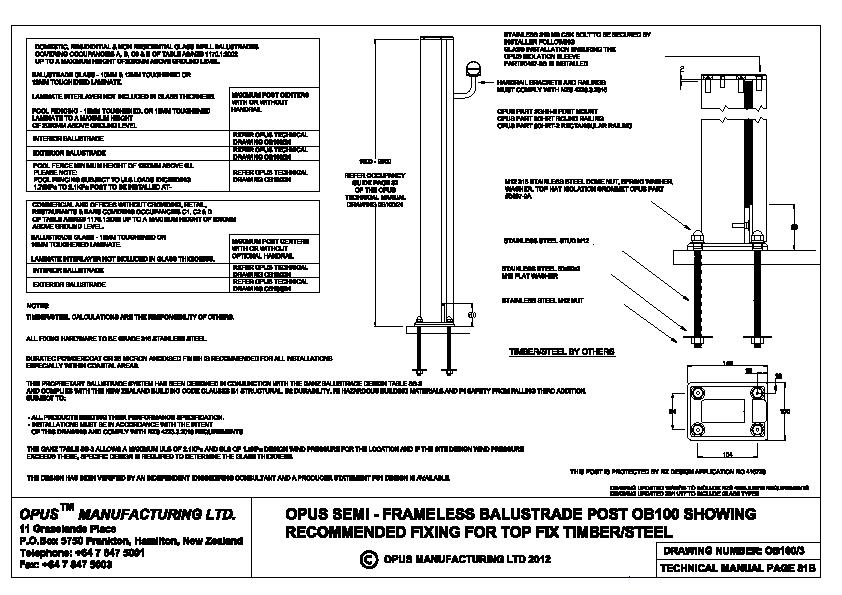

Fixing Specs: Base/Top Fix — Timber & Steel

OB100/3

pdf
OB101+ +Timber++Steel+Tech+Page pdf

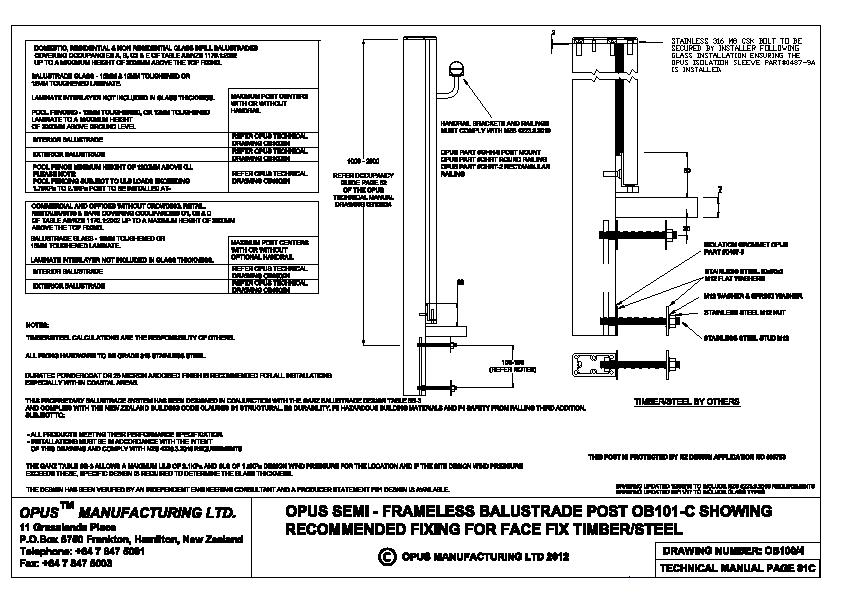

Fixing Specs: Face Fix (Concealed) — Timber & Steel

OB100/4

pdf

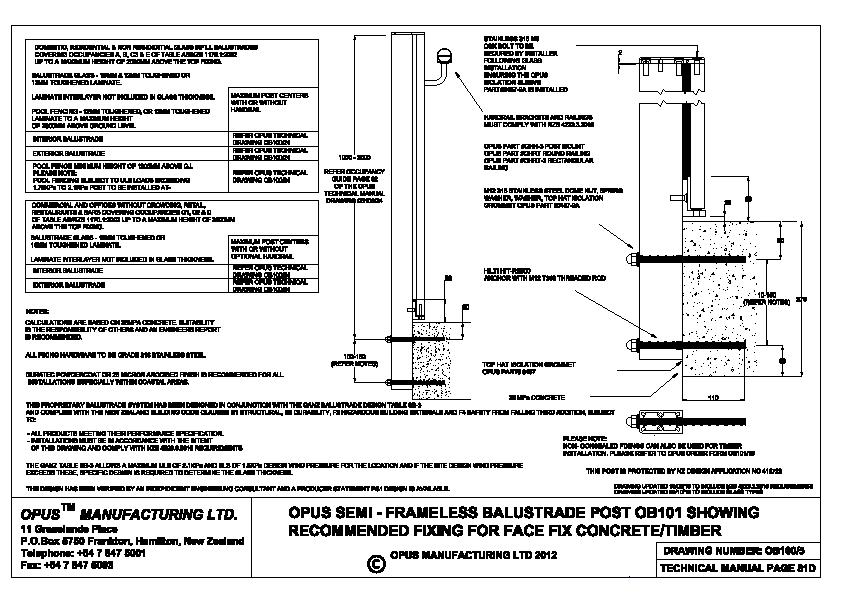

OB101+ +Concrete++Timber+Tech+Page pdf
Fixing Specs: Face Fix — Timber & Concrete

OB100/5

pdf
