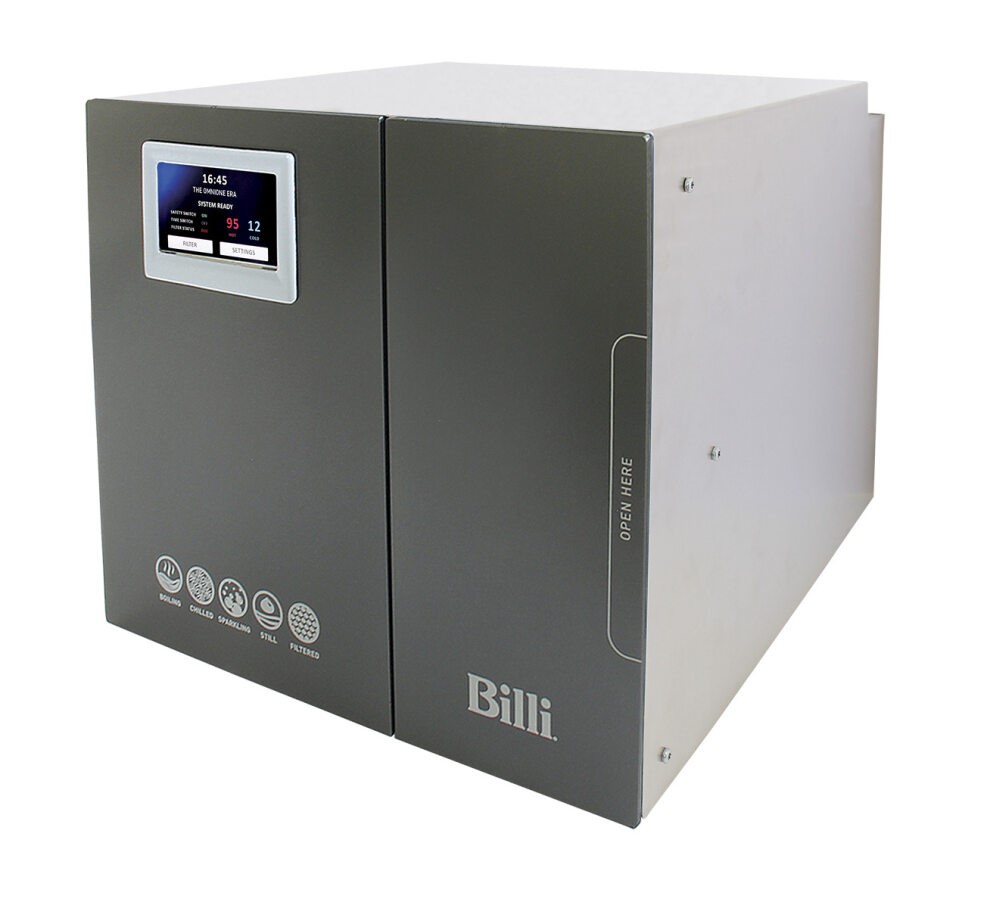

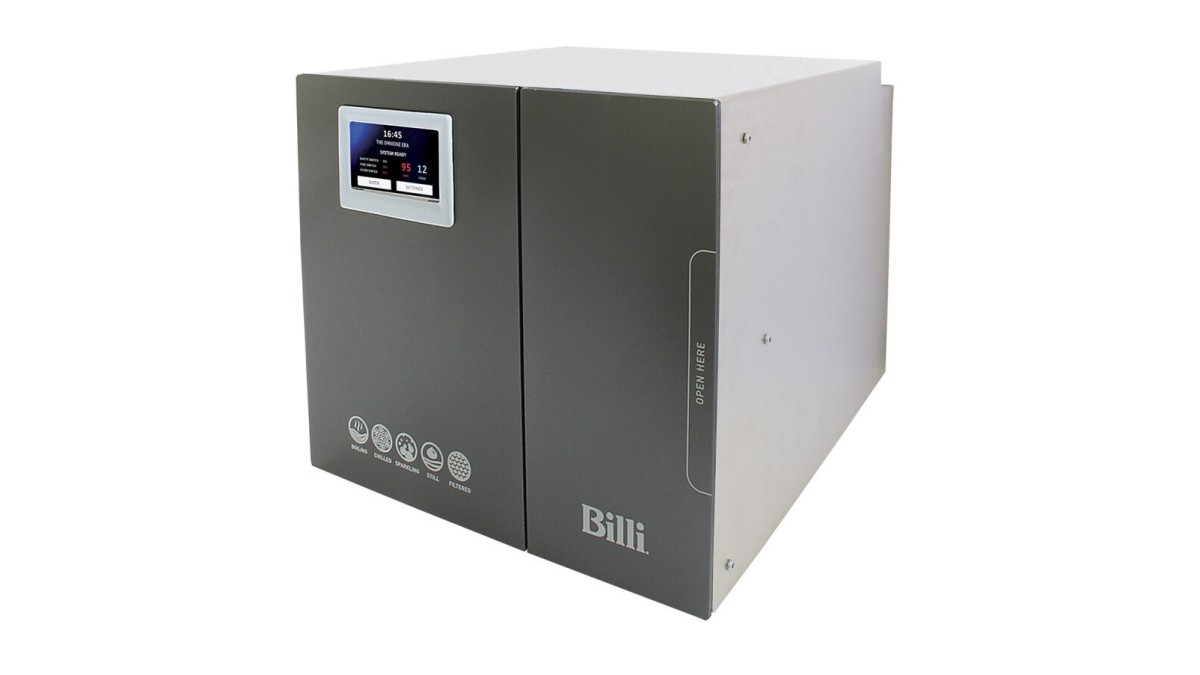

OmniOne Pro60 & OmniOne Plus9
Description

OmniOne is Billi's latest product range offering boiling, chilled, and sparkling water.

Key Features
  • No cupboard ventilation required
  • 30% more supply at more consistent temperatures*
  • 40% less space required than comparable models*
  • Whisper quiet — 70% dB noise reduction during normal operation
  • No VOCs or BPAs present and copper has been replaced with stainless steel
  • 3 year warranty
  • Adjustable chilled temperature
  • High capacity CO2 cylinders for longer life

*comparable models refers to Billi's previous BCS platform

Scope of Use

OmniOne Pro60:

  • Initial cup delivery/suggested number of people: 60
  • Delivers 180 cups of boiling water per hour* and 220 cups of chilled and sparkling water per hour*
  • Dimensions: 355h x 395w x 495d mm, CO2 cylinder 400h x 105w mm

OmniOne Plus9:

  • Initial cup delivery/suggested number of people: 60
  • Delivers 180 cups of boiling water per hour* and 220 cups of chilled and sparkling water per hour*
  • Dimensions: 355h x 395w x 495dmm CO2 cylinder 400h x 105w mm

* Based on the initial number of cups of boiling water immediately available, drawn one cup every 10 seconds. For all underbench filtered water systems, consideration may be needed for usage patterns and draw-off methods. 1 cup = 170m

Other Performance Attributes

The Billi OmniOne models have been tested and comply with all required standards including:

Every Billi drinking water appliance is manufactured under a certified quality control system.

  • Watermark Licence Number 21525;
  • Tested to; AS3498 and AS/NZS4020;
  • Victorian Electrical Safety Act 1998 Approval Number CS100600V,
  • AS/NZS ISO 9002;
  • AS1428 Accessibility Design Requirements;
  • Section J6 of the BCA;
  • Certificate Number QEC 11627;
  • C-Tick approved
Documents
Data sheet Omnione Plus 9 with XL levered dispenser & Gooseneck mixer
Data sheet Omnione Plus 9 with XL levered dispenser & Paddle Mixer
Data sheet Omnione Plus 9 with XL levered dispenser & Square Mixer
Data sheet Omnione Pro60
CAD files
Revit & Text Files
Installation Guide
User Guide
Flyer
BIM
BIM Files MIXER TAP for OmniOne Plus 9
BIM Files XL levered tap
