Schwan SC52E Versatap Drinking Water System
Description

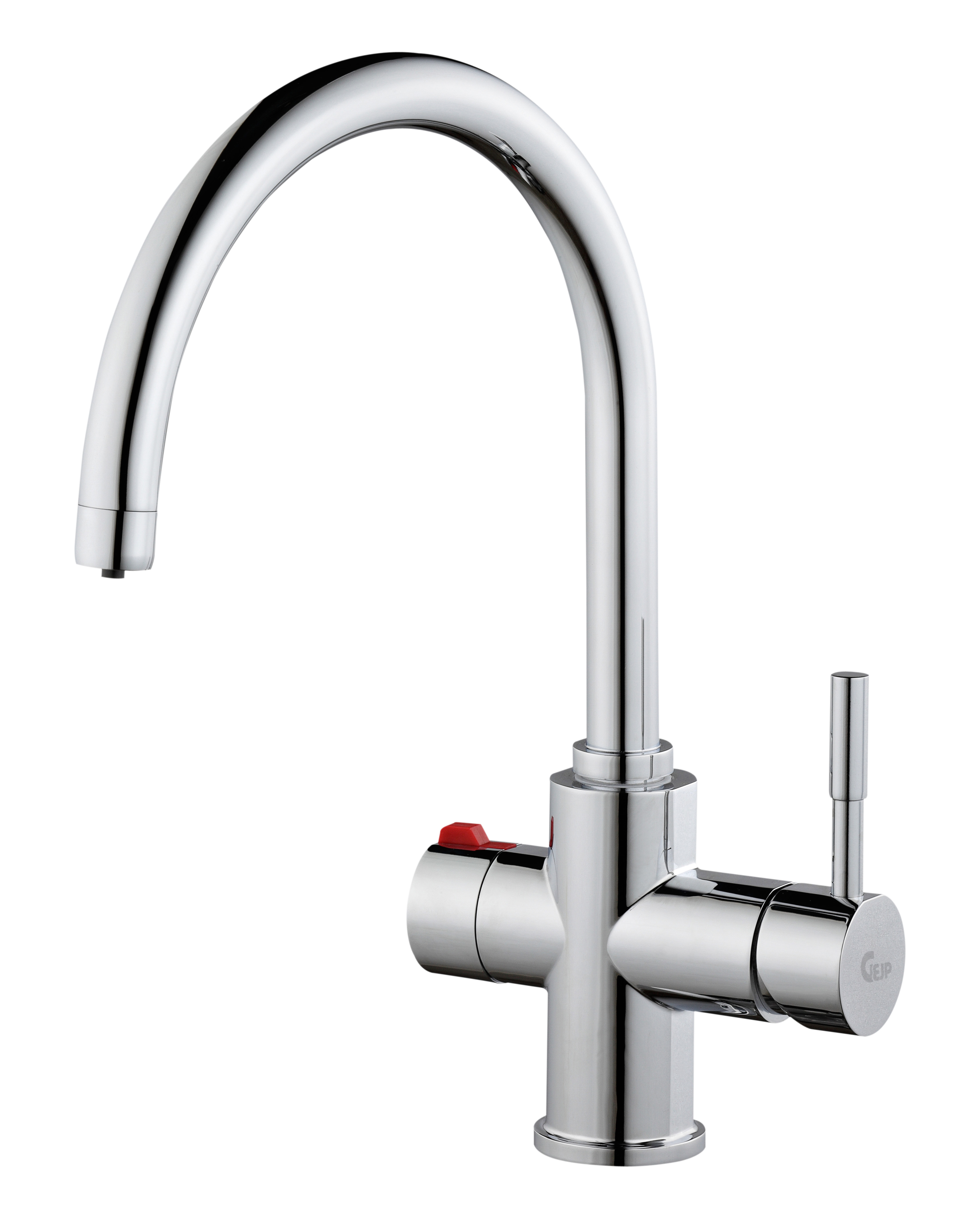

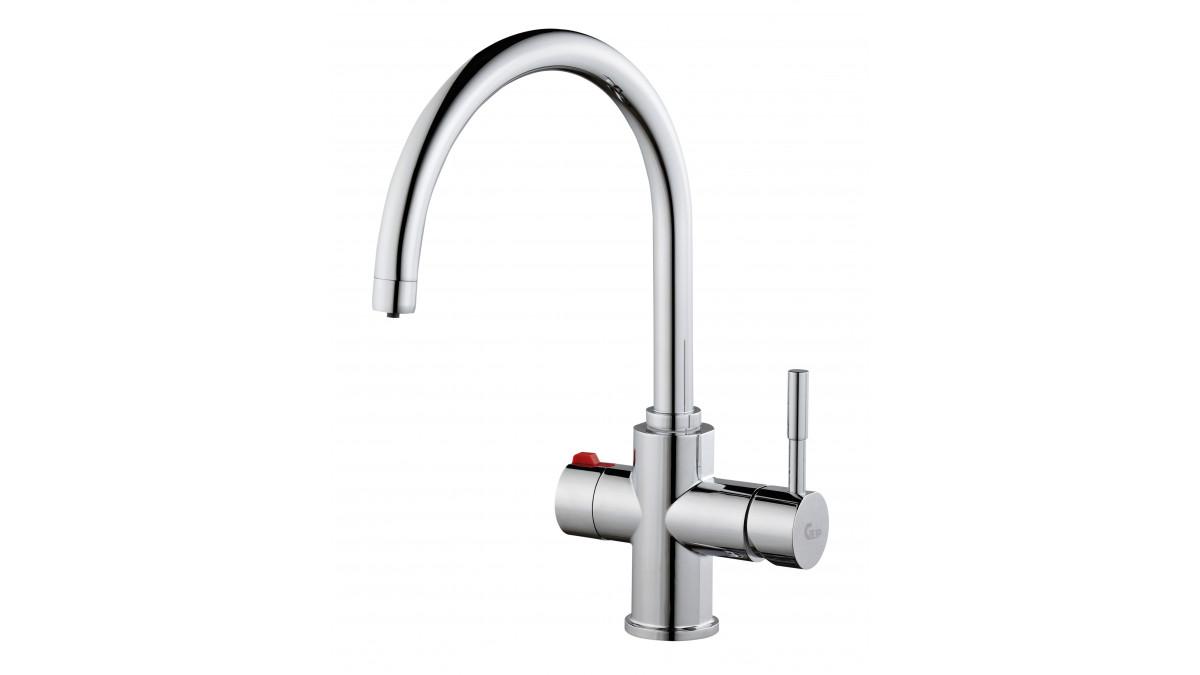

Schwan SC52E Versatap Sink Mixer, is an under-bench system for filtered boiling water and filtered ambient water and hot water from the sink mixer.

Key Features
  • Up to 60 cups an hour of steaming hot water, integrated into the sink mixer
  • Unlimited cool filtered drinking water
  • Standard hot/cold sink mixer functions
  • High-clearance swivelling spout enables convenient filling of taller vessels

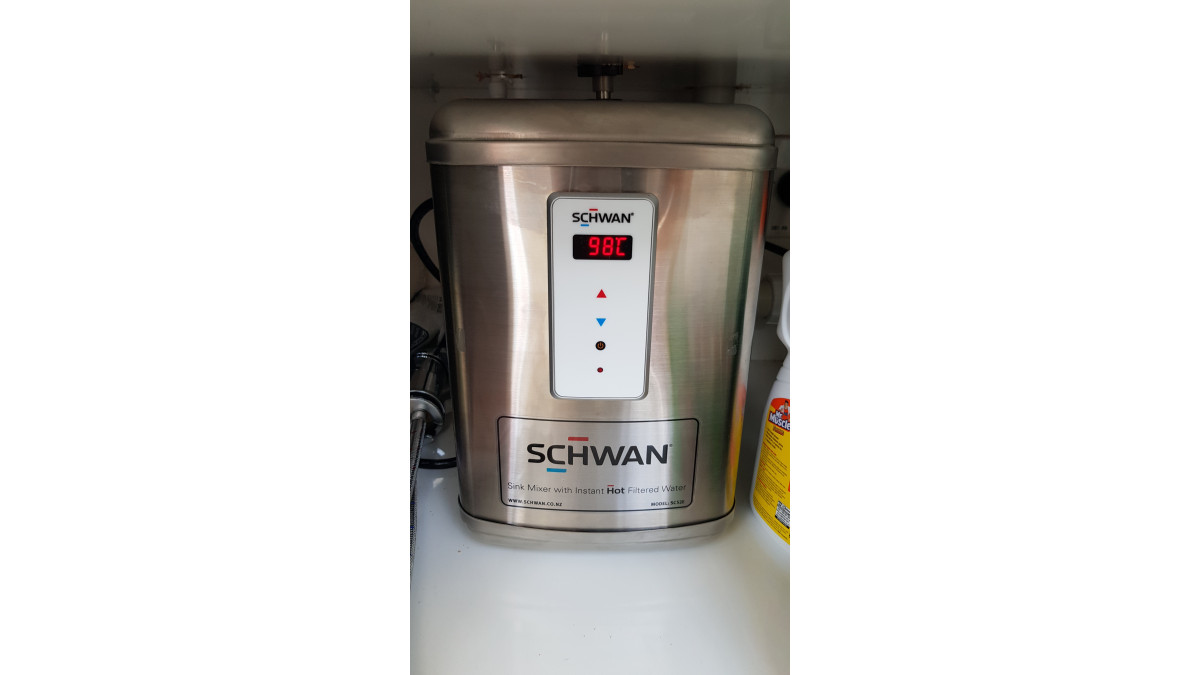

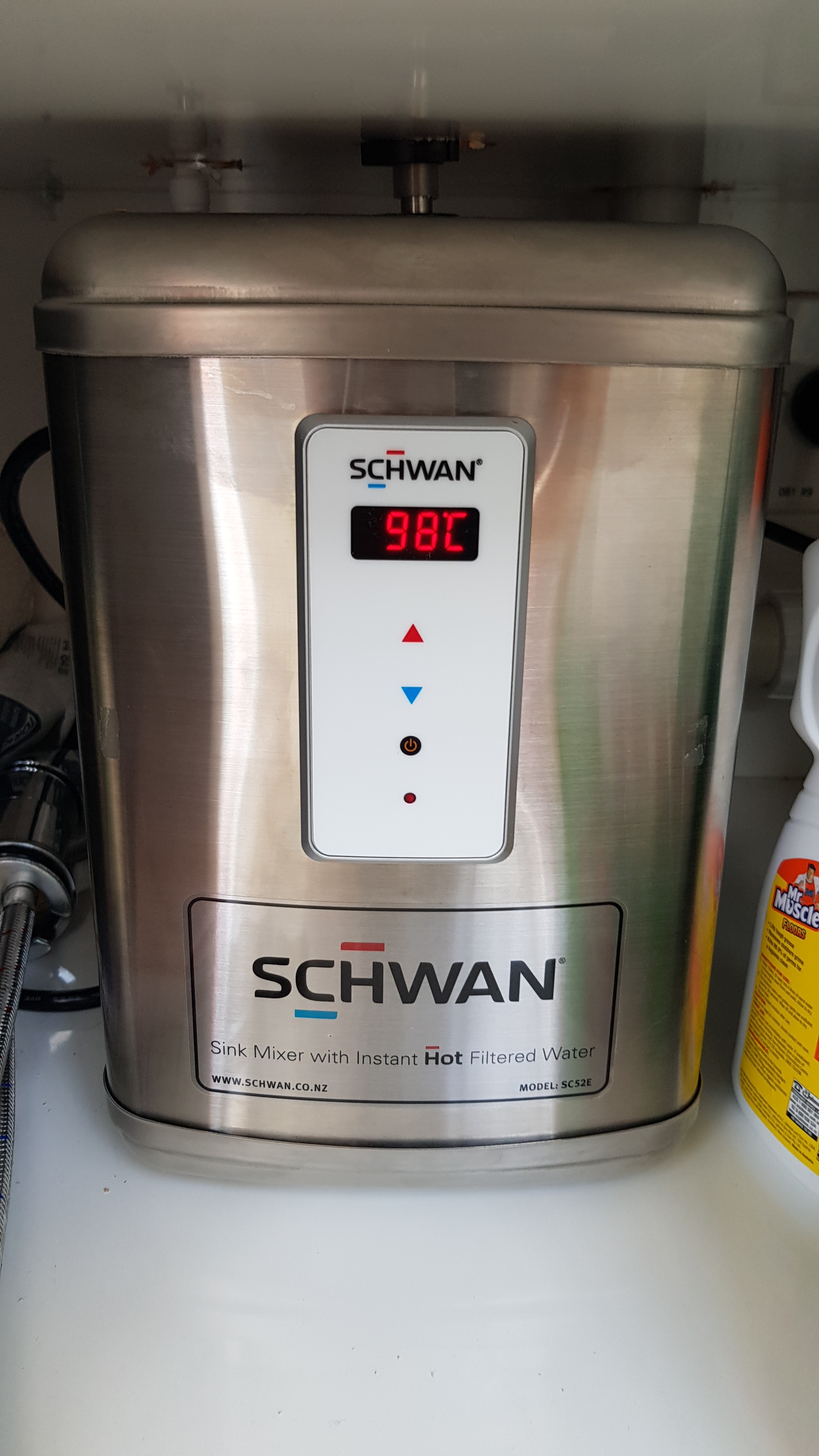

  • LCD screen indicates your hot water temperature status
  • Chrome finish
  • Easy-change filters with easy-access shut-off valve
  • High capacity filter ensures great water flow
  • Dimensions: 300mm high x 200mm wide x 240mm deep
Scope of Use
  • Suitable for residential use or small offices
  • Suggested number of people: 1-10

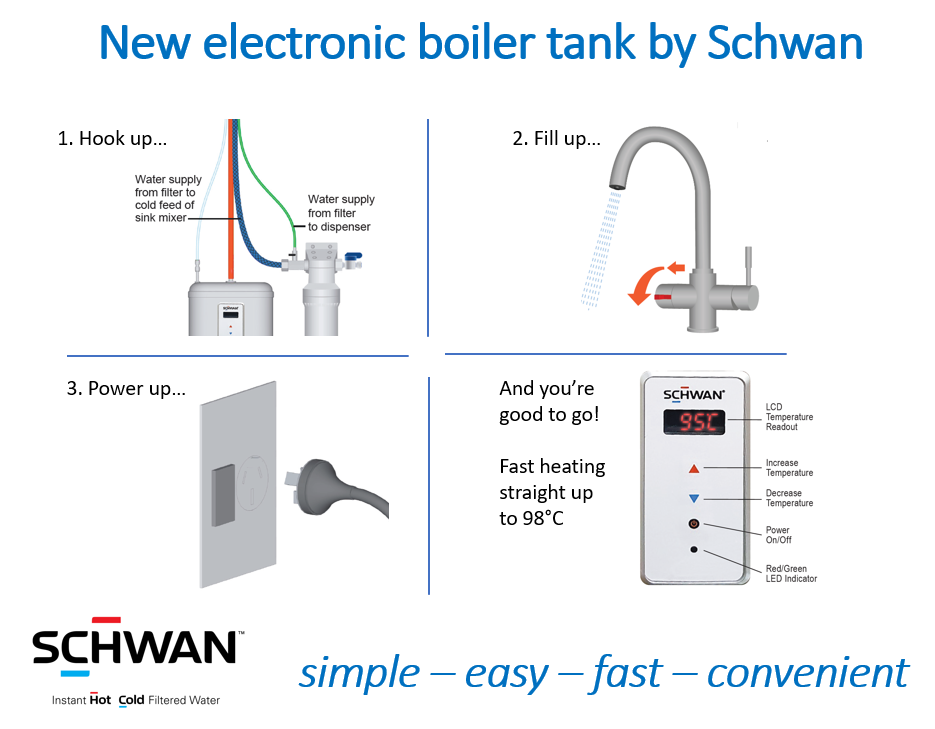

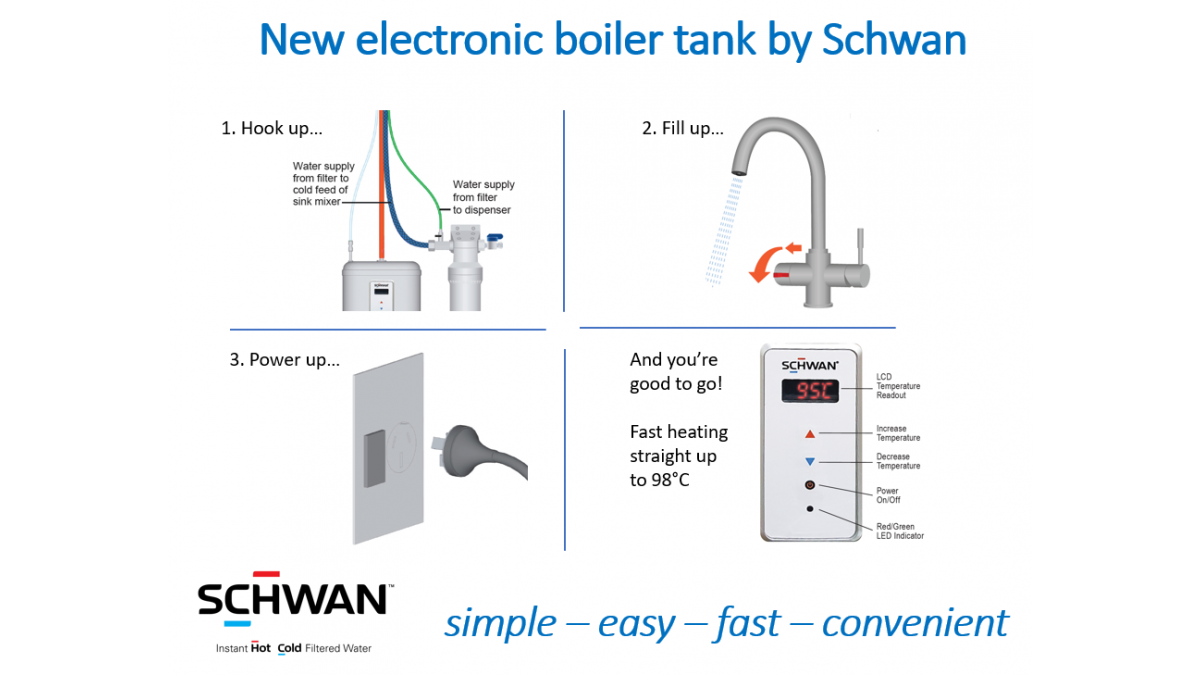

Power and Water Supply Requirements:

  • A standard 10amp 3pin power outlet conveniently placed within 1m of  the intended location of the boiler tank. This must be installed by a  qualified electrician
  • A standard Cold water supply fitted with a 15mm stop tap situated within easy access of the intended location of the boiler tank. This must be installed by a qualified plumber
  • Sink mixer also requires a standard 15mm hot and cold water feeds
  • Supply water pressure must not exceed 10,000kpa with pressure regulator installed
  • Water supply must be microbiologically safe

Dispenser Mounting

  • The sink mixer is easily installed through a standard 35mm hole
Limitations on Use
  • Water supply must be microbiologically safe to drink
  • Minimum dynamic water pressure of 250kPa
  • Drip tray recommended — as the Schwan appliance is always full of hot water, use of a drip tray is recommended in those applications where any leakage could cause property damage
Other Performance Attributes
  • Schwan drinking water appliances have been laboratory tested and certified to comply with AS/NZS 60335.1 and AS/NZS 60335.2.15 standards

Warranty

  • Two-year repair or replacement warranty for residential installations
  • One-year repair or replacement warranty for commercial installations (maximum 6 staff)
Documents
Data Sheet
Installation and Operation
Brochure
Additional Information

Merquip distribute the Billi, Elkay, Schwan and Cosmetal, filtered drinking water systems, with ranges for instant boiling, chilled, or sparkling water, and bottle fillers, and fountains.
