Billi Quadra Drinking Water System
Description

The Billi Quadra drinking water system delivers boiling and chilled filtered water instantly.

The dispensers are available in four finishes — bright chrome, brushed chrome, black chrome or matte black.

Key Features

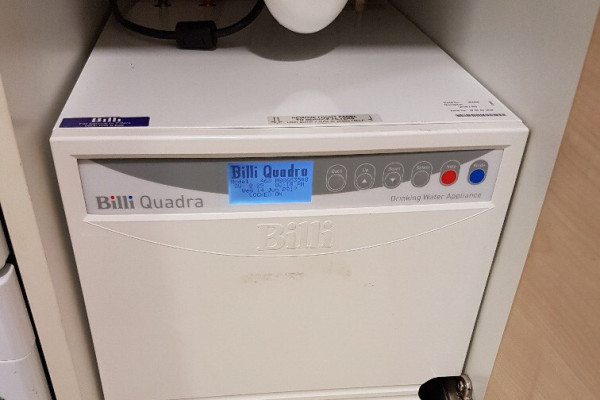

  • Compact under-bench units
  • Energy-efficient
  • No cupboard ventilation required
  • Splash free boiling water delivery
  • Adjustable chilled water temperature

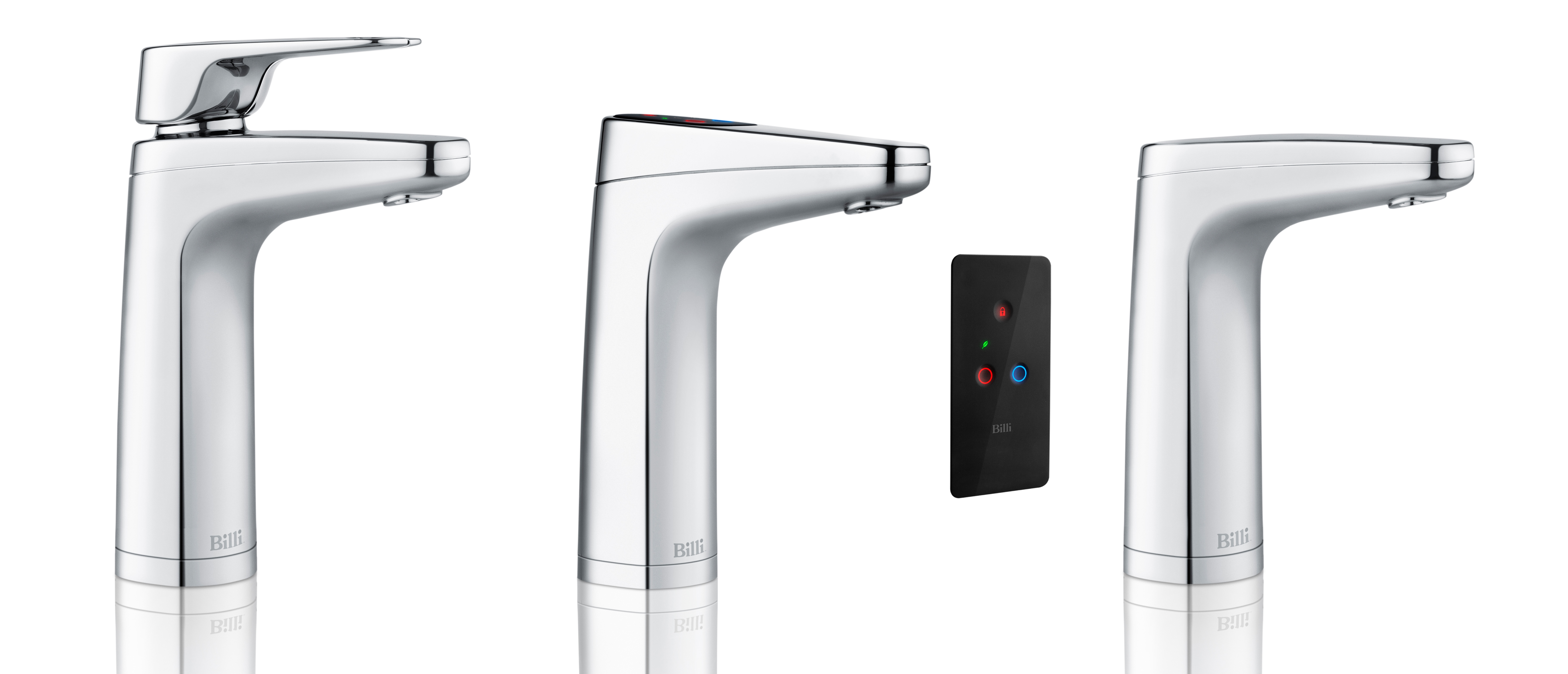

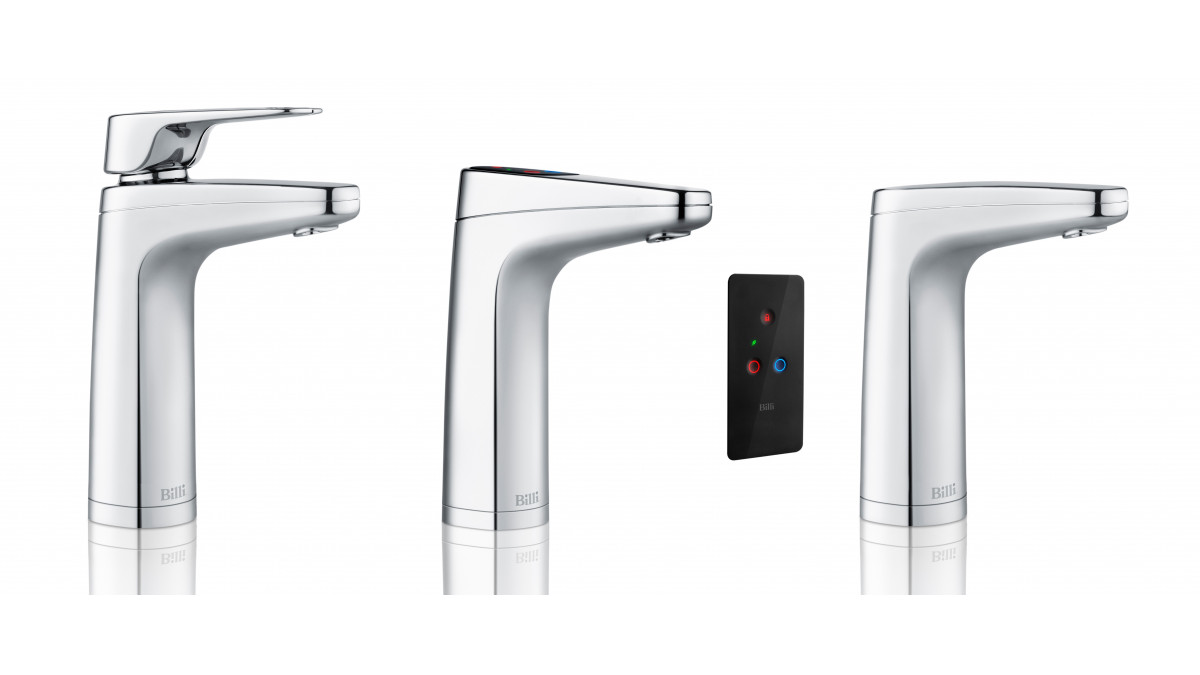

  • Range of tap options available
Scope of Use

Billi Quadra Compact

  • Initial cup delivery/suggested number of people: 20
  • Delivers 100 cups of boiling water per hour and 150 cups of chilled and sparkling water per hour.
  • Dimensions: 340 x 315 x 365mm

Billi Quadra 440

  • Initial cup delivery/suggested number of people: 40
  • Delivers 150 cups of boiling water per hour and 175 cups of chilled and sparkling water per hour.
  • Dimensions: 340 x 315 x 465mm

Billi Quadra 460

  • Initial cup delivery/suggested number of people: 60
  • Delivers 180 cups of boiling water per hour and 175 cups of chilled and sparkling water per hour.
  • Dimensions: 340 x 315 x 465mm

Billi Quadra 4100

  • Initial cup delivery/suggested number of people: 100
  • Delivers 250 cups of boiling water per hour and 175 cups of chilled and sparkling water per hour.
  • Dimensions: 340 x 315 x 465mm

Billi Quadra 4180

  • Initial cup delivery/suggested number of people: 180
  • Delivers 350 cups of boiling water per hour and 175 cups of chilled and sparkling water per hour.
  • Dimensions: 340 x 315 x 465mm
Other Performance Attributes

Every Billi drinking water appliance is manufactured under a certified quality control system.

The Billi Quadra models have been tested and comply with all required standards including:

  • Watermark Licence Number 21525;
  • Tested to; AS3498 and AS/NZS4020;
  • Victorian Electrical Safety Act 1998 Approval Number CS100600V;
  • AS/NZS ISO 9002;
  • AS1428 Accessibility Design Requirements;
  • Section J6 of the BCA;
  • Certificate Number QEC 11627;
  • C-Tick approved.
Documents
Data Sheet
CAD Files
Revit & Text Files
Installation and Operation
Brochure

Merquip distribute the Billi, Elkay, Schwan and Cosmetal, filtered drinking water systems, with ranges for instant boiling, chilled, or sparkling water, and bottle fillers, and fountains.
