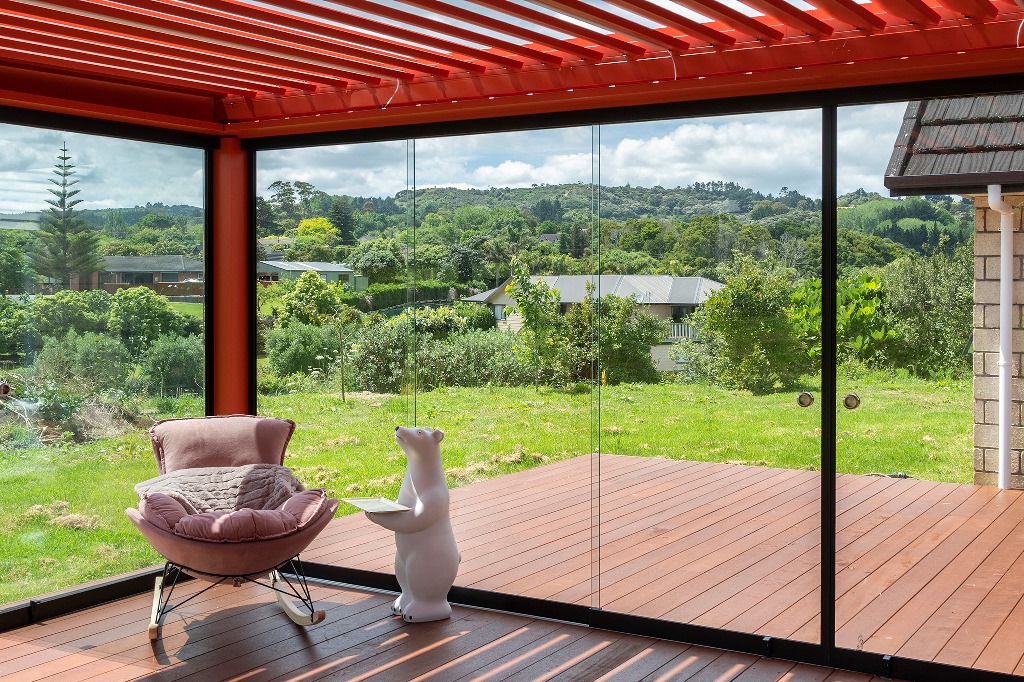

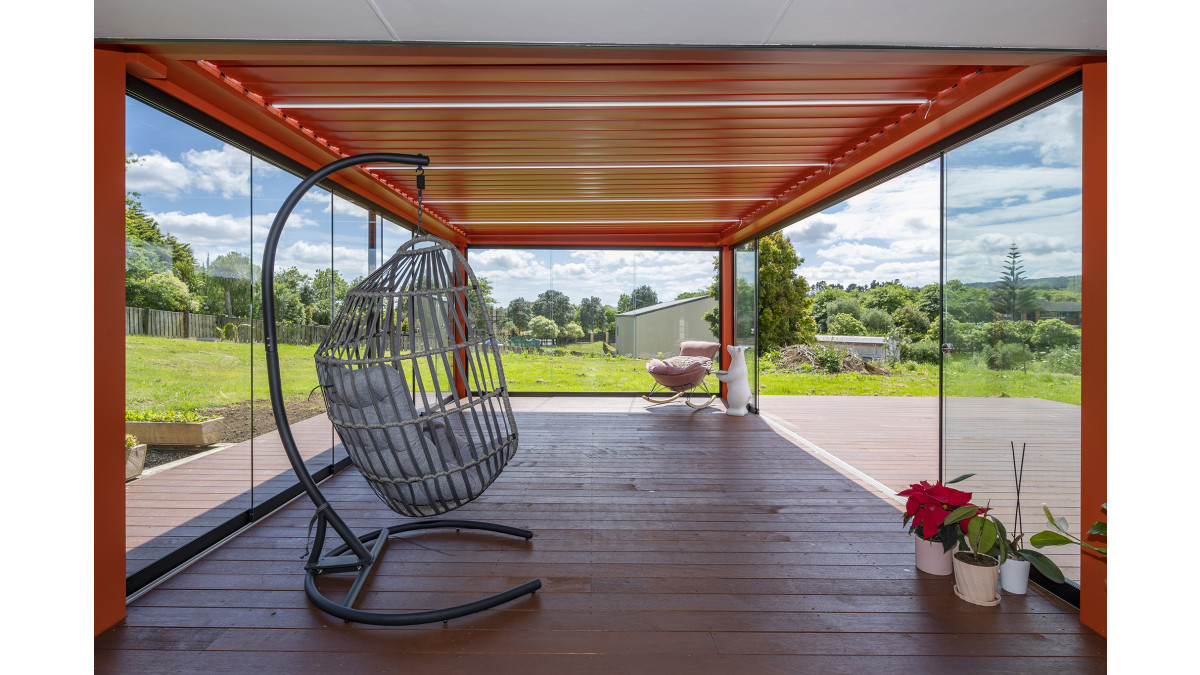

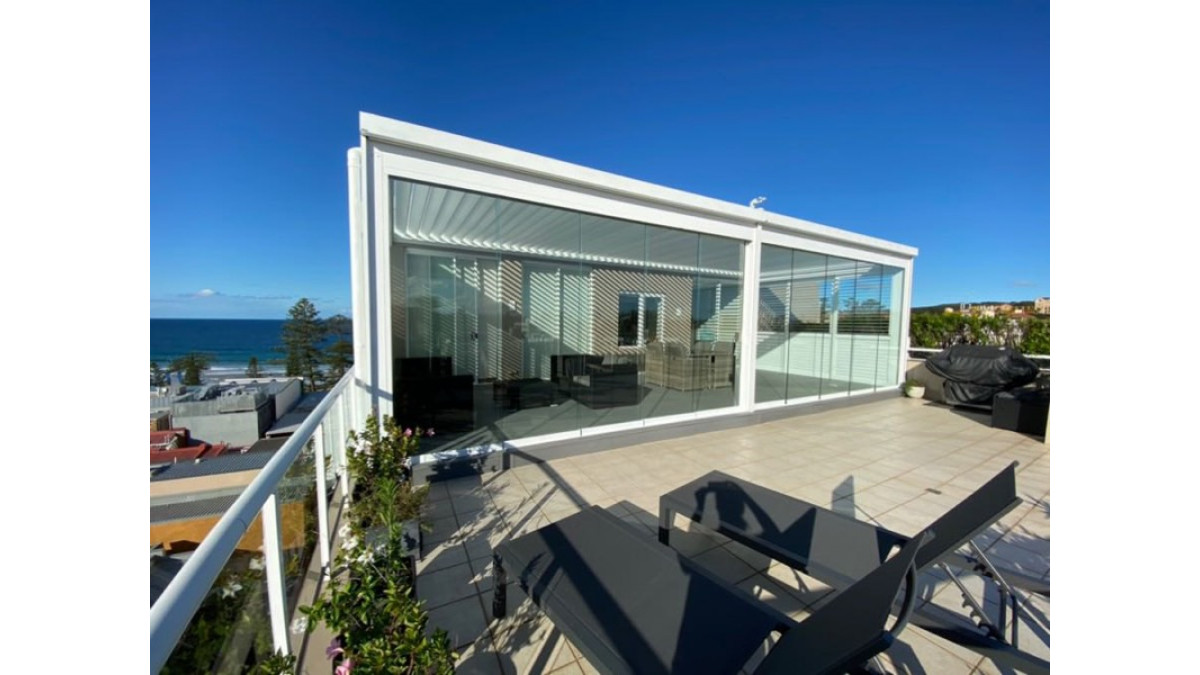

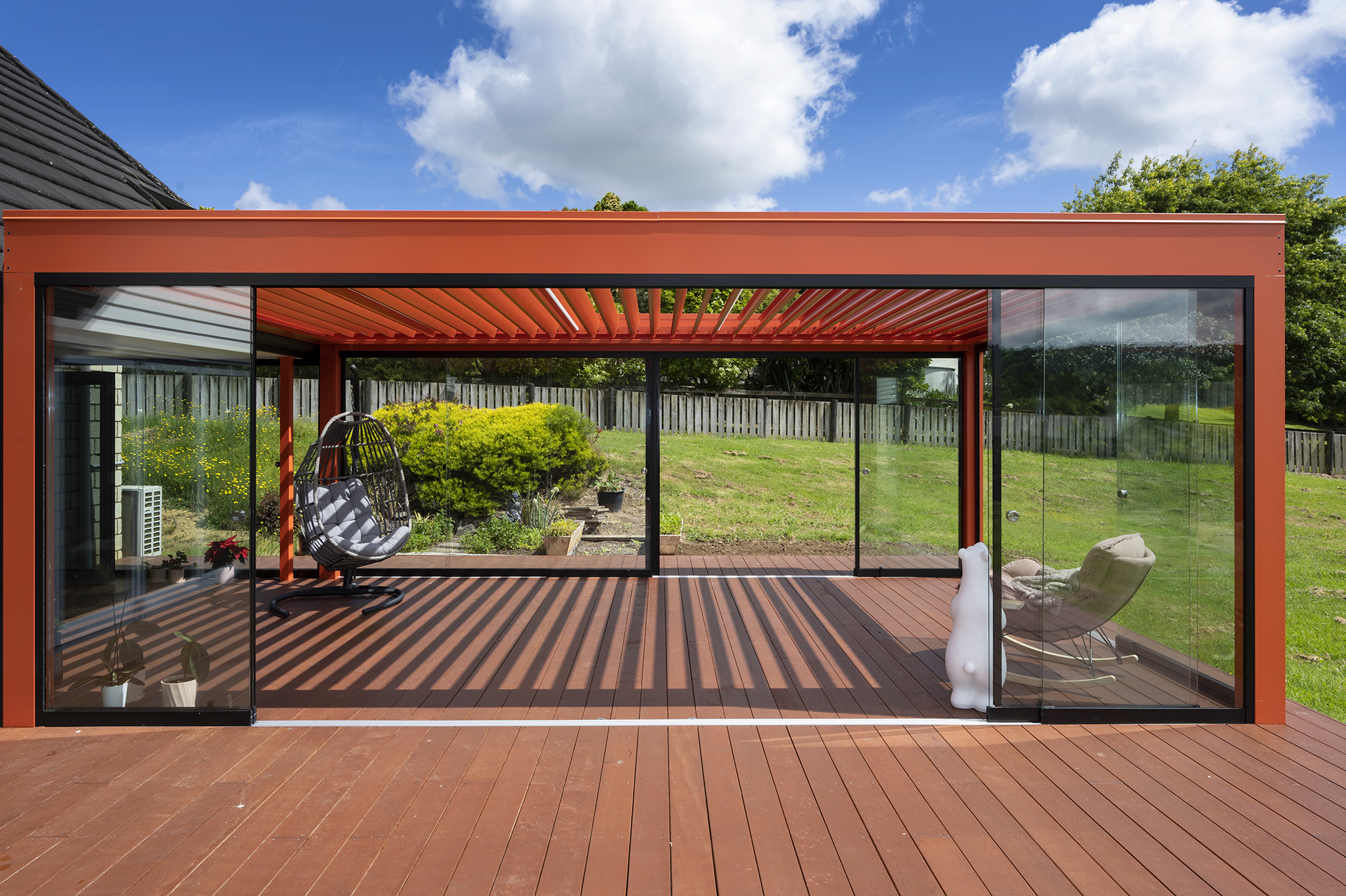

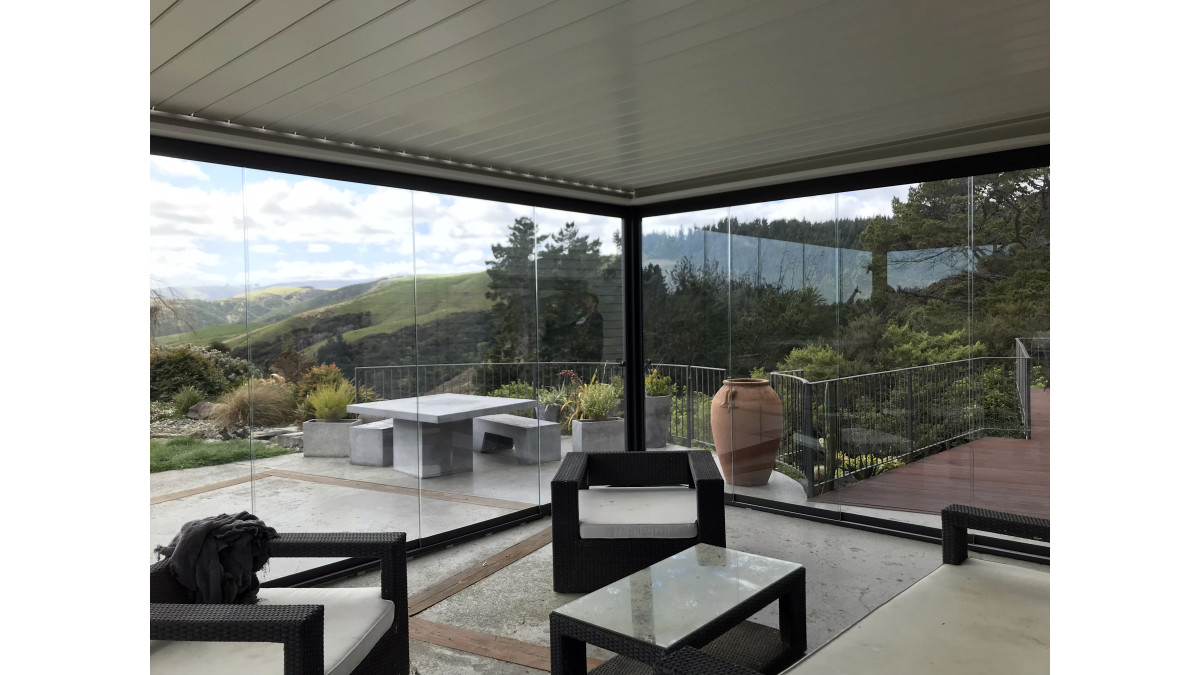

Slidetec Framless Glass Doors & Opening Roof creating the ultimate Outdoor Room by Louvretec

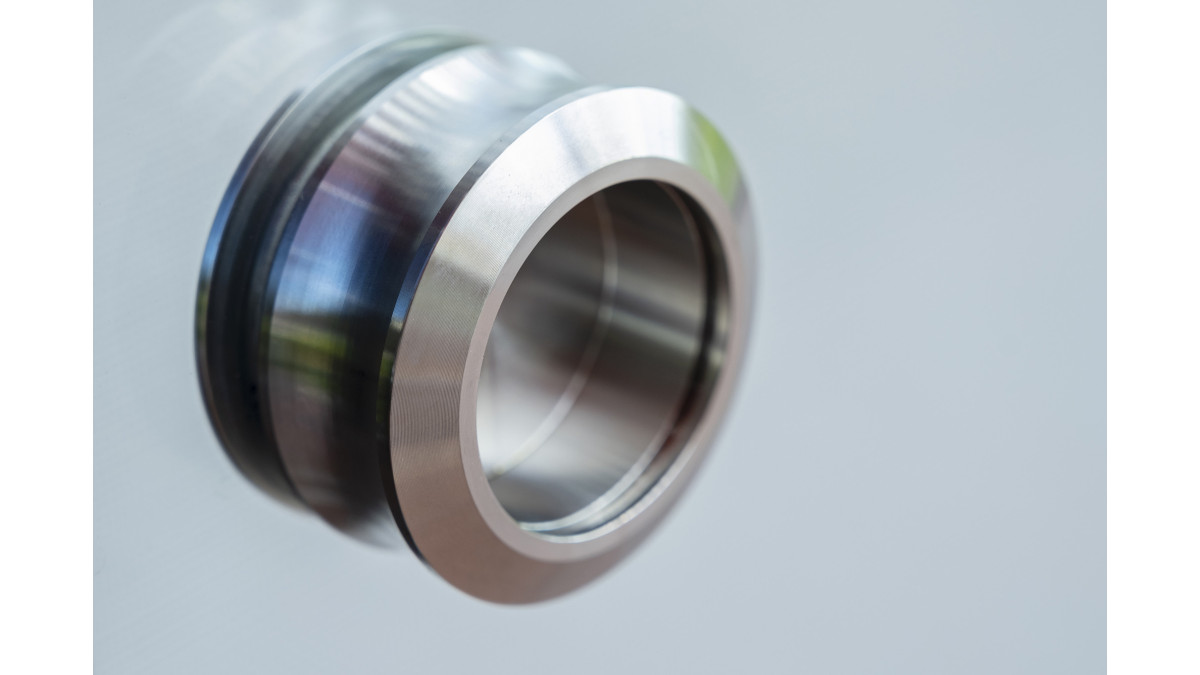

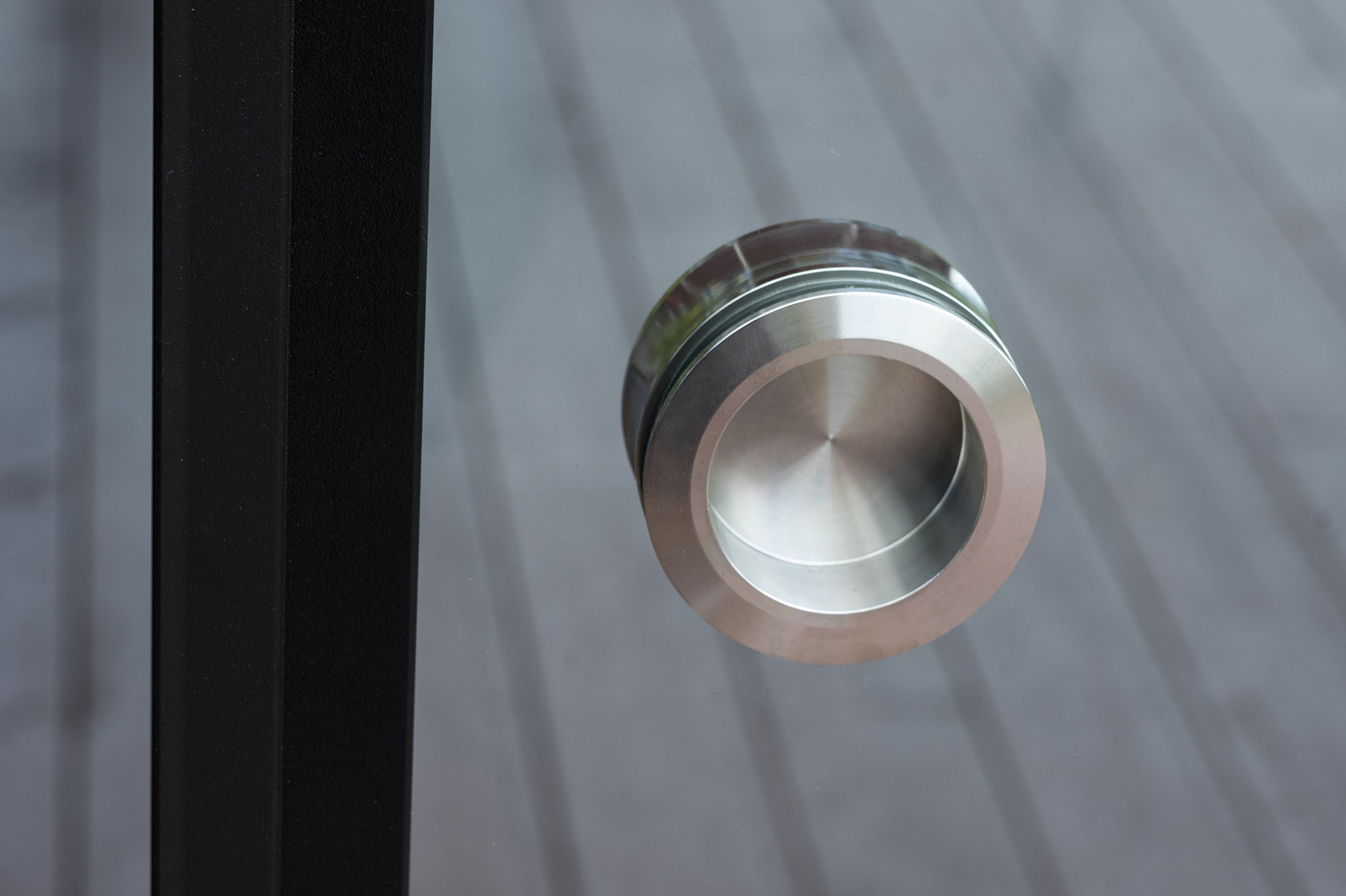

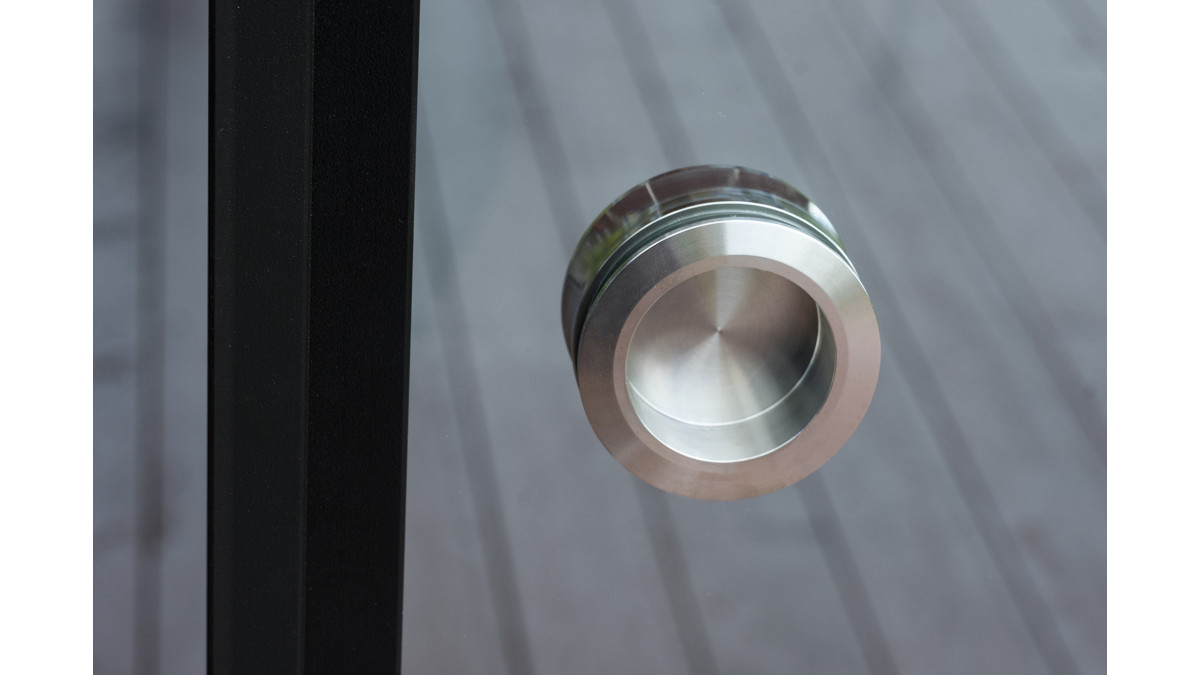

Slidetec Framless Glass Doors Handle by Louvretec

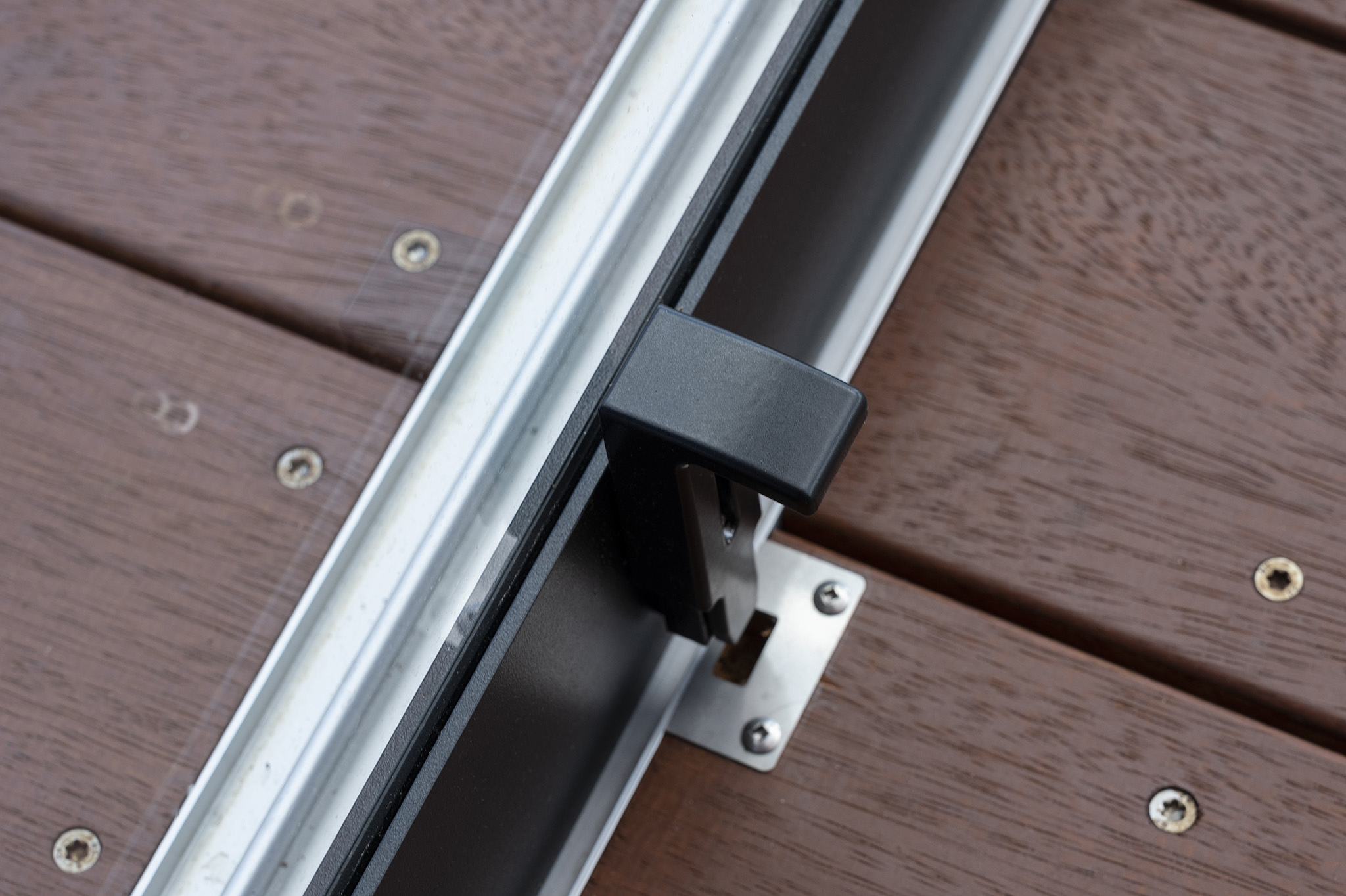

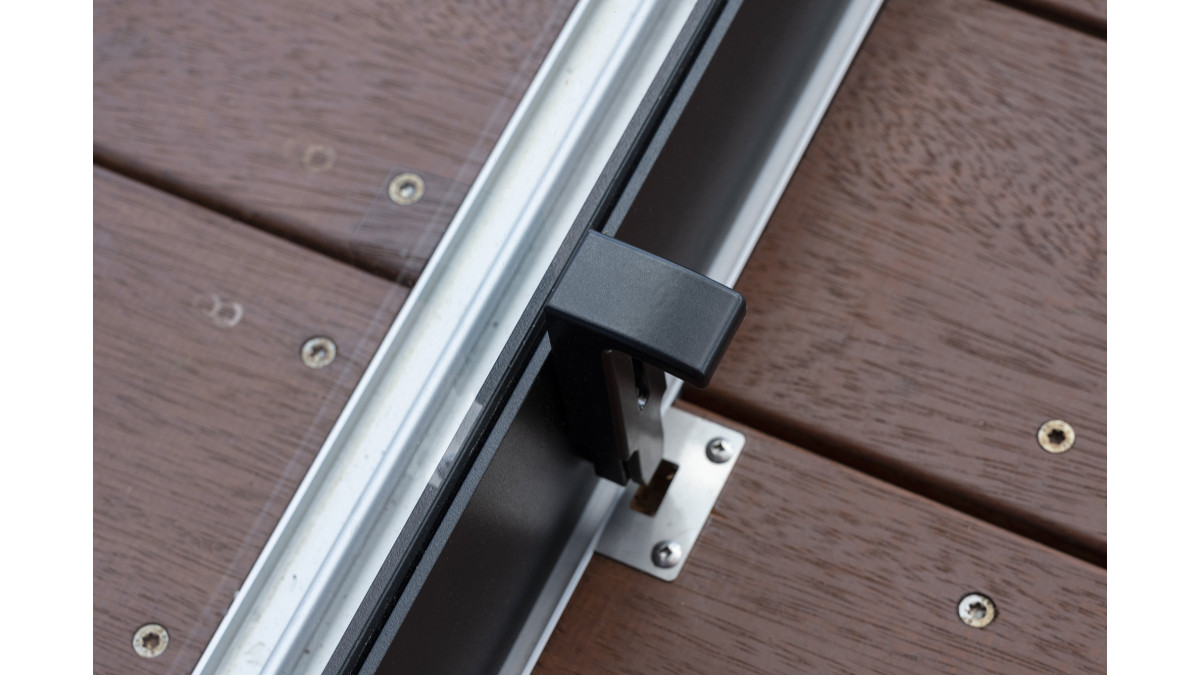

Slidetec Framless Glass Doors Foot Lock by Louvretec

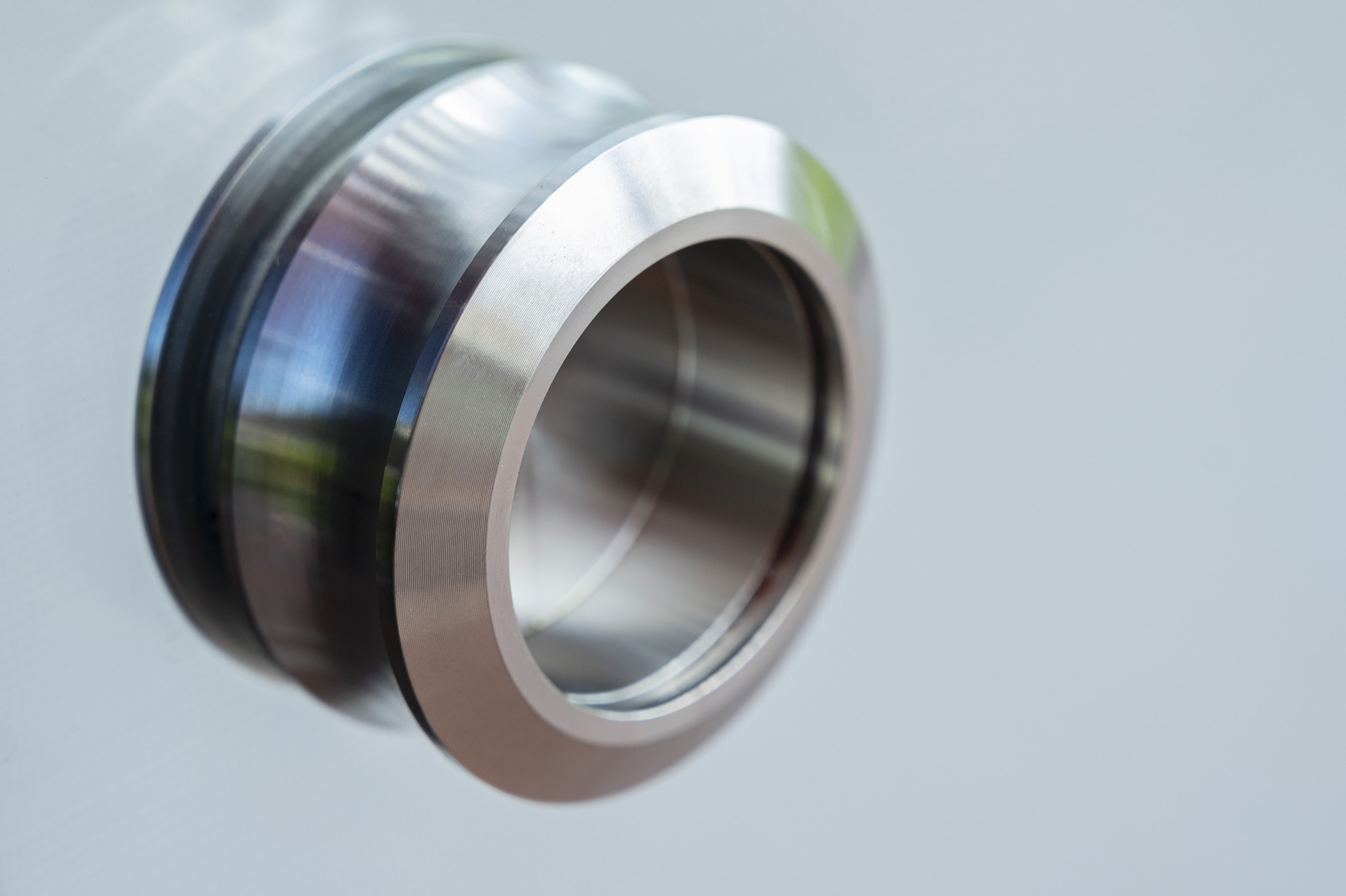

Slidetec Framless Glass Doors Handle by Louvretec

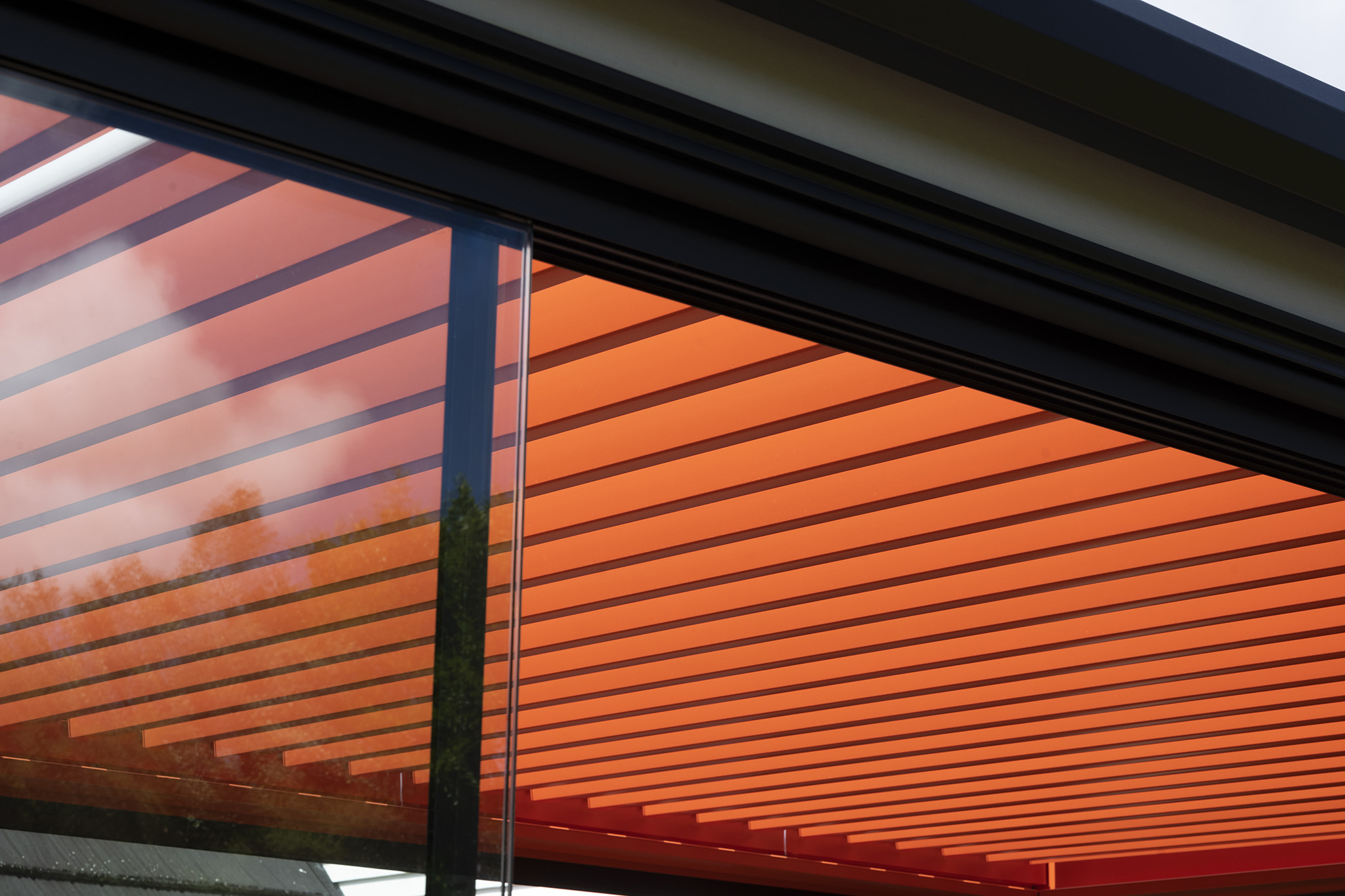

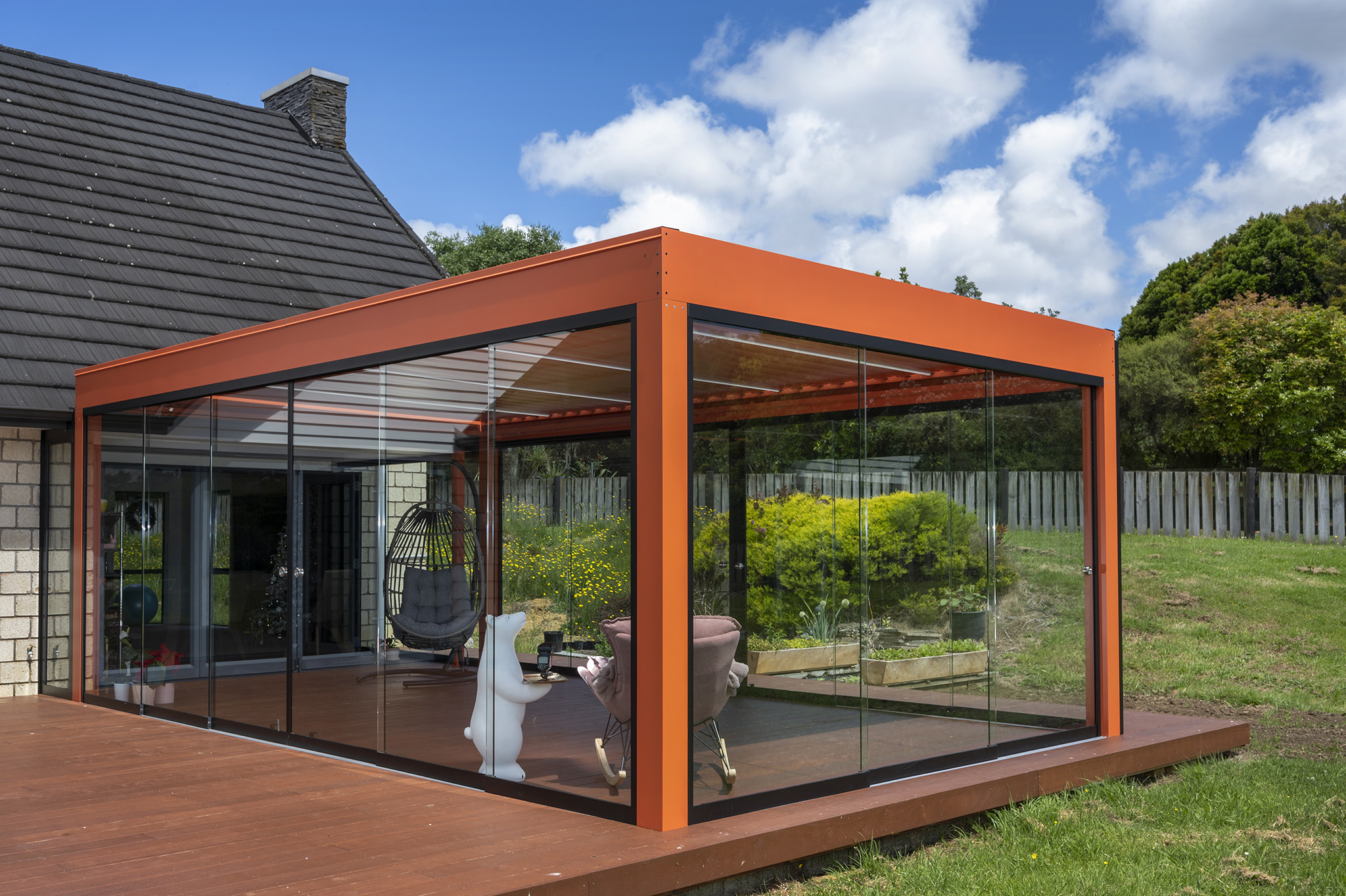

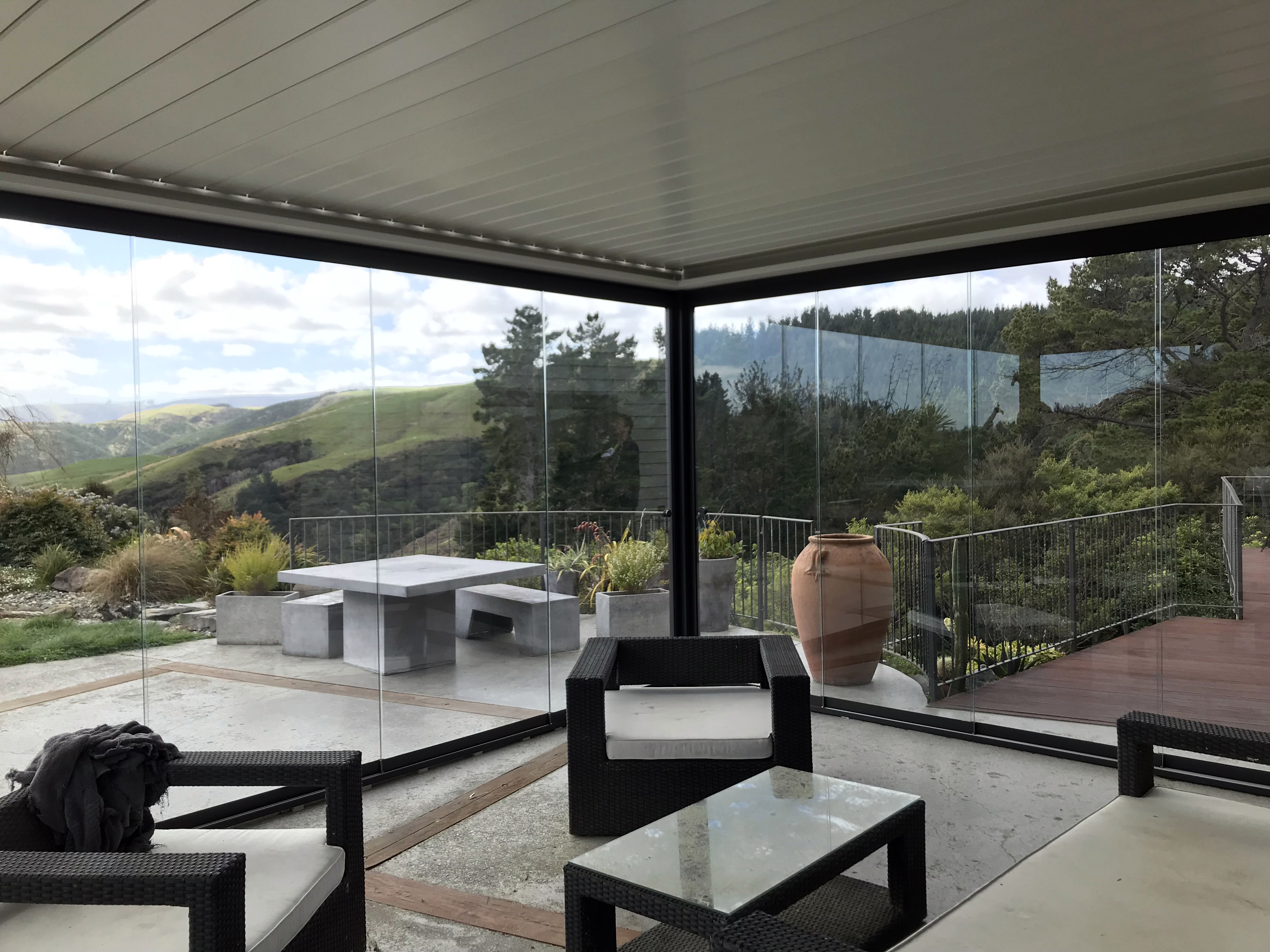

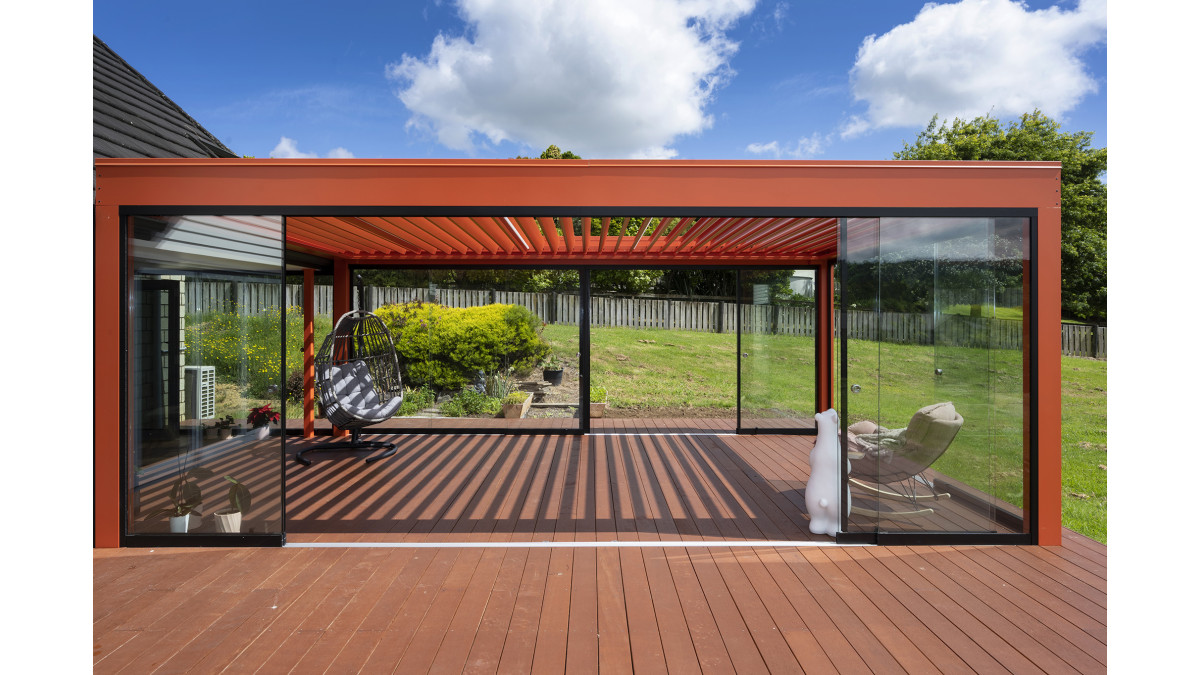

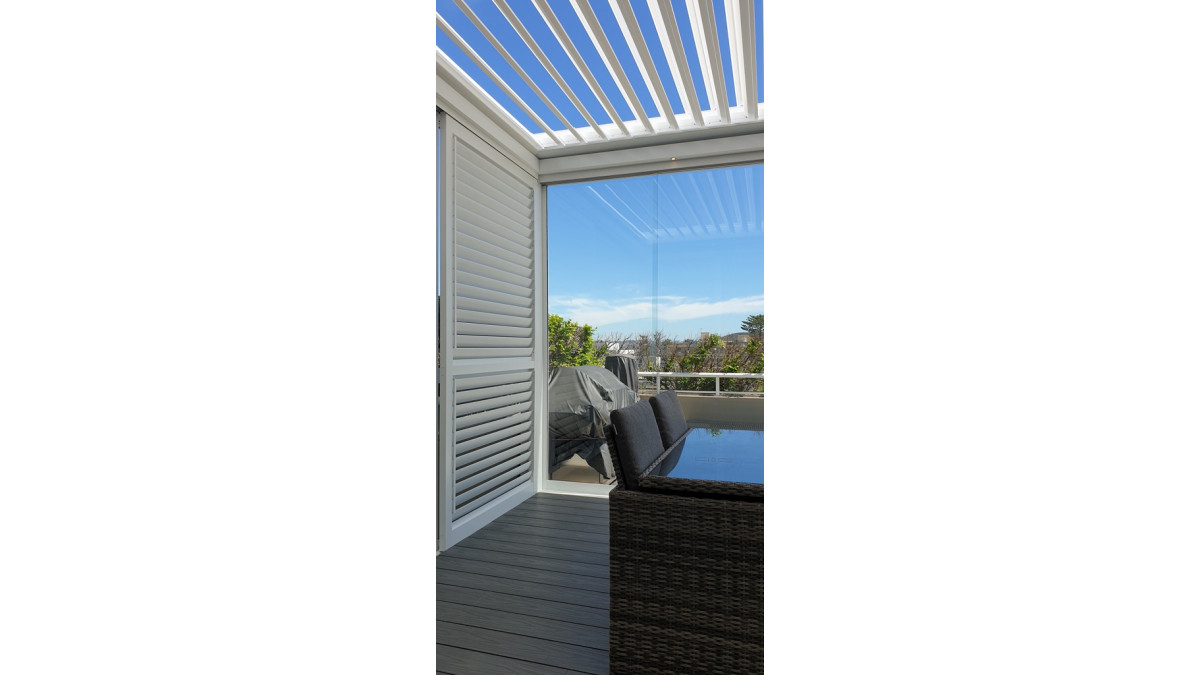

Slidetec Framless Glass Doors & Opening Roof by Louvretec

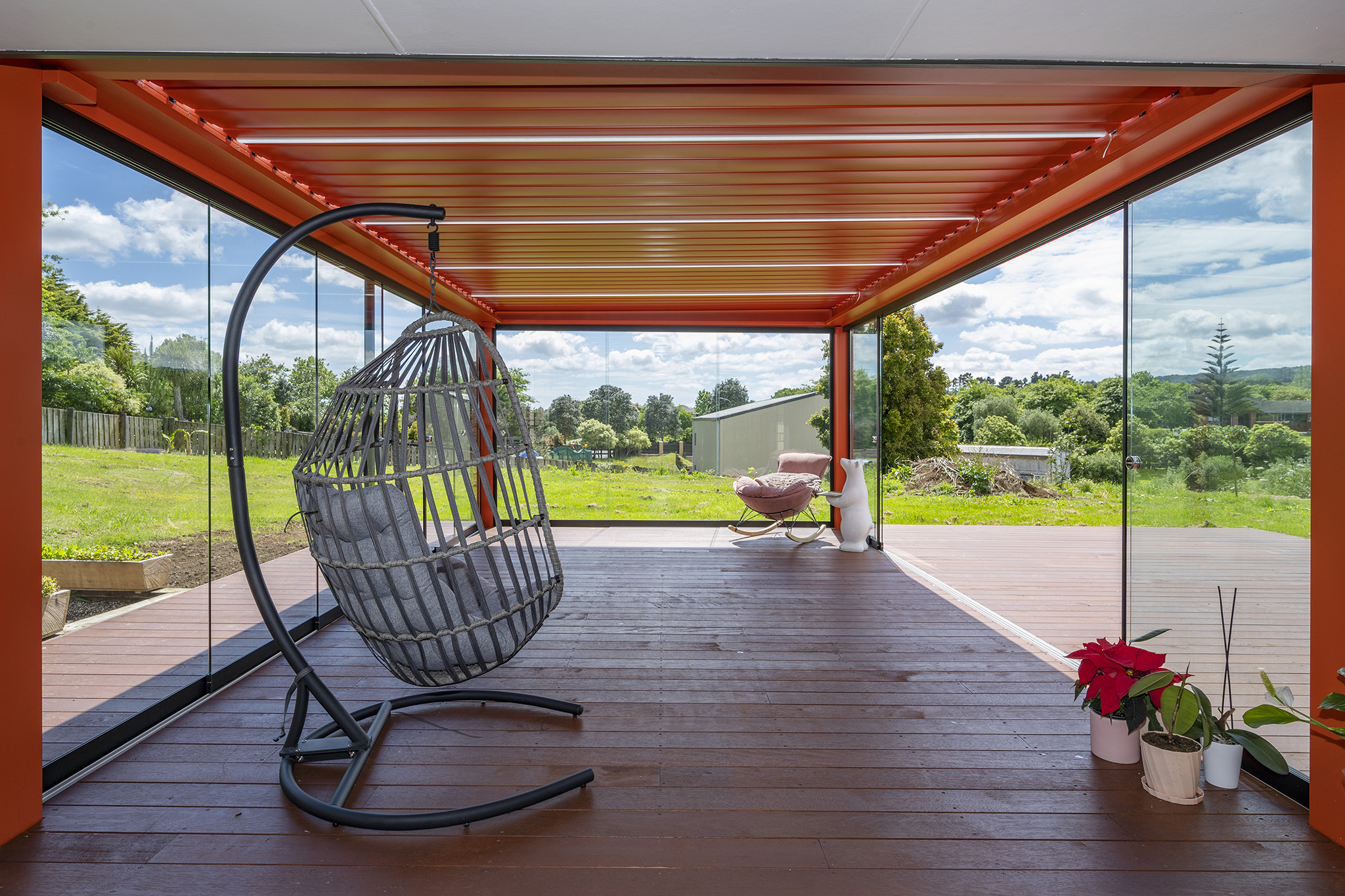

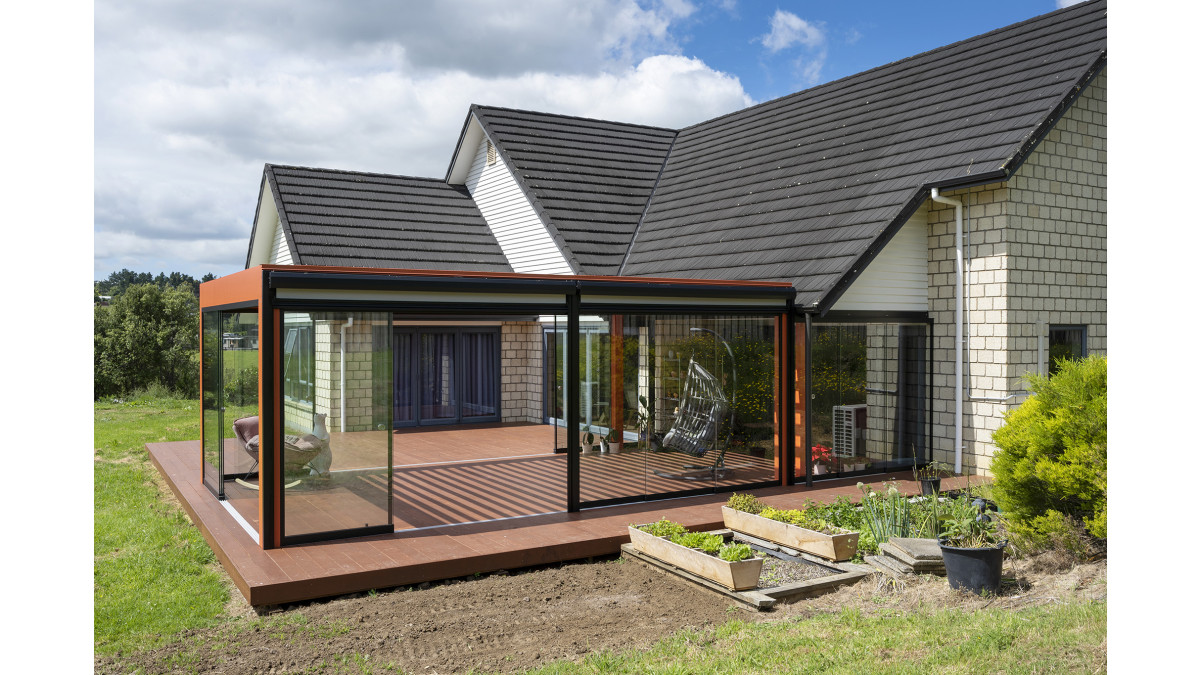

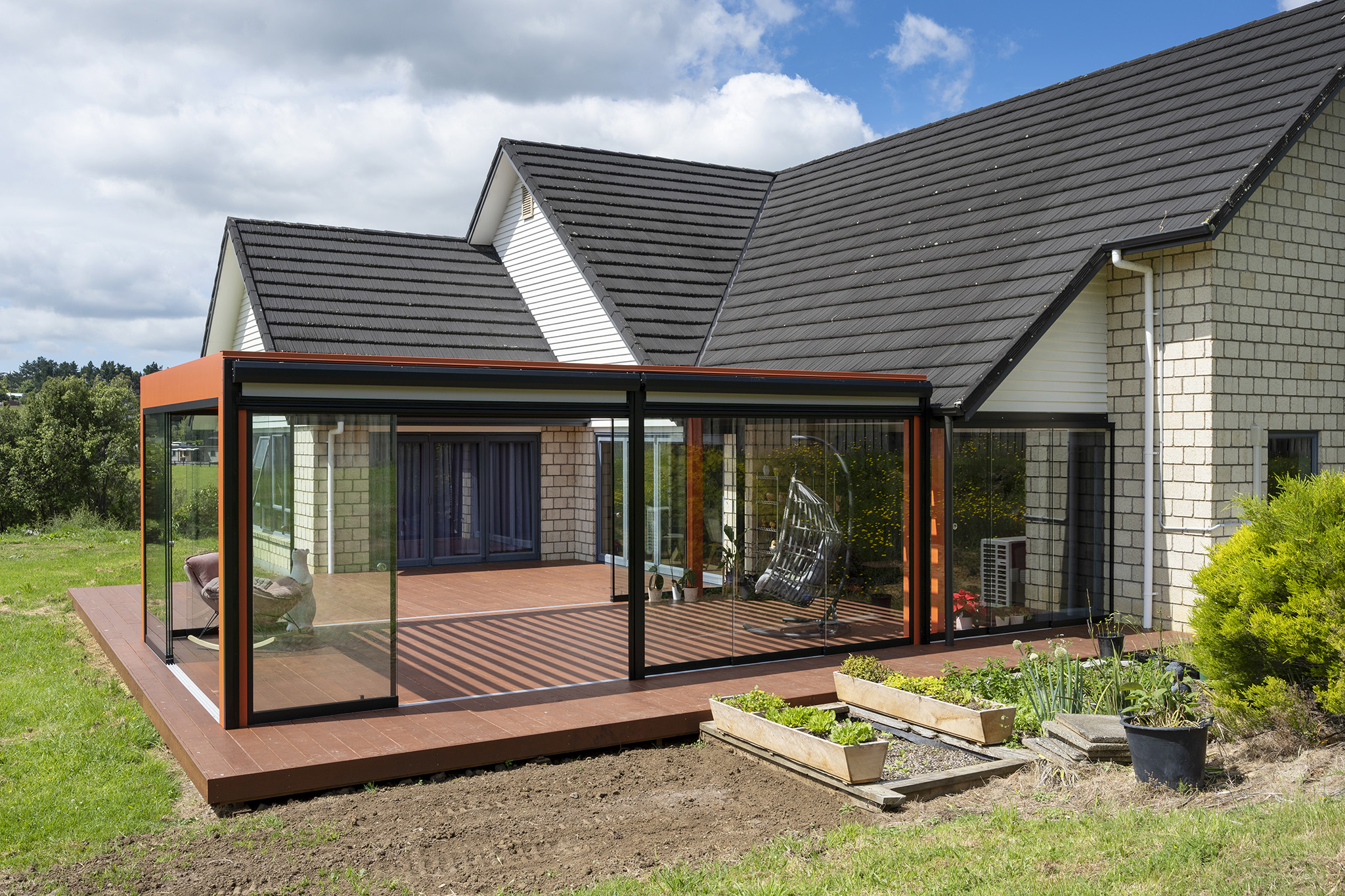

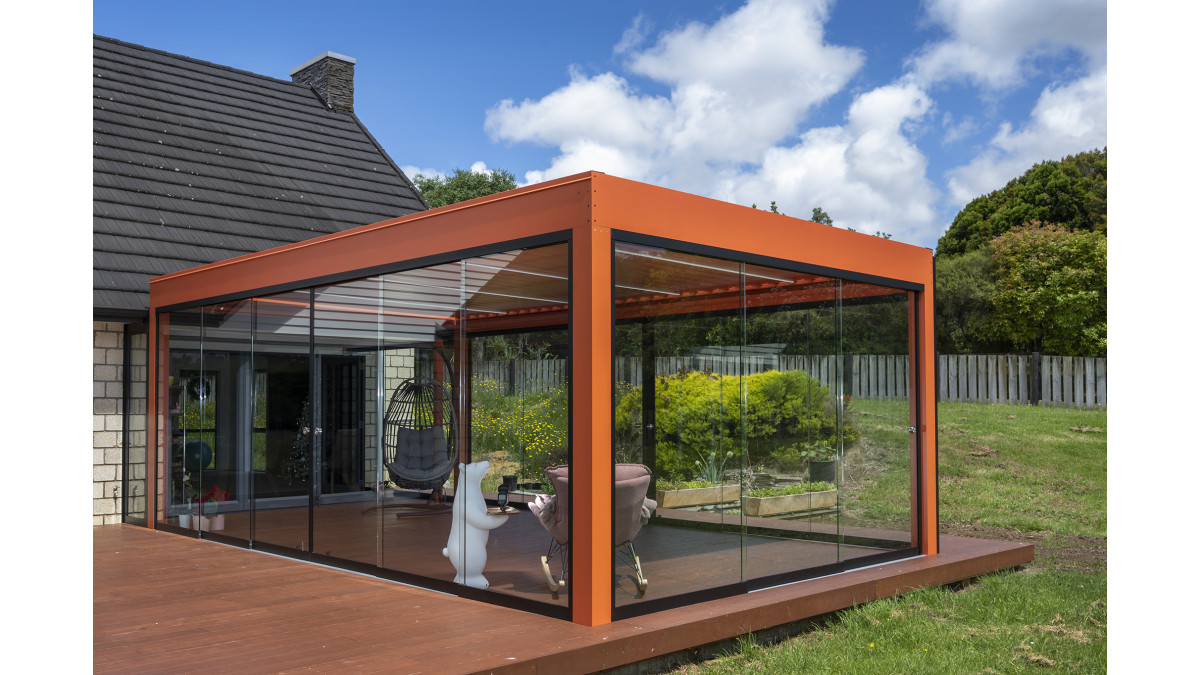

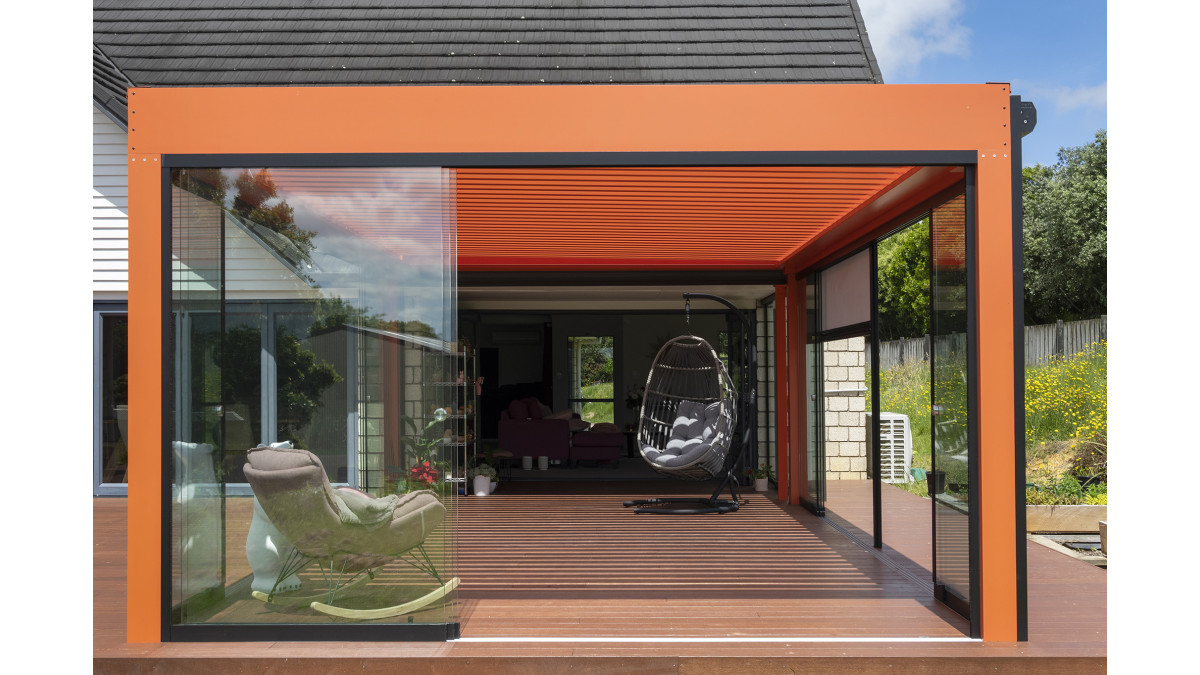

Slidetec Framless Glass Doors by Louvretec

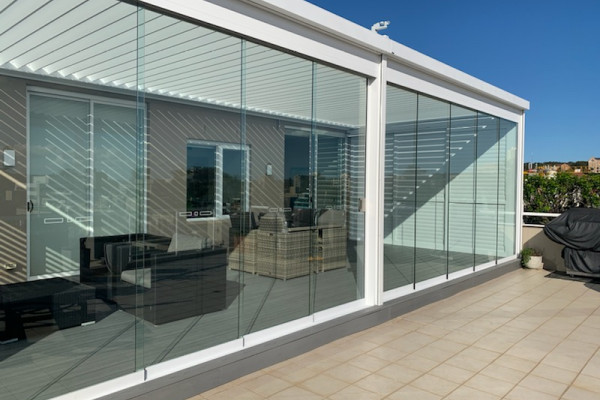

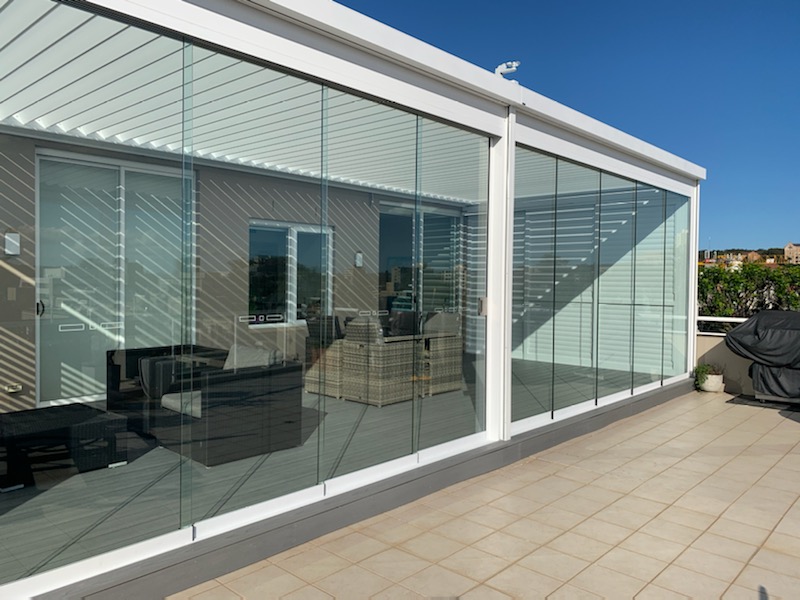

Slidetec Framless Glass Doors by Louvretec

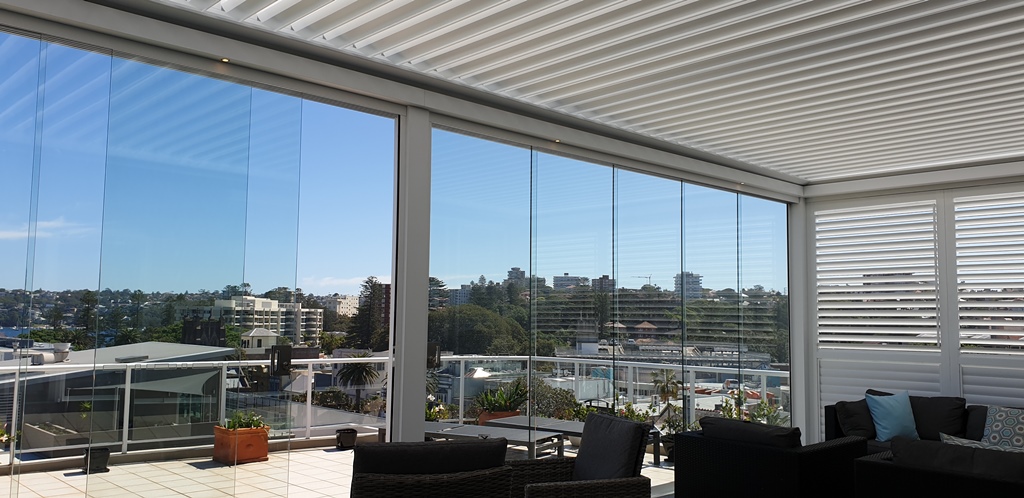

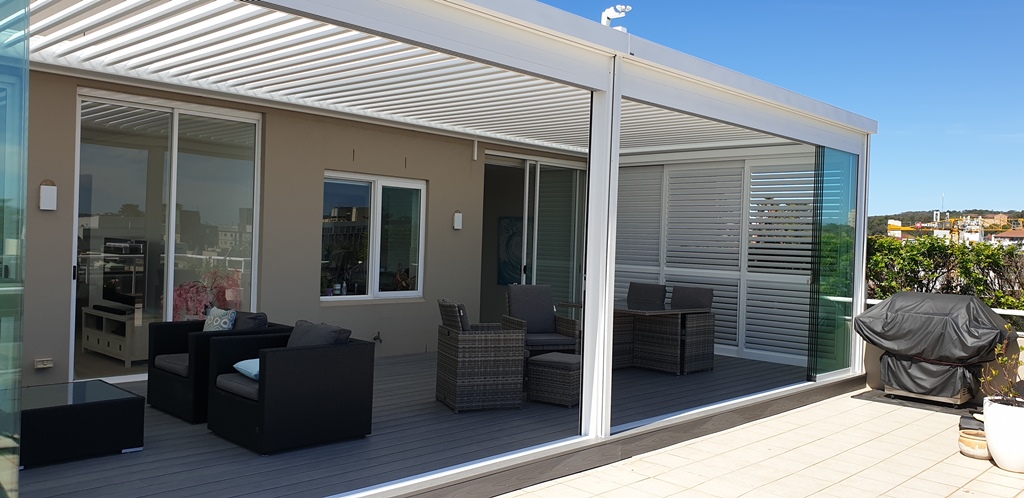

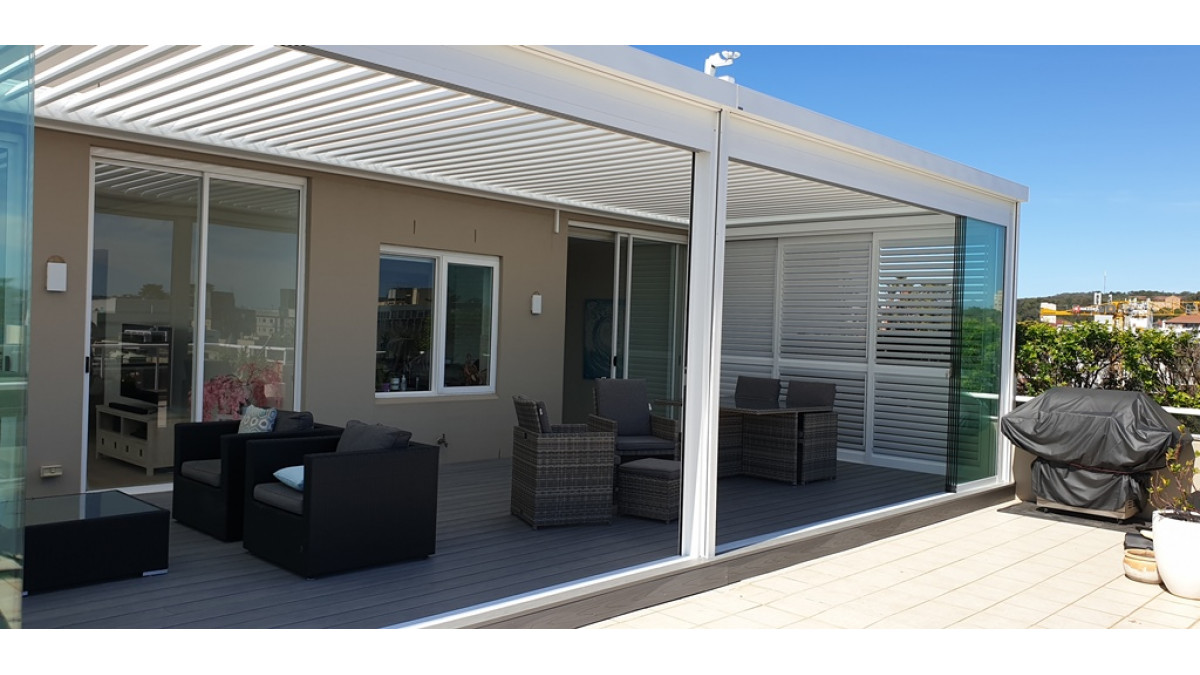

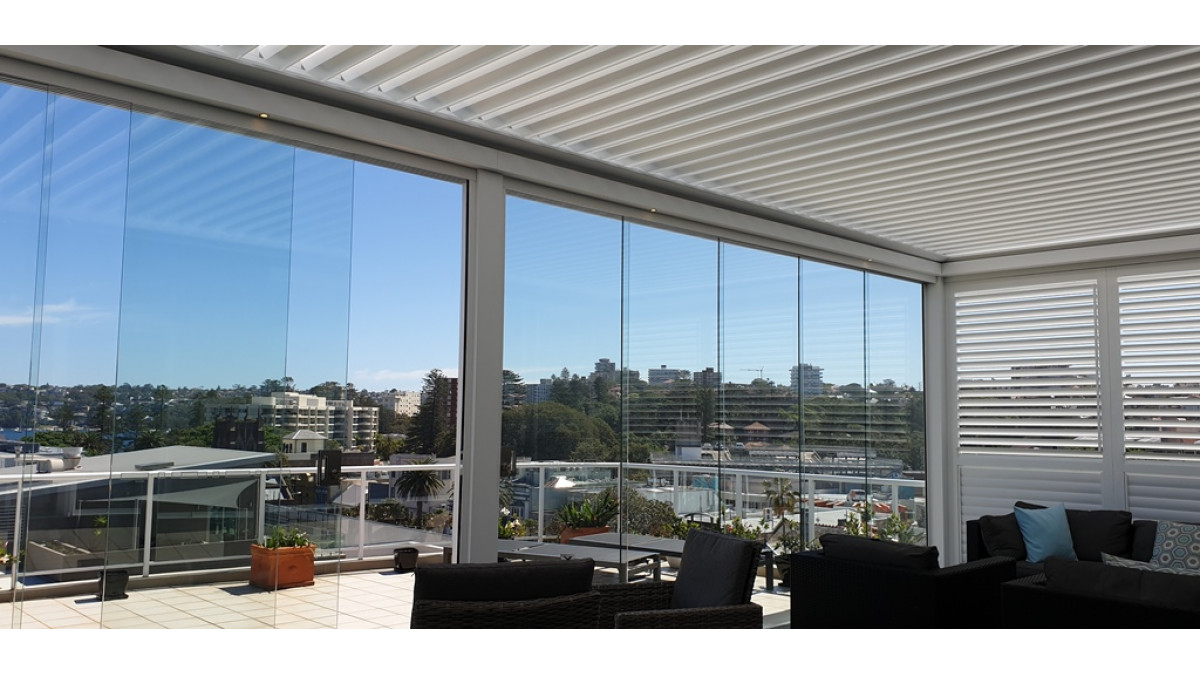

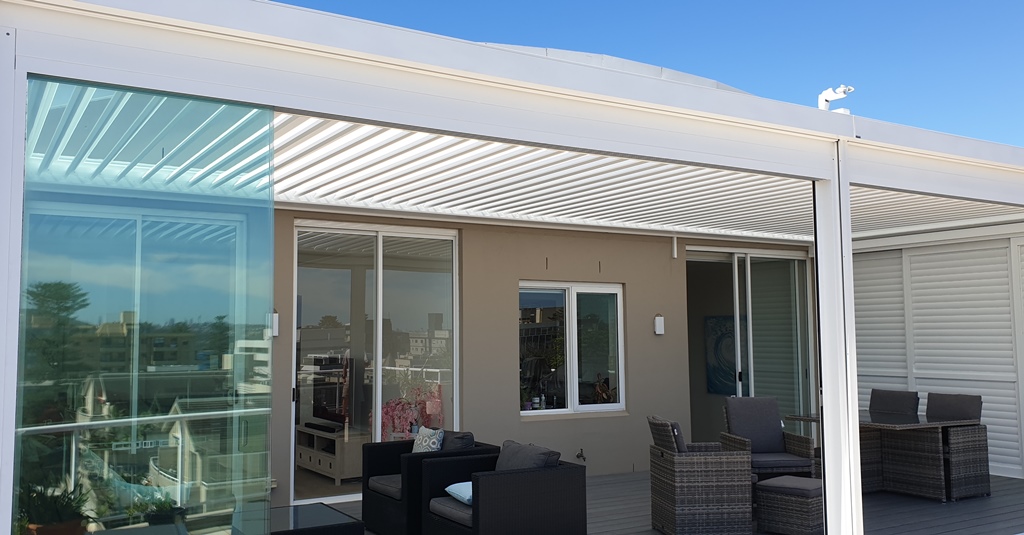

Louvretec Slidetec Sliders opened to right hand side

Product Enquiries

Description

Louvretec’s Slidetec Framless Glass Sliding Doors & Windows are s perfect solution for closing the sides of an outdoor living space. Slidetec Glass Sliders create a sliding wall that enhances deck areas and provides protection from the elements without compromising a beautiful outlook and view.

Constructed with either 10mm or 12mm toughened glass, these doors are specifically engineered to endure New Zealand's coastal conditions, including high winds, sandy environments, and salt spray.

Configurations include left hand sliding, right hand sliding, meet in the middle.

Louvretec has also added fixed glazed panels in this collection. These provide a glaze option to infill the area above Slidetec Glass Sliding Doors or Louvretec Outdoor Blinds.

Key Features

Configurations include left hand sliding, right hand sliding, meet in the middle
Choose either 10mm or 12mm toughened glass by Viridian
Fixed Glazed Panels are available to extend height
Slidetec 3 Track (accommodating up to 6 glass panels)
Slidetec 4 Track (allowing for a maximum of 8 glass panels)
Slidetec 5 Track (supporting up to 10 glass panels)
Each glass door features Slidetec's follower function for smooth and easy operation.
Glass Panel Width Specifications: • Minimum panel width: 500mm • Maximum panel width: 2400mm
Slidetec Glass Doors are designed to be installed flush with the floor, featuring an integrated floor rail that keeps your living area free of obstructions

Ranges

Slidetec Frameless Glass Sliding Door System

NZ Made

NZ-Owned Business

Scope of Use

Slidetec Frameless Glass Sliding Door systems are the perfect solution for closing in the sides of an outdoor living space and are compatible with Louvretec Opening Roofs.
Commercial
Residential
External

Limitations on Use

Any use outside of Louvretec's standard fabrication and/or installation/fixing & spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual

In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure operation of Slidetec Frameless Glass Sliding Doors remain in optimal condition.

Other Performance Attributes

Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
Louvretec Louvres are constructed of aluminium
Louvretec is in its 25th year of operation

News

Slidetec Frameless Glass Sliding Doors and Windows by Louvretec

Louvretec

November 2020

New Products

Documents

Louvretec 2025 Design Manual - Slidetec Section 5

2025

pdf

Louvretec 2025 Design Manual — Full

2025

pdf

Maintenance and Warranty

Louvretec 2025 Slidetec Warranty

pdf

Brochure

Louvretec Slidetec Frameless Glass Doors

pdf

CAD/PDF Details

View full

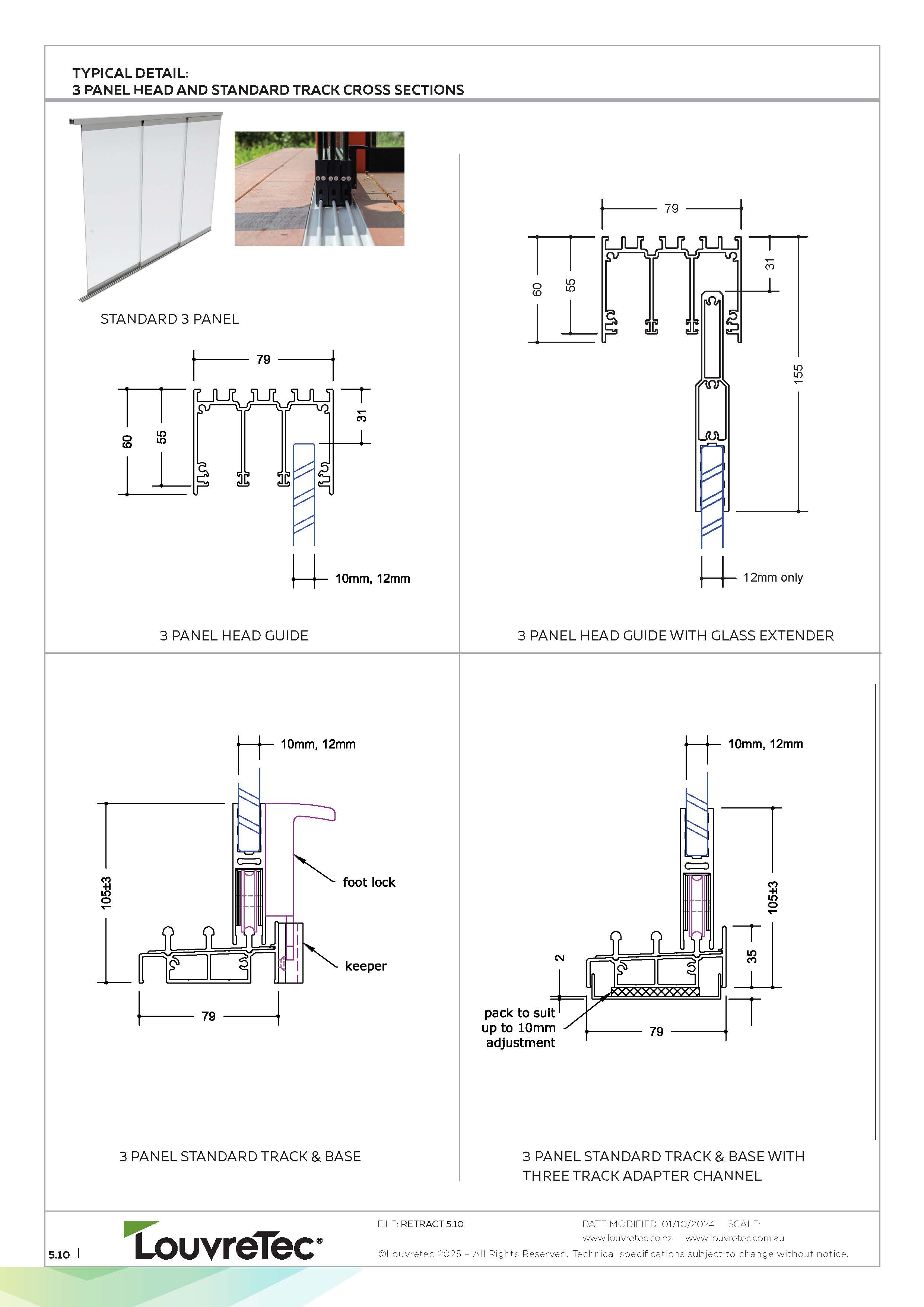

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 11

Typical Detail | Slidetec 3 Panel Standard Track

5.10

Louvretec 2025 Design Manual

dwg

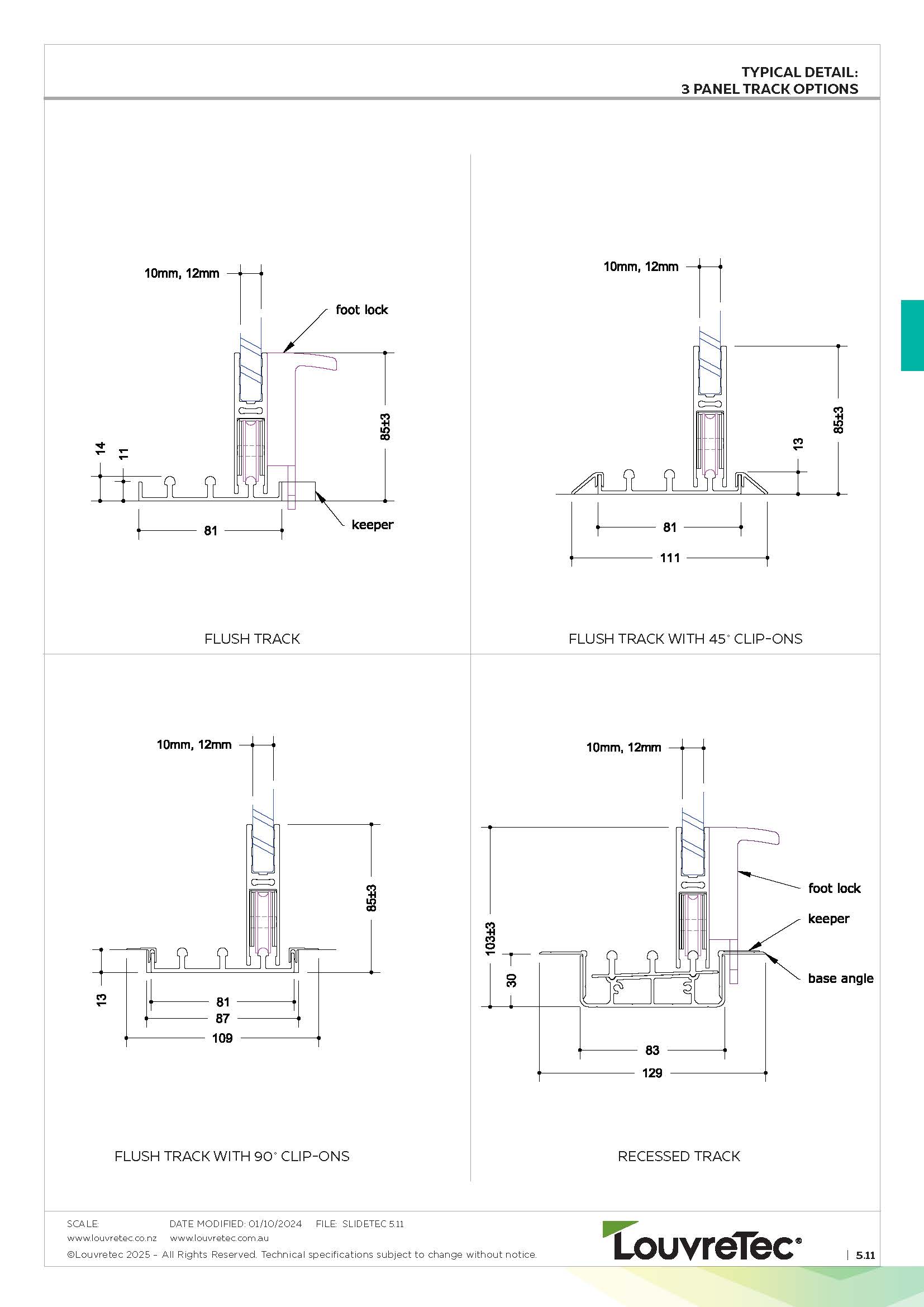

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 12

Typical Detail | Slidetec 3 Panel Track Options

5.11

Louvretec 2025 Design Manual

dwg

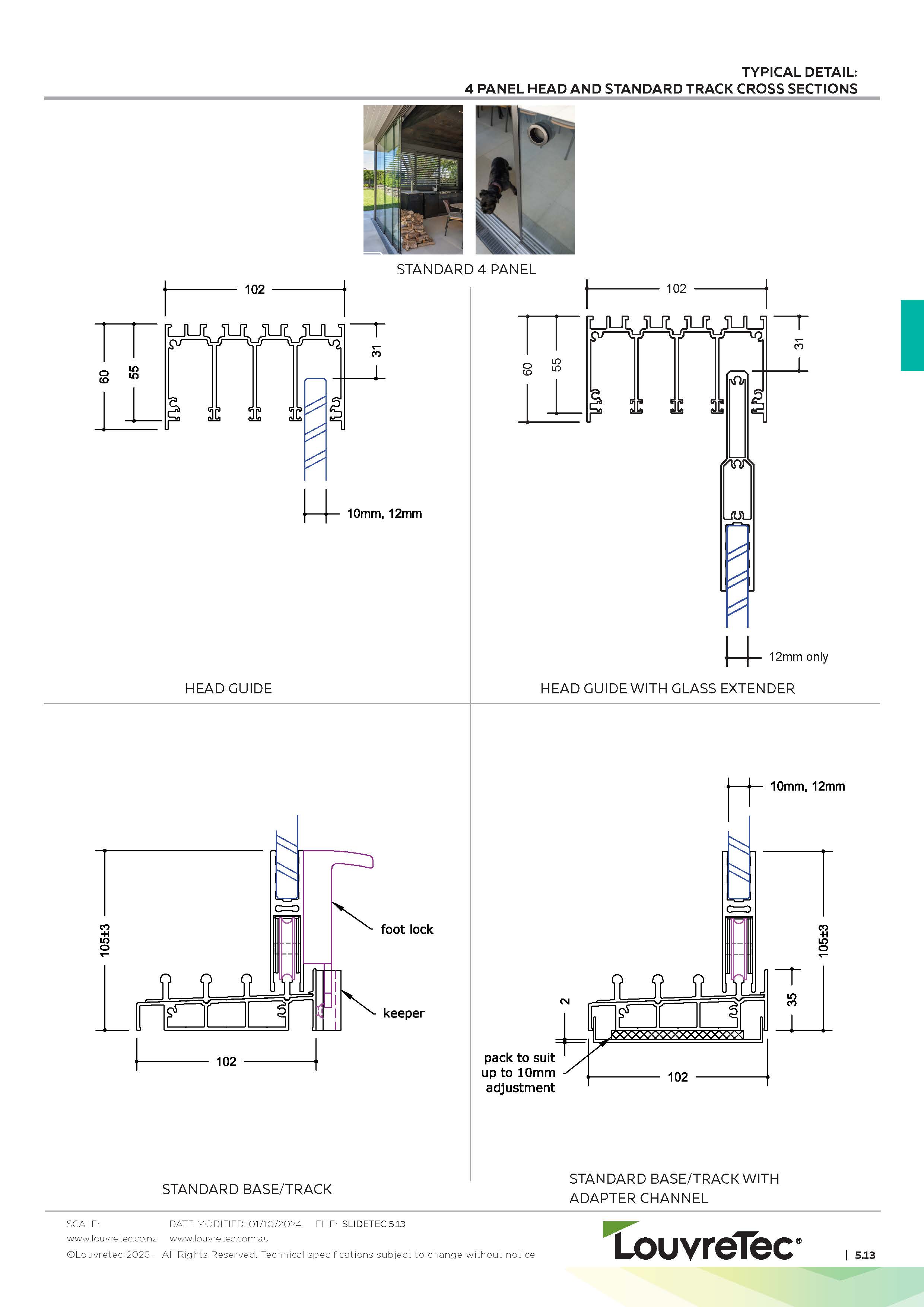

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 14

Typical Detail | Slidetec 4 Panel Head and Standard Track Cross Sections

5.13

Louvretec 2025 Design Manual

dwg

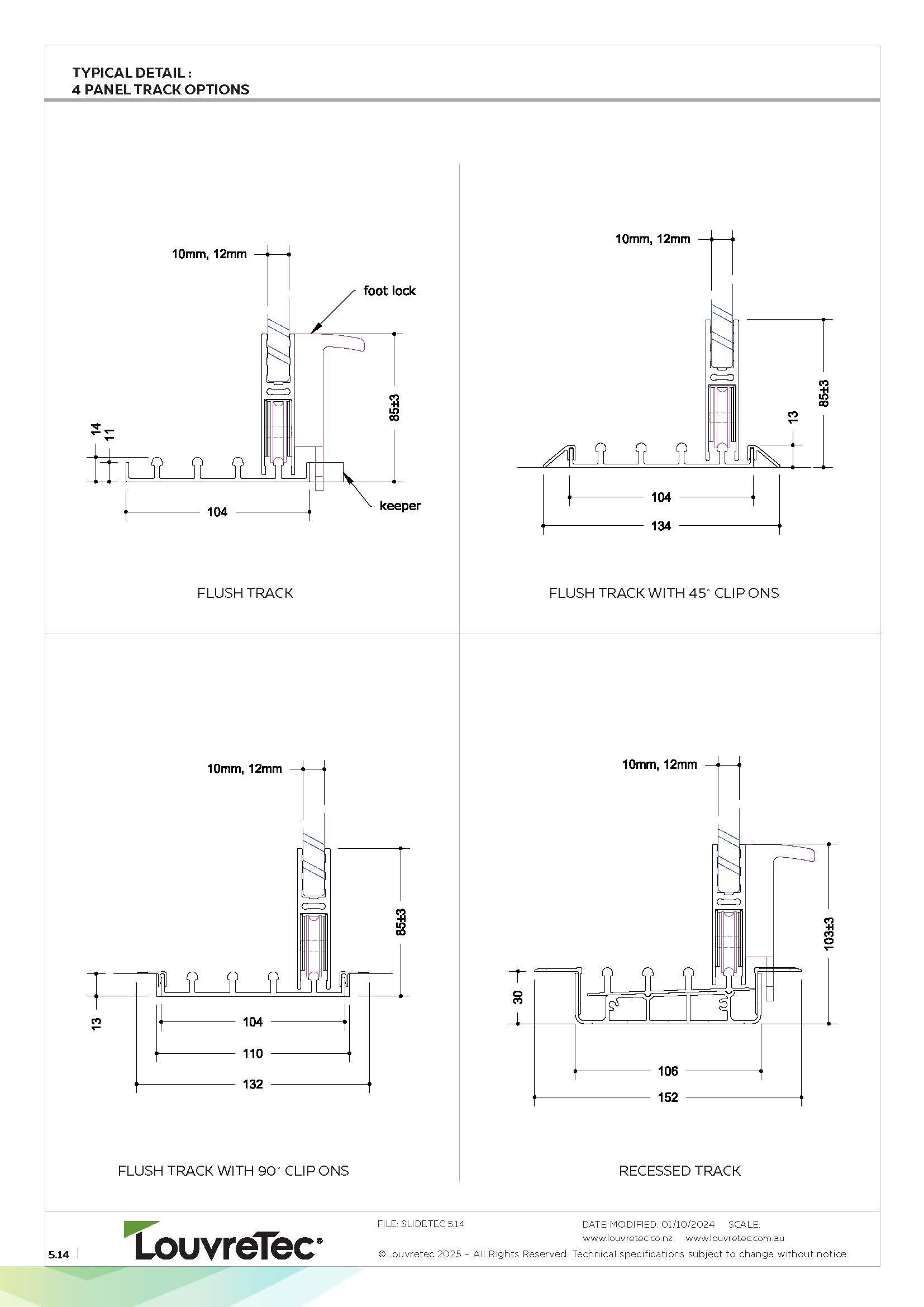

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 15

Typical Detail | Slidetec 4 Panel Track Options

5.14

Louvretec 2025 Design Manual

dwg

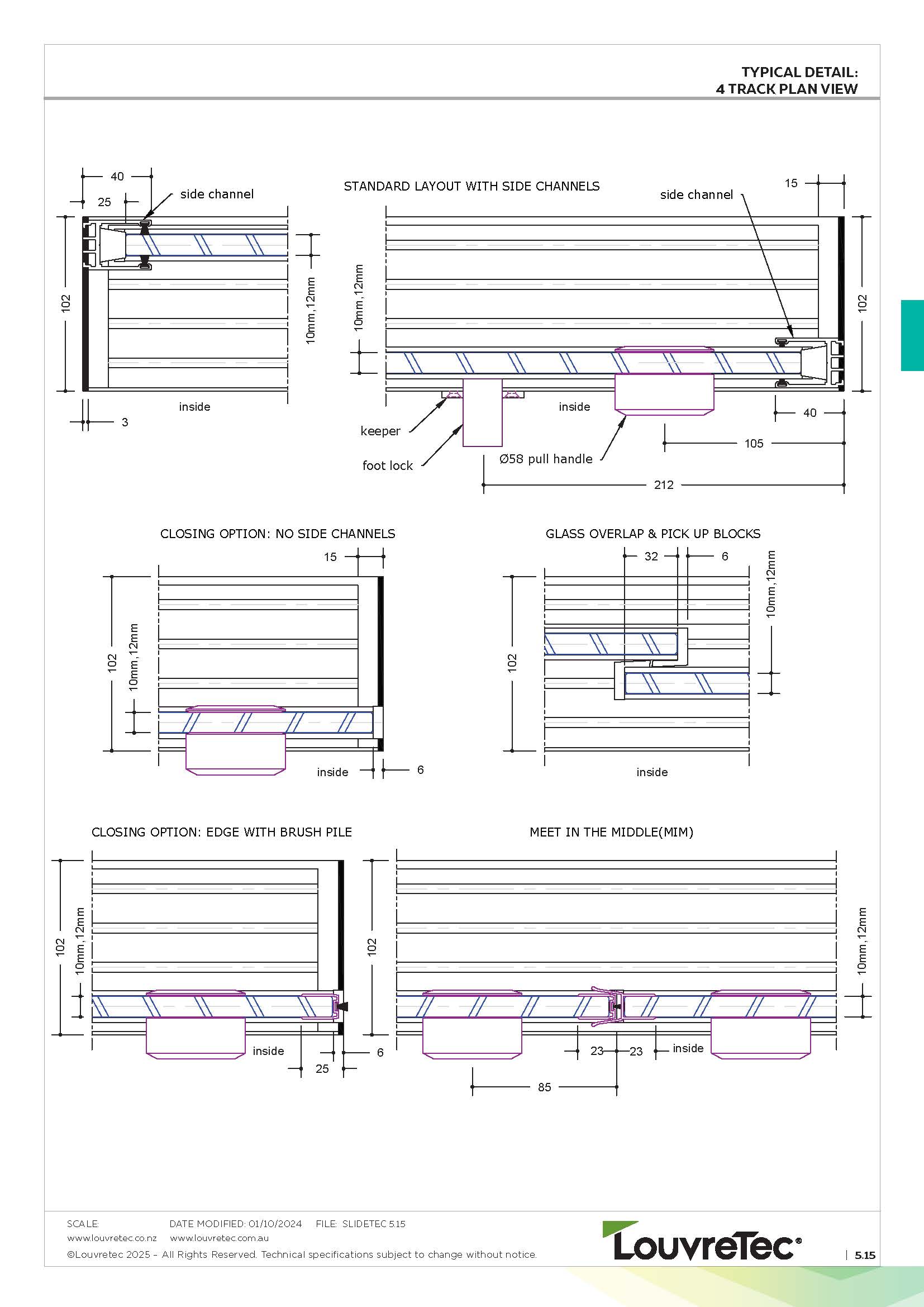

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 16

Typical Detail | Slidetec 4 Track Plan View

5.15

Louvretec 2025 Design Manual

dwg

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 17

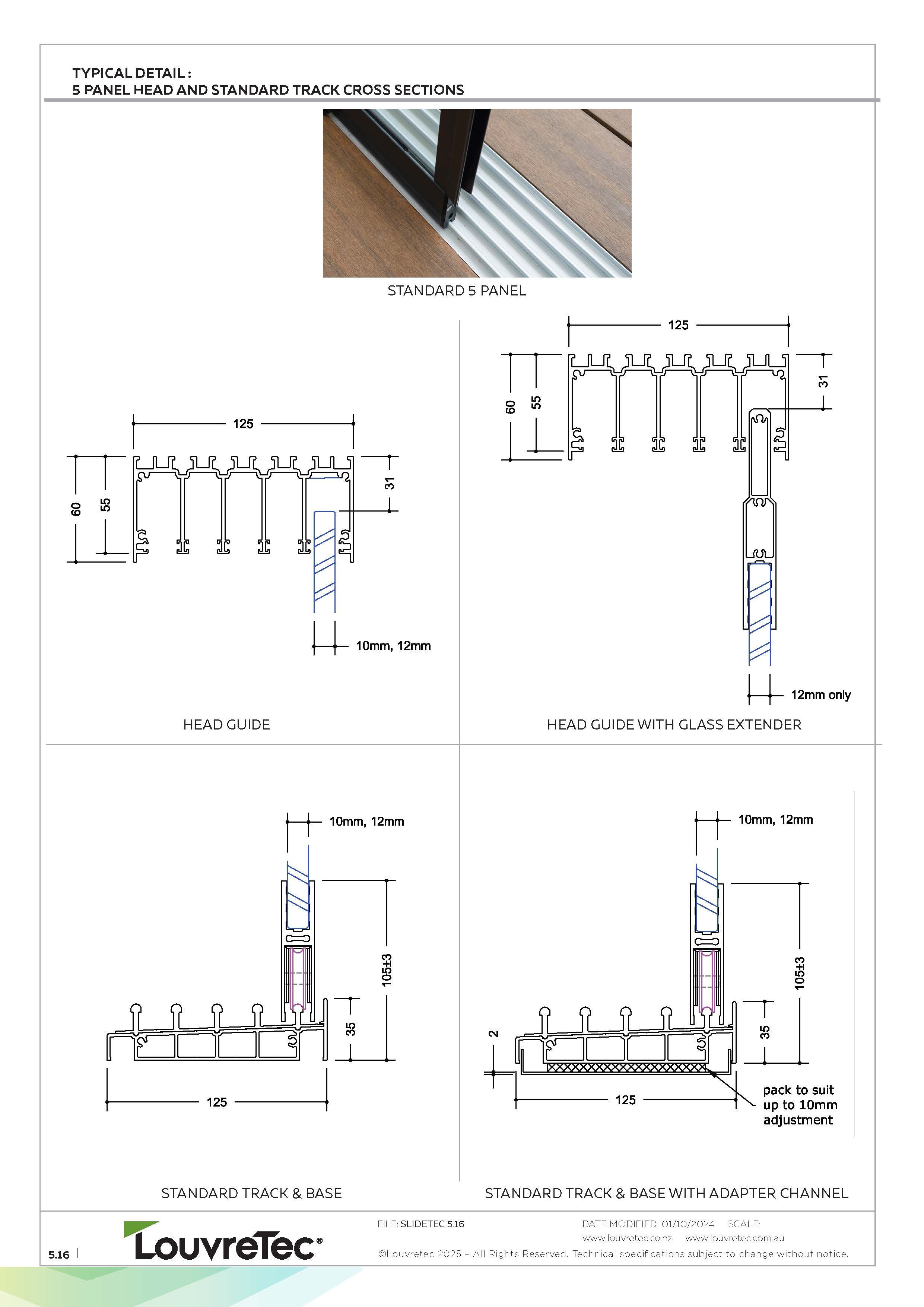

Typical Detail | Slidetec 5 Panel Head and Track Cross Sections

5.16

Louvretec 2025 Design Manual

dwg

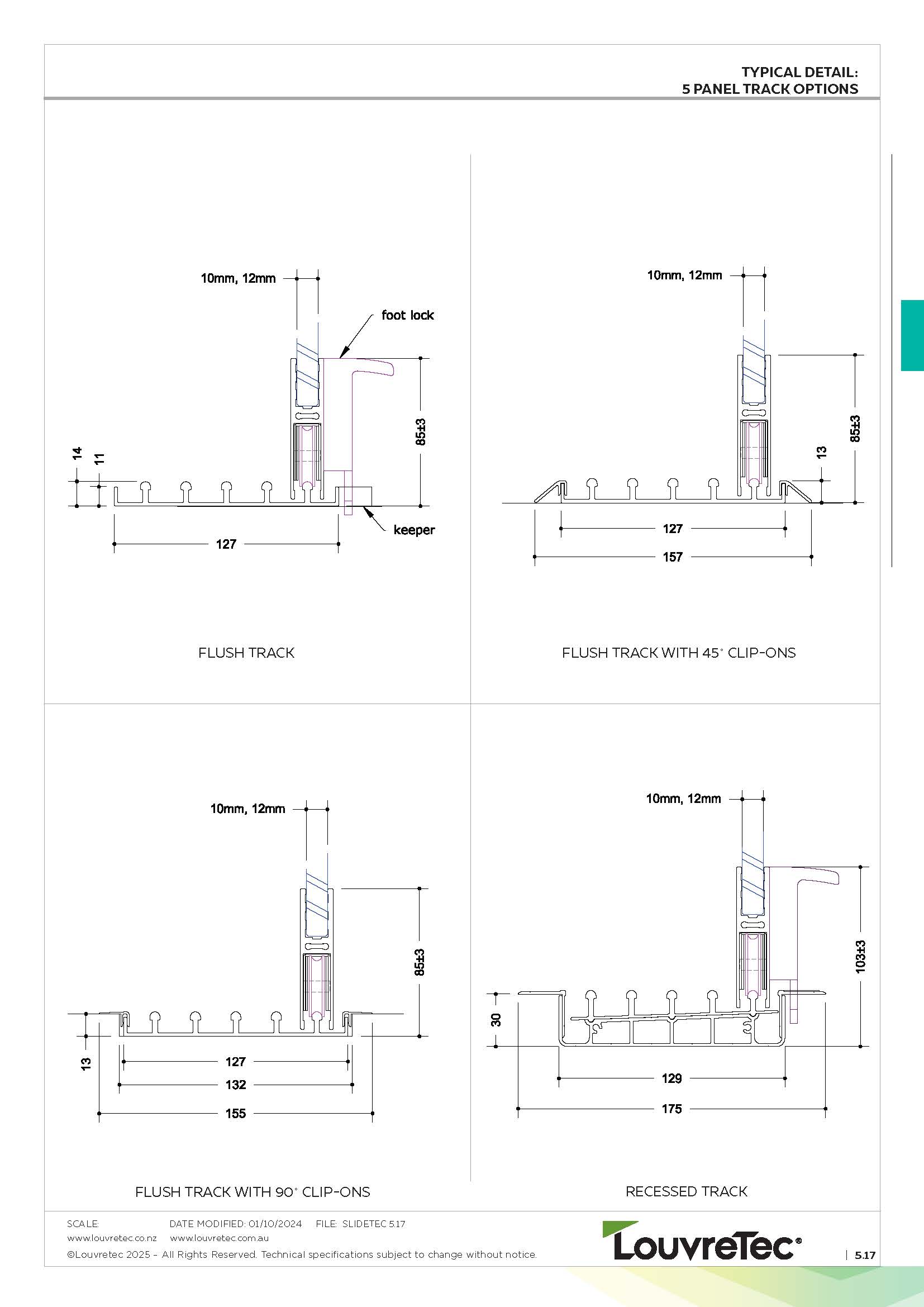

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 18

Typical Detail | Slidetec 5 Panel Track Options

5.17

Louvretec 2025 Design Manual

dwg

Section 5 Slidetec Glass Doors Louvretec DM 2025 FINAL Page 19

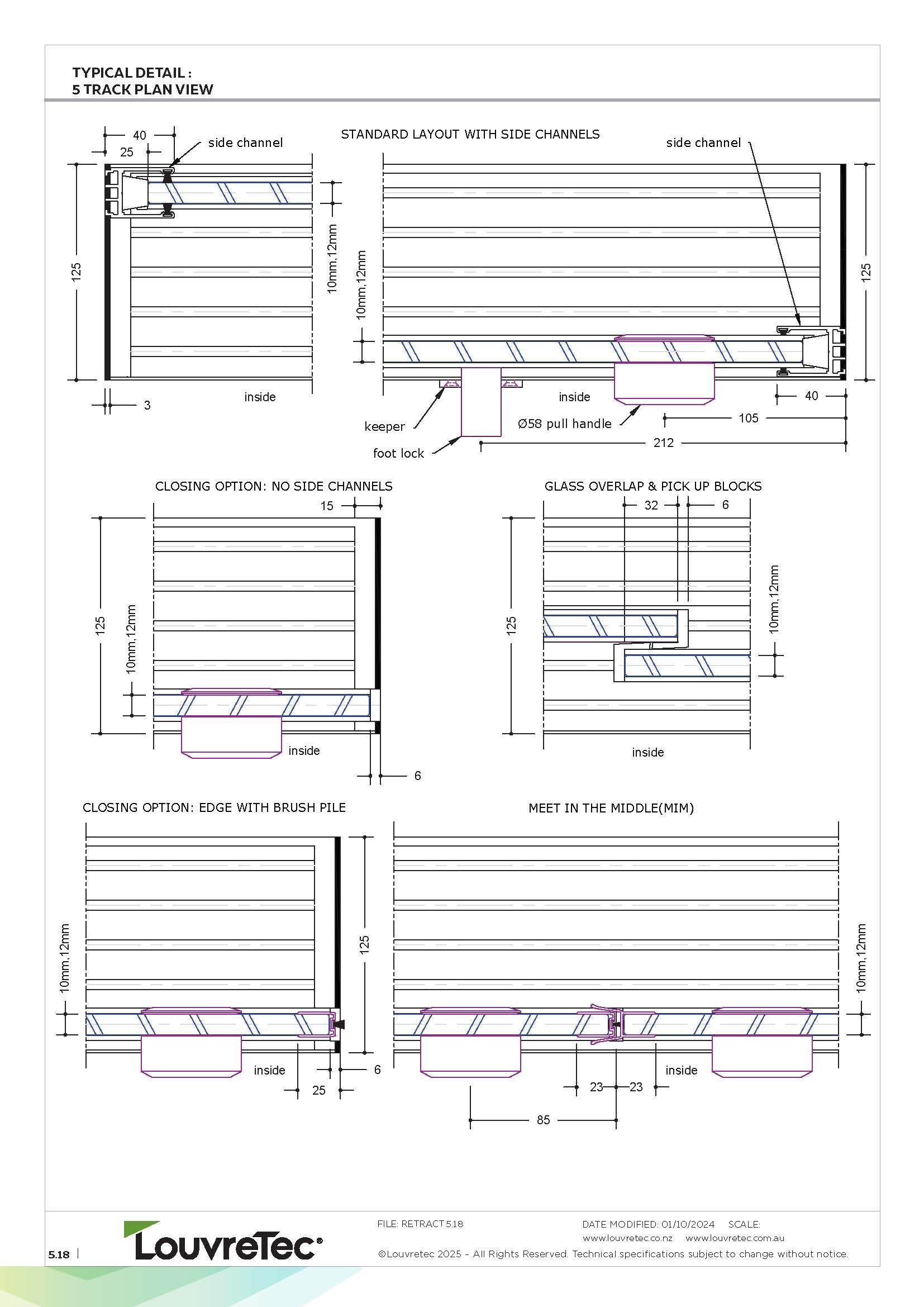

Typical Detail | Slidetec 5 Track Plan View

5.18

Louvretec 2025 Design Manual

dwg

Typical Detail | Slidetec Fixed Glazed Overhead Panels

5.32

Louvretec 2025 Design Manual

dwg

Typical Detail | Slidetec Face Fixed, Fixed Glazed Panels

5.40

Louvretec 2025 Design Manual

dwg

BIM

View full

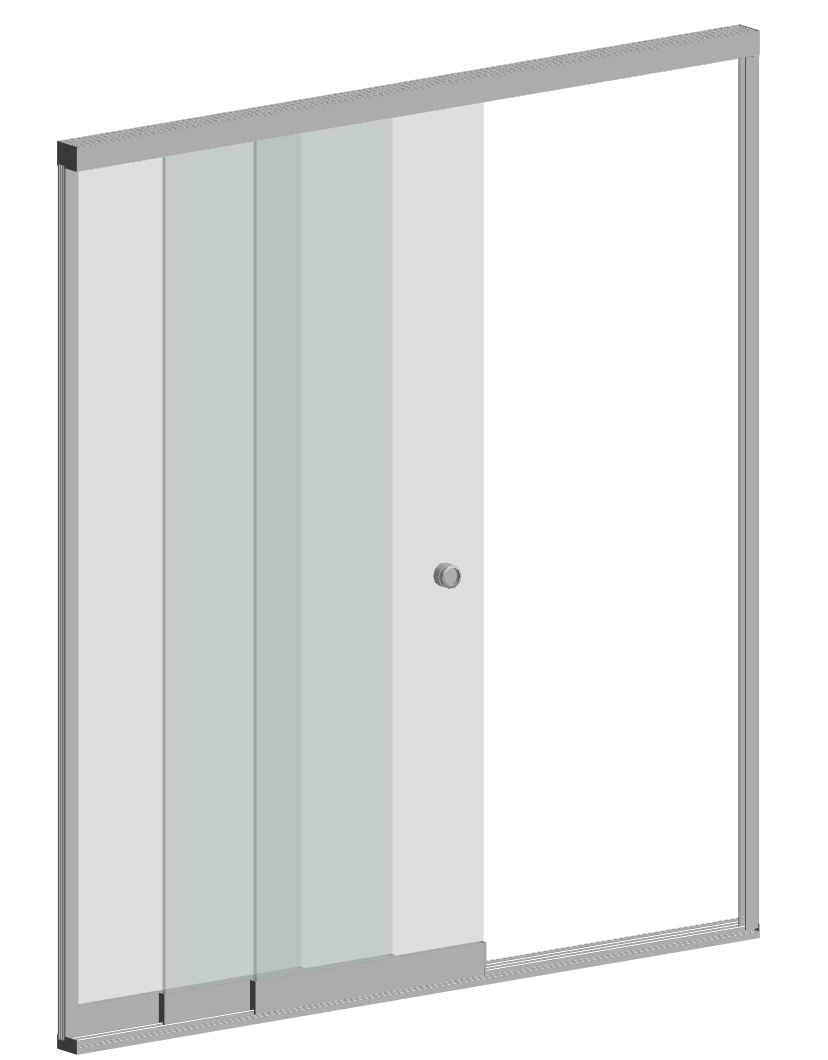

3D Model | Slidetec 3 Panel Glass Door

Louvretec 2025 Design Manual

rfa

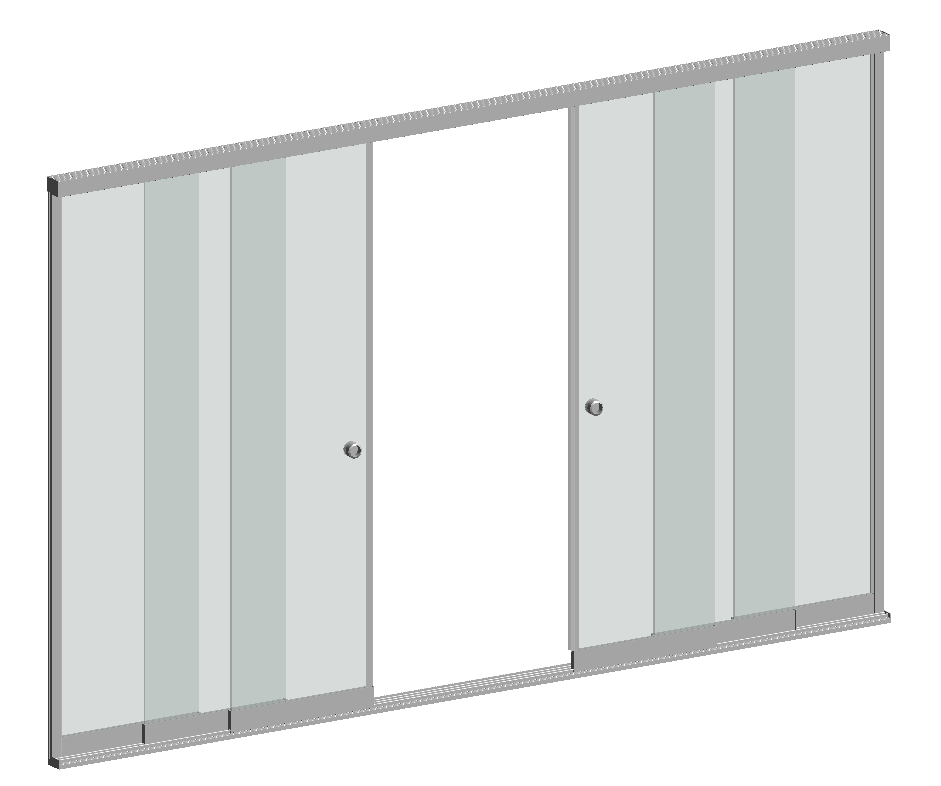

3D Model | Slidetec 4 Panels Glass Door

Louvretec 2025 Design Manual

rfa

3D Model | Slidetec 5 Panels Glass Door

Louvretec 2025 Design Manual
