Description

Introducing Louvretec’s new Slimline Range of Opening Roofs.

Slimline Roofs are available in four sizes.

Louvres feature a flat top and bottom, making them slimline, sleek & strong, both visually and functionally.

Key Features

The Slimline Roofs are available in four sizes, with 2 options also being Retract Roof compatible
180/30 Slimline Roof: Streamlined and neat. Perfect for smaller Opening Roof projects
200/35 Slimline Roof: Great spans - a fantastic 'go-to' option for medium sized Opening Roof projects
220/35 Slimline Roof: Blade height tapers to 35mm high and is Spiral Pivot and Retract Compatible
220/45 Alpine Roof: Designed for Alpine & exposed Coastal sites. This Louvre is also Spiral Pivot and Retract Roof Compatible.
220/45 Alpine Roof offers unprecedented spans up to 5000mm in ALL wind zones, including Very High

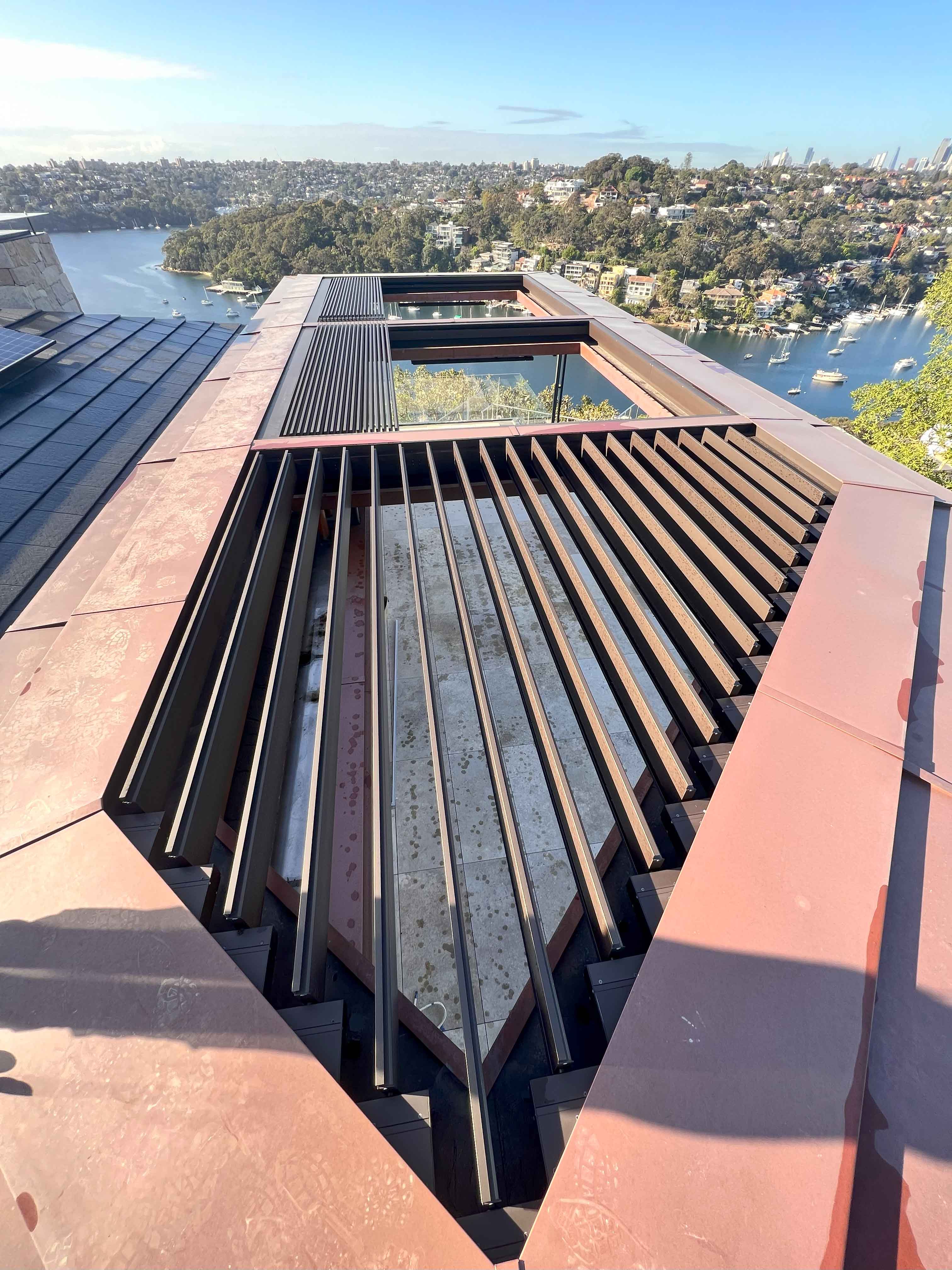

As the 220/35 Slimline Roof Louvre, & the 220/45 Alpine Roof Louvre are also Retract Roof compatible, it makes them ideal multi-roof projects

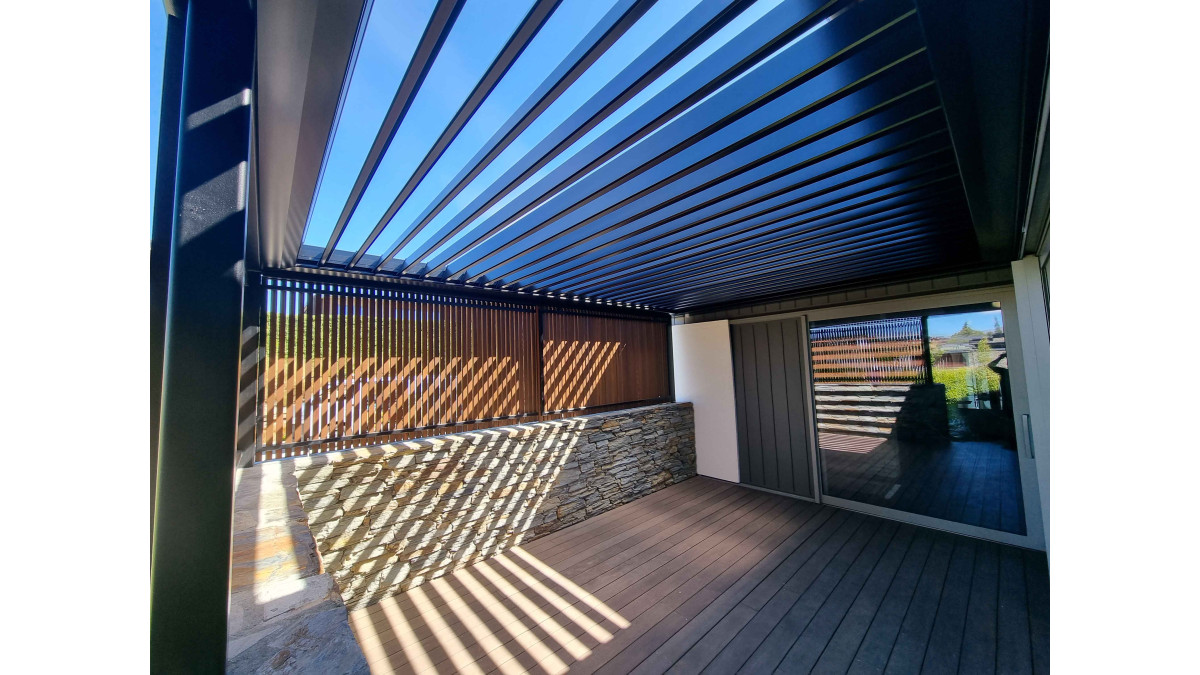

A tapering topside brings a bigger sense of openness when blades are rotated
Blades can rotate through up to 180 degrees
Designed, manufactured and installed right here in NZ by Louvretec
Available Motorised or Hand-operable
Great span options to suit different wind zones
Powered by world-renowned Somfy Motors
Award-winning Spiral Pivot System for smooth movement of the Louvre blades
Gearbox and motor are hidden from view
Louvretec Structural Frames are included as standard
Made from aluminum - no rusting here!
Durable
Available in a variety of powder coat and anodised colors
Available in a wood grain/timber-look, and other special finishes, such as Blistered Yakasugi, or a Concrete-look!
Engineered for quality and longevity
Warranty
Provides sun, shade, and weather control
Enjoy a comfortable haven below when the roof is closed
Open the Slimline Roof Louvre blades at your discretion to follow the sun for adjustable overhead cover

Ranges

Opening Roofs

NZ Made

NZ-Owned Business

Scope of Use

For residential and commercial projects
Spans are affected by Wind Zones as set out in Louvretec's 2025 Design Manual

Limitations on Use

Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual.
All Louvretec systems must be installed by Louvretec's in-house installers

In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes

Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
Louvretec Louvres are constructed of aluminium
Engineered
Louvretec is in its 25th year of operation

Documents

Louvretec 2025 Design Manual - Full

Louvretec 2025 Design Manual

pdf

Louvretec 2025 Design Manual - Section 4 (Structural Frames)

2025

pdf

Louvretec 2025 Design Manual - Section 7 Lighting

2025

pdf

Louvretec 2025 Design Manual - Section 8 (Outdoor Heating)

pdf

Louvretec 2025 Design Manual Section 10.2

2025

pdf

Maintenance and Warranty

Louvretec 2025 Opening Roofs Warranty

pdf

Brochure

Louvretec 2025 Opening Roof Brochure

pdf

Brochure

Louvretec Lighting and Heating Brochure

pdf

Louvretec Outdoor Heating (and Lighting) Brochure

2025

pdf

CAD/PDF Details

View full

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 22

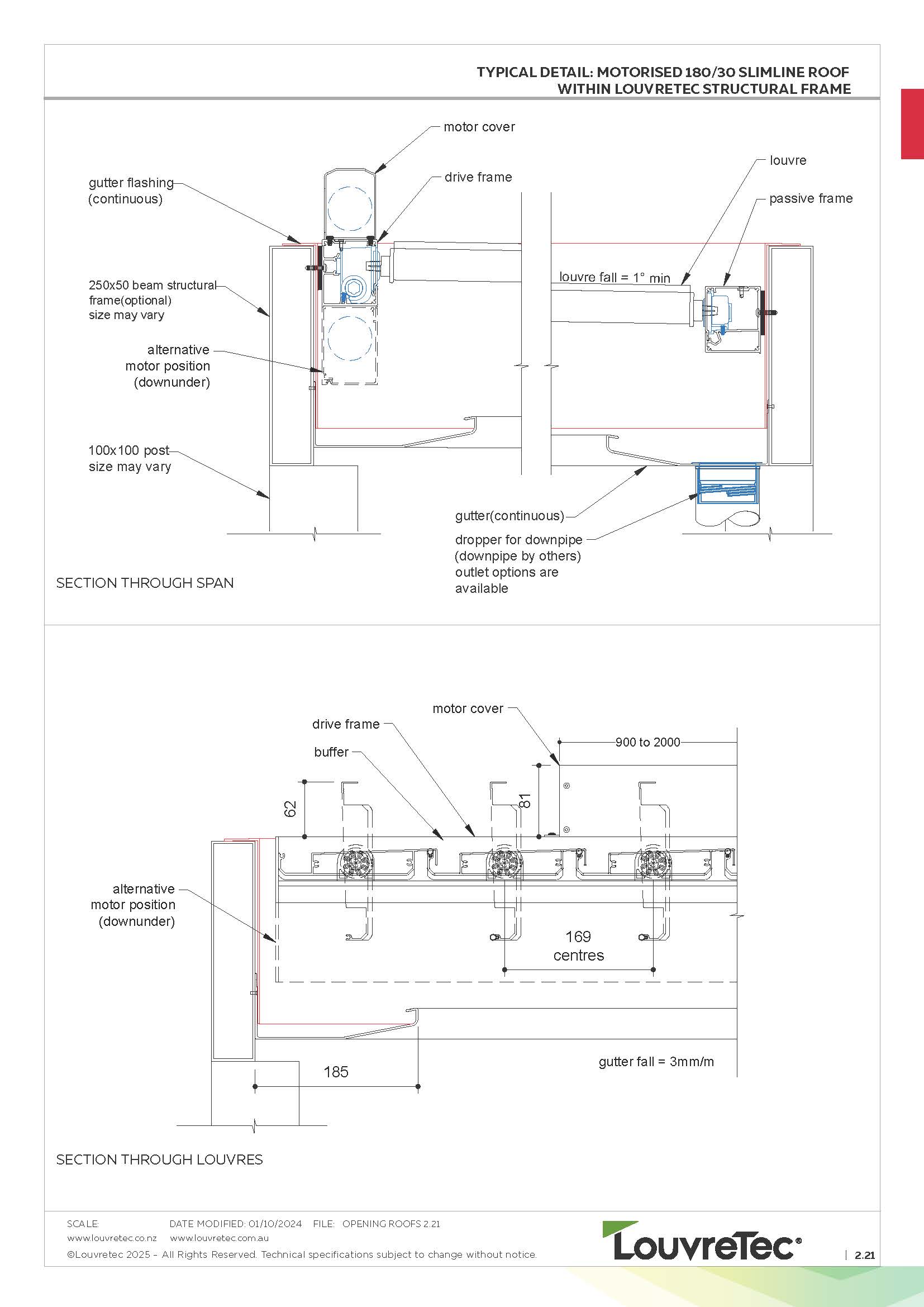

Typical Detail | 180/30 Slimline Roof - Motorised

2.21

Louvretec 2025 Design Manual

dwg

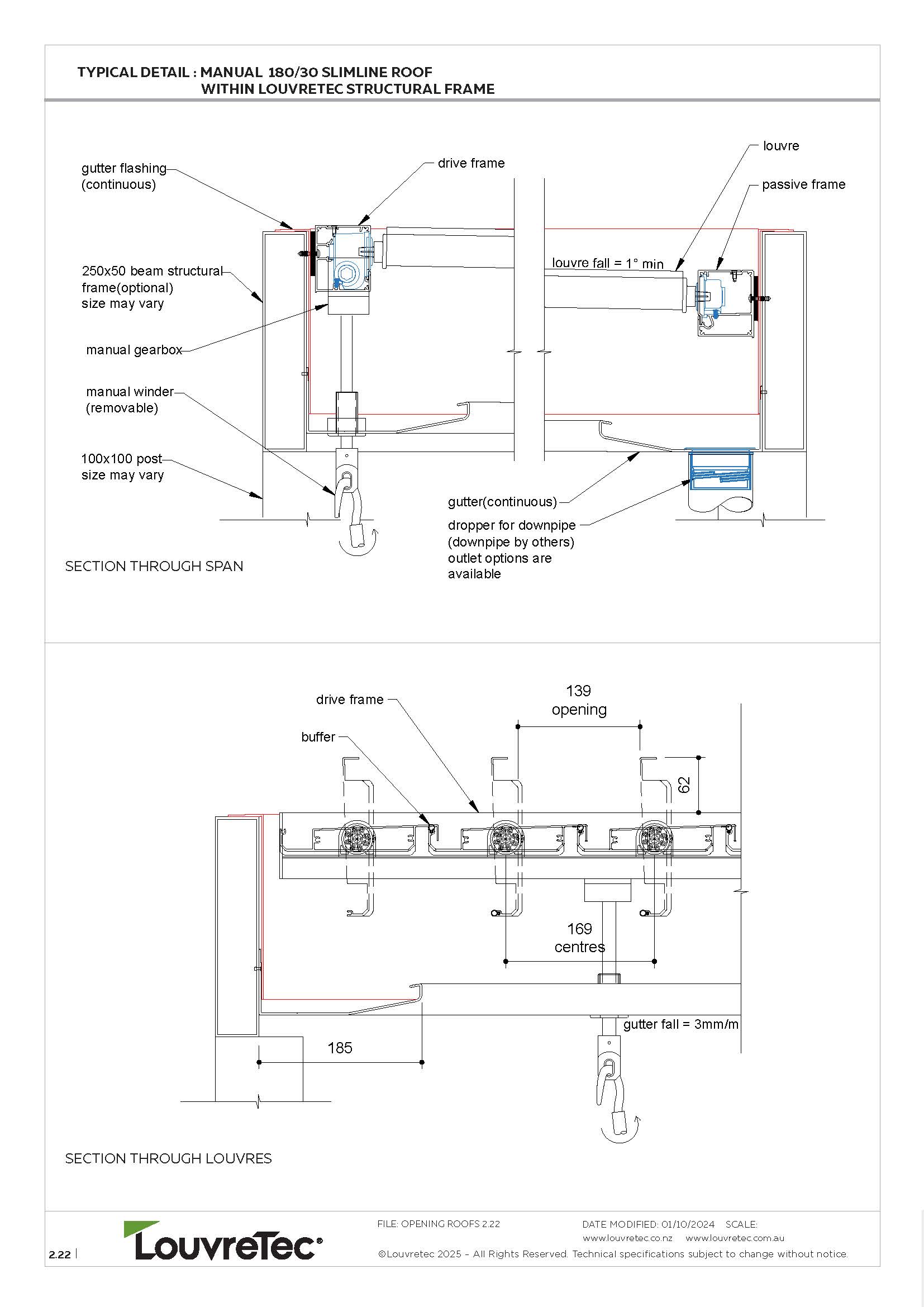

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 23

Typical Detail | 180/30 Slimline Roof - Hand Operable

2.22

Louvretec 2025 Design Manual

dwg

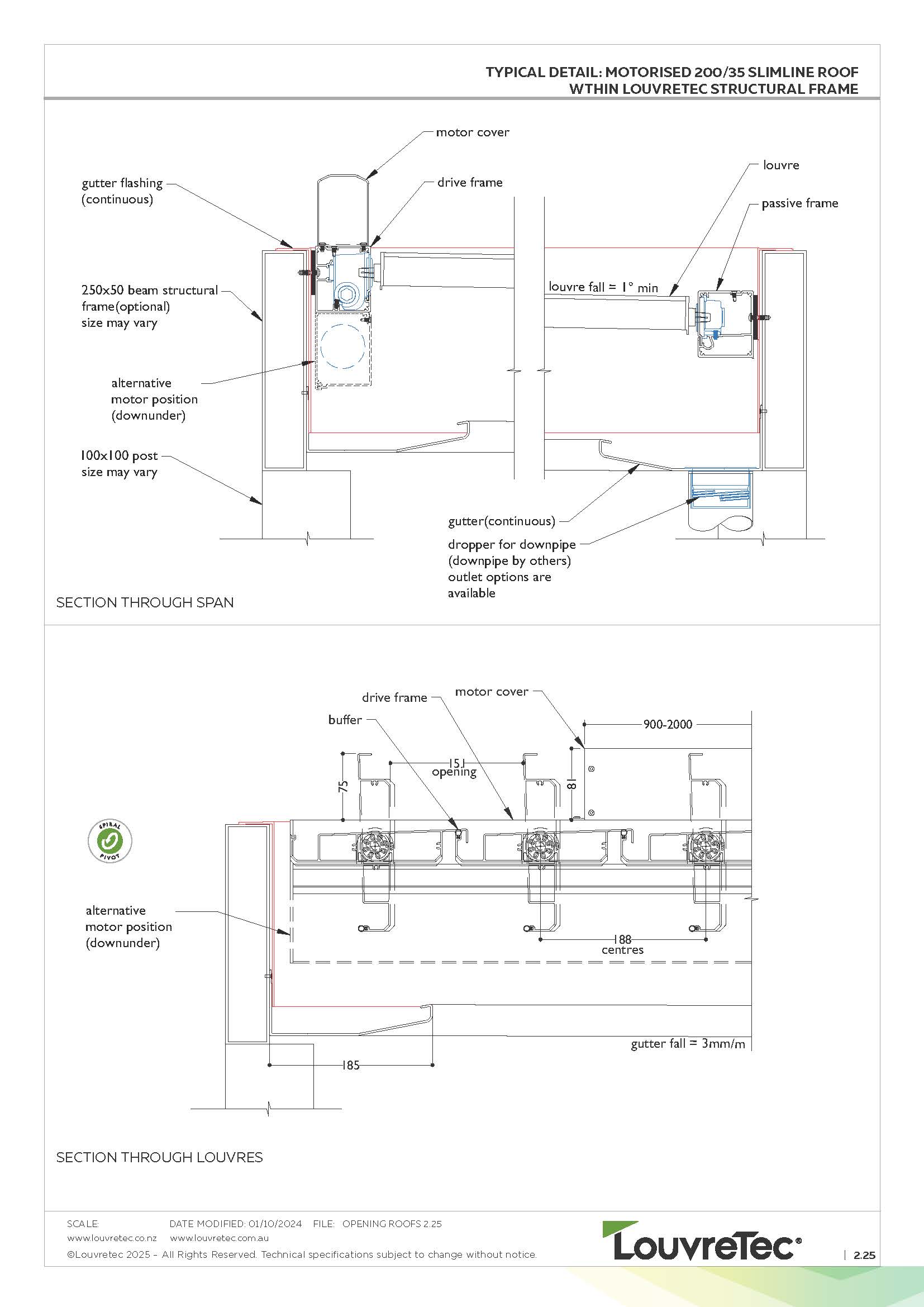

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 26

Typical Detail | 200/35 Slimline Roof - Motorised

2.25

Louvretec 2025 Design Manual

dwg

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 27

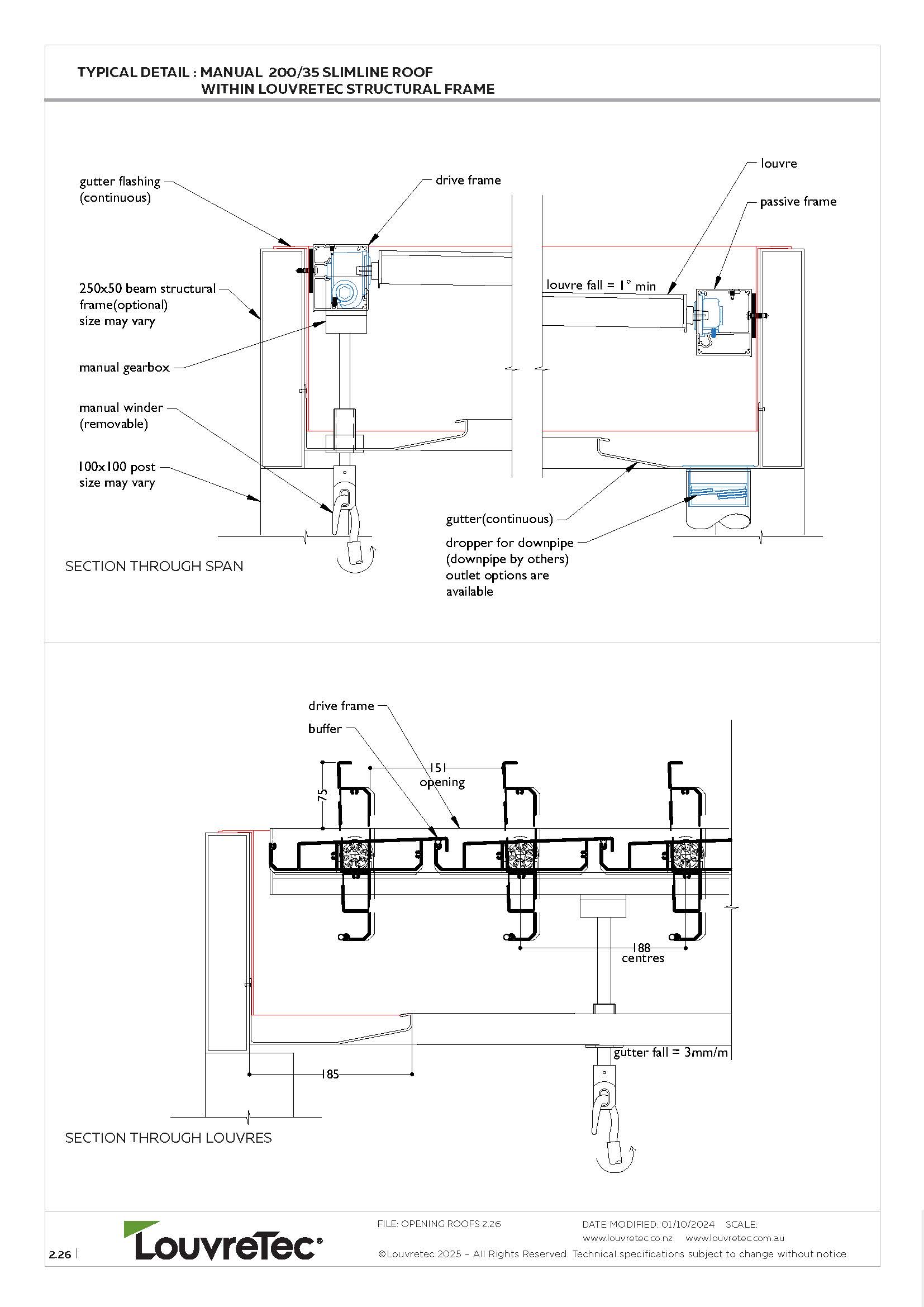

Typical Detail | 200/35 Slimline Roof - Hand Operable

2.26

Louvretec 2025 Design Manual

dwg

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 30

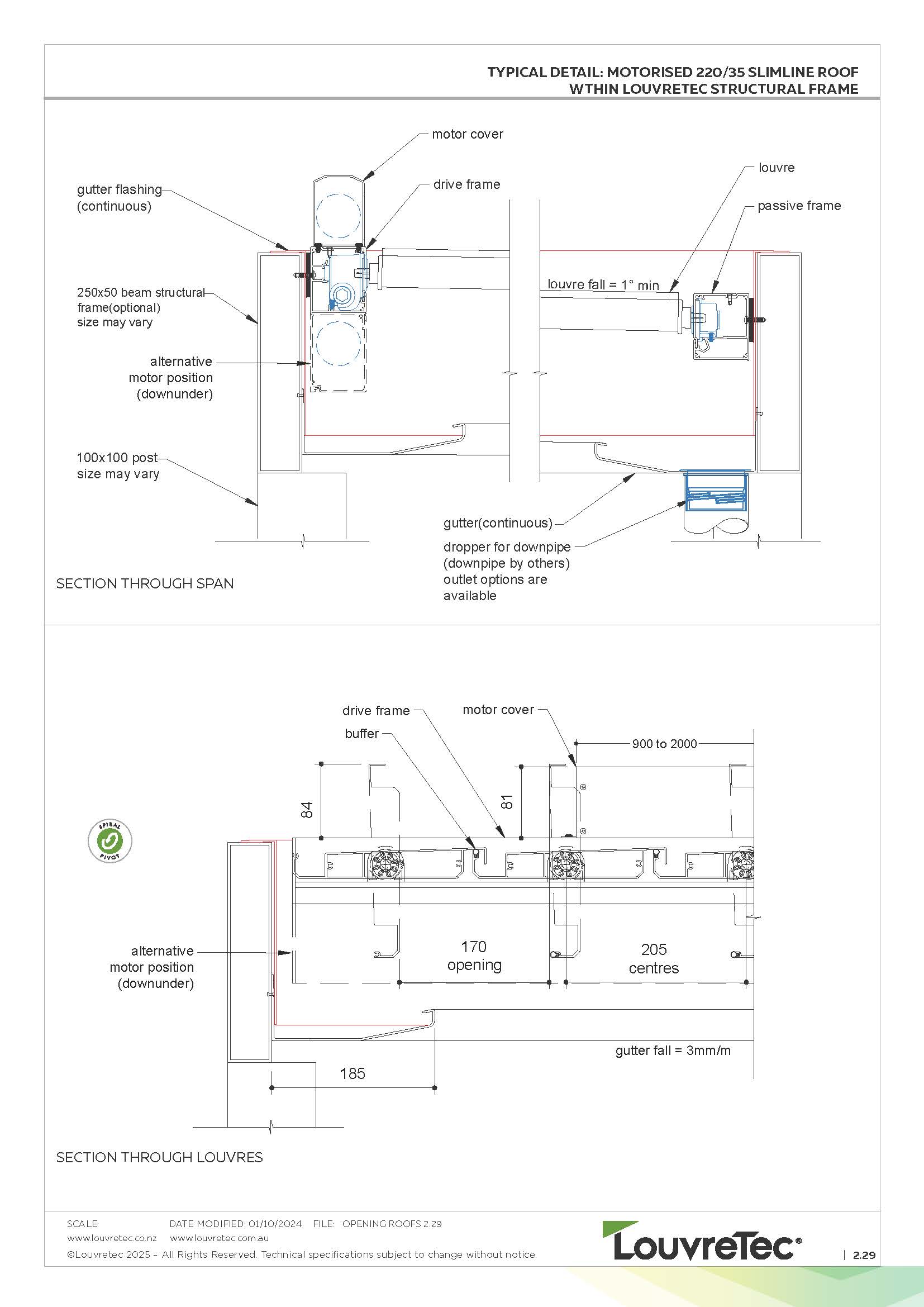

Typical Detail | 220/35 Slimline Roof - Motorised

2.29

Louvretec 2025 Design Manual

dwg

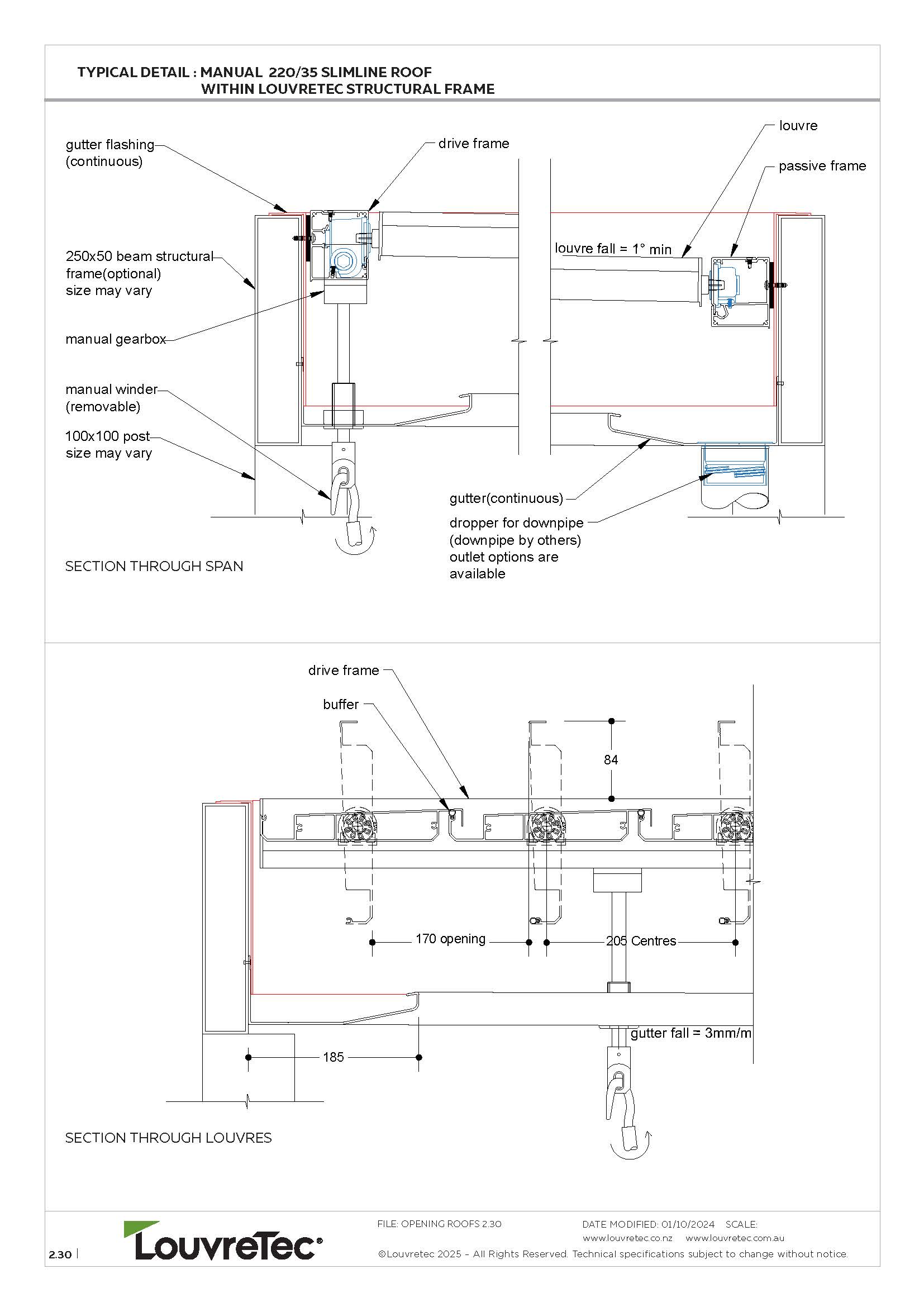

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 31

Typical Detail | 220/35 Slimline Roof - Hand Operable

2.30

Louvretec 2025 Design Manual

dwg

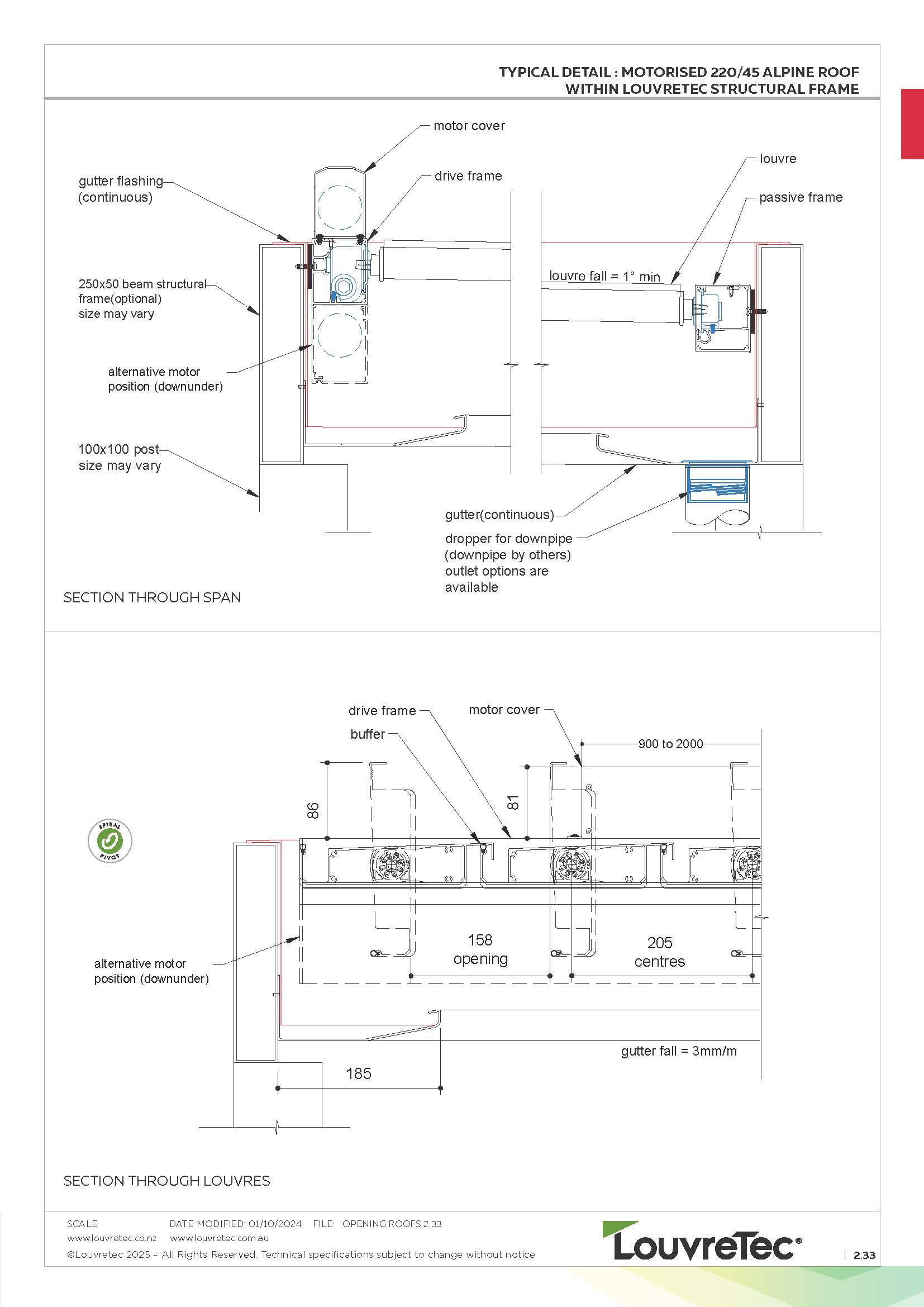

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 34

Typical Detail | 220/45 Alpine Roof - Motorised

2.33

Louvretec 2025 Design Manual

dwg

Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 35

Typical Detail | 220/45 Slimline Roof - Hand Operable

2.34

Louvretec 2025 Design Manual

dwg

Typical Detail | Lighting to Front Face of Gutter

7.09

Louvretec 2025 Design Manual: Lighting Section 7

dwg

BIM

View full

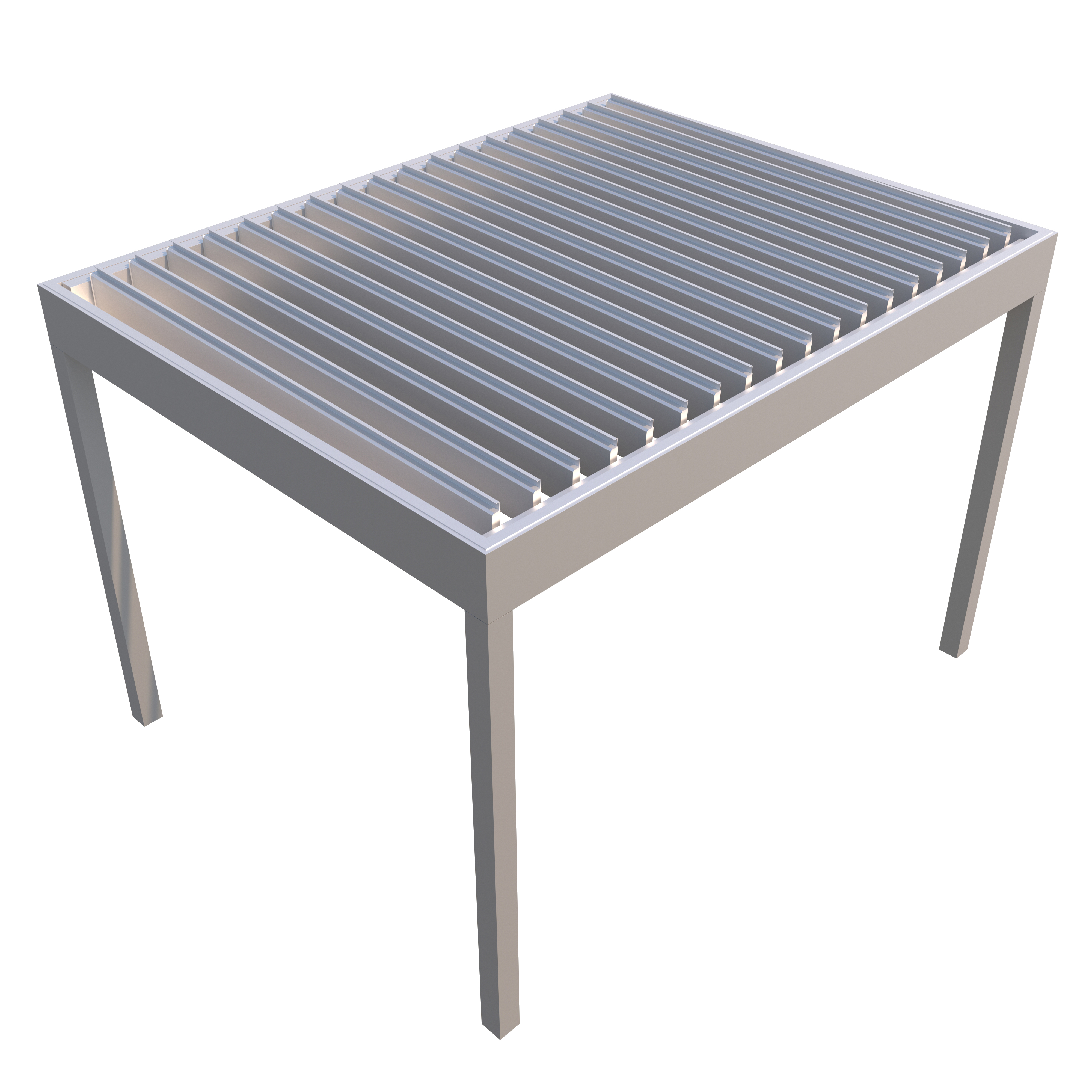

3D Model | 180/30 Slimline Roof by Louvretec

Louvretec 2025 Design Manual

rfa

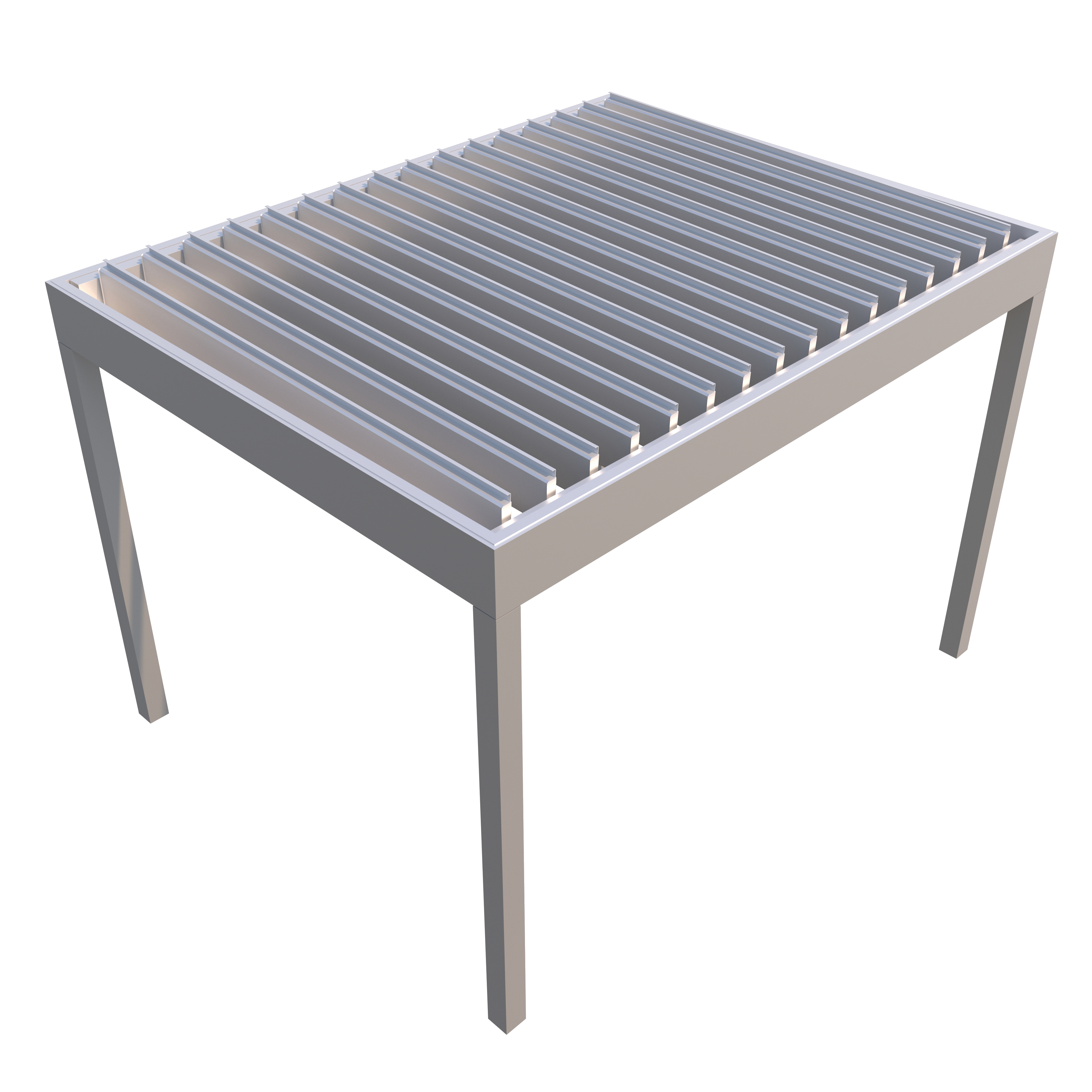

3D Model | 200/35 Slimline Roof by Louvretec

Louvretec 2025 Design Manual

rfa

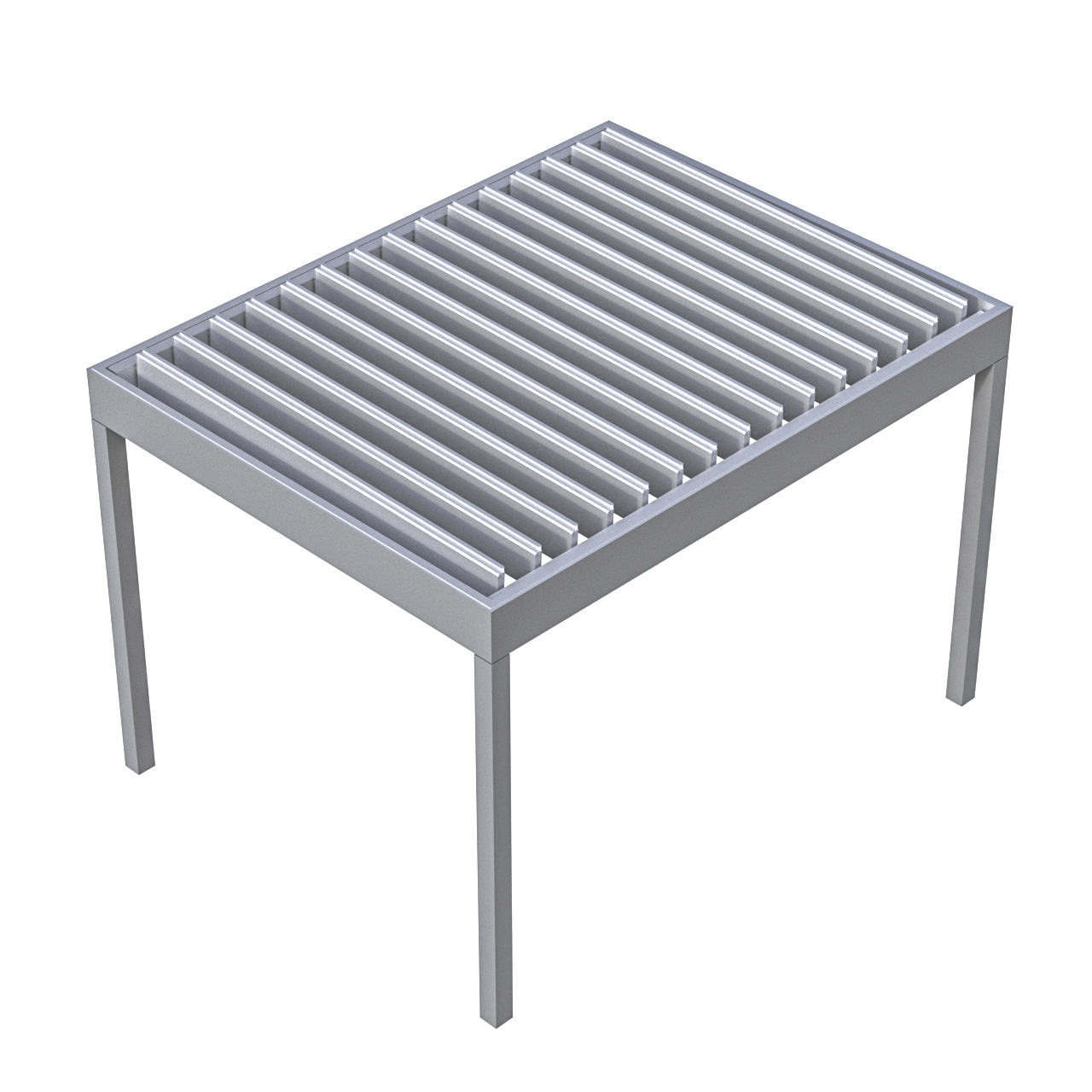

3D Model | 220/35 Slimline Roof by Louvretec

3D Model | 220/45 Alpine Roof by Louvretec

Louvretec 2025 Design Manual

rfa

Lighting to Front face of Suburban Gutter

3D Model | Lighting to Front Face of Opening Roof Gutter

Louvretec 2025 Design Manual

rfa

Lighting to Inside face of Suburban Gutter

3D Model | Lighting to Inside Face of Opening Roof Gutter

Louvretec 2025 Design Manual

rfa
