Edgetec Commercial Post Balustrade System
Description

Edgetec® Commercial Post System is based on the Edge aluminium balustrade and is designed for demanding commercial environment.

Available in a range of configurations, all with the ability to accept heavier loads including a semi-frameless finish in 10mm or 15mm heavyweight toughened glass.

Key Features
  • Suitable for both 10mm and 15mm heavyweight toughened safety glass
  • Custom made in a range of versatile configurations
  • 5 handrail options
  • Choice of top fix or face fix
  • Designed and assembled in NZ
  • Choice of custom powder coat colours for finished look
  • Hidden face fixings available
  • Custom made from durable aluminium and toughened safety glass
  • 5 year warranty on balustrade
  • 15 or 20 year warranty on powder coating
  • Site specific Producer Statements can be arranged for viable jobs — speak to Juralco for details
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

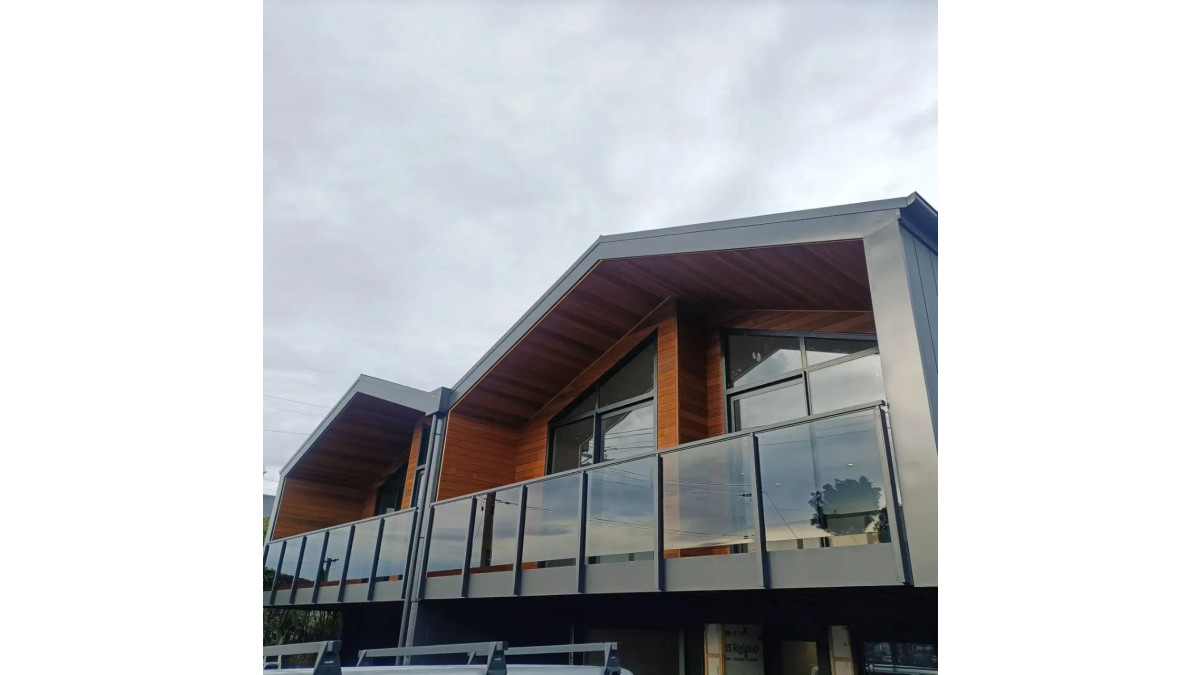

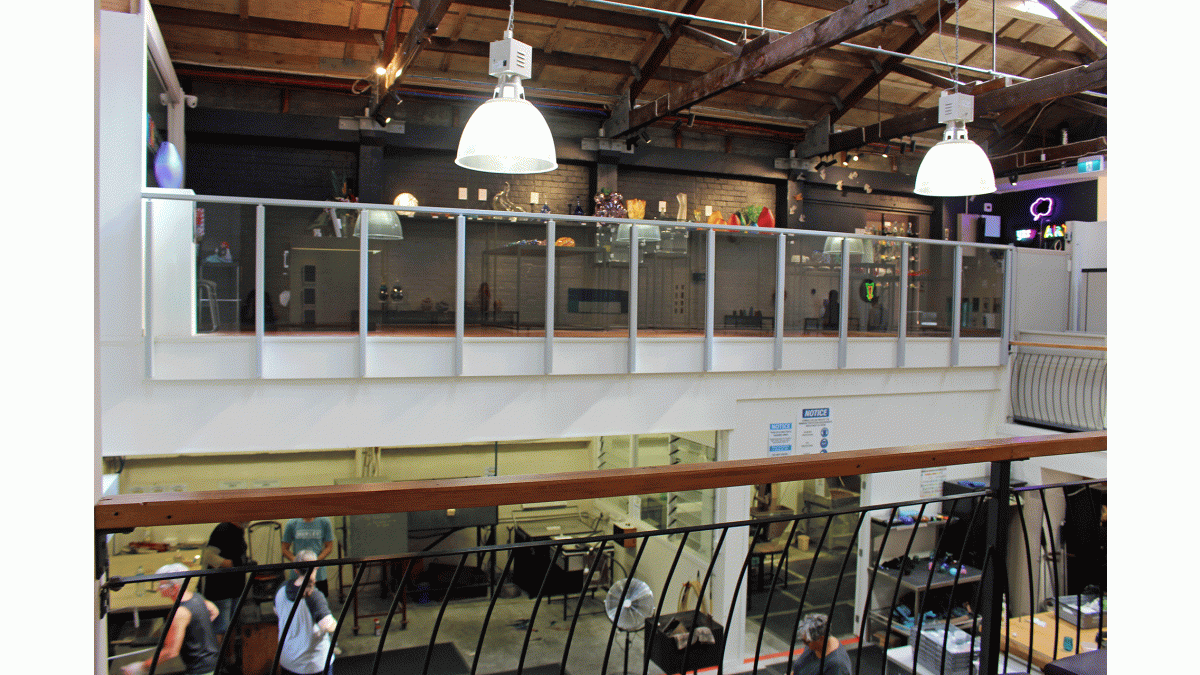

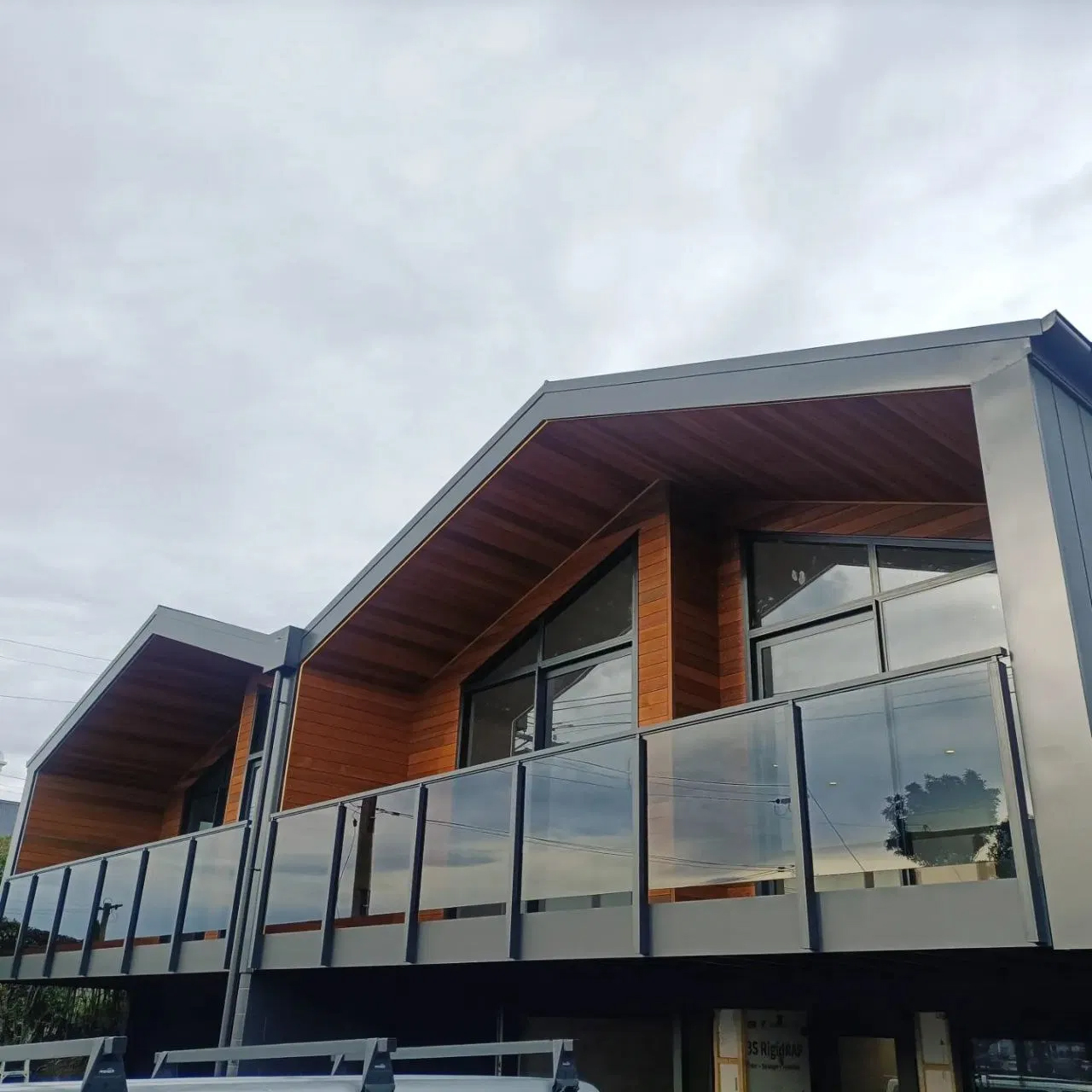

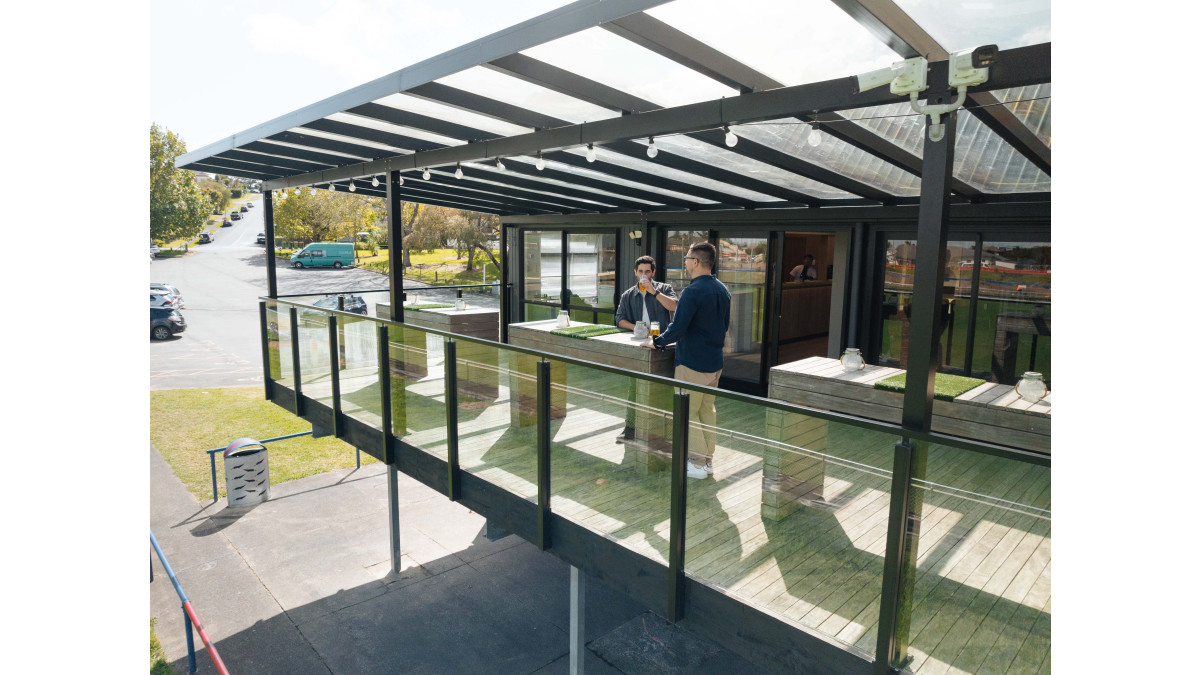

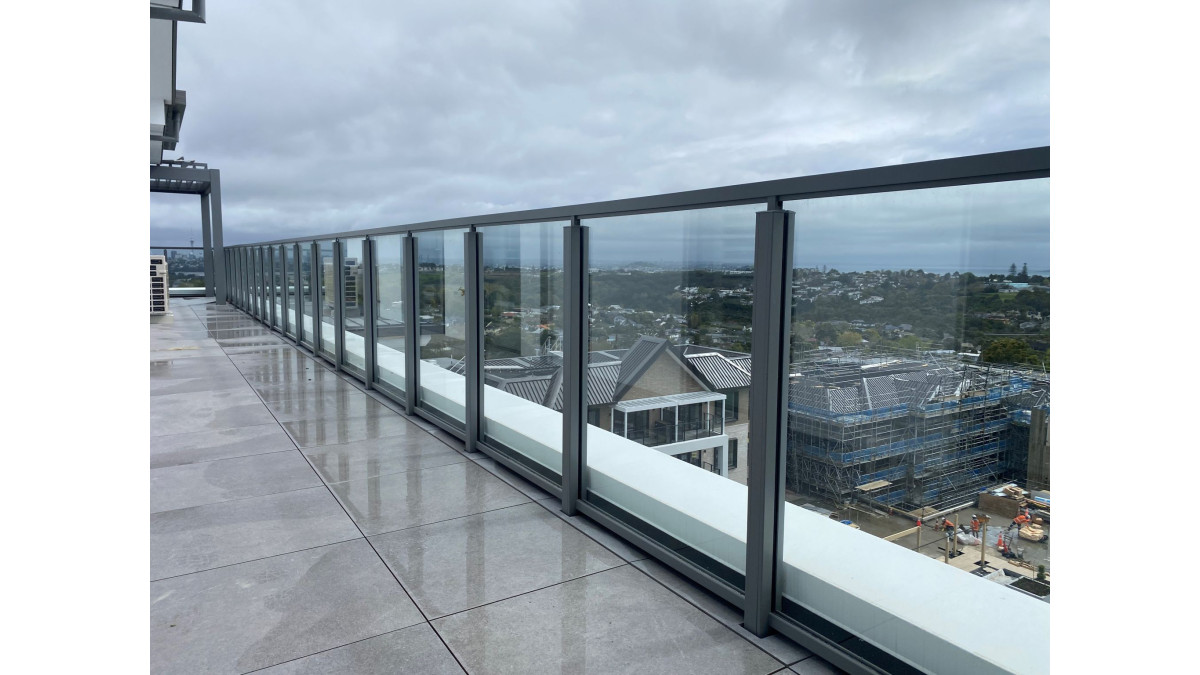

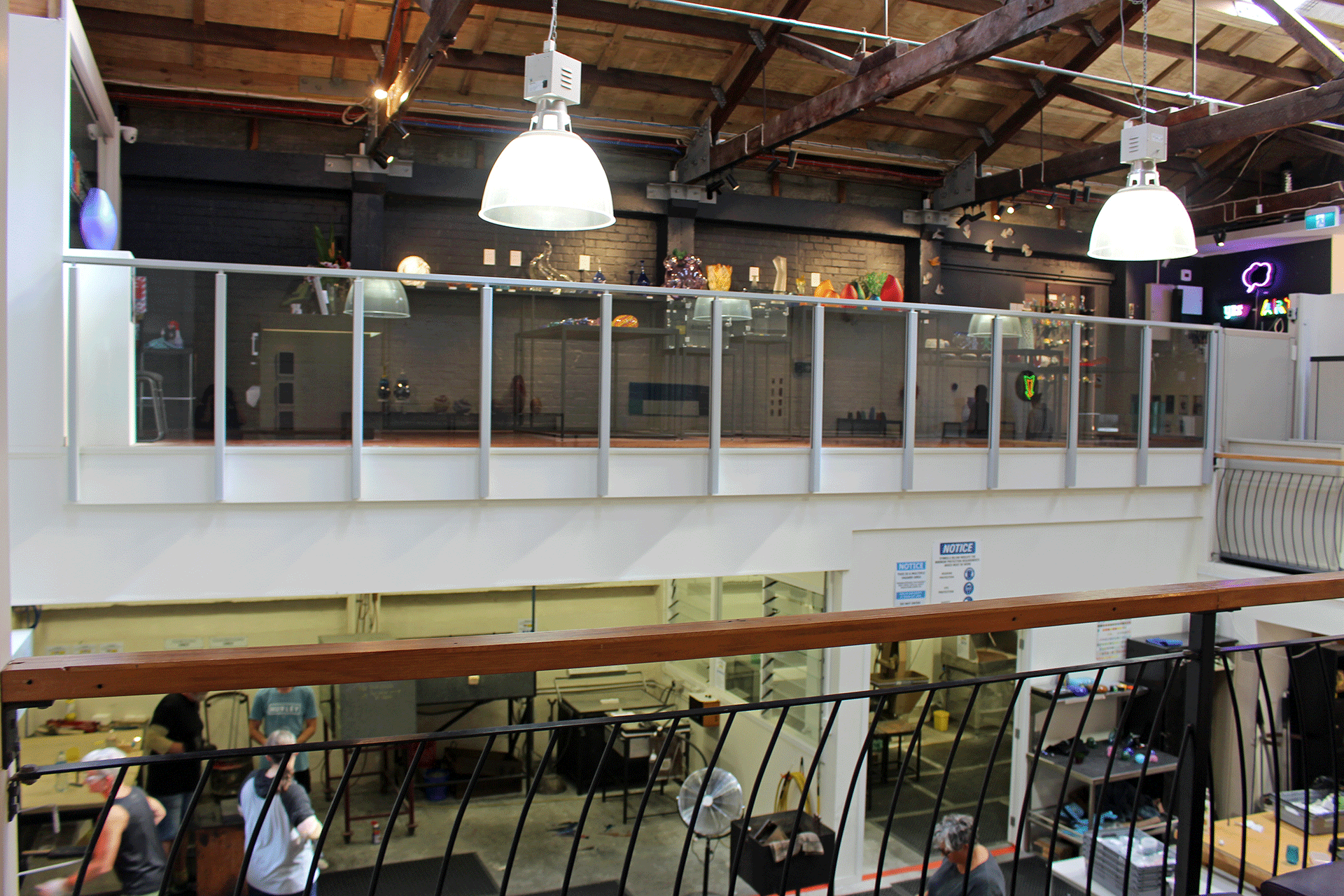

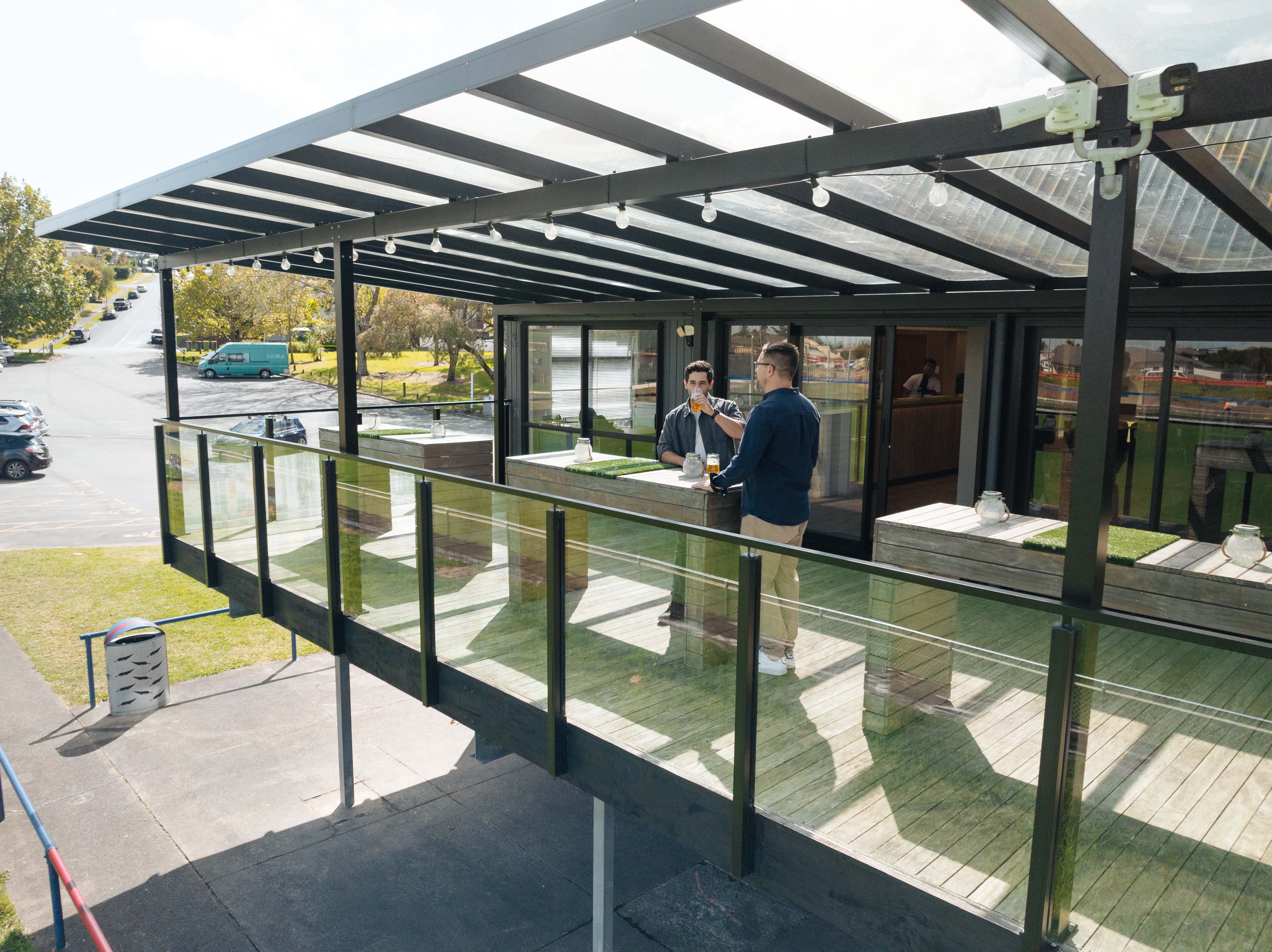

Juralco introduced the Edgetec® Commercial Post balustrade system as a specialist product for commercial settings, including internal and external balconies, retail areas, stairs and landings.

Designed and manufactured in New Zealand, the Edgetec Commercial Post balustrade has been engineered and tested by independent engineers to comply with NZ standards AS/NZS1170 and is suitable for Occupancy A, B, E, C1/C2, C3 and D Occupancy Types.

  • Suitable for both 10mm and 15mm heavyweight toughened safety glass
  • Custom made in a range of versatile configurations
  • 5 handrail options
  • Choice of top fix or face fix
  • Hidden face fixings available
  • Site specific Producer Statements can be arranged for viable jobs — speak to Juralco for detail
Limitations on Use
  • The Edgetec® Commercial Post balustrade system must only be installed in accordance with the Edgetec Commercial Post product/specifiers manual
  • Glass must have a minimum strength of 100mpa
  • All glass edges must be polished
  • All glass holes must be smooth and free of chips and cracks
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
Statement of Building Code Compliance

Compliant with AS/NZ 1170.1.2002 A, B, E, C1/C2, C3 and D Occupancy Types.

Other Performance Attributes
  • All infill glass must be toughened safety glass, complying with AS/NZS 2208
  • Dulux Duralloy powder coating is used for properties greater than 100 metres from high tide level, where AMA 2603 performance is required
  • Dulux Duratec powder coating must be used for properties greater than 10 metres and up to 100 metres from high tide levels where AMA 2604 performance is required
  • Custom solutions available
  • Site Specific Producer Statements can be arranged for viable jobs — talk to Juralco for details

Warranty

  • 5 year warranty on balustrade
  • 15 or 20 year warranty on powder coating
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F4 Safety from Falling compliant
Safety from Falling
Documents
Edgetec Commercial Post Specification Details

8/22

Maintenance Instructions
Warranty

Dec 2022

Colour Range
CAD/PDF Details
C3 Commercial Balustrade CAD 1-24 v1

1-24 v1

C3 Commercial Face Fix Post to Concrete (hidden fixings) - 2 x M10 Studs

1-24 v1

C3 Commercial Face Fix Post to Steel (hidden fixings) - 2 x M12 Bolts

1-24 v1

C3 Commercial Face Fix Post to Timber (hidden fixings) - 2 x M10 Bolts

1-24 v1

C3 Commercial Face Fix Post to Timber (hidden fixings) - 2 x M10 Coachscrews

1-24 v1

C3 Commercial Face Fix Post to Timber (hidden fixings) - 2 x M10 Coachscrews +Spacers

1-24 v1

C3 Commercial Face Fix Post to Wooden Packers +Steel (hidden fixings)- 2 x M10 Bolts

1-24 v1

C3 Commercial Top Fix Post to Concrete -Baseplate + 4 x M10 Studs

1-24 v1

C3 Commercial Top Fix Post to Timber - Baseplate +4 x M10 Coachscrews

1-24 v1

C3 Commercial Top Fix Post to Timber -Baseplate + 4 x M10 Bolts

1-24 v1

C3 Commercial Top Fix Post to Concrete - Baseplate + 2 x M12 Studs

1-24 v1

C3 Commercial Top Fix Post to Steel - Baseplate + 2 x M12 Bolts

1-24 v1

C3 Commercial Top Fix Post to Timber Deck + Steel - Baseplate + 4 x M10 Bolts

1-24 v1
