Description

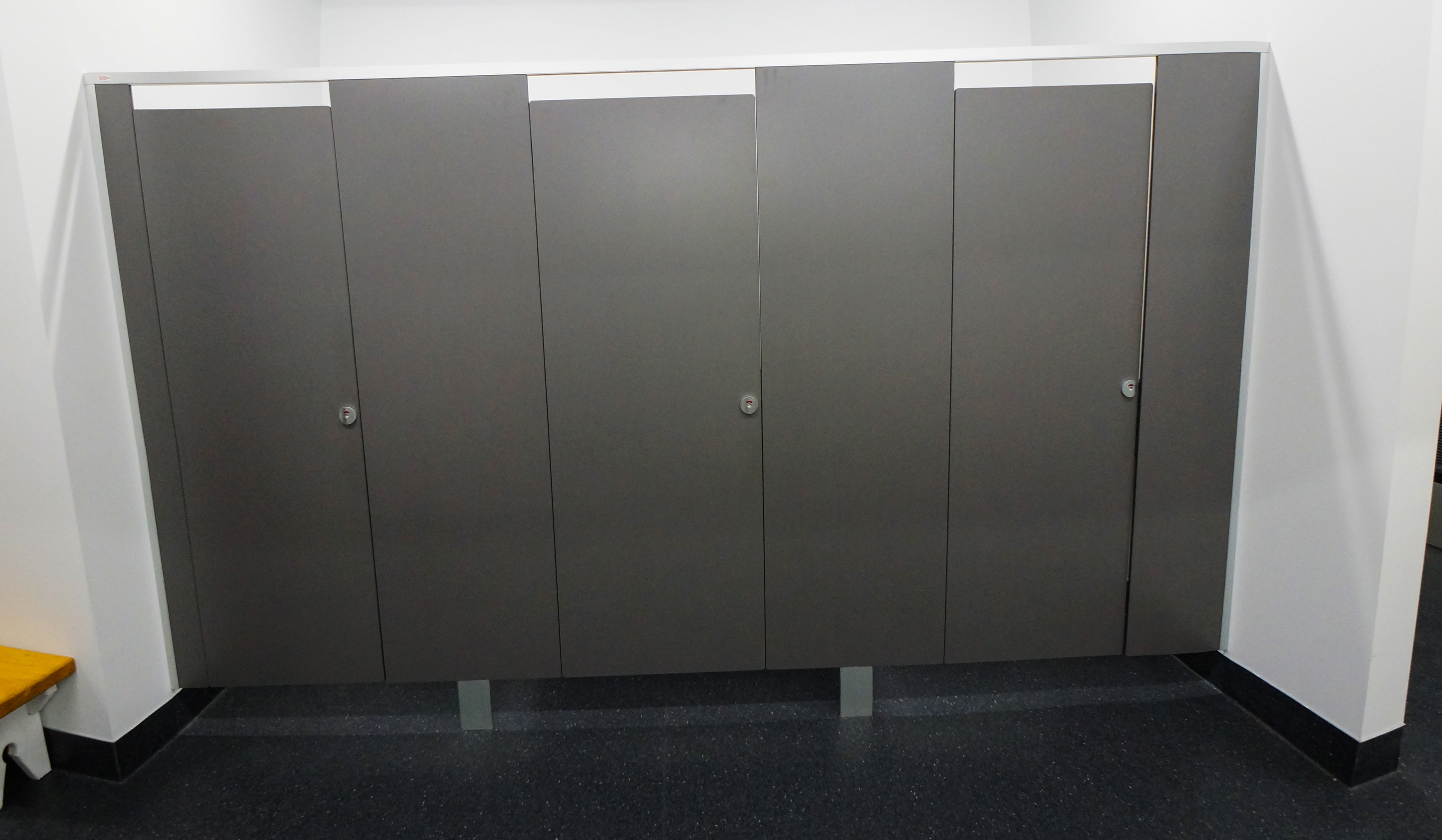

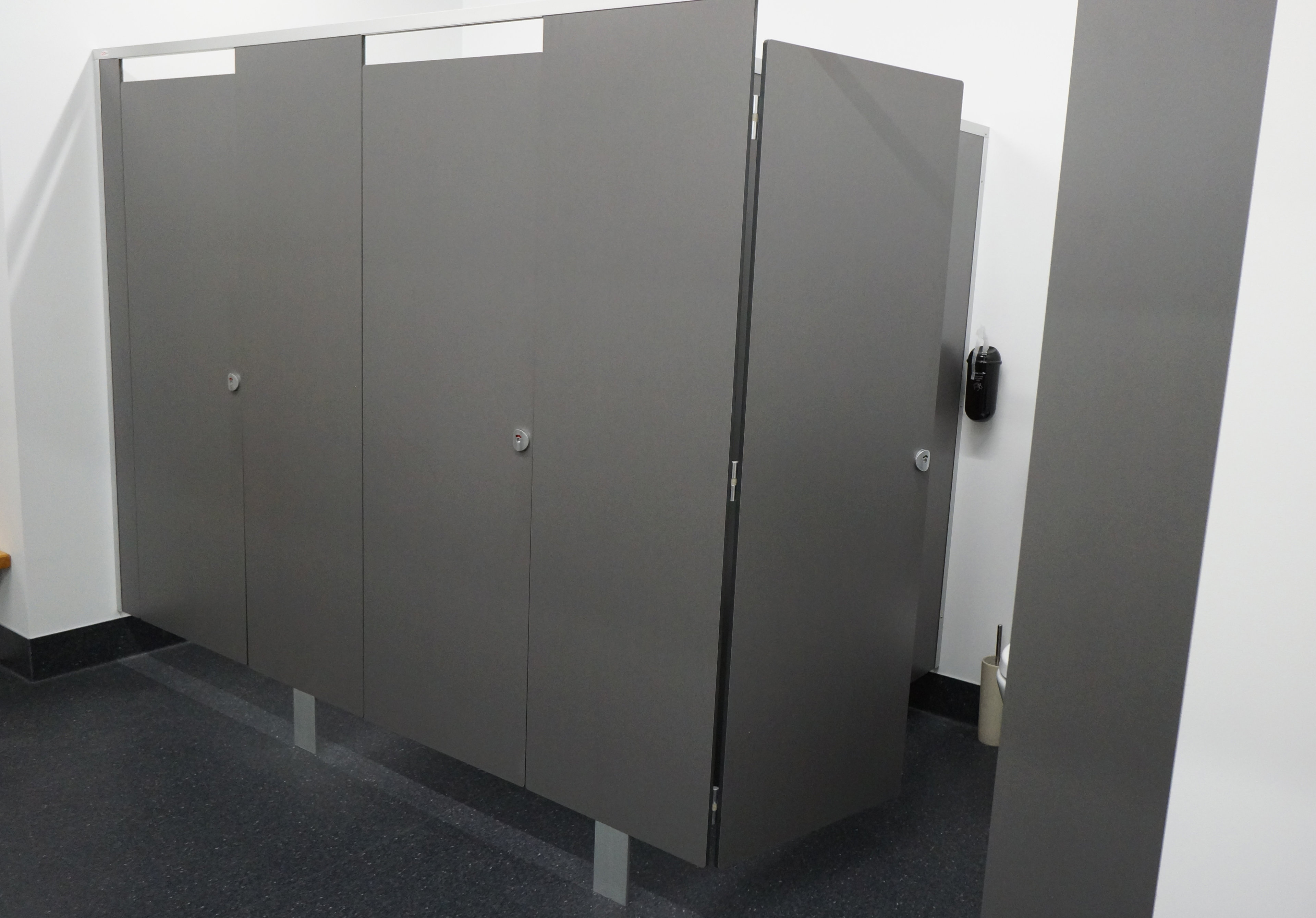

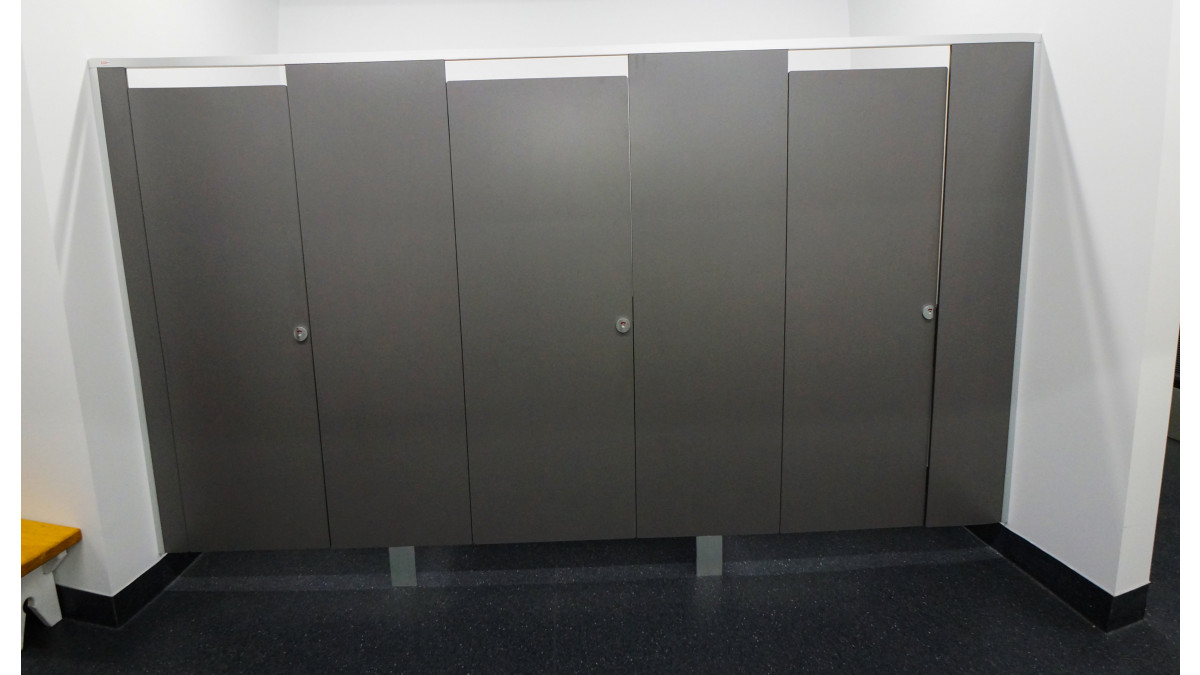

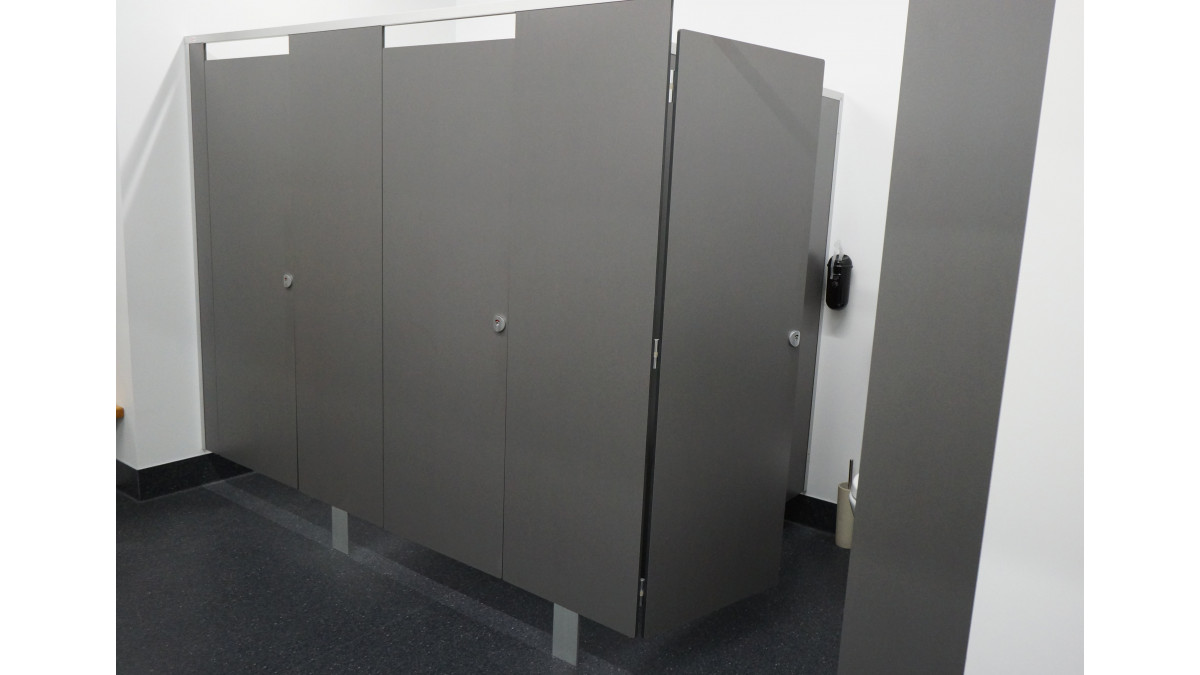

The Hale Quintrex 13 partition system is a stylish, all-purpose system using 13mm Compact Laminate. This system features mounting on a blade foot and overhead braced by a U-shaped channel headrail and wall channels for a sophisticated, clean look. Durable and a high grade solution, the Hale Quintrex 13 system is recommended for high or low abuse areas such as toilets and showers and offers maximum resistance to graffiti, vandalism, water and impact and can be hosed down for cleaning.

Key Features

Group 3 Fire rating
13mm Antimicrobial Compact Laminate panels
Natural silver anodised aluminium blade foot
Concealed fixed Avanti or Wave indicator lock with combined bumper
Concealed fixed Avanti or Wave gravity hinges
Concealed fixed Avanti or Wave coat hook and bumper
U-shaped square edge aluminium channel headrail
Antimicrobial treatment reducing bacteria and fungal growth and reproduction throughout the lifetime of the panel
Emergency lift off hinges
No edge treatment required, however, oil will enhance black edge
Panels are 1800mm wide, eliminating the need for joints in most cases
Easy to keep clean and low maintenance
Continuous wall channel fixing at all junctions
10 year board warranty
Environmentally friendly low emissions board
Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

Sliding dooor or open out door to comply with accessibility requirements
Powder coating to aluminium trim available
Privacy strips along hinge and opening side of door for maximum privacy of cubicle

Ranges

Toilet Partitions Shower Partitions

NZ Made

NZ-Owned Business

Scope of Use

The Hale Quintrex 13 partition system is suitable for use in high or low abuse wet areas such as toilets, changing rooms or showers.

Recommended applications:

Offices
Factories
Hotels
Restaurants
Educational centres
Sporting and Gymnasium centres
Clubs and Entertainment centres
Recreational centres
Shopping centres
Public Areas
Caravan parks and campgrounds

Limitations on Use

The use of strong acid or alkaline cleaning agents, abrasive or polishing materials should not be used as they may stain or damage the worktop surface.

Statement of Building Code Compliance

NZ Building Code: Clause B2 - Durability
NZ Building Code: Clause C - Protection from Fire
NZ Building Code: Clause E3 - Internal Moisture
NZ Building Code: Clause G1 - Personal Hygiene

In-Service History

The Hale Quintrex 13 partition system has been installed in well known buildings in Auckland, the most recent being Methven Building.

Other Performance Attributes

Laminex Compact Laminate is certified antimicrobial to JIS Z 2801:2001 and proven to prevent the growth of bacteria and fungi on the surface up to 99% within 24 hours.

The Hale In-House Compact Laminate is certified antimicrobial to ASTM G22. It is produced by permanently incorporating a US-EPA approved, well-known and widely used anti-microbial agent to retard the growth of nearly 99% of common form of bacteria on any decorative surface, further adding a spectacular look to the overall décor.
