Nimbus 18 Partition System by Hale Manufacturing

Nimbus 18 Partition System

Description

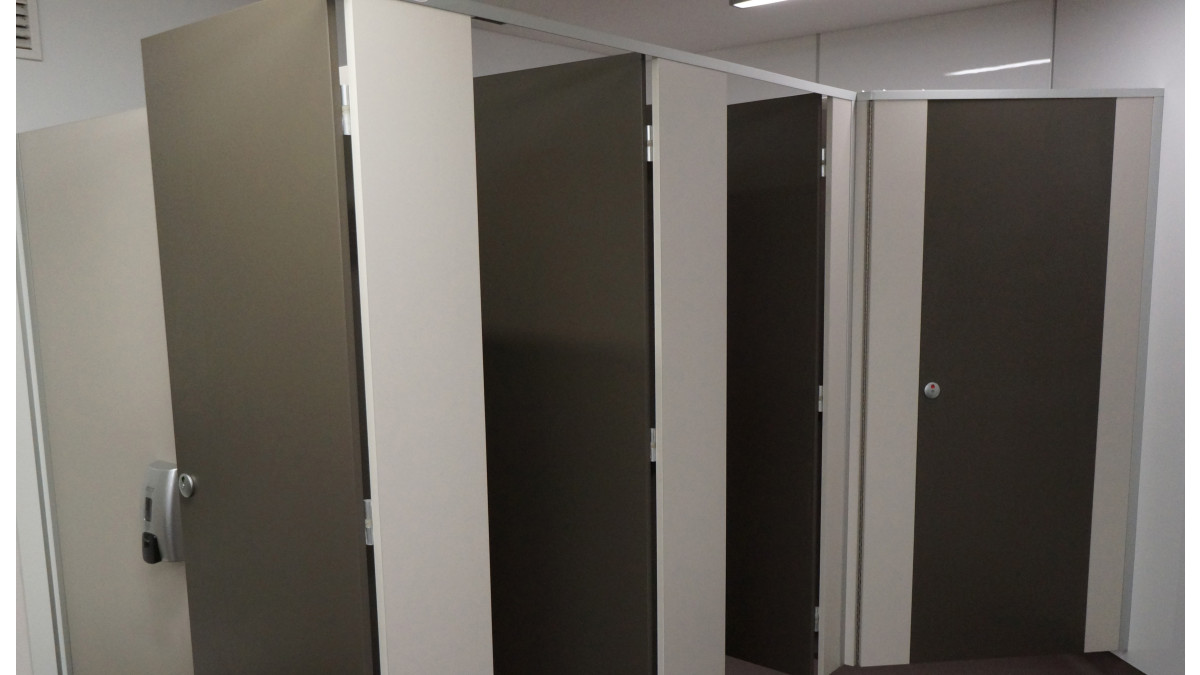

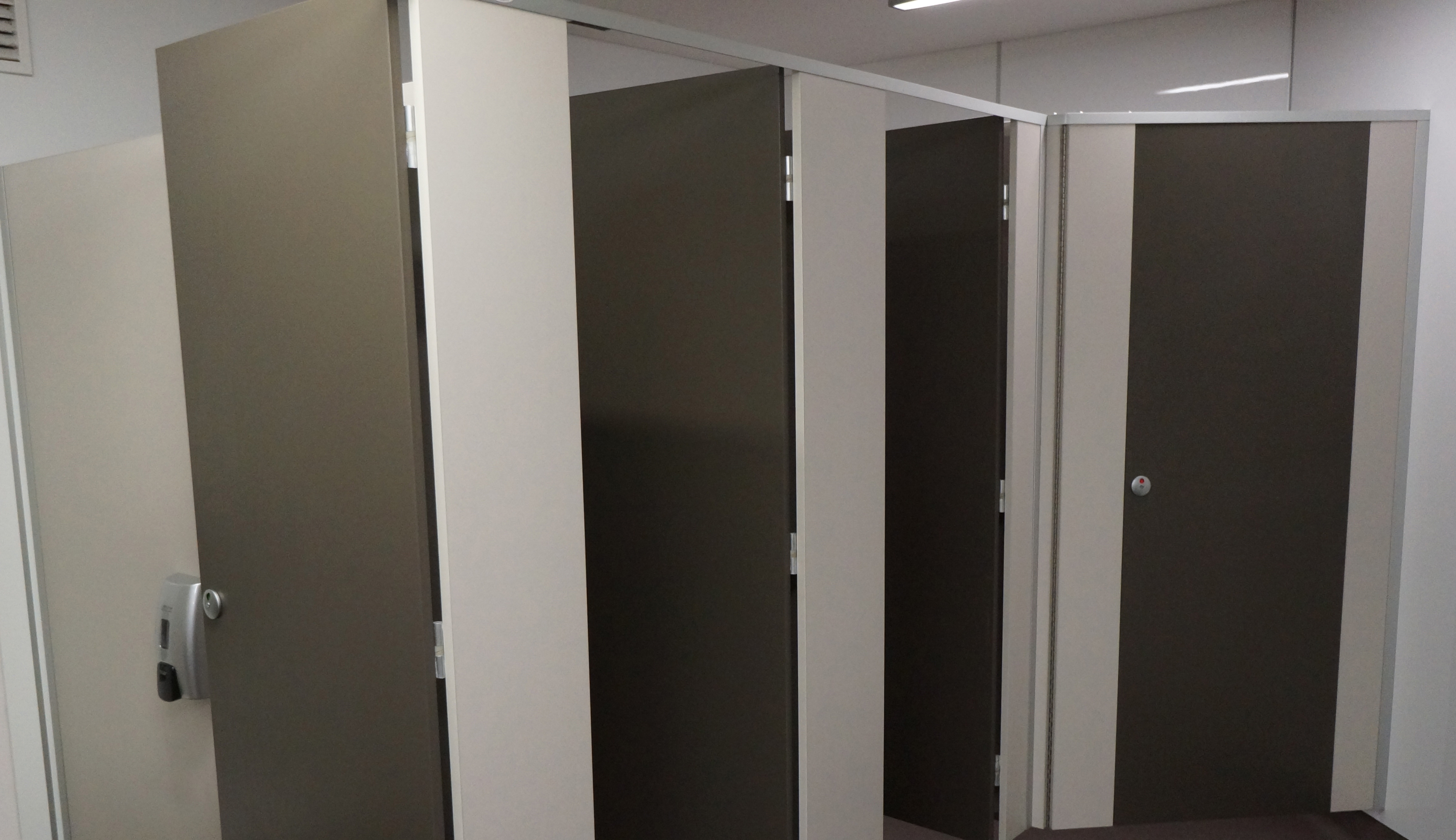

The Hale Nimbus 18 partition system, is a pedestal mounted, overhead braced system with the option of overlay or flush doors. Available in Melteca, Structural MR Board or MDF, this system allows for use in low abuse, dry areas such as toilets and offers maximum impact resistance.

Key Features

Group 3 Fire rating
18mm Melteca
18mm Laminex Structural MR board panels featuring a high moisture resistant particle board core faced with high pressure laminate
18mm MDF with High pressure laminate
Cast alloy powder coated standard 150mm pedestal legs or adjustable (80mm - 230mm) supplied as necessary
Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
Stainless Steel 75mm x 50mm hold open butt hinges (overlay door option)
Panels are 1800mm wide, eliminating the need for joints in most cases
Easy to keep clean and low maintenance
Continuous wall channel fixing at all junctions
Wave coat hook and bumper
7 year Structural MR Board board warranty
2 year Melteca board warranty
2 year MDF with high pressure laminate board warranty
Environmentally friendly low emissions board
Flexible design, available in ready to install, flat pack complete with shop drawings & installation manual

Optional Extras:

Sliding door or open out door to comply with accessibility requirements
Powder coating to aluminium trim available
Octagonal headrail channel, providing extra strength
CF2 Stainless Steel bullet style feet

Ranges

Toilet Partitions

NZ Made

NZ-Owned Business

Scope of Use

The Hale Nimbus 18 partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

Offices
Factories
Hotels
Restaurants
Educational centres
Sporting and Gymnasium centres
Clubs and Entertainment centres
Recreational centres
Shopping centres
Public Areas
Caravan parks and campgrounds

Limitations on Use

The Hale Nimbus 18 partition system has a MDF or Melteca Cores, making this system unsuitable to be hosed down for cleaning and for any wet areas such as showers.
