Freestyle 18 Partition System

Description

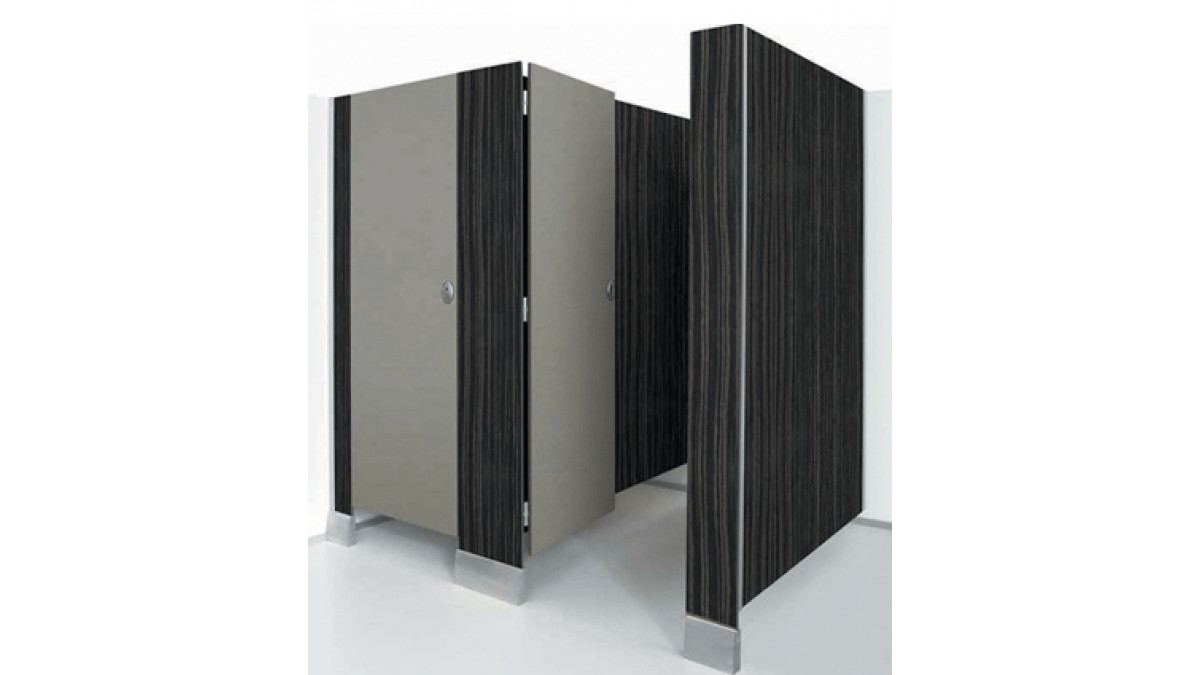

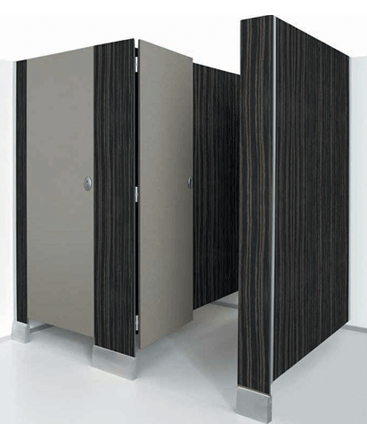

The Hale Freestyle 18 partition system is a modern style, economical solution using an 18mm Structuralboard (high moisture resistant MDF) core faced with a high impact resistant laminate. This system features an anodised load supporting custom skirt foot mounting which eliminates the need for a headrail, making this an aesthetically pleasing system but does require a concrete floor for installation to ensure maximum rigidity in the system and to minimise panel movement.

The Freestyle 18 panels are pre-finished with 2mm ABS edging, matching the colour of the panel face.

Key Features

Group 3 Fire rating
18mm Laminex Structural MR board panels featuring a high moisture resistant particle board core faced with high pressure laminate
Skirt foot mounting without the need for a handrail
A system that is cost effective and durable
Panels are 1800mm wide, eliminating the need for joints in most cases
2mm ABS edged panels, matching the colour of the face
Anodised load supporting custom skirt mount pedestals
Concealed fixed Avanti or Wave indicator lock with combined bumper
Concealed fixed Avanti or Wave gravity hinges
Concealed fixed Avanti or Wave coat hook and bumper
Continuous wall channel fixing at all junctions
7 year board guarantee
Environmentally friendly E1 rated board
Flexible design, available in ready to install, flat pack complete with shop drawings and installation manual

Optional Extras:

Powder coating to aluminium trim available
Privacy strips along hinge and opening side of door for maximum privacy of cubicle

Ranges

Toilet Partitions

NZ Made

NZ-Owned Business

Scope of Use

The Hale Freestyle 18 partition system is suitable for use in low abuse dry areas such as toilets.

Recommended applications:

Offices
Hotels
Restaurants
Shopping centres
Educational centres
Clubs and Entertainment centres
Sporting and Gymnasium centres
Recreational centres

Limitations on Use

The Hale Freestyle 18 partition system has an MDF Core, making this system unsuitable to be hosed down for cleaning and for any wet areas such as showers.

Statement of Building Code Compliance

NZ Building Code: Clause B2 - Durability
NZ Building Code: Clause C - Protection from Fire

In-Service History

Hale Manufacturing began manufacturing and installing toilet partitions in the early 1970's. With more than 40 years in the business, their range of tried and tested systems, coupled with bespoke systems, allows architects freedom and flexibility with their designs. All Hale Manufacturing panels are pre-finished, reducing potential issues on site and saving time and additional costs.
