S Series — Classic Spiral Doors
Description

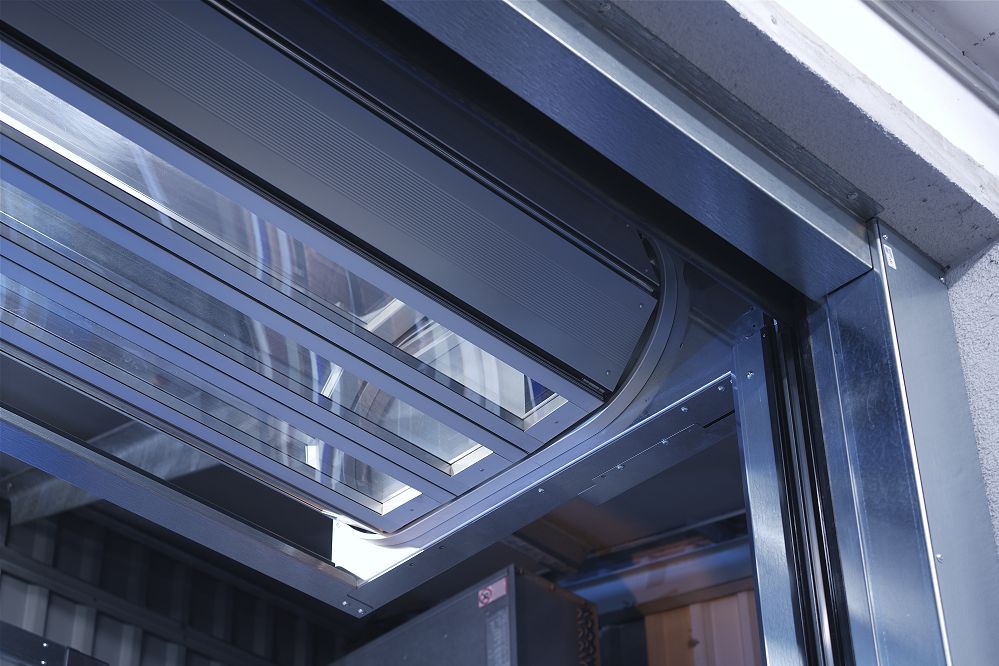

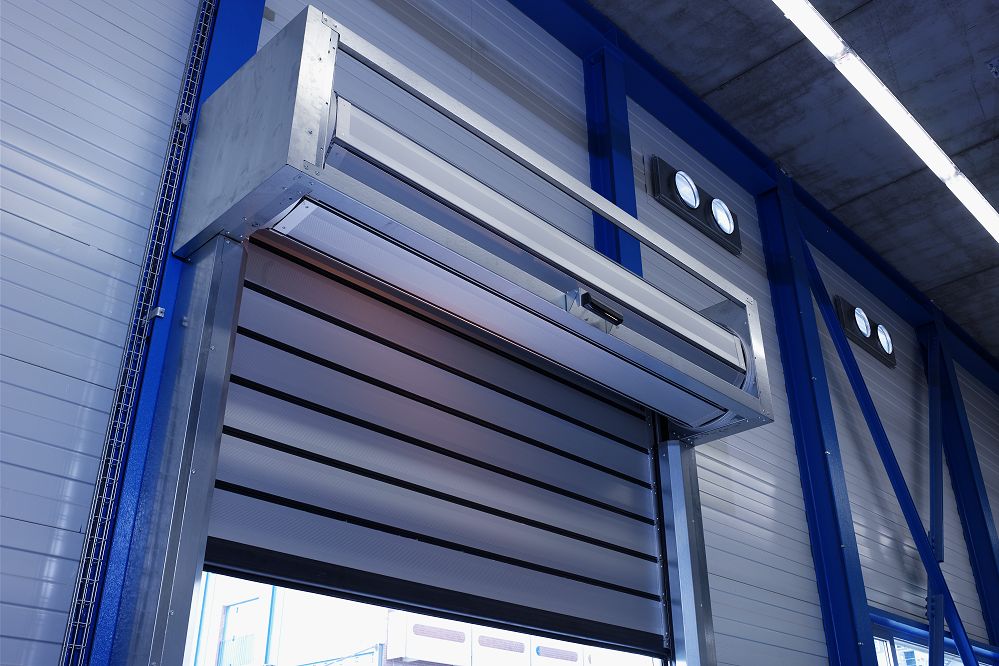

A high speed, secure external door used across a wide range of industries where fast, safe, secure and reliable access is required. Unlike conventional roller doors, which roll the door blade up on a shaft, spiral doors guide the door into a spiral, allowing higher operating speeds and less wear.

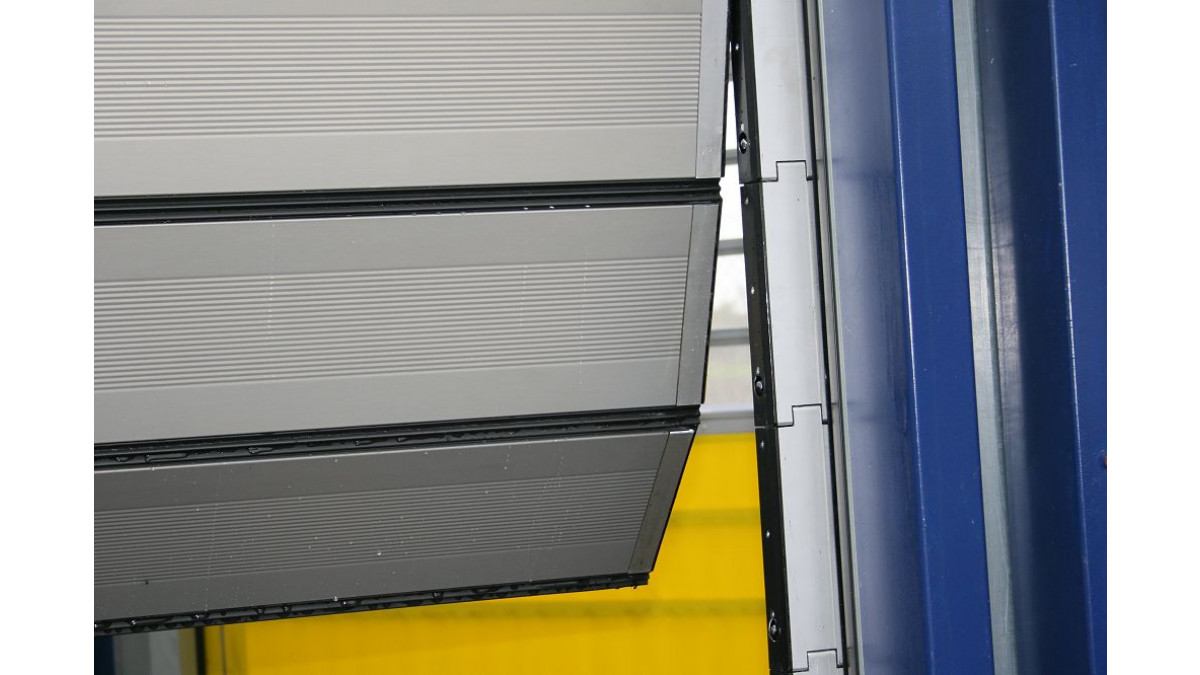

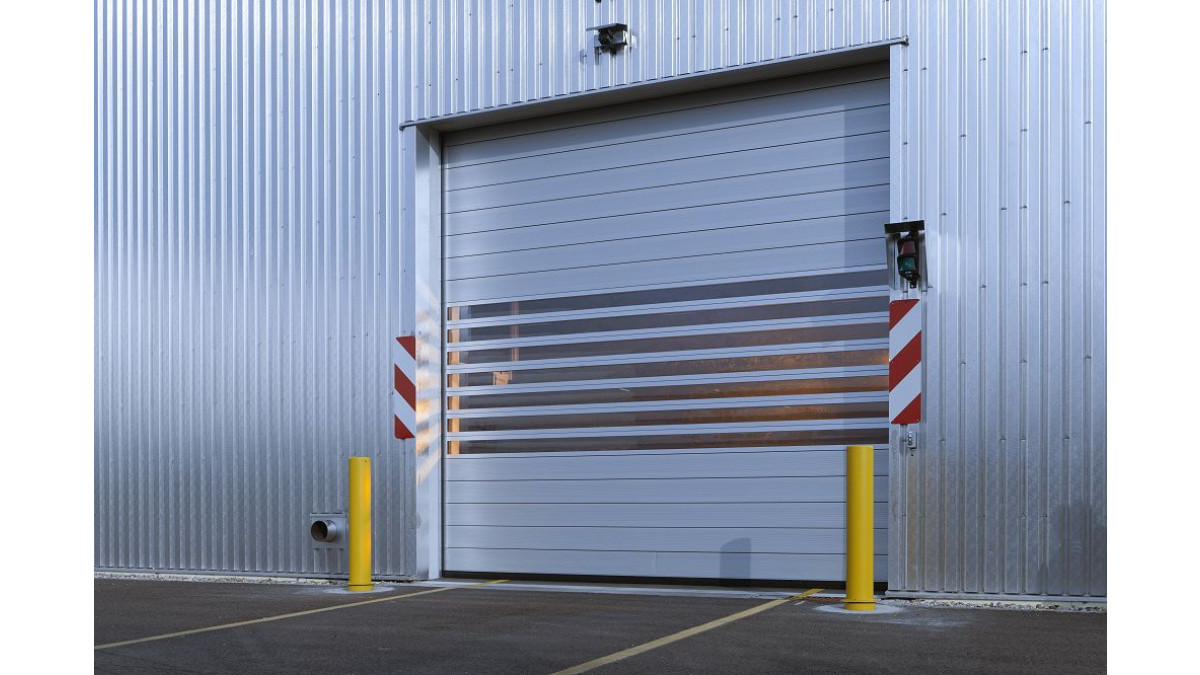

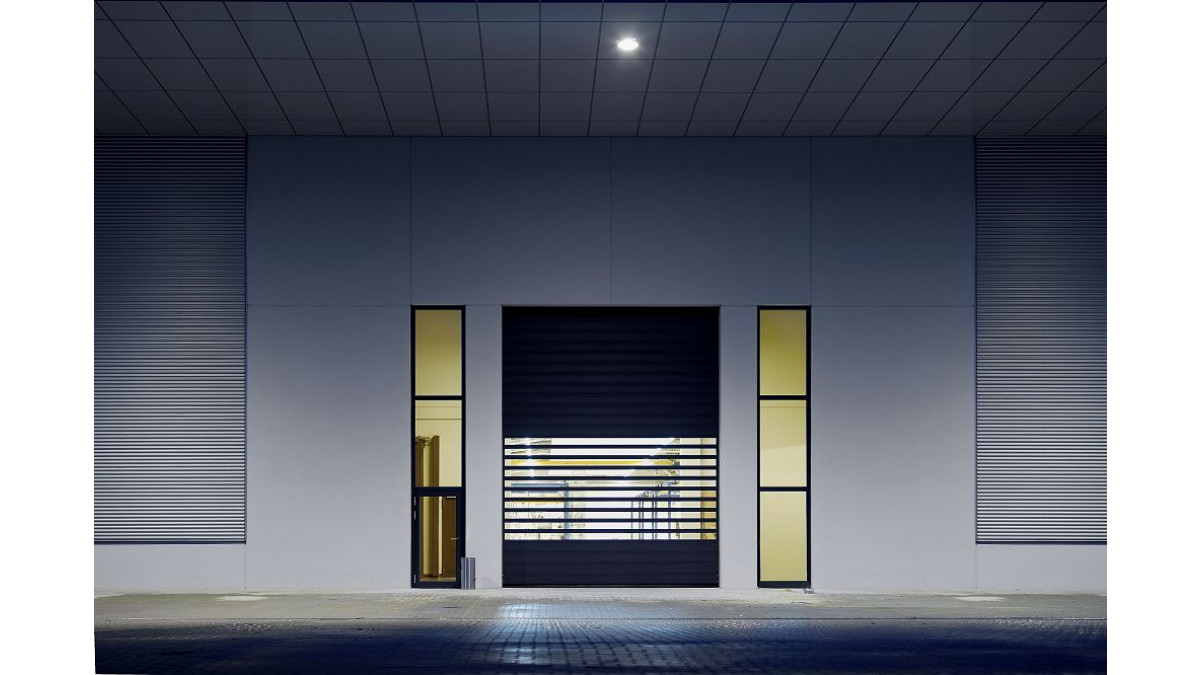

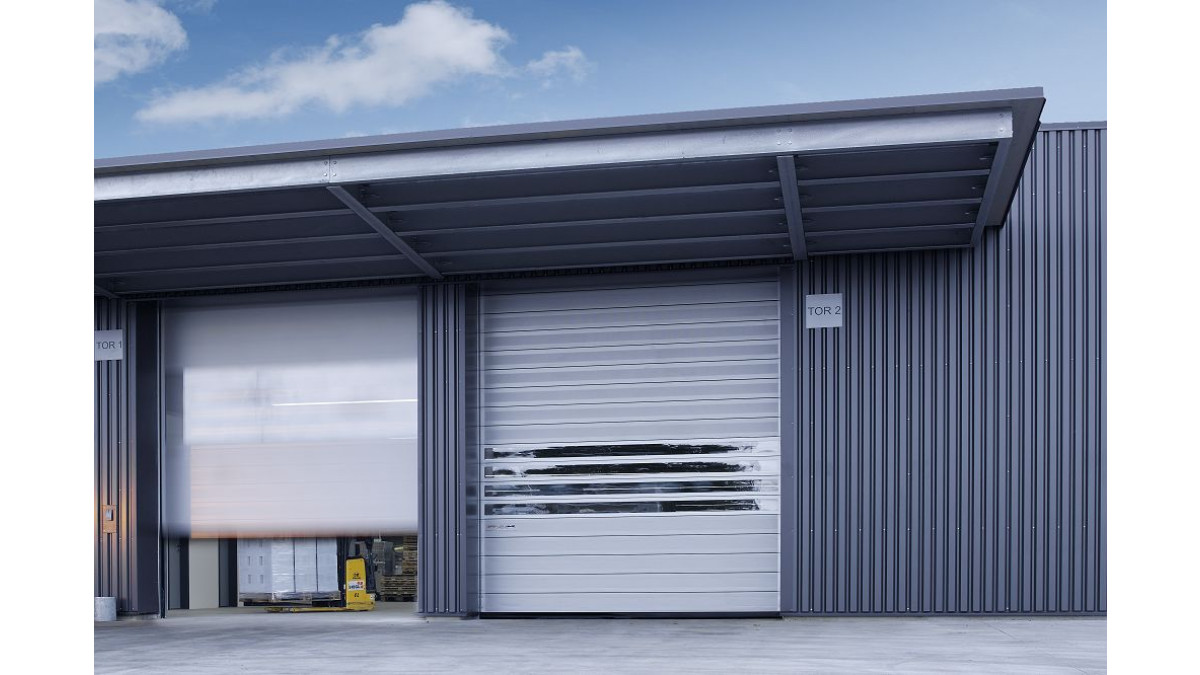

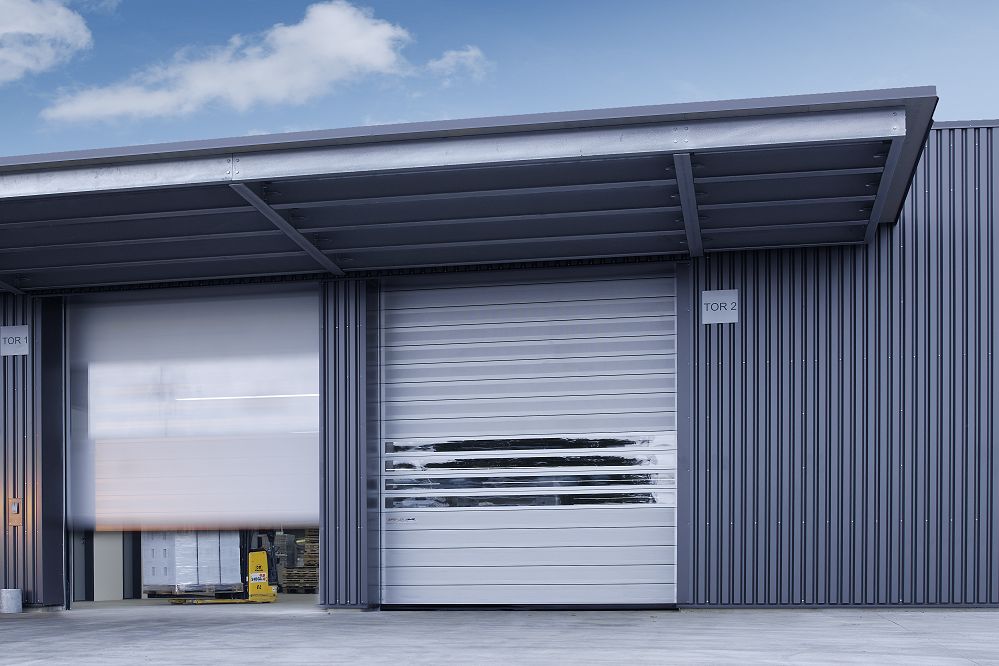

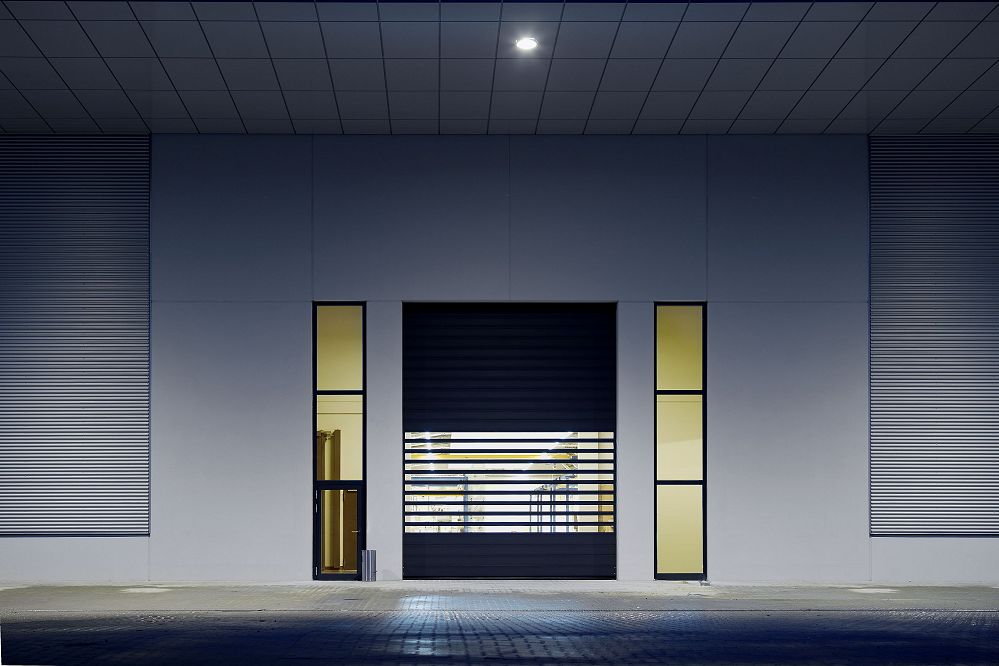

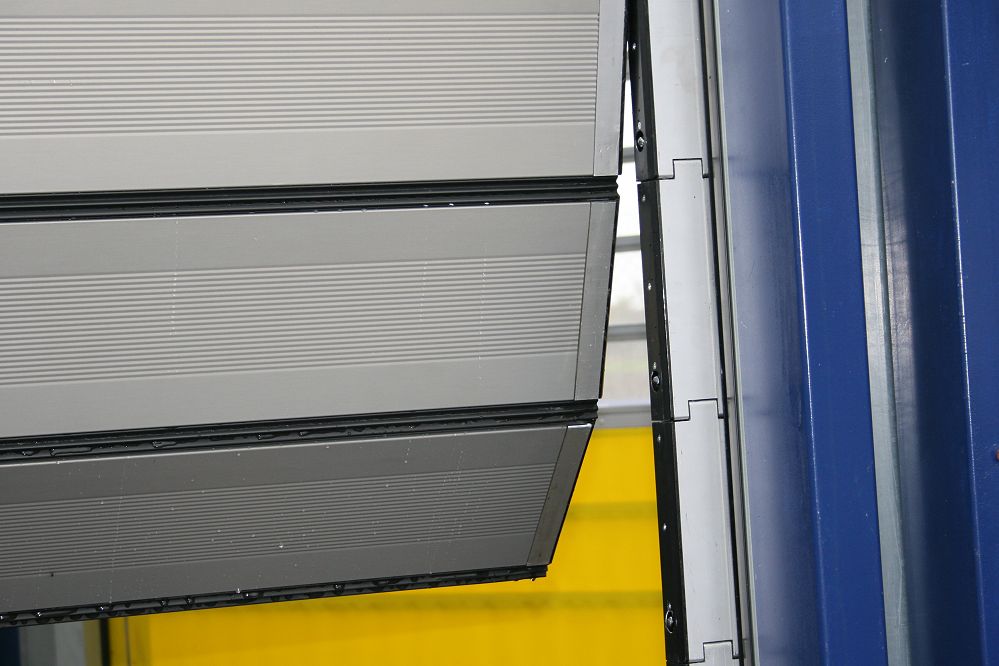

Manufactured with double wall aluminium door blades with either solid or with optional vision panels and/or vented laths.

Available in 9 different models.

Key Features
  • Safe and secure
  • Opening speed up to 2 metres per second
  • Available in sizes  8000w x 7000h
  • Wind load up to Class 4

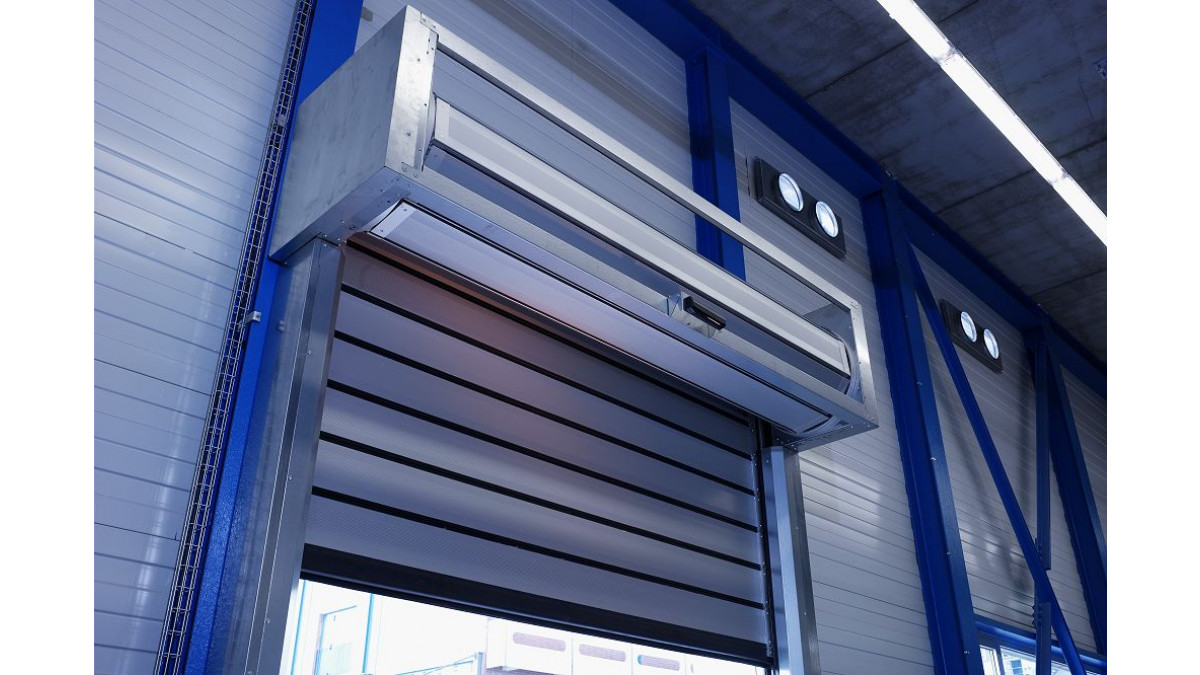

  • Manufactured in round, oval and low header designs
  • Designed for up to 250,000 load cycles per year (approx)
  • Activators can be Integrated with any access control systems
  • Available in standard aluminium or powdercoated finish
  • Safety systems include TLG, approach area monitoring, and radars
  • Emergency opening — automatic after manual activation
Scope of Use
  • Designed for industries were the either, high cycle, safety security and reliability are a requirement
  • Typically an external door
  • Can be mounted to any building material either externally or internally
  • Suitable for wind zones up to Class 4
  • Intended for use in a wide range of industries — typically, but not limited to:
    • Manufacturing
    • Logistics
    • Warehousing
    • Security
    • Food and beverage
    • Airports
    • Retail
    • Automotive
In-Service History
  • Manufactured by Efaflex since 1992 and sold worldwide since.
  • Doors have installed and operating in New Zealand since 2004
  • Users include Hilton Haulage, Whittakers, and Farmland Food
  • Used extensively by Department of Corrections across many sites
Other Performance Attributes
Wind Load Maximum DIN EN 12424 up to Class 4 (depending on model)
Operating Forces / Safe Opening DIN EN 13241-1 Fulfilled
Air Permeability DIN EN 13241-1 up to Class 2 (depending on model)
Direct Airborne Sound Insulation DIN EN 717-1 23-25 db (depending on model)
U Value Maximum W/m²k  DIN EN 717-1 up to 6.0 (depending on model)

Warranty and Maintenance

All doors require regular service maintenance which must be carried out by an authorised service agent.

For specific warranty details please contact EFAFLEX.

Documents
BIM Object: SST Spiral
Brochure: EFAFLEX World of Doors
Brochure: S Series Classic

EFAFLEX were the first company in the world to deal exclusively with high-speed doors, they remain a global market leader in that sector through innovation, safety, and individuality.

Product Enquiries

News from EFAFLEX

Specify High Speed Doors with Confidence: EFAFLEX is Now on Masterspec

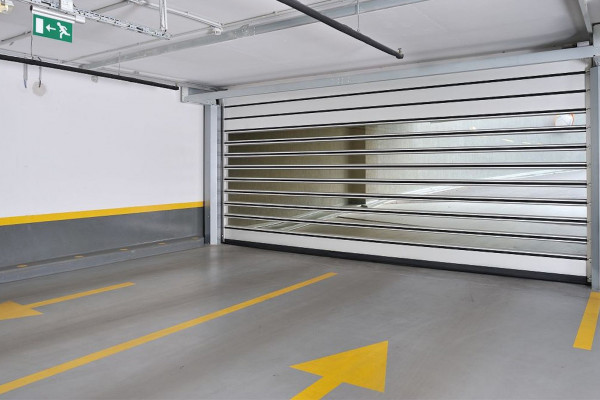

Safe and Reliable Car Parking Doors Tailored to Project Requirements
