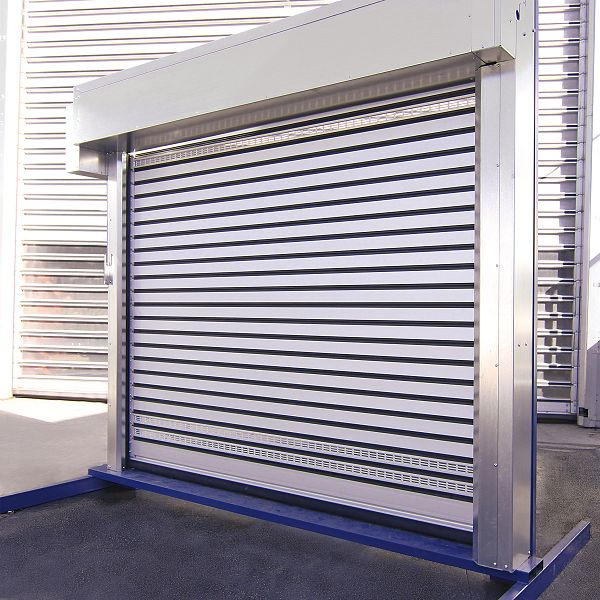

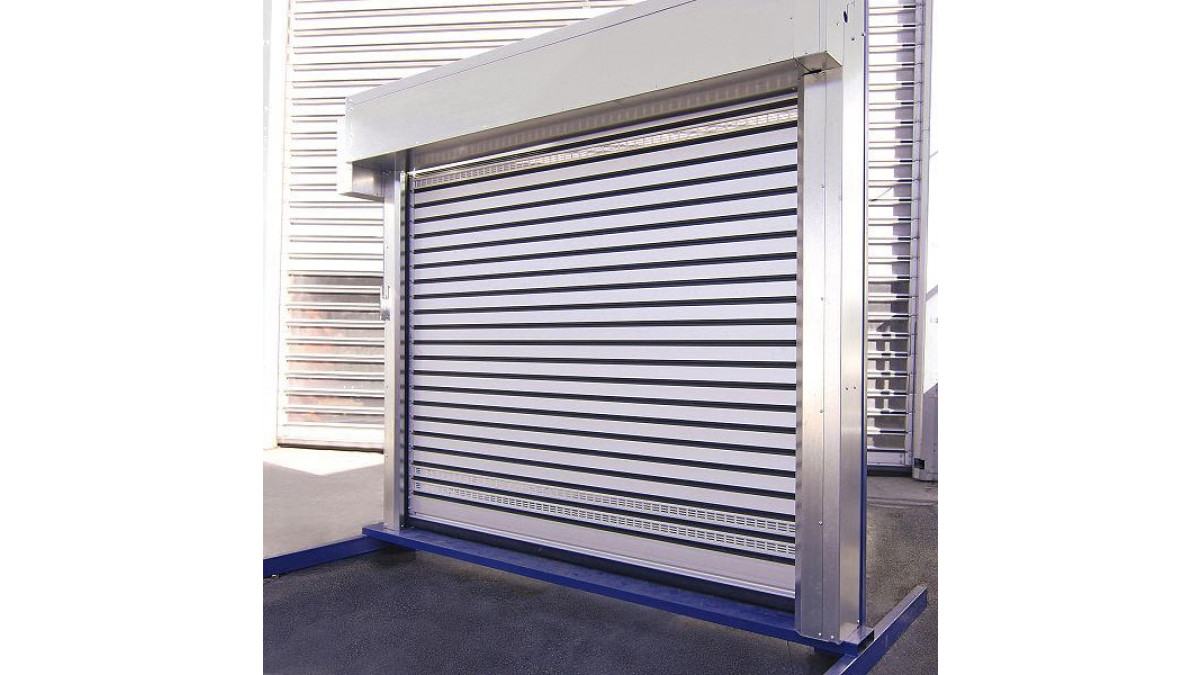

S Series — Classic Parking System Doors
Description

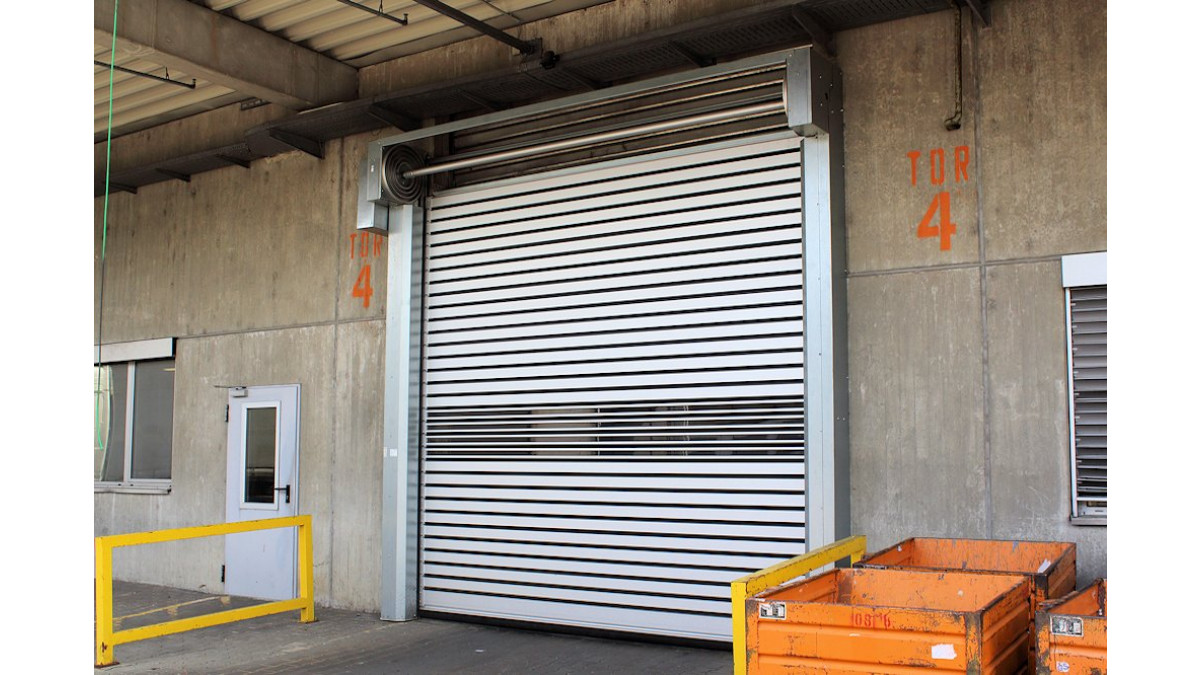

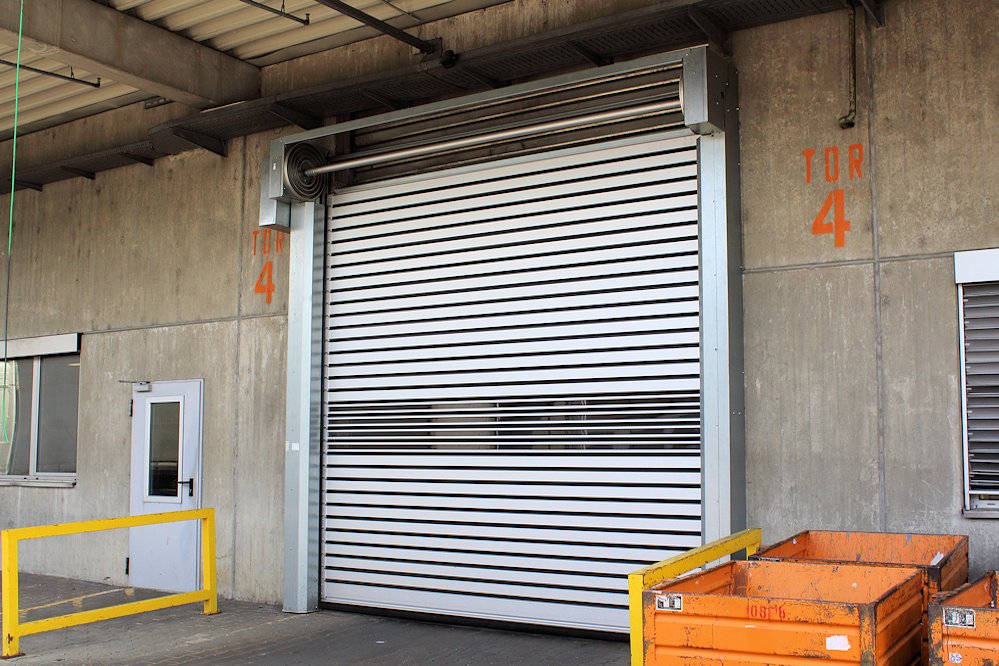

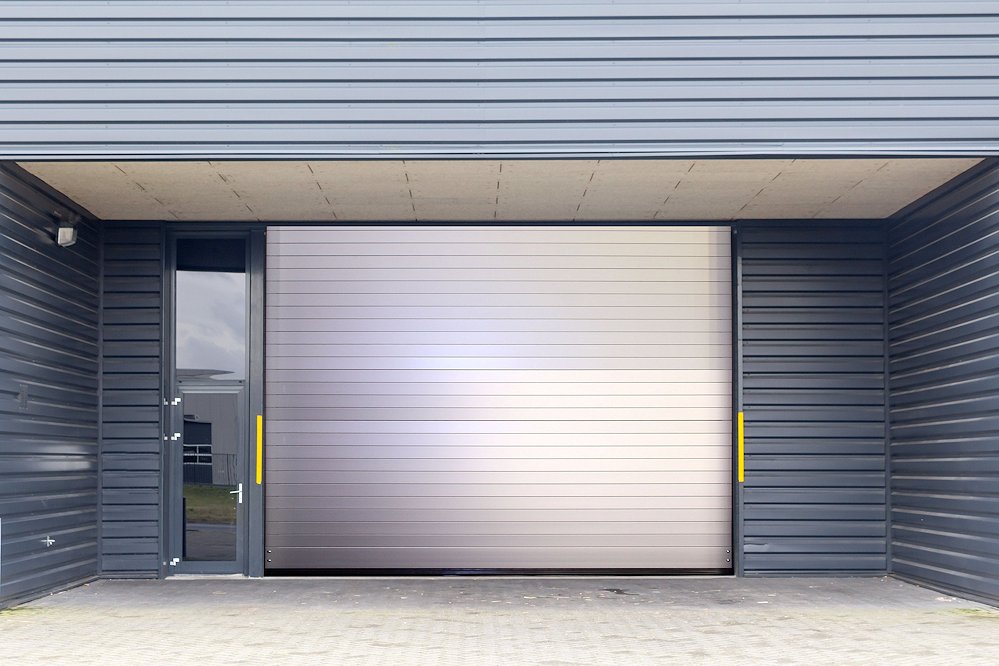

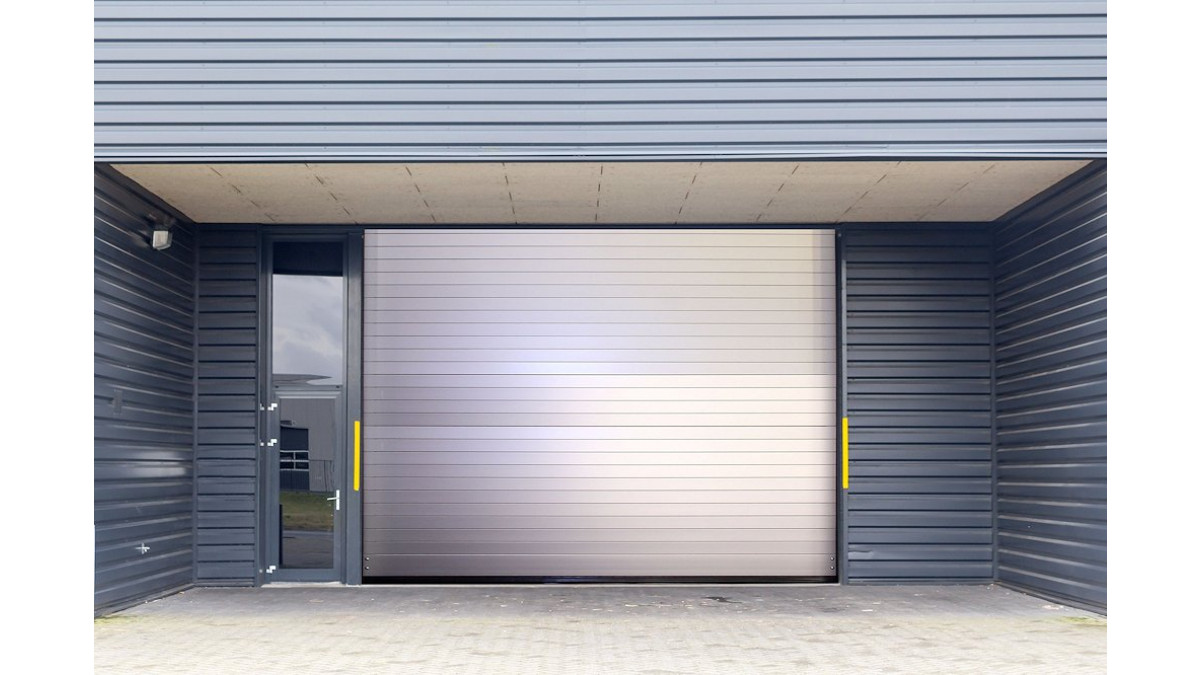

EFAFLEX offers exterior doors built to suit all car park applications.  Unlike conventional roller doors, which roll the door blade up on a shaft, spiral doors guide the door into a spiral, allowing higher operating speeds and less wear.

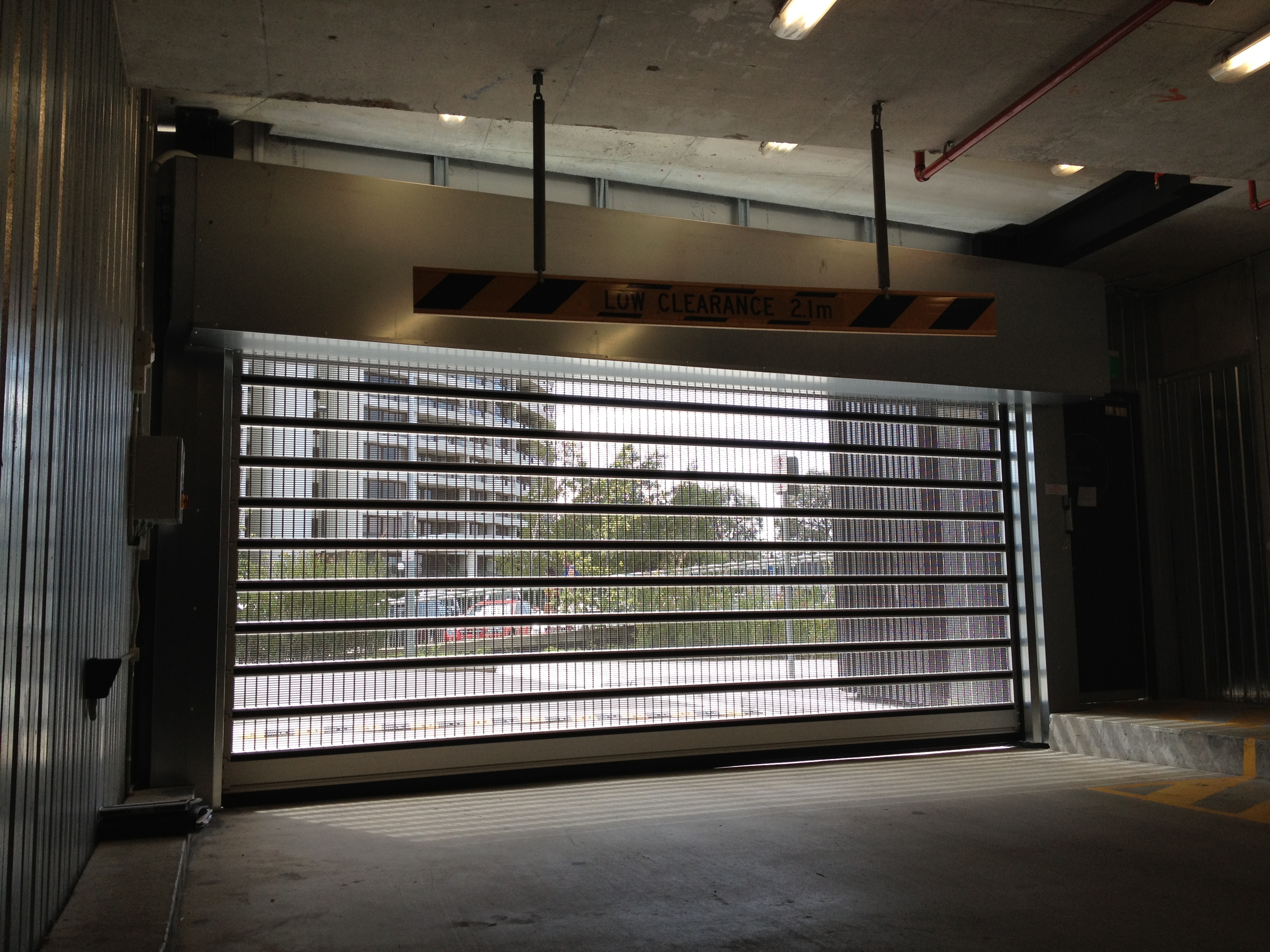

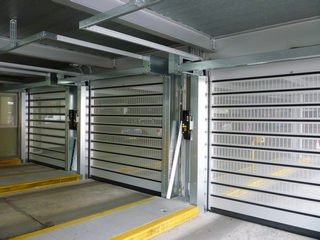

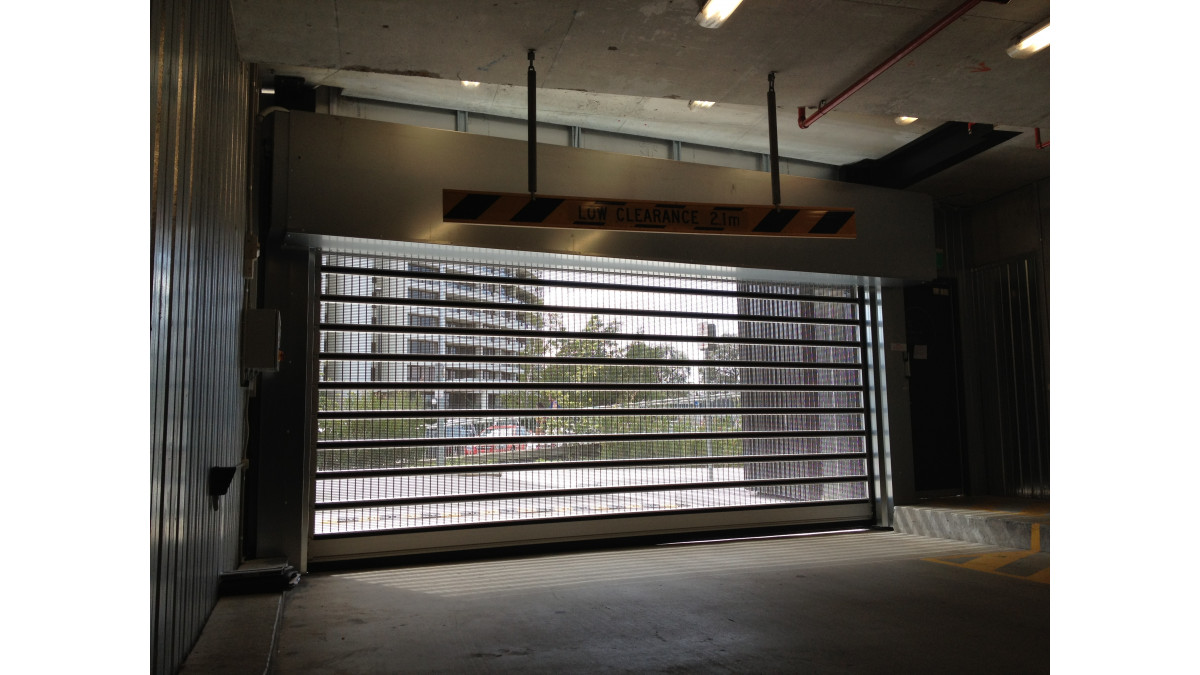

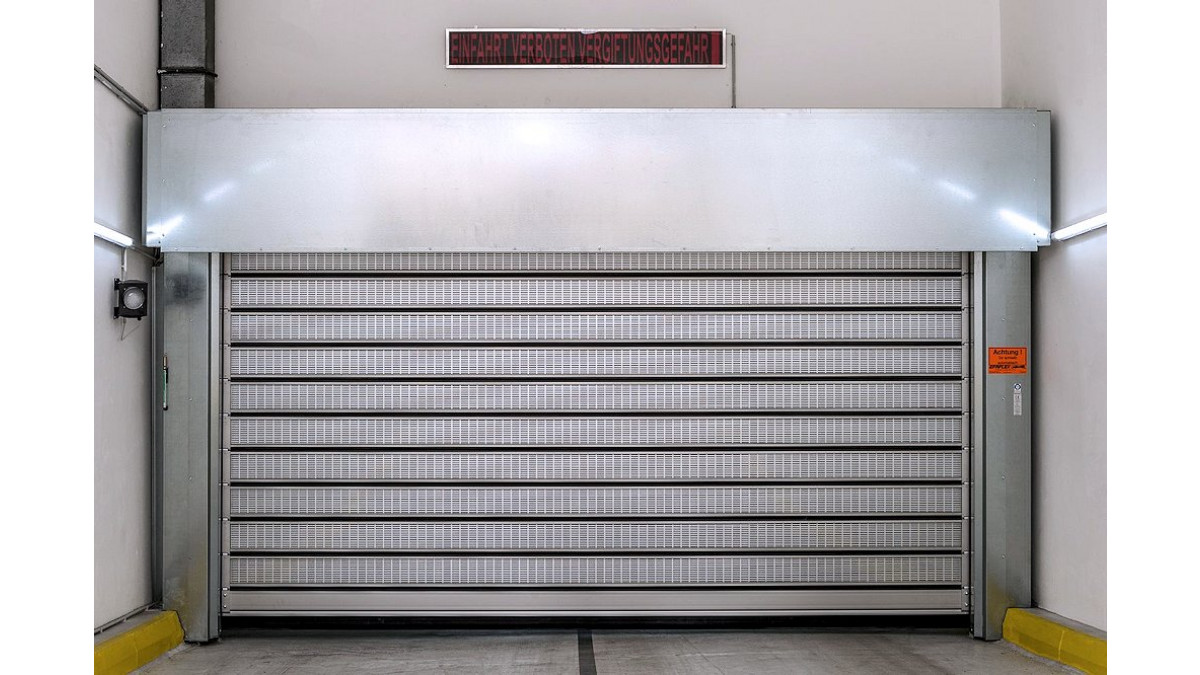

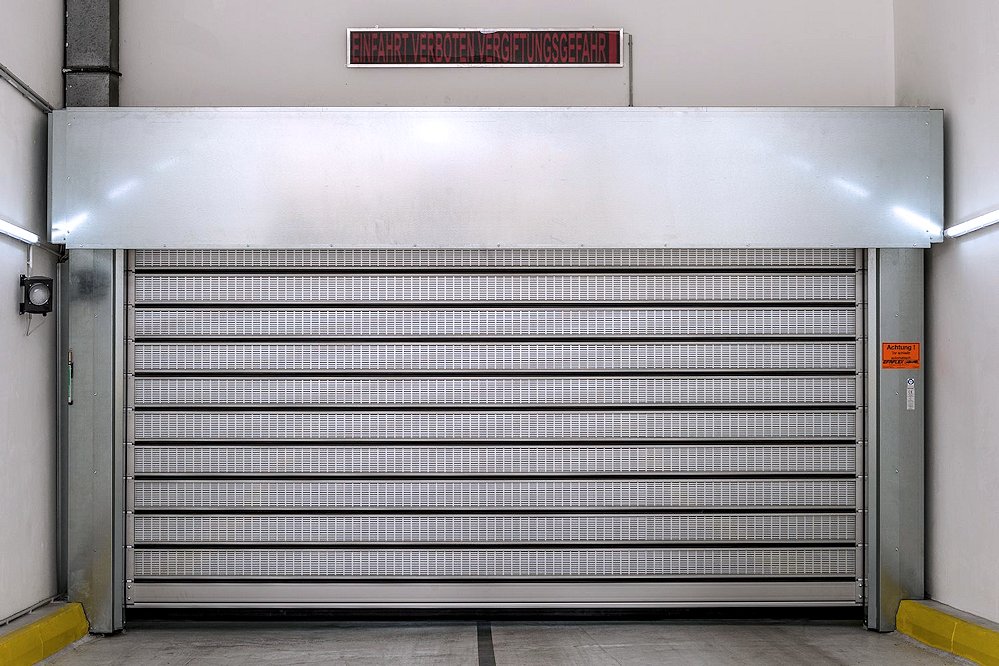

Manufactured with either double wall solid aluminium door blades, or with optional vision and vented door blades, or entirely single walled clear door blades (STT).

Available in 4 ranges: SST-PS, SST Classic, STT, and SFT (High Speed Folding door).



Key Features
  • Safe and secure
  • Opening speed up to 2.5 metres per second
  • Available in sizes up to 8000w x 7800h
  • Wind load up to Class 4
  • Manufactured in round or oval spiral, low header — Able to be installed into as little as 200mm headroom
  • Designed for up to 250,000 load cycles per year (approx)
  • Activators can be integrated with any access control systems
  • Available in standard aluminium or powdercoated finish

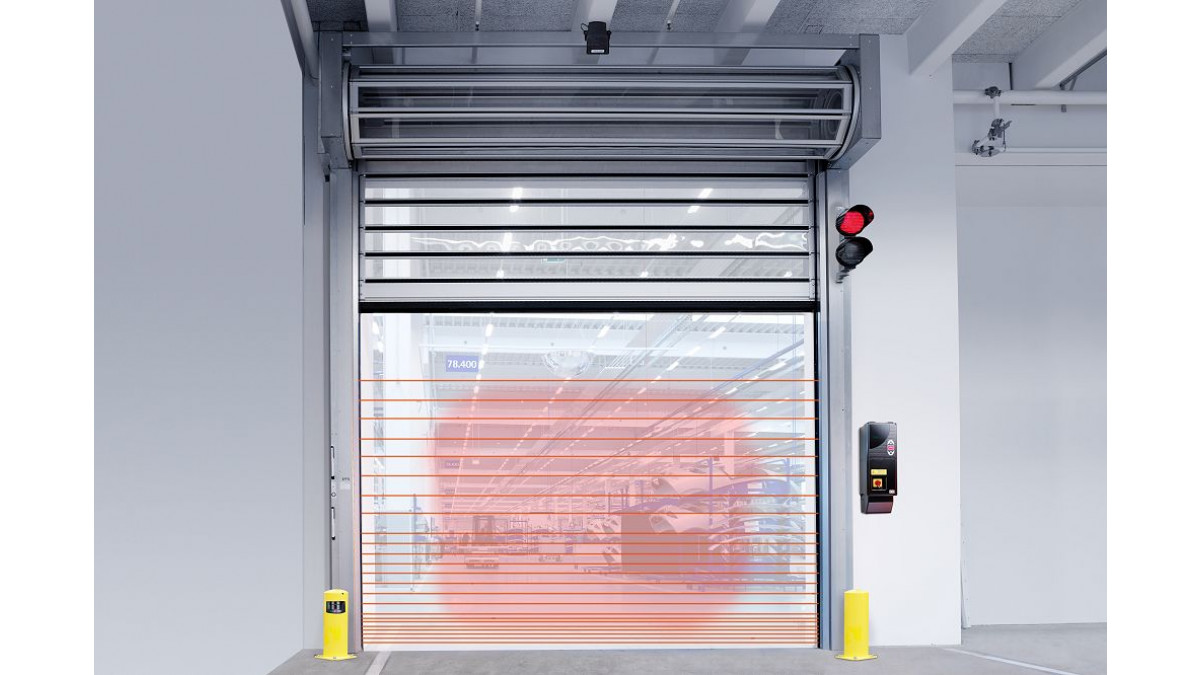

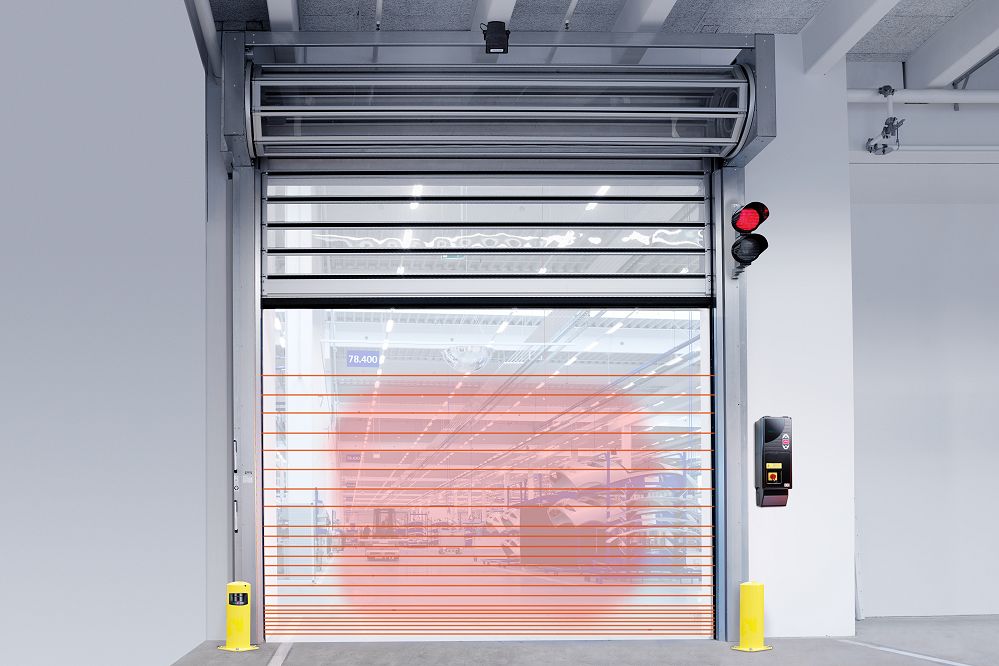

  • Safety systems include TLG, radars and approach area monitoring
  • Emergency opening — automatic after manual activation
Scope of Use

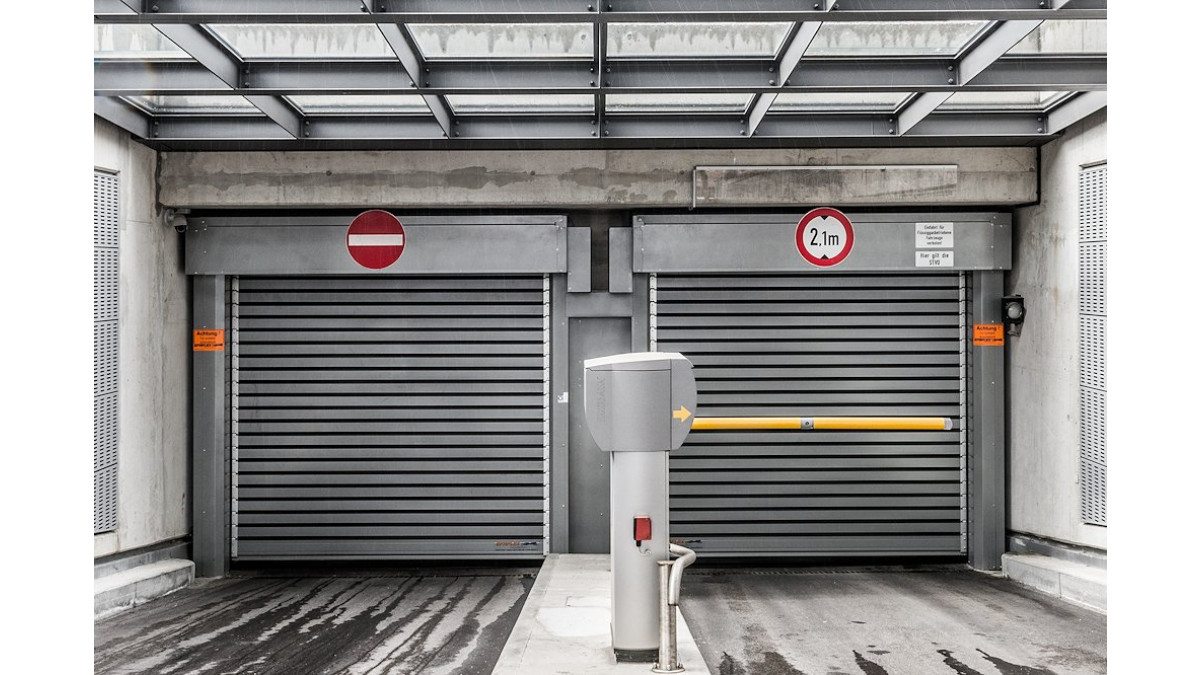

  • Designed for secure car parking applications, typically, but not limited to:
    • Apartments buildings
    • Office complexes

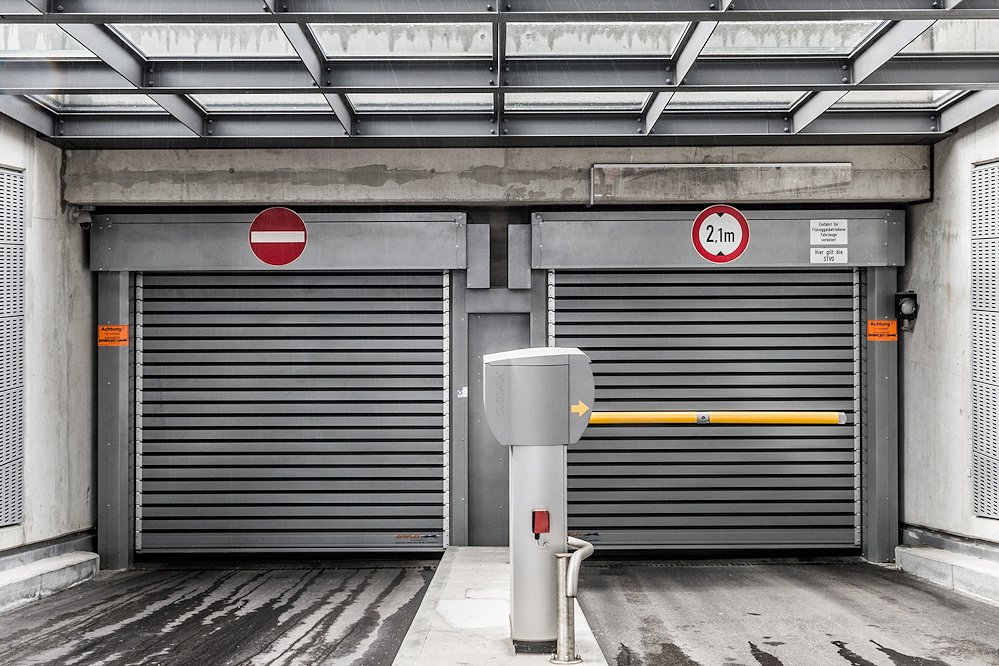

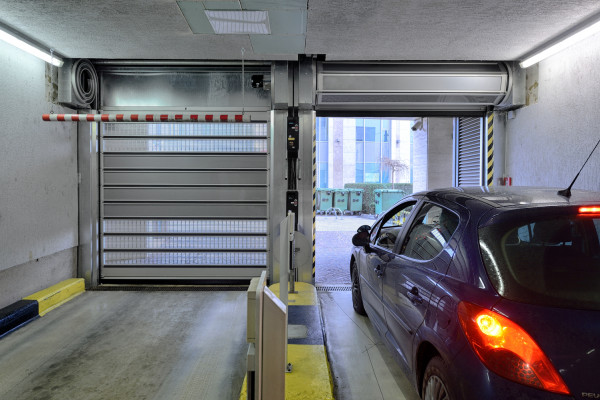

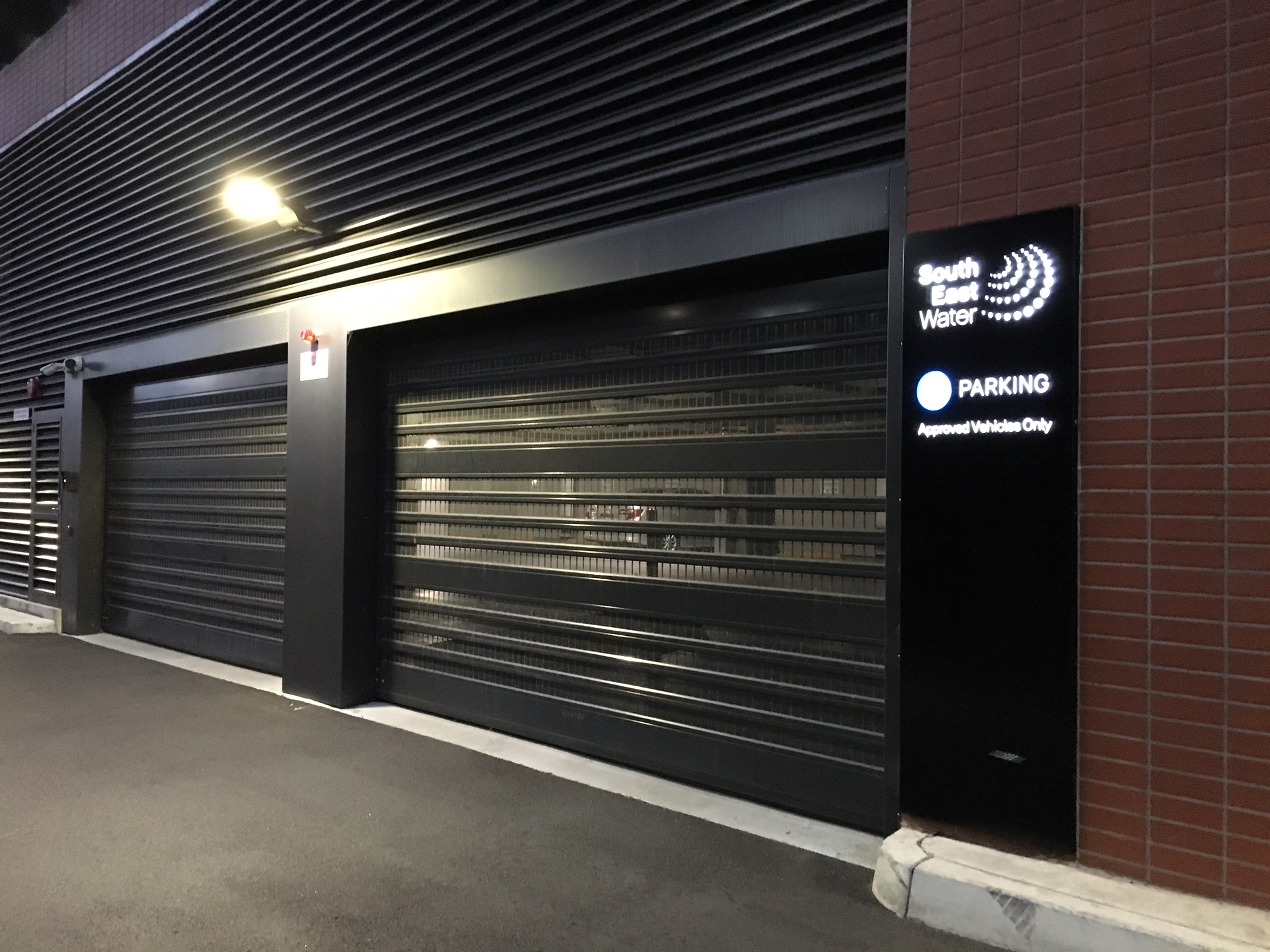

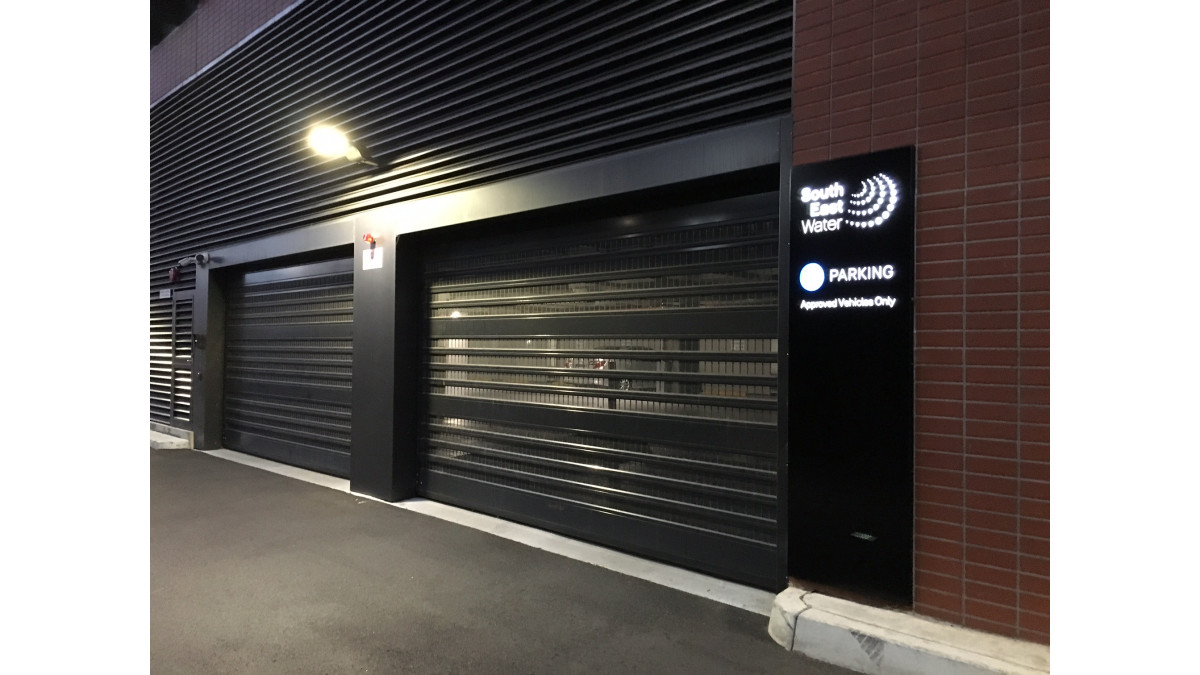

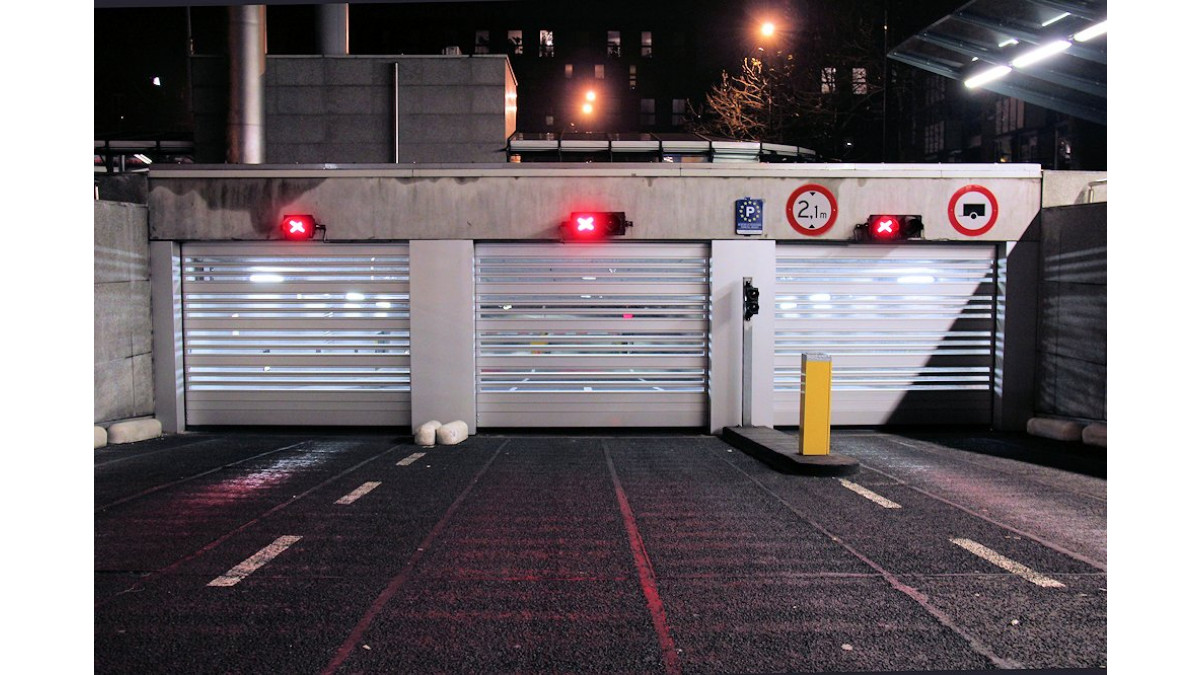

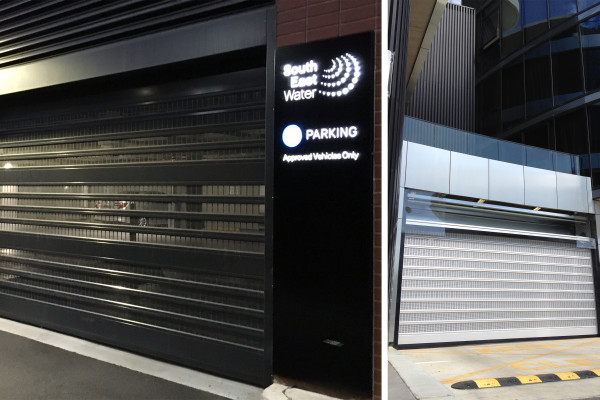

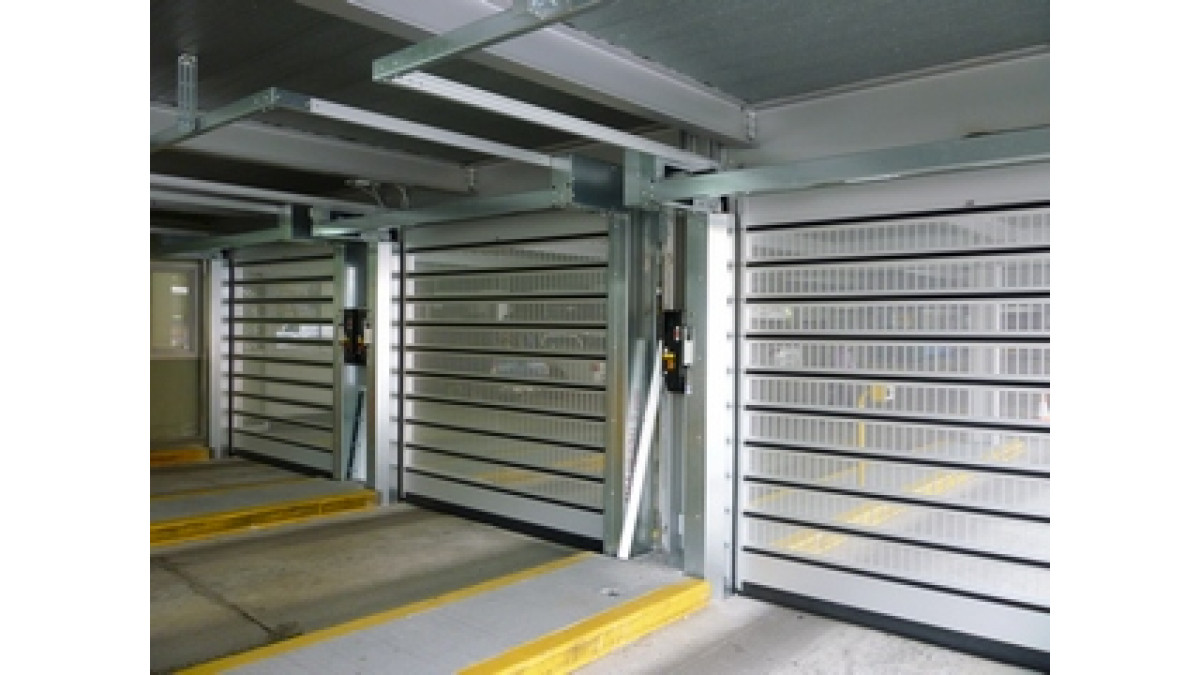

    • Car park buildings and secure car parking
    • Secure facilities such as prisons and hospitals
    • Residential homes
  • Exterior door
  • Can be mounted internally or externally to any building surface
  • Suited for high cycle large vehicle volume use
  • Suitable for wind loads up to Class 4
  • Manufactured in round or oval spiral, low header
  • Able to be installed into as little as 200mm headroom
In-Service History
  • Manufactured by EFAFLEX since 1984 (SFT) and sold worldwide since
  • Doors have been installed operating in NZ since 2004
  • Used extensively by the Department of Corrections for secure parking
Other Performance Attributes
Wind Load Maximum DIN EN 12424 up to Class 4 (depending on model)
Operating Forces / Safe Opening DIN EN 13241-1 Fulfilled
Direct Airborne Sound Insulation DIN EN 717-1 up to 25 db (depending on model)

Warranty and Maintenance

All doors require regular service maintenance which must be carried out by an authorised service agent.

For specific warranty details please contact EFAFLEX.
