Dyson Airblade Wash+Dry
Description

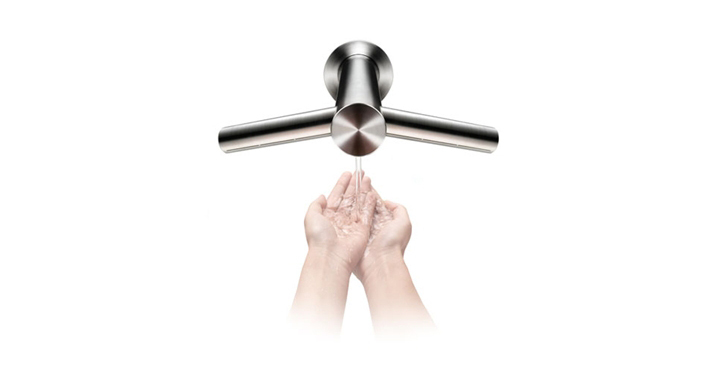

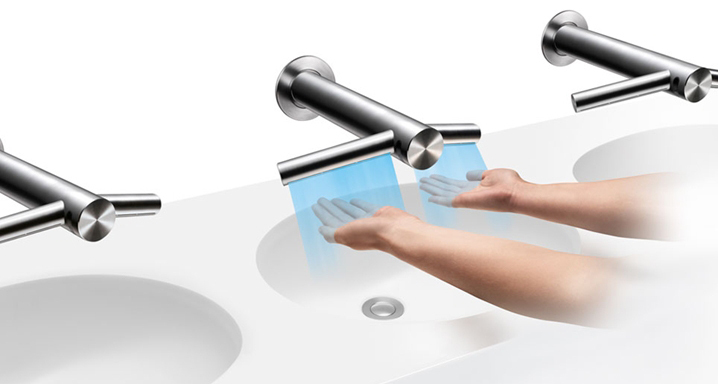

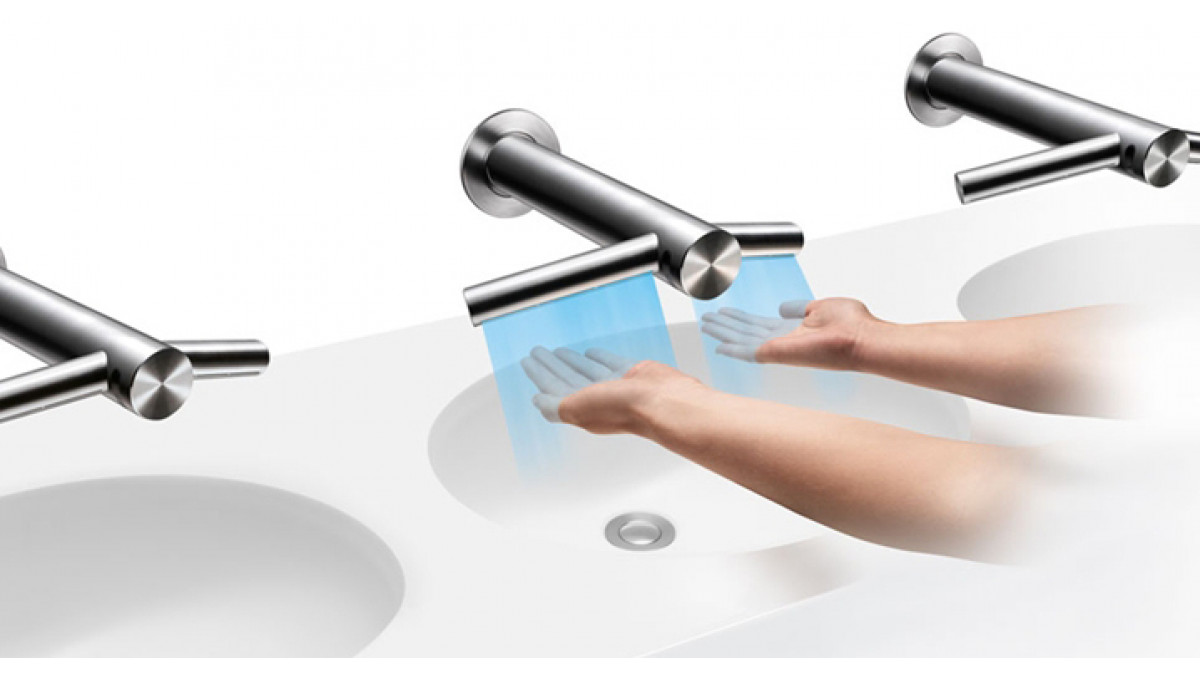

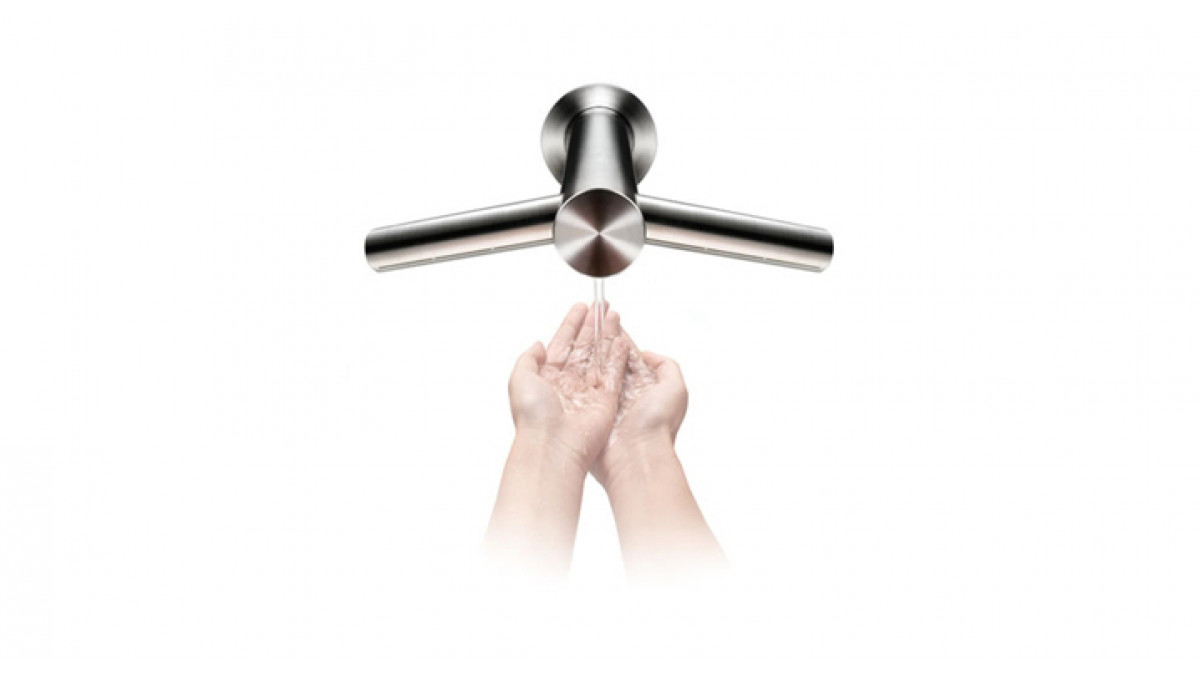

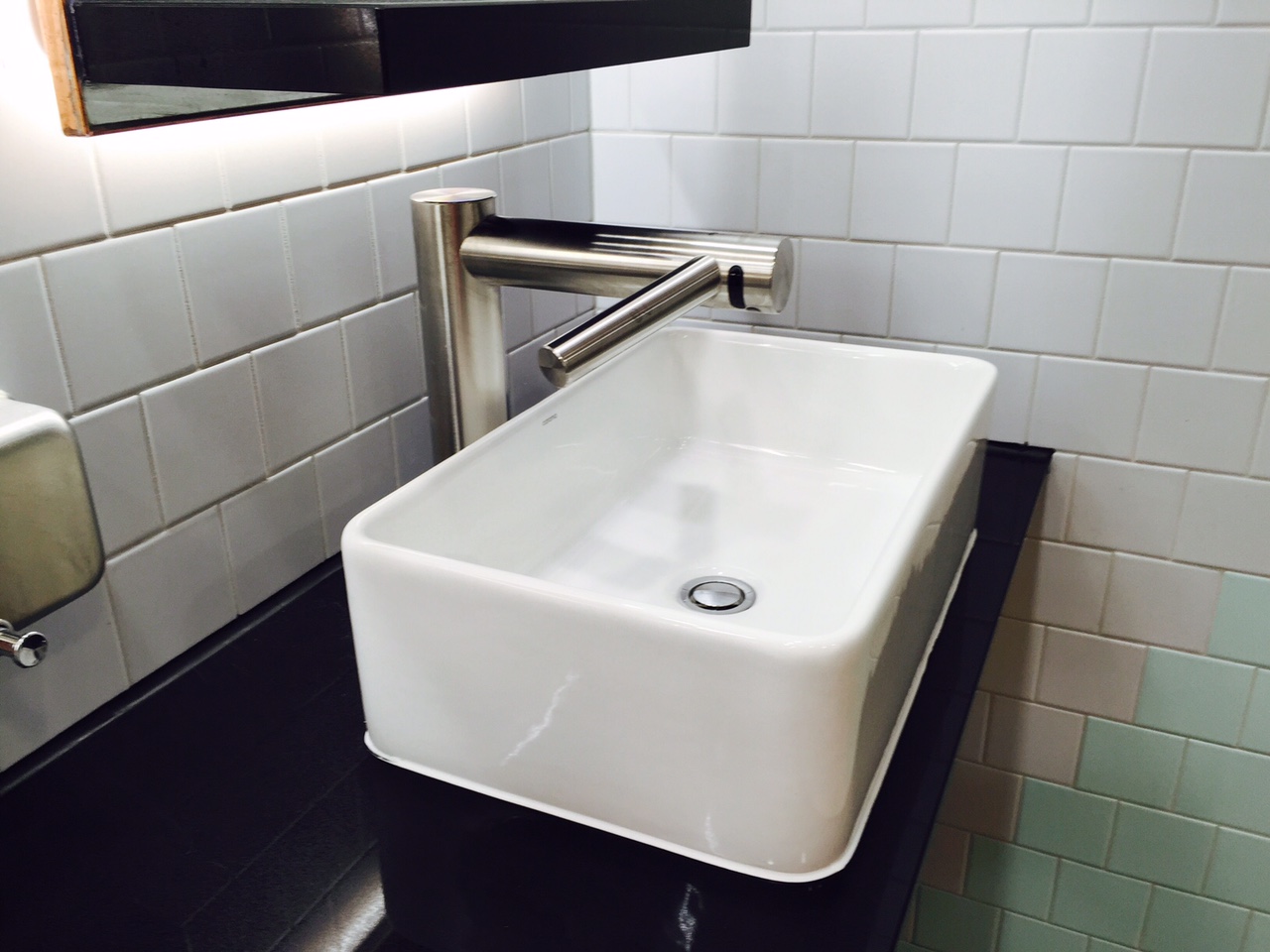

Dyson Airblade™ Wash+Dry hand dryer combines in a single touchless unit, a tap, and a hand dryer that dries hands in 14 seconds with HEPA-filtered air. The multi-function design helps to save space in the washroom and reduces the problem of water dripping on the floor as users move from a handwashing area to a separate hand drying station.

All Dyson Airblade hand dryers have HEPA filters that capture 99.95% of particles the size of bacteria (0. 3 microns) from the washroom air.

Key Features
  • HACCAP Accredited
  • 5-year guarantee on parts and labour
  • Certified by Quiet Mark
  • Tested and approved by The Noise Abatement Society
  • Helps prevent water drippage on the floor
  • Touch-free operation
  • Saves space in the washroom

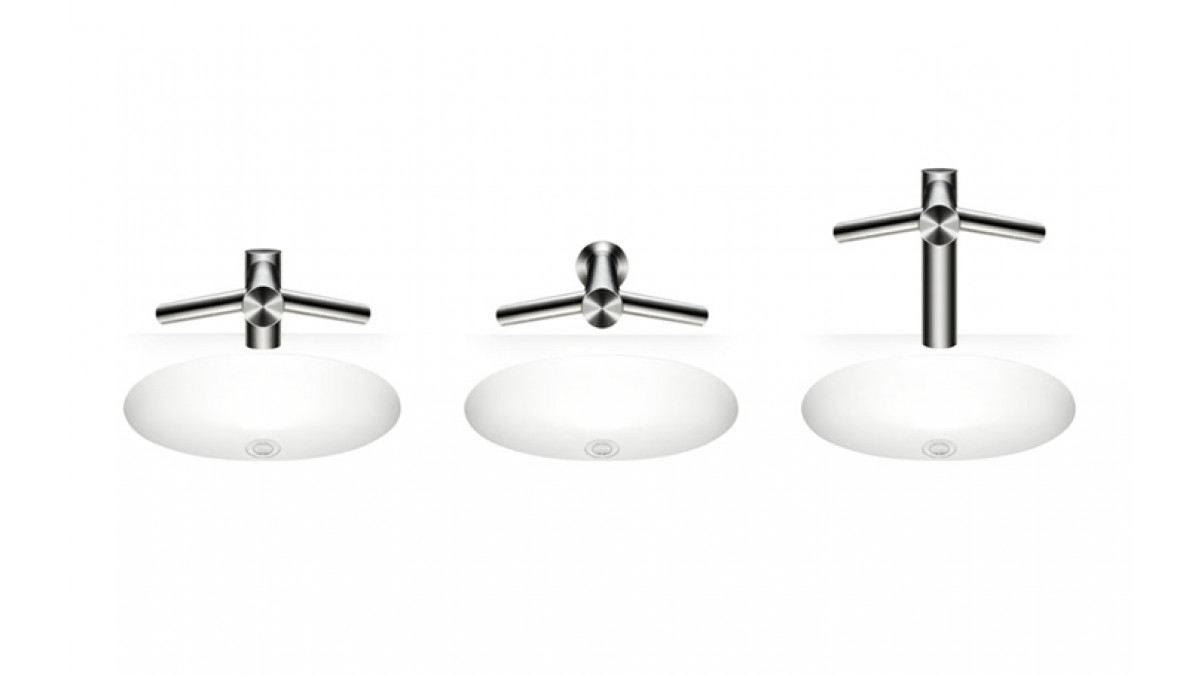

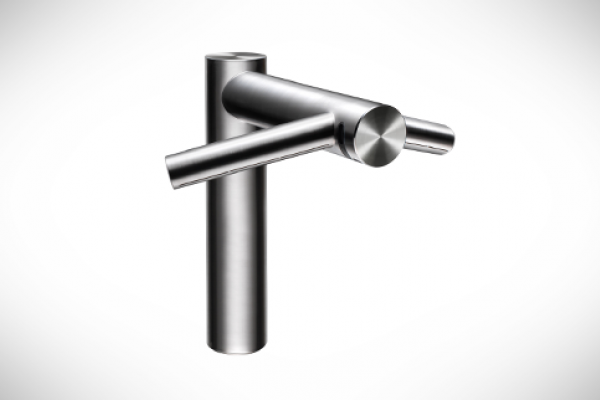

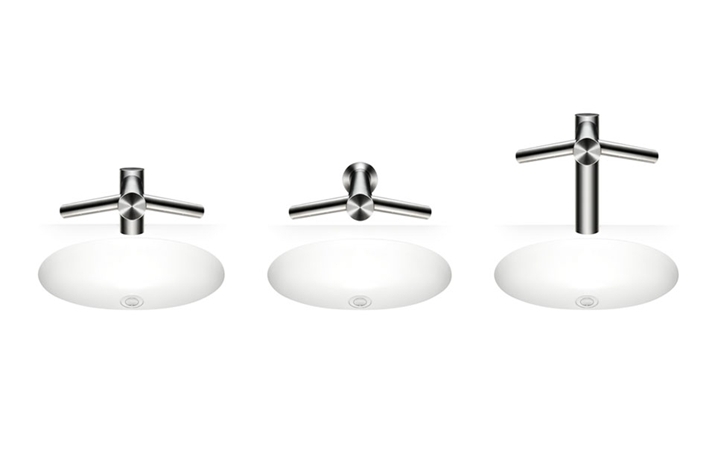

  • Available in Short (WD04), Long (WD05), and Wall (WD06)
  • WD04 and WD06 - Accessibility compliant when installed to NZS 1428
  • Water flow 1.9 litres per minute (uses 52% less water than predecessor)
  • Lower C02 Emissions than paper towel and some other hand dryers* (Ref to Dyson website for details)
Scope of Use
  • Suitable for use in light commercial, commercial and industrial environments
  • WD04 and WD06 - Accessibility compliant when installed to NZS 1428
  • Mains supply
  • Check the Sink Compatibility Guide
Limitations on Use
  • Check the Sink Compatibility
  • Plug holes with the most open aperture are recommended
  • To improve drainage, avoid sinks with a flat base with particular focus on the immediate area surrounding the drain hole - minimum 60mm radius
  • WD04 & WD05 room under sink for motor to be mounted to surface (266mm x 142mm x 189mm)
  • The motor bucket cannot be mounted upside down or installed above the sink
  • Water pressure between 1-8 bar
  • Water temperature controller required (thermostatic mixer/water heater)
Statement of Building Code Compliance
  • WD04 and WD06 — Accessibility compliant when installed to NZS 1428
In-Service History

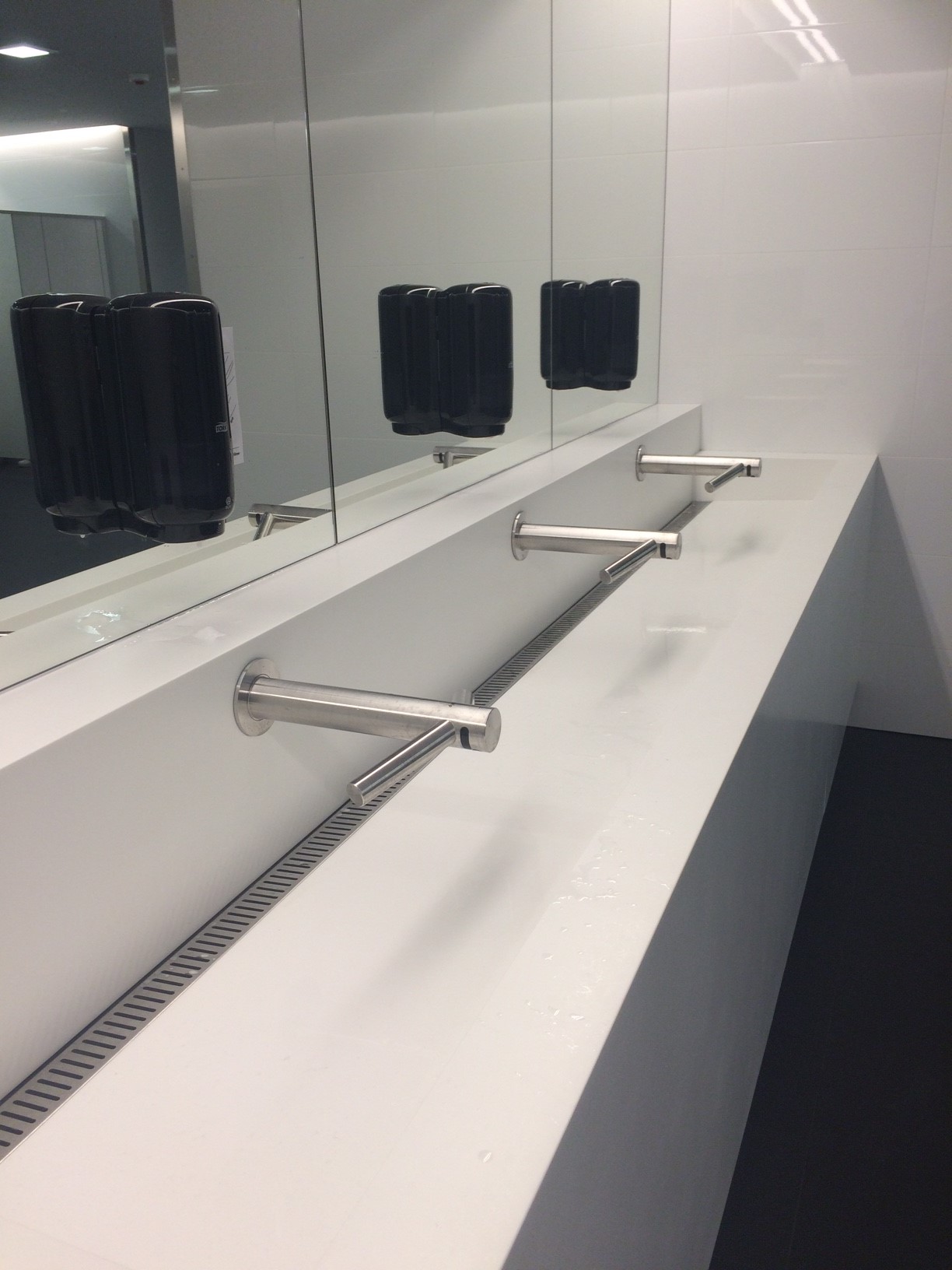

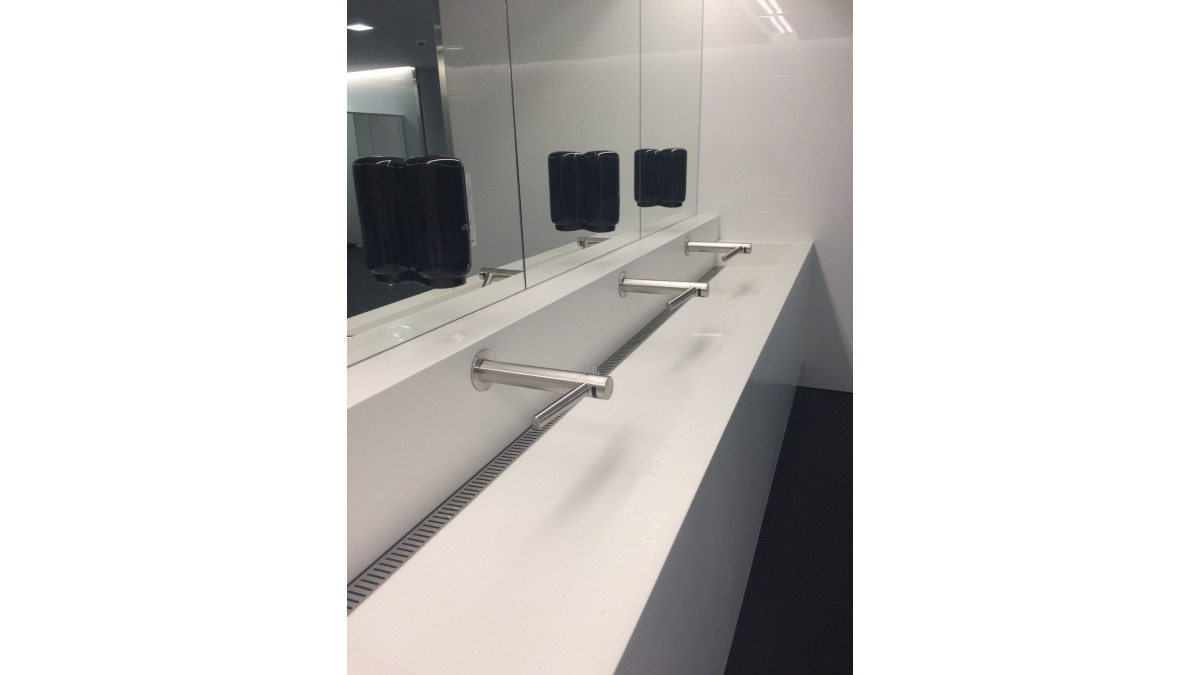

  • Wellington Airport
  • Auckland Airport
  • Aoetea Centre
  • BP Connect Service Centres
Other Performance Attributes
  • HACCAP Accredited
  • 5-year guarantee on parts and labour
  • Certified by Quiet Mark
  • Tested and approved by The Noise Abatement Society
  • Water flow 1.9 litres per minute (uses 52% less water than predecessor)
  • Lower C02 Emissions than paper towel and some other hand dryers* (Ref to dyson website for details)
Documents
Airblade Product Range: Airblade V, Airblade 9kJ, Airblade Wash+Dry
HEPA Filter
Sink Compatibility Guide
Specification Clause/Guide
Installation and Operation
Pre-Installation Guide
Maintenance Instructions
Brochure
Airblade Brochure
CAD/PDF Details
Tall Wall Front
Tap Short Front
Tap Short Left
Tap Short Right
Tap Short Top
Tap Tall Front
Tap Tall Left
Tap Tall Right
Tap Tall Top
Tap Tall Wall Left
Tap Tall Wall Right
Tap Tall Wall Top
