Heritage Tray
Description

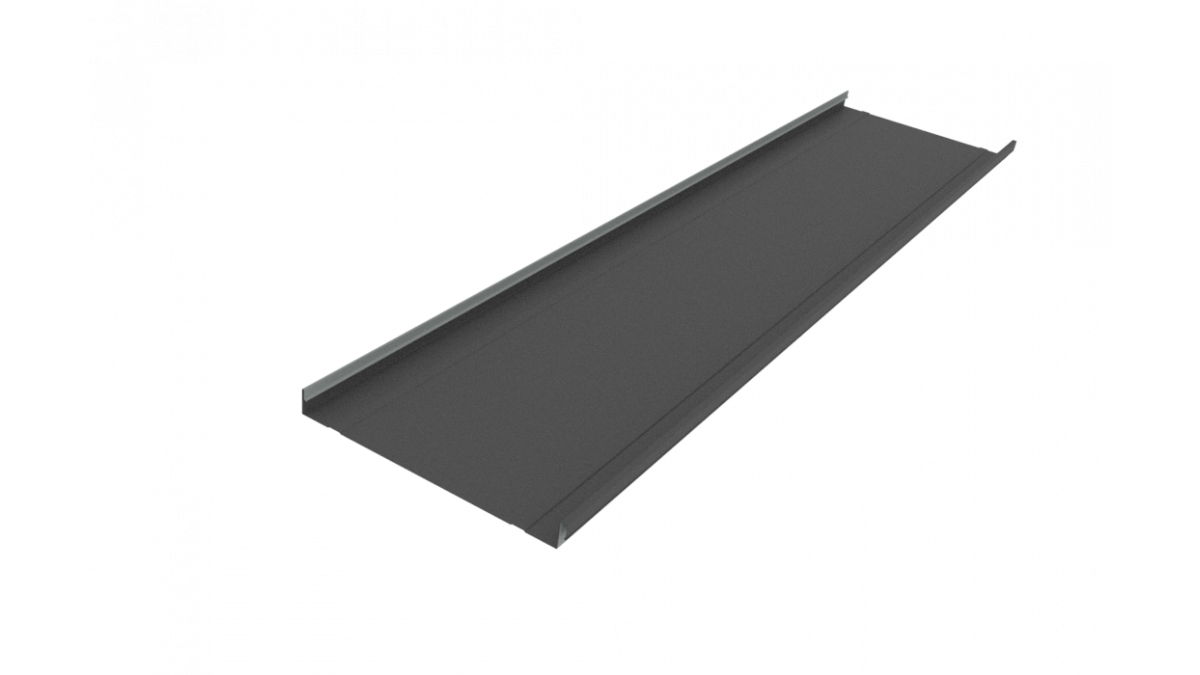

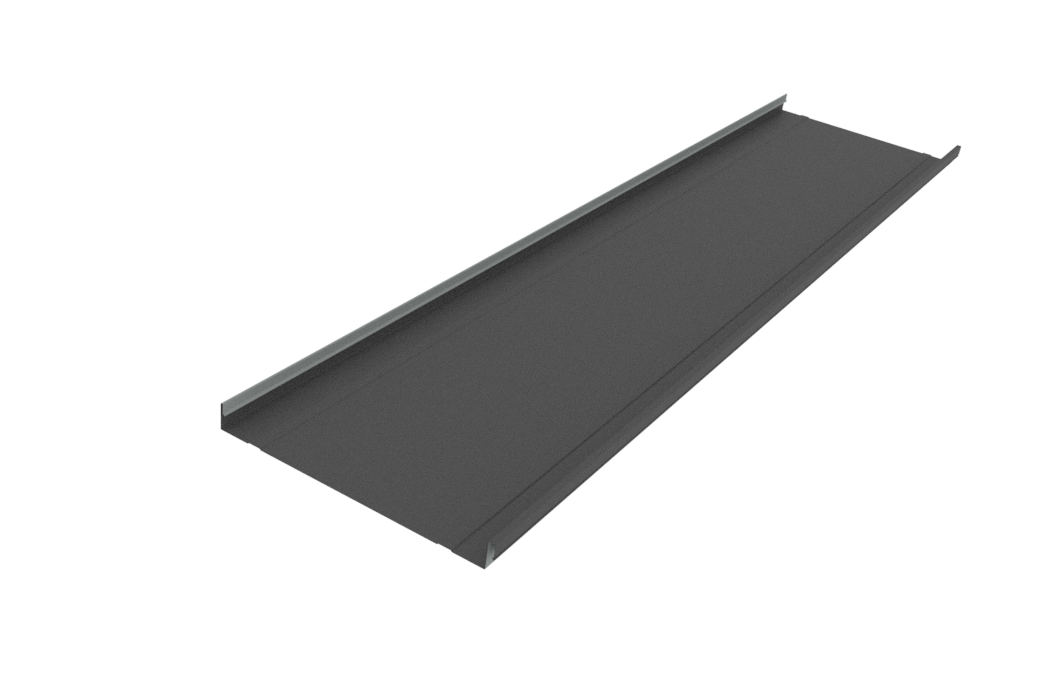

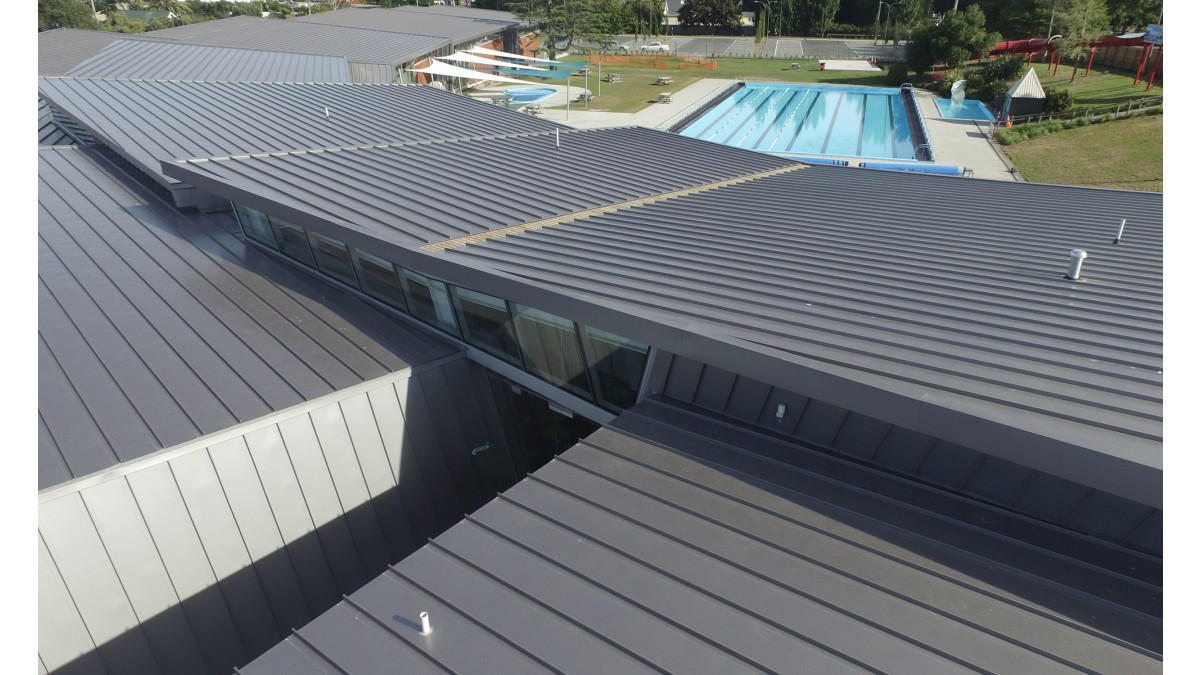

Evolving from the already popular and stylish Eurotray® family, Heritage Tray® markets itself as an elegant, economical and flexible roofing profile. Additionally, it can be roll-formed on-site, an attractive logistics option for larger construction projects.

Key Features

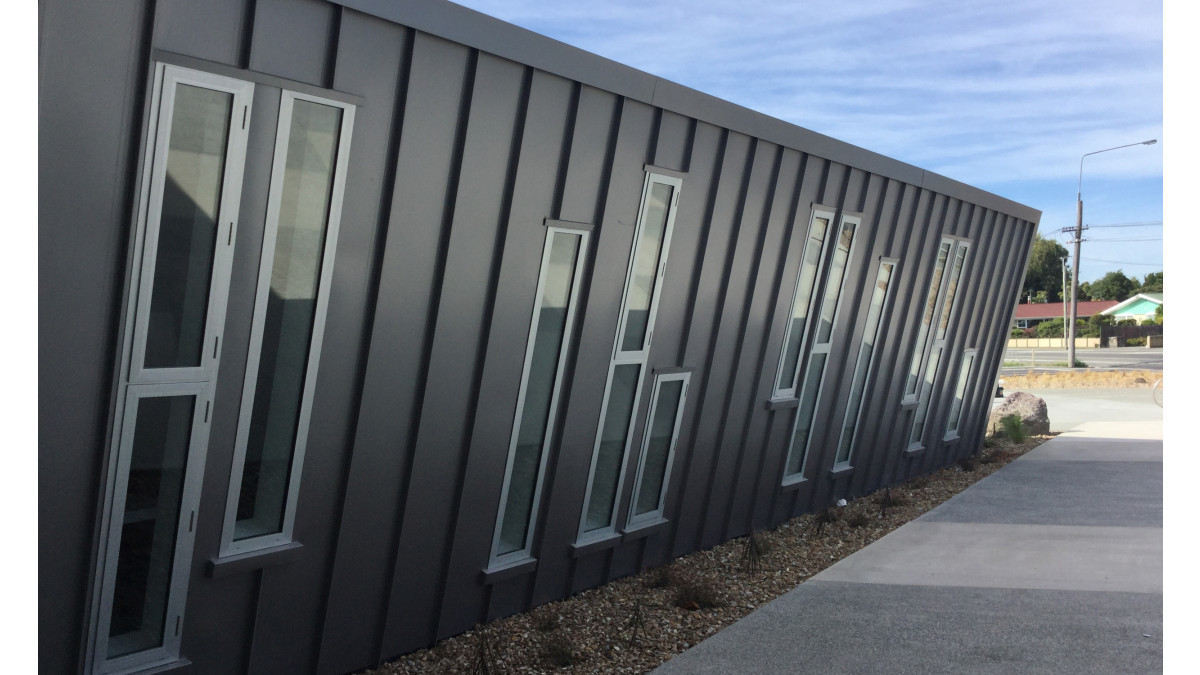

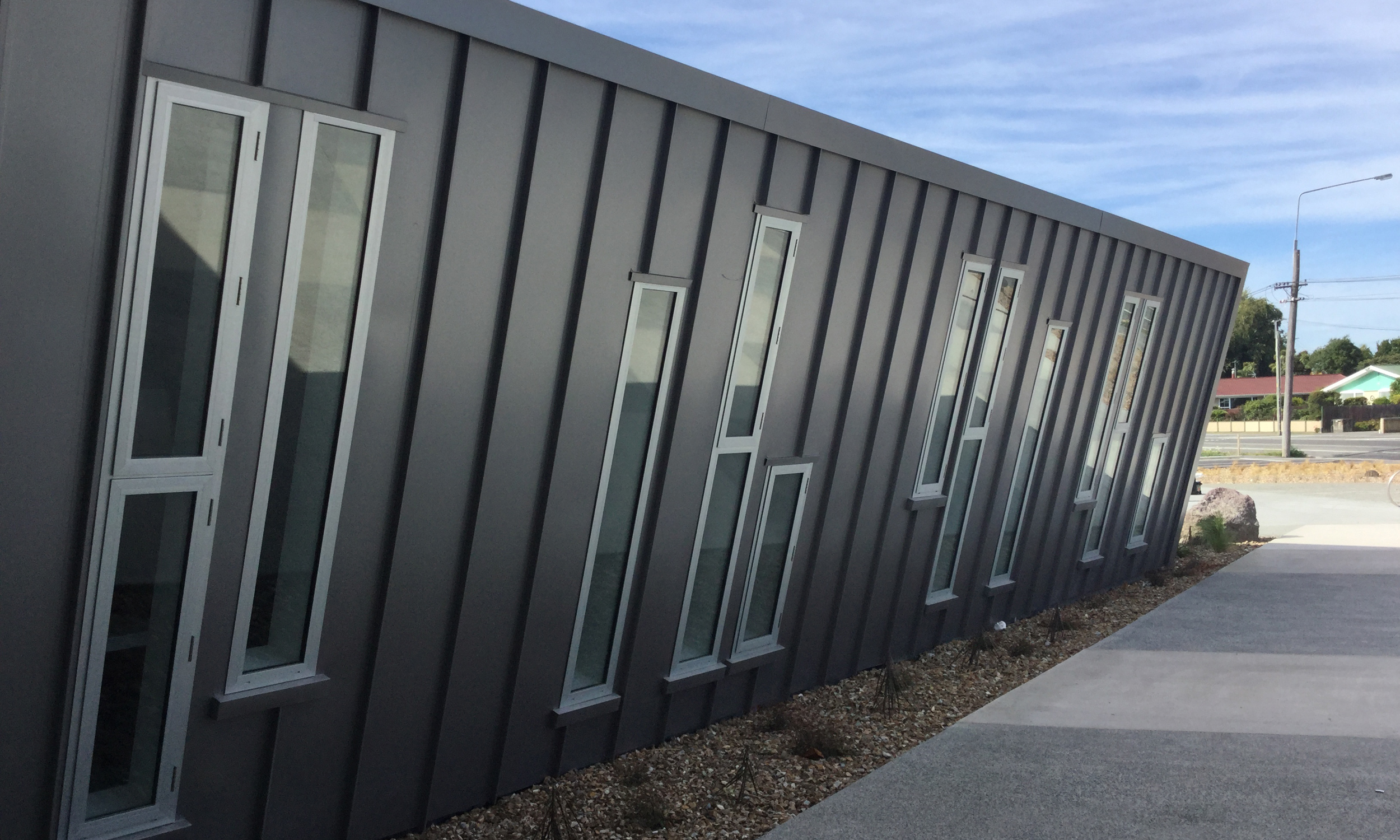

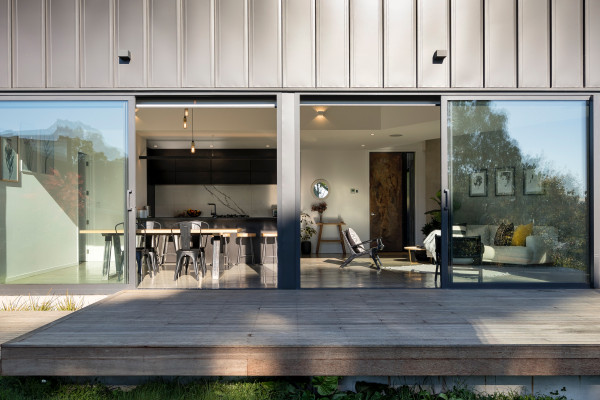

  • Suitable for cladding
  • Concealed clip fastening
  • Can be run on site
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • NZMRM Air box tested
Green Tag Certified
Green Tag Certified
Scope of Use
  • Cover Width: 450mm
  • Sheet width: 461mm
  • Minimum pitch: 3°
  • Can be run on site
  • Photovoltaic laminates (PVLs) can be installed on to this profile
  • Suitable for cladding — please contact Dimond Roofing
Limitations on Use
  • Can be manufactured from plain Zincalume, paint coated steel and aluminium
  • No end lapping
  • Purlin centres for roof cladding to be at 500mm
  • If using for a wall cladding please contact Dimond Roofing
  • Oil-canning, flatness or waviness is a condition that may occur when using wide pan profiles
  • Plywood substrate required in Extra High & SED (specific engineering design) wind zones
  • Vented underlay required in all installation applications
  • Extreme wind events may cause sound reverberation
  • Dimond CAD details must be used in specification

Contact Dimond Roofing on 0800 ROOFSPEC for specific advice on product suitability for your location.

3° Minimum Roof Pitch Required
Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced (see Dimond Roofing website) Dimond long run metal roofing and wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Other Performance Attributes
  • NZMRM Air box tested

Green Tag:

  • All Dimond Roofing products roll-formed using ColorCote painted steel coil is Global GreenRate GreenTag certified and is applicable for Green Star and Home Star credits
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
CAD/PDF Link
Dimond Roofing & Cladding Technical Manual
Environmental Information
Environmental Information
Installation and Operation
Colour Range
Additional Information

Dimond Roofing are a manufacturer of steel roofing, cladding and rainwater products.
