CS Ultimate Cavity Slider
Description

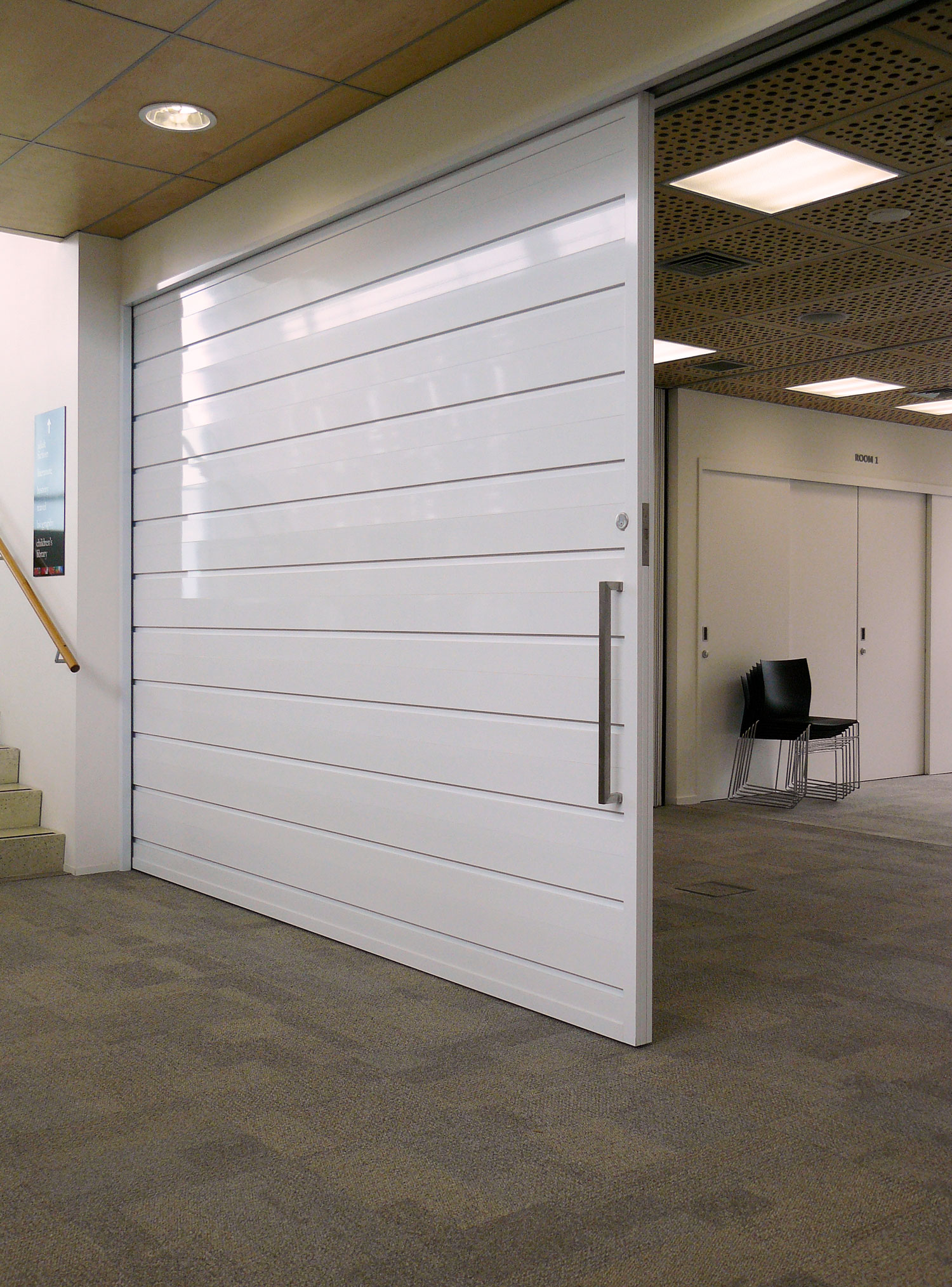

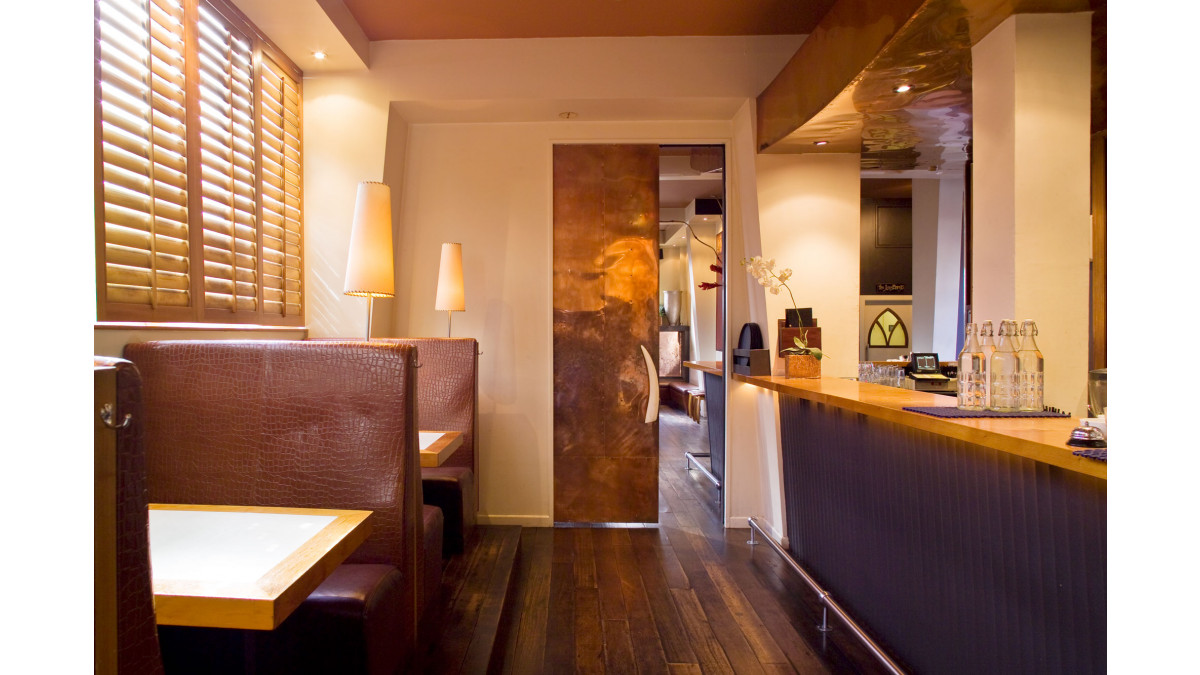

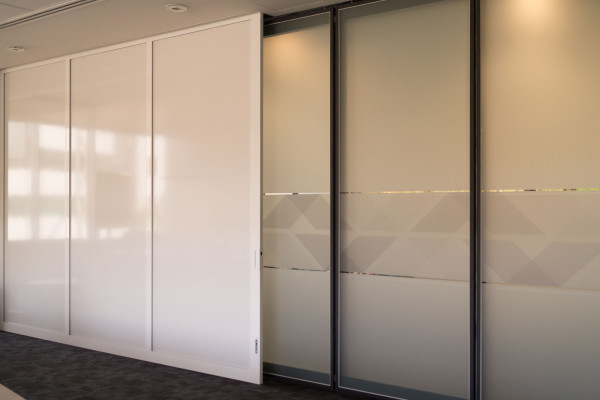

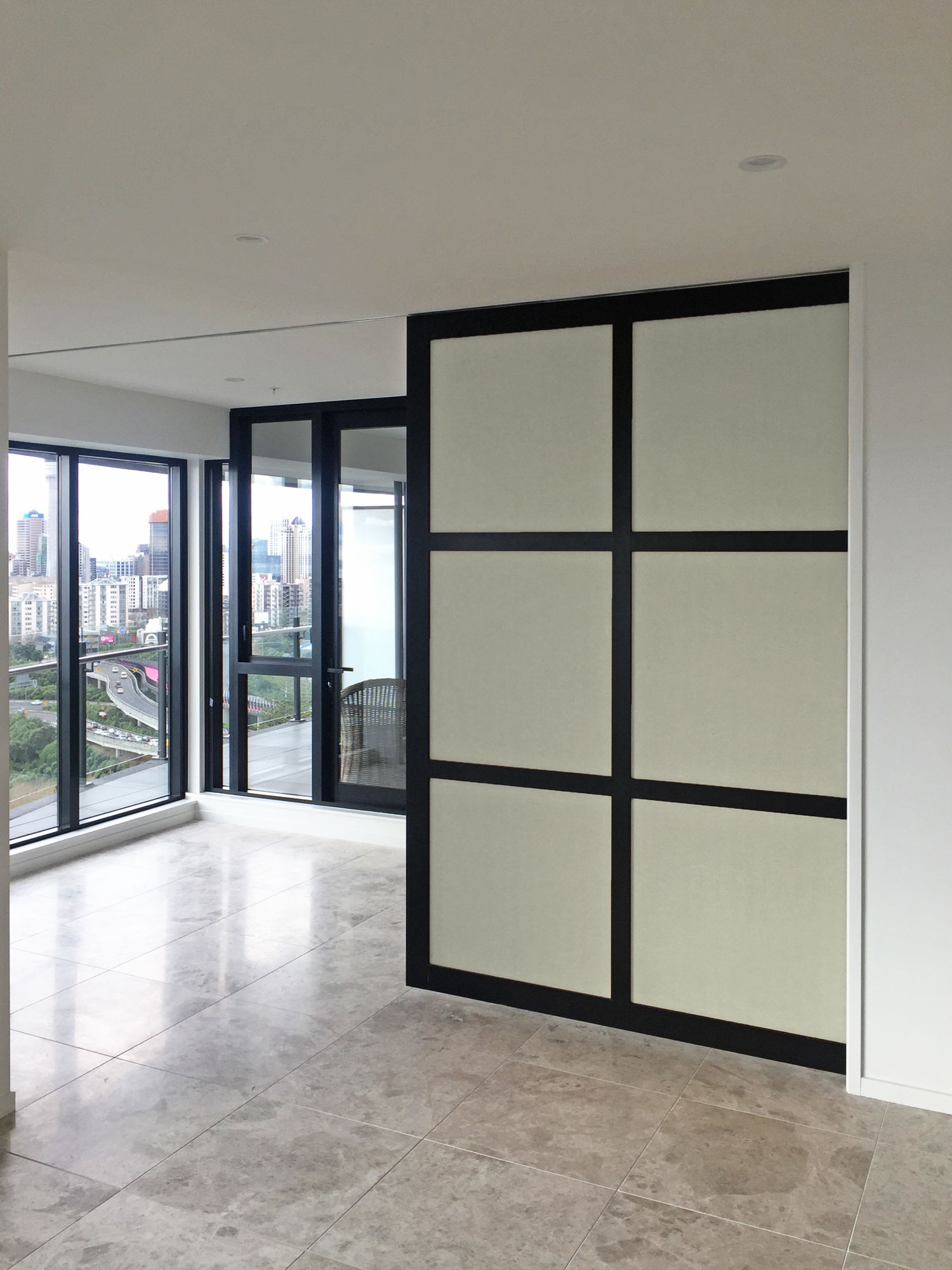

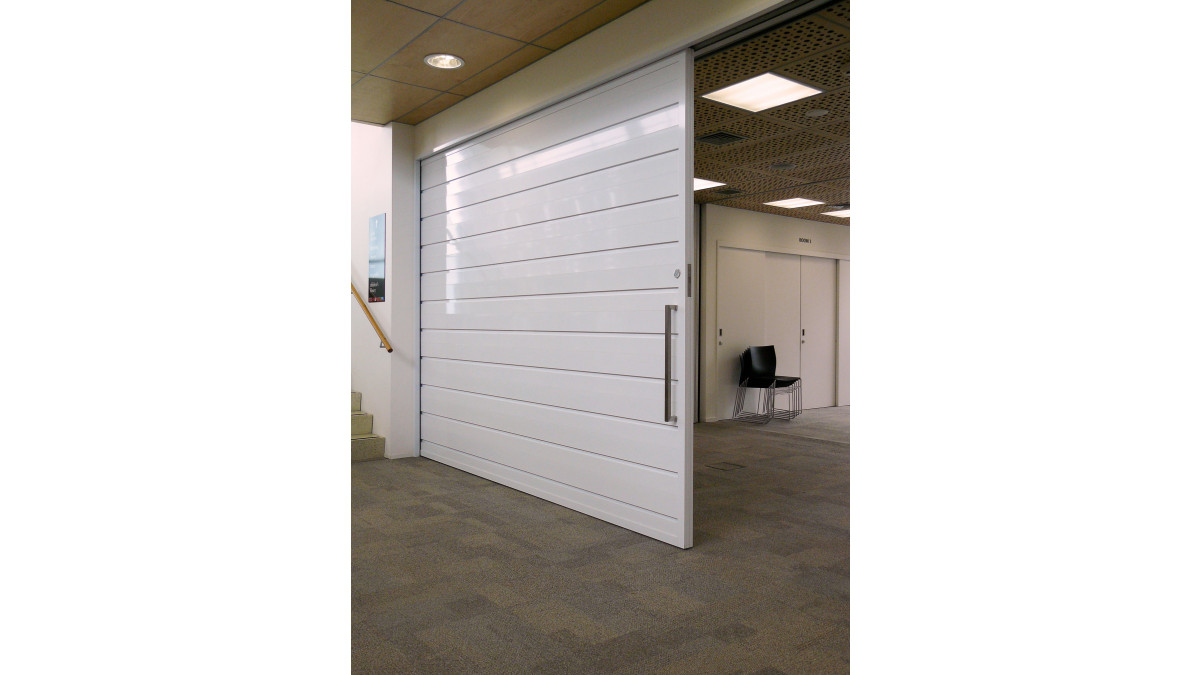

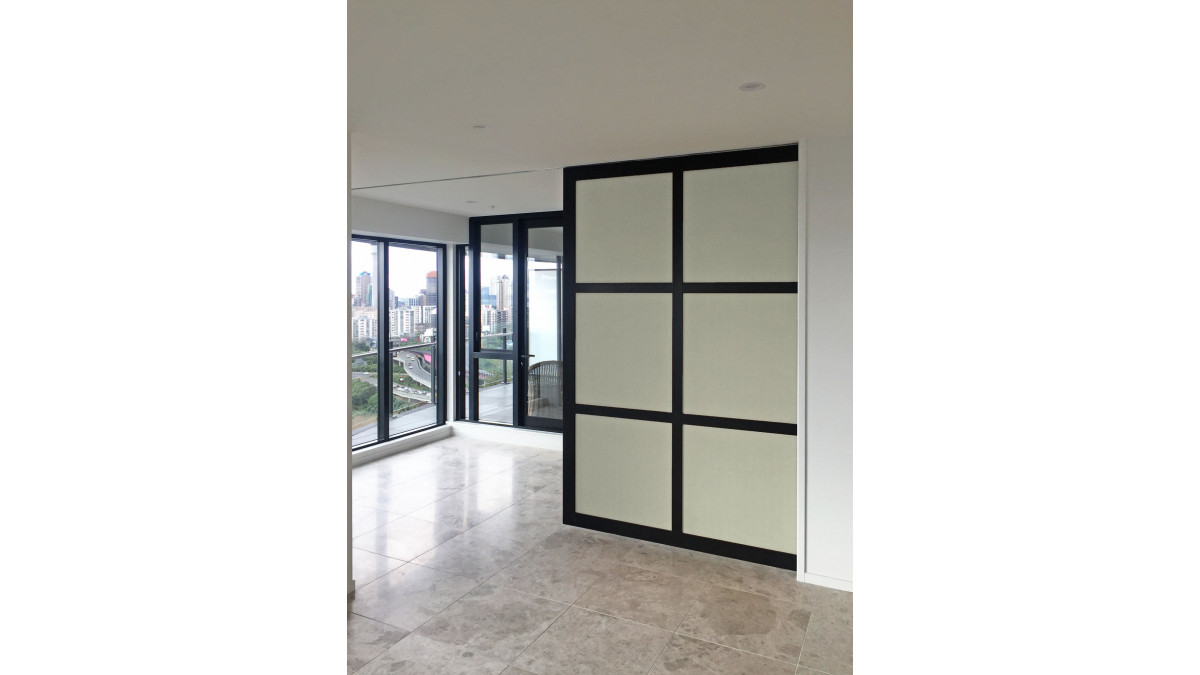

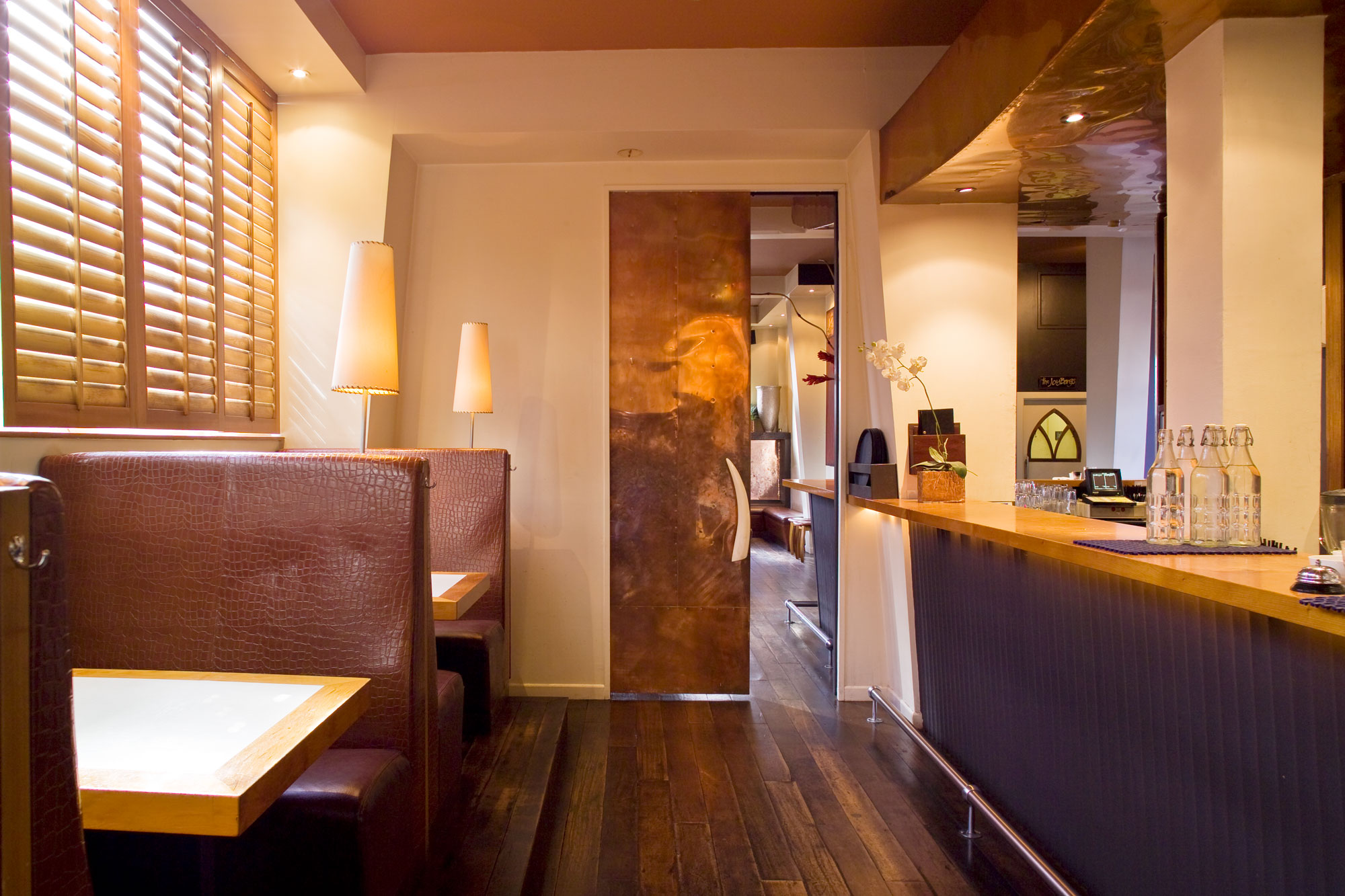

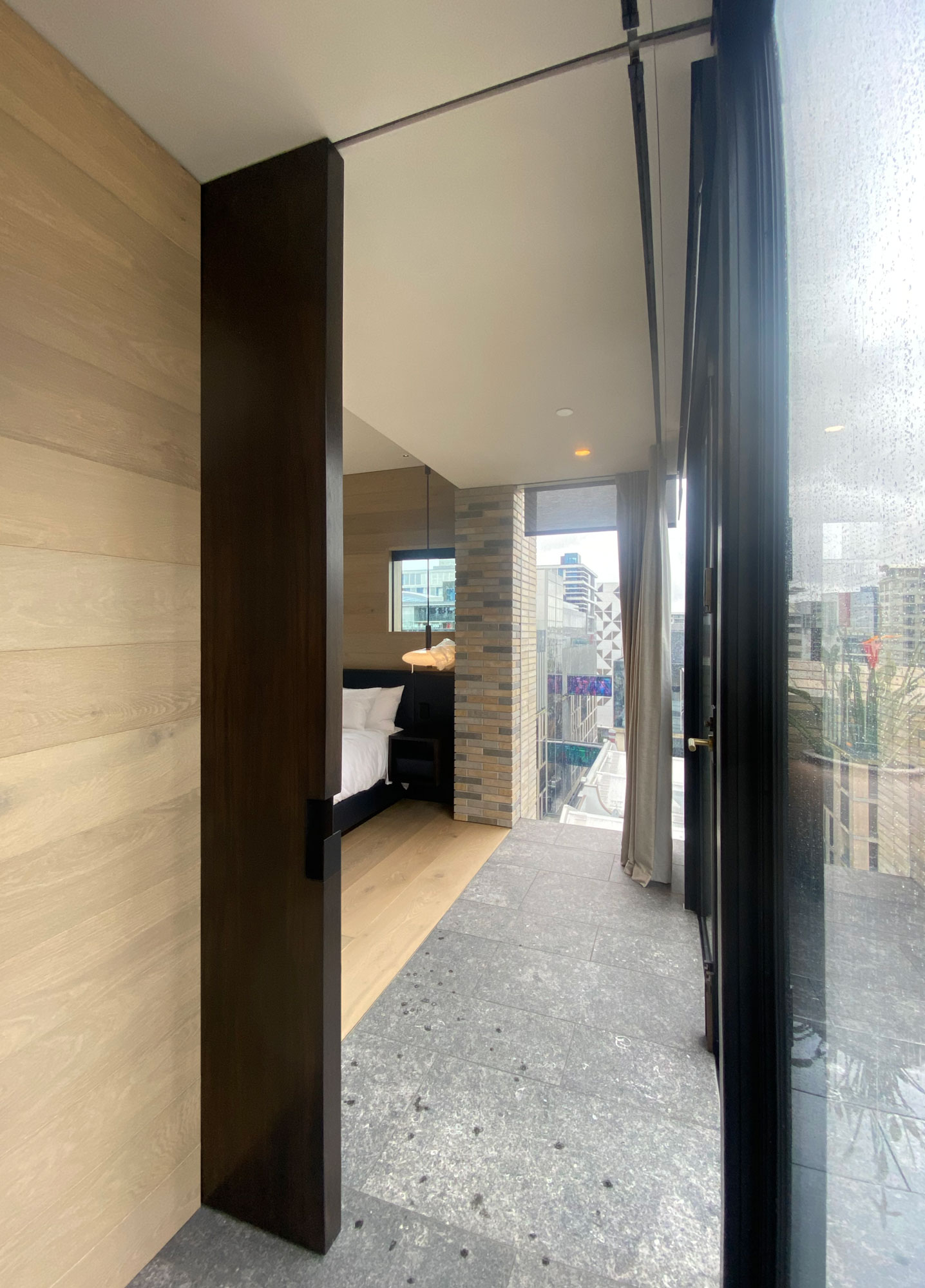

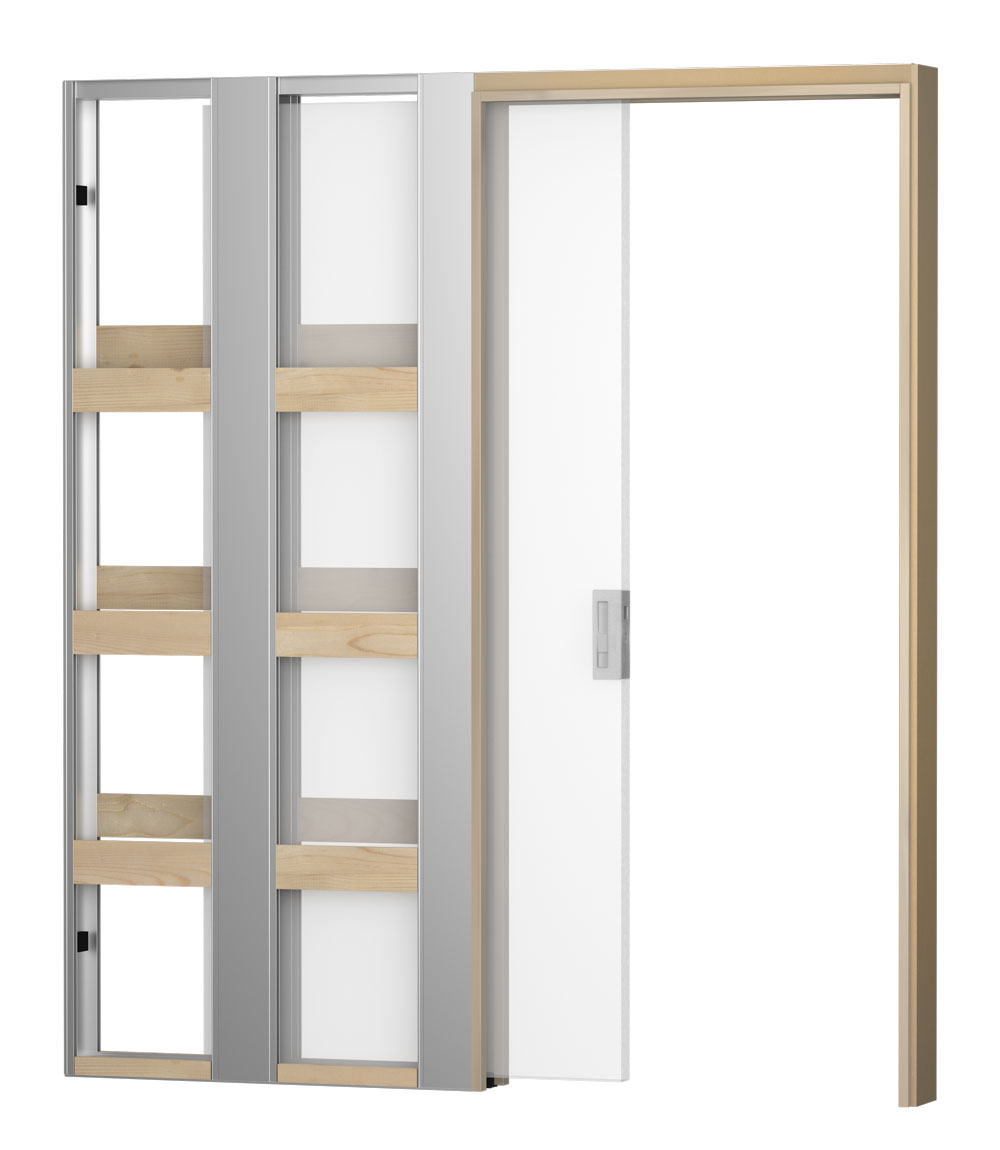

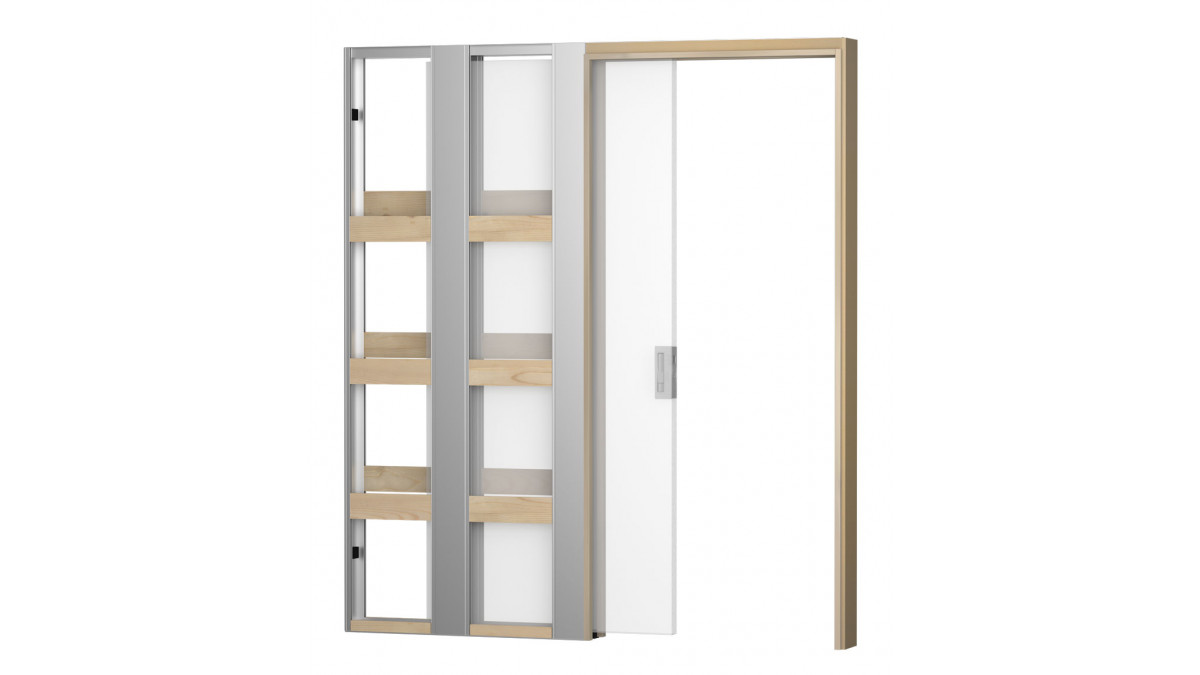

CS Ultimate is a heavy duty cavity sliding door system designed for higher, wider, thicker and heavier doors. CS For Doors customise the timber frame jambs to suit the thickness door specified (from 10mm glass to 88mm thick timber door leaf). Should the door ever bow, the cavity jambs may be removed and scribed to suit the bow in the door.

Heavier duty stainless steel carriages are standard on these units, increasing the maximum door weight up to 240kg per wheel set. A number of detail options are available for customising this unit.

An aluminium jamb option is also available and this suits a minimum thickness door leaf of 65mm.

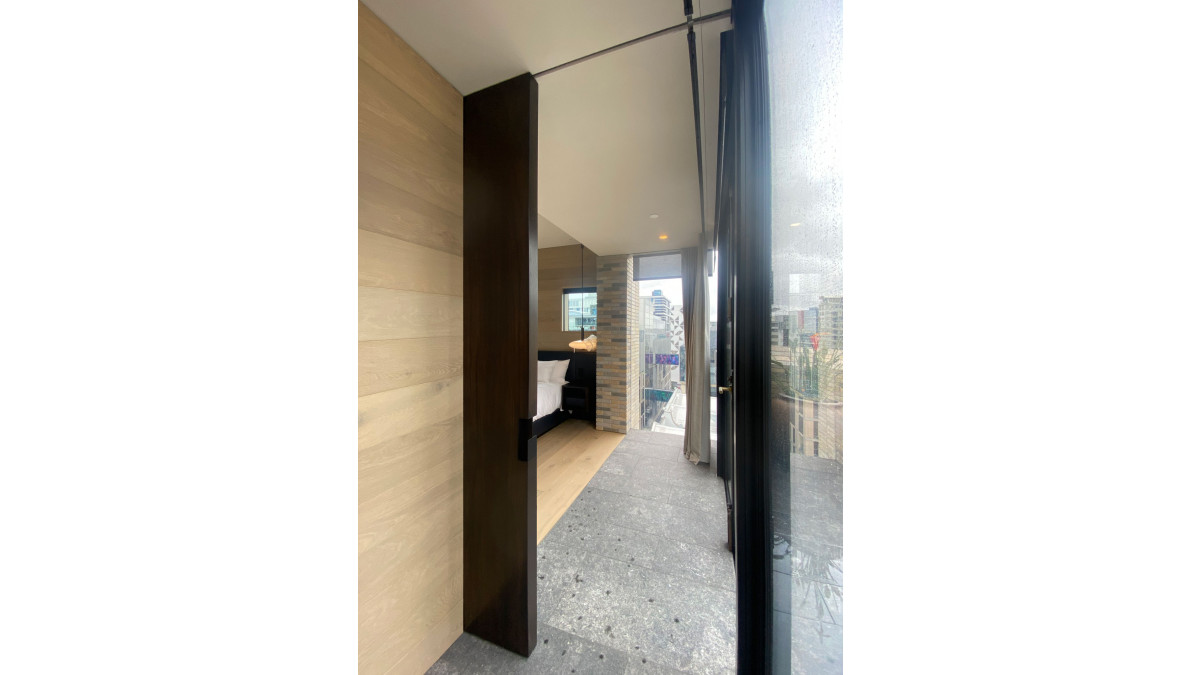

Operation: Choose from standard M8 (240kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open and close (50kg).

Key Features
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Frame jambs may be removed to scribe shape of bowed doors and re-fixed (timber only)
  • Supplied fully assembled for on-site installation, with or without a door fitted
  • Split jamb component made with heavier duty aluminium section than standard
  • Door cannot jump off the track
  • Available as Single or Bi-Parting (double) units
  • Fits into a standard thickness wall (140mm framing)
  • Steel inserts available to reinforce the track and split jamb
  • No visible floor guides

Detail Options

Incorporate any of the following architectural detail options with the CS Ultimate cavity slider to create a specific look or to provide a unique solution.

  • Full-Height
  • Corner Meeting
  • No Closing Jamb
  • Shadow Line
  • Square Stop
  • Extra-Wide Jambs
  • Hi-Impact Jambs
  • Protrude 100

Maximum size 3500 high x 4500mm wide.

Categories
Cavity Sliders
NZ Made
NZ Made
Scope of Use

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings.

  • Designed for higher, wider, thicker and heavier doors
  • Customised the timber frame jambs to suit the thickness door specified — from 10mm glass to 88mm thick timber door leaf
Limitations on Use
  • Maximum door weight up to 240kg per wheel set
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors.
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exitways
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door cannot jump off the track
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
BRANZ Appraisal

900 [2020]

Maintenance Instructions
Warranty
Additional Information
