Fascia 140 N-Line
Description

When less is more, the 140 N-Line residential fascia will deliver a superb low profile outline to residential applications. This fascia panel is commonly used on mono pitched roofs where long barges are common. Due to its low profile it is best suited with Continuous Spouting's Chief and Quartz spouting profiles.

This product can be manufactured in Magnaflow, Alumigard, Euramax or Copper.

Key Features
  • Superb low profile outline to residential applications
  • Commonly used on mono pitched roofs where long barges are common
  • Due to its low profile Fascia 140 N-Line is best suited with Chief and Quartz spouting profiles
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Truss Series Fascia systems are intended for use as fascia and barge boards to support spouting systems, covering roof truss ends and gable ends around the roof perimeter on timber trussed residential buildings.

  • Superb low profile outline to residential applications
  • Commonly used on mono pitched roofs where long barges are common
  • Due to its low profile Fascia 140 N-Line is best suited with Chief and Quartz spouting profiles
  • This product can be manufactured in Magnaflow, Alumigard, Euramax or Copper
  • This profile is available in Auckland, Taranaki, Manawatu and Whanganui
Limitations on Use
  • Please note that swages might not be present when manufactured in Alumigard, Euramax or Copper
Statement of Building Code Compliance
  • Test information is available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of fascia systems, indicate that provided the product use and maintenance is in line with the guidelines contained in the current literature.  Continuous Group truss series fascia systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products listed above are fit for purpose in environment Zone B and C*.  they may be used in environment Zone D subject to a pre-approval warranty application based on site address*
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section 4, Durability from NZS3604:2011
Documents
140 N-Line Fascia Specification
BPIS - 140 N-Line pre-painted metal fascia system

BPIR:14NPM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Material Compatibility — Material Selection
Environmental Information
140 N-Line Construction Detail & Common Drop Heights
Care and Maintenance
Warranty
140 N-Line Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

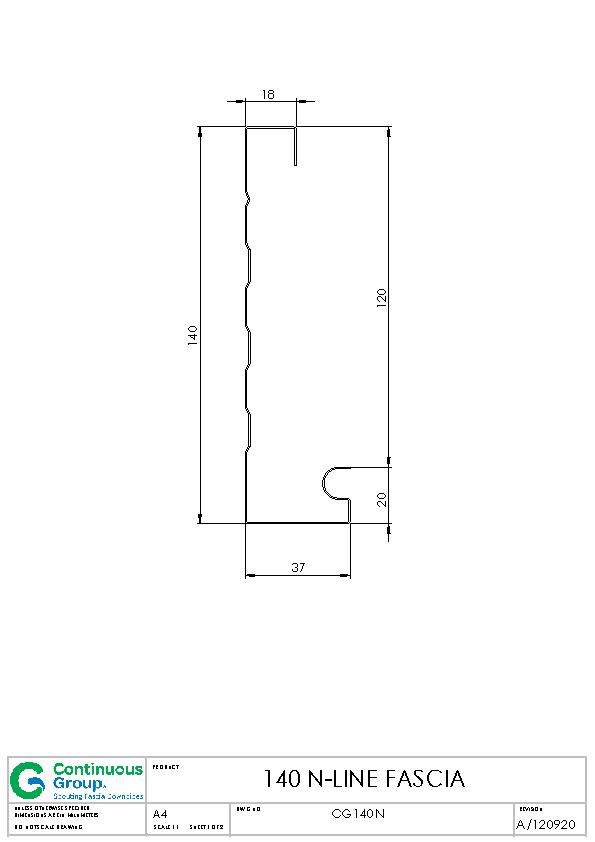

Fascia 140mm N-Line Detail
