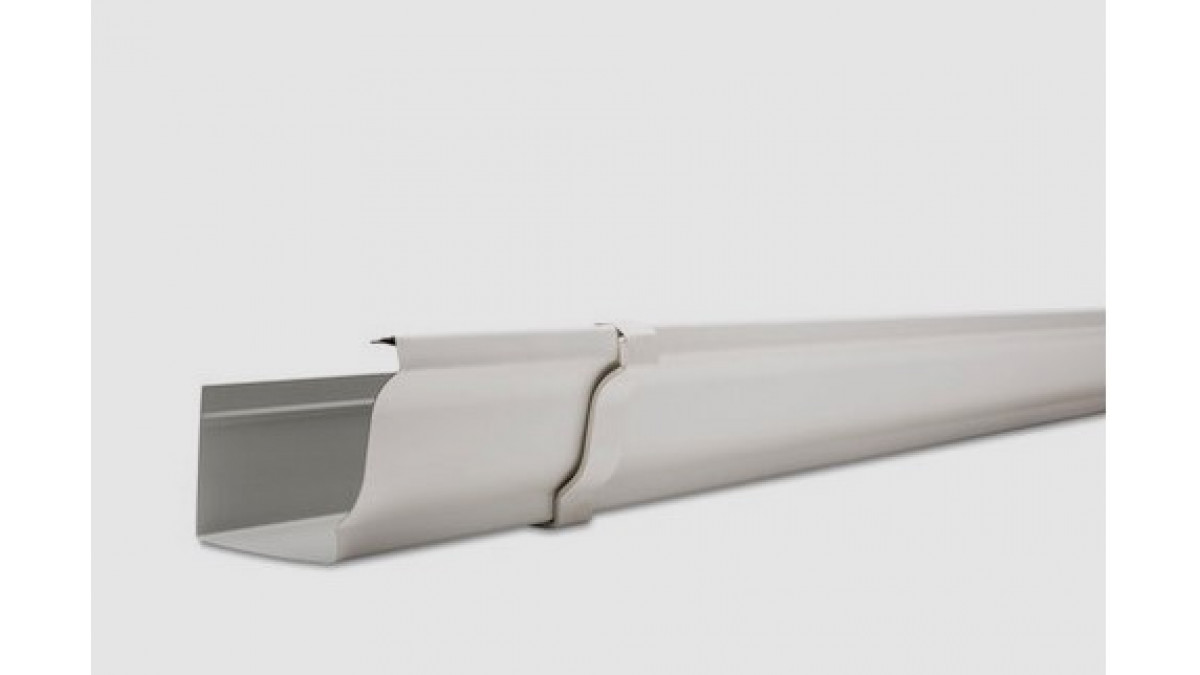

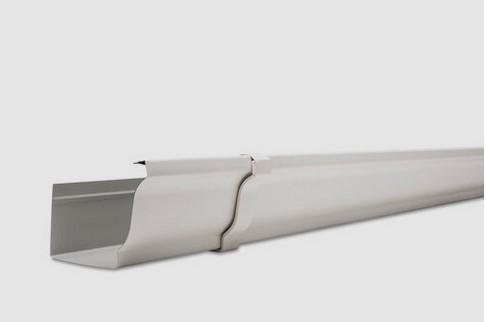

Spouting Chief 125mm (Old Gothic)
Description

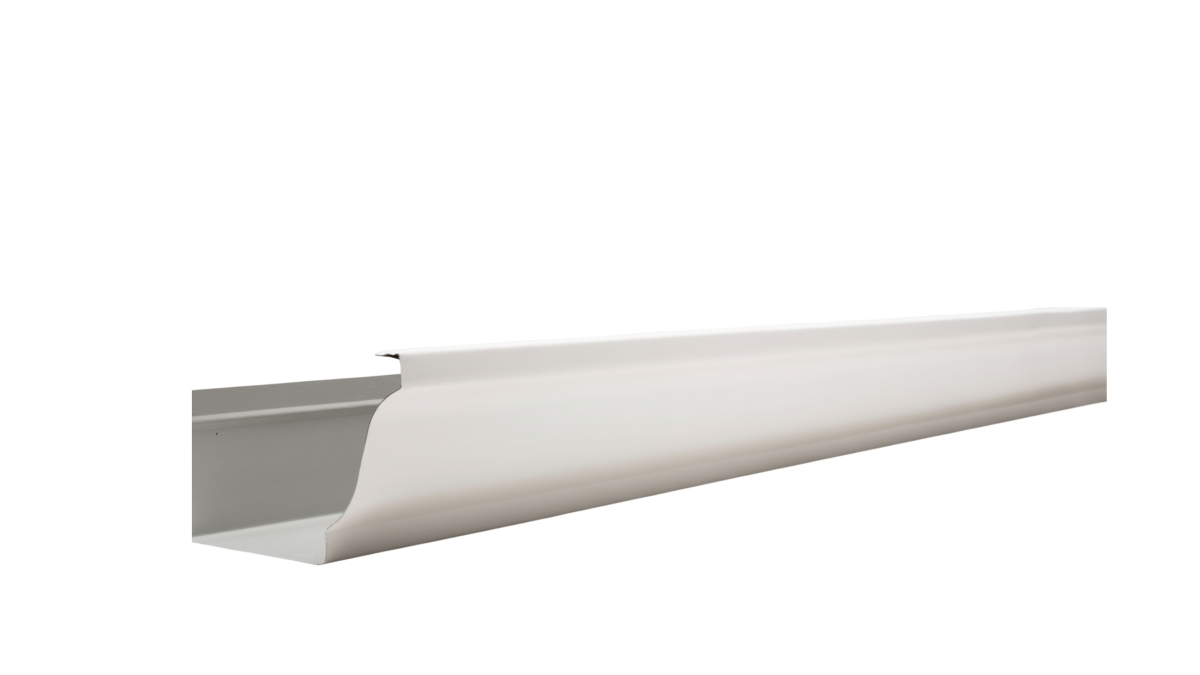

One of Continuous Group's favourites, the Chief profile (previously called 125 OG) features a colonial design style, which used to be referred to as “Old Gothic” (OG) or Classic. The smart lines that define this continuous spouting profile are suitable for any residential application.  This profile can be can be run in the following material, Magnaflow, Alumigard, Euramax or Copper depending on the environment.






Key Features
  • On larger builds consider specifying Continuous Group's Chief profile on dormers, bay windows, pool houses and small out buildings, whilst using the identical larger profile ‘Big Chief’ on larger roof areas and main residences

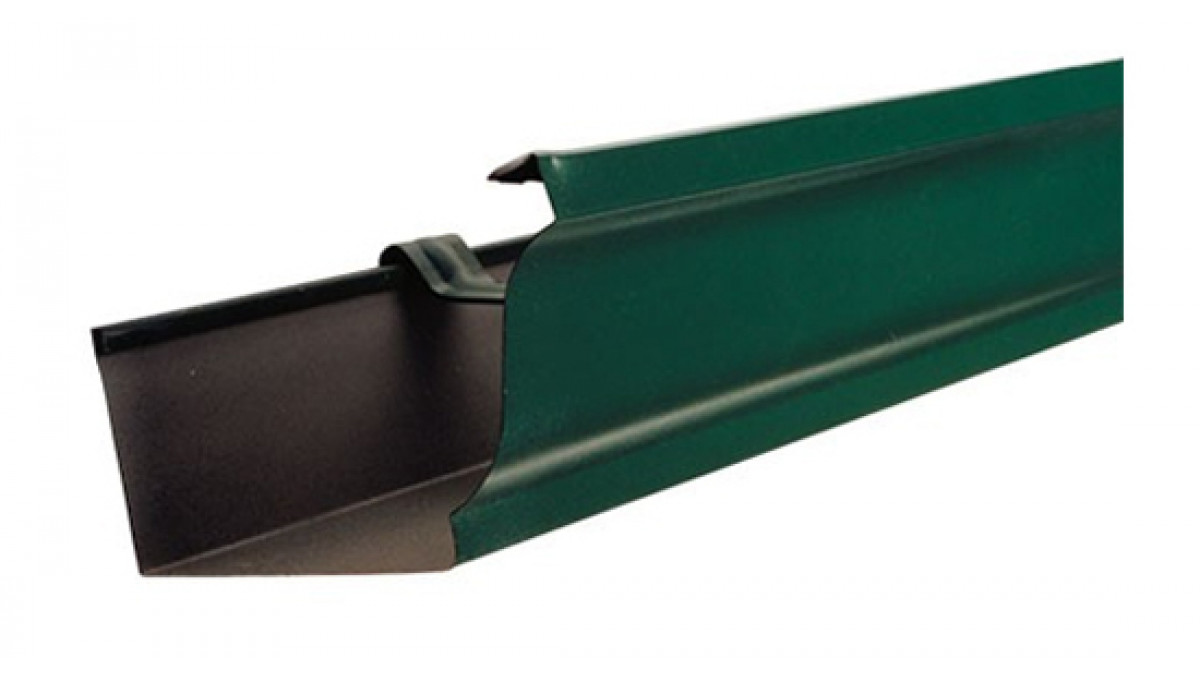

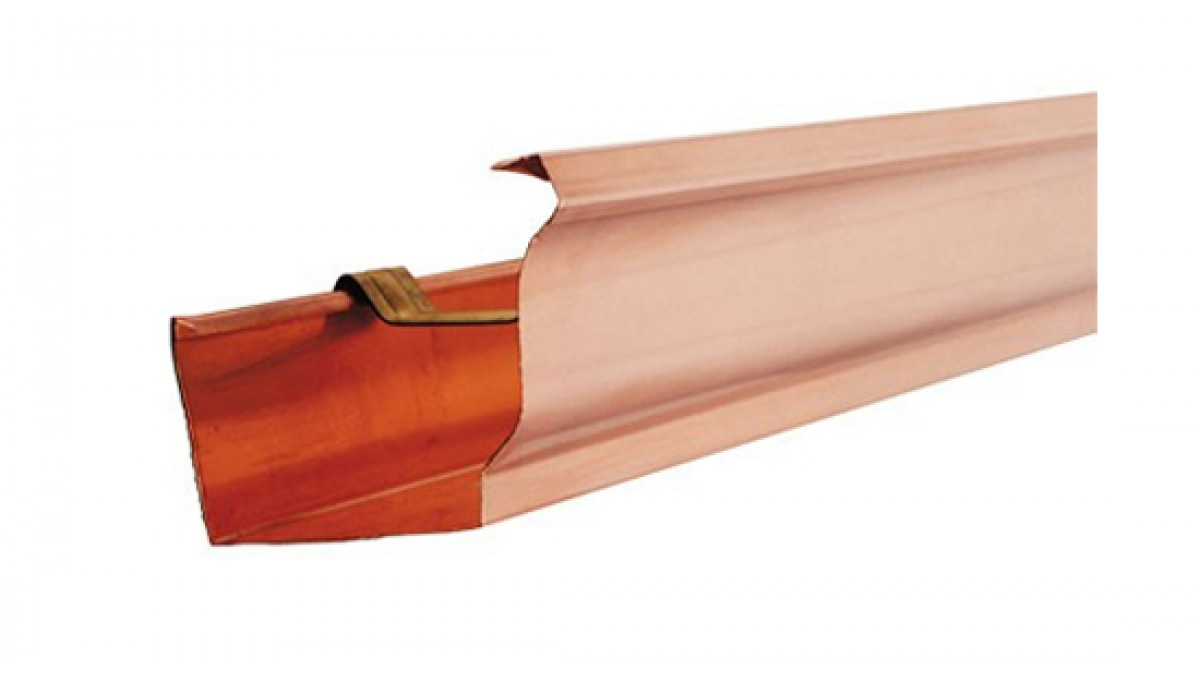

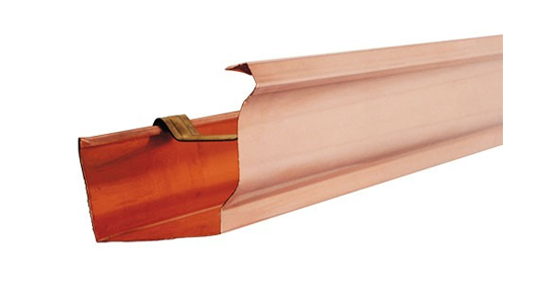

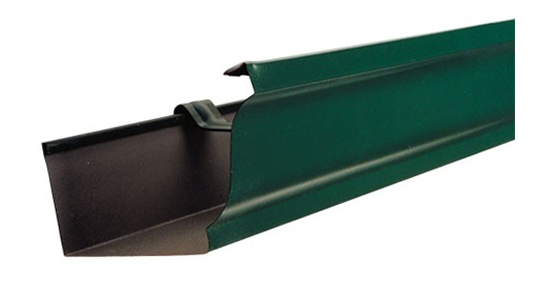

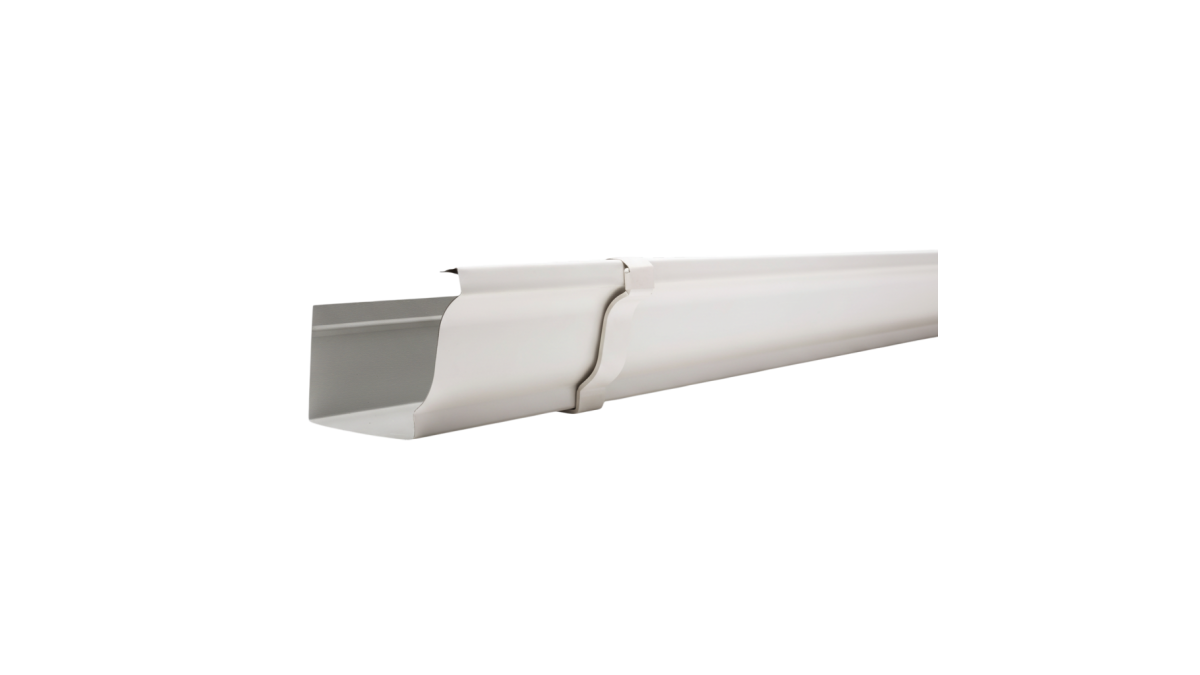

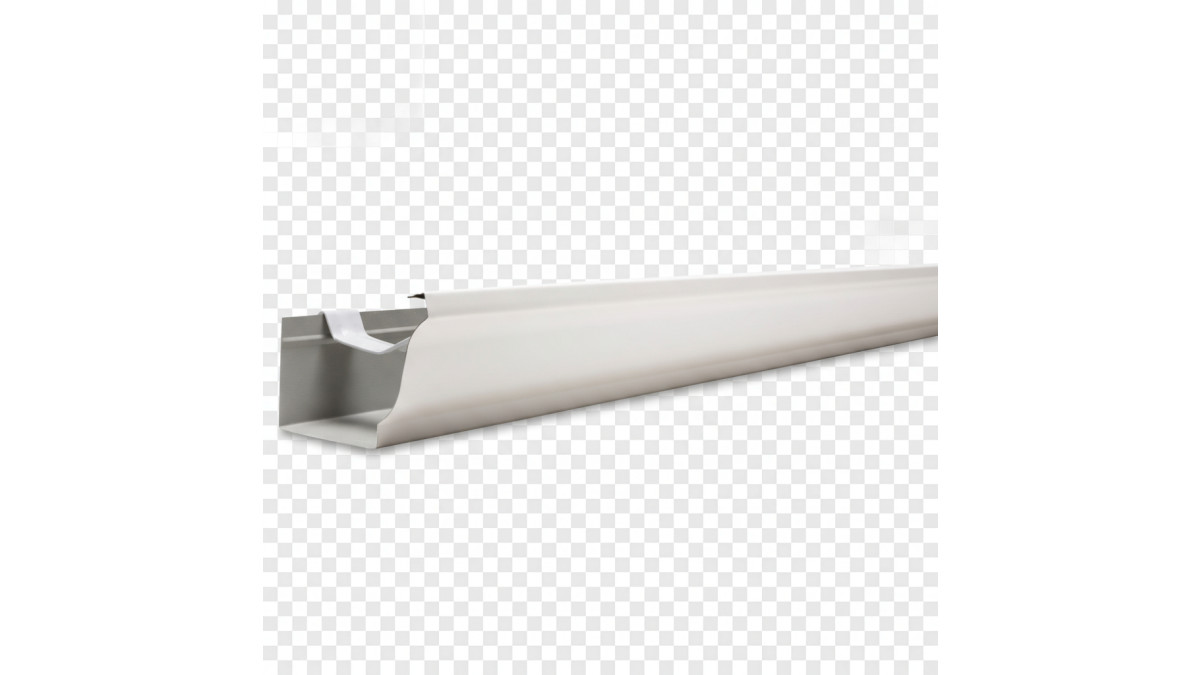

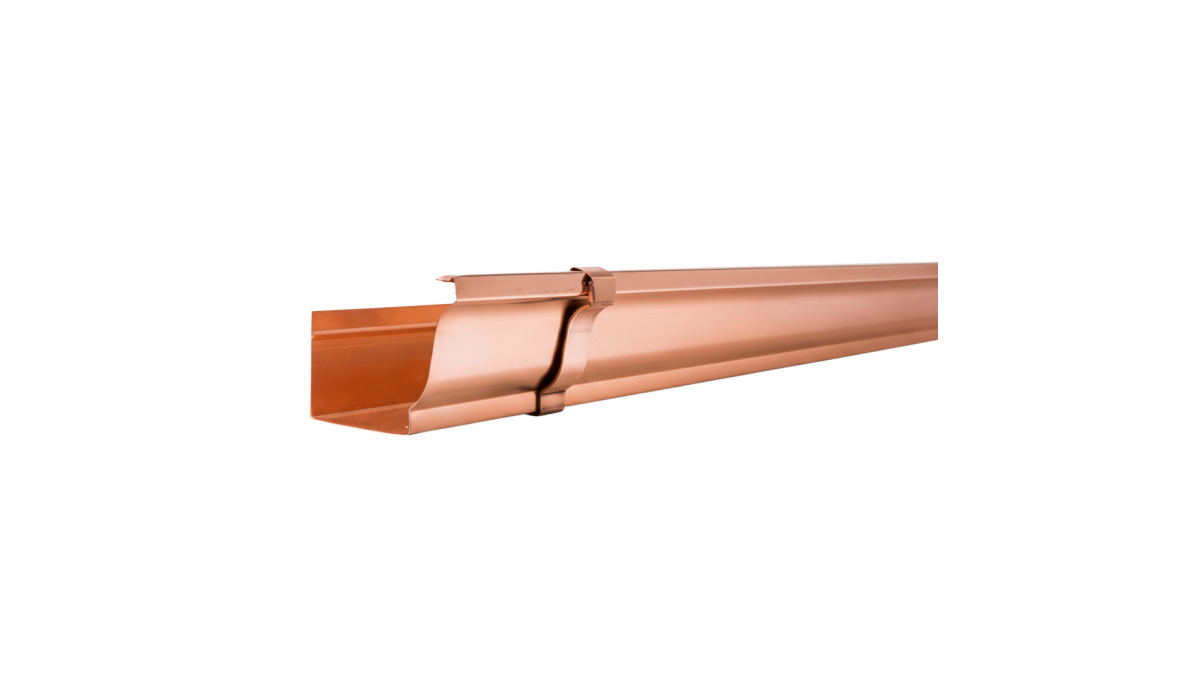

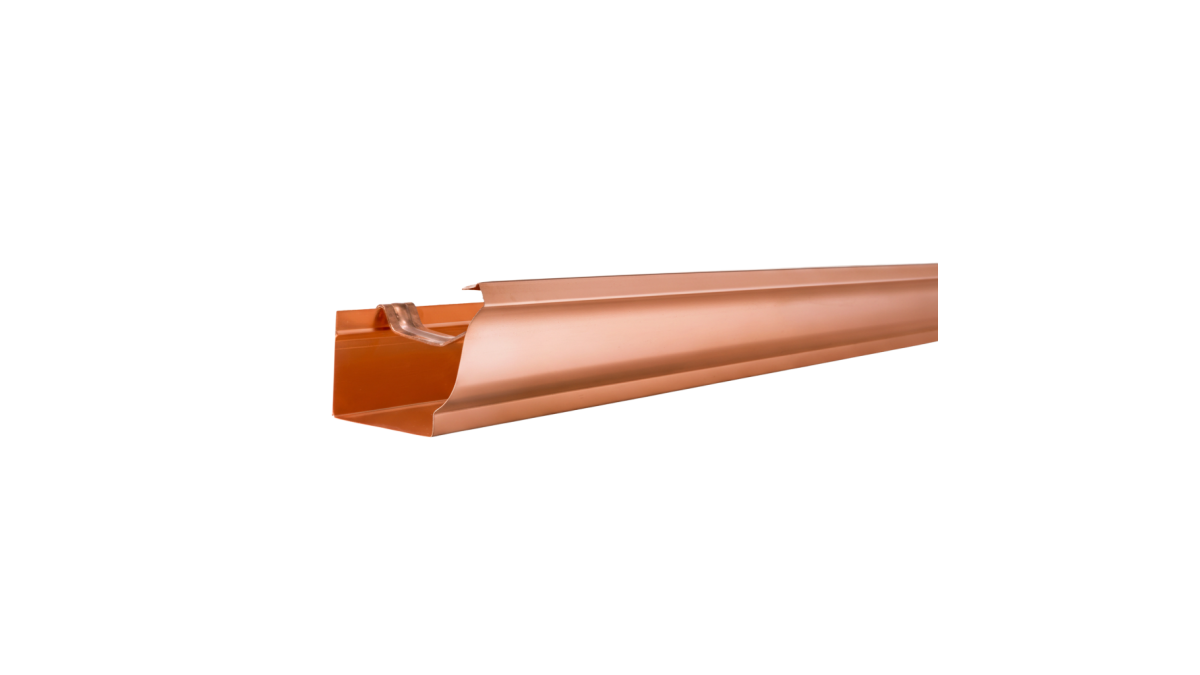

  • Option of either internal and external brackets for both colorcote or copper spouting
  • When installing internal or external brackets on Magnaflow, Alumigard or Euramax spouting, all brackets are manufactured in aluminium and powdercoated
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are intended to collect and channel water that runs off a roof.  It is intended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope).

  • Maximum cross sectional area 6458mm²
  • Effective cross section with 10mm freeboard 5412mm²
  • Flow capacity 74 Litres/minute
  • Minimum downpipe cross section 3215mm²
  • Available throughout New Zealand.
Limitations on Use

On larger builds consider specifying Continuous Group's Chief profile on dormers, bay windows, pool houses and small out buildings, whilst using the identical larger profile ‘Big Chief’ on larger roof areas and main residences.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.

*In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, "Durability" from NZS3604:2011.





Documents

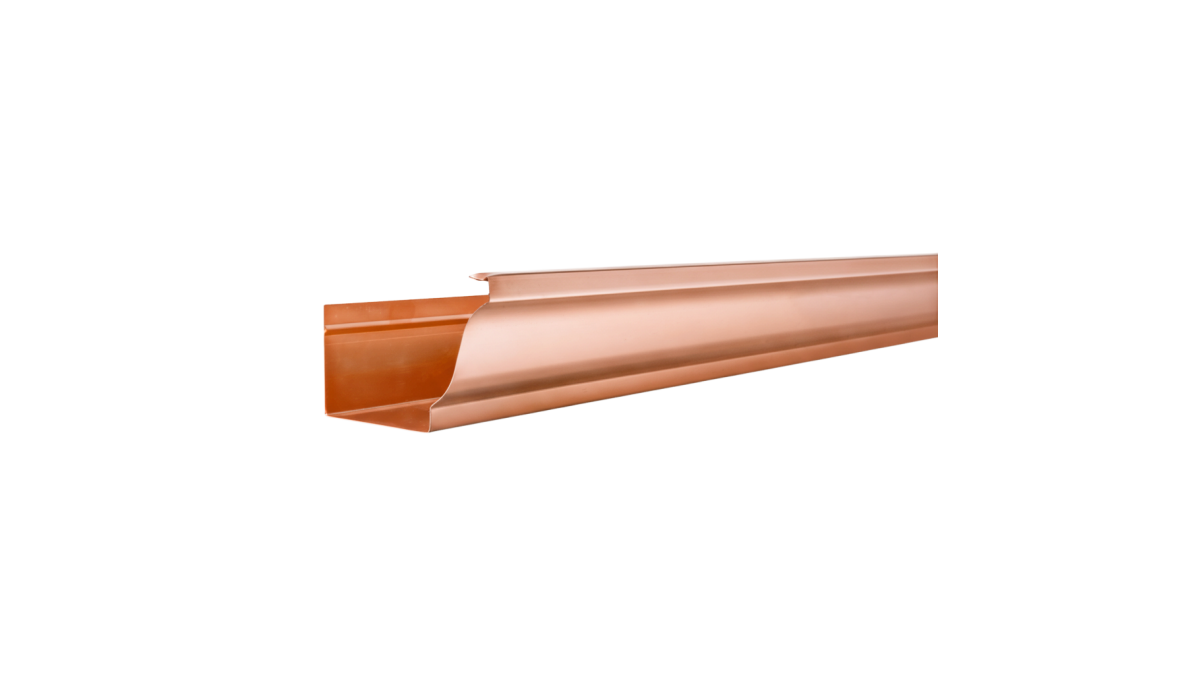

BPIS - Chief copper spouting system

BPIR:CHICU-SYS:2023.v1

BPIS - Chief pre-painted metal spouting system

BPIR:CHIPM-SYS:2023.v1

Chief Specifications
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Material Compatibility — Material Selection
Environmental Information
Installation and Operation
Care and Maintenance
Warranty
Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

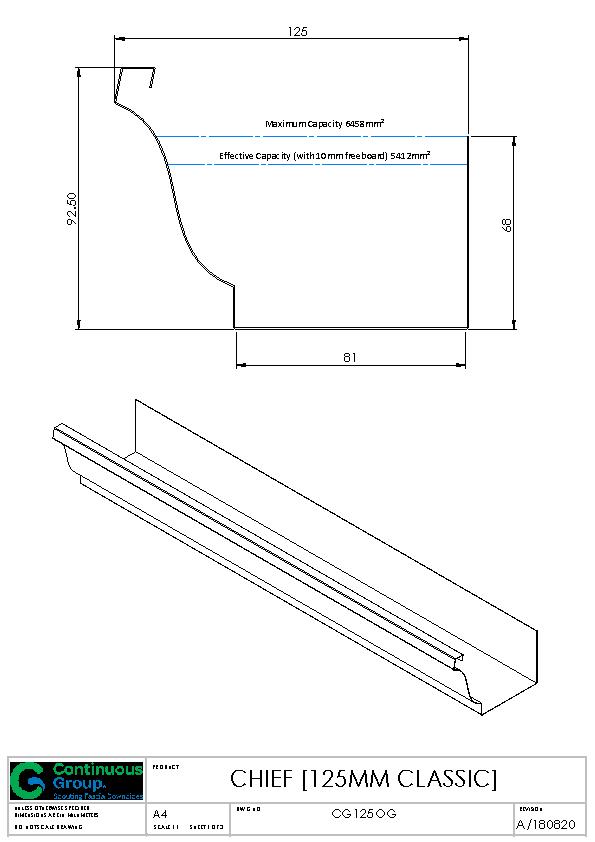

Spouting 125mm Old Gothic Detail
Spouting Chief 125mm Old Gothic
