Spouting Halo 125mm Half Round
Description

Like its big brother, Halo 150, the Halo 125mm Half Round profile offers outstanding finish and attention to detail, and is consistently selected for premium residential builds by architects and specifiers, as it provides stunning aesthetics in conjunction with excellent performance. This profile can be can be run in either Magnaflow or Copper only depending on the environment.

The Halo 125 will only provide limited roof edge coverage. For low pitched roofs and/or roofs with heavy edge profiles, the Halo 150 or Halo 200 Half Round profile should be considered.

Key Features
  • Two external bracket options are available
  • Aluminium powdercoated and Brass Bracket available only
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are intended to collect and channel water that runs off a roof.  It is intended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope).

  • Available throughout New Zealand.
  • Maximum cross sectional area 5200mm2
  • Effective cross section with 10mm freeboard 4050mm2
  • Flow capacity 52 Litres/minute
  • Minimum downpipe cross section 3215mm2
Limitations on Use

The Halo 125 will only provide limited roof edge coverage. For low pitched roofs and/or roofs with heavy edge profiles, the Halo 150 or Halo 200 half round profile should be considered.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
BPIS - Halo 125mm copper spouting system

BPIR:H12CU-SYS:2023.v1

BPIS - Halo 125mm pre-painted metal fascia system

BPIR:H12PM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Halo 125 Half Round Specifications
Material Compatibility — Material Selection
Environmental Information
Installation and Operation
Care and Maintenance
Warranty
Halo 125 Half Round Brochure
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

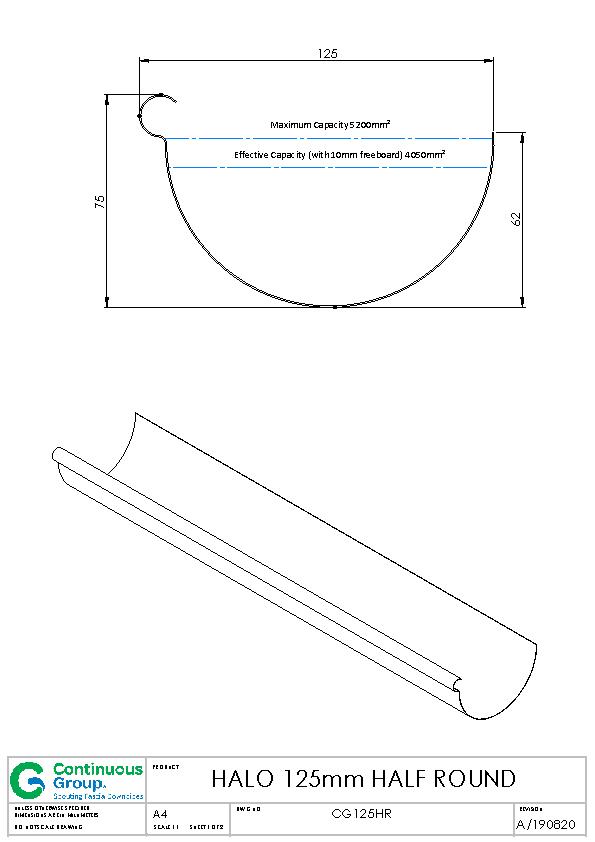

Spouting Halo 125mm Half Round Detail
Spouting Halo 125mm Half Round Detail
Spouting Halo 125mm Half Round Detail
