Downpipe FS-100mm
Description

The FS-100 downpipe provides the highest water capacity of Continuous Group's Form Series range and is perfect for large roof areas. As with the rest of the Form Series, the FS-100 is a roll-formed lock seamed downpipe. This product can be used for water collection, but can not be used where a water tank head height is higher than the top of the drain. Use Ezi-Flo Series downpipe where there is a charged/sealed system required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

FS-100 can be run in Magnaflow, Alumigard, Euramax and Copper.

FS-100 downpipe is available throughout New Zealand.

Key Features

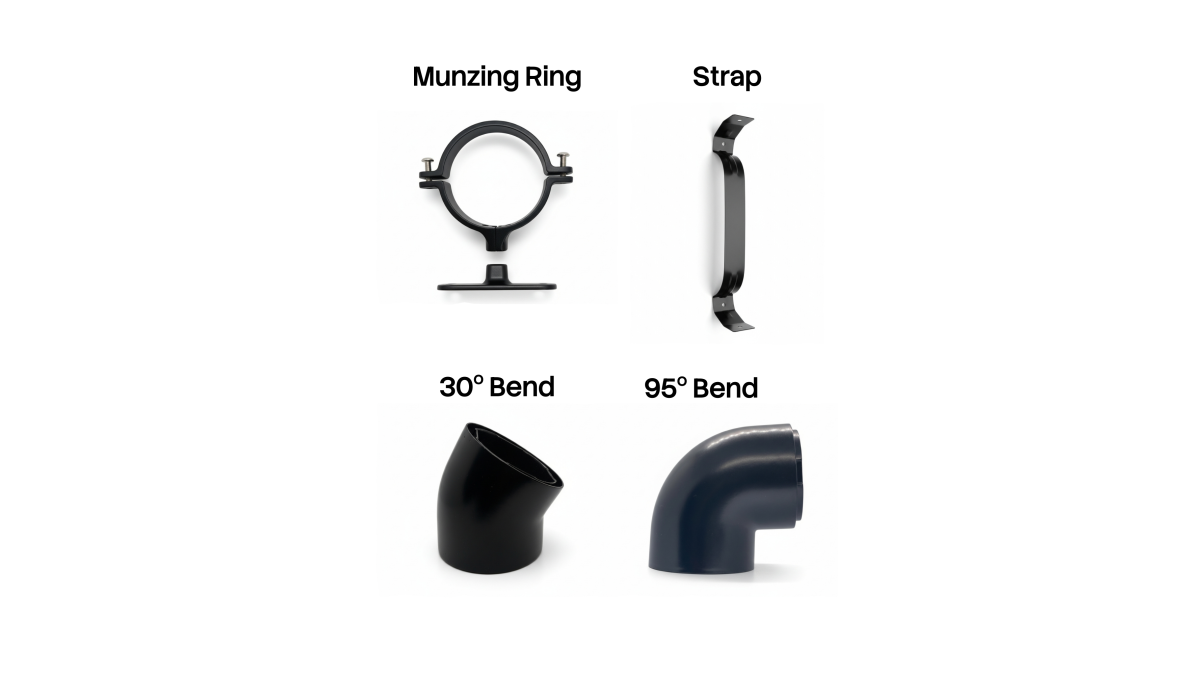

FS-100 (100mm downpipe) comes with a number of different components for different applications:

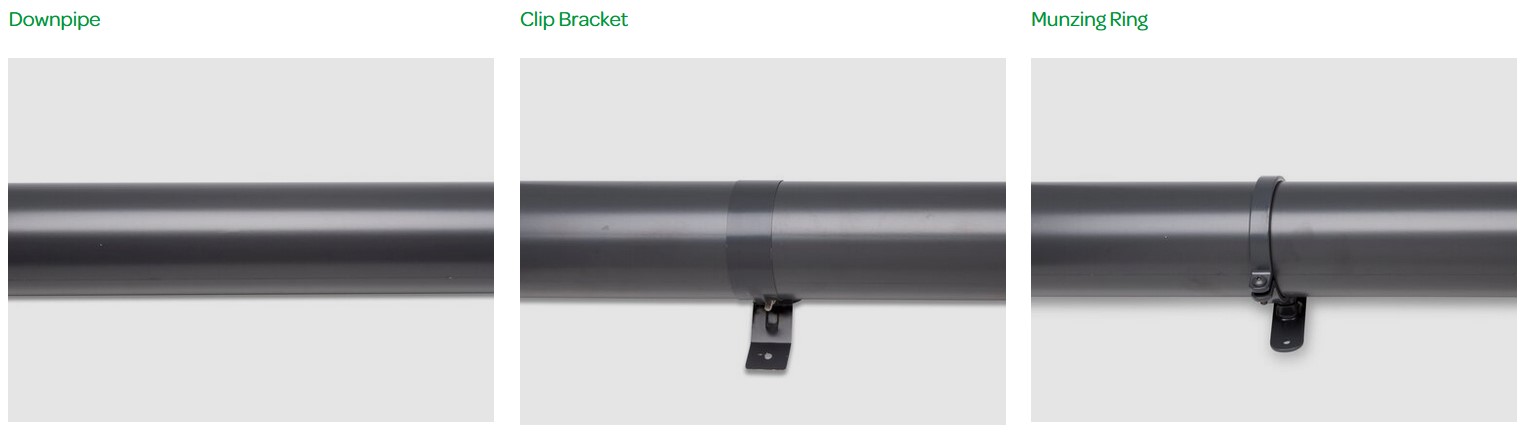

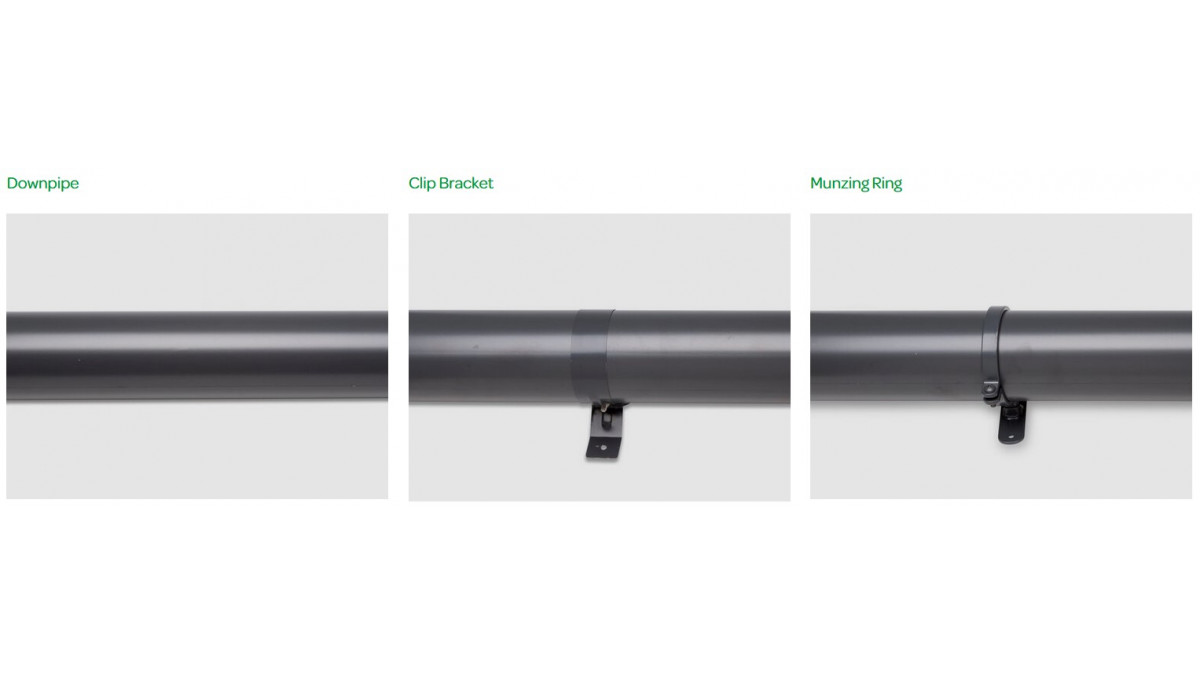

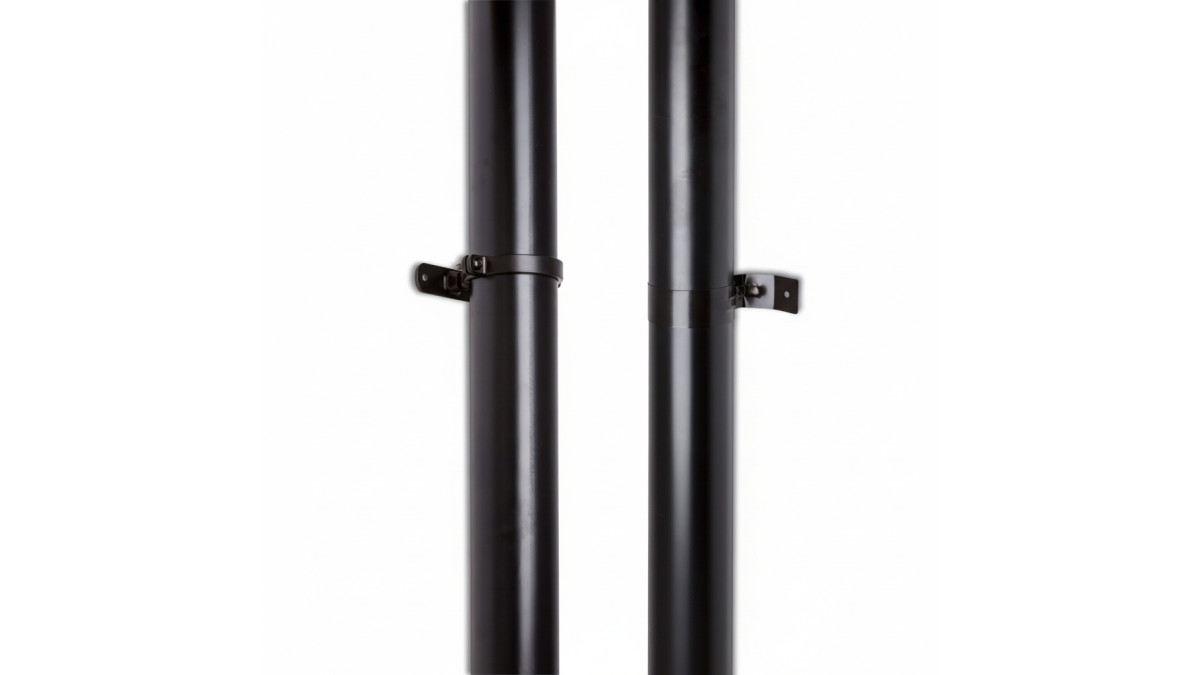

  • Clips or Munzing Rings
  • 95° bend with other degree bends being handmade
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Perfect for large roof areas
  • Available throughout New Zealand
  • Can be run in Magnaflow, Alumigard, Euramax and Copper
Limitations on Use

This product can be used for water collection, but can not be used where a water tank head height is higher than the top of the drain. Use Ezi-Flo Series downpipe where there is a charged/sealed system required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

Statement of Building Code Compliance



  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, "Durability" from NZS3604:2011.



Documents
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
FS Downpipe Specifications
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
FS Downpipe Brochure
CG Colour Finishes
CG Designer Colour Range
Copper
Copper Component Options
Magnaflow
