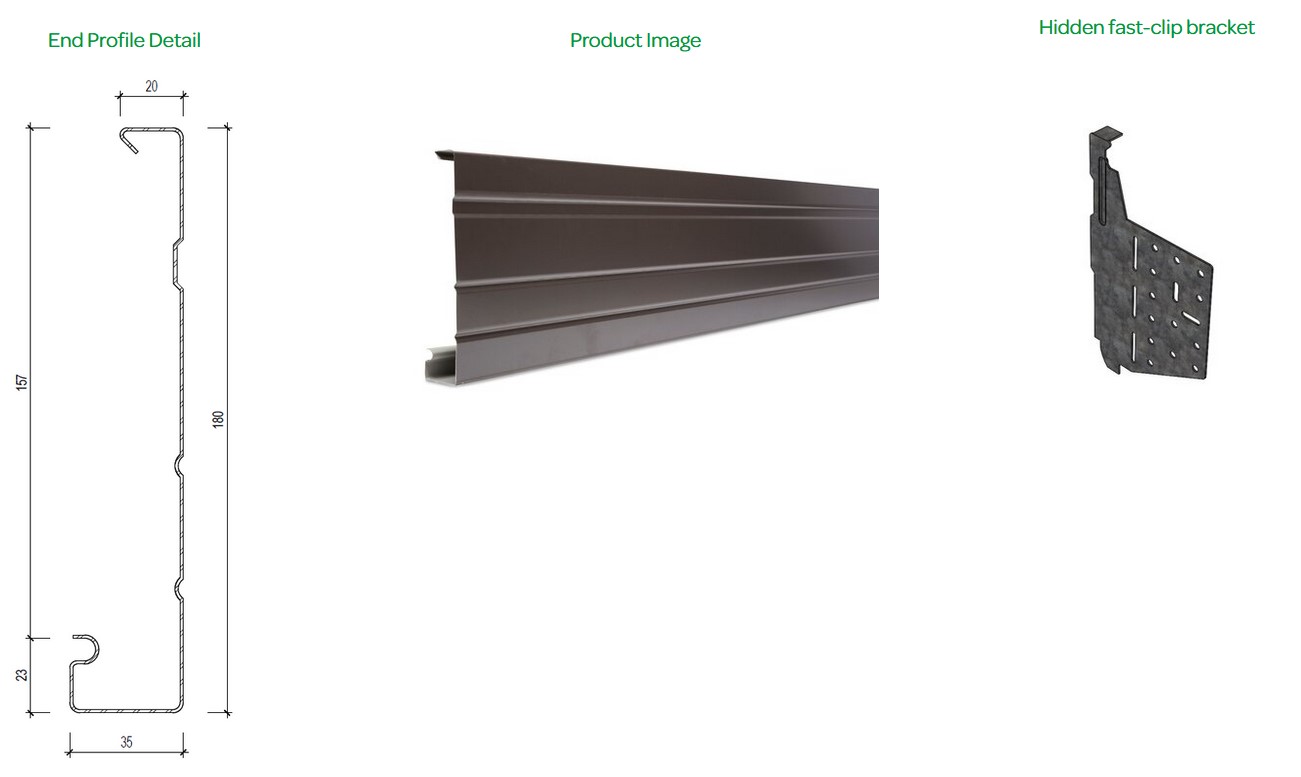

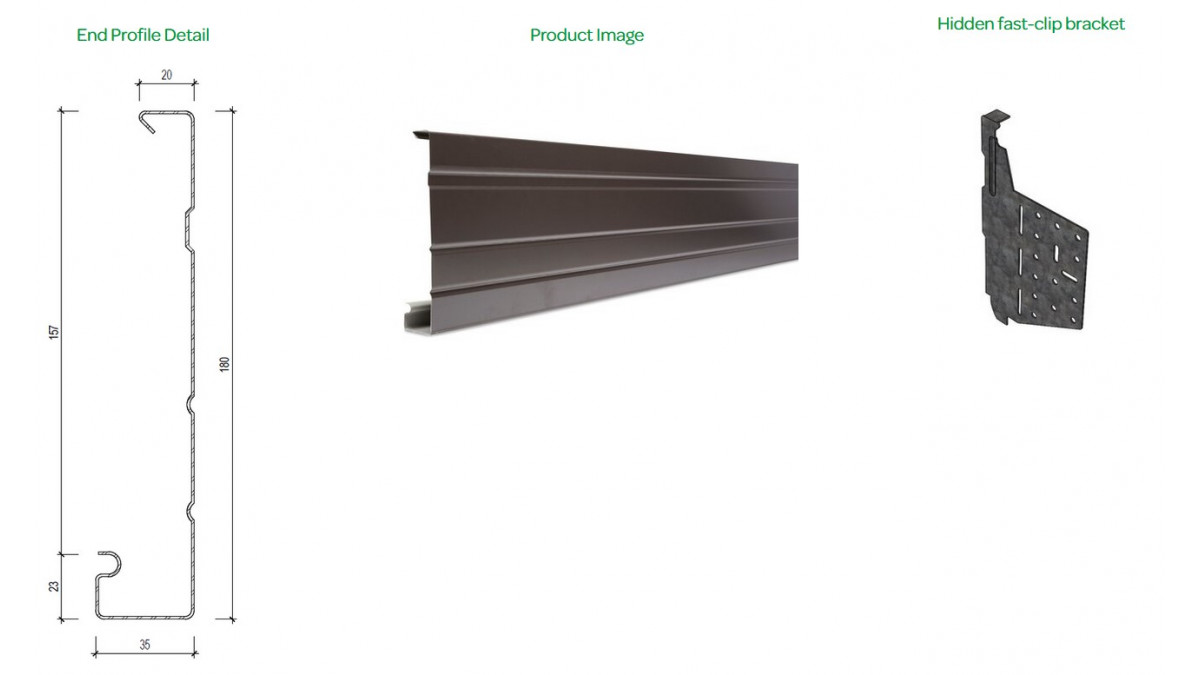

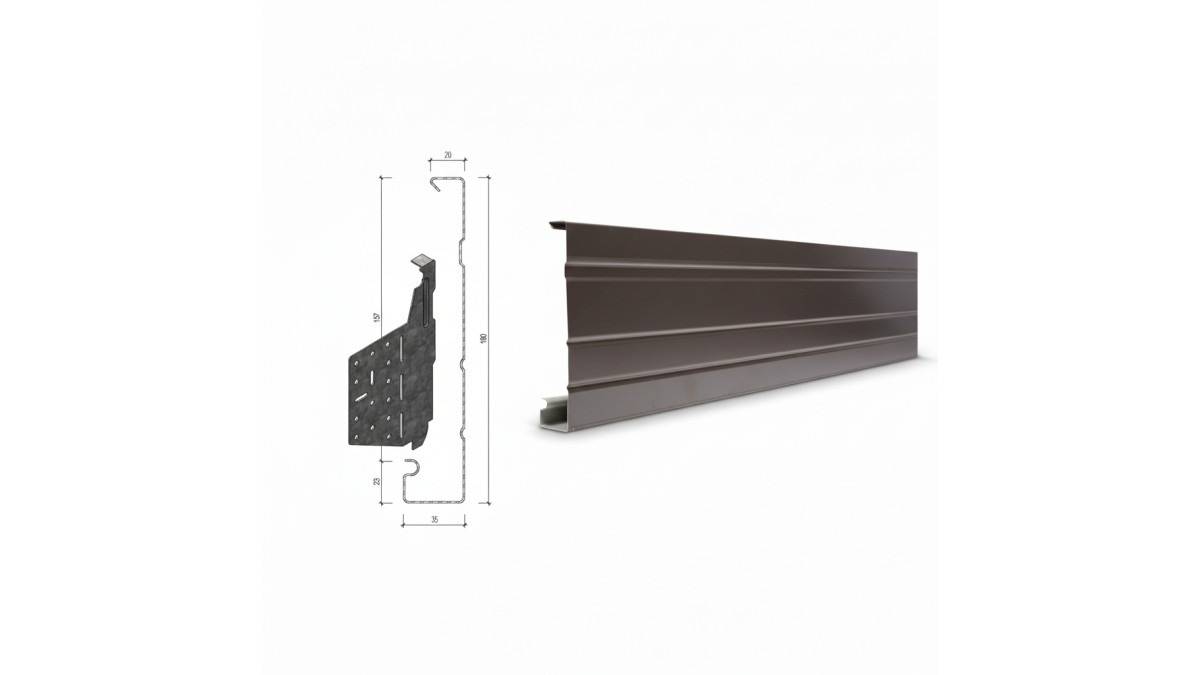

Fascia 180 S-Line
Description

180 S-line Fascia will provide a superb, low maintenance finish, with crisp, clean lines to complement most residential homes perfectly. The 180 S-Line can, of course, be colour matched to the spouting profile of the homeowner's choice or be manufactured in a different colour for contrast. 180 S-Line is compatible with most Continuous Group Rainwater systems.

This product can be manufactured in Magnaflow, Alumigard, Euramax or Copper. This profile is available in Gisborne, Hawkes Bay, Nelson, Marlborough, West Coast, Canterbury, Otago and Southland.

NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Truss Series Fascia systems are intended for use as fascia and barge boards to support spouting systems, covering roof truss ends and gable ends around the roof perimeter on timber trussed residential buildings.

  • Compatible with most Continuous Group Rainwater systems
  • Can be manufactured in Magnaflow, Alumigard, Euramax or Copper
  • Available in Gisborne, Hawkes Bay, Nelson, Marlborough, West Coast, Canterbury, Otago and Southland
Limitations on Use
  • Please note that swages might not be present when manufactured in Alumigard, Euramax or Copper
Statement of Building Code Compliance
  • Test information is available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of fascia systems, indicate that provided the product use and maintenance is in line with the guidelines contained in the current literature.  Continuous Group truss series fascia systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products listed above are fit for purpose in environment Zone B and C*.  they may be used in environment Zone D subject to a pre-approval warranty application based on site address*
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference:  Section 4, Durability from NZS3604:2011
Documents
180 S-Line Fascia Specifications
BPIS - 180 S-Line pre-painted metal fascia system

BPIR:18SPM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Material Compatibility — Material Selection
Environmental Information
180 S-Line Construction Detail and Common Drop Heights
Care and Maintenance
Warranty
180 S-Line Fascia Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

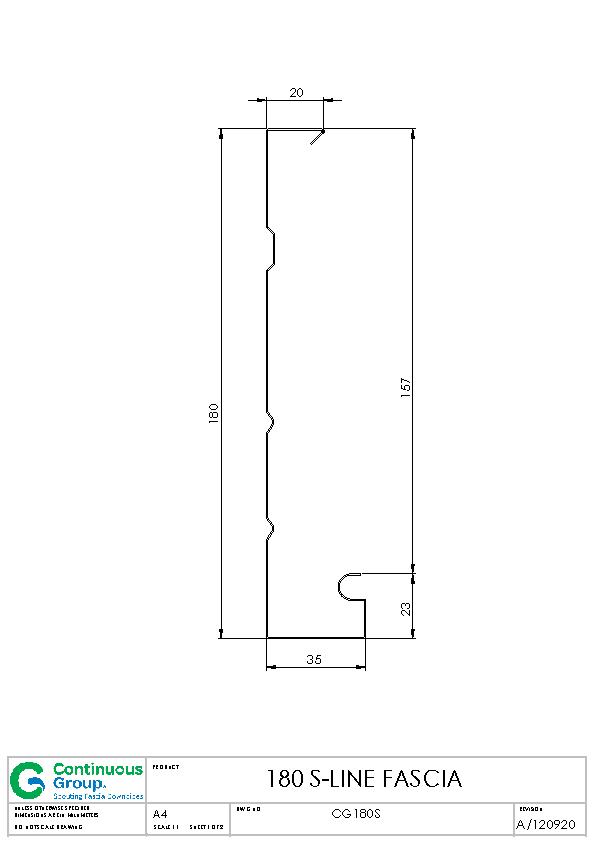

Fascia 180mm S-Line Detail
