Flush Twinline Dual Gasketed Seismic Floor Covers

Construction Specialties

All products

Product Enquiries

Description

Flush Twinline floor covers are dual gasketed flush covers ideal for areas with added thermal movement, while maintaining a flush profile. Designed for joints larger than 50.8mm.

These covers are suitable for carpet and vinyl applications, the flush design eliminates tripping hazards and offers a smooth transition for light wheeled equipment. Twinline feature a deep extruded aluminium base frame, and has four standard gasket colour options. Joint sizes range from 50.8mm up to 101.6mm (2" - 4").

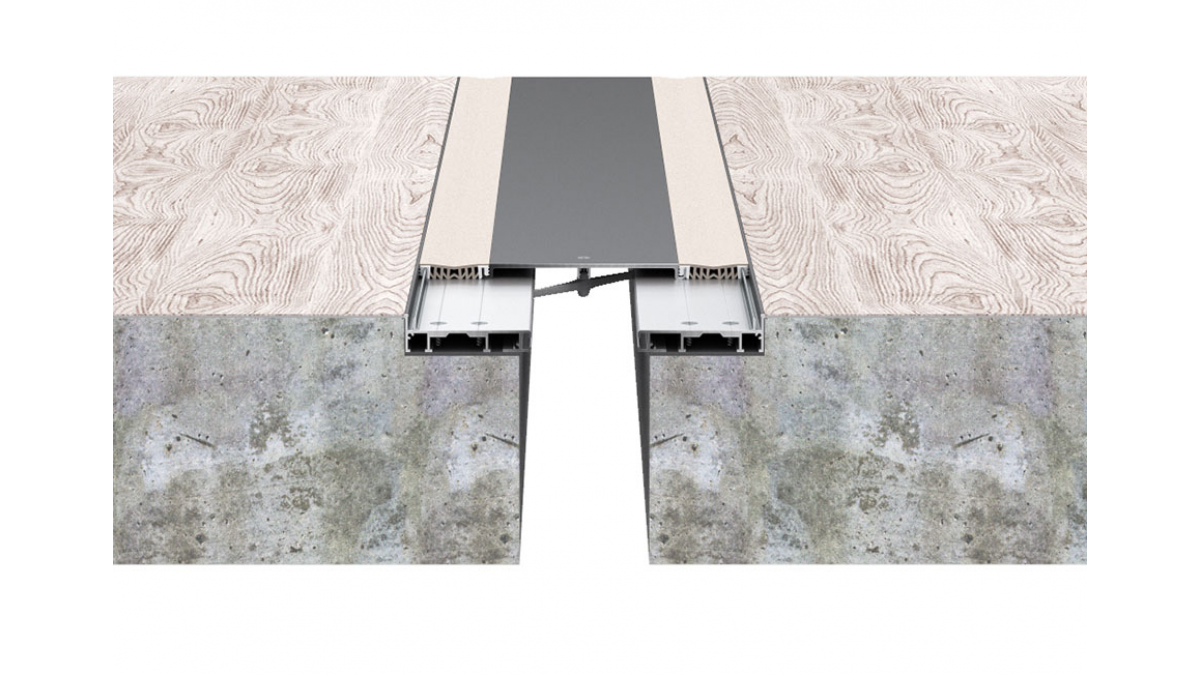

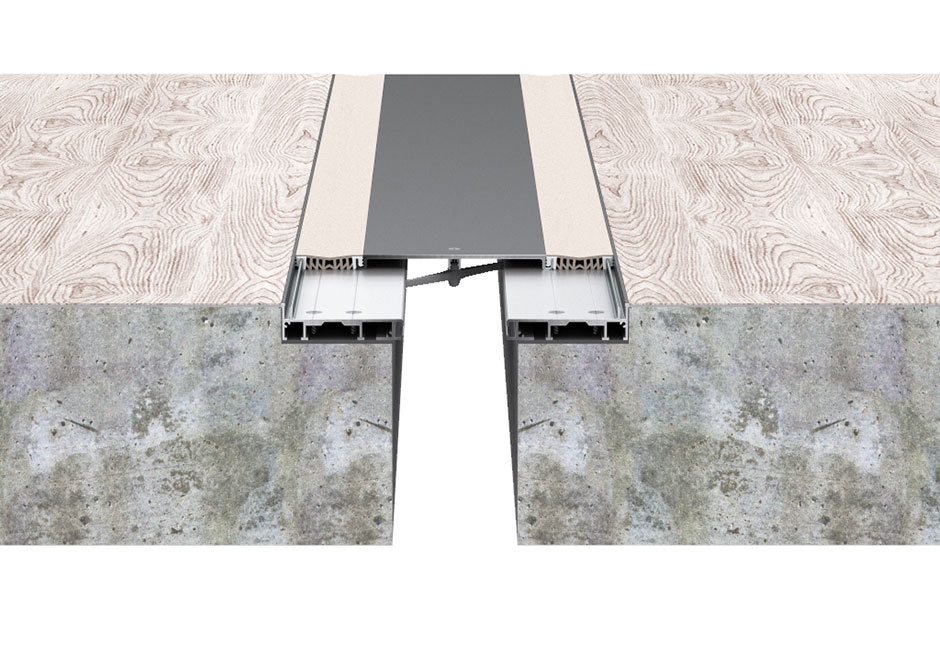

DGTP — Deep frame Gasket Twinline exposed Plate

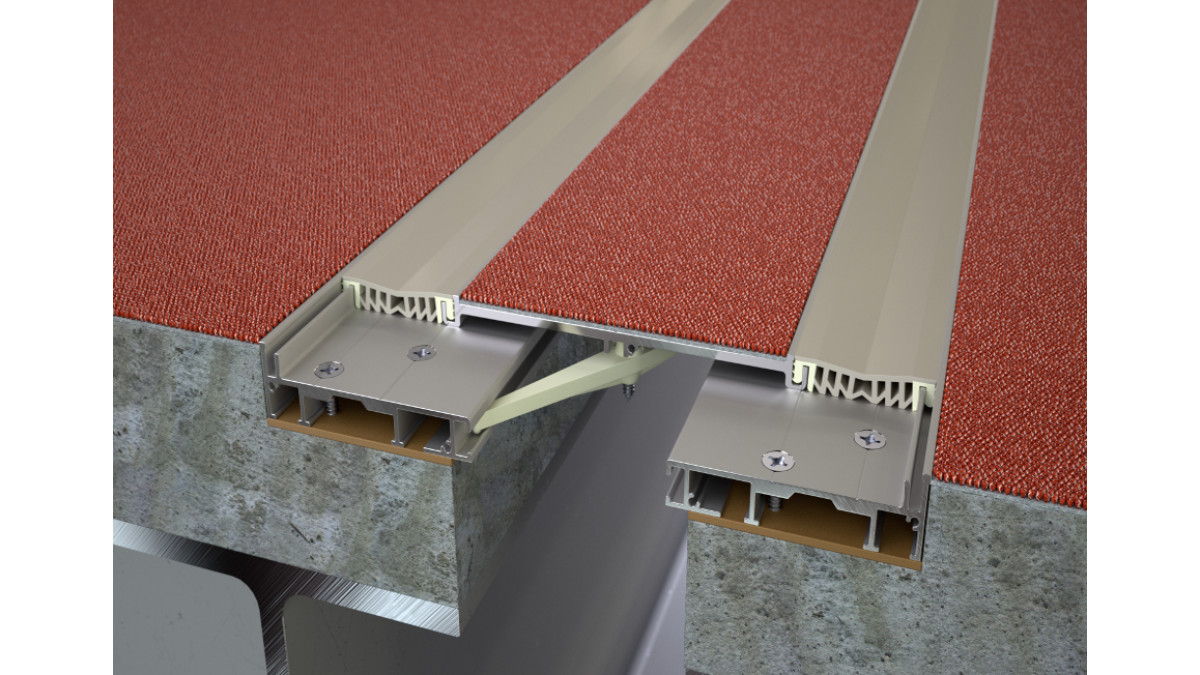

DGTR — Deep frame Gasket Twinline Recessed plate

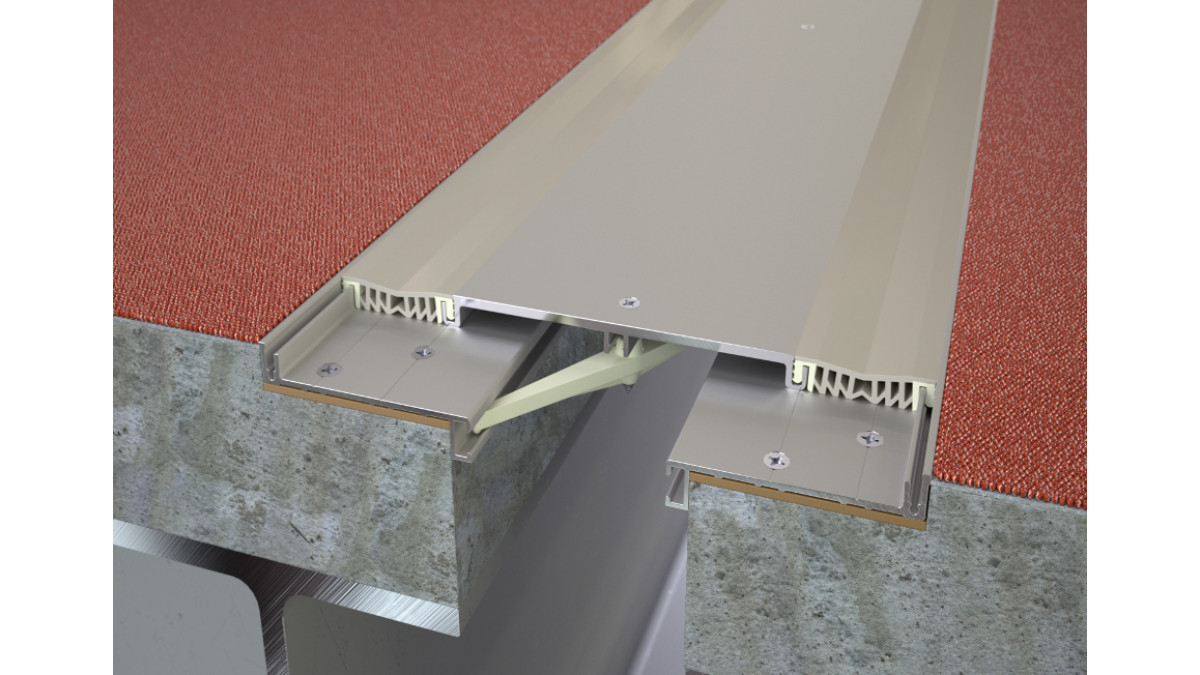

GTP — Gasket Twinline Plate

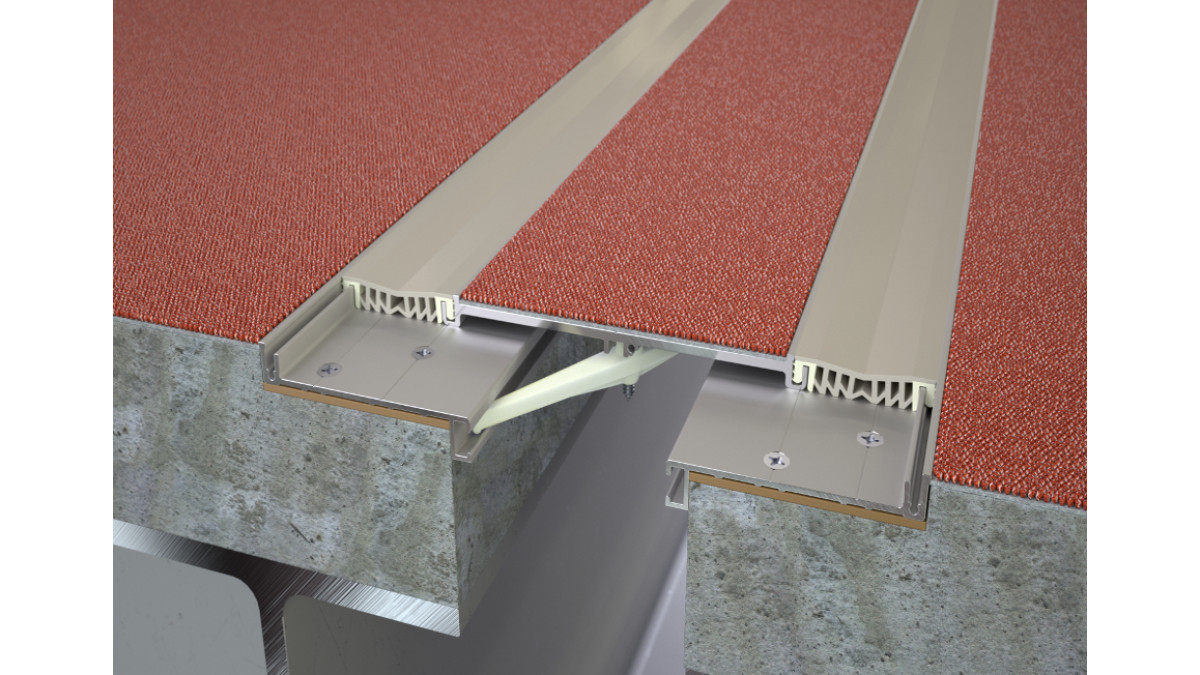

GTR — Gasket Twinline Recessed

Key Features

Minimal exposed surface
Hygienic, low trip hazard, and suitable for wheeled equipment
Sealed dual durometer gasket installation
Larger movement (> 50mm)
ISO 9001: 2000 compliant
5 year limited warranty
Available in 4 standard colours, with options for custom colour matching

Ranges

Seismic Cover: Floor Covers

Scope of Use

Ideal for interior areas with larger movement requirements where hygiene is important
Suitable for light wheeled equipment
Joint size: 50.8mm up to 101.6mm (2" - 4")
100-200% of joint width
Option of recessed cover plate accepts carpet and tile to conceal the cover in the surrounding floor

Finishes:

Carpet
Vinyl

Statement of Building Code Compliance

This product, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability
Clause F2 Hazardous Building Materials

In-Service History

Construction Specialties NZ Ltd. has been operating in New Zealand as a manufacturing distributor of the Construction Specialties range of products since 1988. Construction Specialties is a privately owned USA based, global company. Here in New Zealand, CS are privately owned and run as a wholly separate entity.

Recent / Current Projects:

NZ International Convention Centre
CCEV
Metro sports CHCH
Wellington Town Hall
Wellington Children Hospital
Wellington District Court
Wakefield Hospital
The Langlands Hotel Invercargill
Summerset group (Nationwide New Build)
Ormiston Town Centre
Cordis Hotel
55 Corinthian Drive Albany

Past Projects:

Auckland Airport Expansion
AUT and UOA University projects
Christchurch Acute Hospital
The Terrace Christchurch
UOC Christchurch
Starship Hospital

Other Performance Attributes

ISO 9001: 2000 compliant
CS Seismic and Expansion Joint Covers have been tested to ASTM E1399 / E1399M - 97(2017) Standard Test Method for Cyclic Movement and Measuring the Minimum and Maximum Joint Widths of Architectural Joint Systems

Warranty

CS Expansion Joint Covers feature a 5 year limited warranty
Installation: 2 years
