Exterior Wall Expansion Covers
Description

Flexible seals are designed for exterior applications where weather protection is critical.  These exterior wall covers are durable, and provide watertight system for all exterior applications, with joint sizes from 50.8mm and up.

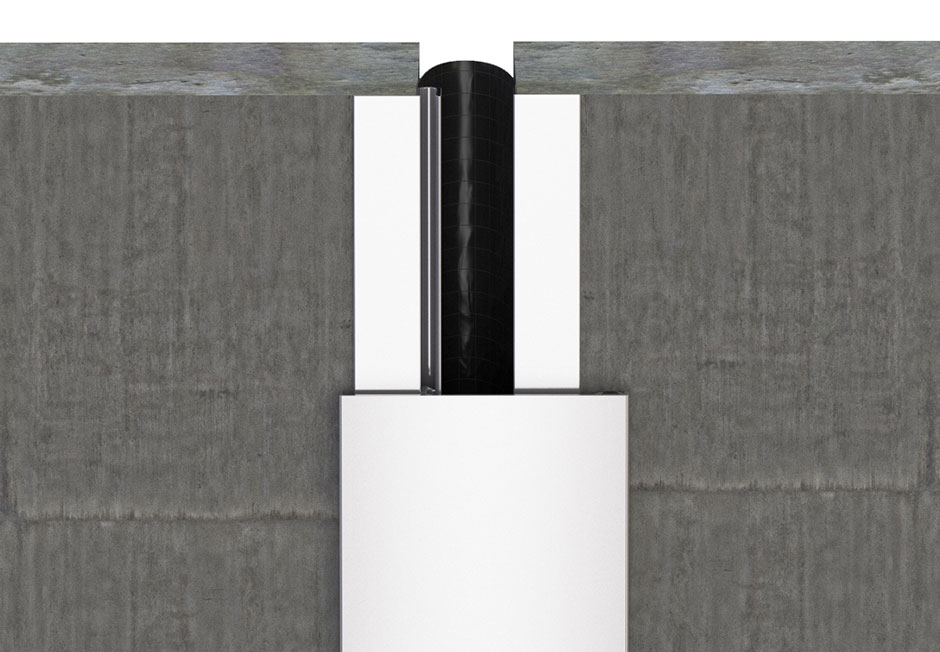

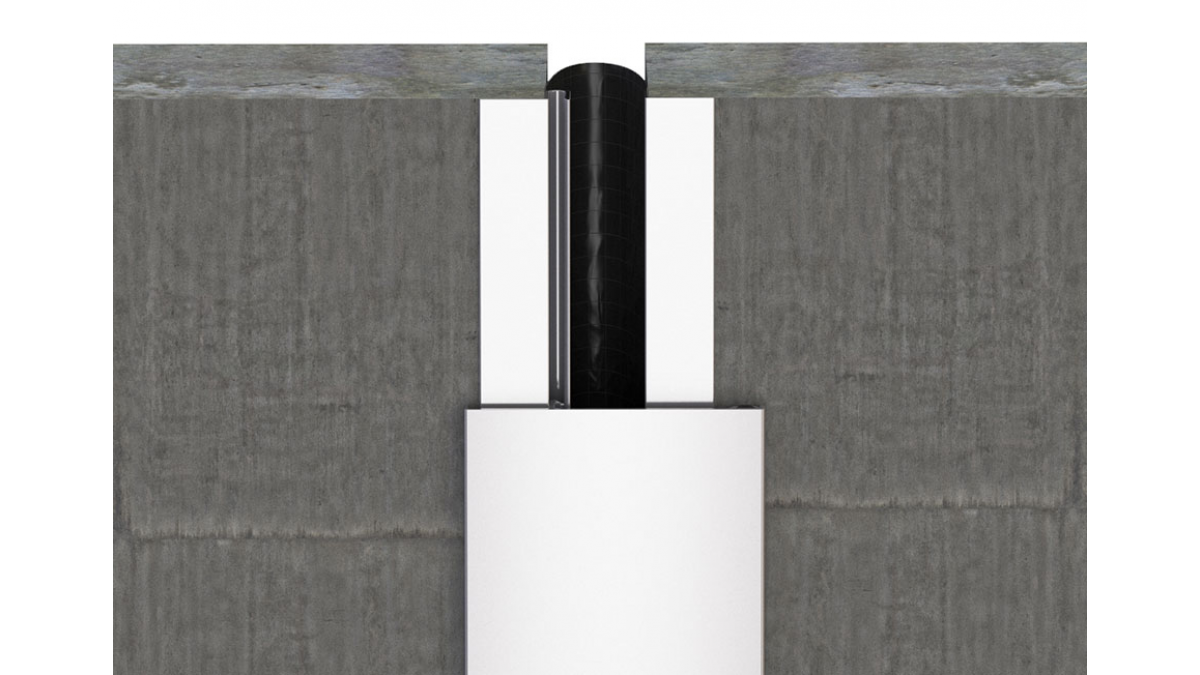

  • ASM-X — Allway Surface Mount Exterior

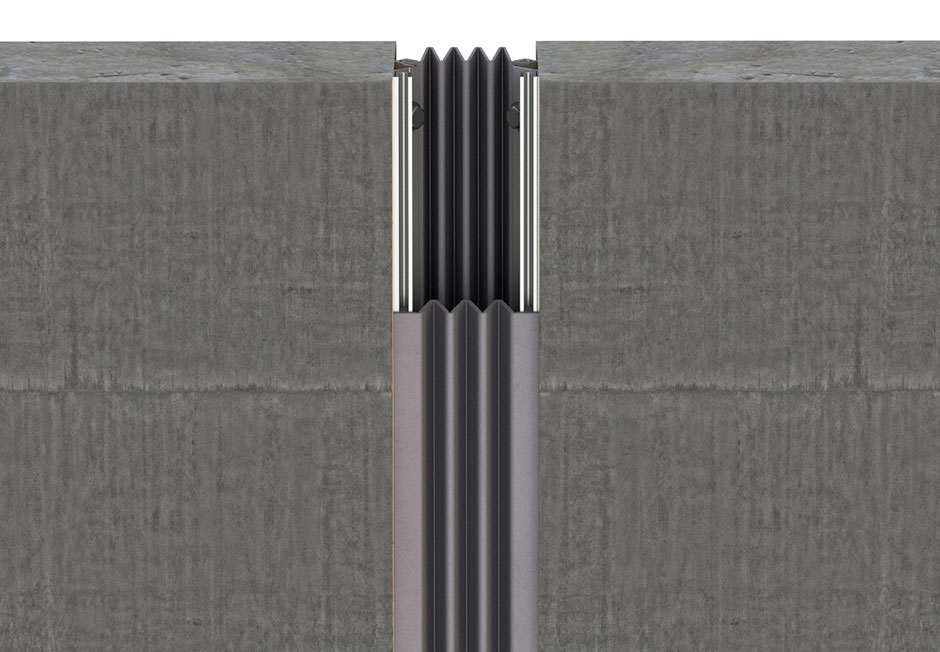

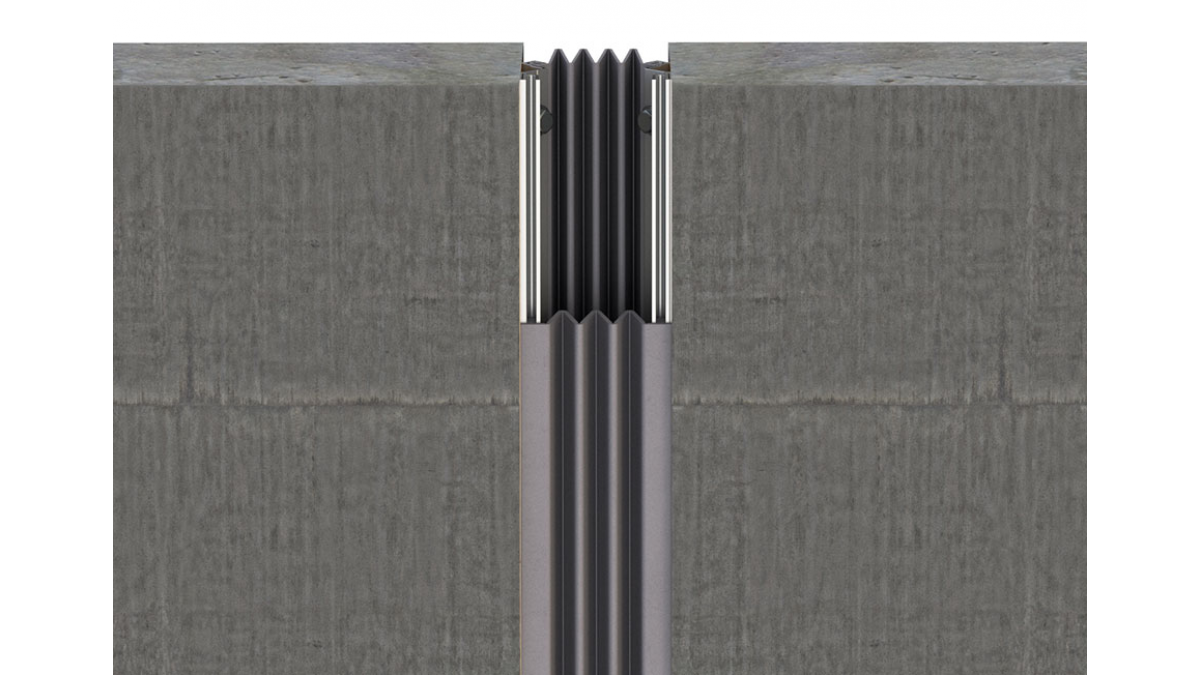

  • SC — Seismic seal Concertina profile

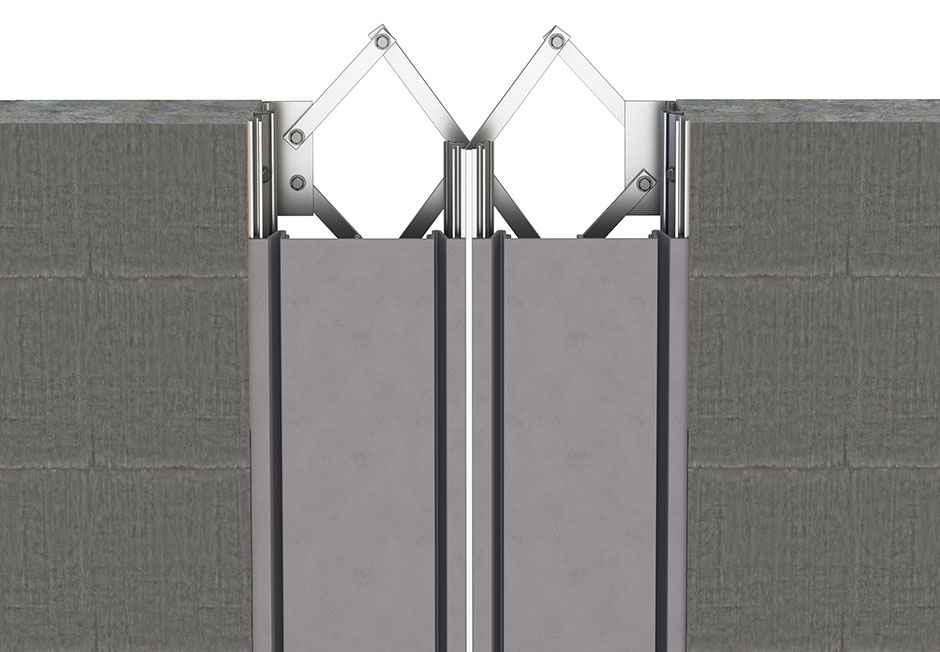

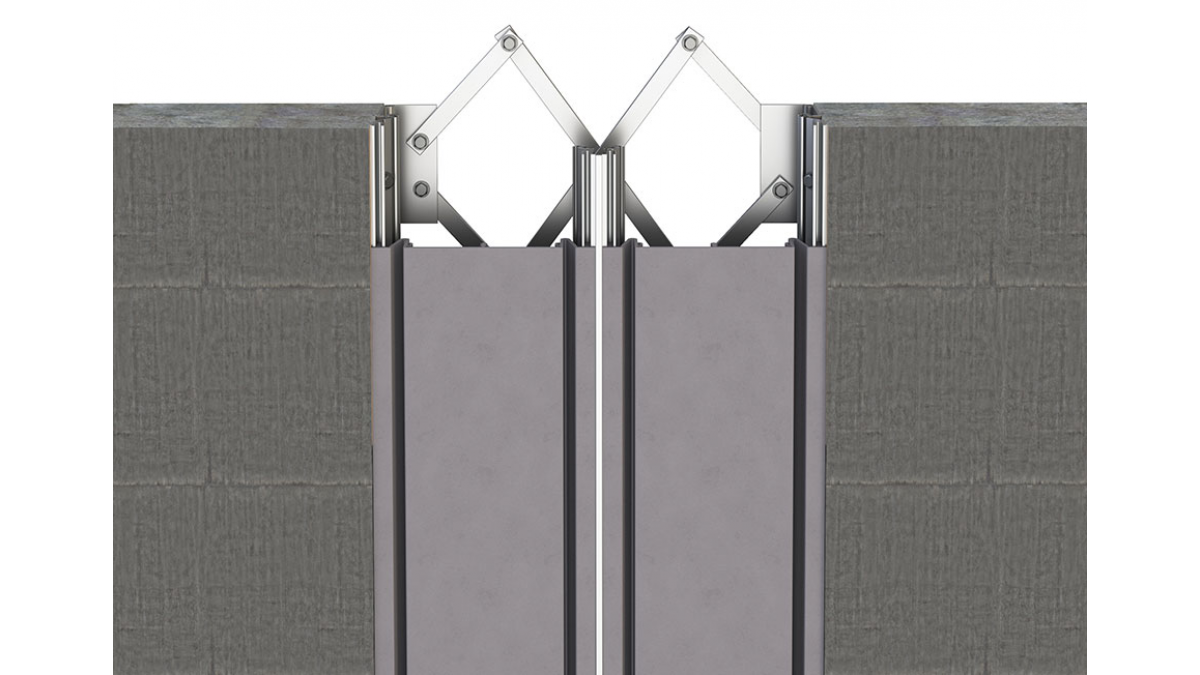

  • SF — Seismic seal Flat profile

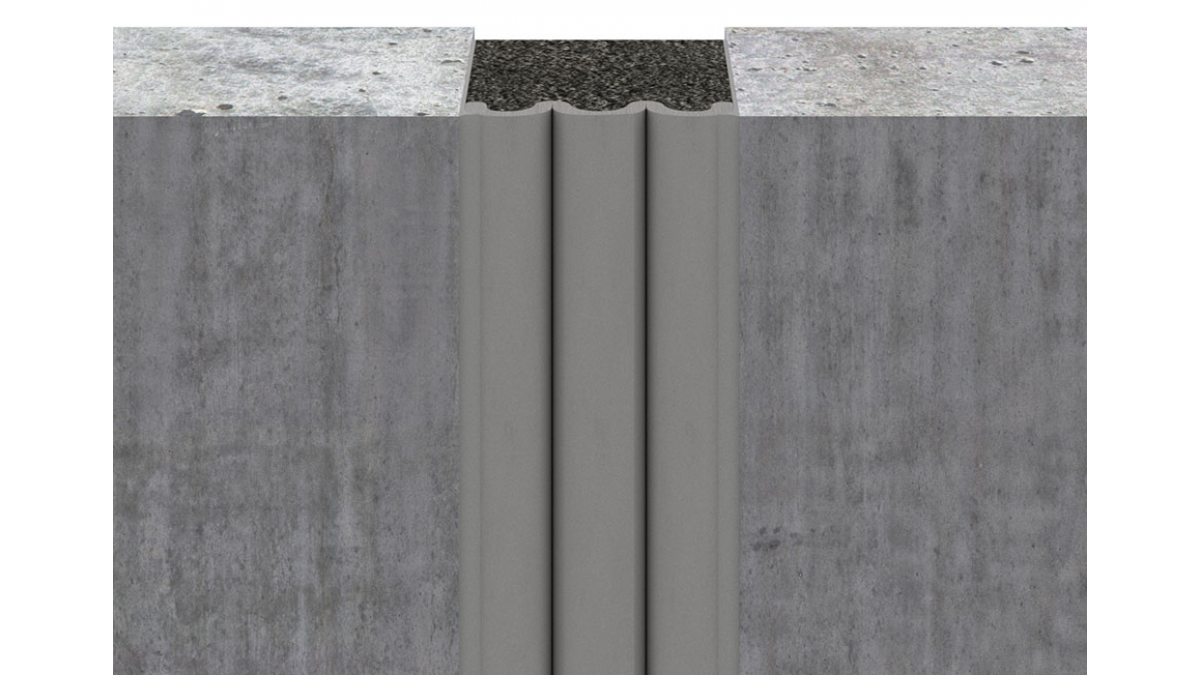

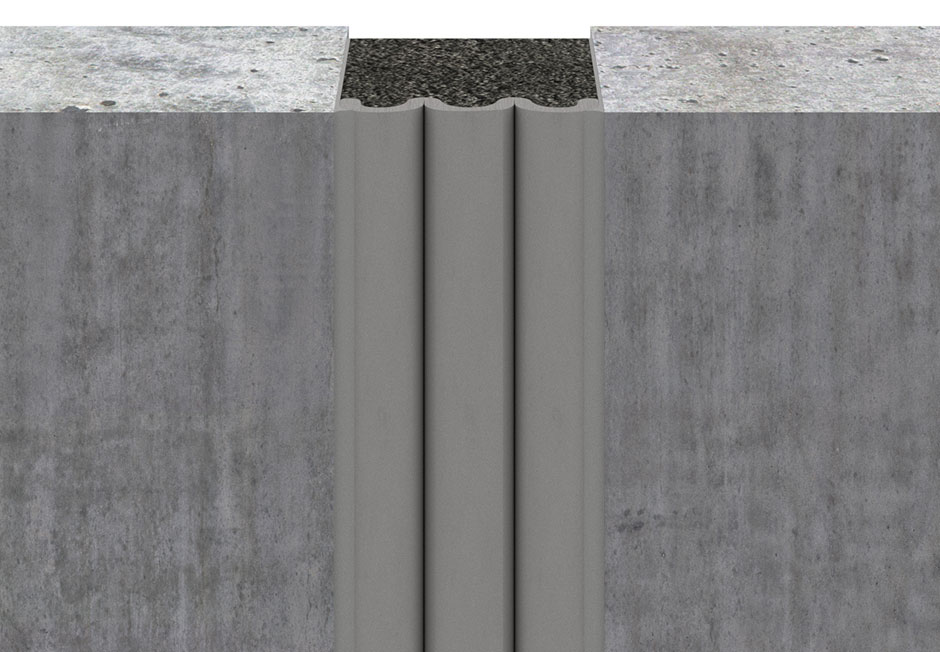

  • VF — Vertical Foam
Key Features
  • Durable and weathertight
  • Minimum exposed surface
  • Sealed gasket installation
  • ISO 9001: 2000 compliant
  • 5 year limited warranty
  • Suitable for all exteriors, and with colourable option
Scope of Use
  • Exterior vertical applications requiring weathertight cover
  • Full range of movement
  • Joint size: >50.8mm
  • 100-200% of joint width
  • Suitable for all exteriors, colourable option
Statement of Building Code Compliance

This product, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B2 Durability
  • Clause E2 External Moisture
  • Clause F2 Hazardous Building Materials
In-Service History

Construction Specialties NZ Ltd. has been operating in New Zealand as a manufacturing distributor of the Construction Specialties range of products since 1988. Construction Specialties is a privately owned USA based, global company. Here in New Zealand, CS are privately owned and run as a wholly separate entity.

Other Performance Attributes
  • ISO 9001: 2000 compliant
  • CS Seismic and Expansion Joint Covers have been tested to ASTM E1399 / E1399M - 97(2017) Standard Test Method for Cyclic Movement and Measuring the Minimum and Maximum Joint Widths of Architectural Joint Systems

Warranty

  • CS Expansion Joint Covers feature a 5 year limited warranty
  • Installation: 2 years
Documents
Data Sheet: Exterior Wall Expansion Joints

2018

CAD/BIM: ASM-X
CAD/BIM: SC
CAD/BIM: SF
CAD/BIM: VF
Masterspec: CS Group
Catalogue: Expansion Joint Covers

2018

Joint Selection Chart

2018
