Allway Metal Seismic Wall/Ceiling Covers

Construction Specialties

All products

Product Enquiries

Description

These metal covers for interior wall and ceiling applications are designed as durable options in high use areas. Featuring a free-floating centre plate which spans the joint and slides between the cover's frame assemblies.

Standard Allway:

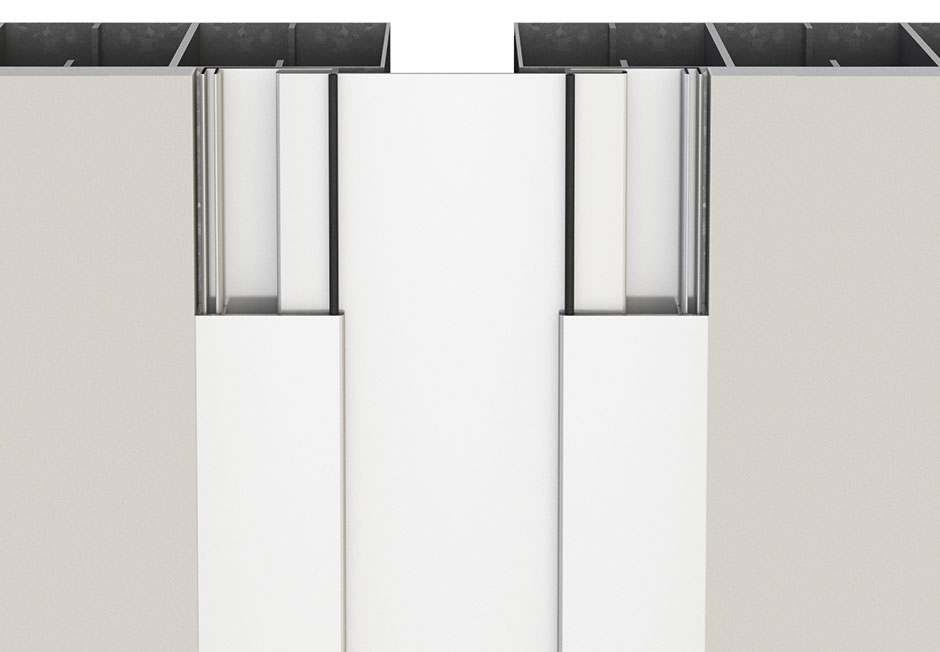

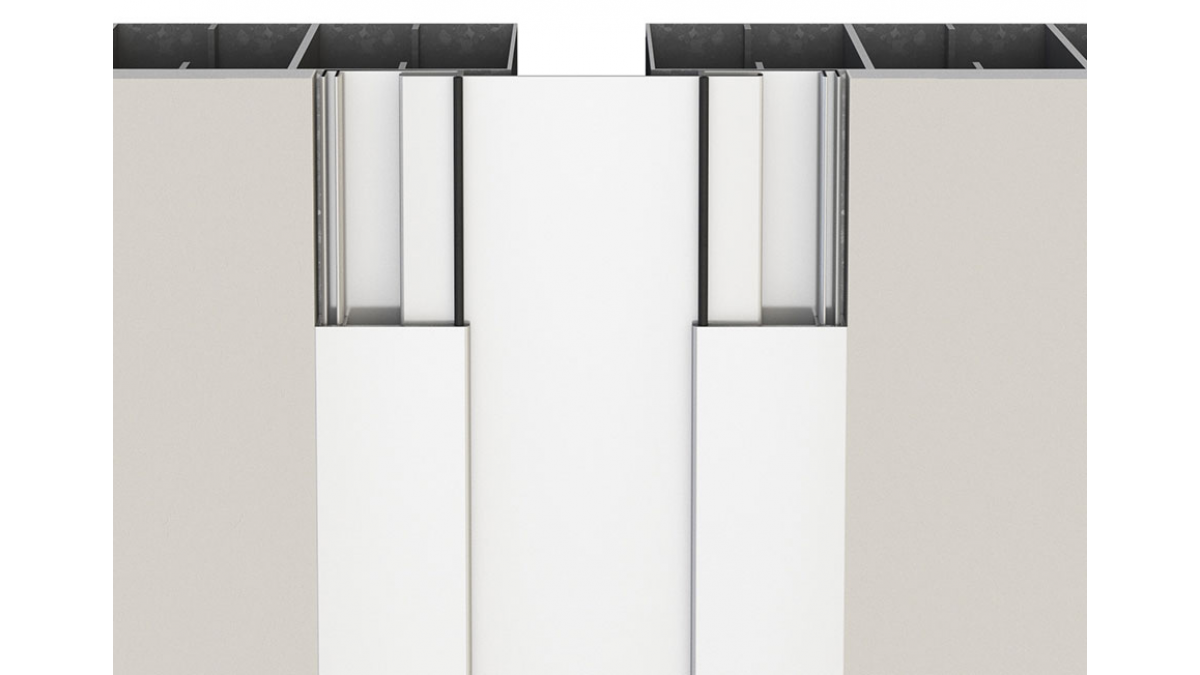

AFW — Allway Flush Wall

Seismic Allway:

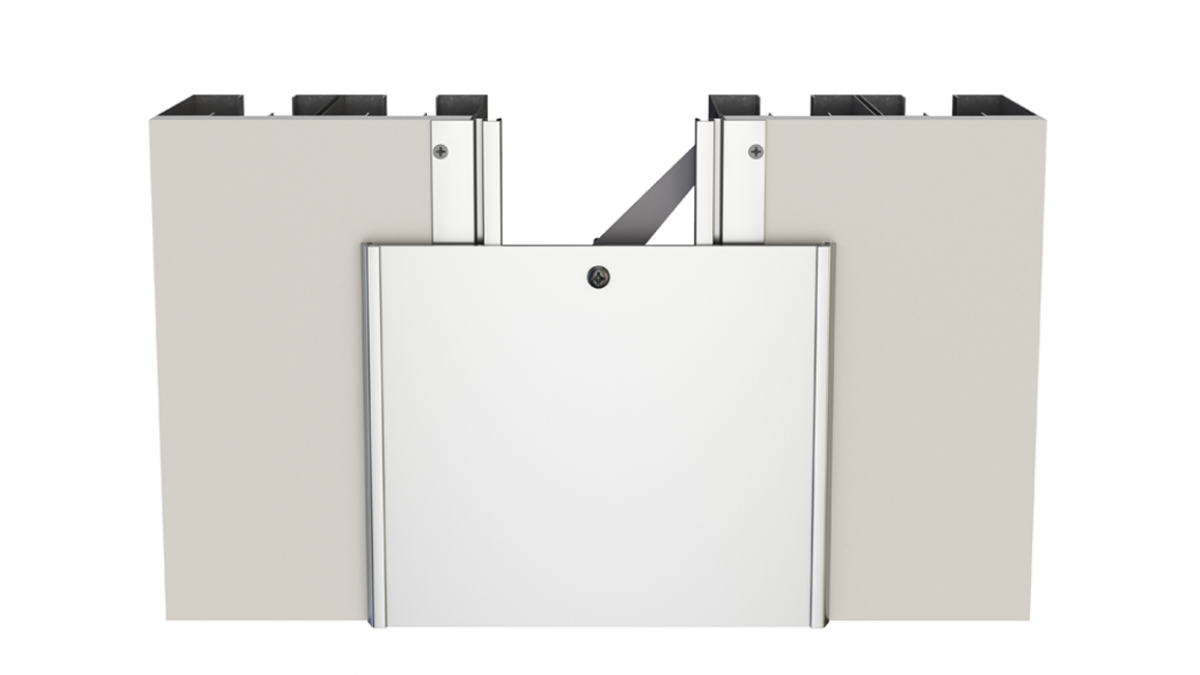

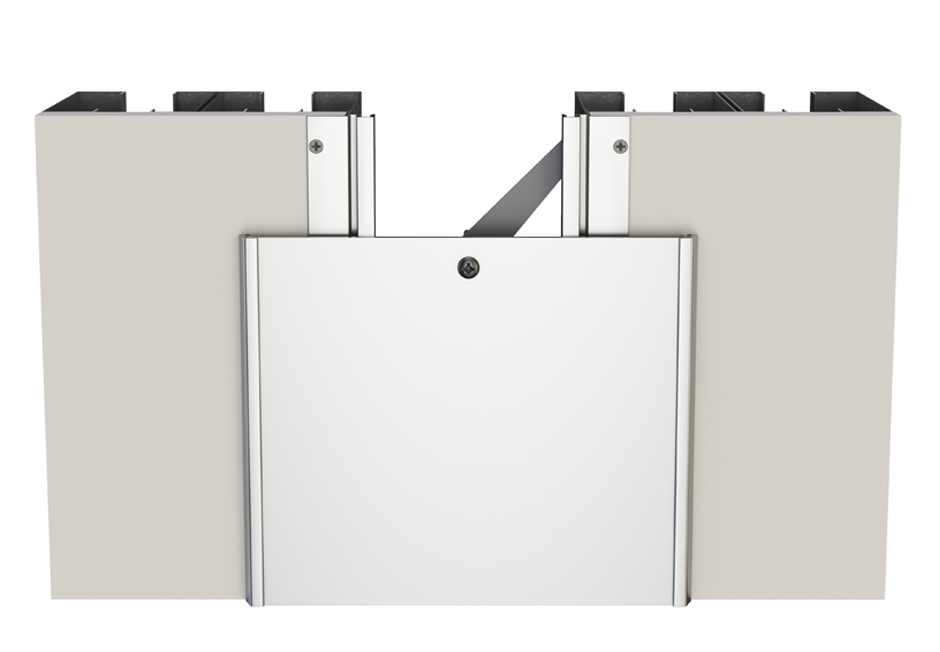

SCW-SFW — Seismic Corner Wall

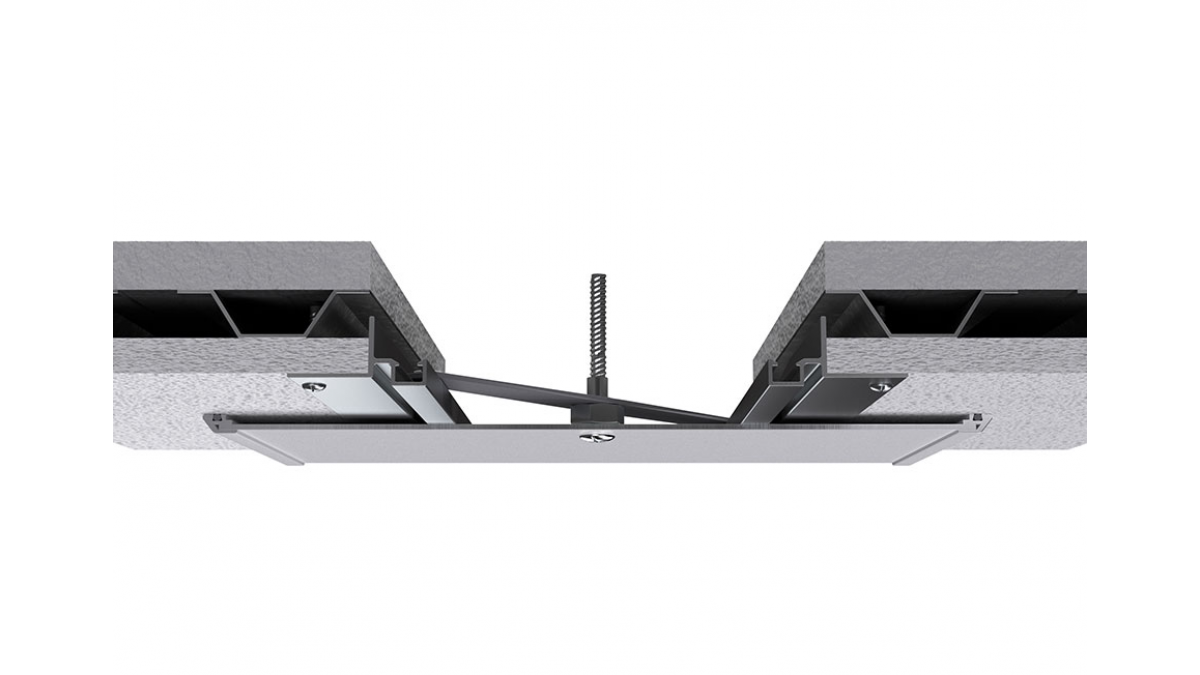

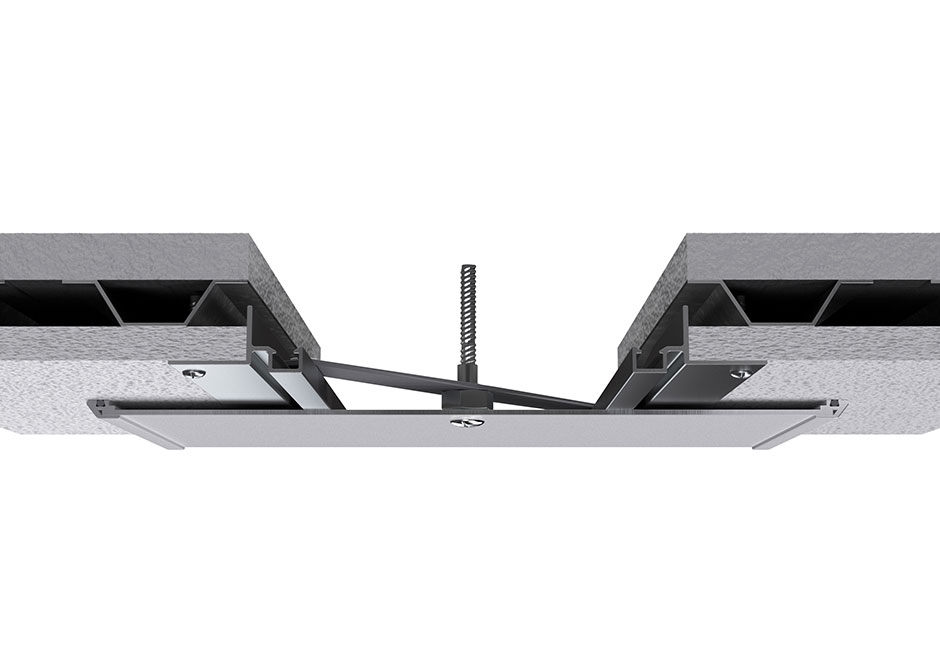

SCC-SFC — Seismic Corner Ceiling

Key Features

Robust applications, full movement range
Range of finishes available
Low maintenance
ISO 9001: 2000 compliant
5 year limited warranty

Ranges

Seismic Cover: Wall & Ceiling Covers

Scope of Use

Robust. low maintenance design, suitable for industrial applications
Matches Allway floor covers
Joint size: 25.4mm - 101.6mm
Total movement: 100-200% of joint
Suitable for all finishes including drywall and ceramic tile

Statement of Building Code Compliance

This product, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability
Clause F2 Hazardous Building Materials

In-Service History

Construction Specialties NZ Ltd. has been operating in New Zealand as a manufacturing distributor of the Construction Specialties range of products since 1988. Construction Specialties is a privately owned USA based, global company. Here in New Zealand, CS are privately owned and run as a wholly separate entity.

Recent / Current Projects:

NZ International Convention Centre
CCEV
Metro sports CHCH
Wellington Town Hall
Wellington Children Hospital
Wellington District Court
Wakefield Hospital
The Langlands Hotel Invercargill
Summerset group (Nationwide New Build)
Ormiston Town Centre
Cordis Hotel
55 Corinthian Drive Albany

Past Projects:

Auckland Airport Expansion
AUT and UOA University projects
Christchurch Acute Hospital
The Terrace Christchurch
UOC Christchurch
Starship Hospital

Other Performance Attributes

ISO 9001: 2000 compliant
CS Seismic and Expansion Joint Covers have been tested to ASTM E1399 / E1399M - 97(2017) Standard Test Method for Cyclic Movement and Measuring the Minimum and Maximum Joint Widths of Architectural Joint Systems

Warranty

CS Expansion Joint Covers feature a 5 year limited warranty
Installation: 2 years

Documents

CAD/BIM: AFW

URL

CAD/BIM: SCC-SFC

URL

CAD/BIM: SCW-SFW

URL

Data Sheet: Allway Metal Wall/Ceiling

2018

pdf

Masterspec: CS Group

URL

Catalogue: Expansion Joint Covers

2018

pdf

Joint Selection Chart

2018

pdf
