CHH Ply Ecoply Barrier
Description

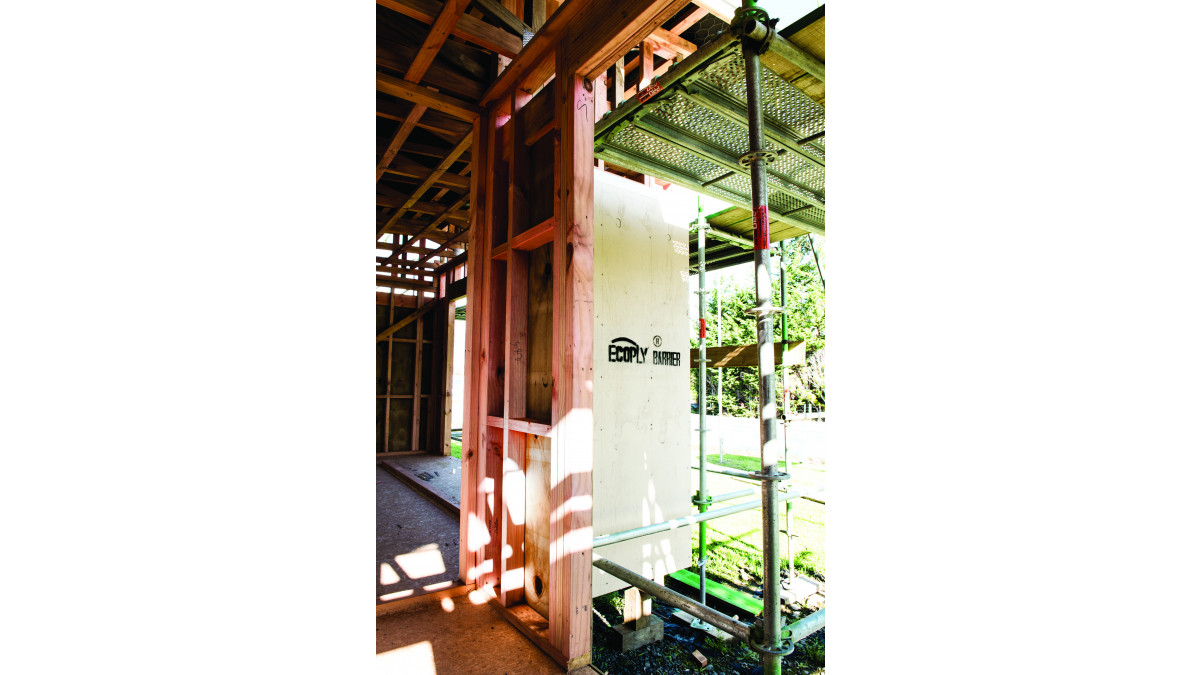

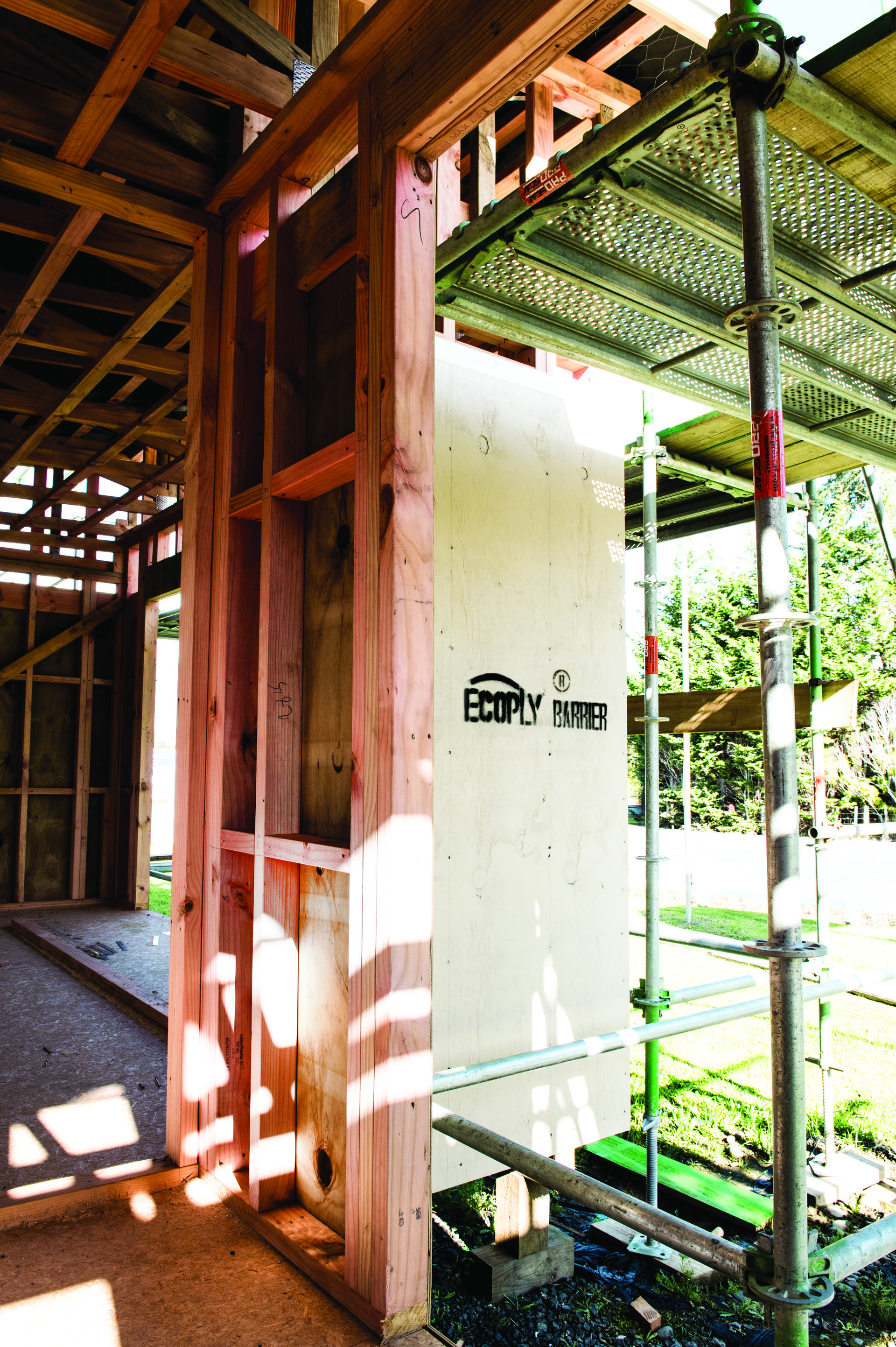

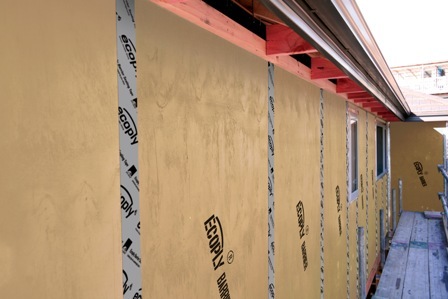

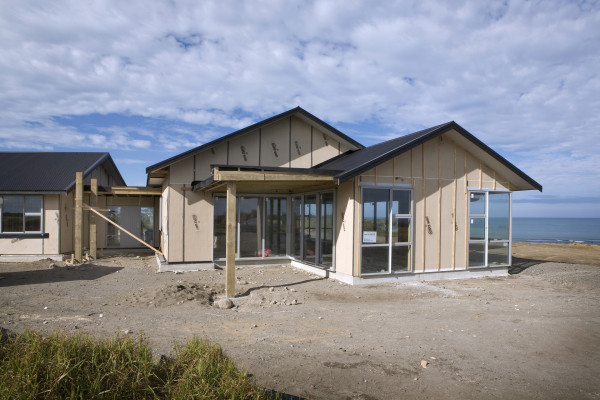

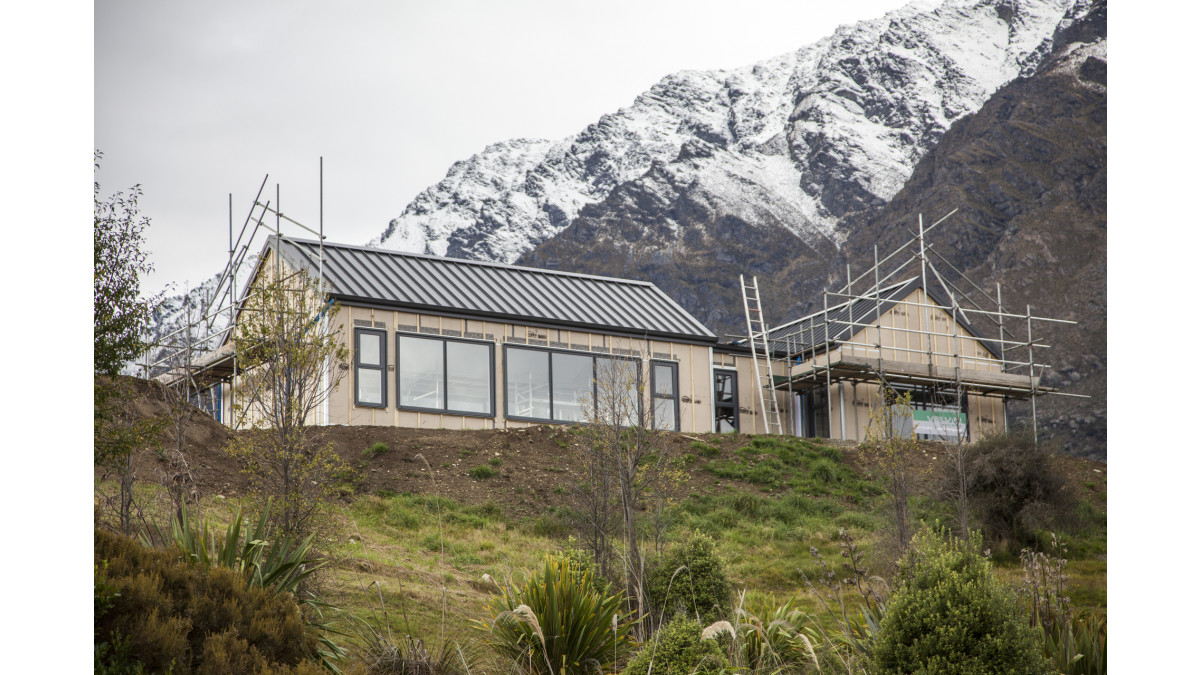

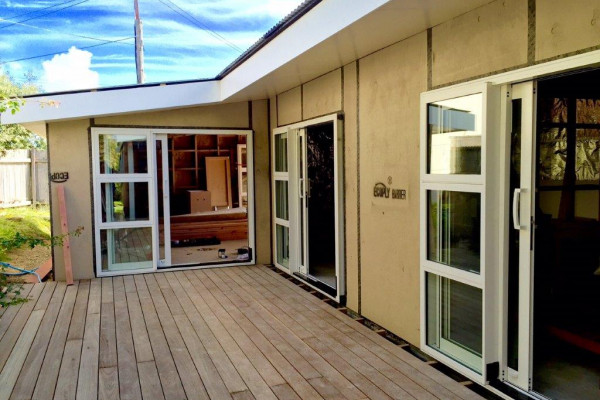

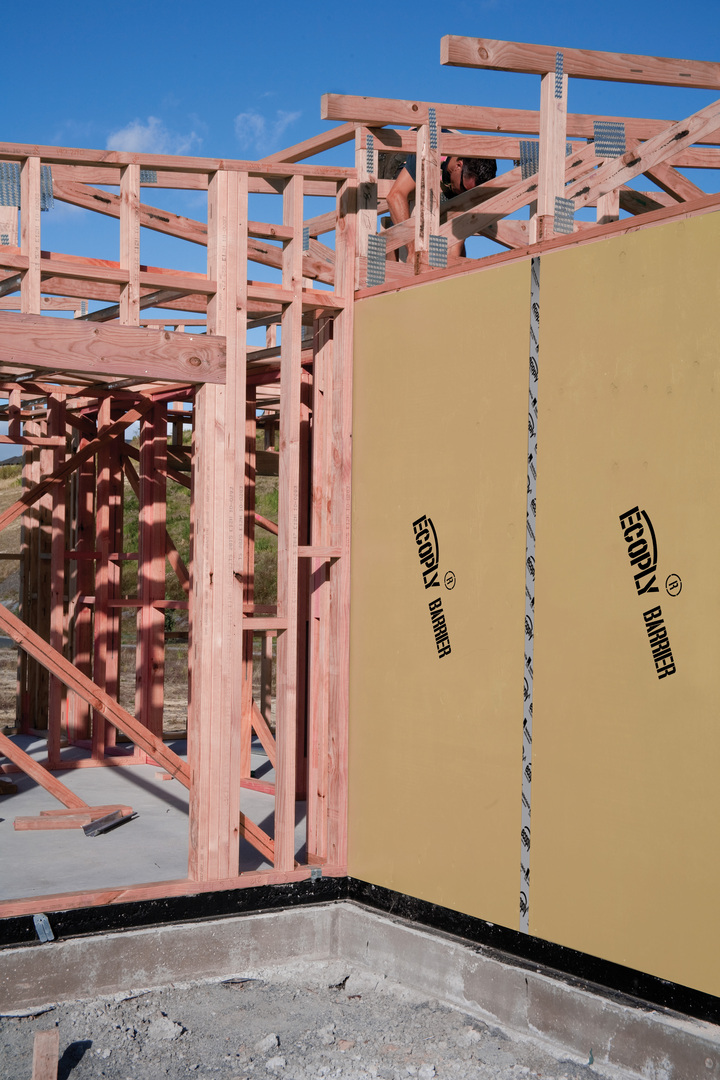

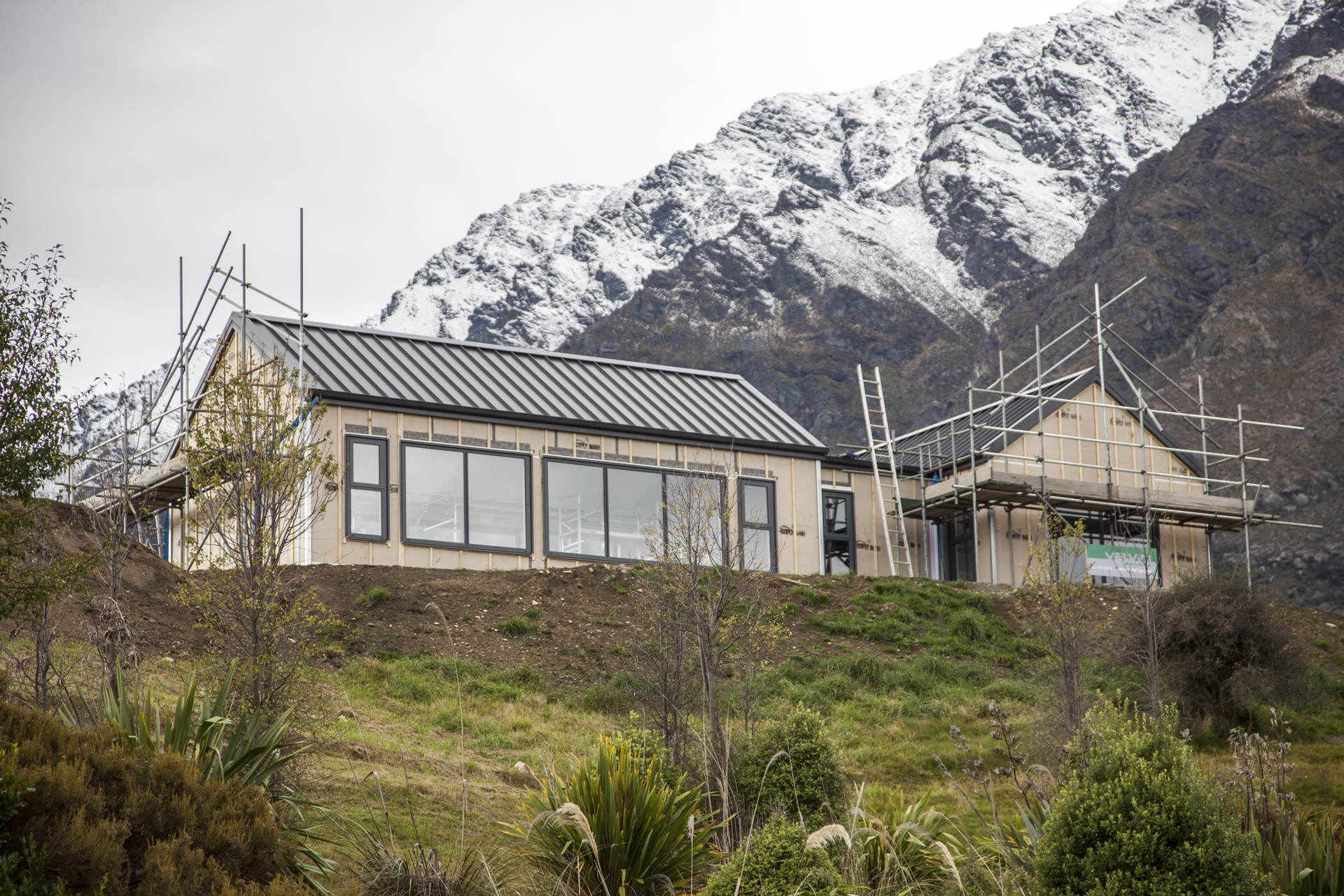

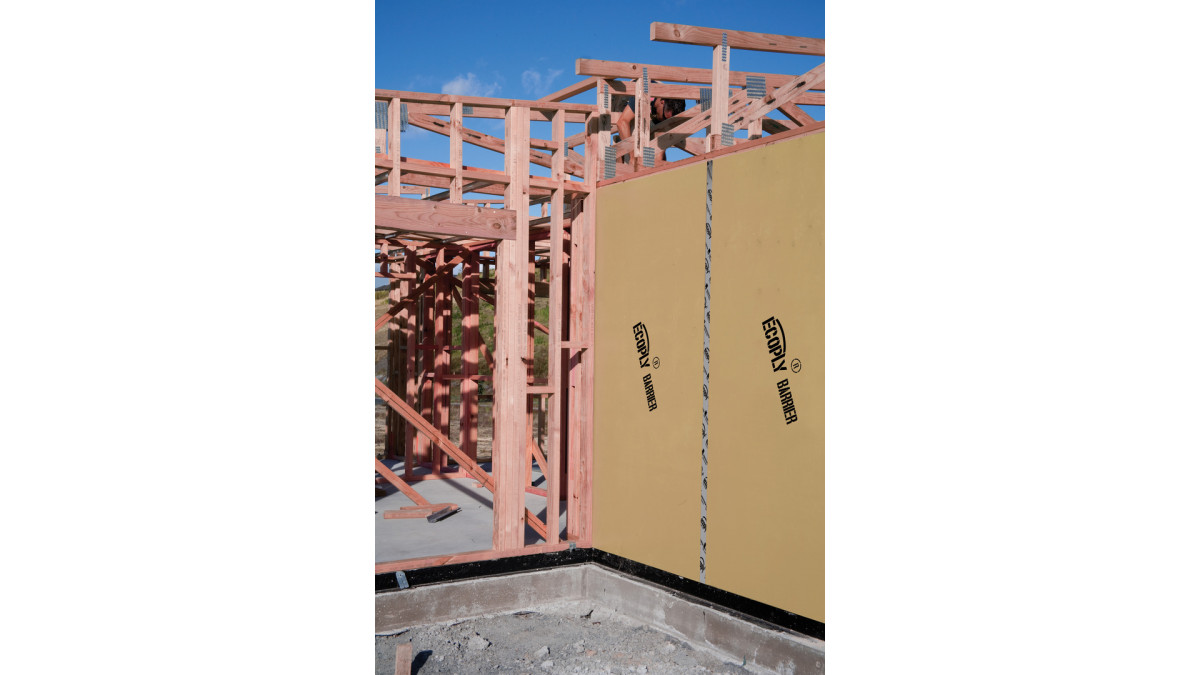

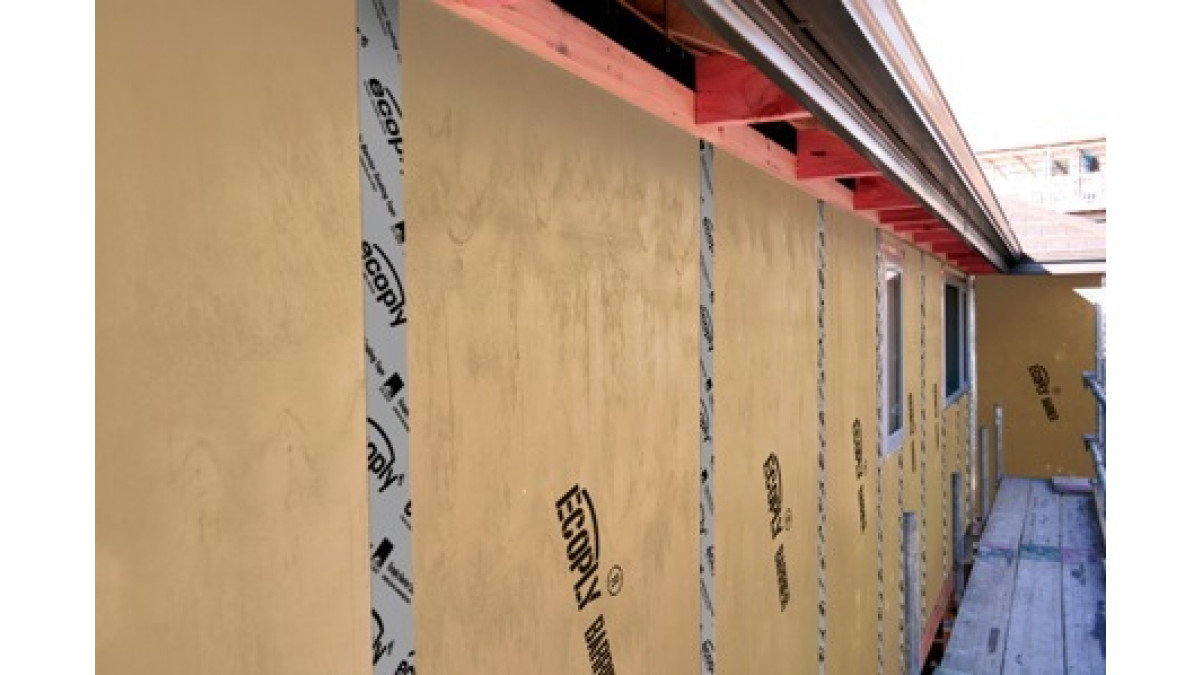

The Ecoply Barrier system provides a weather tight rigid air barrier for drained and vented cavity systems outside the building frame. It replaces traditional building wrap in the cavity while providing superior structural bracing and forming a strong secondary line of defence against moisture penetration into the building envelope.

Key Features

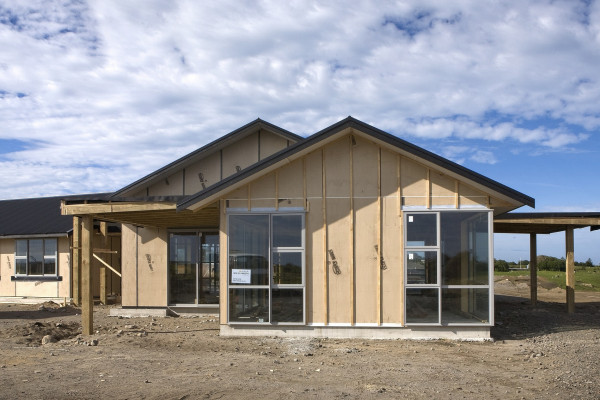

  • Temporary weather protection to the building envelope prior to cladding installation
  • Fast close in allows for earlier interior finish
  • Provides structural bracing when installed as per bracing specifications
  • Sheets can be exposed to weather for up to 6 months prior to cladding installation for increased flexibility during construction
  • Manufactured from sustainably grown NZ plantation pine

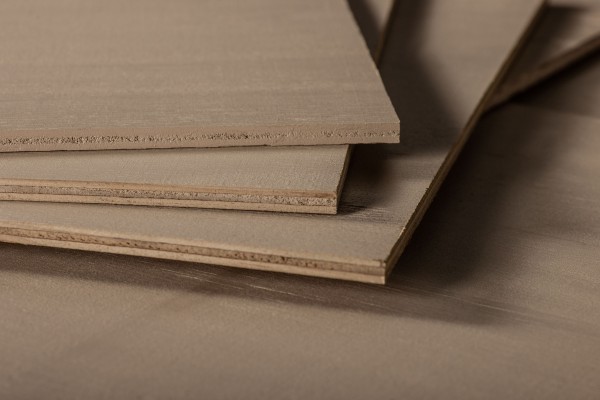

  • Sheet dimensions: 2440 / 2745 × 1200 mm
  • H3.2 CCA treated
  • Low formaldehyde emission E0
Categories
Rigid Pre-Cladding
Ranges
CHH Ply
NZ Made
NZ Made
Statement of Building Code Compliance

Ecoply Barrier meets the NZ Building Code requirements for rigid underlays as outlined in Section 9.1.4, the performance requirements of Table 23 of E2/AS1 and has been tested for wind speed exceeding Extra High wind zone as defined in NZS 3604. Testing has been completed to provide solutions for buildings outside scope of NZS 3604, contact CHH Woodproducts direct for further information.

  • BRANZ appraised for use as a rigid sheathing and temporary weather-protecting sheathing on timber framed buildings
  • Independently certified as compliant with AS/ NZS 2269 — Plywood Structural
  • H3.2 CCA treated in accordance with AS/ NZS 1604.3
BRANZ Appraised
BRANZ Appraised
Documents
CHH Ply Technical Library
Additional Information

Carter Holt Harvey (CHH) is one of New Zealand’s leading forest products companies, manufacturing and supplying timber, laminated veneer lumber (LVL), plywood & other building products in New Zealand.
