Futurebuild LVL hy90
Description

hy90 is designed for use in structural beams where high performance and reliability is required. hy90 is designed to fit within 90mm framing and is typically used in load bearing applications such as house lintels and larger span garage door lintels and beams.

Key Features
  • Manufactured to a target 88mm breadth with a tolerance of -0 mm/+ 3mm (at the time of leaving the mill) to fit within the framing

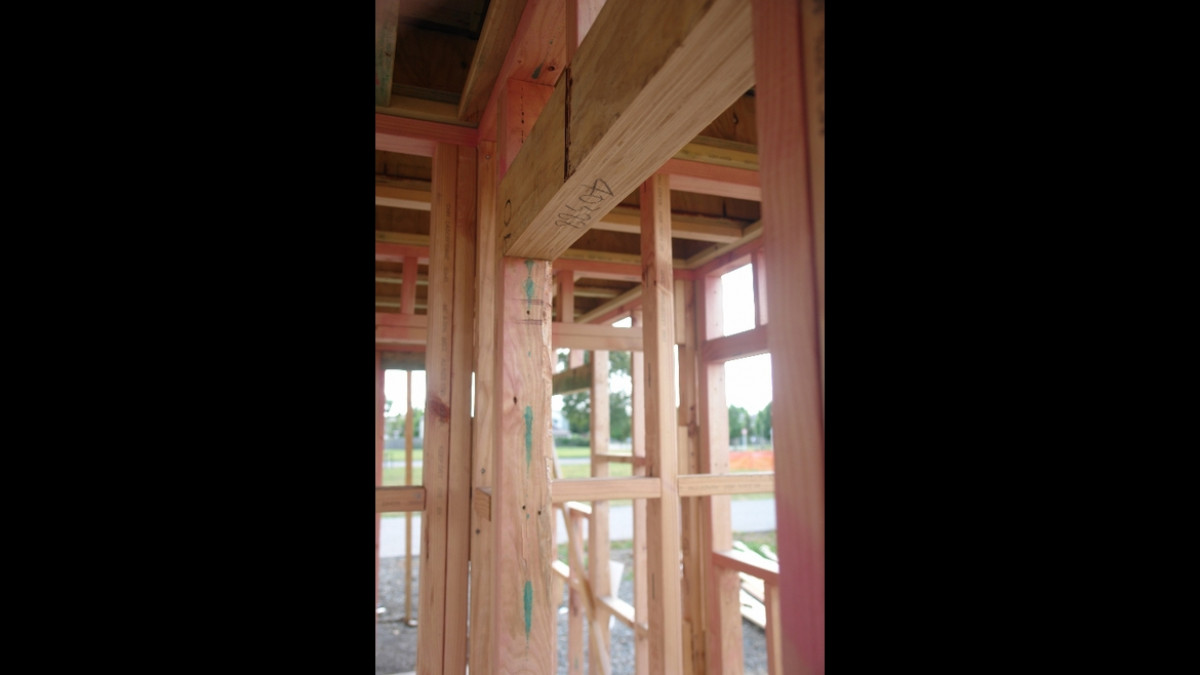

  • Less warp, twist and cup than double-sawn sections
  • Straight, true, strong, lightweight and dimensionally stable

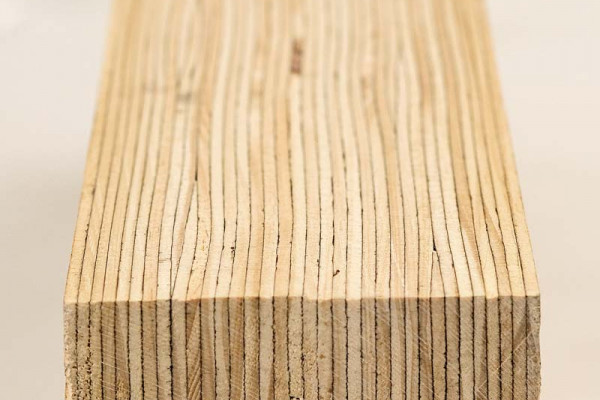

  • Veneers are bonded together using type 'A' (marine) bond, known for long-term durability in structural applications
  • High and reliable strength
  • Readily available H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
  • Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Future LVL for further information
  • Each piece is branded for ease of identification
  • Stringent quality control — EWPAA certified
  • Manufactured from sustainably-grown New Zealand plantation pine
  • Available FSC CoC Certified on request (Certificate Number: SCS-COC-001319)
  • Declare Red List free
  • Residential Span Tables available

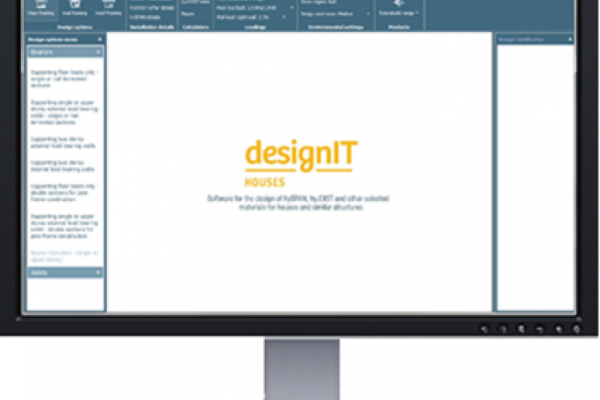

  • Supported by technical support and software from Futurebuild LVL
Declare LBC Red List Free
Declare LBC Red List Free
FSC Certified
FSC Certified
NZ Made
NZ Made
Scope of Use
  • Designed to fit within 90mm framing

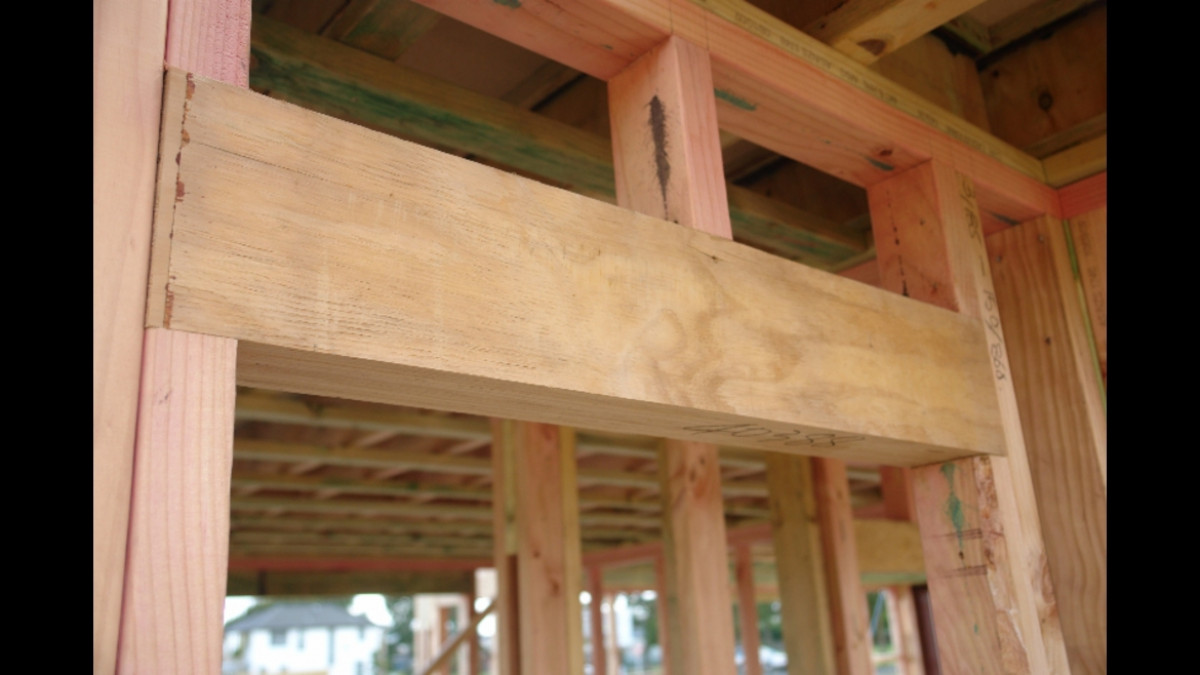

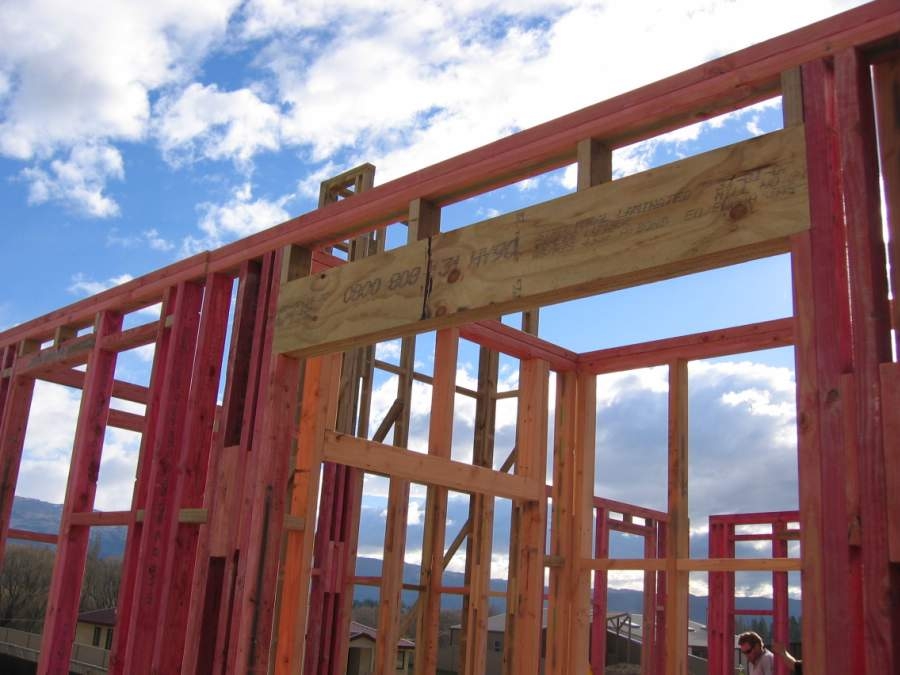

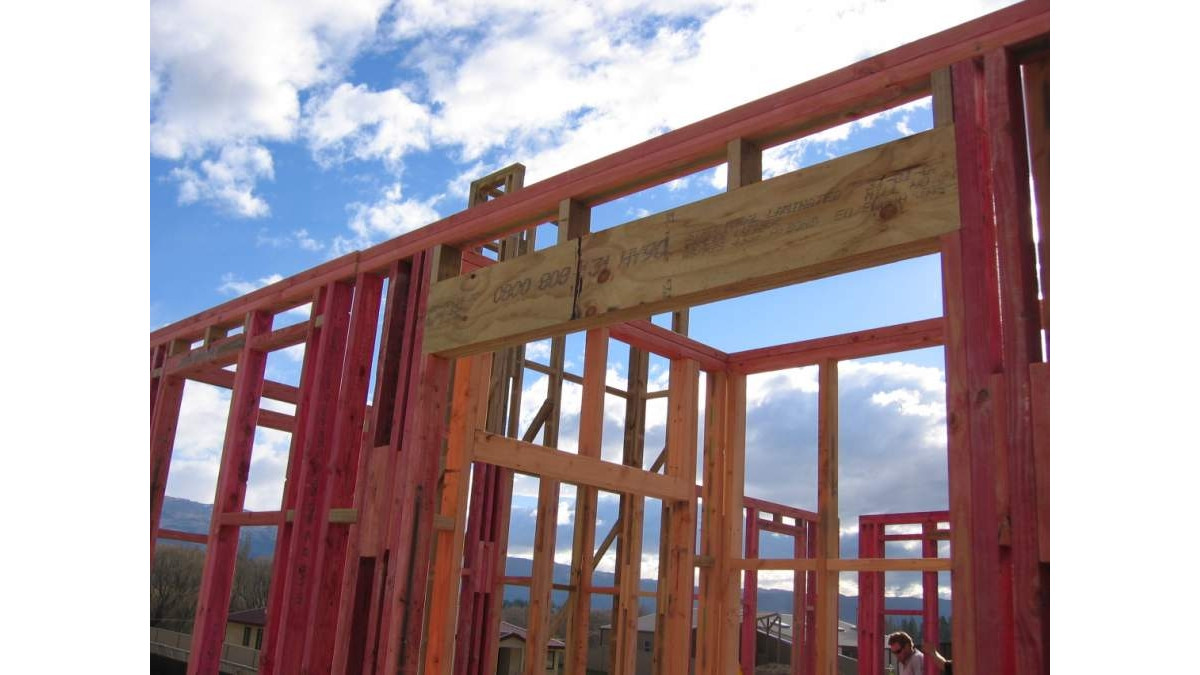

  • Load bearing applications — house lintels and larger span garage door lintels and beams
  • Readily available H1.2 treated using a glue line and surface spray treatment to the requirements of NZS 3640
  • Untreated and H3.1 LOSP treated product available made to order subject to minimum volumes and lead times, Contact Future LVL for further information
  • Residential Span Tables available
  • Supported by technical support and software from Futurebuild LVL
Statement of Building Code Compliance

Solid Futurebuild LVL products are manufactured in accordance with AS/NZ 4357, Structural Laminated Veneer Lumber.  Characteristic Properties are determined in accordance with AS/NZS 4063.2:2010 and so comply with the provisions of the New Zealand Building Code through clause 2.3 for engineering design in accordance with NZS3603:1993 Timber Structures Standard.

Futurebuild LVL is committed to manufacturing innovative engineered building products. For quality assurance the Futurebuild range is manufactured with independent audit processes and product certification.

All Futurebuild LVL products are manufactured using a type ‘A’ bond with less than 0.5mg/L formaldehyde emissions from the final product (equivalent to E0).

Other Performance Attributes
  • Veneers are bonded together using type 'A' (marine) bond, known for long-term durability in structural applications
  • Stringent quality control — EWPAA certified
  • Manufactured from sustainably-grown New Zealand plantation pine
  • Available FSC CoC Certified on request (Certificate Number: SCS-COC-001319)
  • Declare Red List free
Documents
Futurebuild LVL Residential Design Guide
Futurebuild LVL Specific Engineering Design Guide
Futurebuild LVL Technical Library
Sustainability: EPD, Declare Red List Free & FSC Certification
