Description

SoundDown Solo is a simple to install, acoustic and fire rated system that ensures adequate sound attenuation between tenancies. Its simplicity makes it an affordable option for housing developments whilst still achieving New Zealand building code.

The system provides an STC rating of 65 dB, an IIC rating of 56 dB and incorporates a 60/60/60 fire rated ceiling; the floor structure is excluded from the fire cell. SoundDown Solo is installed over a timber or lightweight steel floor structure.

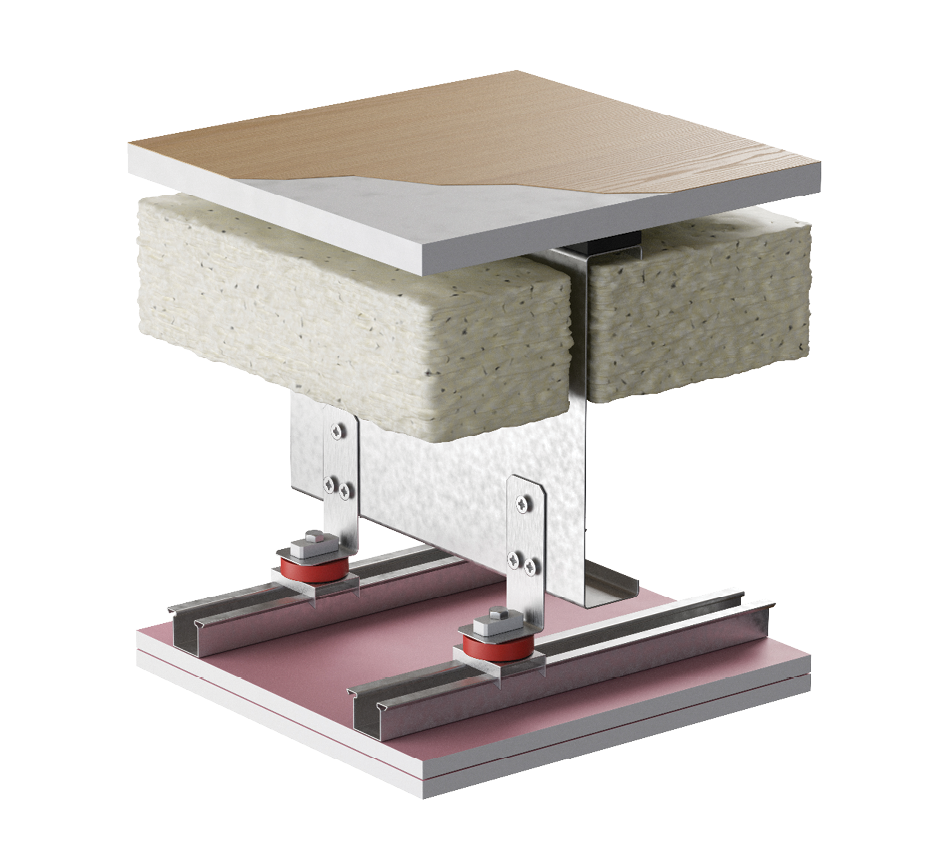

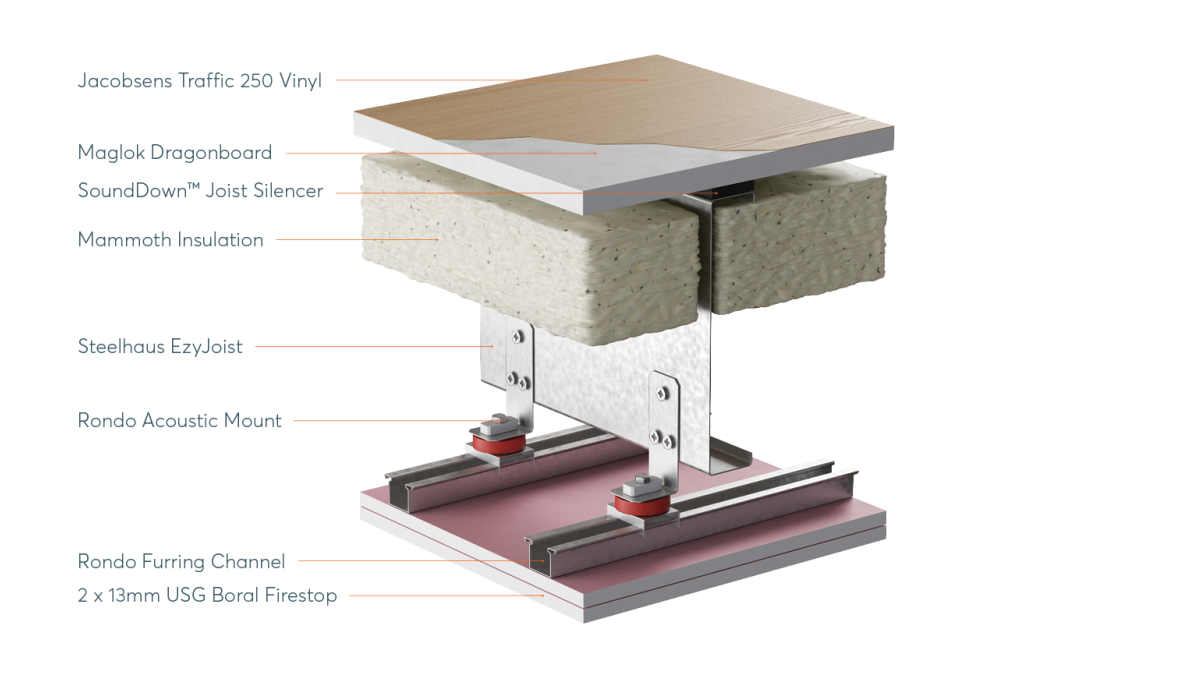

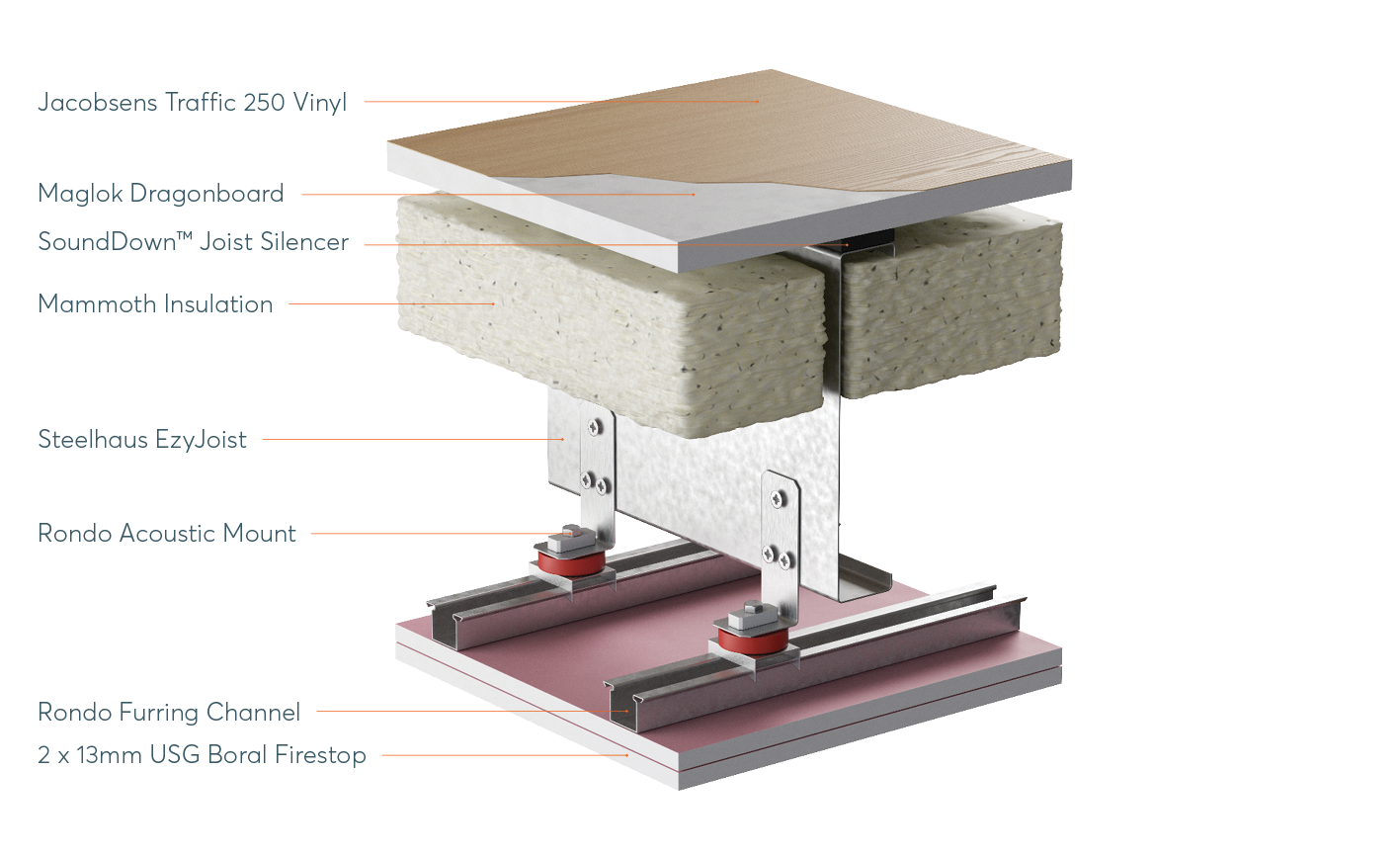

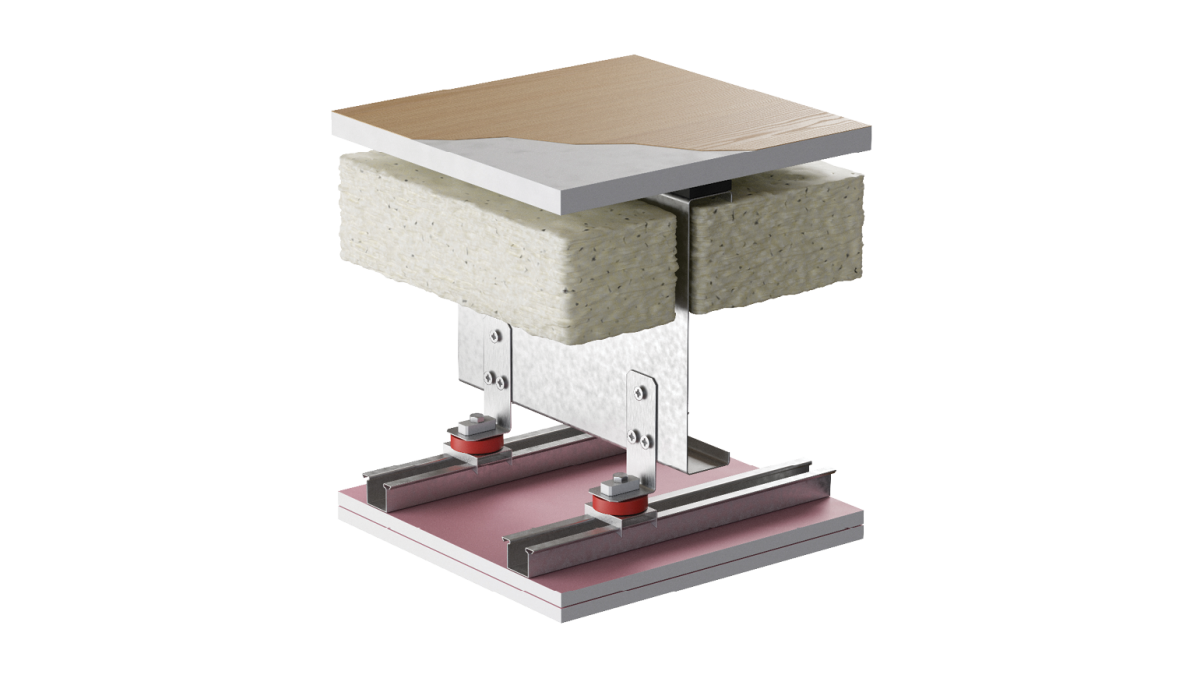

SoundDown Solo comprises:

Jacobsen Tarkett Traffic 250 vinyl
Maglok 20mm DragonBoard
SoundDown joist silencer
Mammoth R1.9 multi-polyester insulation
SteelHaus EZYJOIST galvanised steel joist
Rondo SPTC acoustic mounts
Rondo 129 Furring Channel
2 layers of 13mm USG Boral Firestop

Key Features

No need for a 2 layer flooring system
Can be partially constructed as a cassette
Simple to install, reducing risk of poor installation
Fully compatible with standard building methods
Faster and more cost-effective to alternative systems
Allows building to proceed without delay
Solid and quiet when living both above and below
Incorporates 60min fire-rated ceiling-only system, so the floor structure is excluded from the firecell
STC Rating: 65dB
IIC Rating: 56dB (with Jacobsens Traffic 250 vinyl)

Ranges

SoundDown for Lightweight Structures

Scope of Use

SoundDown Solo is a load-bearing, acoustic and fire rated intertenancy floor/ceiling system.

Used conjunction with a timber or lightweight steel structural frame
As an acoustic intertenancy midfloor
As a fire rated intertenancy midfloor — achieves a maximum fire resistance rating, from below, of 60/60/60
FFL: 5mm

Limitations on Use

Installed with 2.5mm vinyl — Jacobsen Tarkett Traffic 250
Plasterboard must be manufactured to AS/NZS 2988

As an acoustic intertenancy midfloor:

The selected plasterboard must be installed in accordance with all manufacturer's requirements, including sealing with the recommended sealant

As a fire rated intertenancy midfloor:

Plasterboard must achieve a minimum material group number rating of 1-S and achieve a fire resistance rating of 60/60/60

Statement of Building Code Compliance

If designed, installed and maintained in accordance with all Build Anatomy Limited requirements, SoundDown Solo will comply with or contribute to compliance with the following performance claims:

B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, c, e, f, i, j, l, m, o, r), B1.3.4 (a, b, c, d, e)
B2 Durability: B2.3.1 (a), B2.3.2 (a)
C3 Fire affecting areas beyond the fire source: C3.4 (a, b)
C6 Structural stability: C6.2 (a, b, c, d)
F2 Hazardous Building Materials: F2.3.1
G6 Airborne and impact sound: G6.3.1
H1 Energy efficiency: H1.3.1 (a), H1.3.2E

See PASS statement for full information.
