Yale Induro 4-Point Lock
ASSA ABLOY
All products

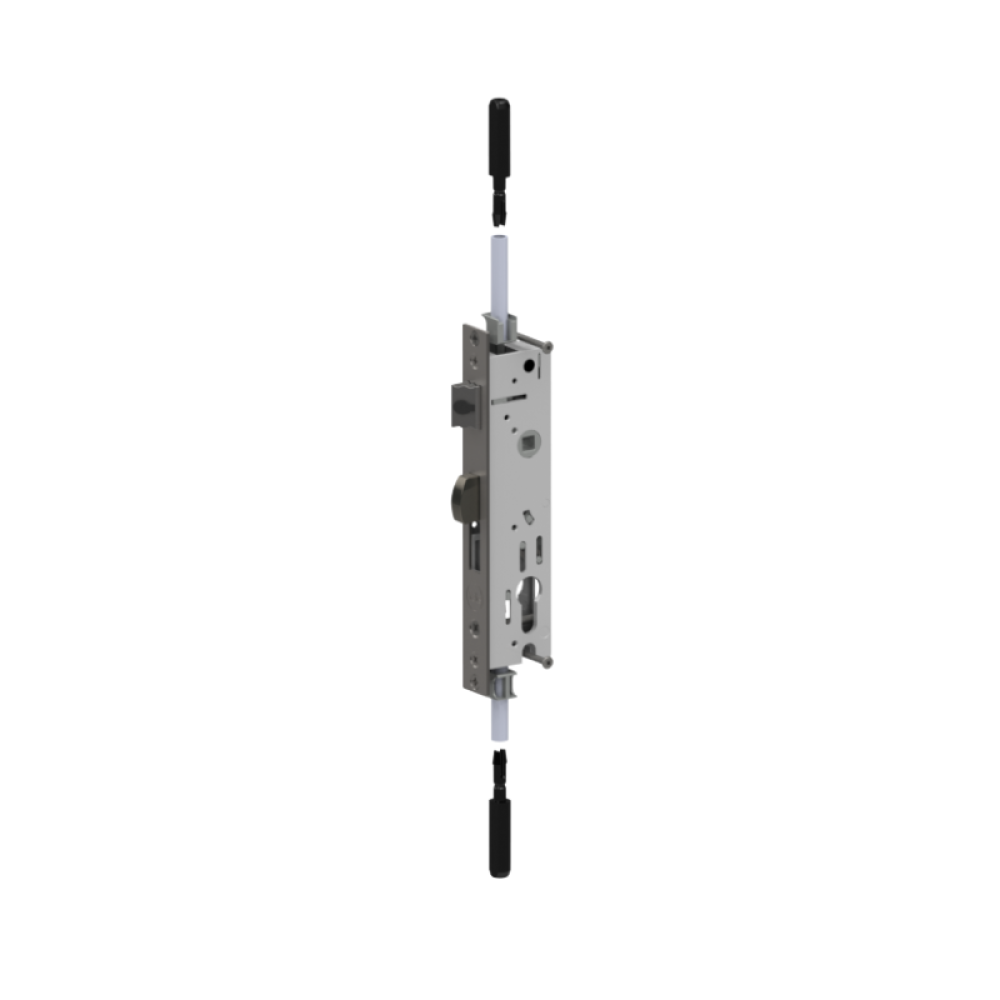

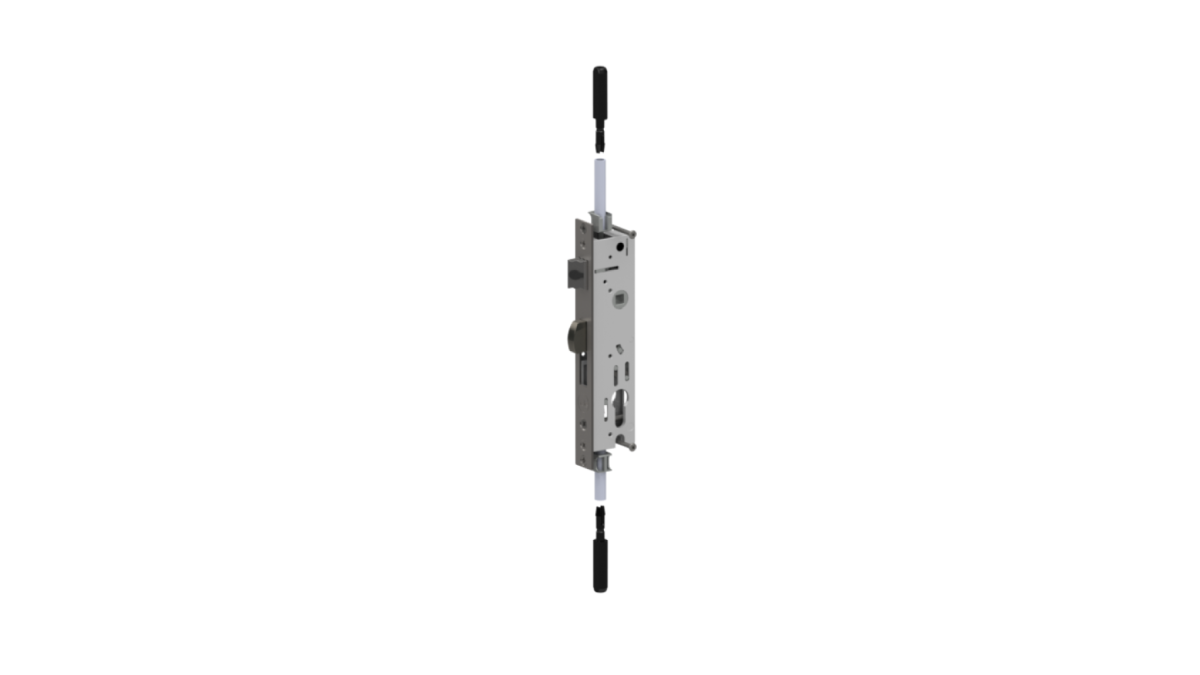

INDURO 4P 30BS LOCK ONLY ROD TIPS
Description

The Induro mortice lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro 4-Point provides increased security with four points of locking. Made specifically for the New Zealand environment, this is an ideal locking solution.

Key Features

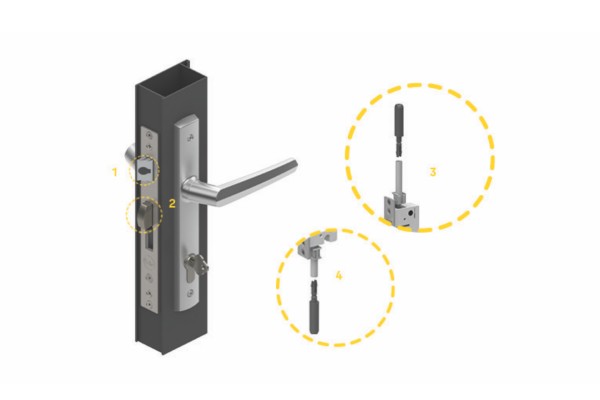

  • Features 4 points of locking from the latch, deadbolt and two shootbolts (included)
  • Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
  • 50mm backset mortise lock
  • 13mm short throw on lifting deadbolt
  • Stainless steel forend plate
  • Adjustable latch projection
  • Achieves Australian Standards AS4145: 2008
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
  • Designed for aluminium joinery suites
  • New Zealand made
Categories
Locks
Ranges
Locking
Scope of Use
  • Designed for aluminium joinery suites
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
Limitations on Use

The Induro 4-Point lock is a direct retrofit for Millton, Optimum and LCL locks and is designed to be used in conjunction with the Aria, Palladium, Verona, and Apex furniture ranges.

Other Performance Attributes
  • Achieves Australian Standards AS4145: 2008
  • News
Documents
How to Use a 4-point Lock
URL
Induro Flyer
pdf
Additional Information
URL

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
