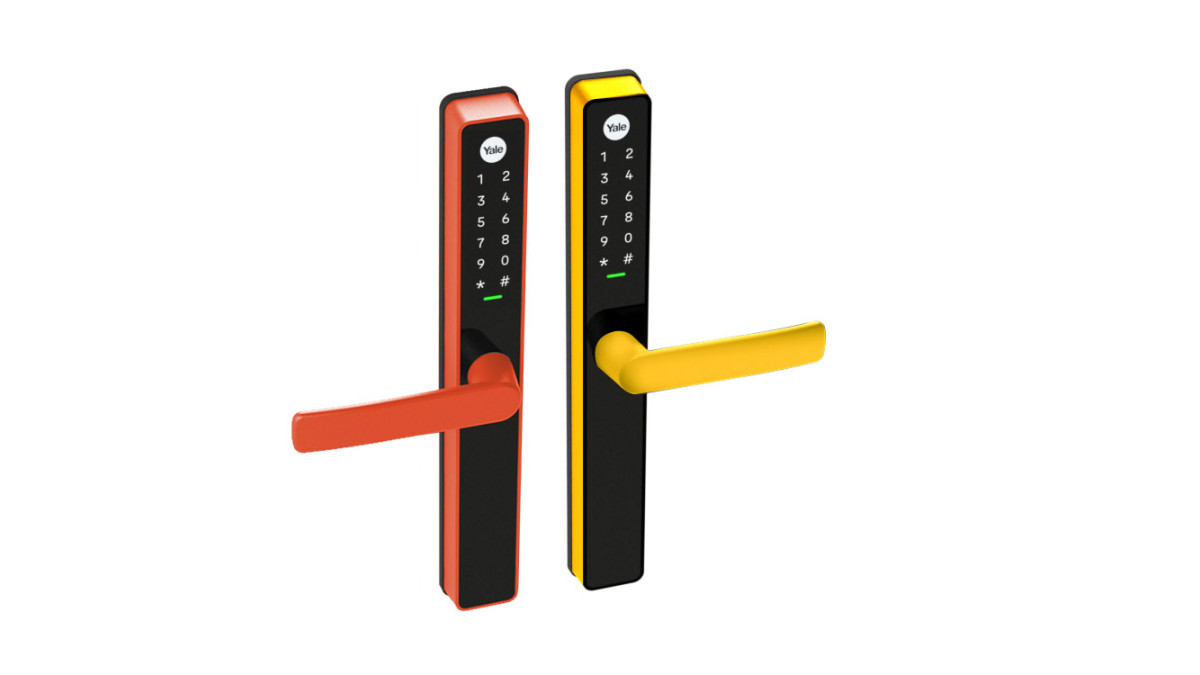

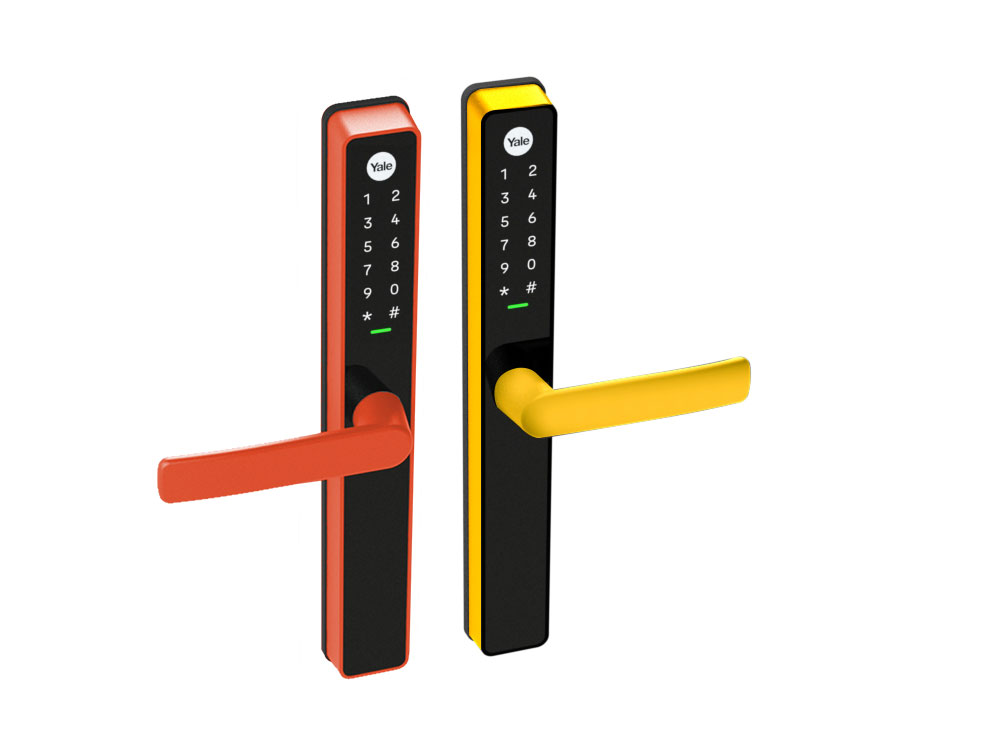

Yale Unity Slim Smart Lock
Description

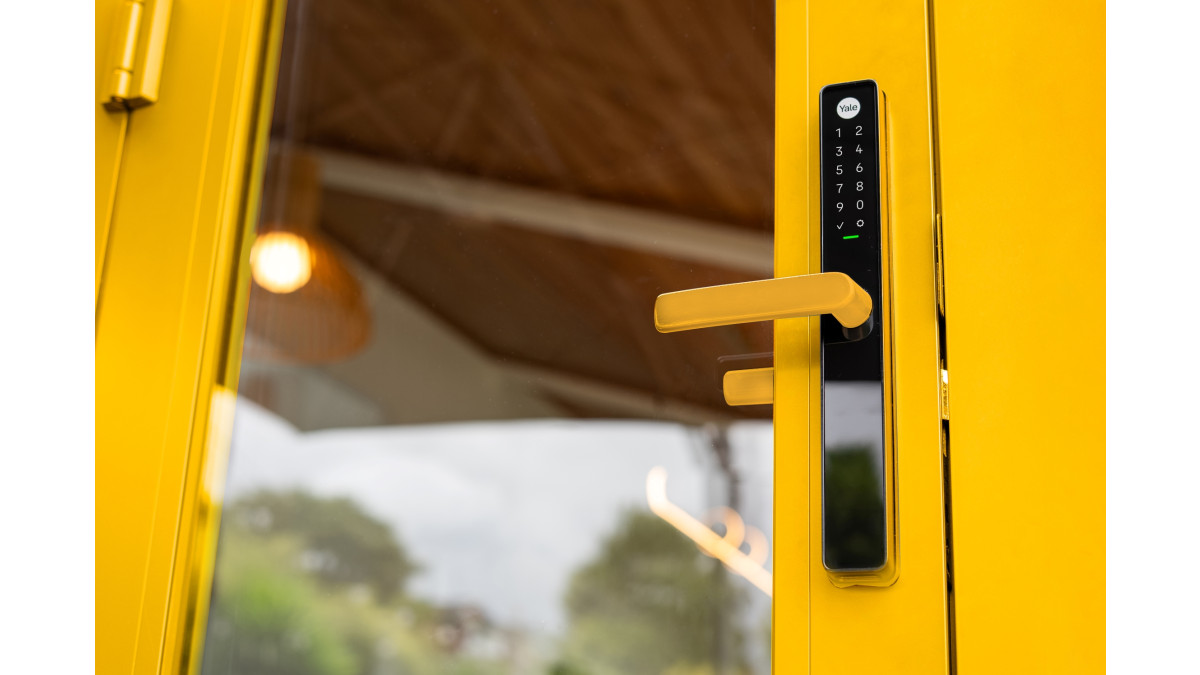

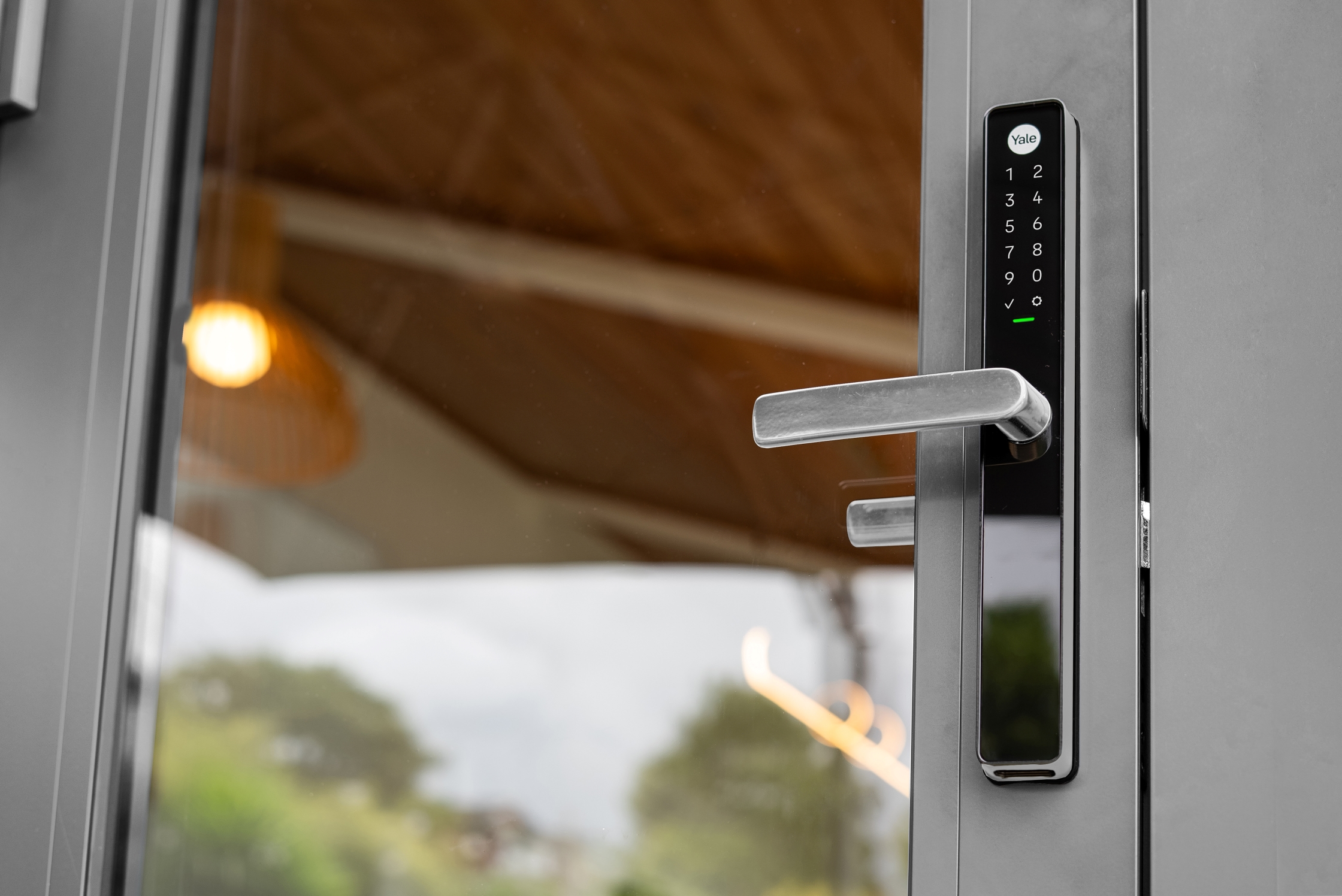

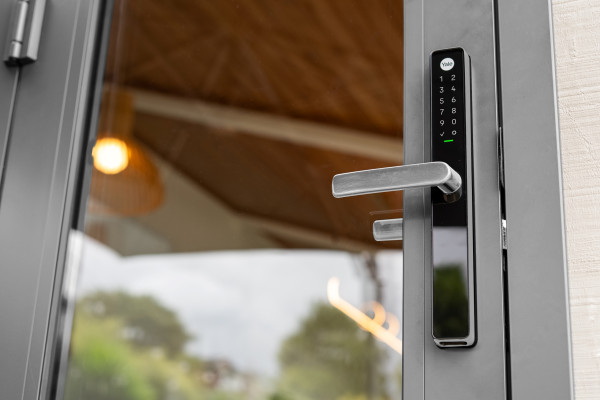

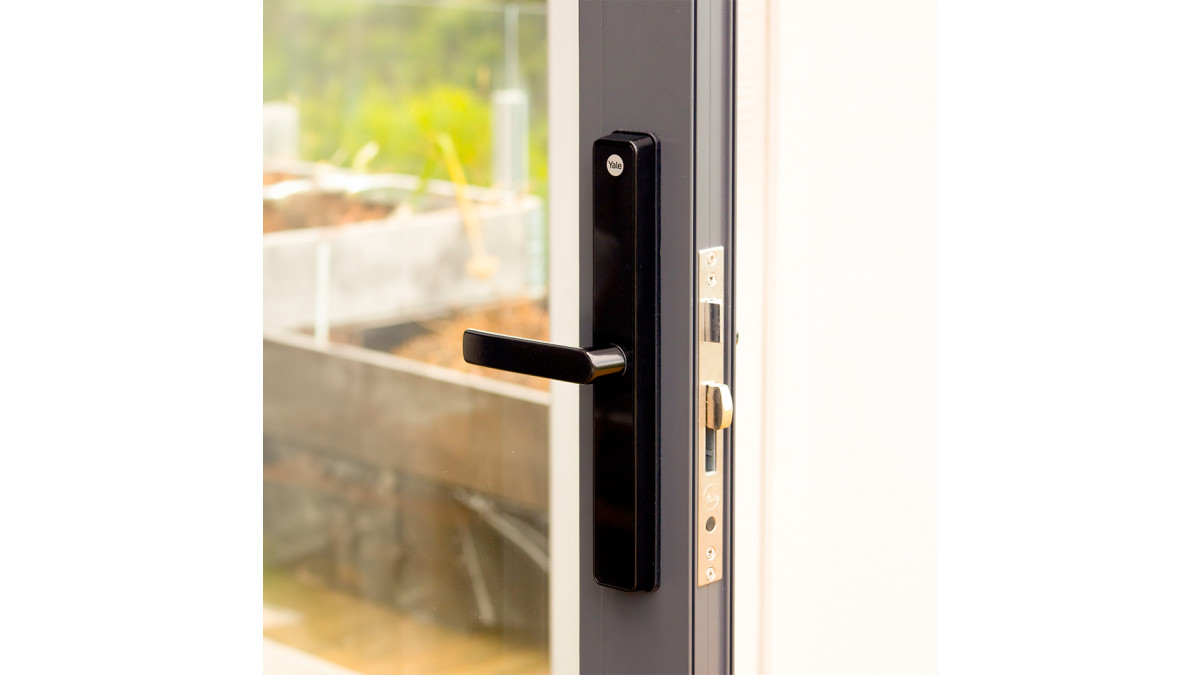

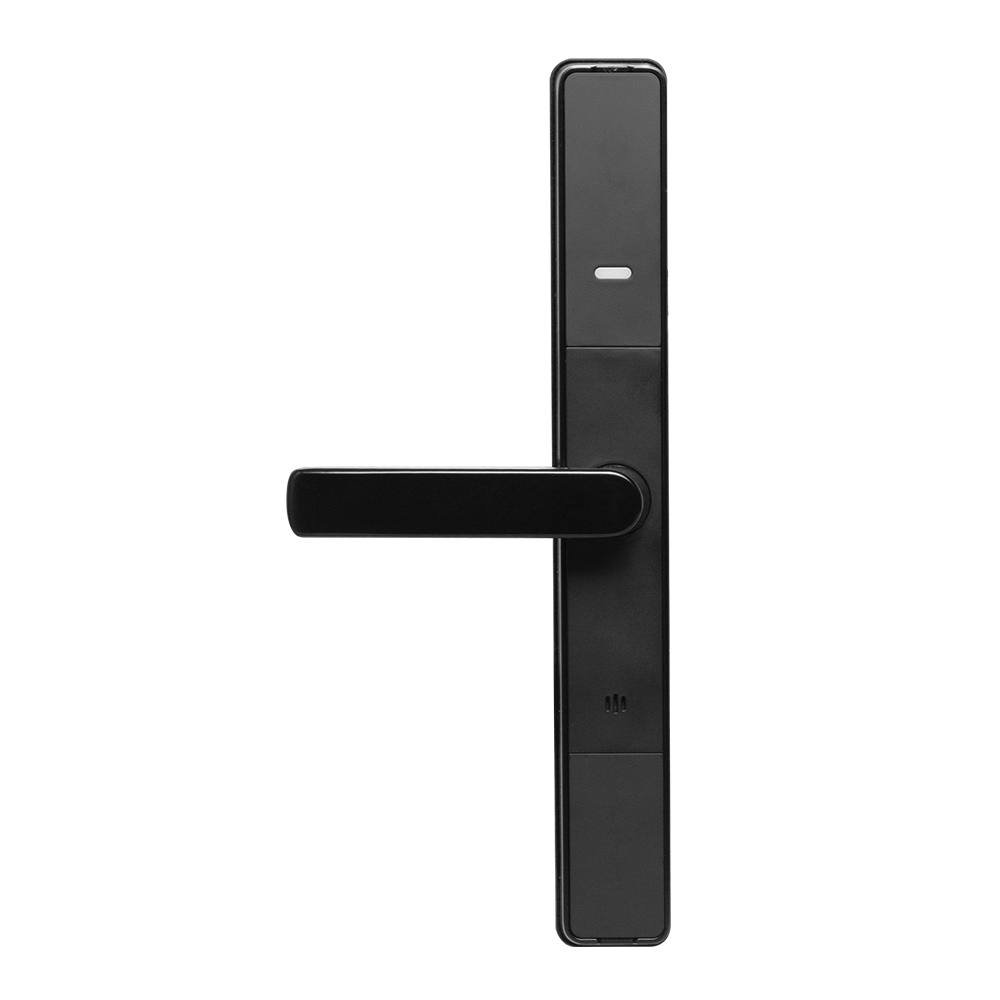

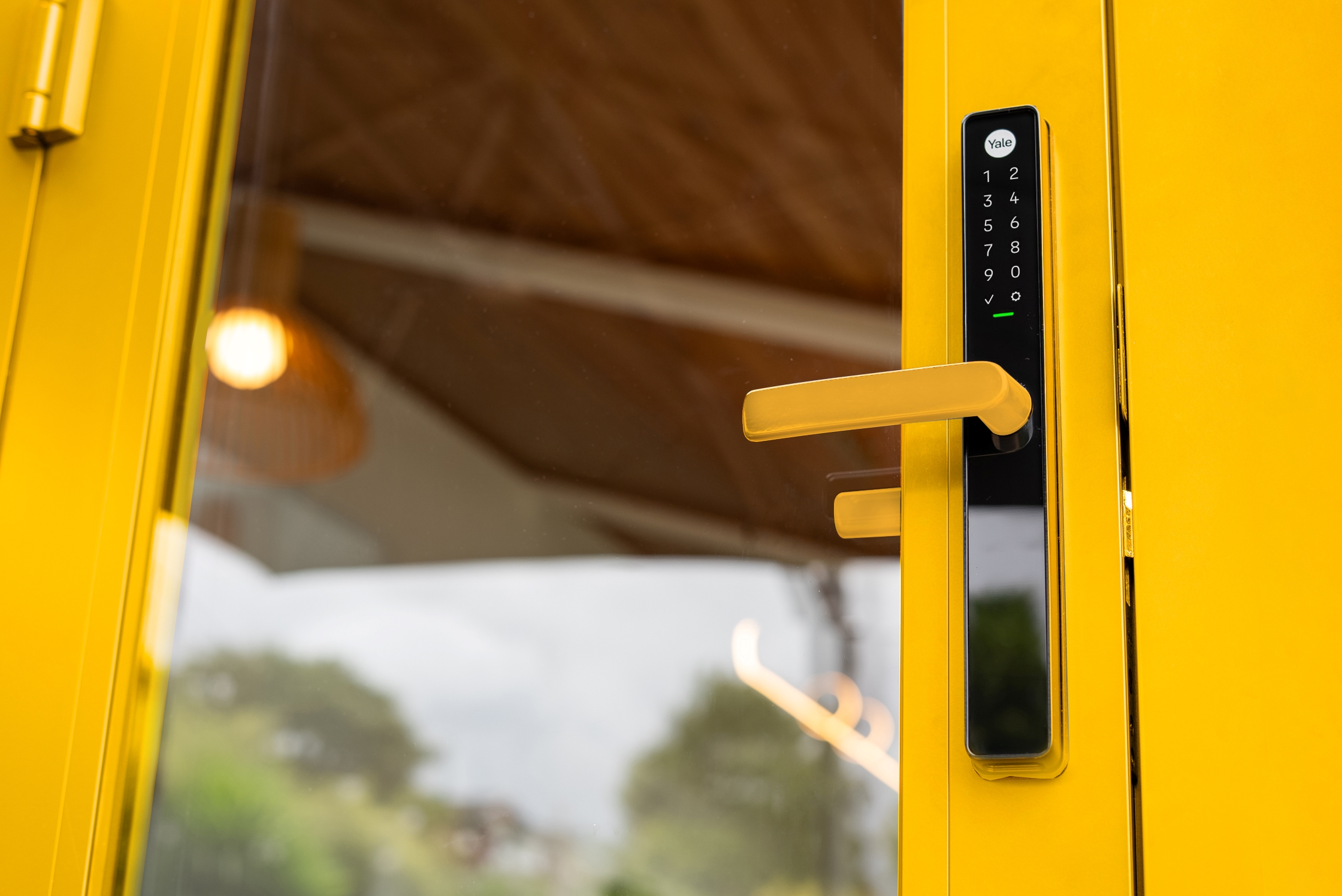

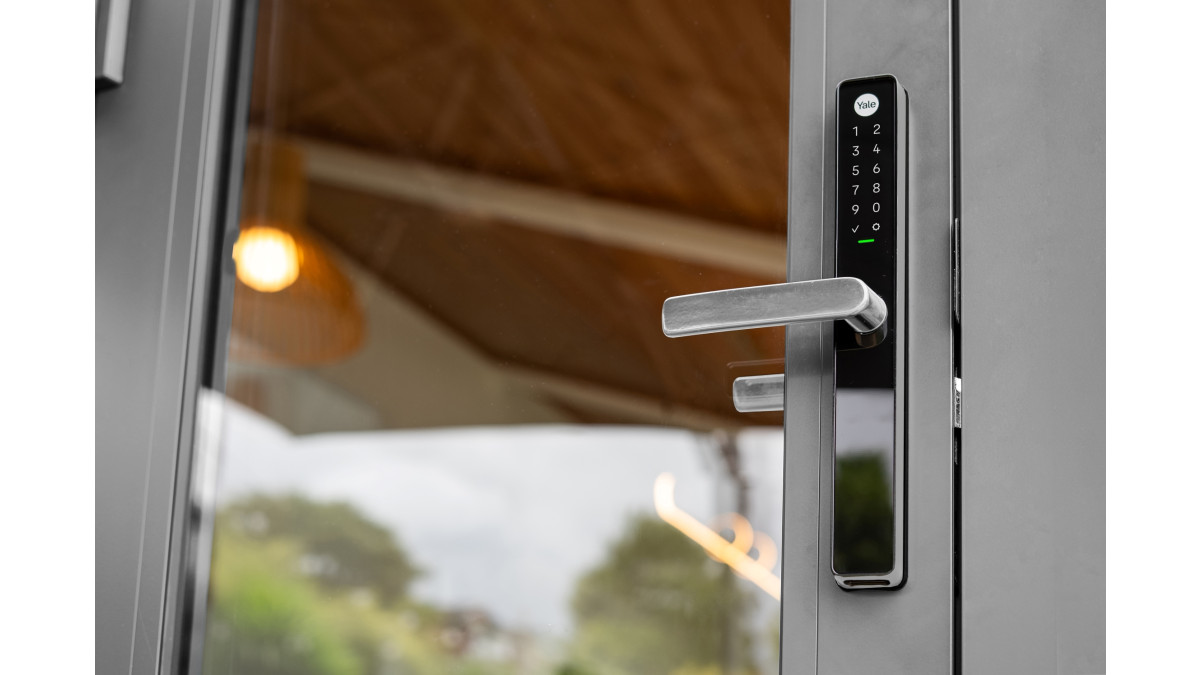

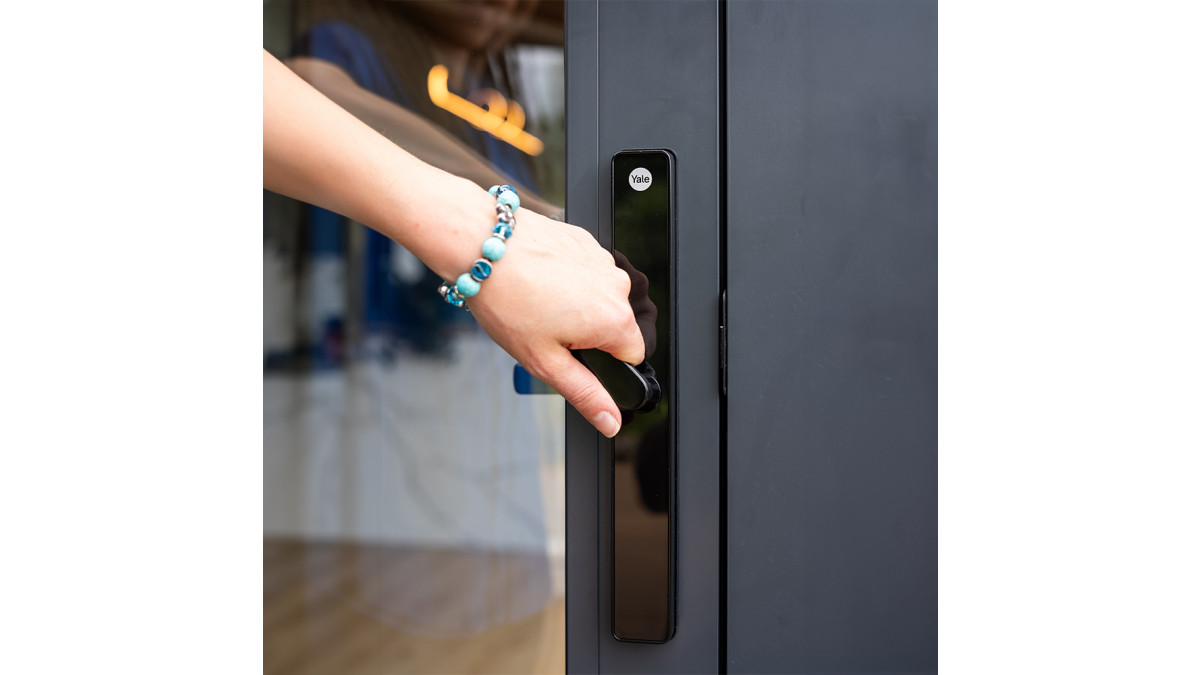

The Unity® Slim Smart Lock is a smart lock that is designed to fit on varying hinged door stile widths with 30mm, 40mm, 50mm, or 60mm backsets. This makes it ideal for use on external access doors off bedrooms or living areas. It is built to withstand New Zealand’s harsh weather conditions, featuring a powdercoated diecast body and handle along with a UV-protected screen.

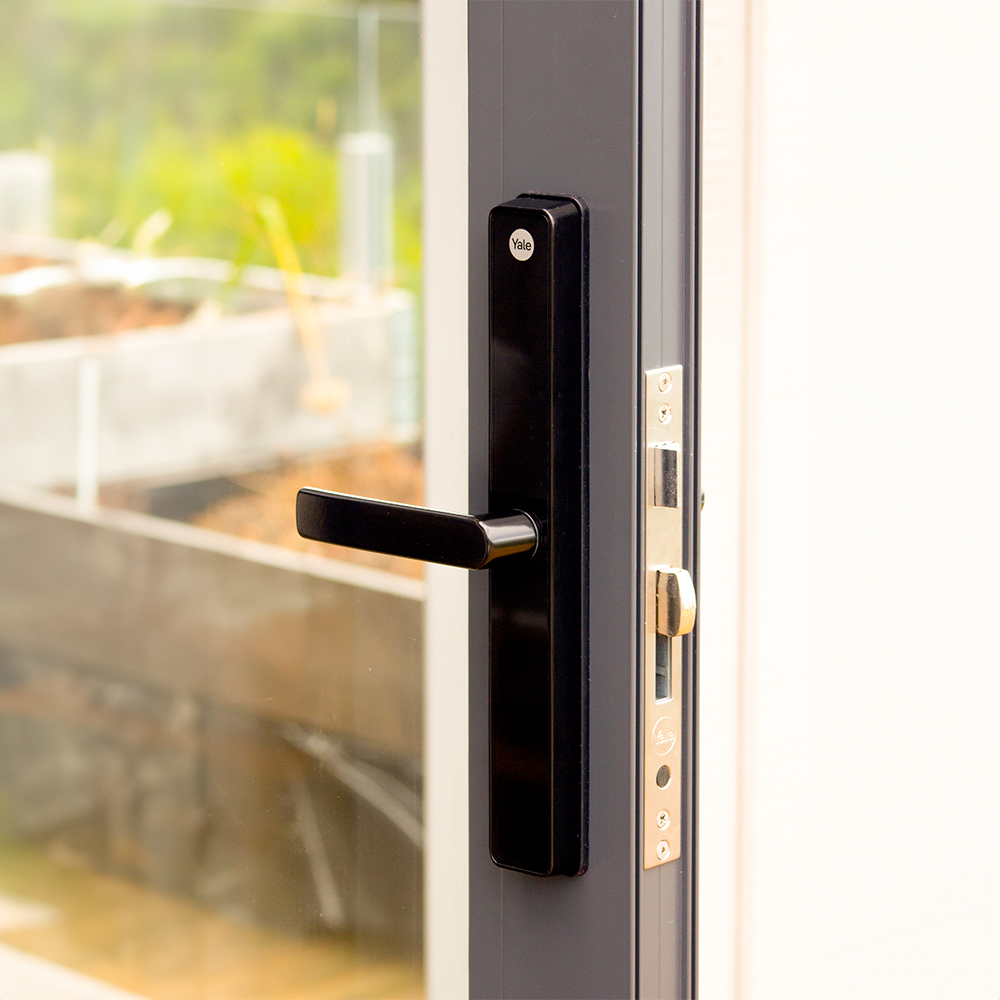

The lock is supported by the Induro® with four points of locking, including the latch, deadbolt, and shootbolts when the handle is lifted. This adds extra security and generates optimum seal compression to improve water and air seal performance, especially for large panel doors.

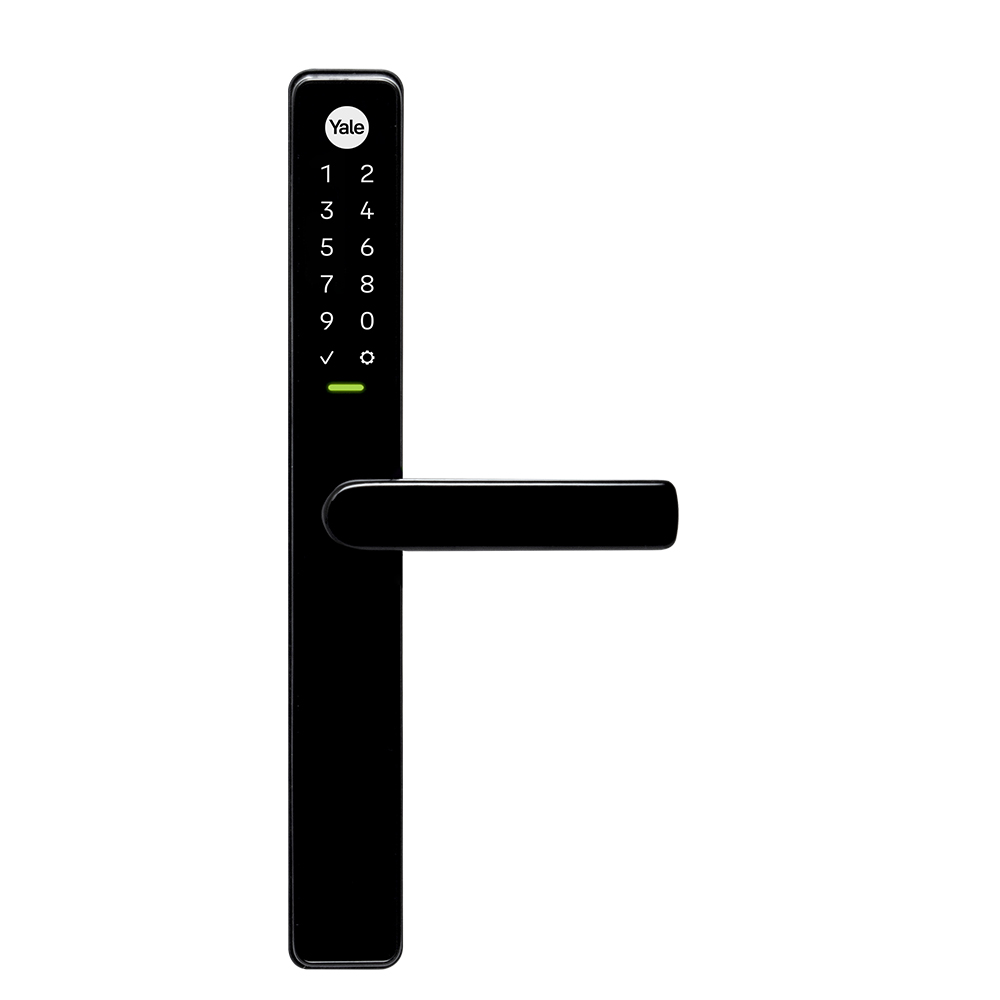

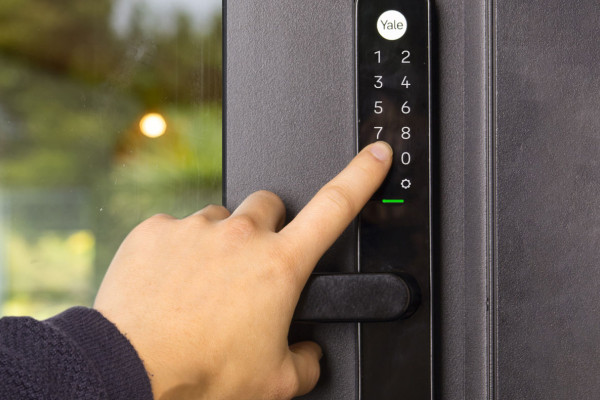

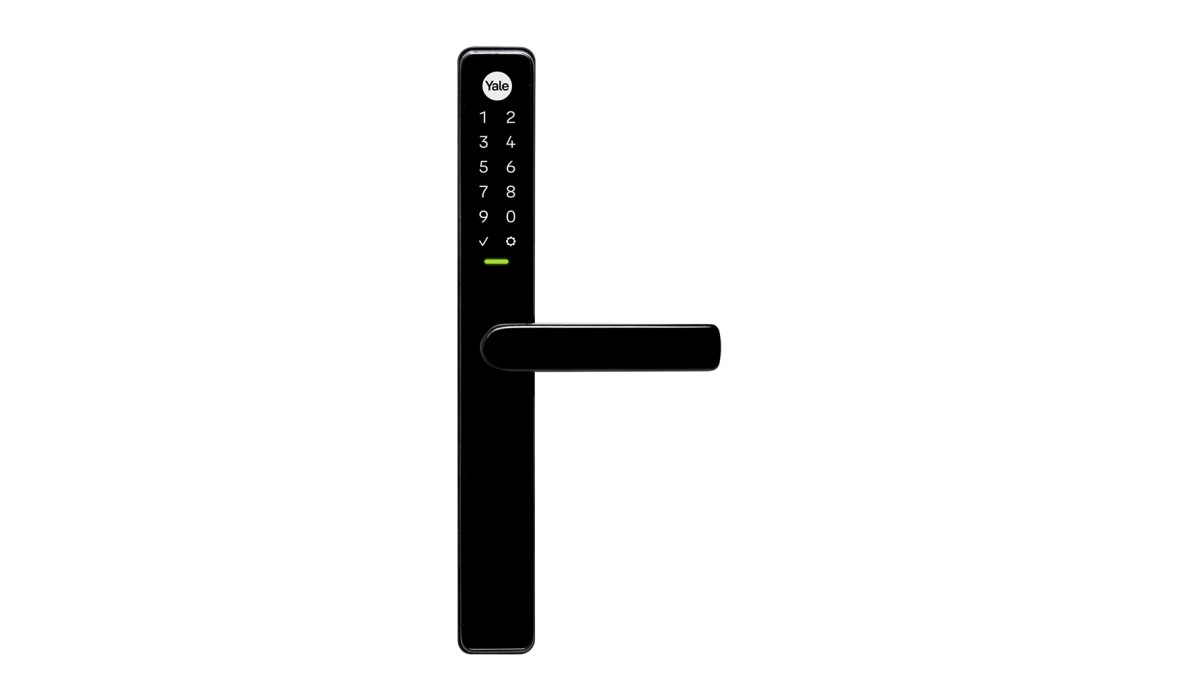

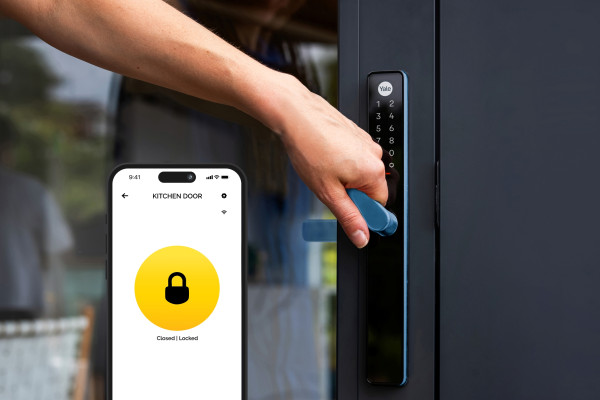

The Unity® Slim Smart Lock has a built-in keypad for convenient key-free access at all times, and it is controllable by the Yale Home App. The Yale Home App allows users to lock and unlock, grant access to others, and keep track of visitor access, all via a smartphone. Users can be granted one-time access or access for a set time or a date range. The auto-unlock feature unlocks on approach, using varying technologies, including Bluetooth, Wi-Fi, and GPS, as well as the Yale Home App. The door position sensor checks the status of the door and advises if the door is securely closed and locked.

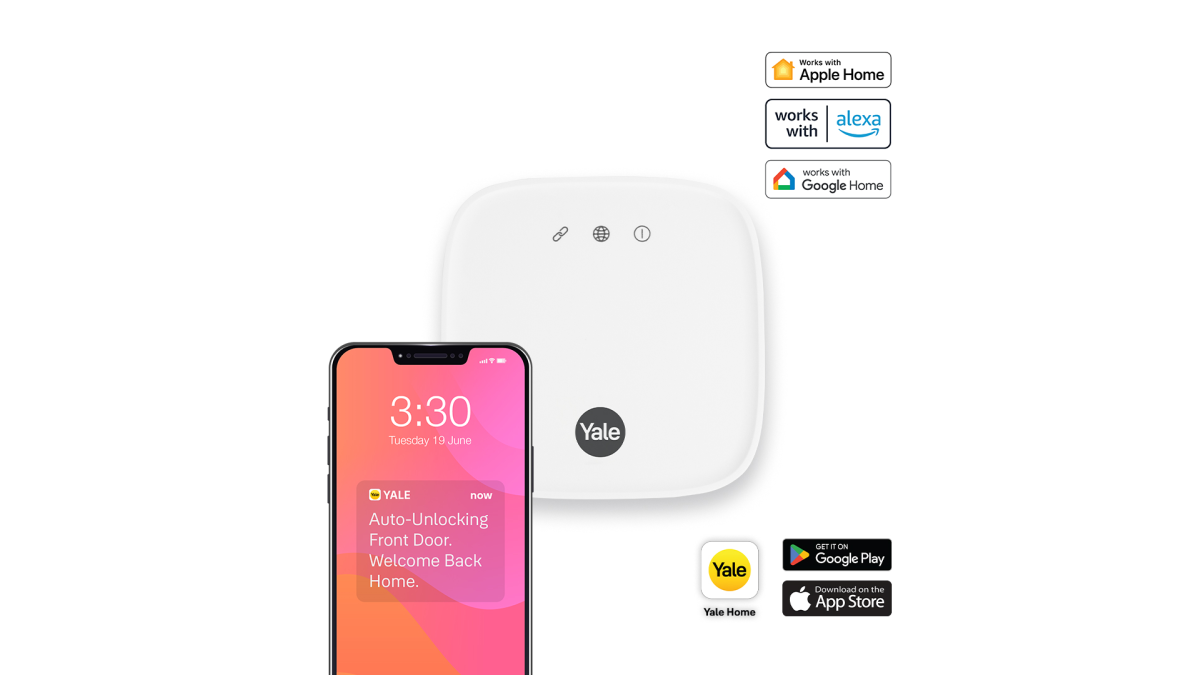

The Unity® Slim Smart Lock can be upgraded with the Yale Connect Hub/Bridge. The Yale Connect Hub/Bridge features remote access to lock and unlock, change PIN codes, and see who has come and gone. The Yale Connect Hub/Bridge enables the 'Works with' ability, integrating into Google Home, or Amazon Alexa smart home hubs.

Download the Yale Home App for:

  • App control
  • Guest access
  • 24/7 activity monitoring & notifications
  • Auto lock/unlock when nearby
  • DoorSense™ technology: know when  door is open, closed or left ajar from anywhere

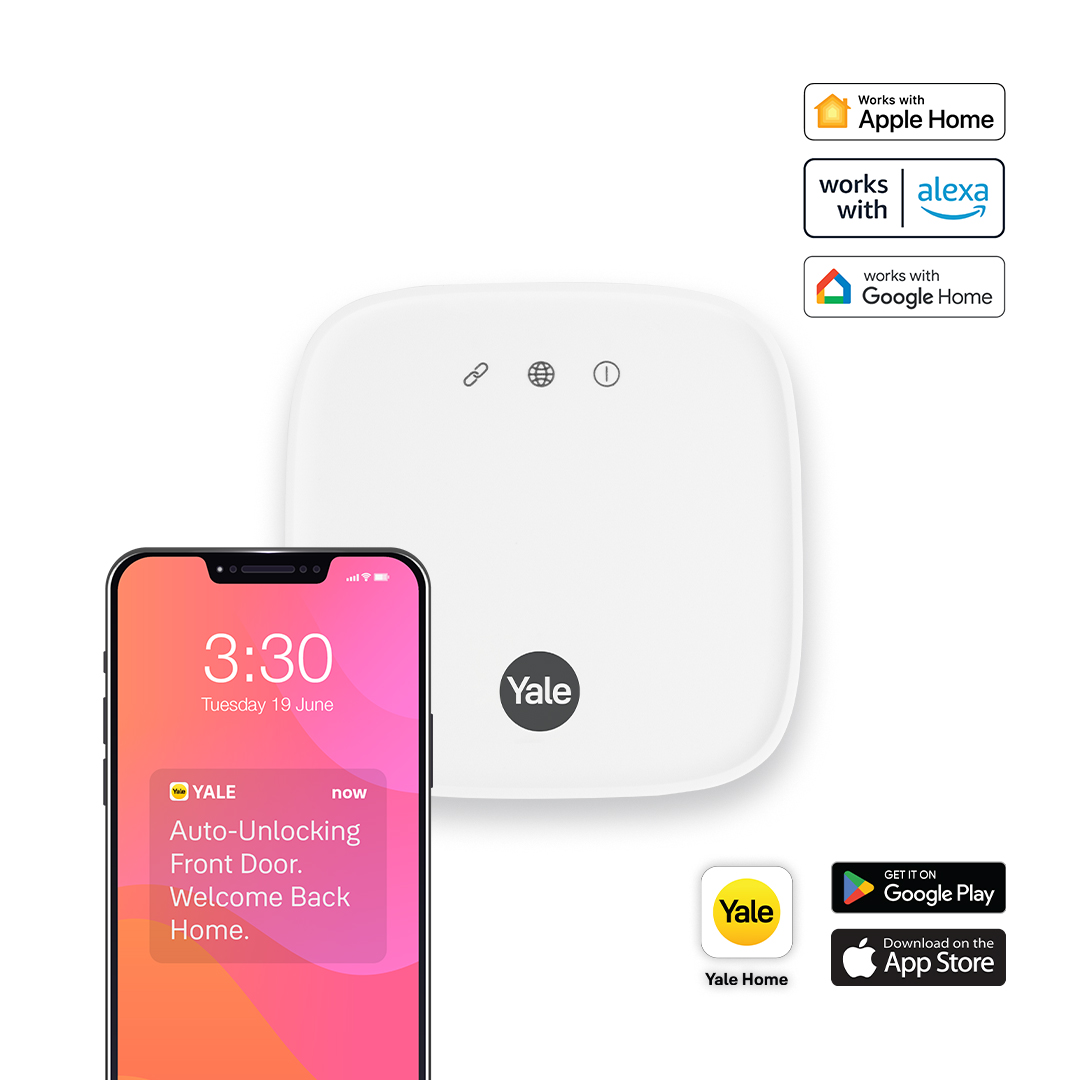

Upgrade with the Yale Connect Plus Hub 2 for:

  • Manage access from anywhere
  • Remote locking/unlocking
  • Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control
Key Features
  • Lock status indicated via LED, showing the lock mode: Secure (red), Locked (yellow) and Unlocked (green)
  • Auto unlock on approach without the need to take out the phone
  • The door position sensor notifies if door is open or closed
  • Tailor user access — use either the Yale Home App or build-in Keypad to access lock
  • 100% key free — no mechanical keys; no cylinder means no lost keys and no pick and bump break-ins
  • Powdercoated with black nylon
Categories
Locks
Scope of Use
  • Digital mortice lock (multipoint)
  • Door thickness: 35-60mm
  • Backset: 30mm, 40mm, or 50mm
  • Door type: aluminium or timber
  • Weather rating: IP55
  • Phone requirements: iOS (11.0 or higher) or Android (8.0 or higher with Bluetooth 4.0) smartphones
Limitations on Use
  • This product is suitable for residential applications on entry doors, and not to be used where the inside escutcheon will be exposed directly to outdoor elements.
Other Performance Attributes
  • Weather rating: IP55
Documents
Yale Connect Plus Hub 2 Flyer
