Yale Aeron® Window Actuator
Description

The Aeron® Window Control System can be configured to reflect the house layout, with groups, such as the kitchen, hall, or bedroom, set up providing flexibility when deciding which windows to have open, half open, closed, or in a venting position.

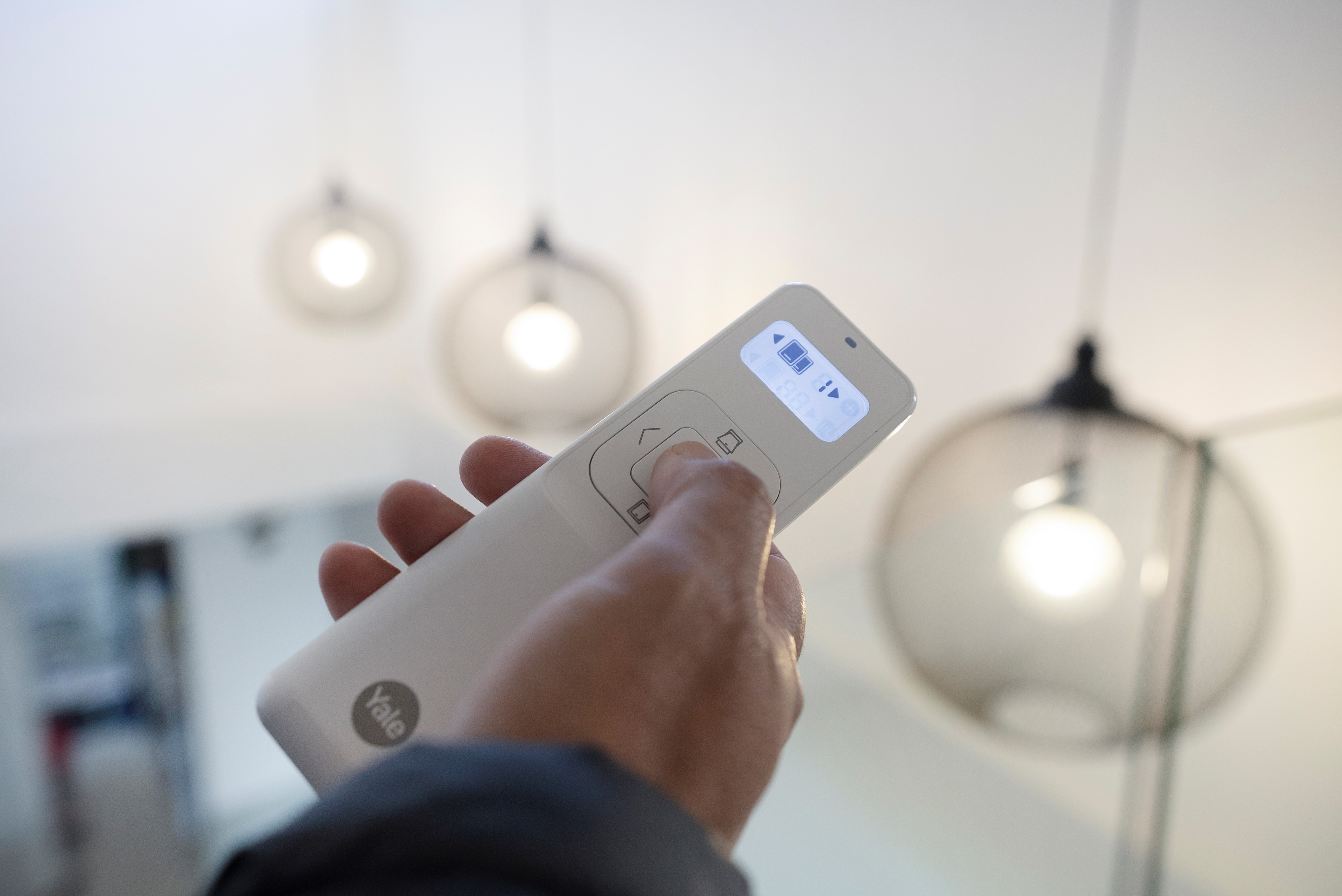

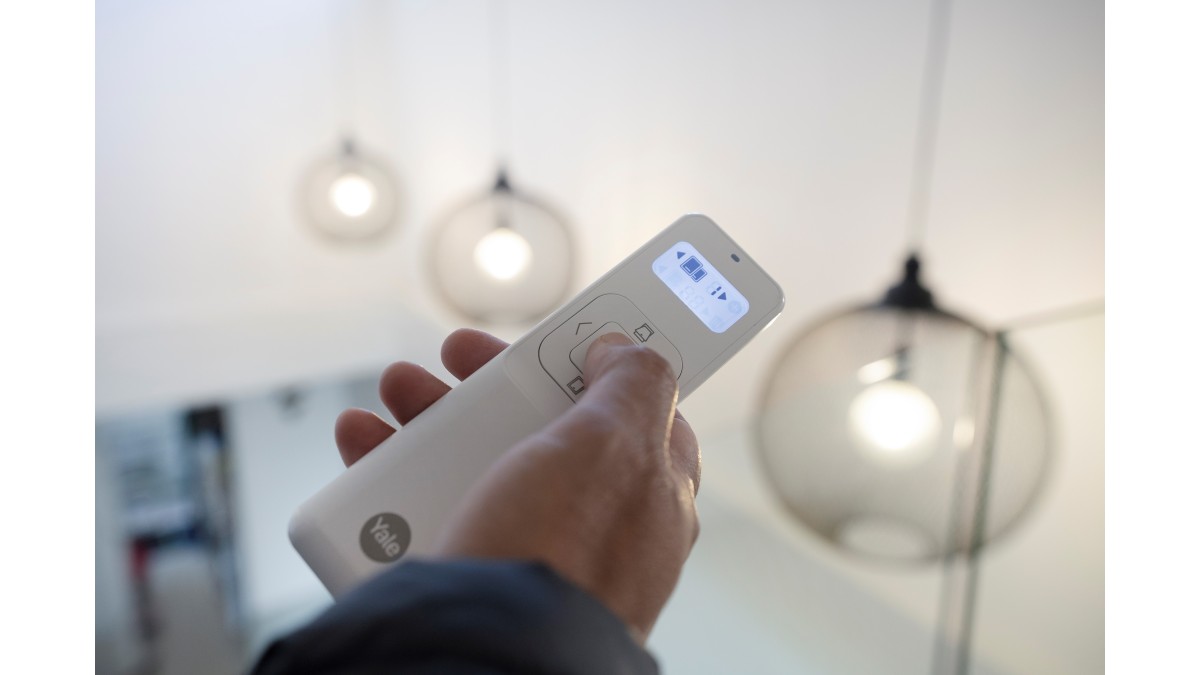

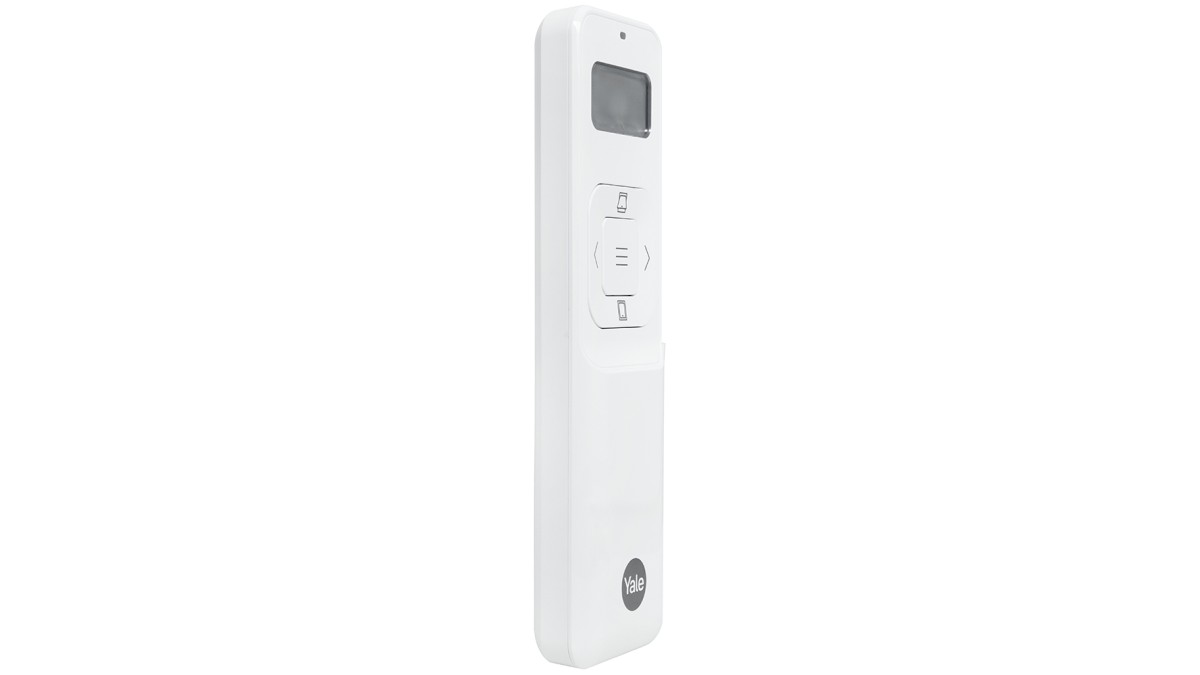

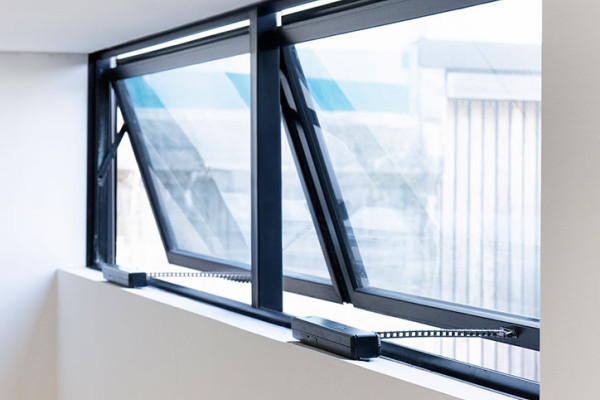

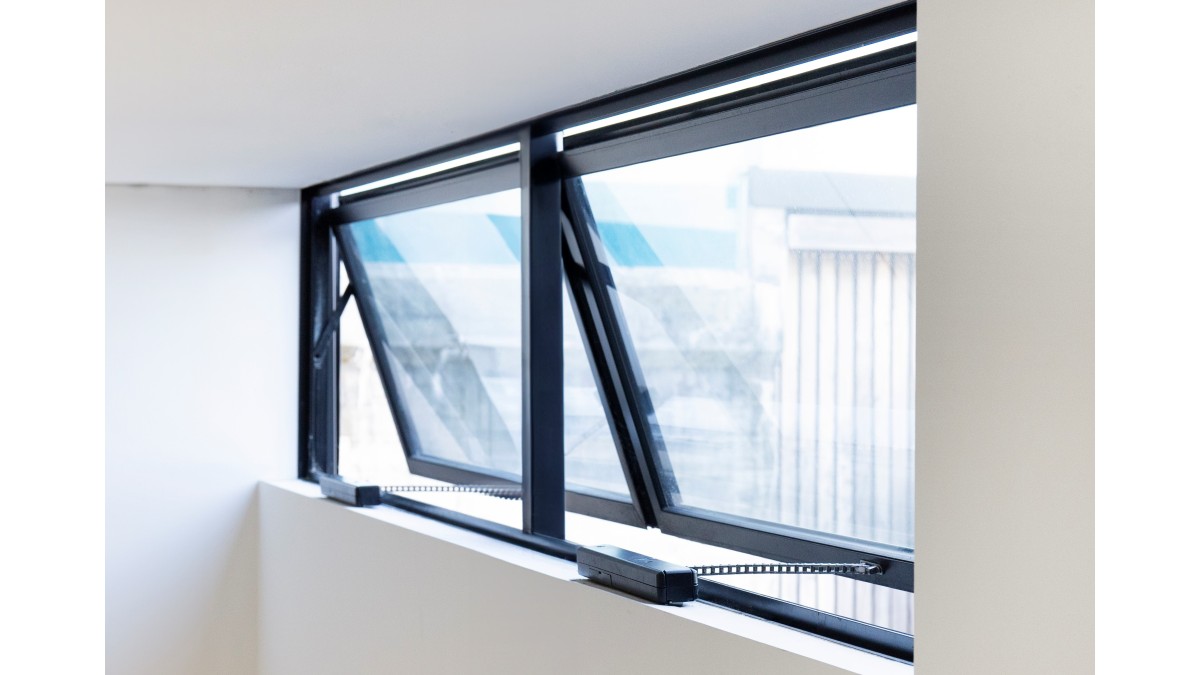

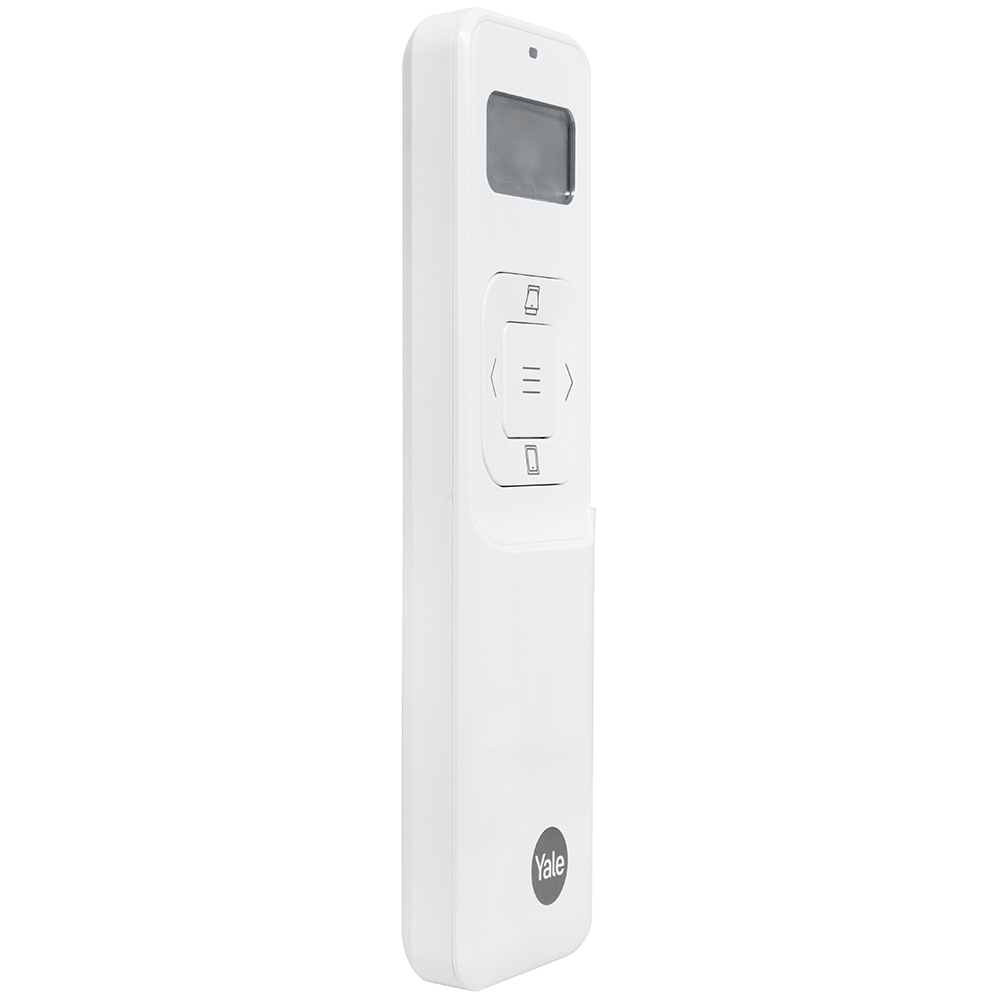

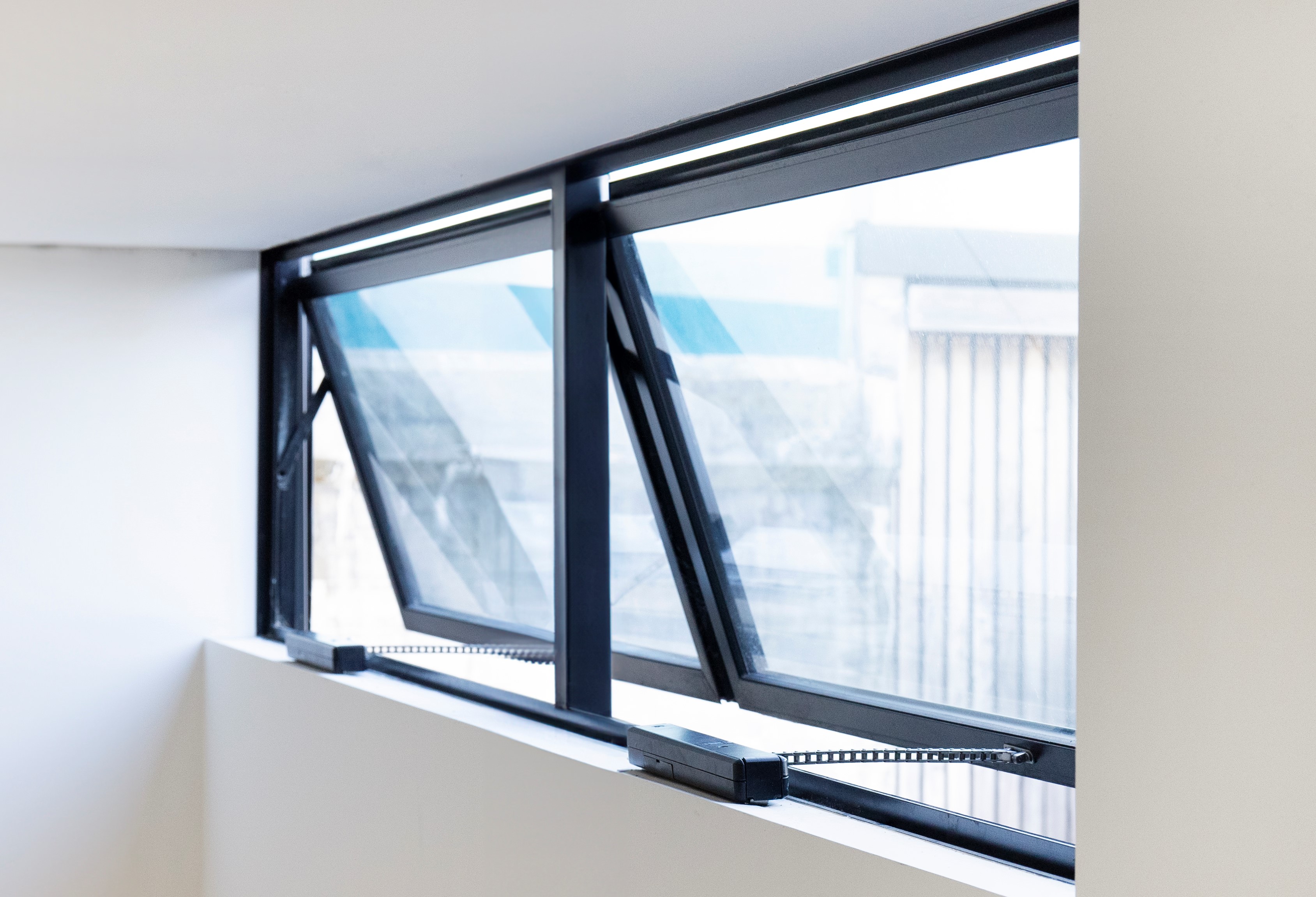

The Aeron® is the perfect solution for hard-to-reach windows, offering control via a remote and the Yale Home App. Wide windows are also easily catered for with the installation of a pair of synced actuators that work together to ensure smooth movement and a tight window seal when closed.

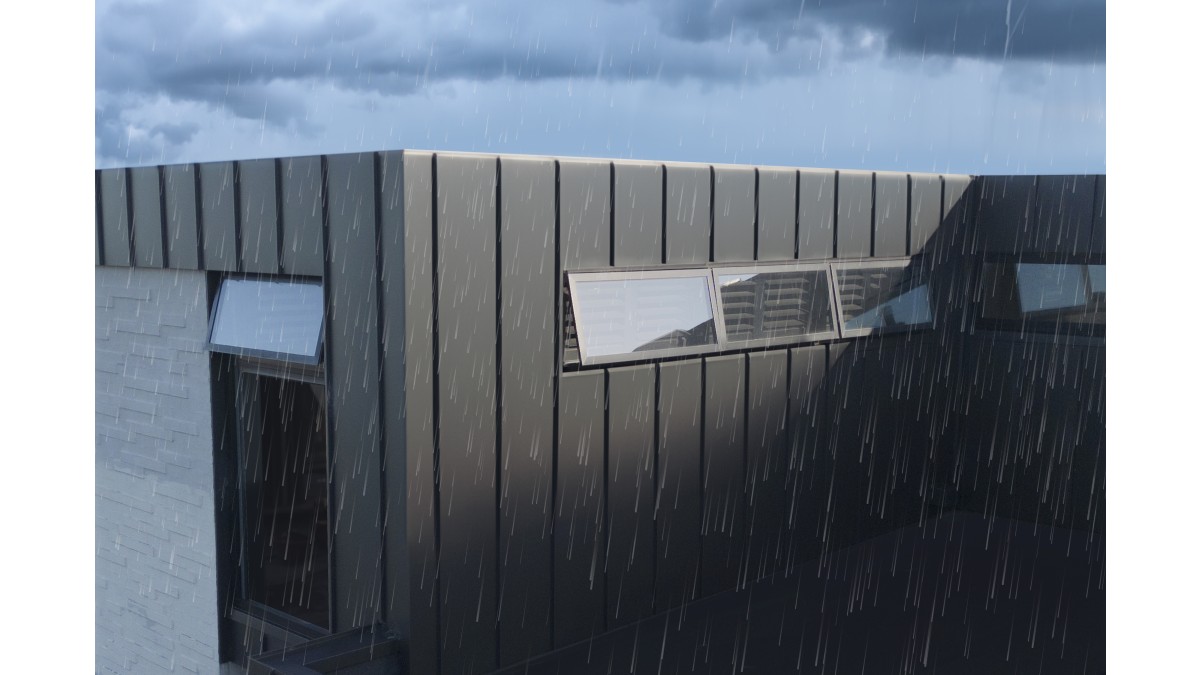

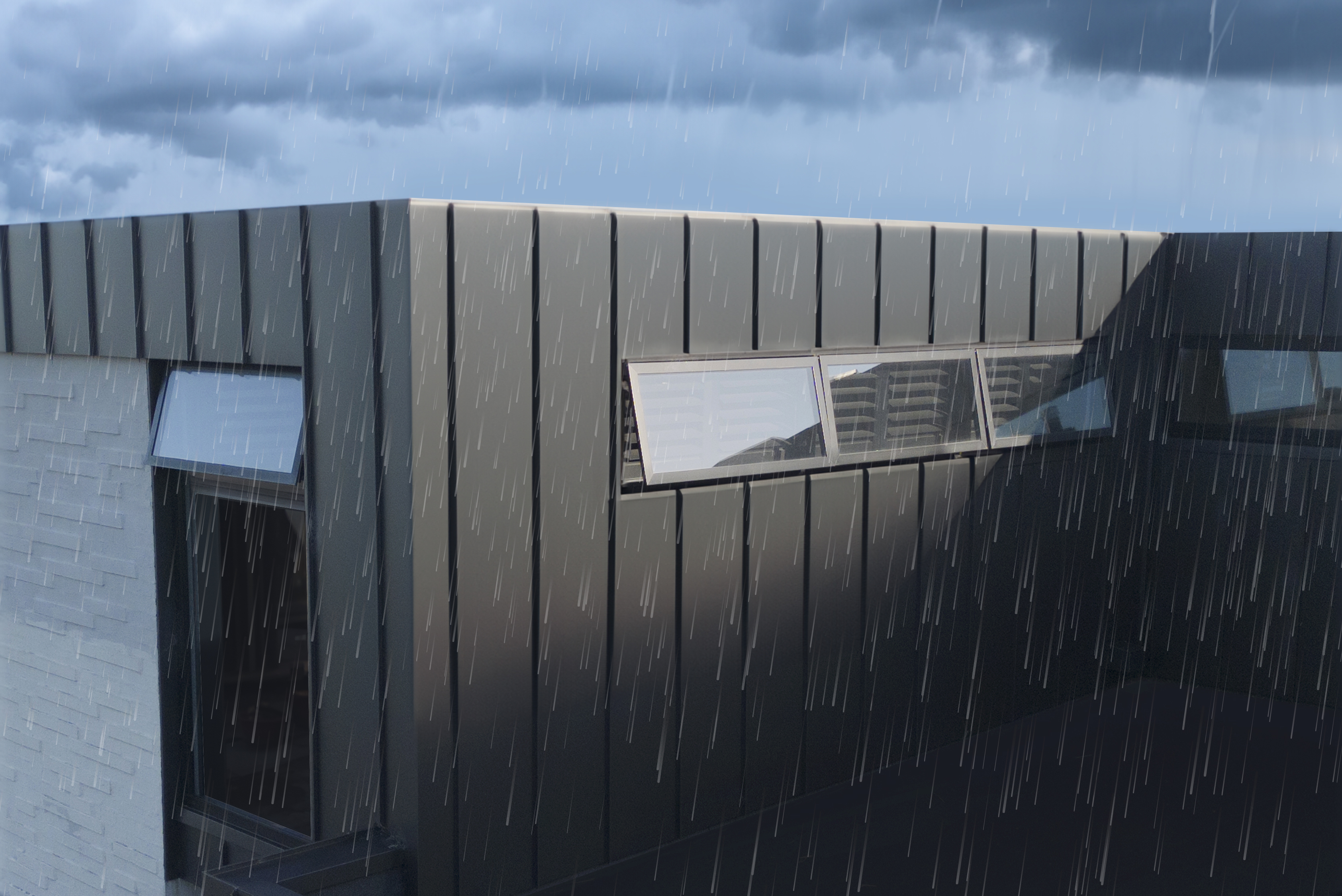

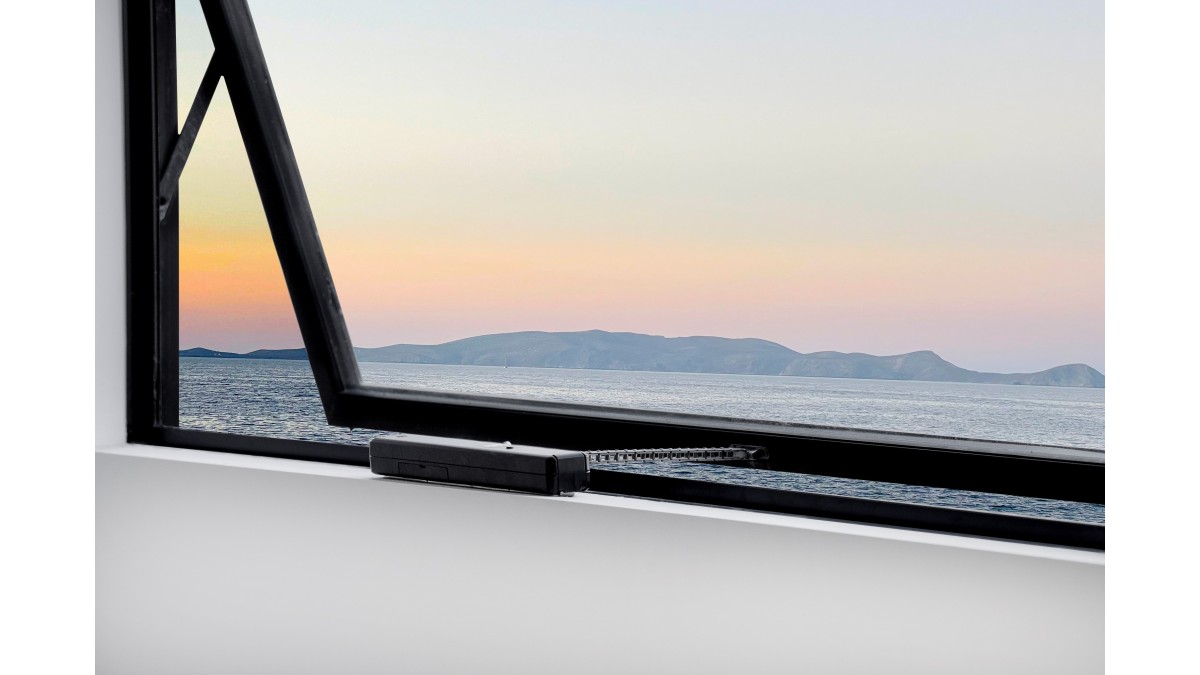

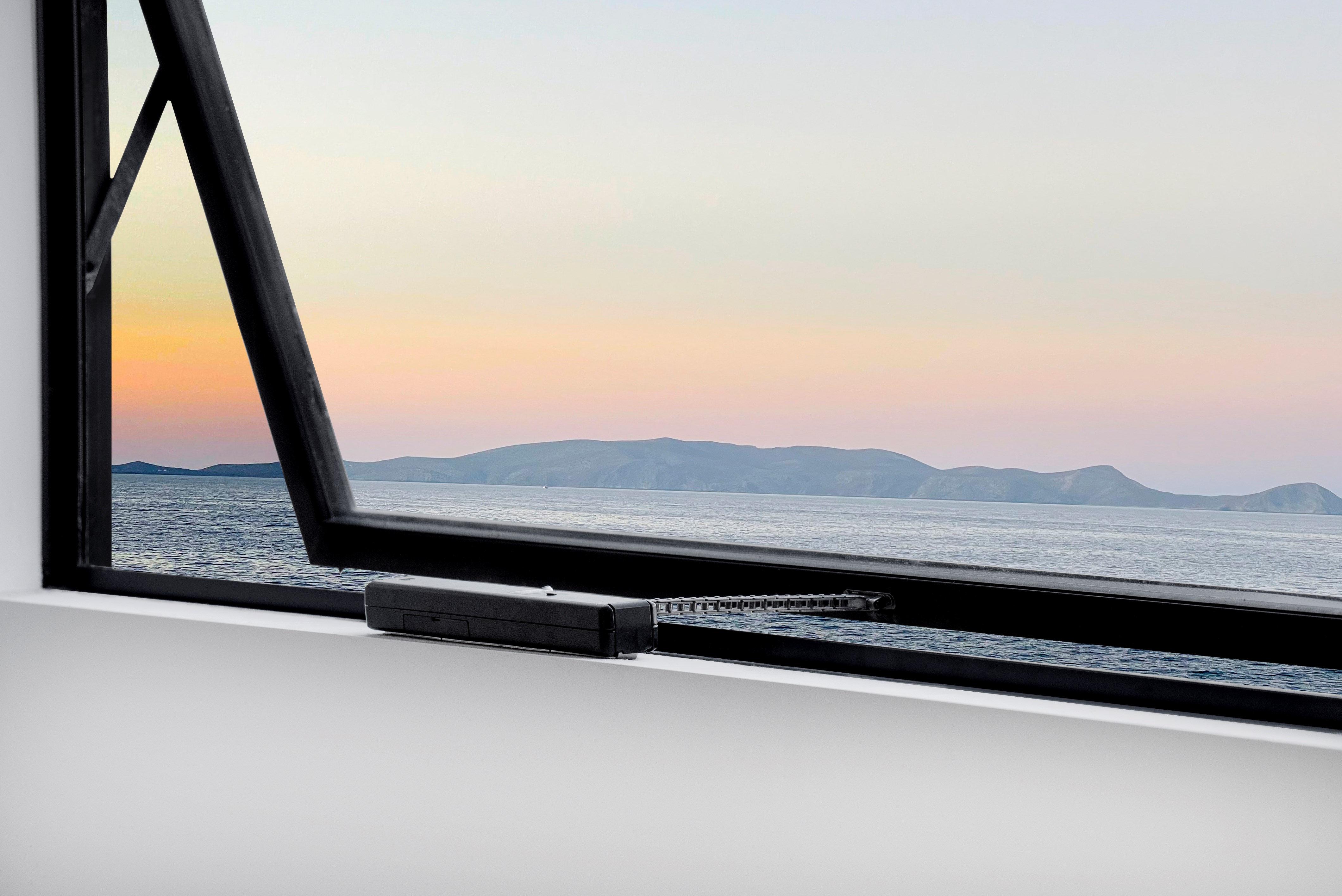

The Aeron® allows for a generous window opening but can be easily restricted to a range of distances via an easy-to-use side switch, preventing contact with external objects. Ultimate control is only one touch away with the option to close all windows at once when leaving the house, or locking up for the night. A rain sensor can be added to the Aeron system and the windows will automatically close if rain is detected.

Key Features
  • Solution for hard-to-reach windows
  • Options for windows to be open, half open, closed, or in a venting position
  • Optional rain sensor — windows will automatically close if rain is detected
  • Set groups to control different areas of house
  • Ultimate Control option to close all
  • Fixing surfaces: Timber, aluminium
  • Closing time approximately 40 seconds

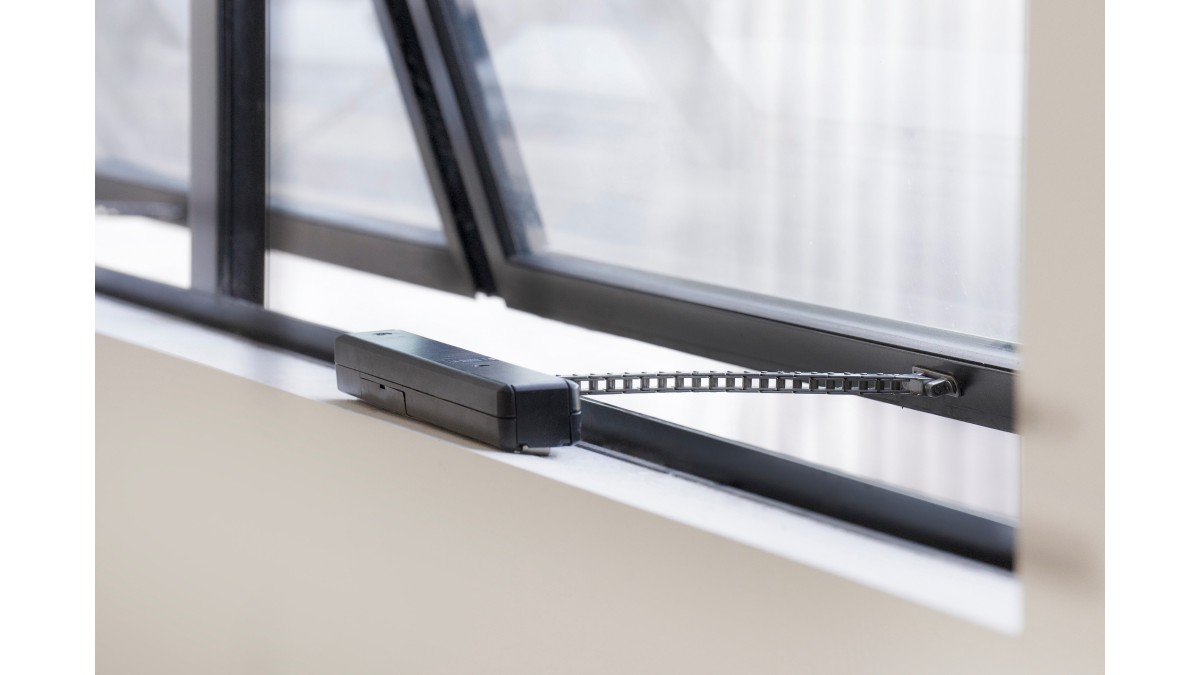

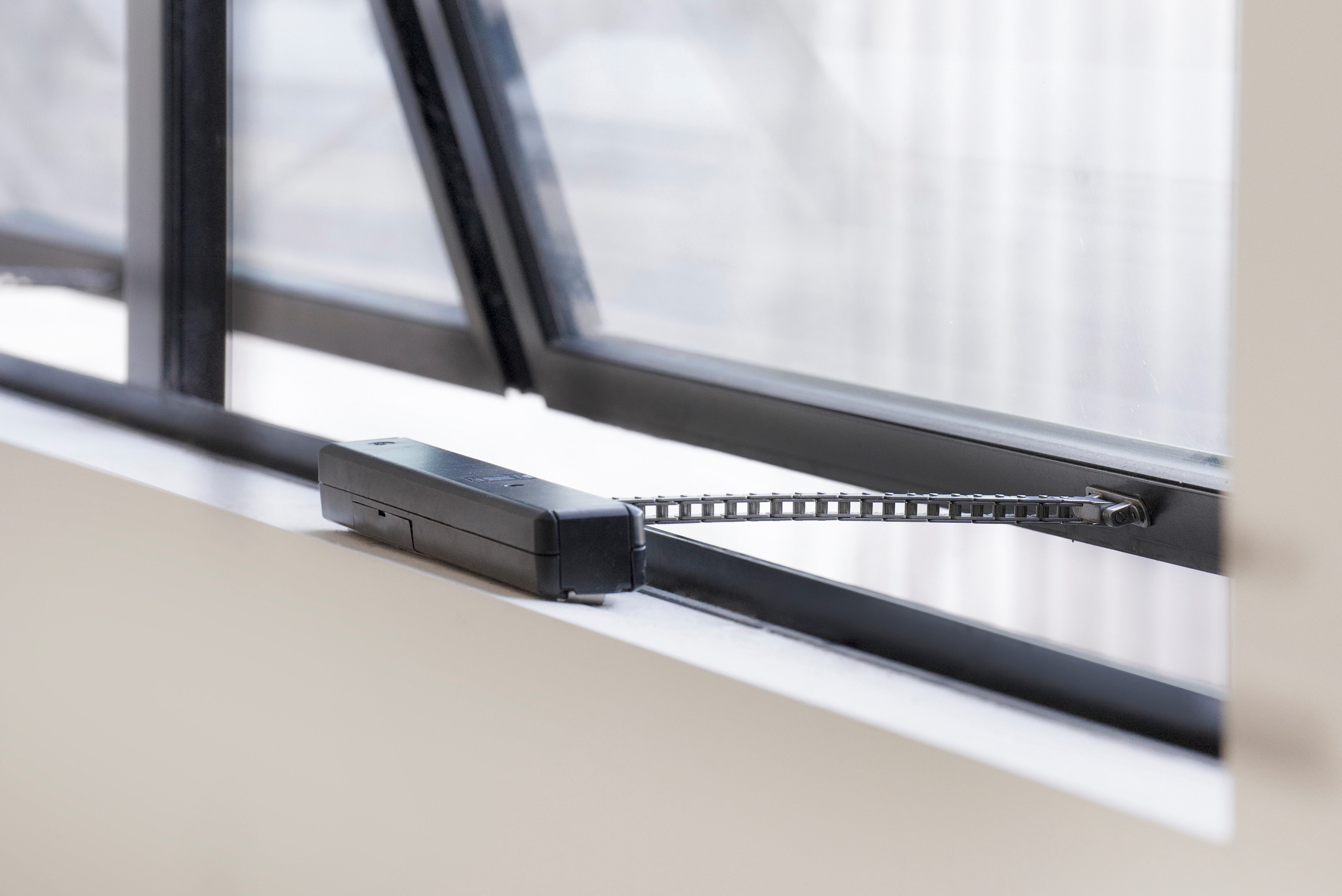

  • Stainless steel chain (Grade 302)
  • Finish options: Black, P Colours or Special
Scope of Use
  • Solution for hard-to-reach windows
  • Suitable for use on sashes with a maximum width of 2400mm and pushing force of 18kg
  • Suitable for awning or casement windows
  • Aeron® Actuators are only to be used on windows with hinges or non-friction stays
  • Fixing surfaces: timber, aluminium
  • Control via remote and Yale Home App
Limitations on Use
  • Wide windows are catered for with the installation of a pair of synced actuators
  • 0-50°C, 0-95% humidity
  • Maximum opening stroke: 300mm
  • Voltage: 24V DC
  • Maximum Current Draw:
    • Actuator = 750mA
    • Keypad = 100mA
    • Rain Sensor + Network Adaptor = 350mA
    • Wall Switch + Network Adaptor = 100mA
Other Performance Attributes
  • Opening/closing force: 90N
Documents
Aeron Selection Chart
Aeron-Specification-Guide
Aeron-Technical-Flyer
Aeron-Installation-Instructions
Aeron-Remote-Control-User-Guide
Aeron-Retrofit-Conel-Instructions
Aeron-Retrofit-Elevation-Instructions
Aeron-Synchronised-Actuators-Wiring-Instructions
Aeron-Window-Actuator-Brochure-Flyer

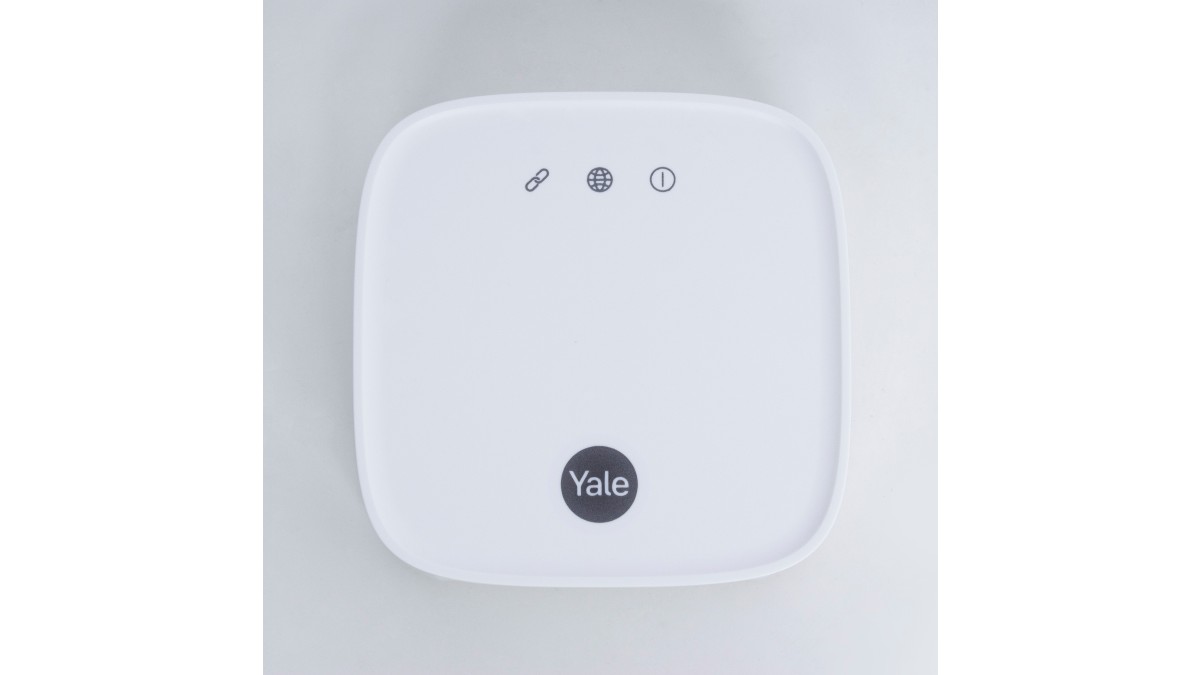

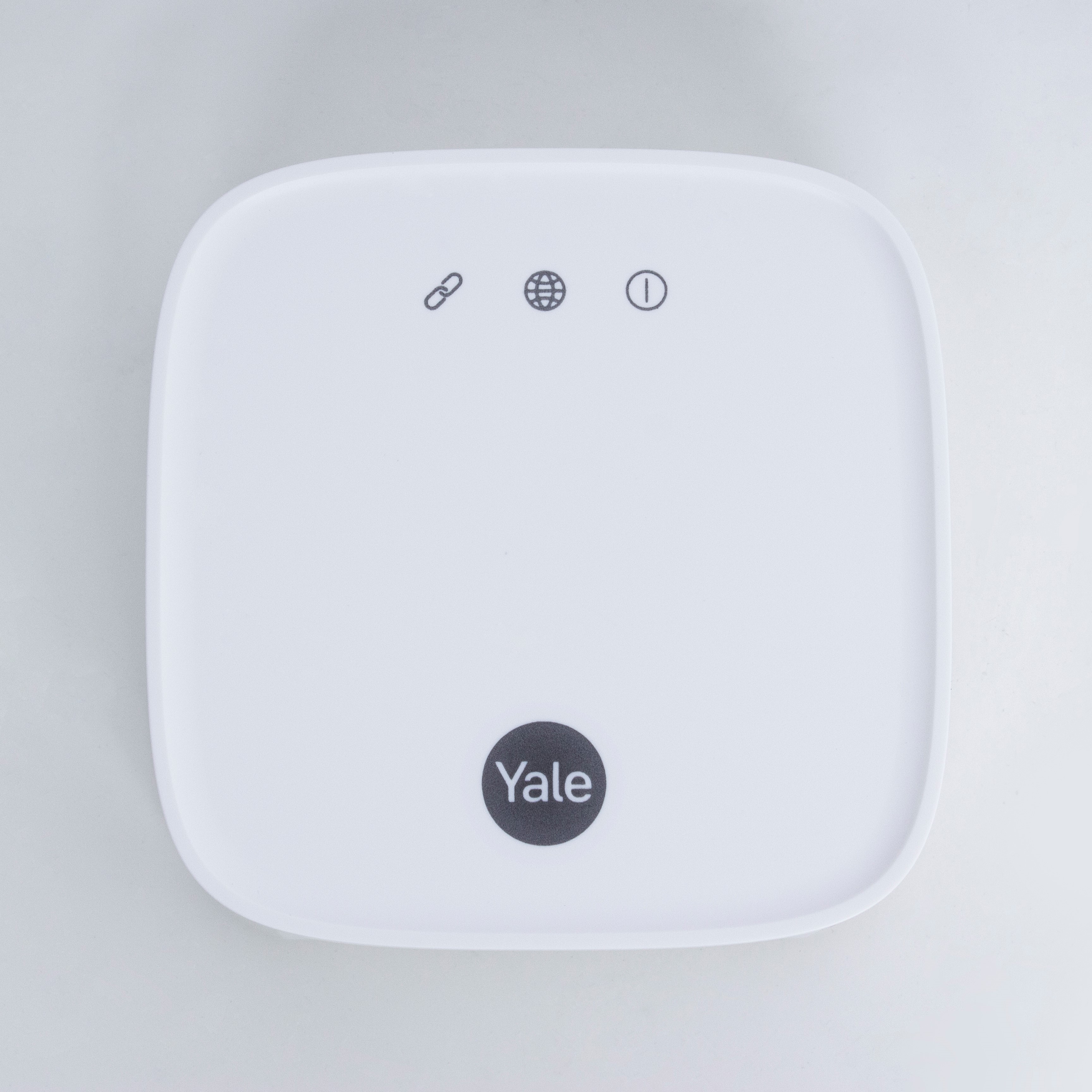

Yale Connect Plus Hub 2 Flyer
