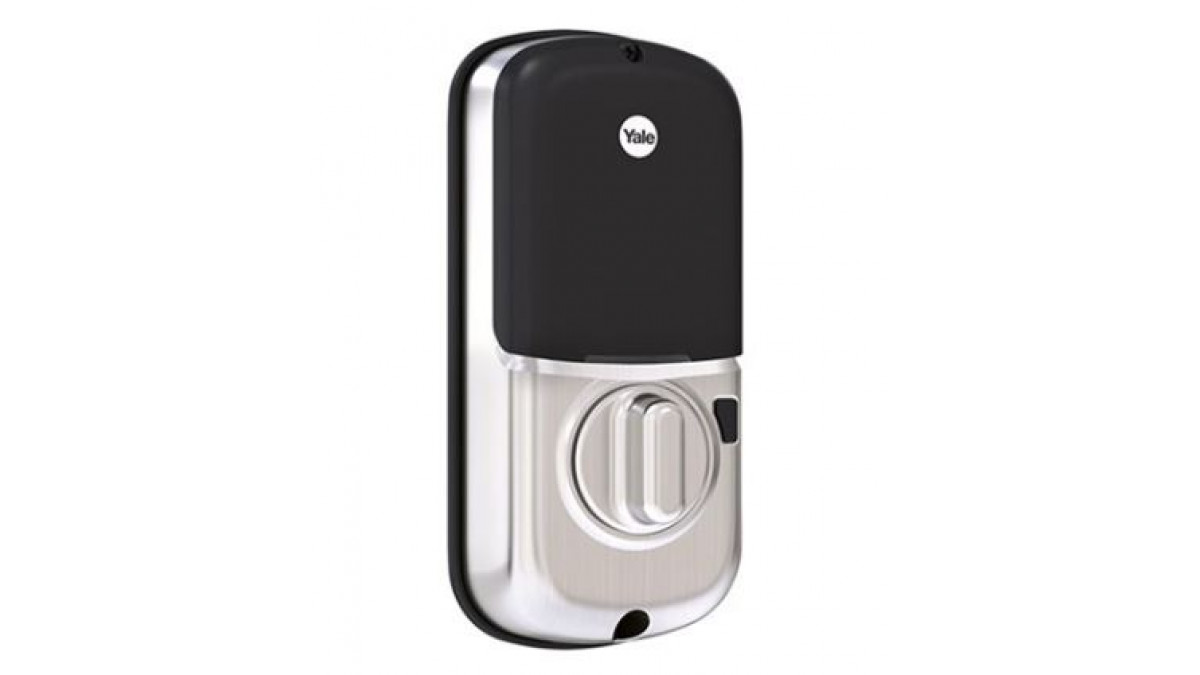

InteriorInterior

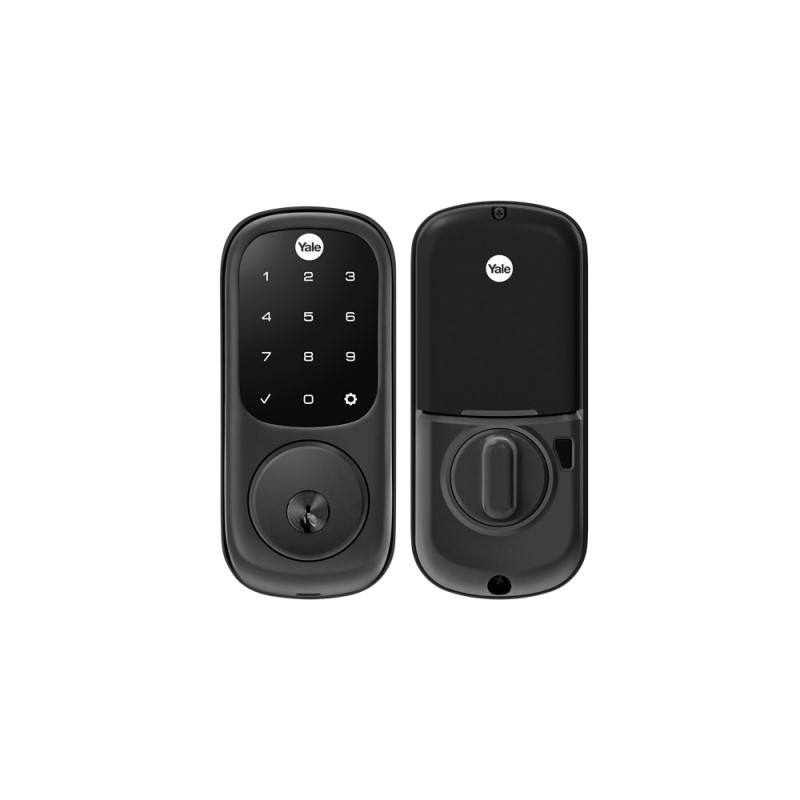

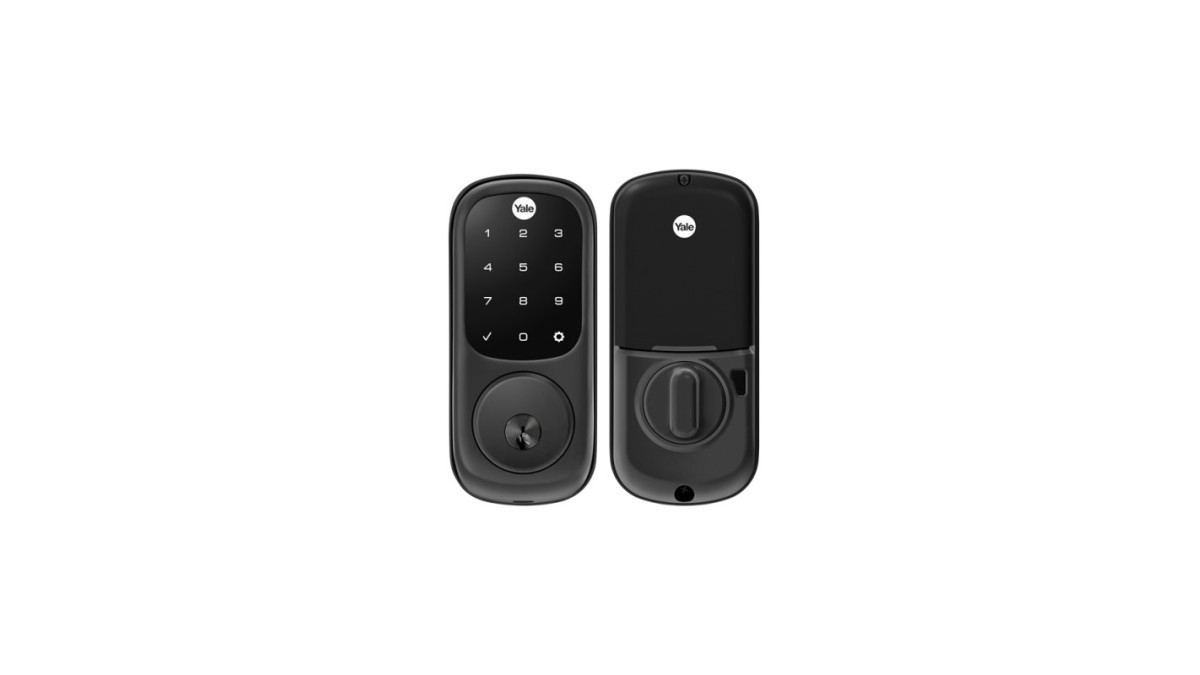

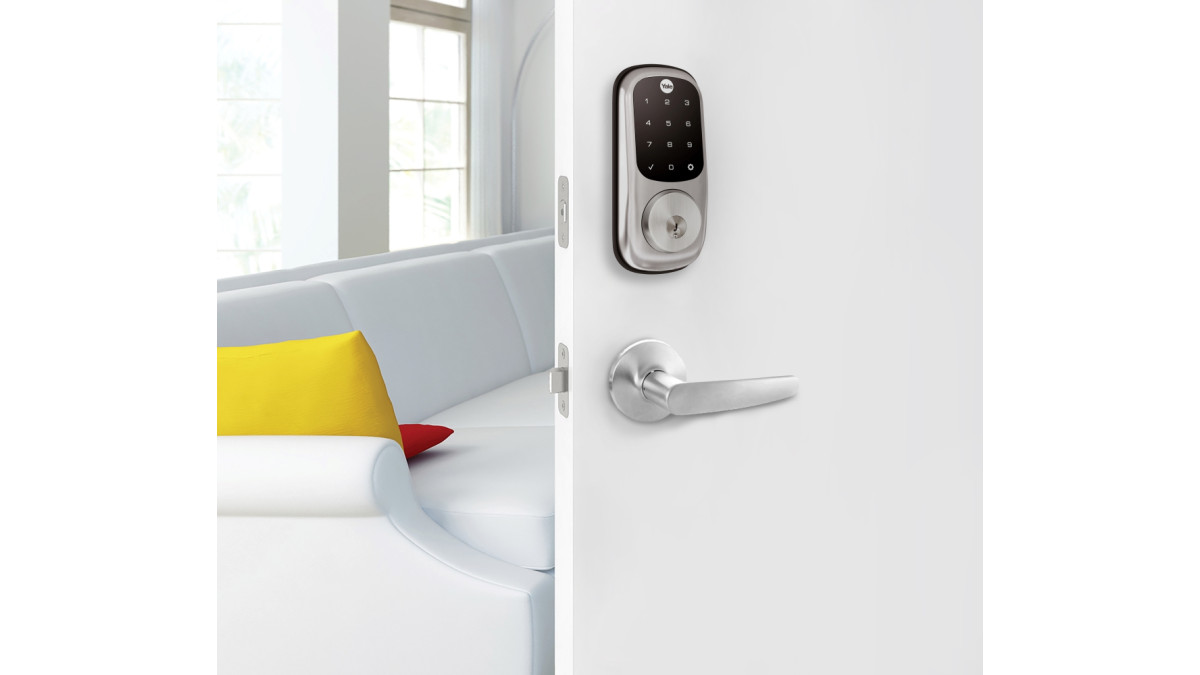

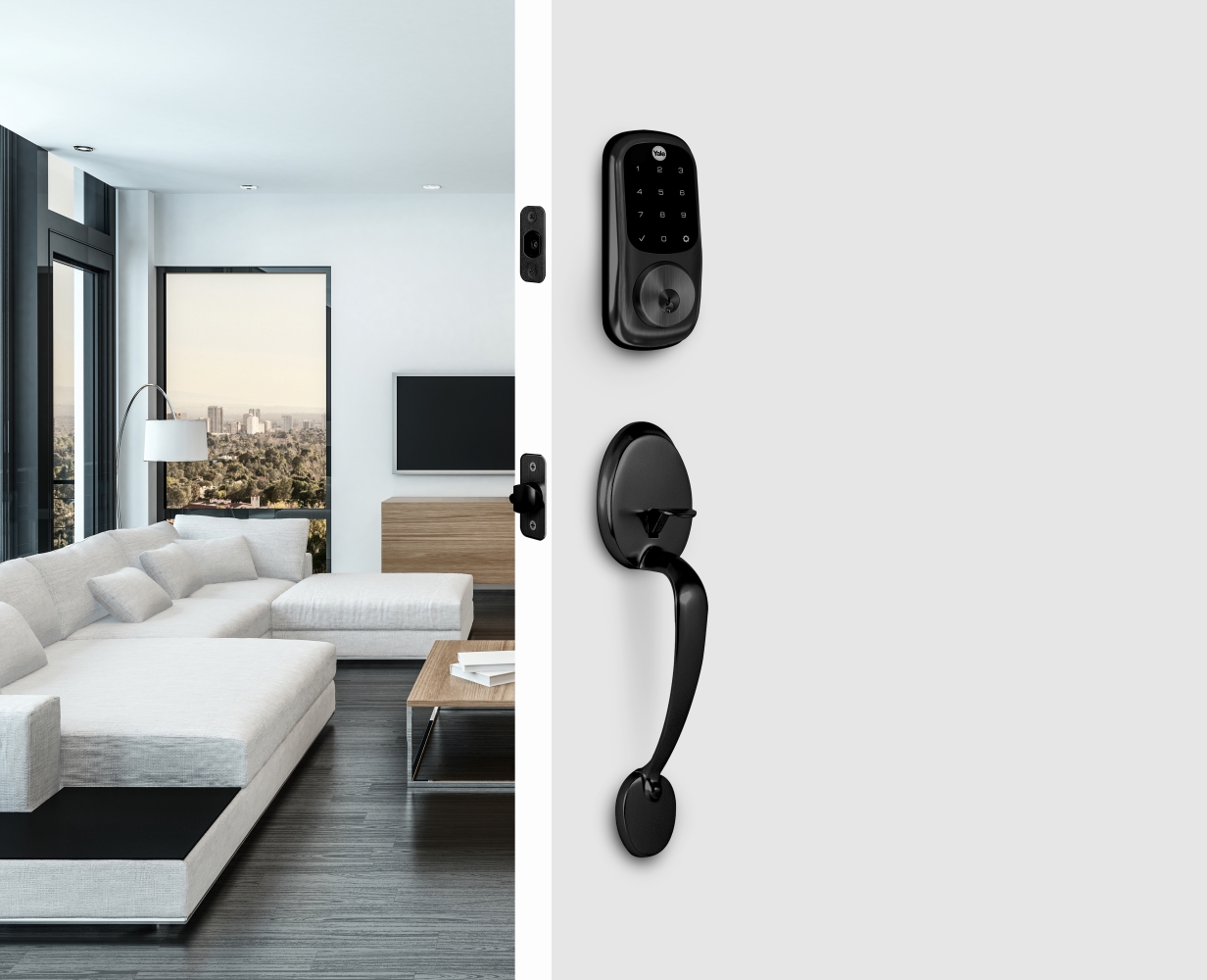

Yale Assure Lock Deadbolt Keyed
Description

Secure the home with this Yale electronic lock which offers the convenience of unlocking and locking the door using the backlit touchscreen keypad; removing the need to carry keys. Unlock the door by entering a 4-8 digit pin code. The lock stores up to 25 unique pin codes, that can all be created or removed using the menu from the keypad. The lock is Grade 2 certified and backed by Yale, one of the world's best-known brands in the lock industry that has been securing homes since 1846, ensuring home and family safety.

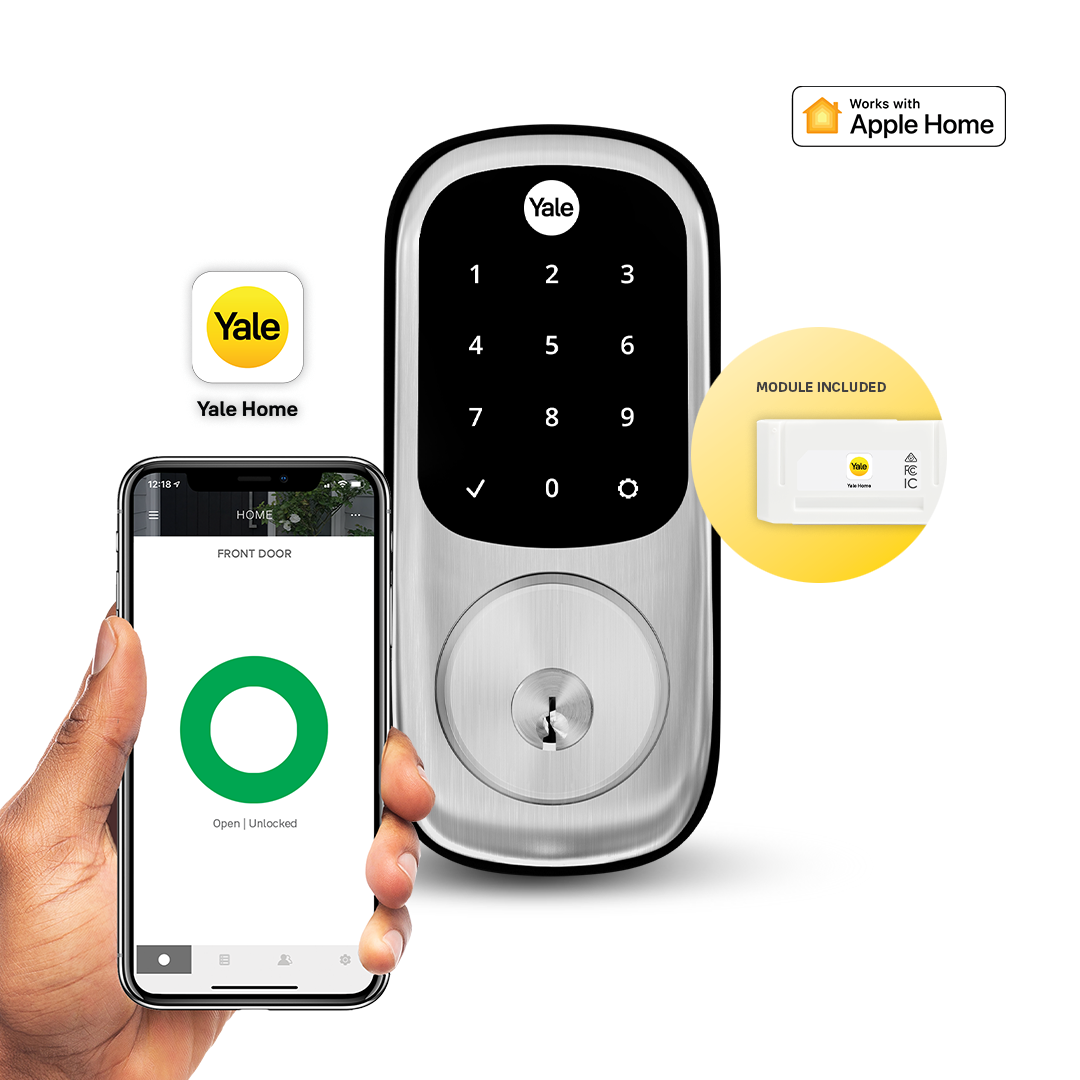

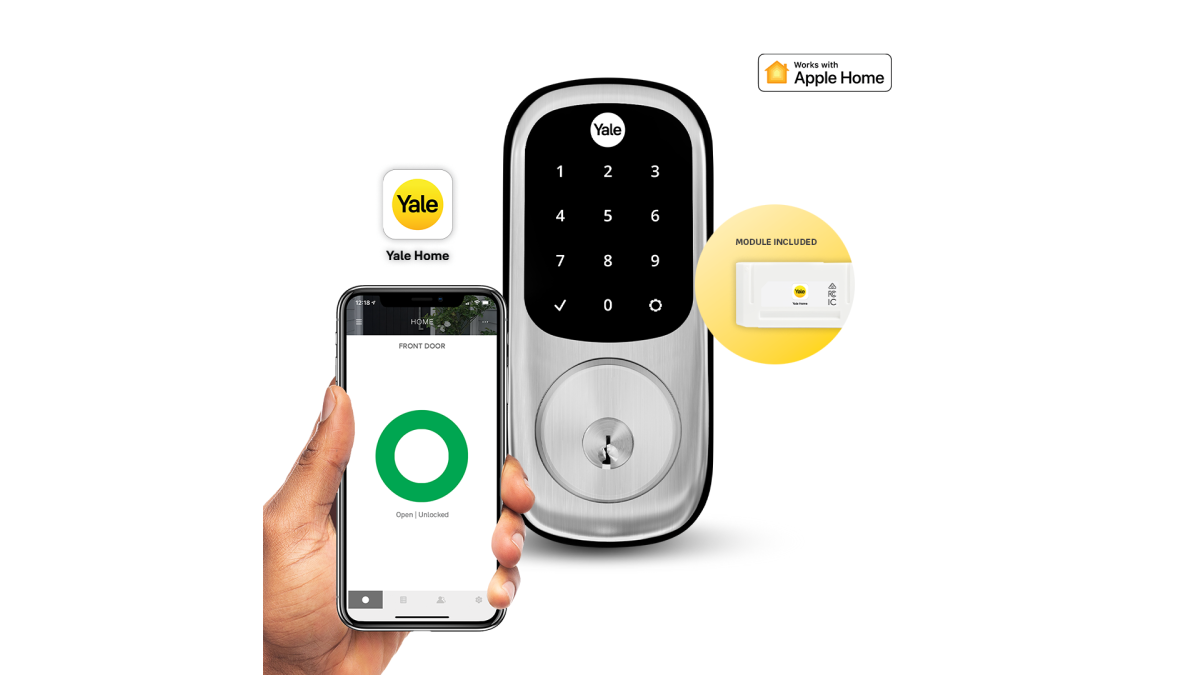

Download the Yale Home App:

  • App control
  • Guest access
  • 24/7 activity monitoring & notifications
  • Proximity auto lock/unlock
  • DoorSense™ technology: know when the door is open, closed or left ajar from anywhere
  • Integrate with Apple HomeKit smart home ecosystem

Upgrade with the Yale Connect Plus Hub 2:

  • Manage access to the home from anywhere
  • Remote locking/unlocking
  • Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

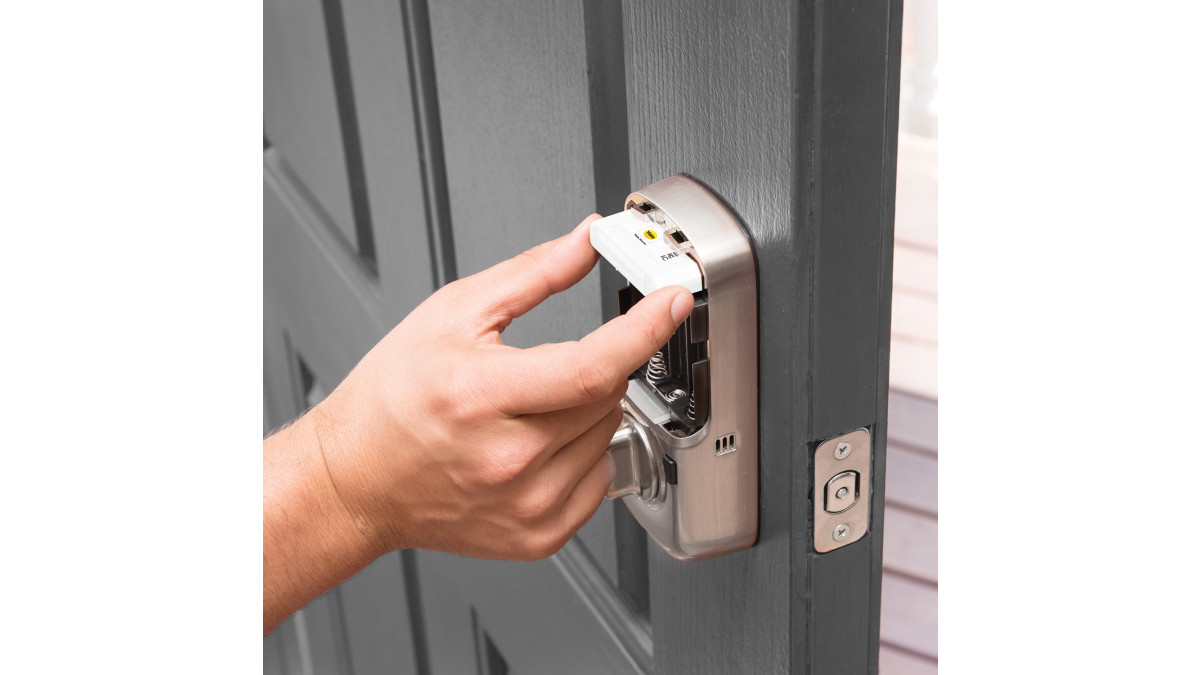

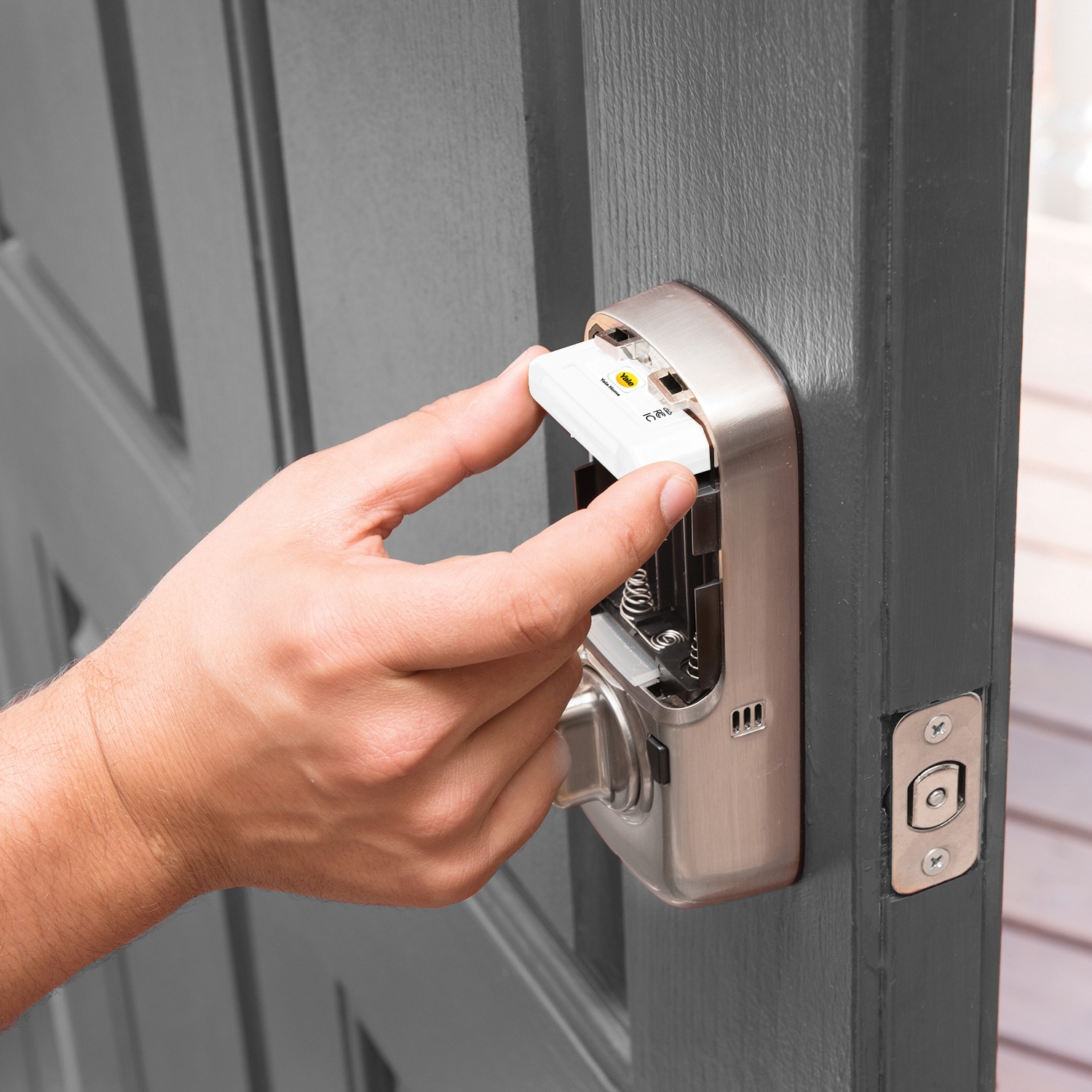

Home Automation Compatible with Module:

Monitor access, lock and unlock the door from anywhere when upgraded with the Yale Connect Plus Hub 2, Zigbee or Z-Wave module (sold separately) and integrate into a compatible home automation or security system.



Key Features

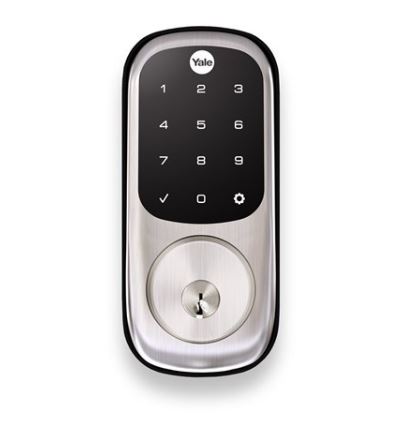

  • Touchscreen keypad — wakes with a touch and has backlit numbers that won’t wear off
  • Simple installation — replaces existing deadbolt in minutes with just a screwdriver
  • Motorised deadbolt — fully motorised, tapered deadbolt accommodates for misaligned doors
  • Create up to 25 entry codes for access by keypad
  • Certified ANSI/BHMA A156.36, Grade 2
  • One touch locking — lock up without the hassle of keys by tapping the keypad with 3 fingers
  • Capacitive touchscreen keypad
  • Backlit numbers that will not wear off
  • Privacy button
  • Tamper resistant battery cover
Categories
Locks
Scope of Use

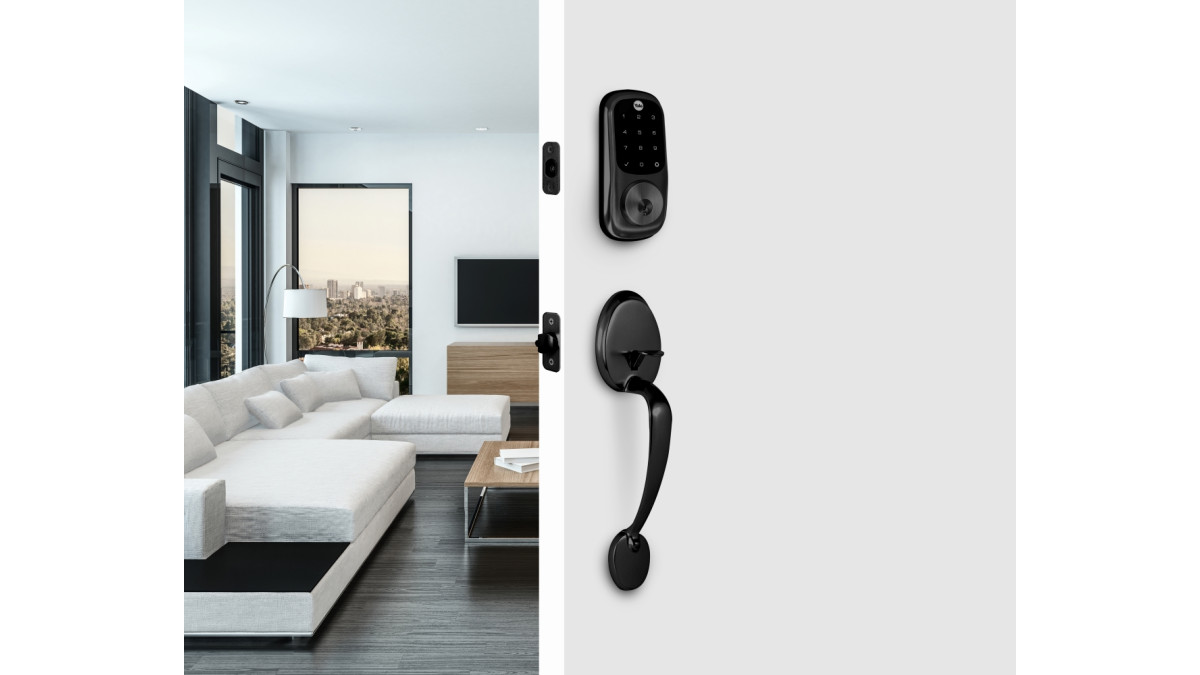

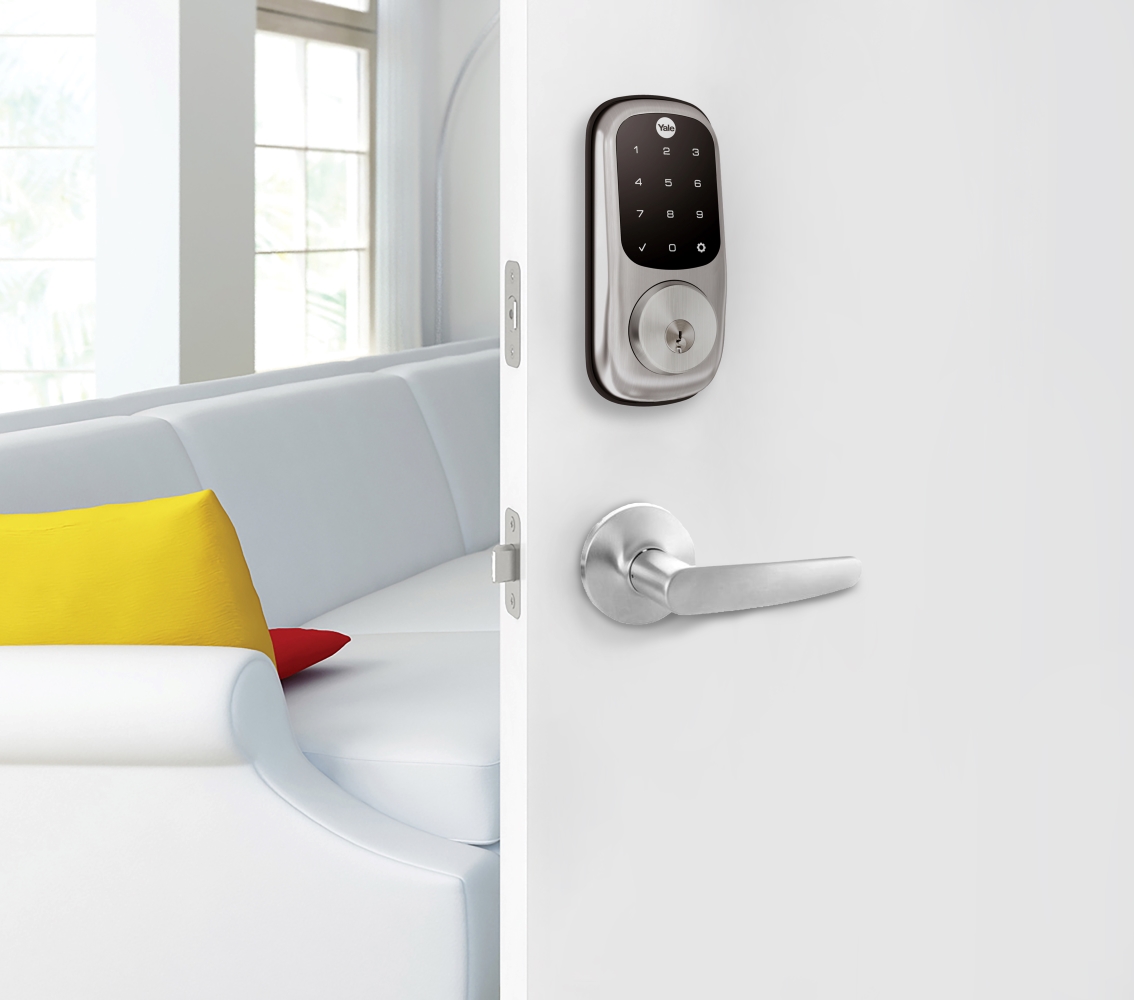

  • This product is suitable for residential applications on entry doors
  • Android or iOS
  • Simple installation — replaces existing deadbolt in minutes with just a screwdriver
  • Motorised deadbolt — fully motorised, tapered deadbolt accommodates for misaligned doors
  • Door type: Timber/aluminium
  • Door thickness: 35mm-56mm
  • Fits on doors 35mm to 57mm thick (35mm requires thin door gasket included in the box)
  • Backset adjustable to 60mm or 70mm
  • Face bore hole 54mm
  • Edge bore hole 25mm
Limitations on Use
  • Not suitable for entry points where the escutcheon is exposed to outdoor elements
Other Performance Attributes
  • Certified ANSI/BHMA A156.36, Grade 2
Documents
Yale Assure Deadbolt Keyed Installation & Programming Instructions
Yale Assure Deadbolt Keyed Installation Template 2-inch
Yale Assure Lock Deadbolt Keyed Flyer
Yale Connect Plus Hub 2 Flyer
