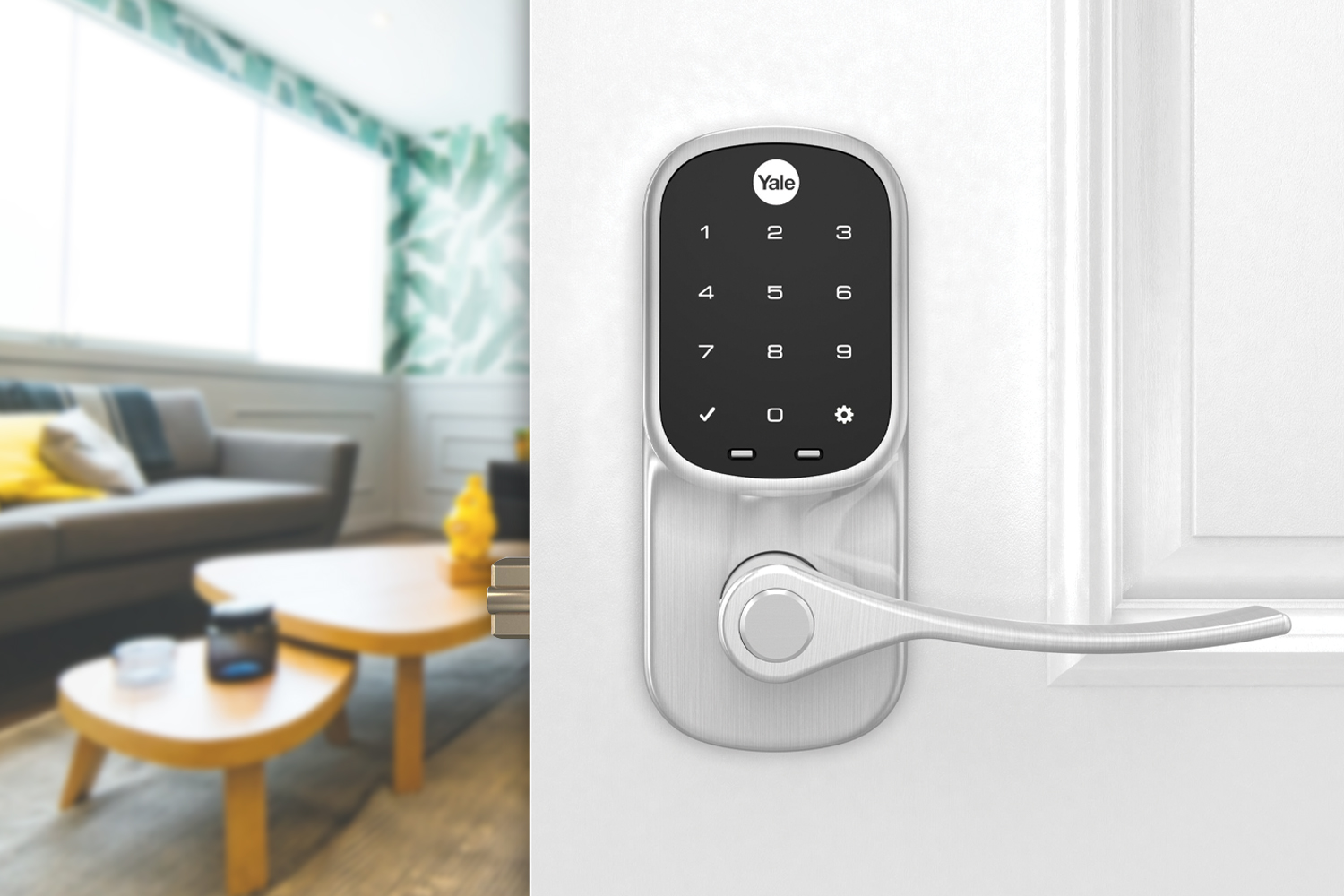

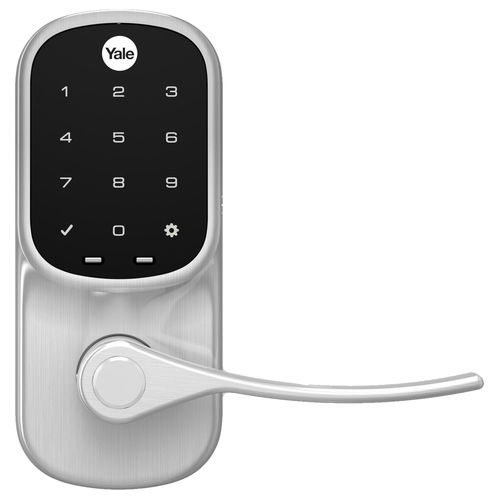

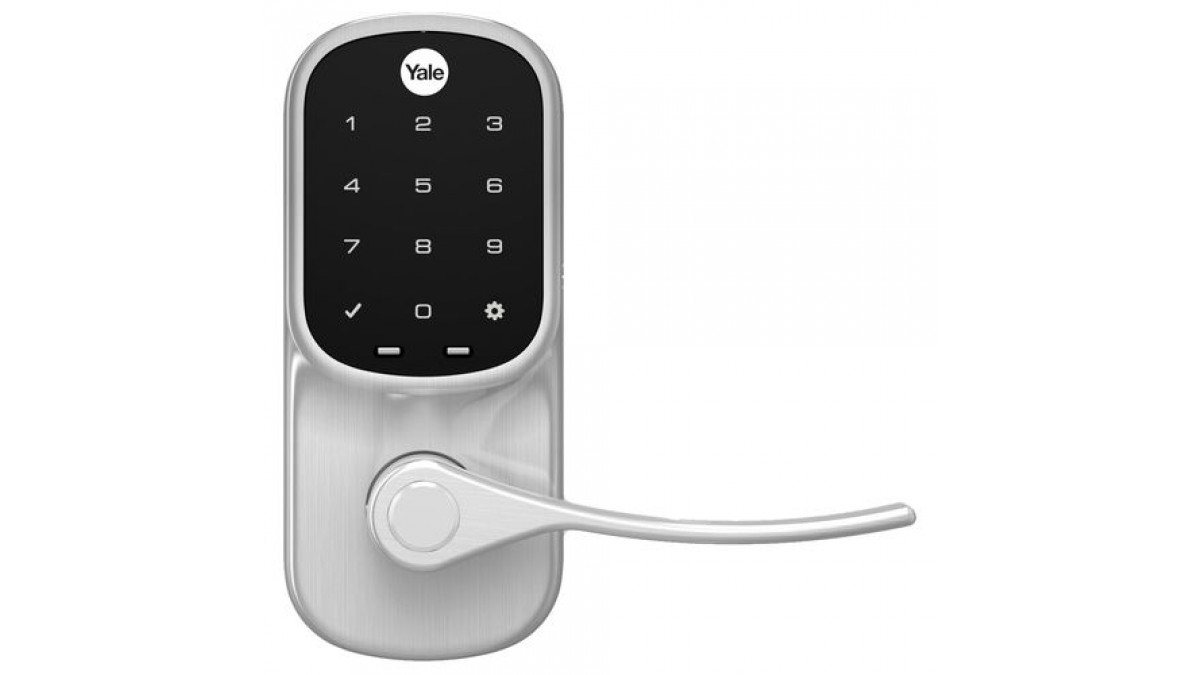

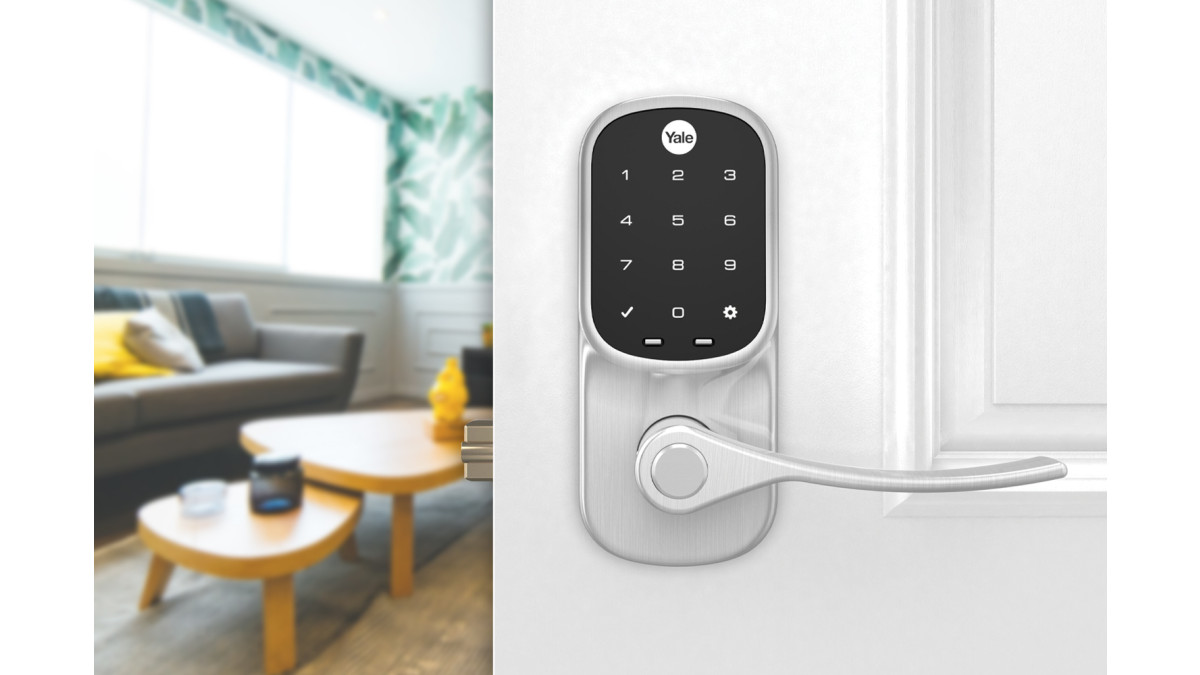

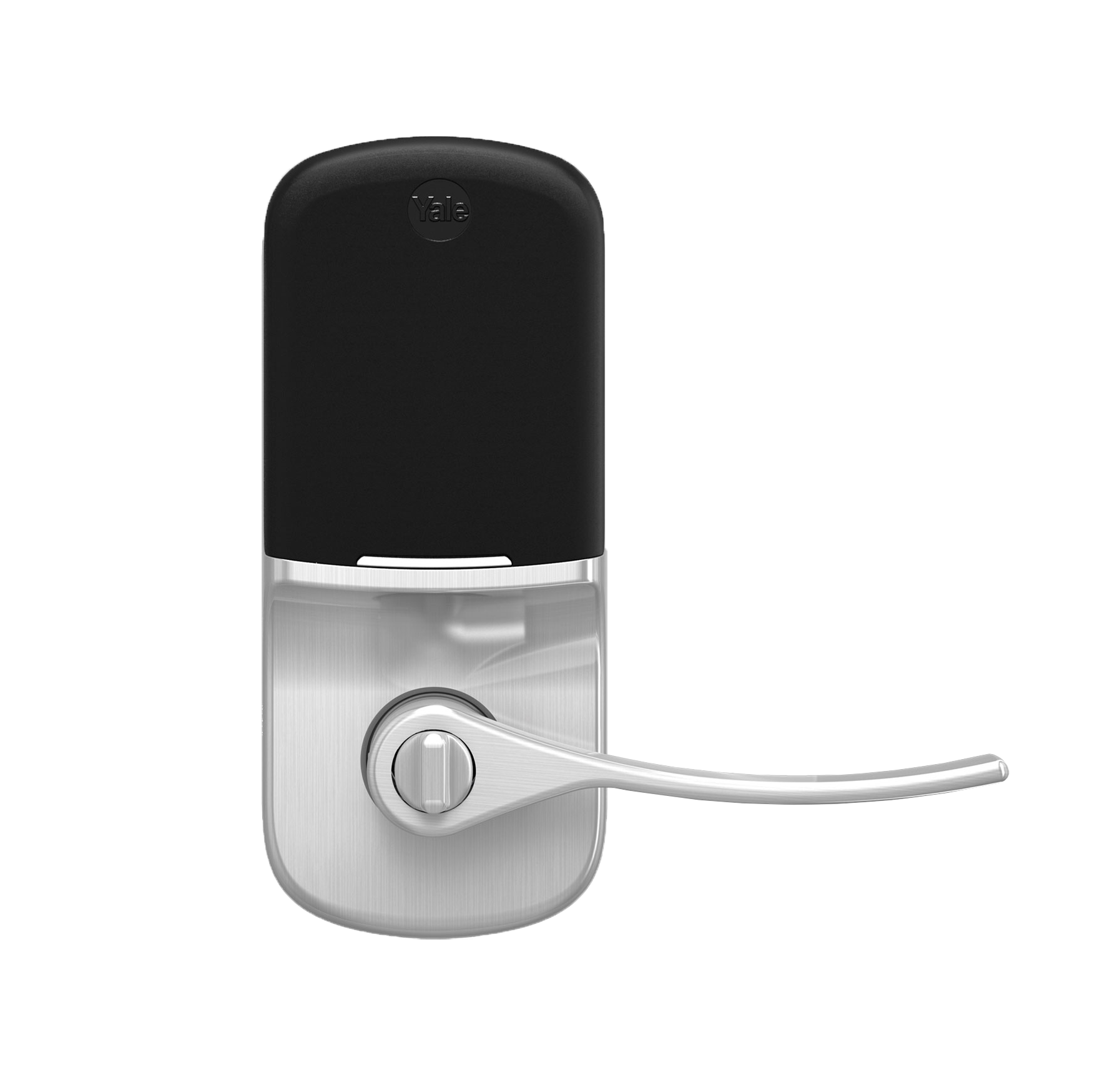

Yale Assure Lock Lever Keyless
Description

The Assure Lock Lever Keyless is a digital lever lock designed for single-hole doors (doors without a deadbolt). The door is unlocked by entering a code on the keypad, and default auto-locking ensures the door is securely locked.

Upgrade with the Yale Home Module (sold separately) and download the Yale Home App for

  • App control
  • Guest access
  • 24/7 activity monitoring & notifications
  • Auto lock/unlock when you’re nearby
  • DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
  • Integration with Apple HomeKit smart home ecosystem

Upgrade with the Yale Connect Plus Hub 2* for

  • Manage access to your home from anywhere
  • Remote locking/unlocking
  • Integration with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

Home Automation Compatible with Module*
Monitor access, lock and unlock door from anywhere when upgraded with the Yale Connect Plus Hub 2*, Zigbee or Z-Wave module** and integrate into a compatible home automation or security system.

* The Yale Connect Plus Hub 2 enables remote access to the Yale Home App (sold separately).
** Network modules sold separately.

Key Features
  • Touchscreen keypad — capacitive touchscreen with backlit numbers means the numbers will never wipe away and there is no more need to carry a key
  • Pin code management — one master PIN code, program up to 25 entry codes to share with trusted people, and delete codes when no longer needed
  • Locks automatically — auto-lock ensures the door is always securely locked when closed
  • Battery back-up — never lose power (lock can be energised with a 9V battery from the outside)
  • Manage optional settings, including; volume, languages and privacy mode
  • Tamper alarm — audible alarm sounds on attempt to forcibly remove outside lock from door
Categories
Locks
Scope of Use

The Assure Lever Lock is suitable for residential projects and can be used as a standalone keypad lock, or as a smart lock that can be fully integrated into a smart home with the addition of optional network modules.

  • For use on all standard interior and exterior doors with a single-hole prep
  • Voice guidance for programming
  • Auto-lock (can be disabled or adjusted for timing)
  • Can be upgraded with a Yale network module to work with smart home

Installation:

  • 60mm or 70mm backset
  • 54mm hole diameter
  • 35mm to 44.5mm door thickness
  • 25mm latch
Documents
Yale Assure Lock Lever Keyless Installation & Programming Instructions
Yale Assure Lock Lever Keyless Flyer
