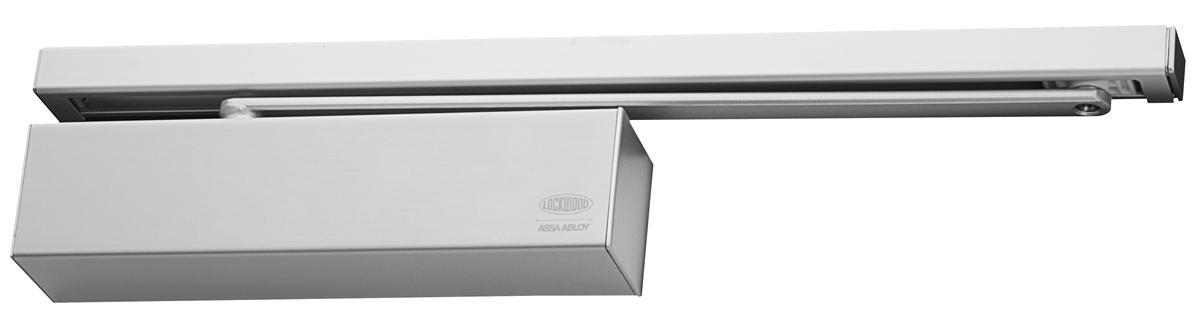

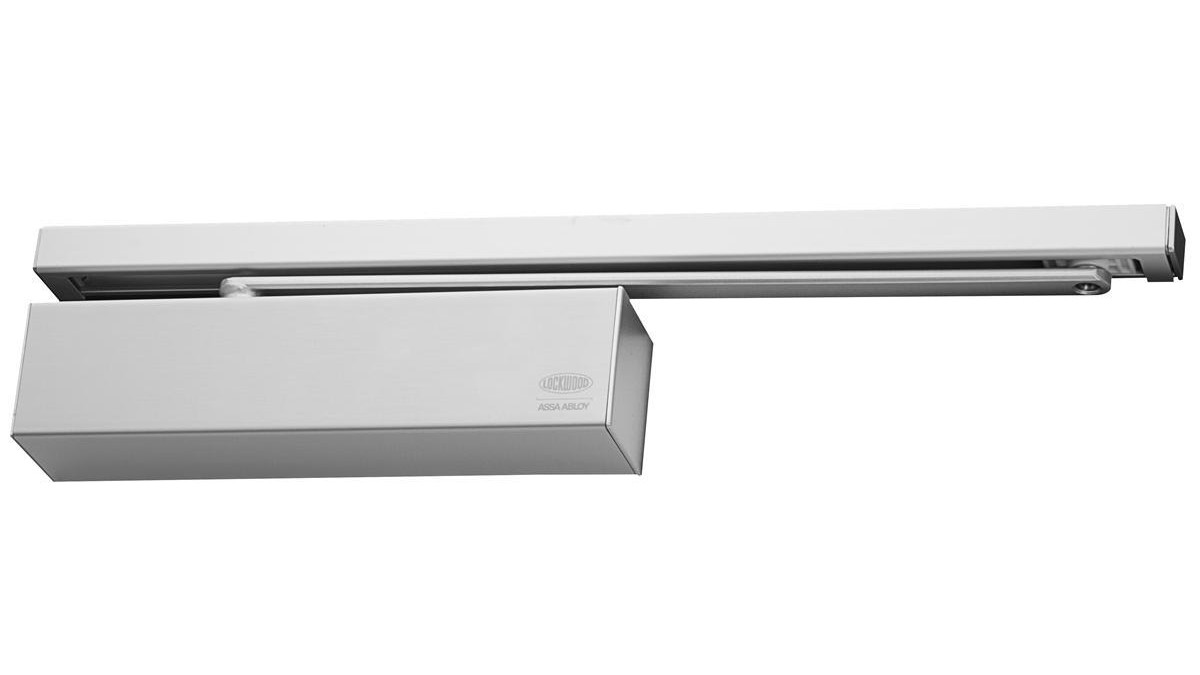

Lockwood Door Closers: 2616 CAM Action Door Closer with Slide Arm
Description

The Lockwood 2616 CAM Action Door Closer is a premium, high quality door closing device. When opening a door fitted with a Lockwood 2616 CAM Action Door Closer, the force required is less than that of a rack and pinion type door closer and continues to decrease through the opening arc.

This aesthetically appealing, narrow profile CAM Action Door Closer is light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.

Key Features
  • Power: EN adjustable 1 to 6
  • Back Check (BC): Adjustable
  • Hold open: Adjustable. Hold-open can be set at any angle up to 120° of opening
  • Handling: Non-handed. Suitable for left or right hand doors
  • Cover: Formed metal cover
  • Materials: Cast aluminium body manufactured from high-performance silicon alloy
  • Mechanism: Cam Doors
  • Mounting: Pull side, push side and over-door mounting
  • Valves: Two pressure relief valves are a standard feature to protect against abuse
  • Delayed action: Adjustable
  • Closing speed: Adjustable
  • Latching speed: Adjustable
Categories
Door Closers
Ranges
Door Closers
Scope of Use

The 2616 is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door.

Documents
Data Sheet
