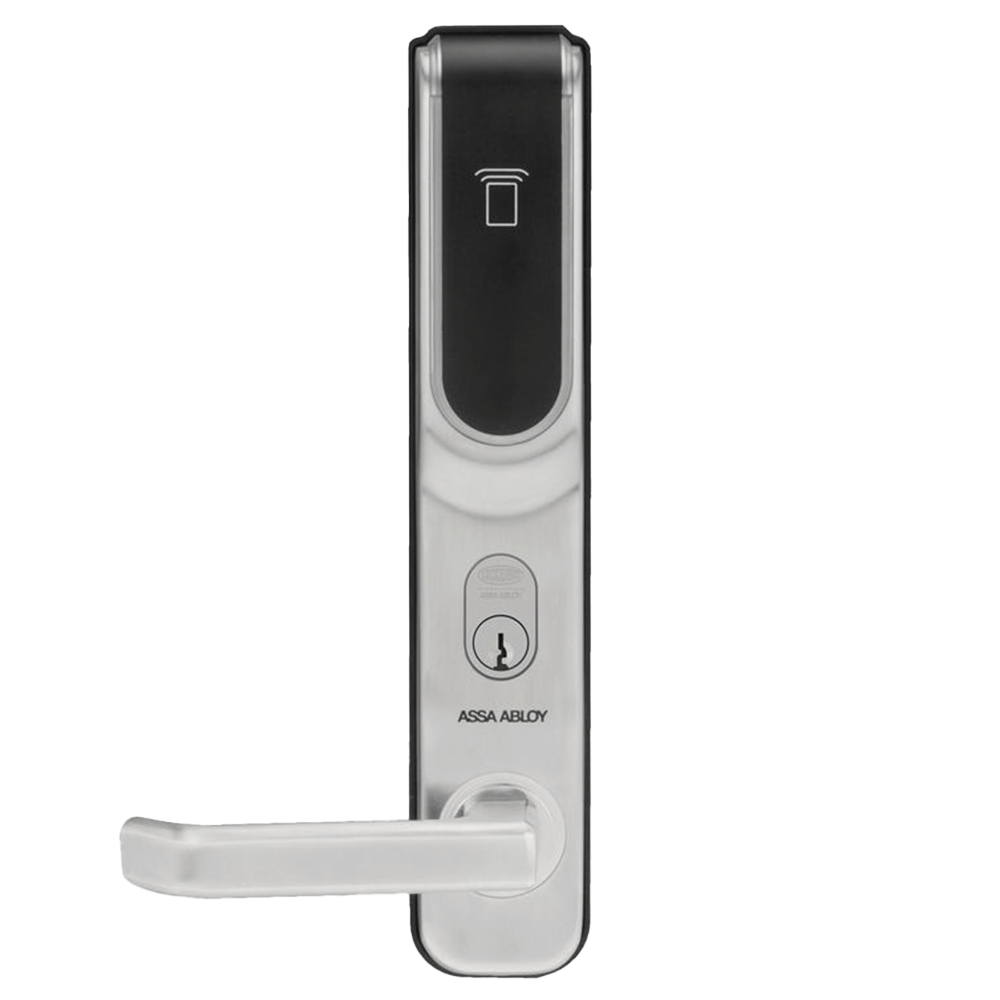

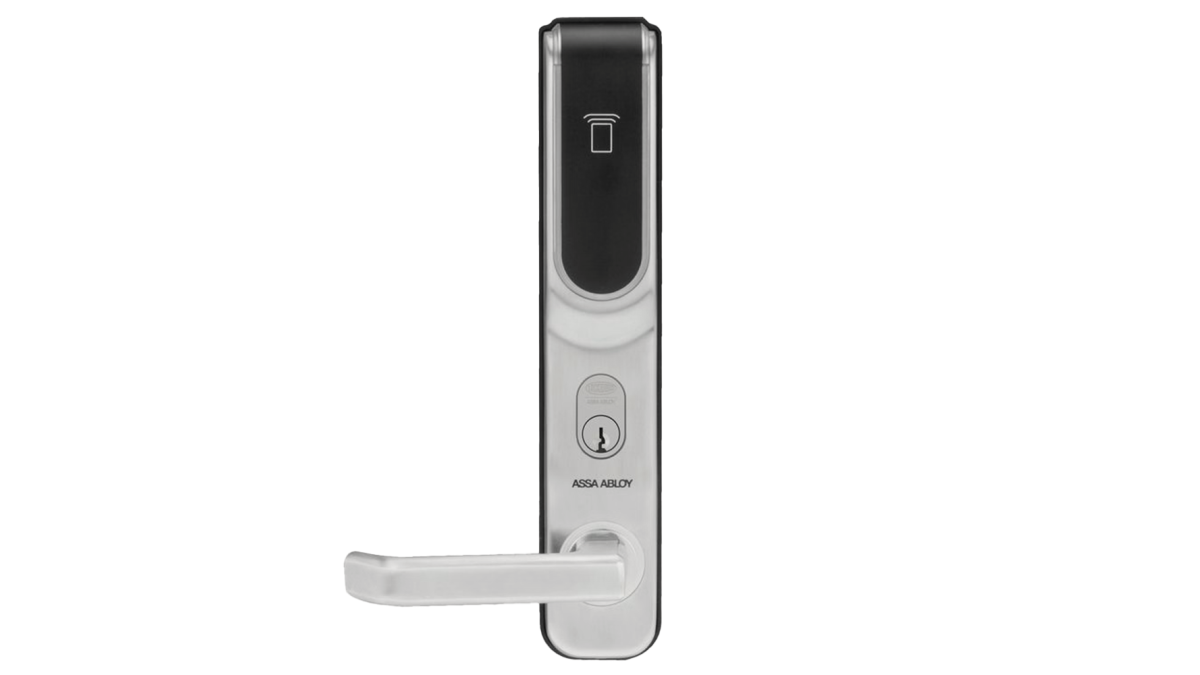

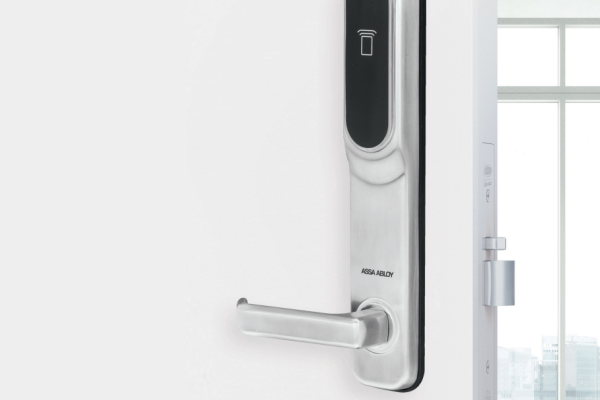

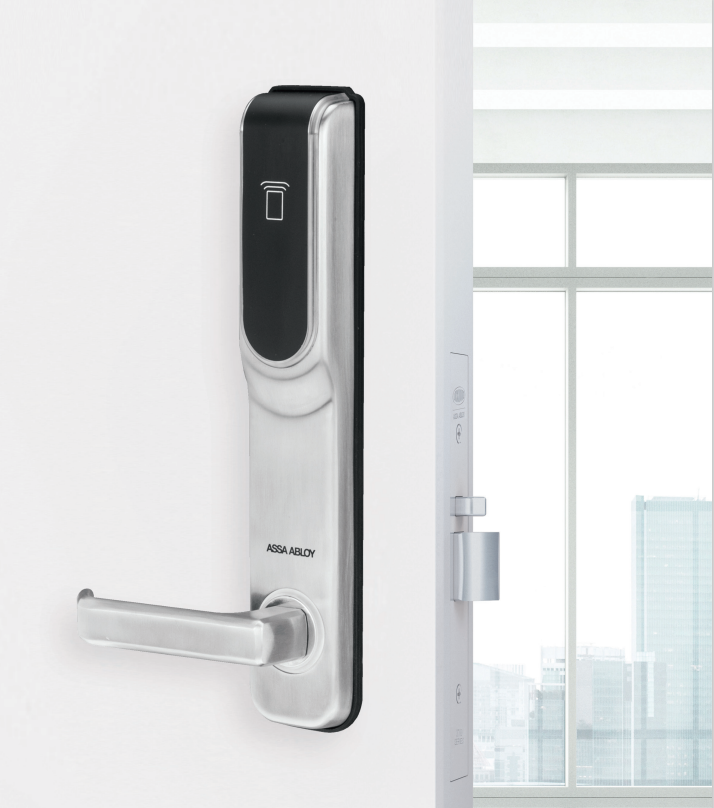

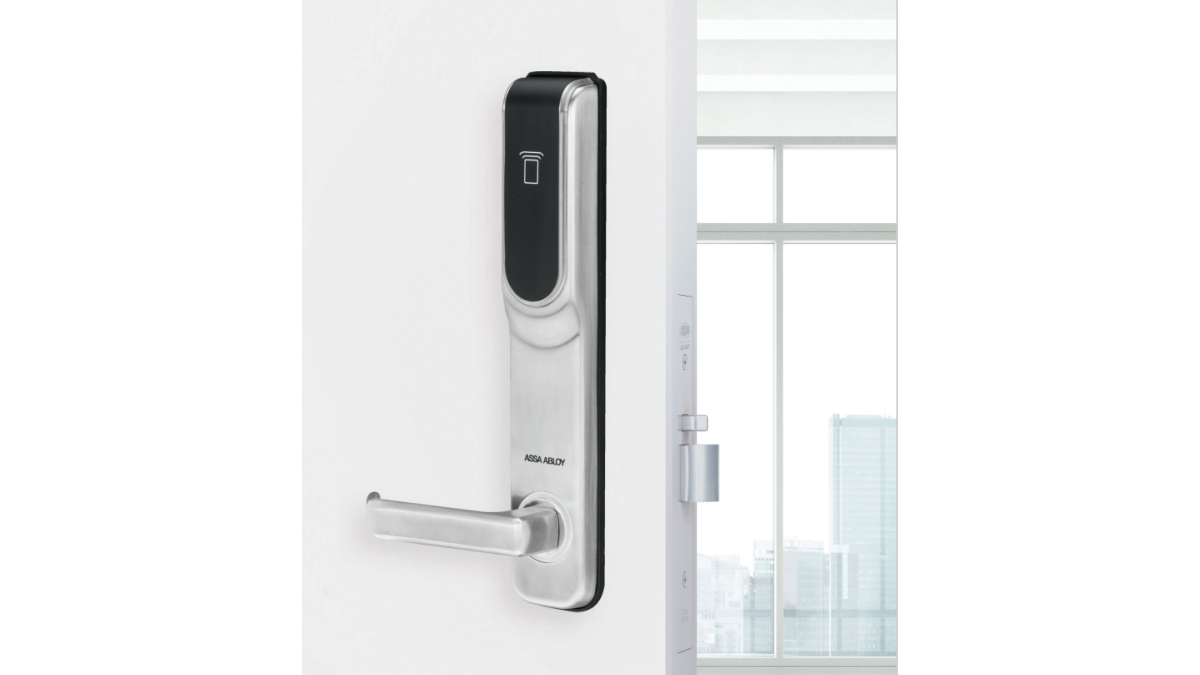

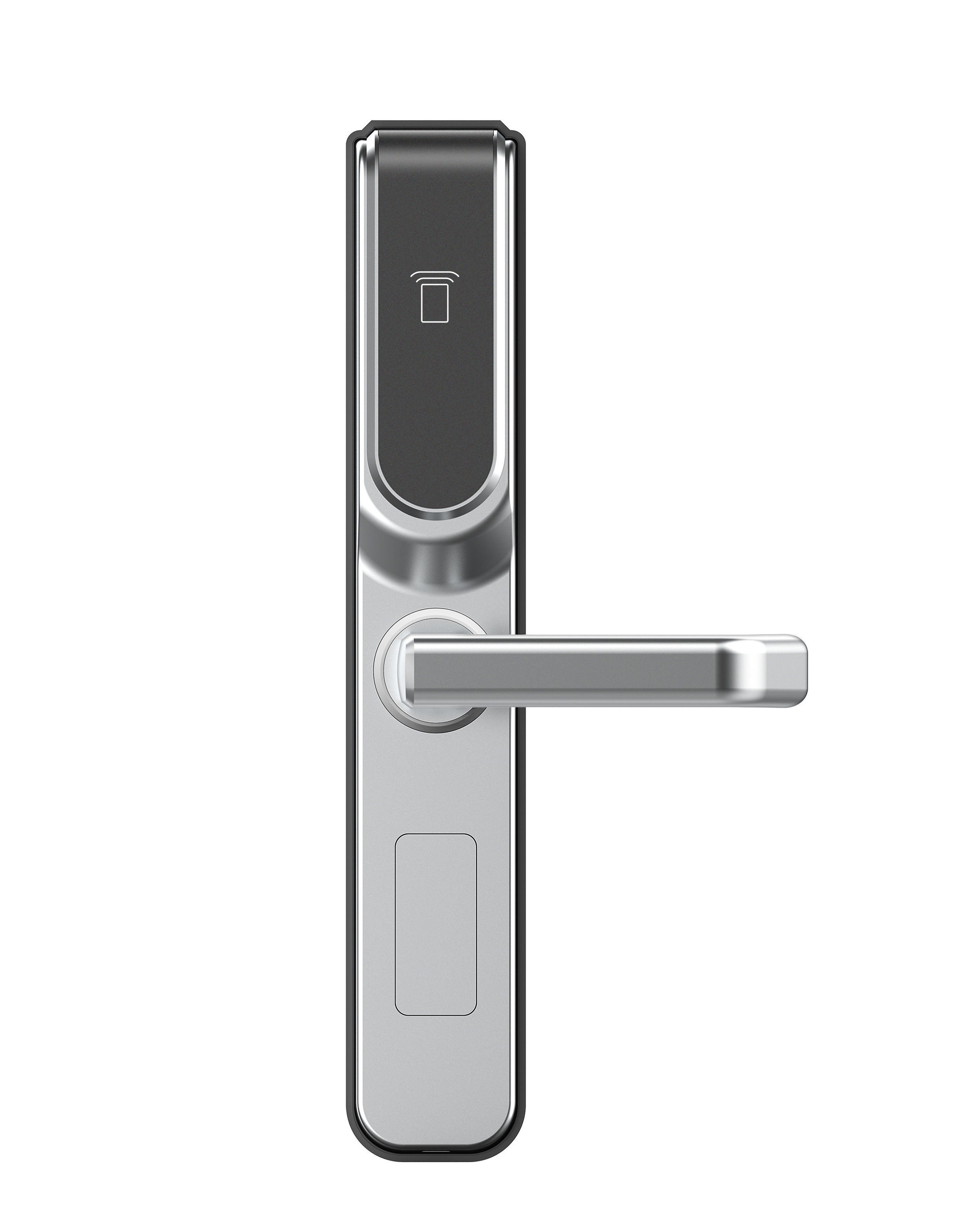

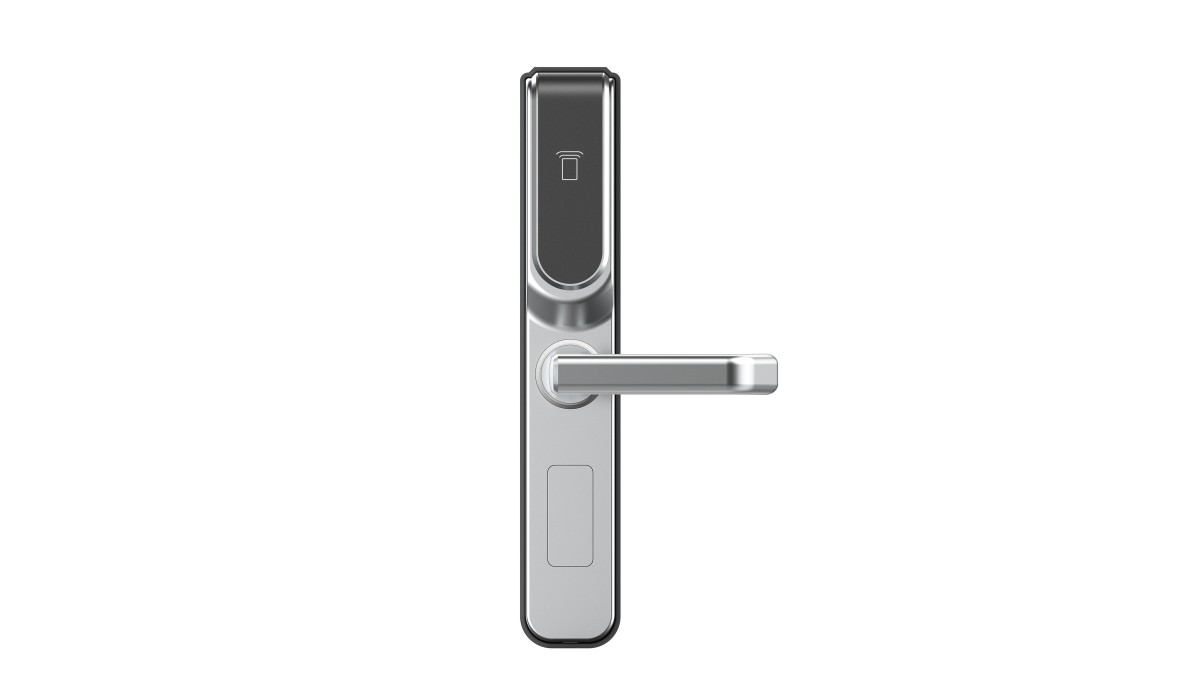

Integral Wireless Access Control Escutcheon
Description

The Integral Wireless Access Control system is a cost effective, simple to use, simple to set up, offline, Data-on-Card, Access Control System designed for commercial & accommodation facilities. With no wiring required, this his wire free system saves considerable installation time and money, making it ideal for both new and existing applications. The Integral uses RFID cards/fobs for access that can be easily programmed to allow or restrict access to certain areas or rooms – this eliminates the risks and associated costs with managing, losing, or having keys stolen.

Integral is available in two simple to use management options:

  • 'Accommodation' allows the management of users and doors much the same as a typical Hotel system where the doors are predefined, and users are given access according to the length of their stay.
  • 'Commercial' management software operates much the same but allows scheduling and calendar events, suited to a typical commercial building application.
Key Features
  • Stand-alone Electronic Wireless Access Control lockset with RFID Proximity reader
  • Powered by 4xAA batteries that provide for up to 60,000 operations
  • 992 event audit trail
  • Stainless Steel Escutcheon
  • Uses Australian Mortice lock (3772NOHDSS) . 530 tubular latch option also available
  • Panic release function — the latch is automatically retracted by inside handle for easy egress in emergency situations
  • 3 point steel latch construction with an anti-friction mechanism
  • High quality card reader that reads with optimal accuracy
  • Door Opening Time — Open the door after pressing the handle, automatically locks within 5 seconds
  • Electronic Privacy — Denies access when privacy is required
  • Passage mode — Gives the ability to leave the door in the unlocked state
  • Available with or without key override
  • Early warning given for low batteries — units will continue to operate for approximately 50 times until such time the batteries can be changed
Scope of Use
  • Simple to retrofit and install — the escutcheon uses the current Australian mortice lock footprint (3772NOHDSS)
  • Easily expand the system as required — up to 9999 doors & unlimited users
  • Simple solution requiring no IP networking knowledge
Other Performance Attributes
  • 4xAA batteries provide for up to 60,000 operations
  • Fire rated
Documents
Integral Wireless Access Control Catalogue
