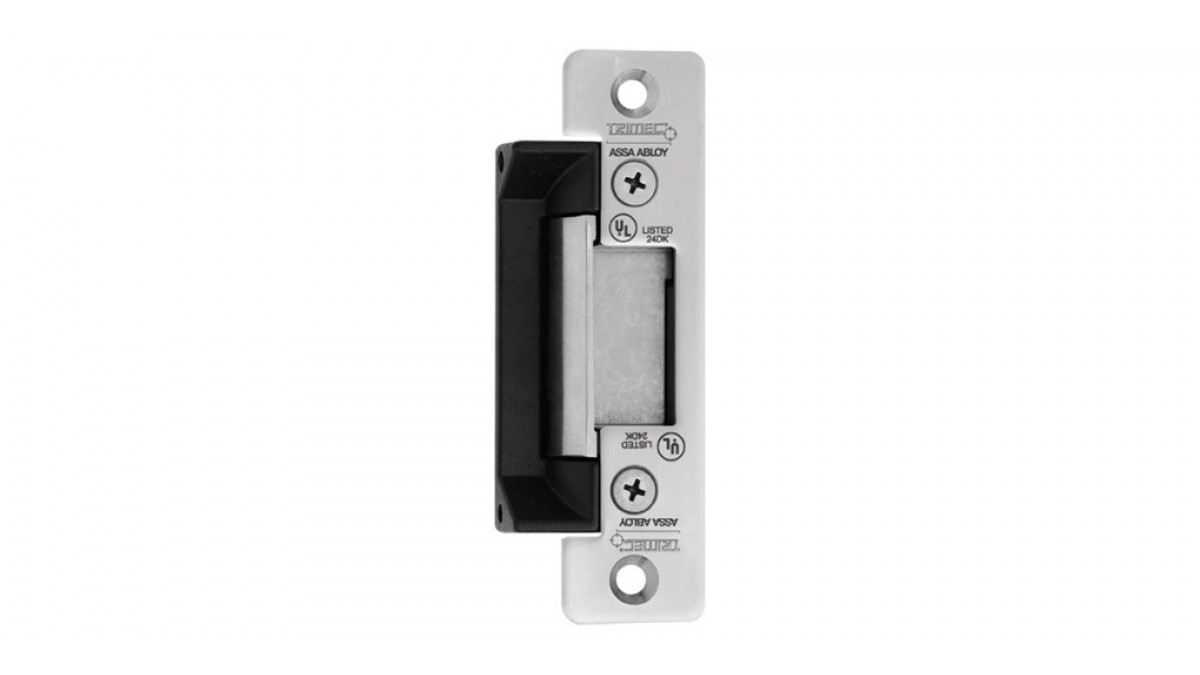

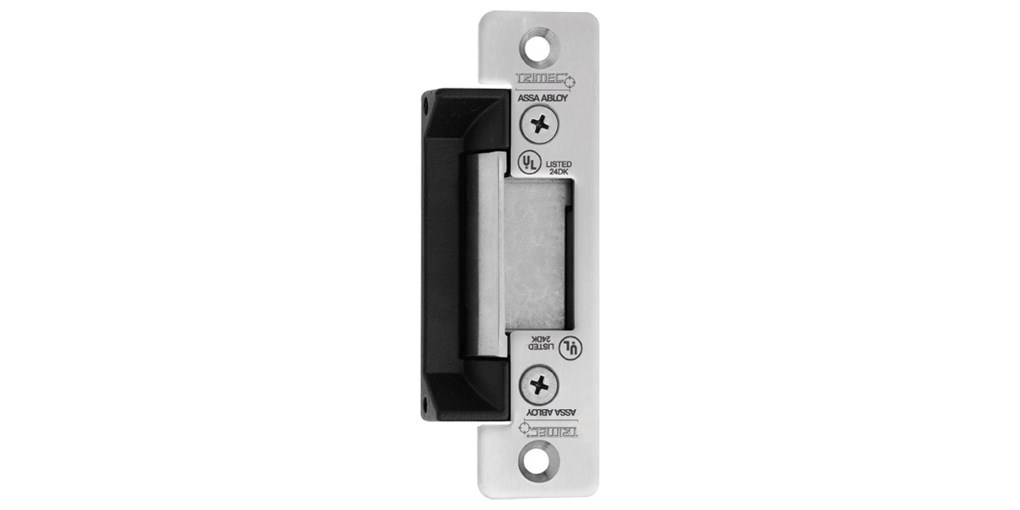

ES100 Series:

• Voltage: 12Vdc and 24Vdc
• Current: 250mA @ 12Vdc; 125mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: None
• Holding Force: 680kg Static strength rating
• Endurance: Cycle tested to 1,000,000 cycles
• Environment: Operational temperature range -20°C to + 60°C weather resistant construction (IP56)

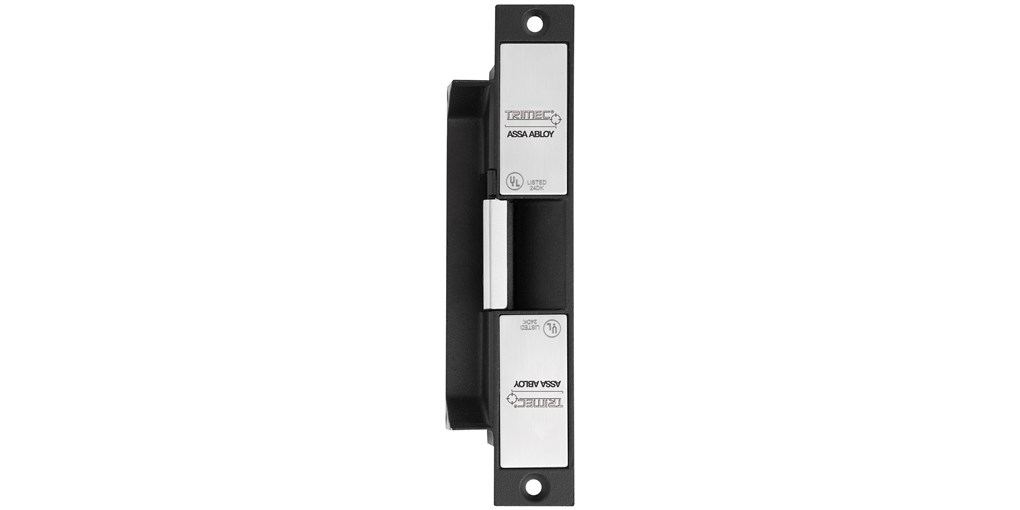

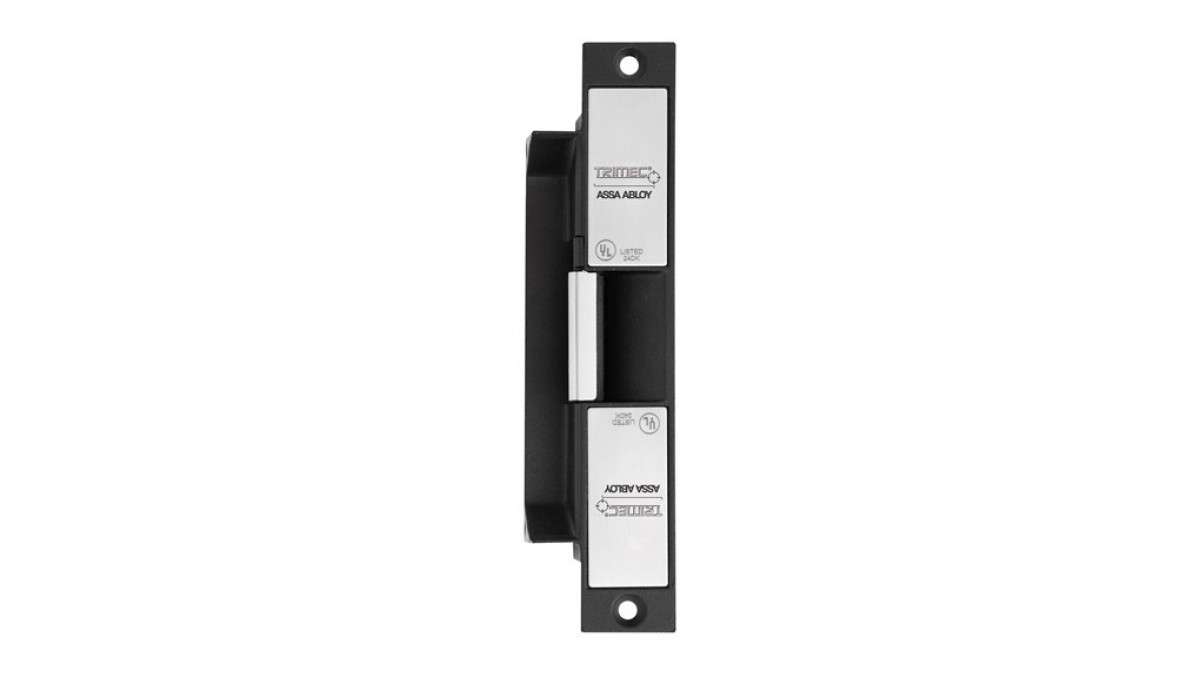

ES200 Series:

• Voltage: 12Vdc and 24Vdc
• Current: 175mA @ 12Vdc; 88mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: None
• Holding Force: 850kg Static strength rating
• Latching: Suitable for 15mm latch bolt with 3mm door gap
• Endurance: Cycle tested to 1,000,000 cycles
• Environment: Operational temperature range -20°C to + 60°C

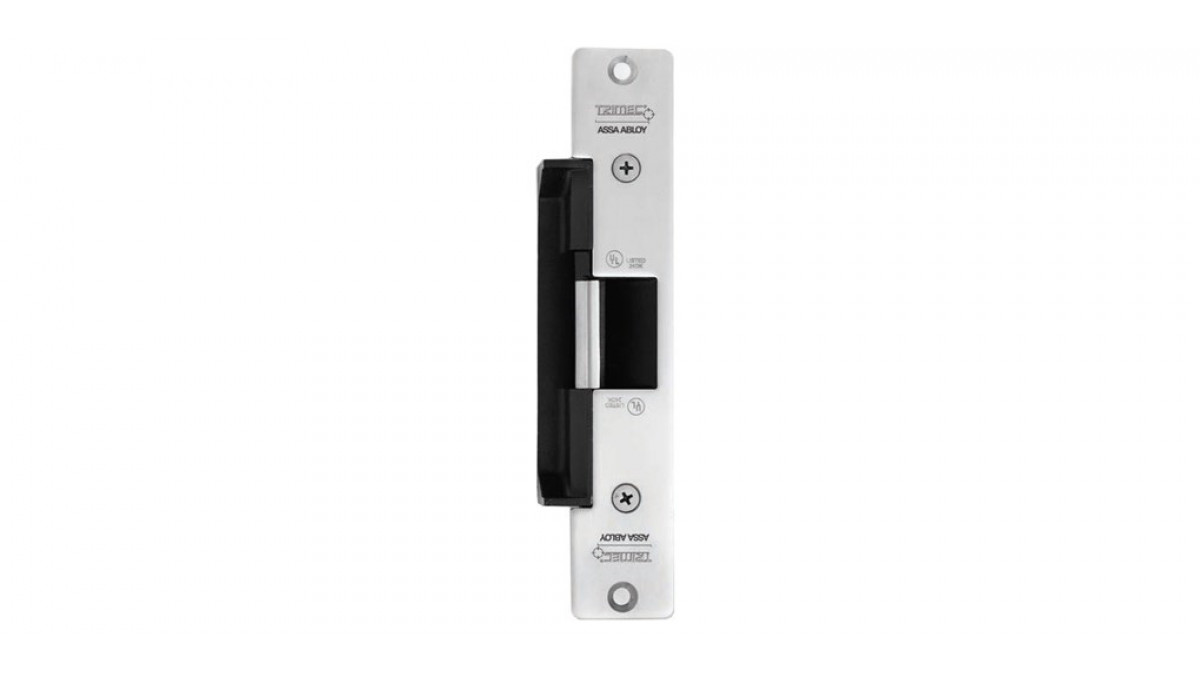

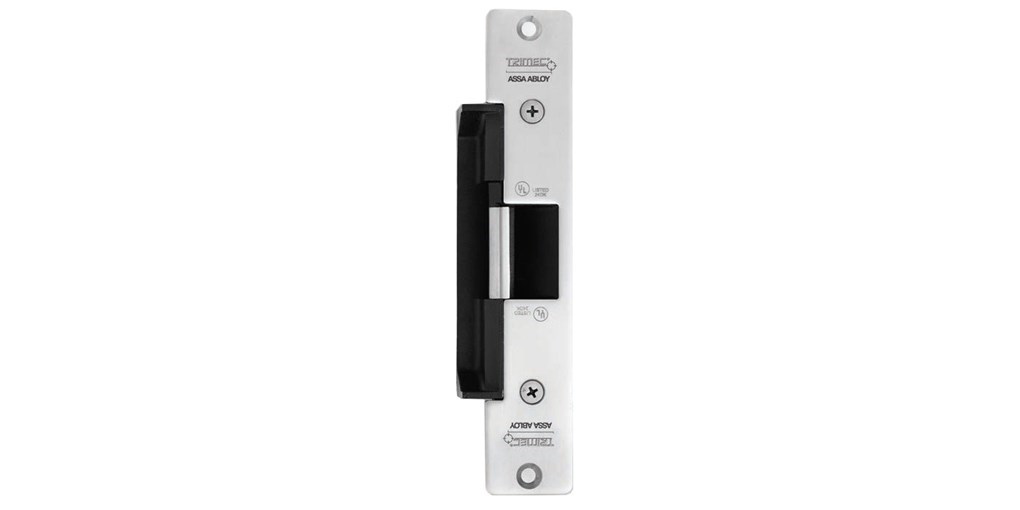

ES300 Series:

• Voltage: 12Vdc and 24Vdc
• Current: 175mA @ 12Vdc; 88mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: None
• Holding Force: 850kg Static strength rating
• Latching: Suitable for 18mm latch bolt with 3mm door gap
• Endurance: Cycle tested to 1,000,000 cycles
• Environment: Operational temperature range -20°C to + 60°C

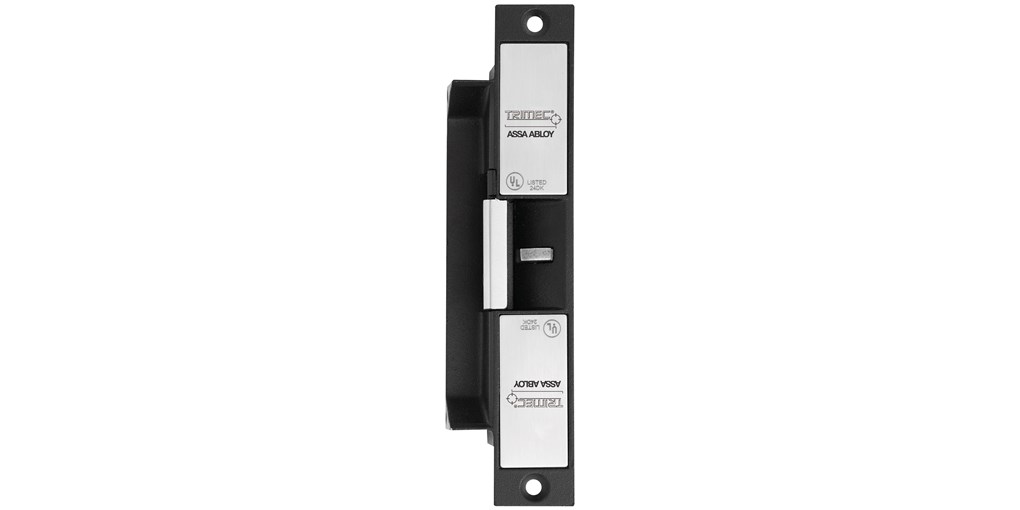

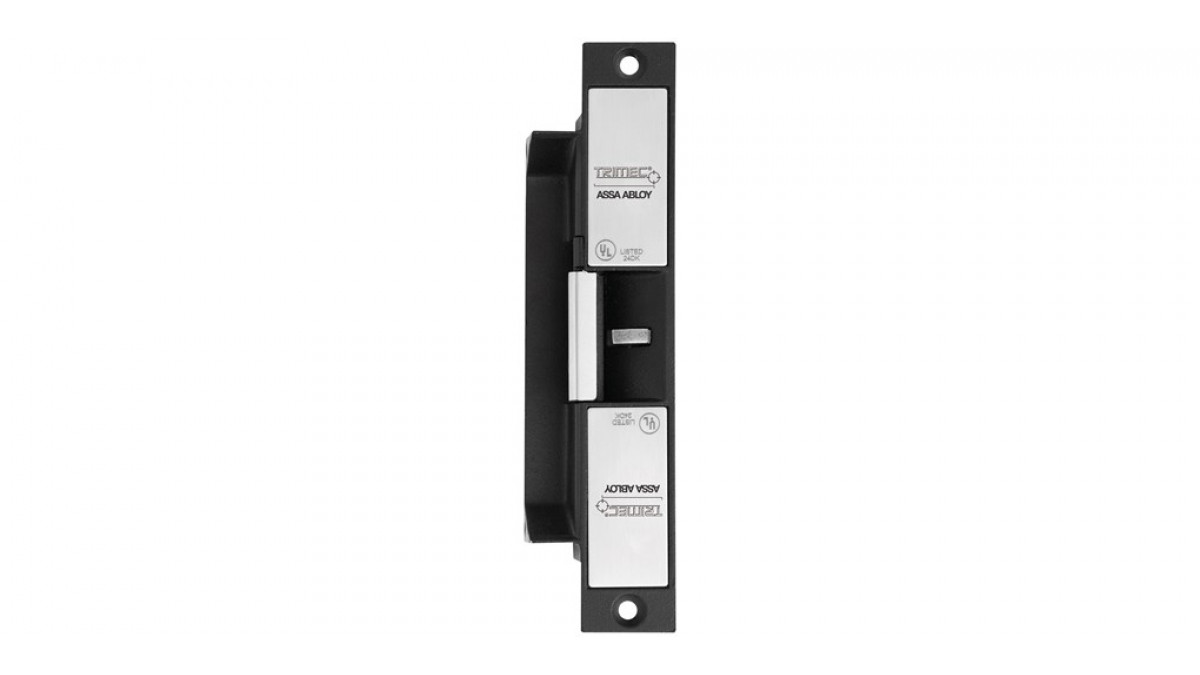

ES2000 Series:

• Voltage: 12Vdc
• Current: 175mA @ 12Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: Solenoid Monitor - 1 amp NO/NC microswitch; Door/Latch Monitor - 1 amp NO/NC microswitch
• Holding Force: 850kg Static strength rating
• Latching: Suitable for 18mm latch bolt with 3mm door gap
• Endurance: Cycle tested to 1,000,000 cycles
• Environment: Operational temperature range -20°C to + 60°C;

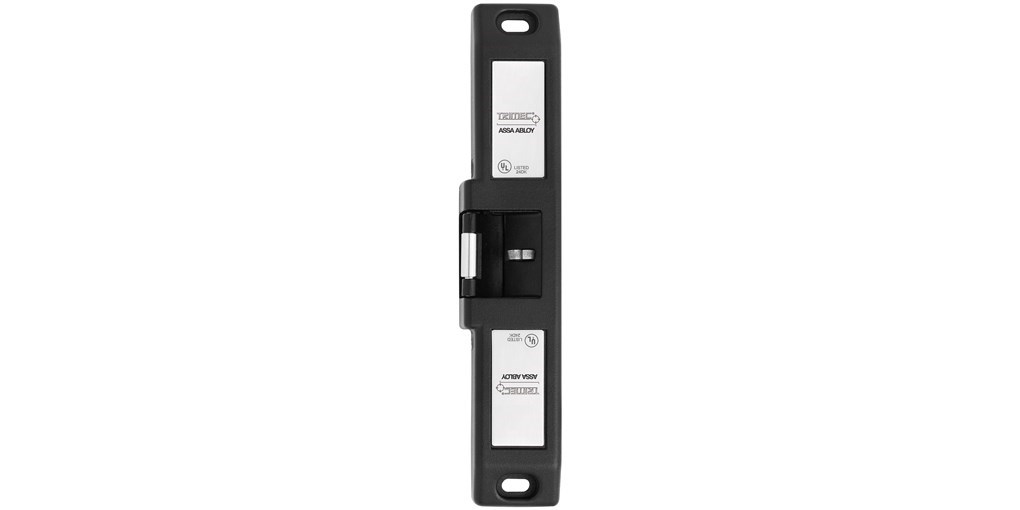

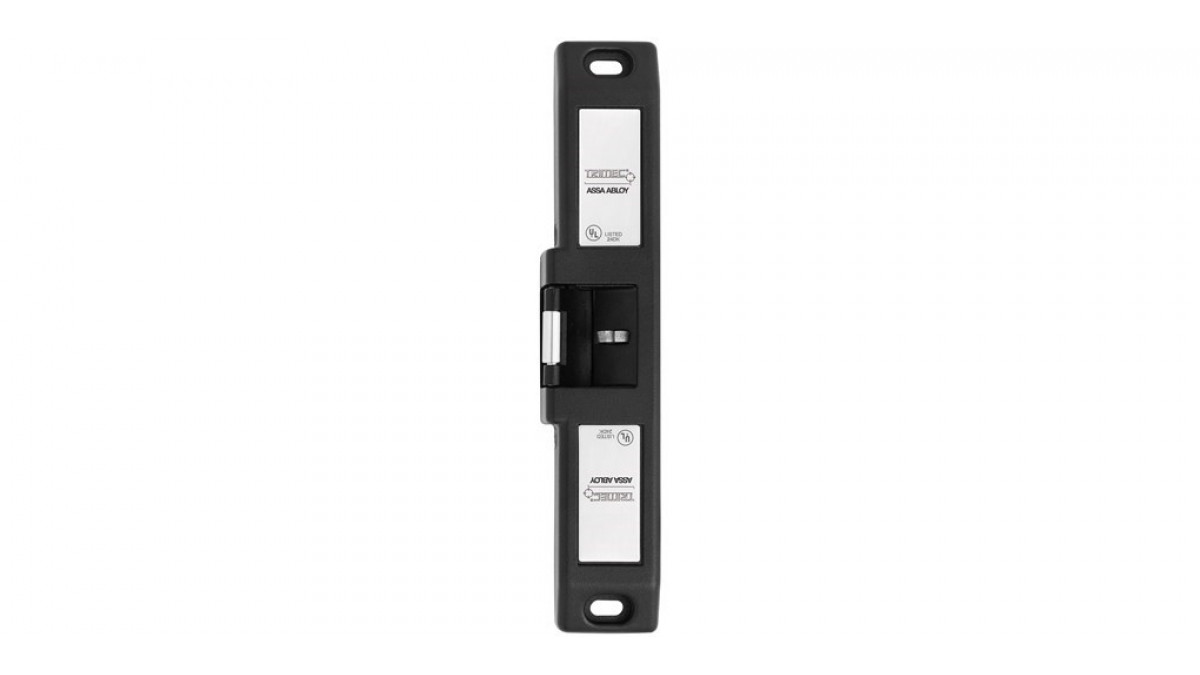

ES2600 Series:

• Voltage: 12Vdc or 24Vdc
• Current: 175mA @ 12Vdc; 88mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: Solenoid Monitor — 1 amp NO/NC microswitch; Door/Latch Monitor — 1 amp NO/NC microswitch
• Holding Force: 650kg Static strength rating
• Endurance: Cycle tested to 1,000,000 cycles
• Environment: Operational temperature range -20°C to + 60°C

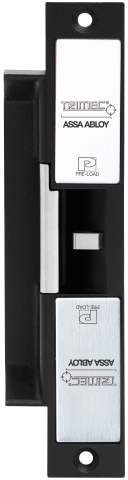

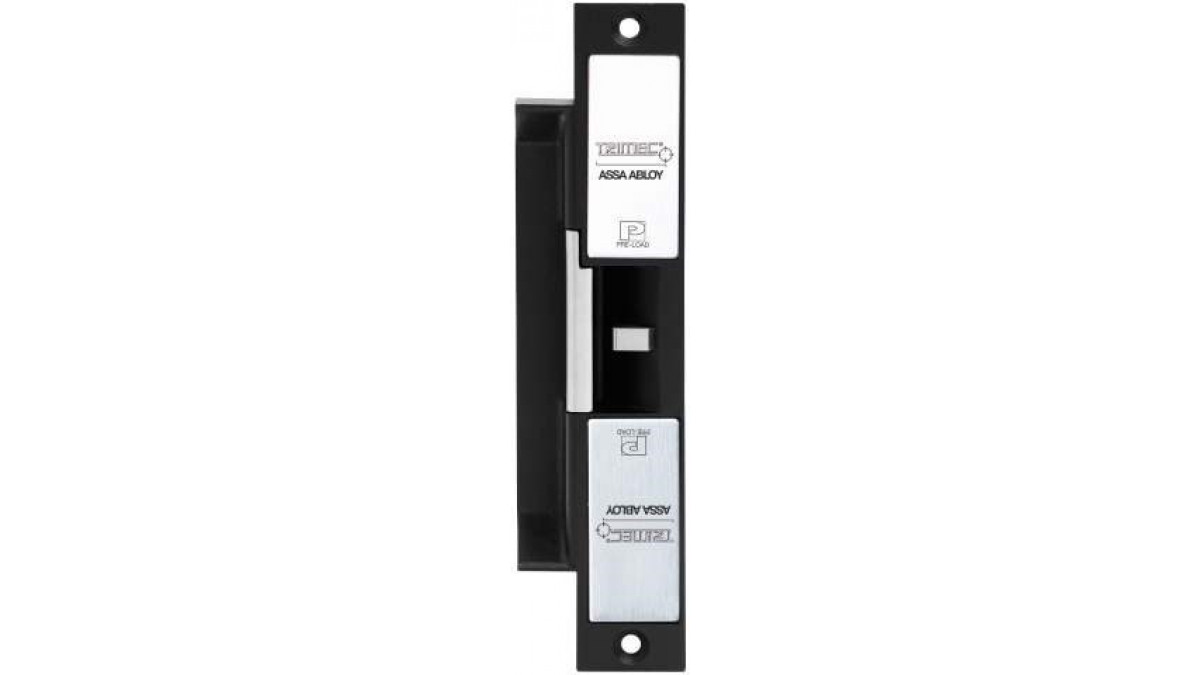

ES9000 Series:

• Voltage: 10Vdc or 30Vdc
• Current: 250mA @ 12Vdc; 130mA @ 24Vdc
• Solenoid: Solenoids are rated for continuous use
• Monitoring: Solenoid Monitor — 1 amp NO/NC microswitch; Door/Latch Monitor — 1 amp NO/NC microswitch
• Holding Force: 650kg Static strength rating
• Latching: Suitable for 15mm latch bolt with 3mm door gap
• Endurance: 1,200,000 cycles endurance rating @ 25kg pre-load 2,500,000 cycles general durability without pre-load conditions
• Environment: Operational temperature range -20°C to + 60°C;
