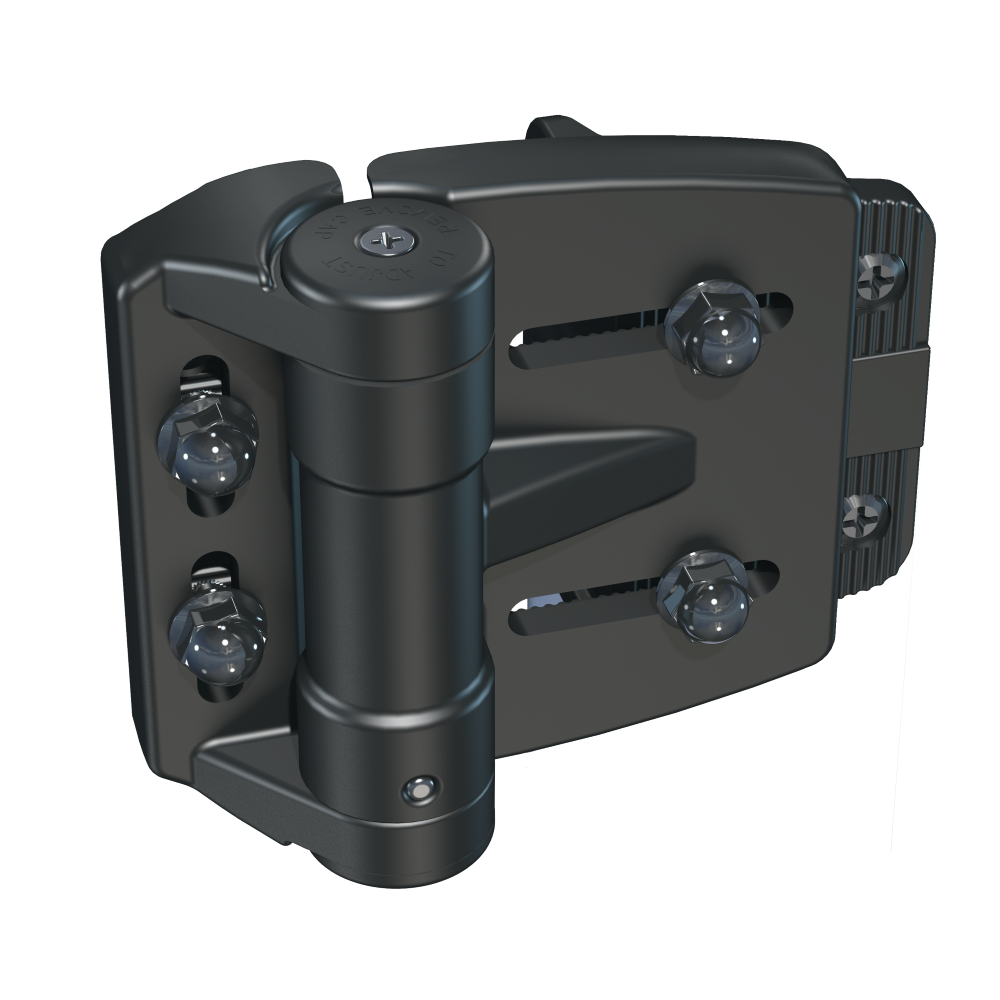

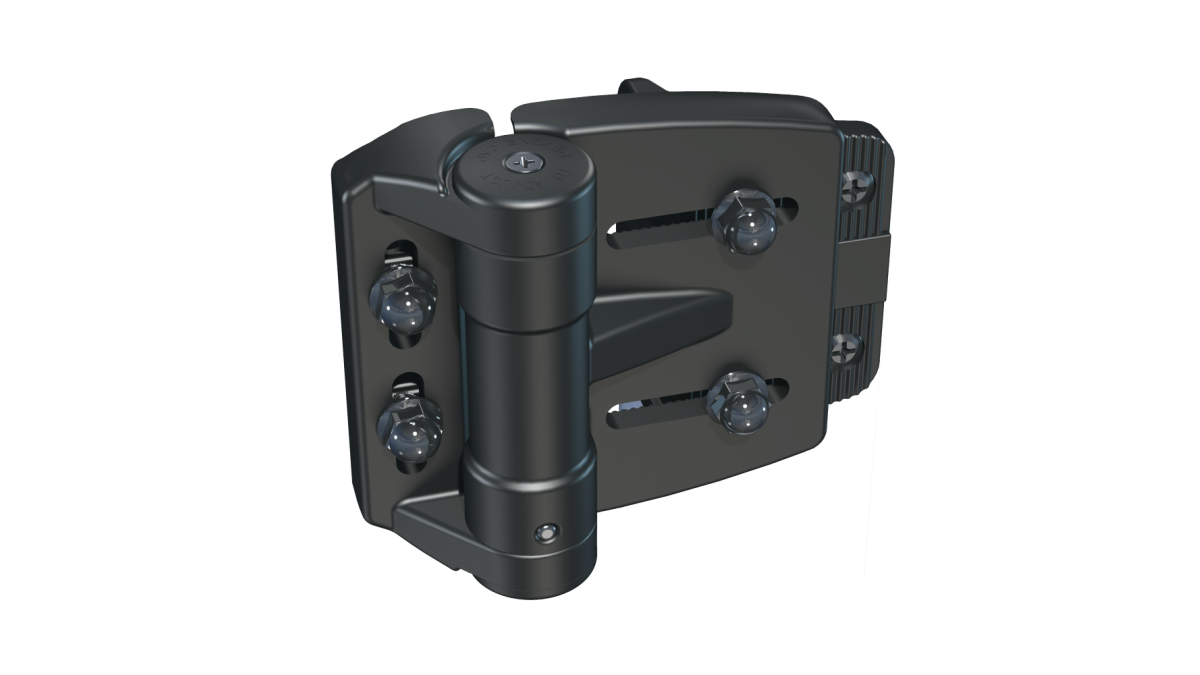

D&D Technologies Truclose® Mini Multi-Adjust™ Round Hinge
ASSA ABLOY
All products
multiadjust round TCMA2RND etch ddtech
Description

TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose® MINI MULTI-ADJUST™ Hinges are versatile hinges designed for round-posted fences and gates with large gate gaps. They're ideal for heavy or high-traffic metal, wood or vinyl gates weighing up to 25kg.

TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of award-winning TruClose® Gate Hinges worldwide.

  • TCAMA2RND
  • Gate frame: 35mm & 41mm. Post: 48-51, 60 & 73mm





Key Features
  • 3-way adjustment - vertical, horizontal & tension
  • Up to 19mm adjustment
  • For gate gaps from 22-50mm (.9-2")
  • Self-closes wood and vinyl gates up 25kg (55 lbs)
  • Won’t rust, bind, sag or stain
  • Made from super-strong engineered polymer
  • UV stabilized, self-lubricating durability
  • Internal stainless steel spring and components
  • Easy alignment legs & adjustment slots
  • Australian Made and Owned
  • Lifetime Warranty
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Highly adjustable, Self Closing Hinge for chainlink gates

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code: TCAMA2RND
  • Gate Type: Self-Closing
  • Gate Material: Chain Link
  • Self-Closing Gate Weight: Up to 25kg (55lbs)
  • Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
  • Gate Frame/Post Shape: Round-to-Round
  • Ideal Gate Gap: 35mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black
  • Round Post Diameter: TCAMA2RND: Gate frame: 35 & 41mm, Post: 48–51, 60, 73mm
