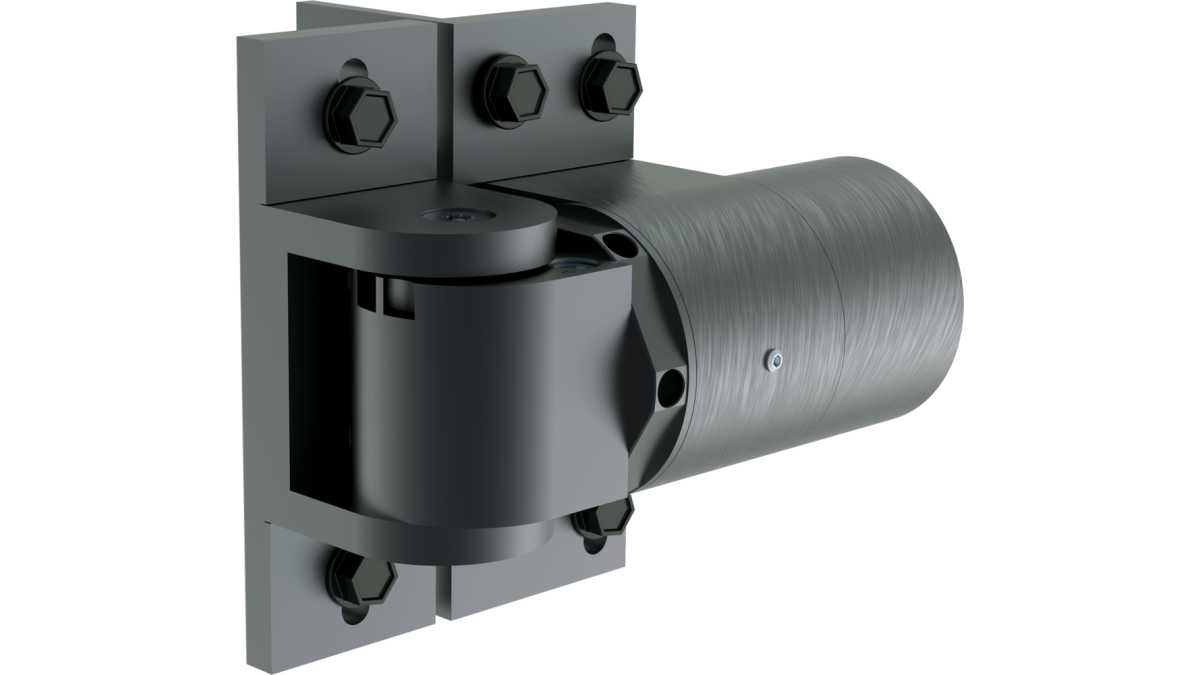

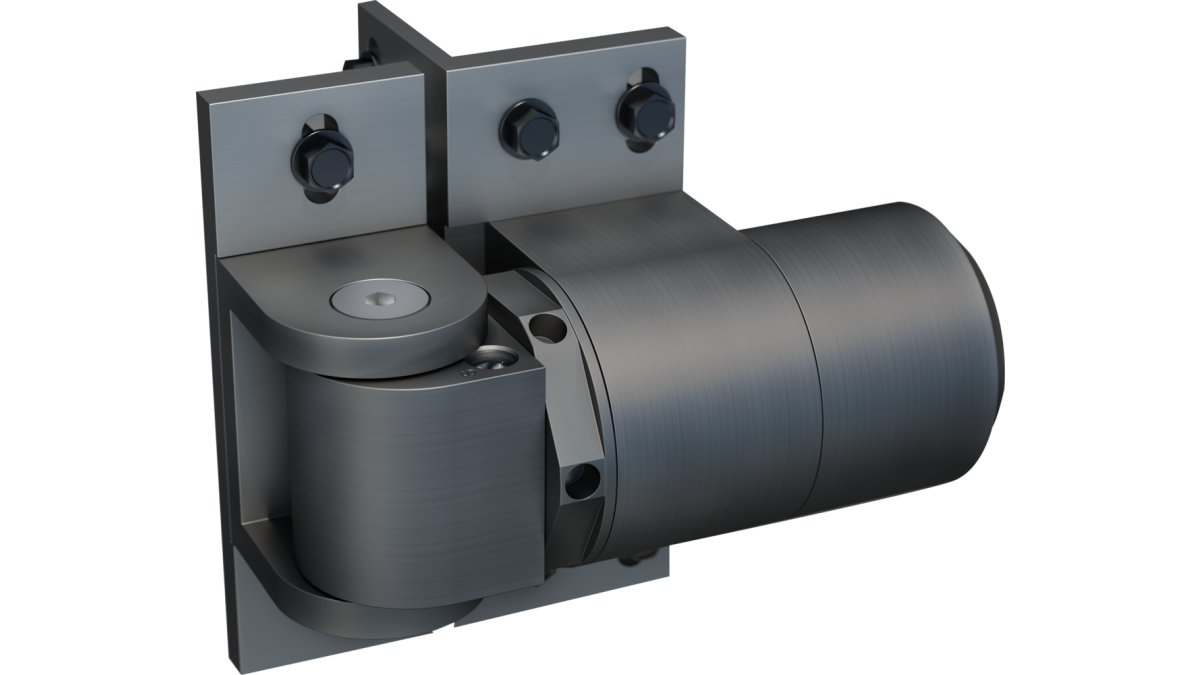

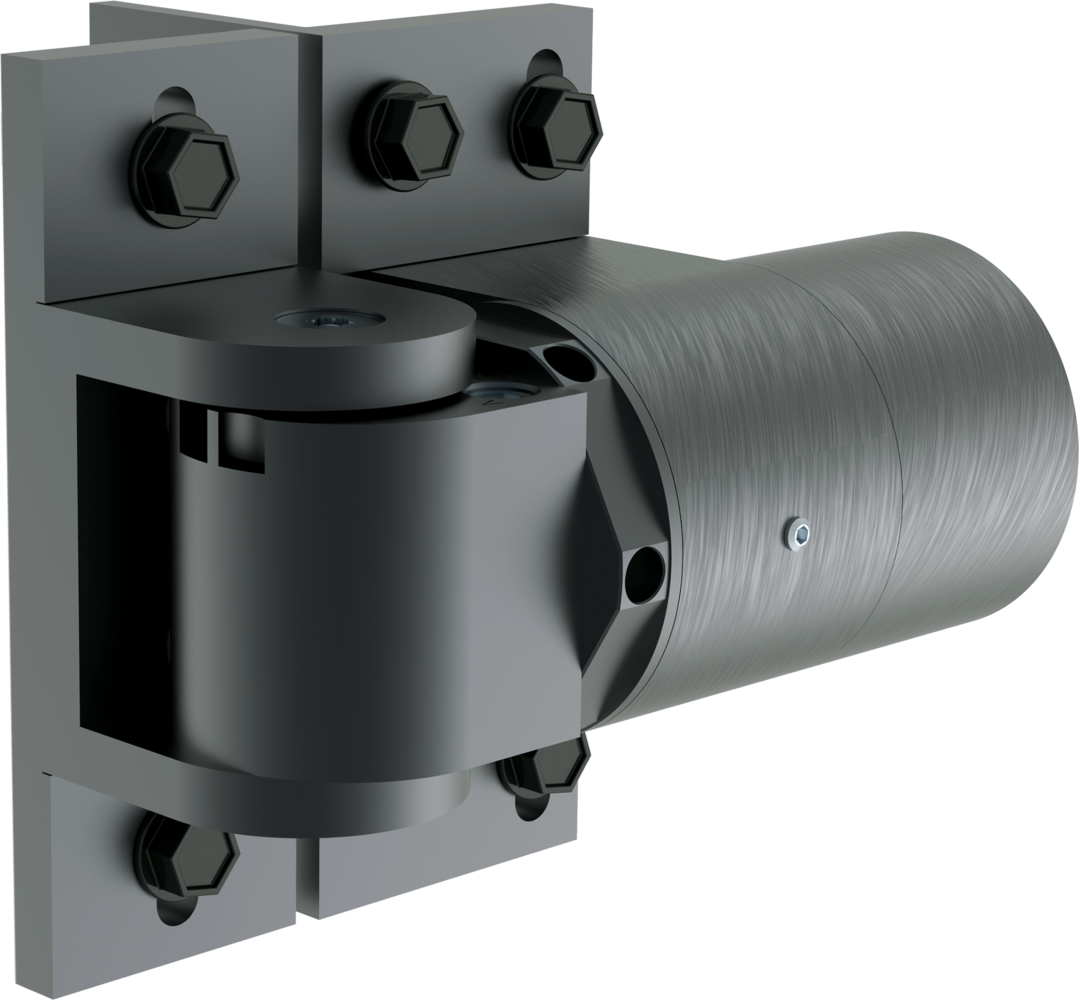

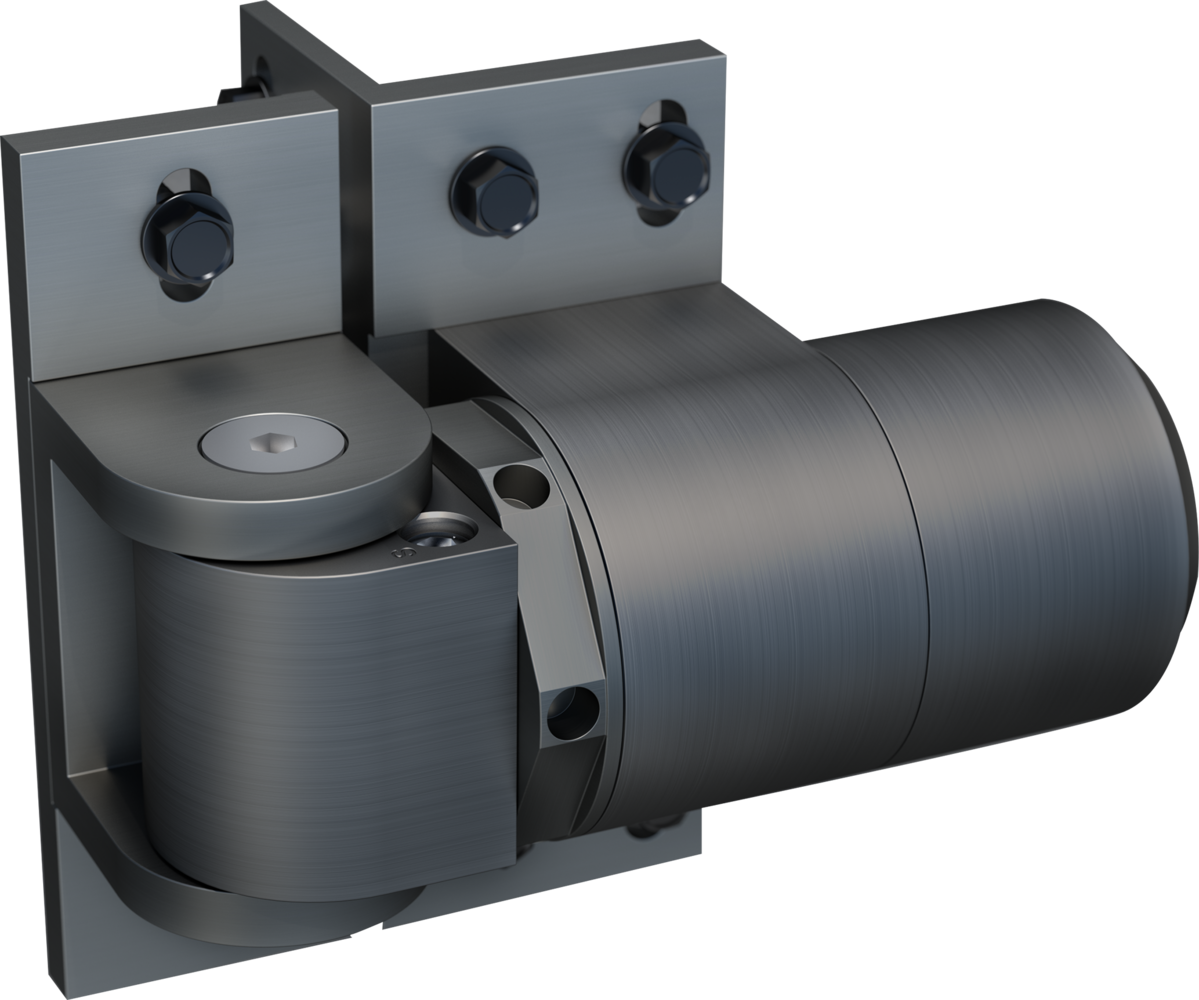

D&D Technologies Sureclose® Readyfit 108 Hinge
Description

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.

Each ReadyFit model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. Its remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminium. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.





Key Features
  • Controlled quiet close
  • Gap variance of 12-35mm
  • Self-closes gates up to 120kg
  • Multiple mounting options, includes fasteners
  • Safety gate models available
  • Final Snap Close Action - All 108 models
  • Alignment legs give double face-fixing strength
  • Emergency Override feature for safety and longevity
  • Minimum fence post size 50mm
  • 5 Year Limited Warranty
Scope of Use

Externally Mounted, Hydraulic Self-Closing Hinge-Closer

Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code: 74108313-74108315
  • Gate Material: Aluminium, Steel/Ornamental Iron
  • Self-Closing Gate Weight: Up to 120kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 50mm+
  • Ideal Gate Gap: 12-35mm
  • Fixing Method: Screw-On, Weld-On
  • Colour/Finish: Black Anodised
