D&D Technologies Shut it® Self-Closing Badass Hinge Set
ASSA ABLOY
All products

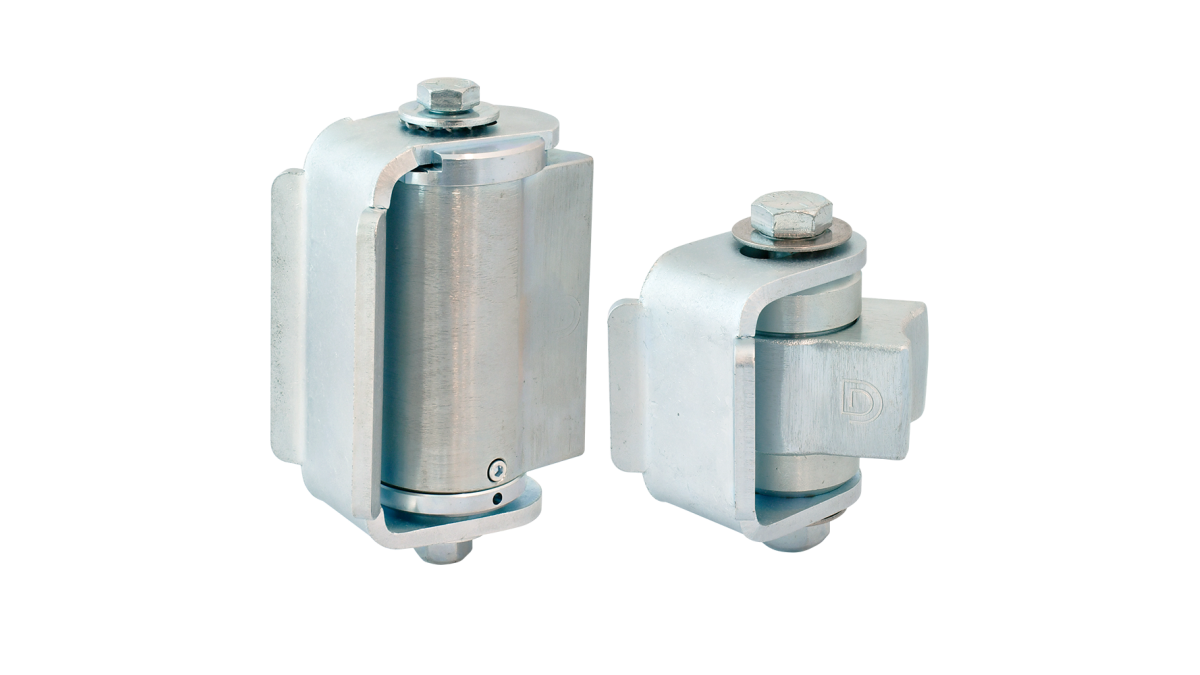

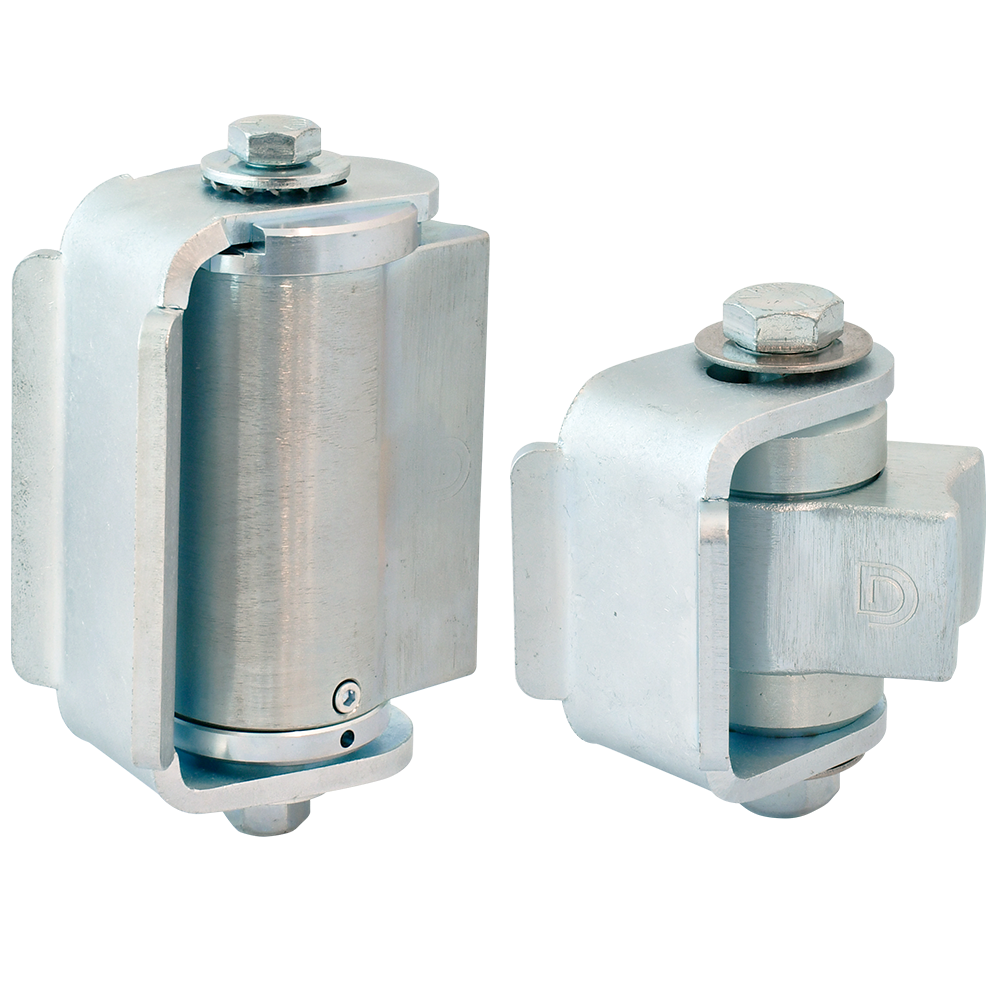

Shut It CI3850R 1000x1000 etch

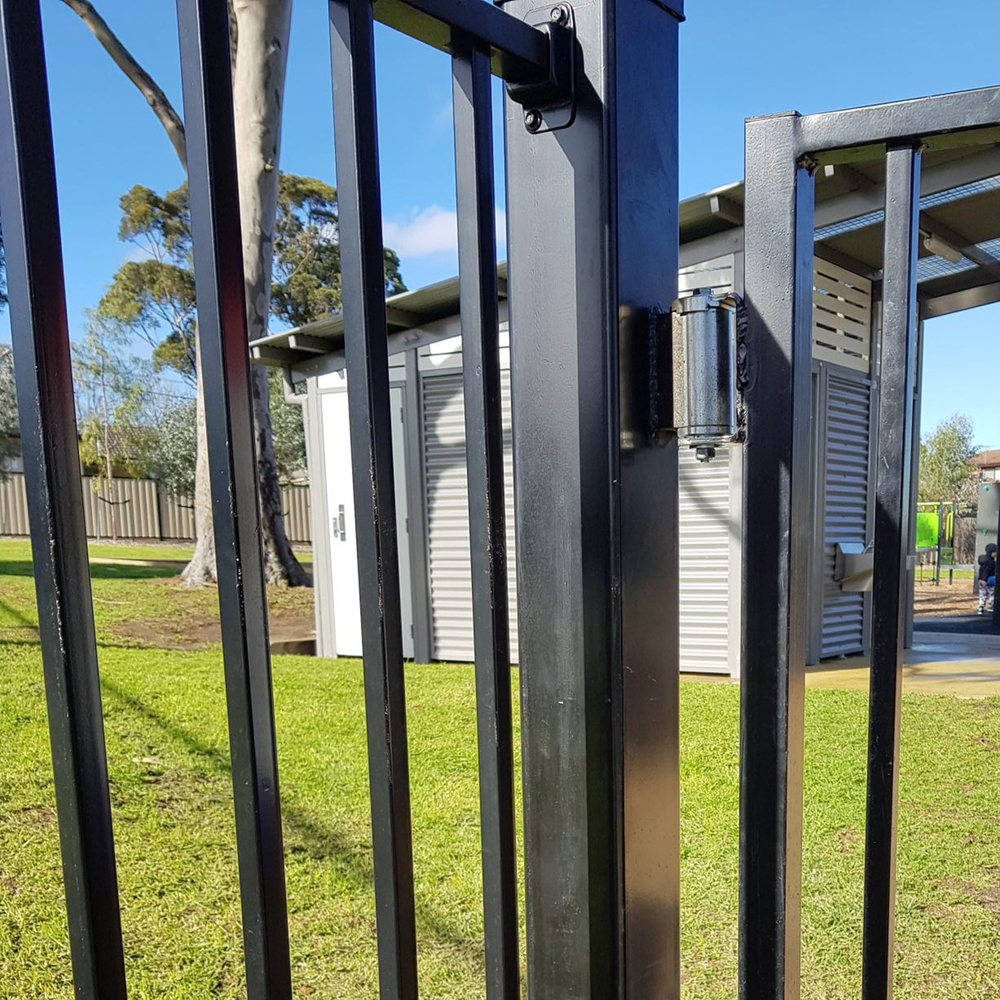

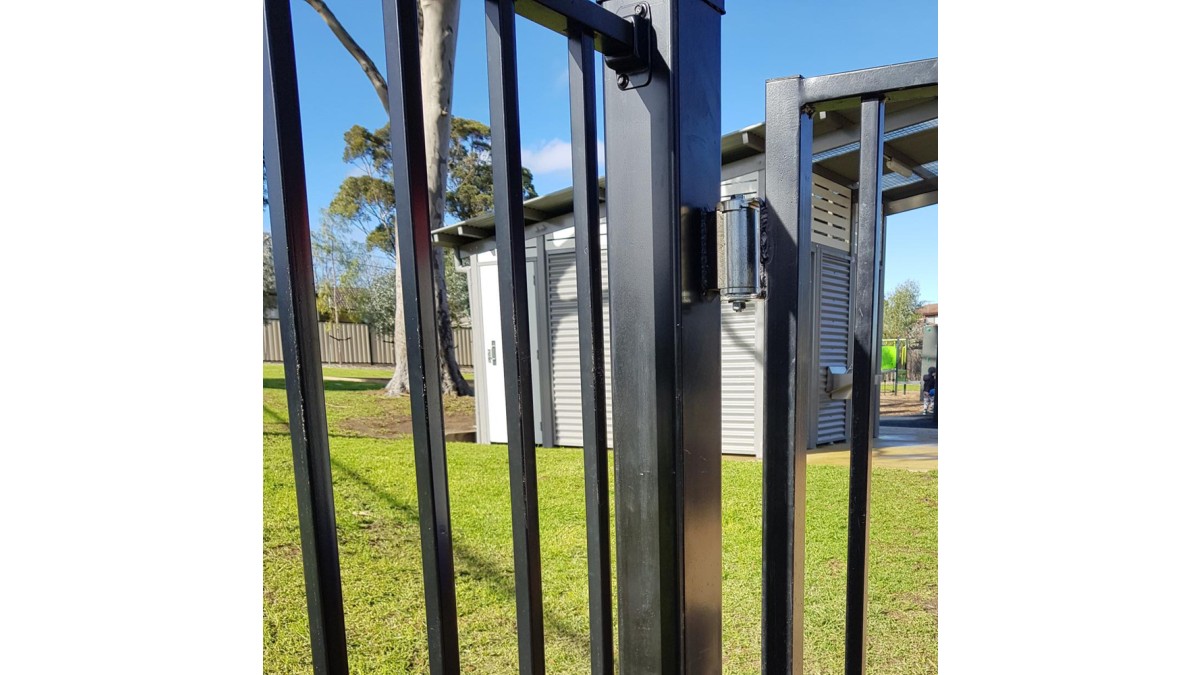

shutit badass self close CI3850 insitu5 ddtech

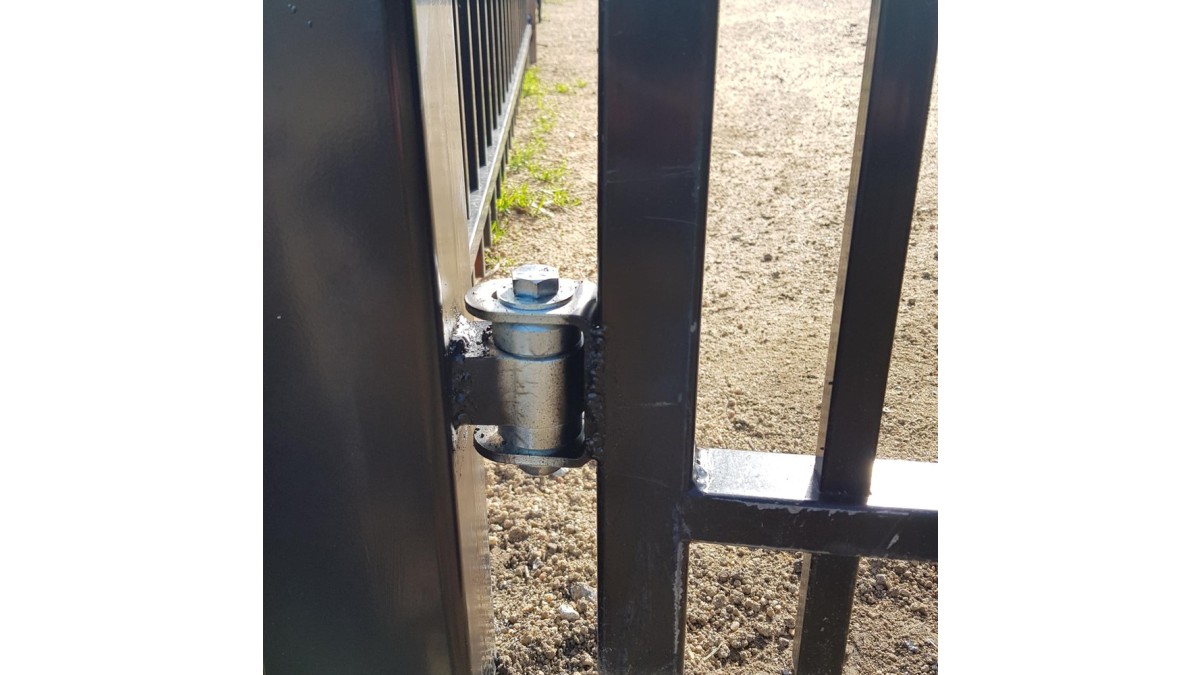

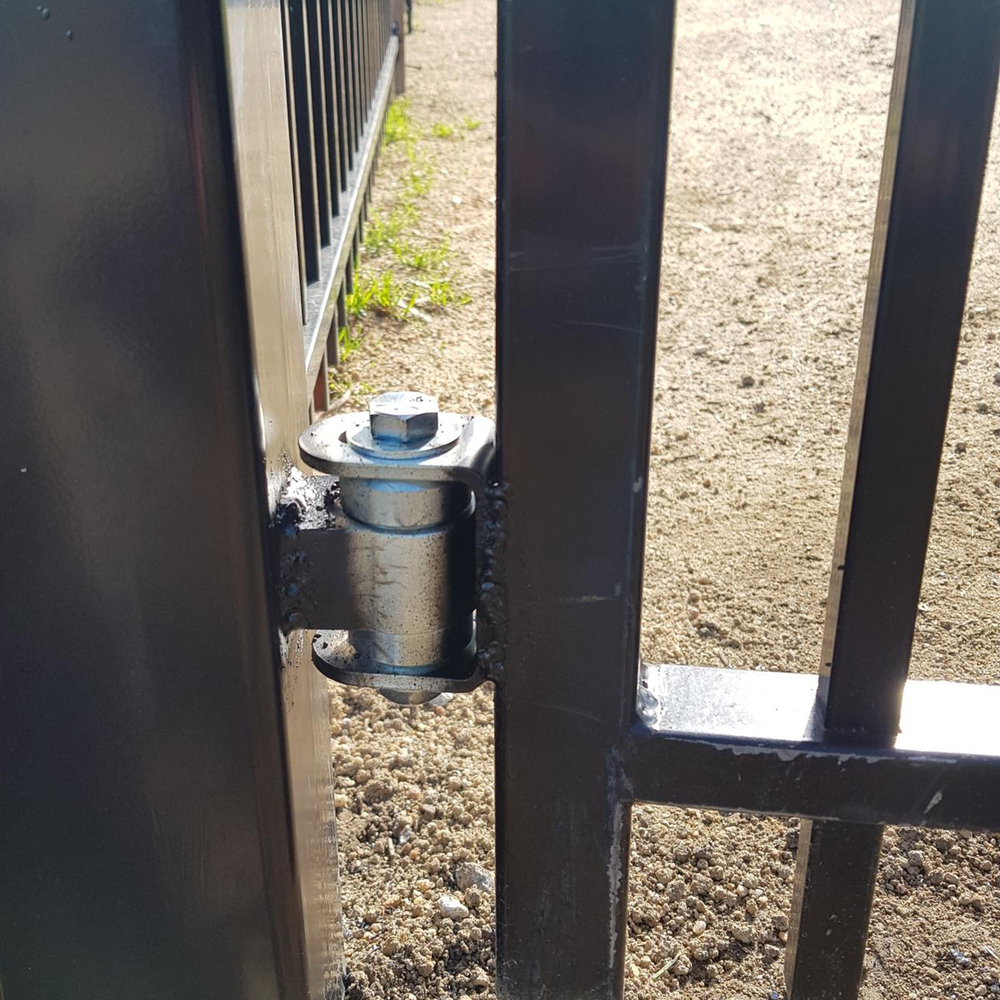

shutit badass self close CI3850 insitu ddtech
Description

The Shut it® Self-Closing Badass Hinge Set eliminates the need for a separate closer for jobs that require a self-closing gate. The closer is built into the hinge. Get the benefits of the best heavy duty gate hinge and a reliable closer in one package. Save hundreds on poorly designed gate closers and hydraulic door closers that are adapted to gate systems.

Key Features
  • 1 Self-closing hinge + Original BadAss hinge
  • Easy to install, heavy-duty self-closing hinge
  • 5 tension-adjustment settings (inc bracket)
  • Gate swings from -5 to 110°
  • Load rating per gate: 500kg
  • Self-closing maximum gate weight:130kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3850
  • Gate Type - Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Self-Closing Gate Weight - Up to 130kg
  • Gate Material - Steel/Ornamental Iron
  • Self-Closing Gate Weight - Up to 130kg
  • Approx Gate Size - Height (m) - 2, Width (m) - 3
  • Gate Frame/ Post Shape - Square to square, square to round
  • Min Post Size (mm) - 38
  • Ideal Gate Gap (mm) - 61 - 74
  • Fixing Method - Weld-On
  • Colour/ Finish - Zinc

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
