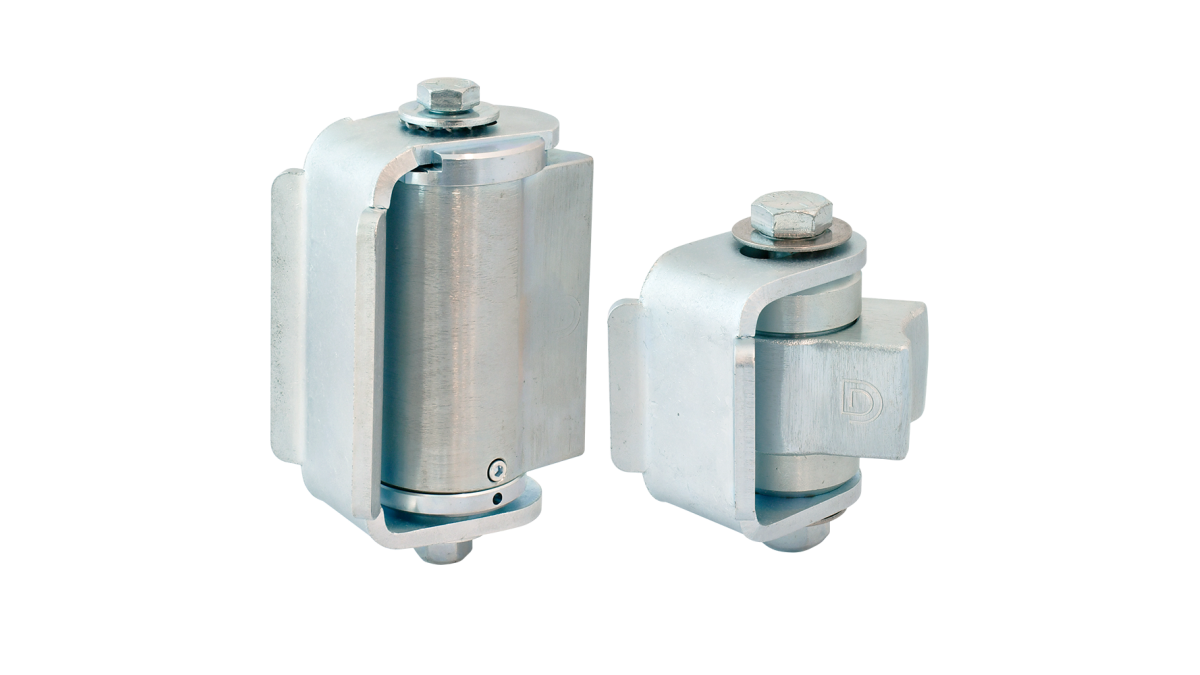

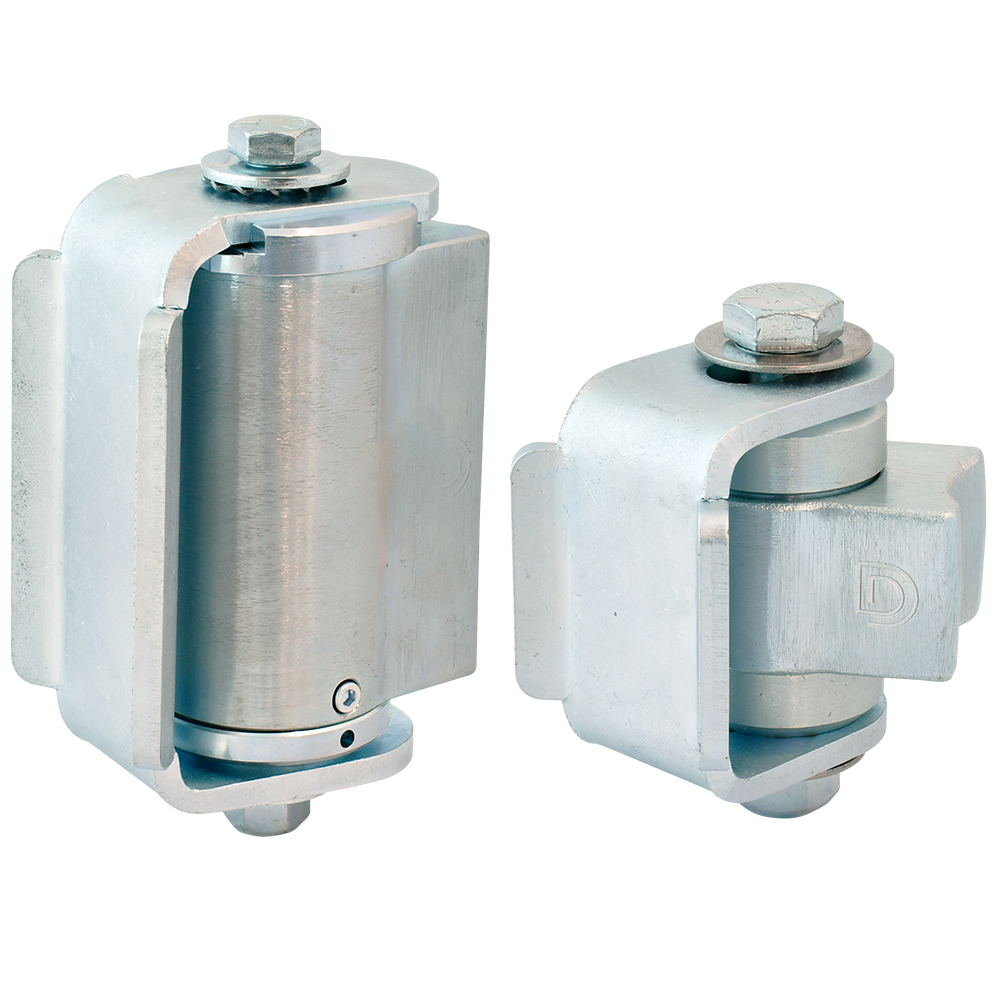

D&D Technologies Shut it® Self-Closing Badass Hinge Gate Swing Set
ASSA ABLOY
All products
Shut It CI3850R 1000x1000 etch v2
Description

The BadAss Self-Closing Hinge removes the need for a separate closer for jobs that require a self-closing gate. The closer is built into the hinge. Get the benefits of the best heavy duty gate hinge and a reliable closer in one package. Save hundreds on poorly designed gate closers and hydraulic door closers that are adapted to gate systems.

Key Features
  • 1 Self-closing hinge + Original BadAss hinge
  • Easy to install, heavy-duty self-closing hinge
  • 5 tension-adjustment settings (inc bracket)
  • Gate swings from -5 to 110°
  • Load rating per gate: 500kg
  • Self-closing maximum gate weight: 130kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3850
  • Gate Type - Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Self-Closing Gate Weight - Up to 130kg
  • Approx Gate - 2m H x 3m W
  • Gate Frame/ Post Shape - Square to Square, Square to Round
  • Min Post Size - 38mm
  • Ideal Gate Gap - 61-74mm
  • Fixing Method - Weld-On
  • Colour/Finish - Zinc
