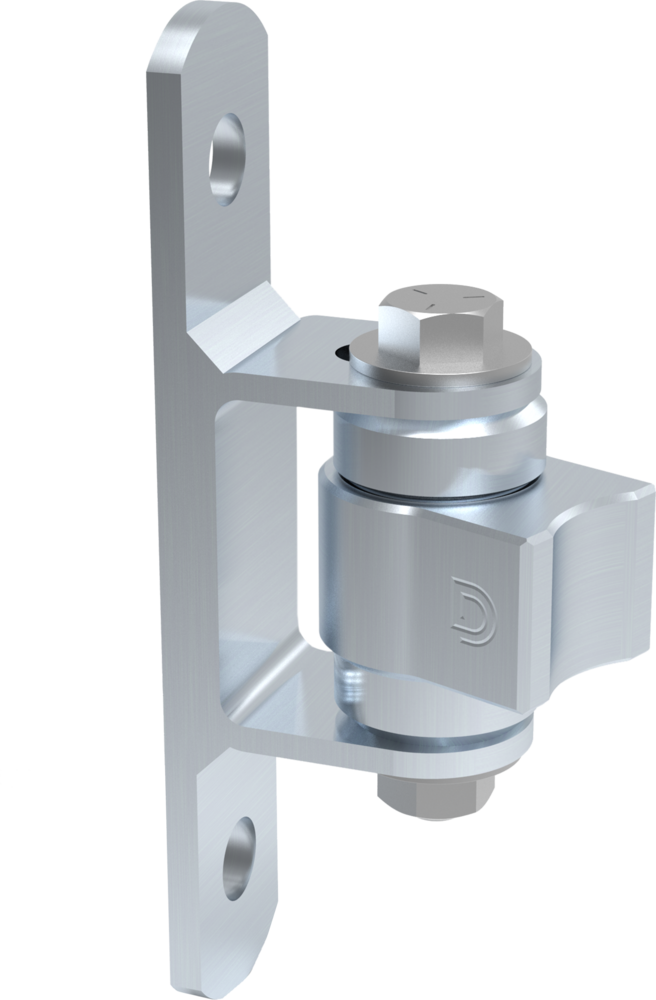

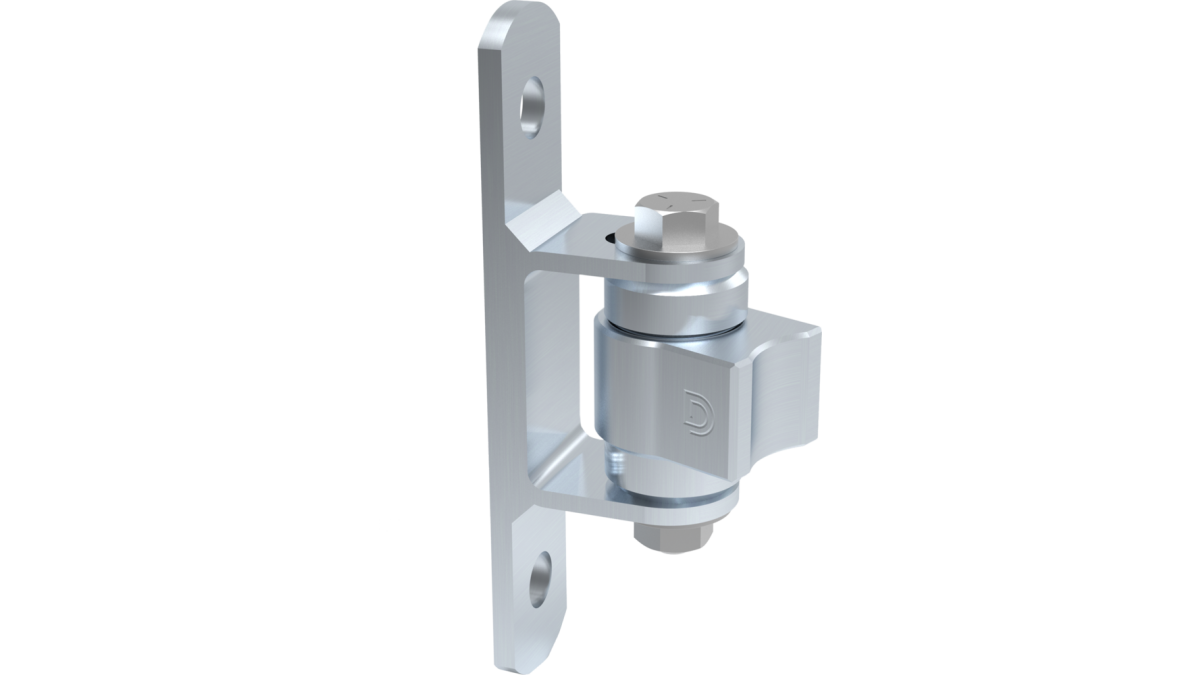

D&D Technologies Shut it® Half Bolt-on Badass™ Aluminum Body Gate Hinge
ASSA ABLOY
All products
shutit badass half bolt on ci3770 etch ddtech
Description

All bolt-on gate hinges by Shut It are CNC machined to the tightest tolerances in the industry. The Half Bolt-On BadAss was designed to be used on gates where welding the hinges to the end post is not an option (no field welder). The Half Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

Key Features
  • High-temperature sealed bearings – safe to powder coat with hinges installed on gate
  • Yoke material is steel, the body material is aluminium
  • No greasing, no maintenance
  • Horizontal adjustability for perfect installations
  • Flat, bolt-on bracket for through bolting
  • Zinc plated
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use
  • Gate Type - Non-Self-Closing
Limitations on Use
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Other Performance Attributes
  • Product Code - CI3770
  • Gate Type - Non-Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/Post Shape - Square to square, square to round
  • Min Post Size (mm) - 38mm
  • Ideal Gate Gap - 67-80mm
  • Fixing Method - Bolt-On, Weld-on
  • Colour/Finish - Zinc
