D&D Technologies Shut it® Face Mount Gate Bolt-On Badass
ASSA ABLOY
All products

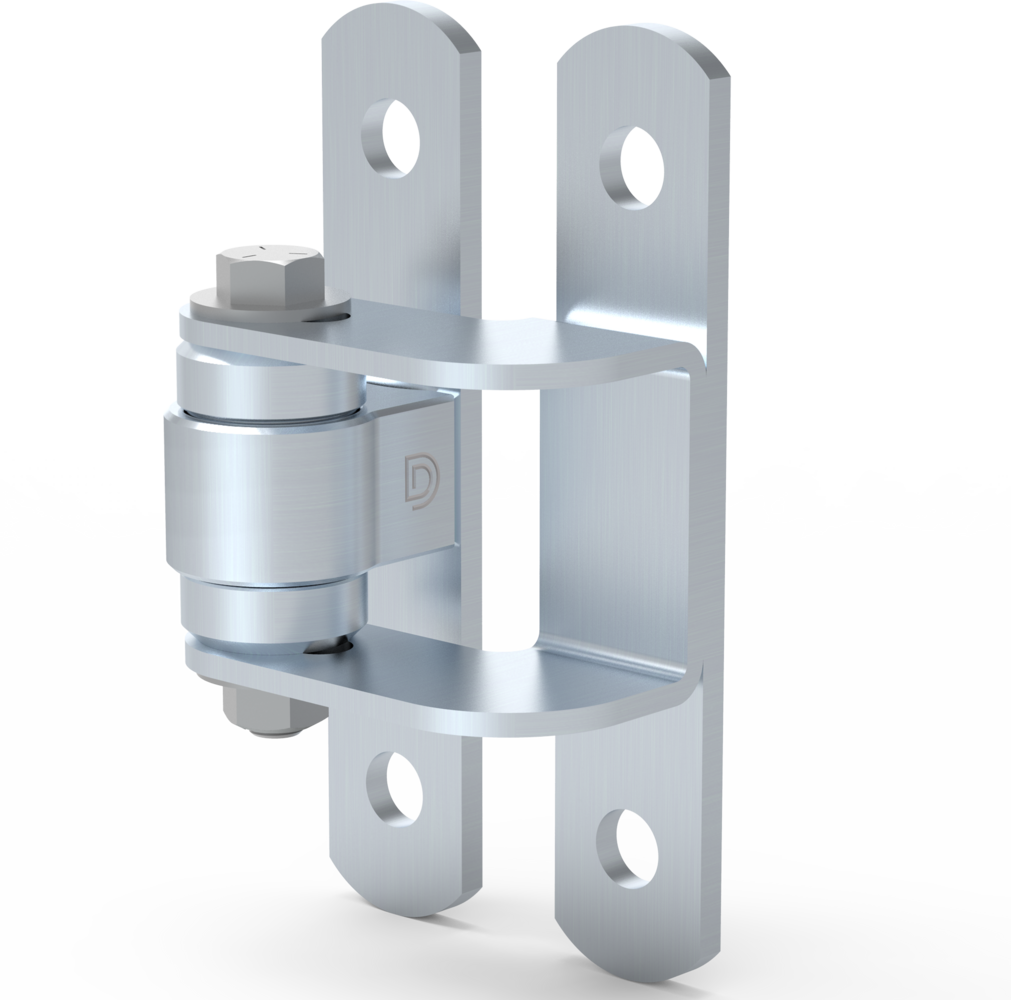

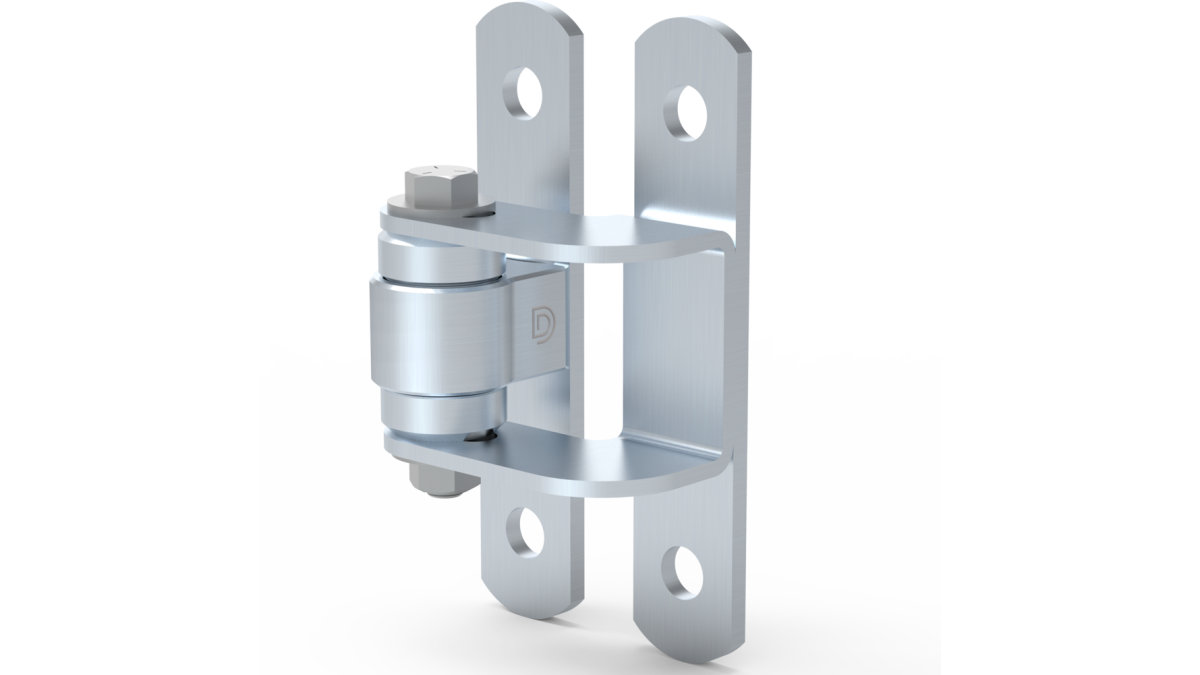

shutit badass face mount bolt on ci3720 ddtech

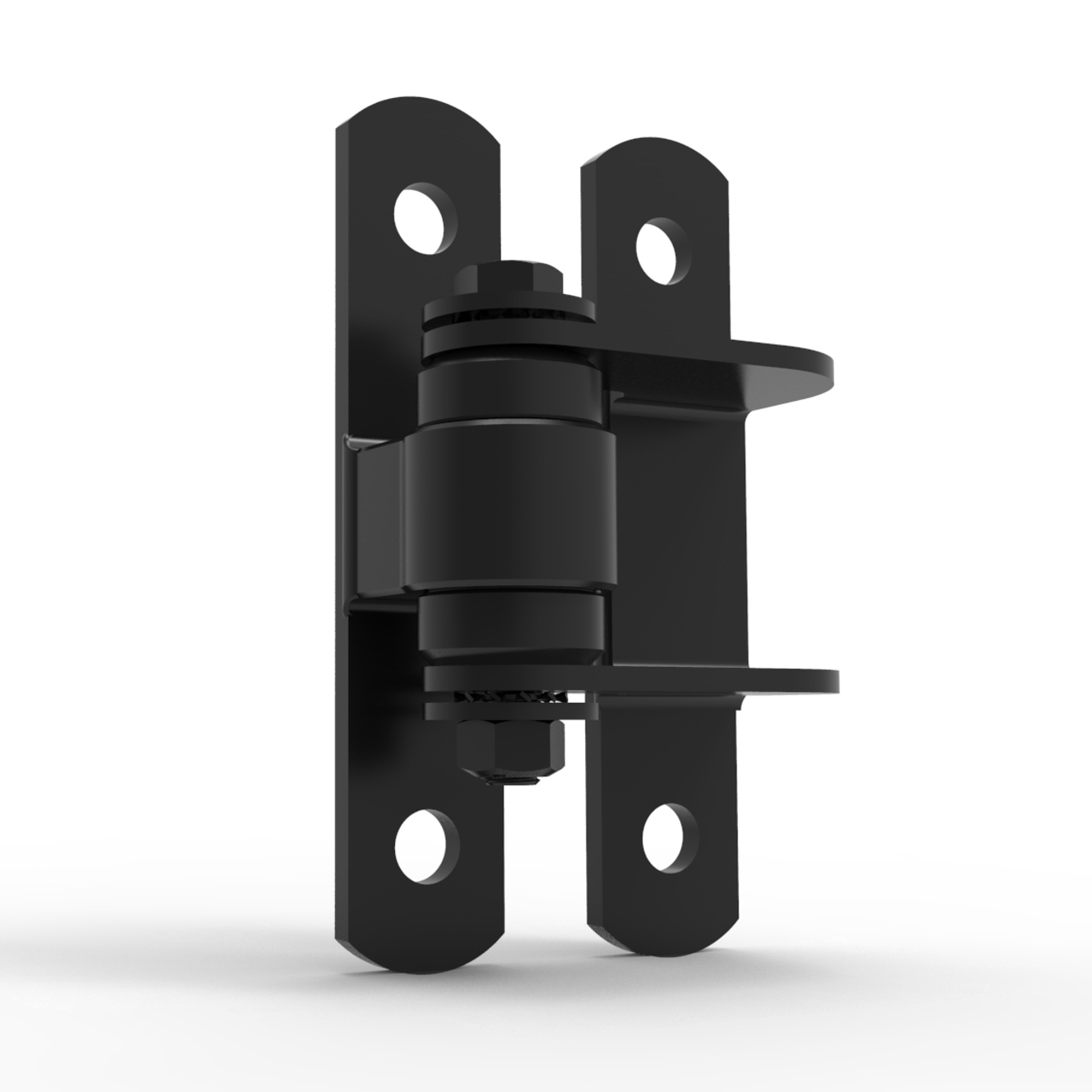

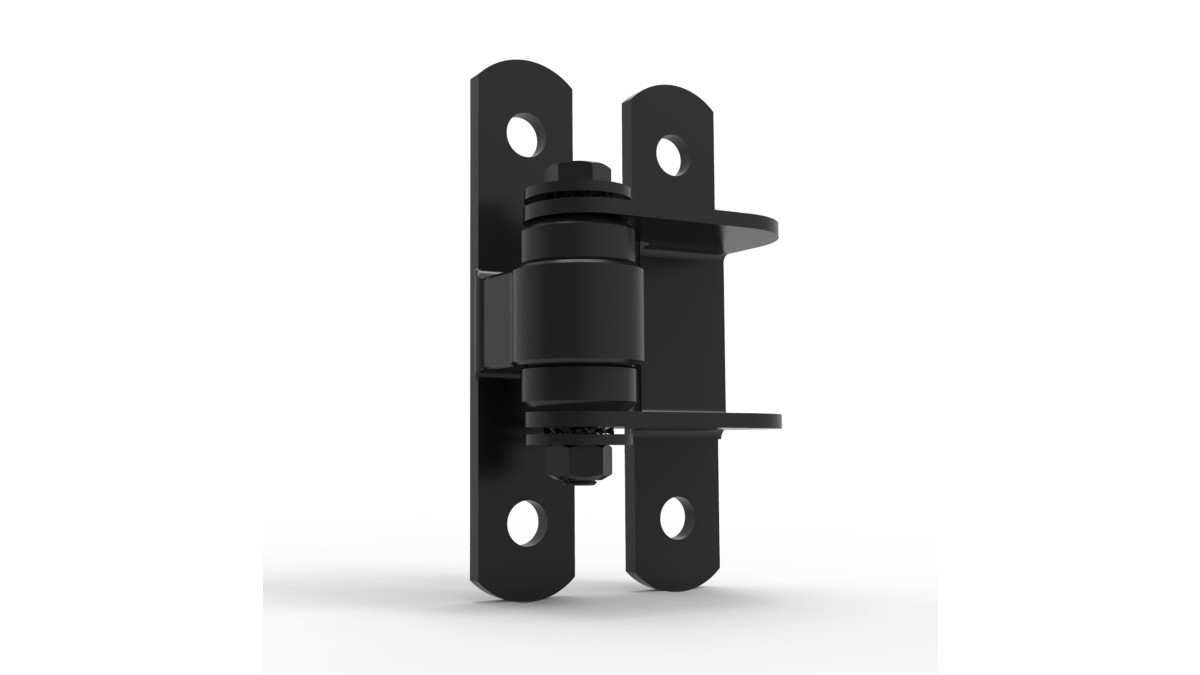

shutit badass face mount bolt on ci3720b hero2 black powder coated ddtech

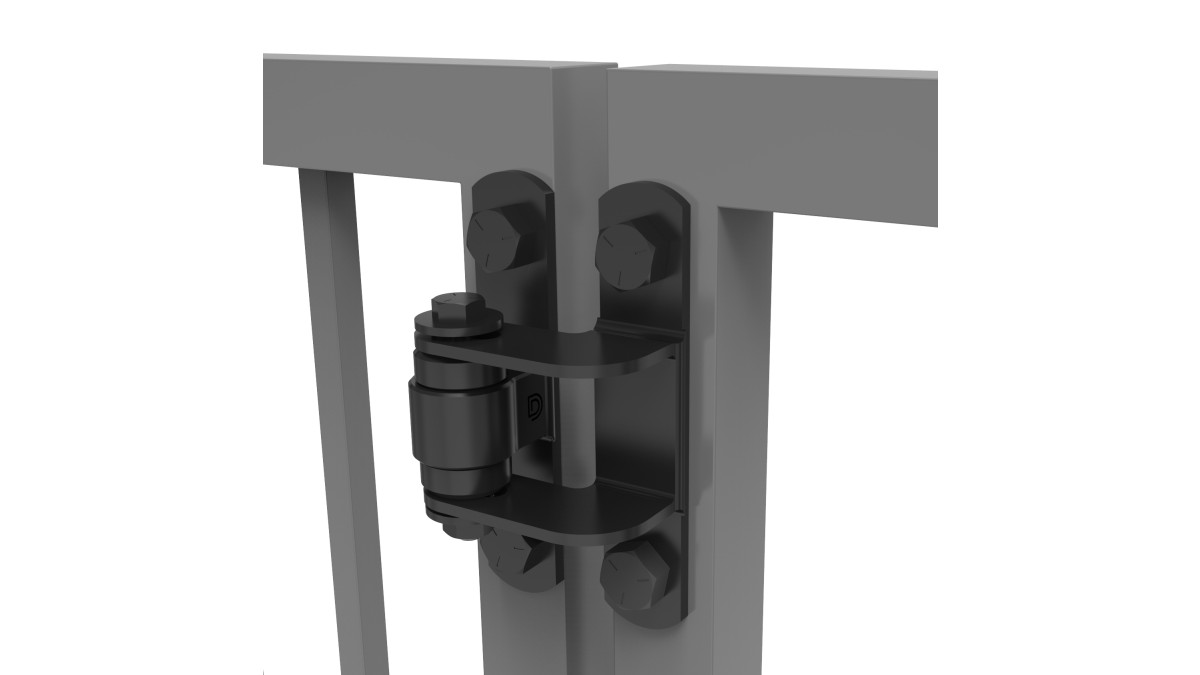

shutit badass face mount bolt on ci3720b hero3 black powder coated ddtech

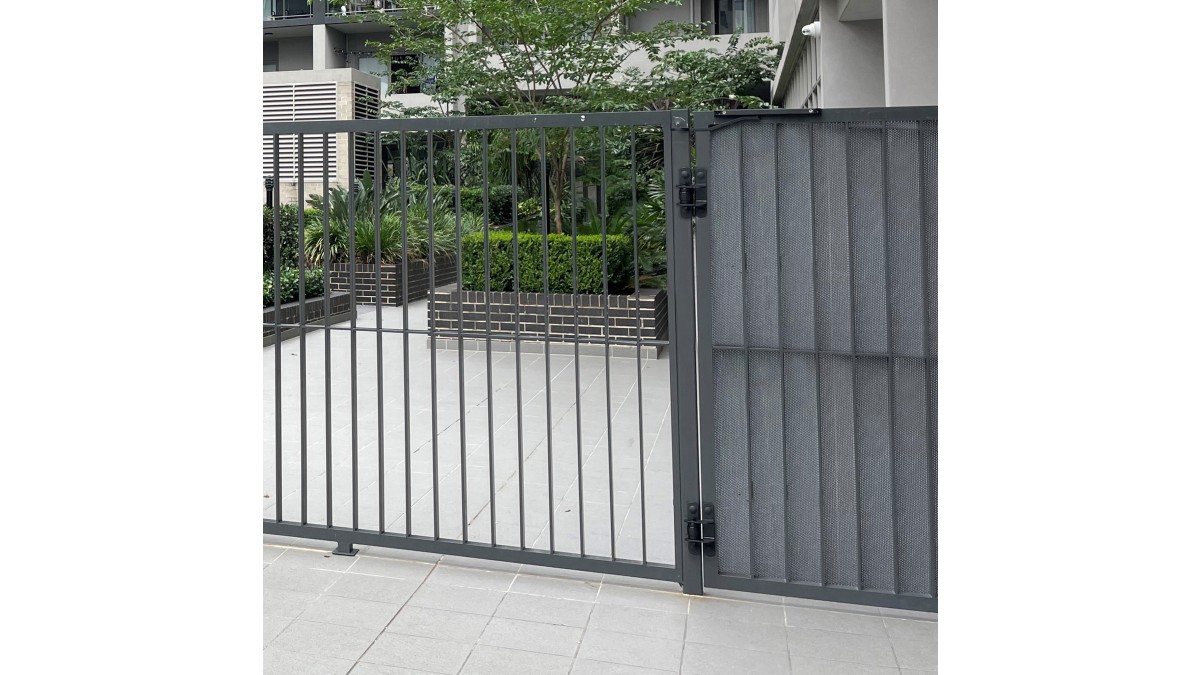

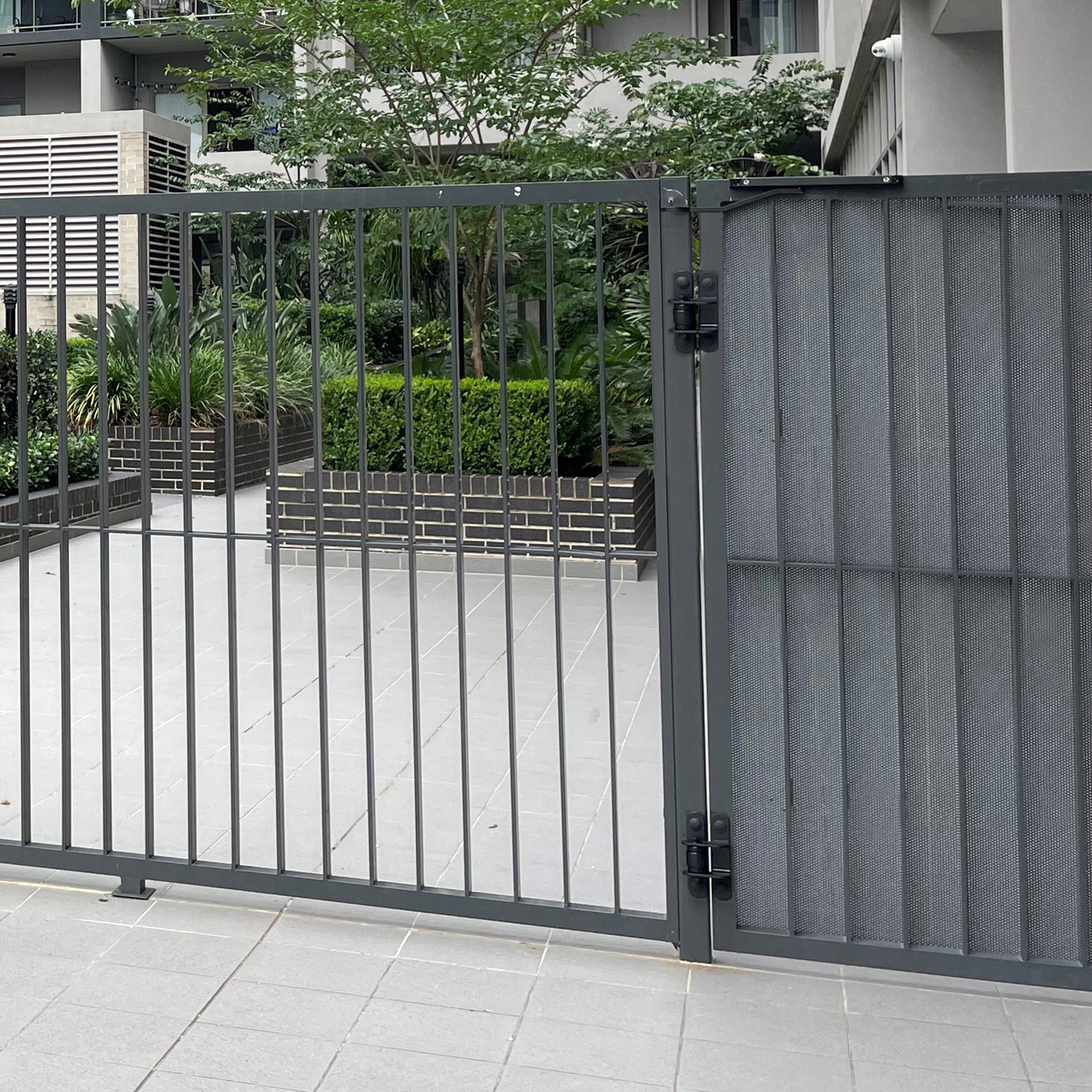

shutit badass face mount bolt on ci3720b insitu2 black powder coated ddtech
Description

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to Shut It's unique bushing design The Bolt-On BadAsses, like all other Shut It gate hinges, produces near frictionless movement with maintenance free usage.

Key Features
  • Designed for gates where welding is not an option
  • Opens to 180°
  • Achieve gate gaps as small as 13mm
  • Horizontally adjustable to 13mm
  • High-temp bearings, safe to powder-coat
  • Load rating per gate: 900kg
  • Maximum gate weight: 500kg
Categories
Hinges and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3720
  • Gate Type - Non-Self-Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/ Post Shape - Square to Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 13-25mm
  • Fixing Method - Bolt-On
  • Colour/Finish - Zinc
