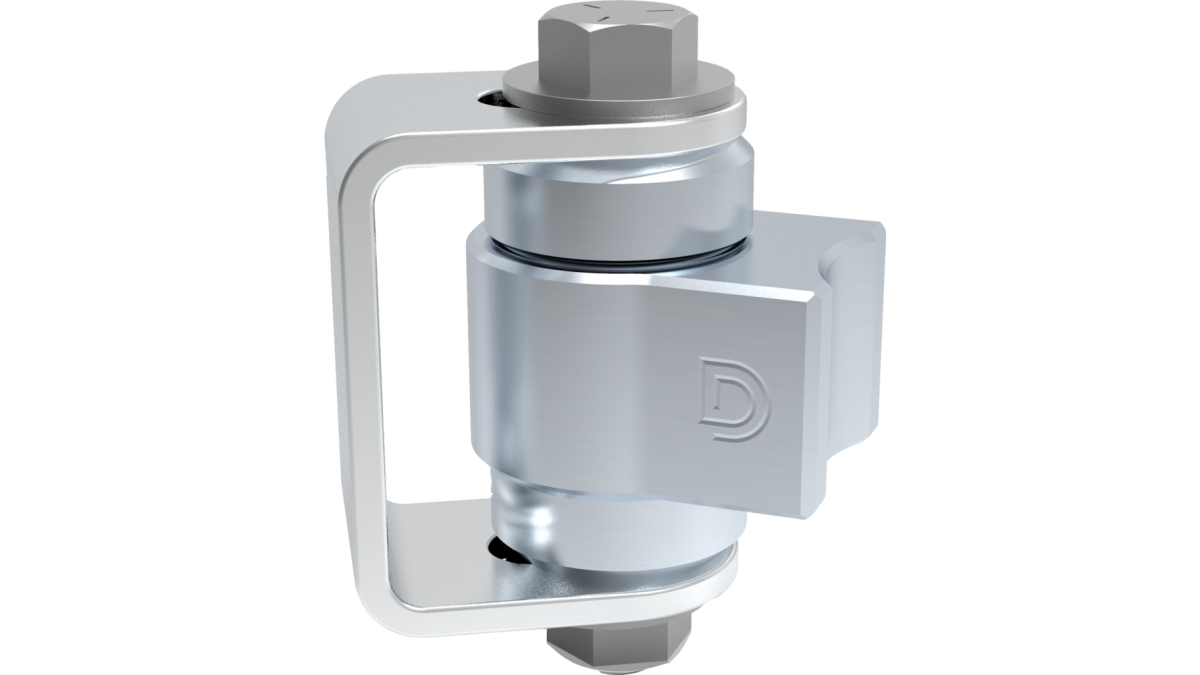

D&D Technologies Shut it® Combo Badass Gate Hinge
Description

The Combo BadAss Gate Hinge was designed using the same technology as the big hinges, but with the understanding that not all installations are exclusively steel or aluminium.

Key Features
  • Two sealed maintenance-free bearings
  • Adjustable bracket for precise installations
  • Perfect for that high-end installation
  • Ideal for flat post-installation
  • Load rating per gate:450kg
  • Maximum gate weight:270kg
Scope of Use

This Combo BadAss is perfect for welding gates upside down, or in the rare cases where you have an aluminium end post and a steel gate.

Other Performance Attributes
Shut it® Combo Badass Gate Hinge With Aluminium Body
  • Product Code - C13300
  • Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Type - Non-Self-Closing
  • Gate Material - Aluminium, Steel/ Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/ Post Shape - Square to Square
  • Min Post Size (mm) - 38
  • Ideal Gate Gap (mm) - 61 - 74
  • Fixing Method - Weld On
  • Colour/ Finish - Raw, Zinc

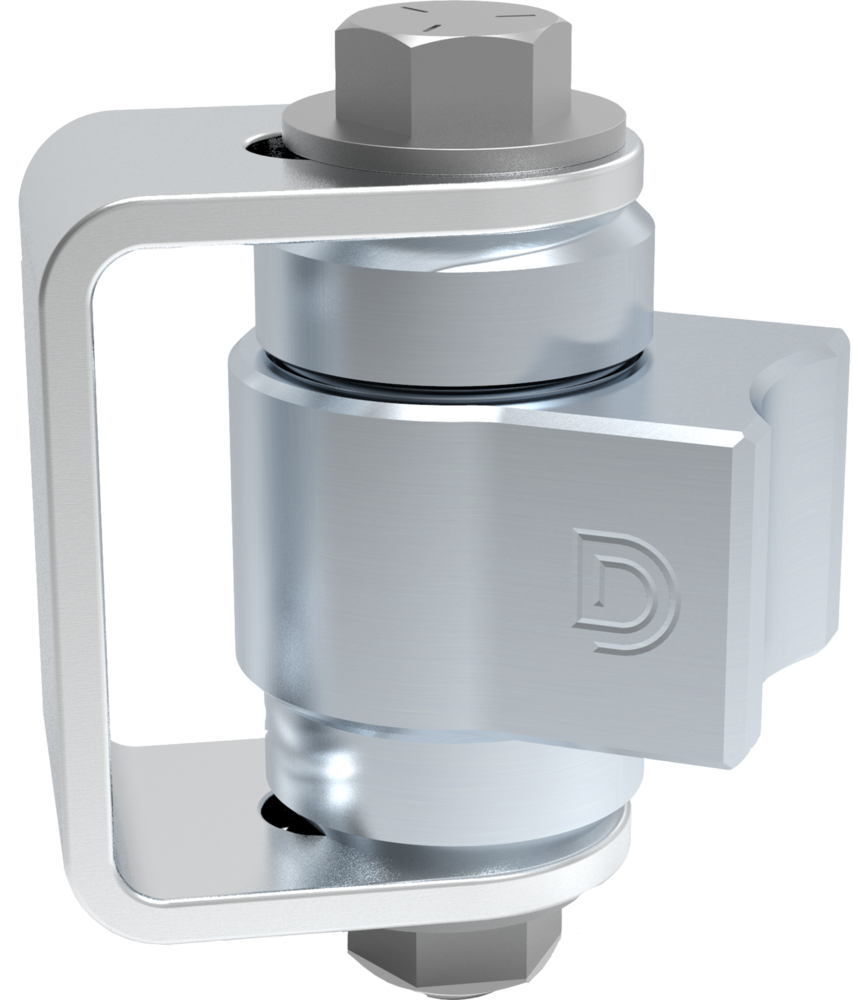

Shut it® Combo Badass Hinge with Steel Body
  • Product Code - CI3200
  • Gate Application - Pedestrian Gate, Driveway gate, Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Type - Non-Self Closing
  • Gate Material - Aluminium, Steel/ Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/ Post Shape - Square to square, square to round
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 61-74mm
  • Fixing Method - Weld-On
  • Color/Finish - Raw, Zinc
