D&D Technologies Shut it® Bolt-On Badass Gate Hinge
ASSA ABLOY
All products

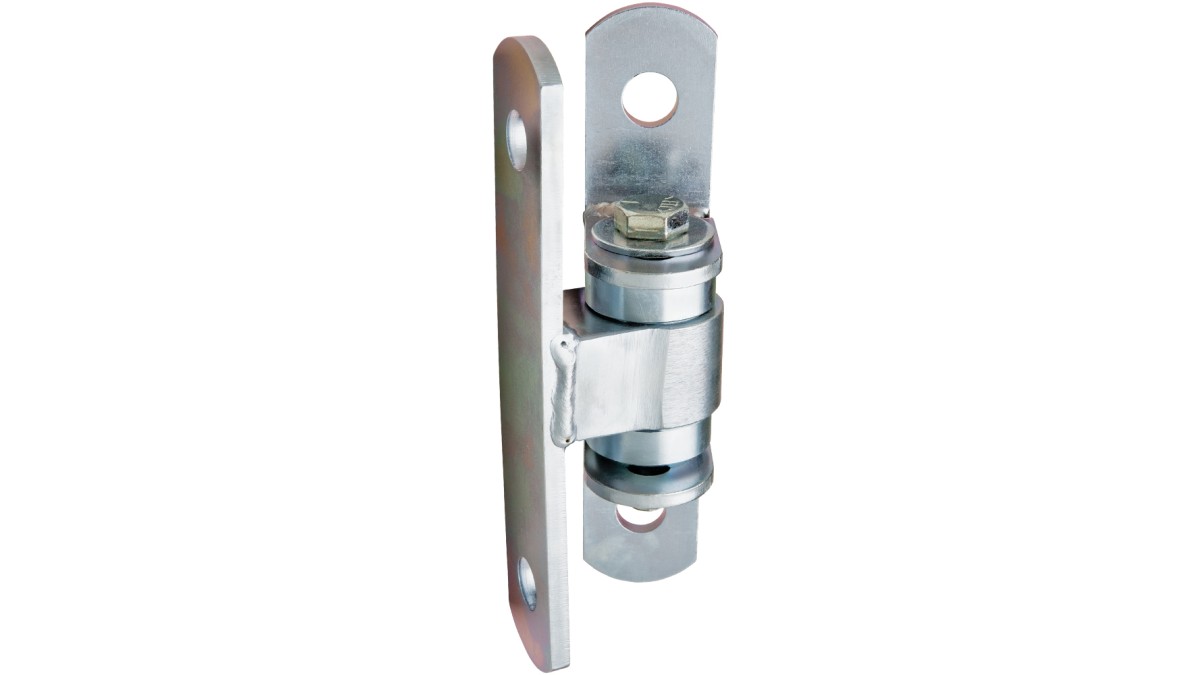

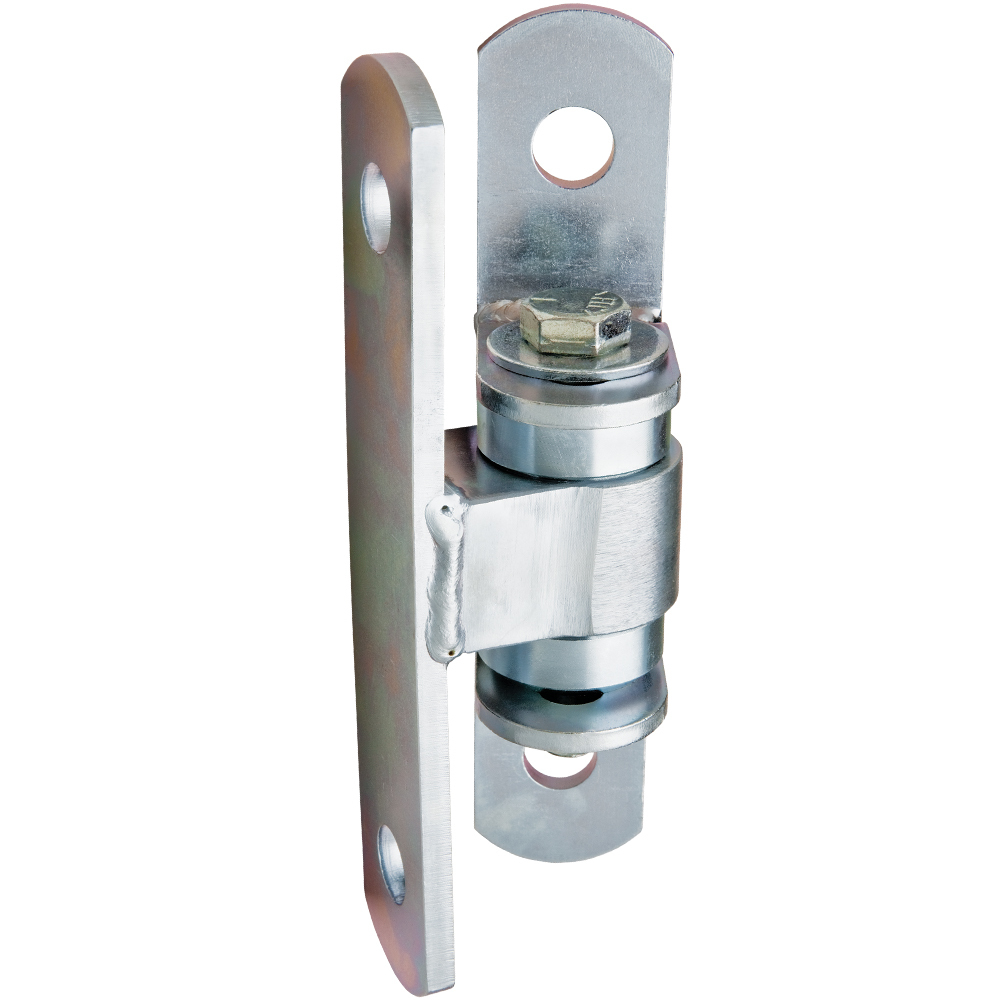

shut it bolt on bad ass ci3700 etch ddtech

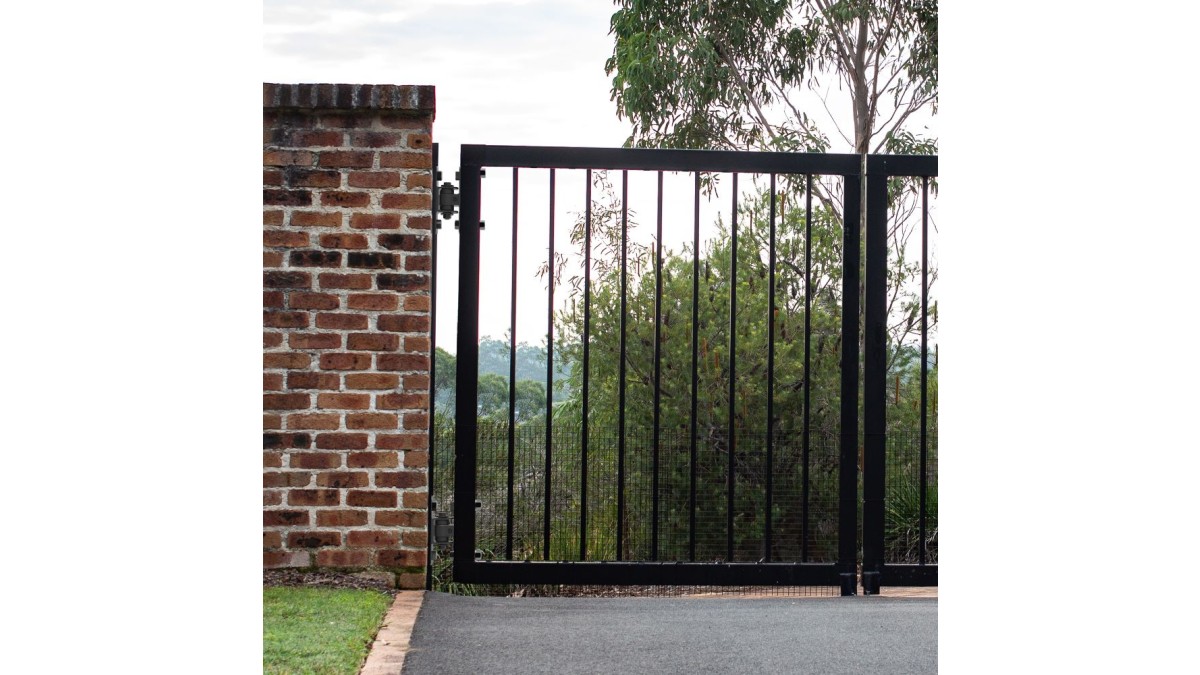

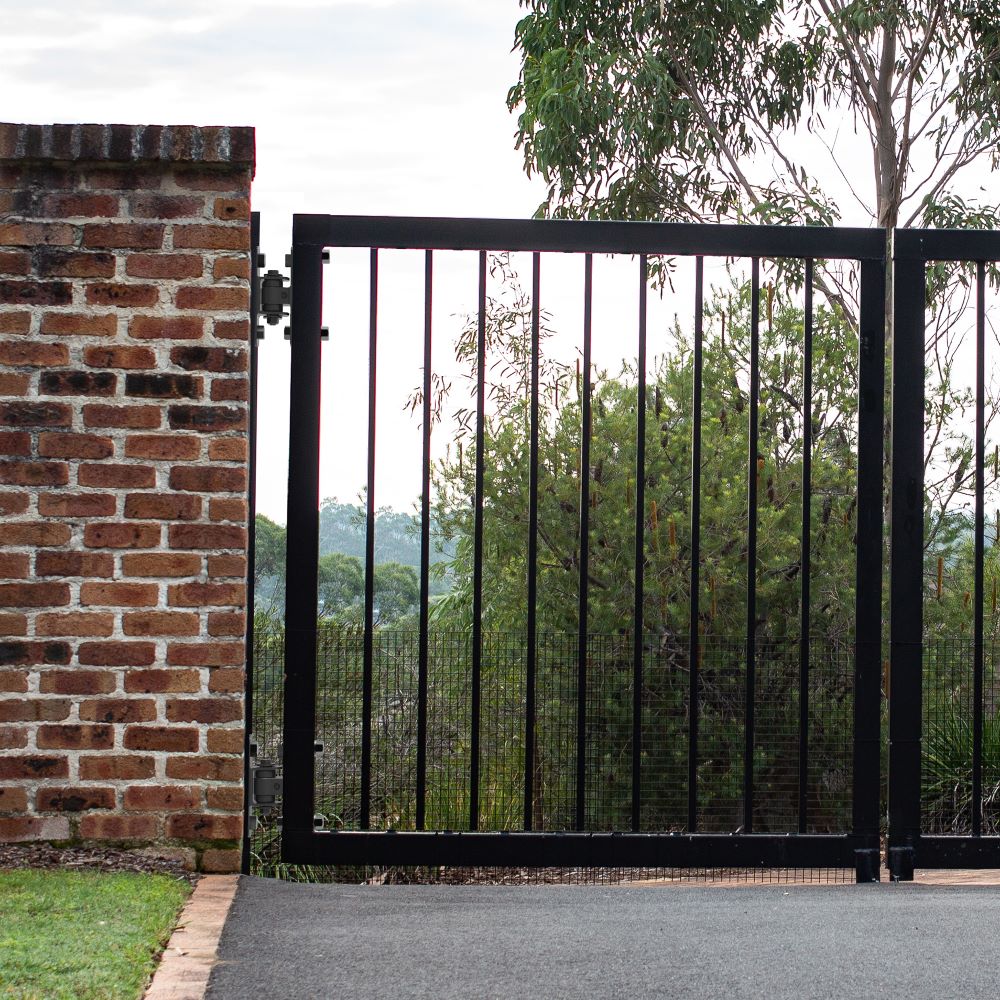

shutit badass bolt on ci3700b insitu black powder coated ddtech

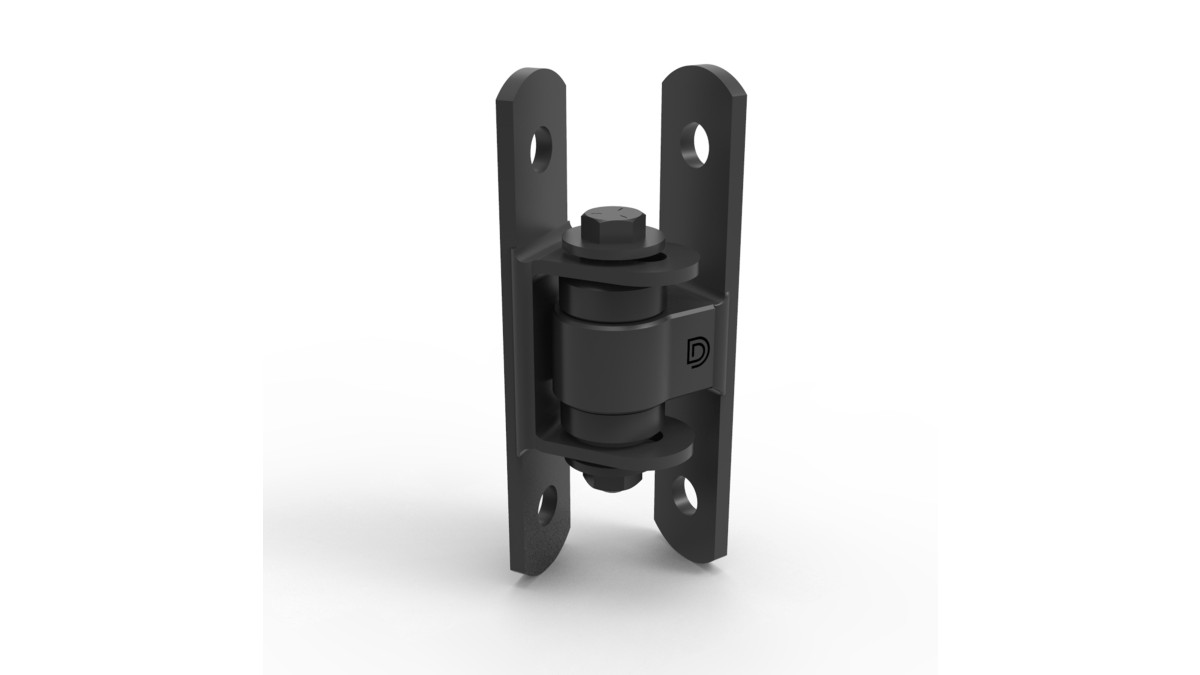

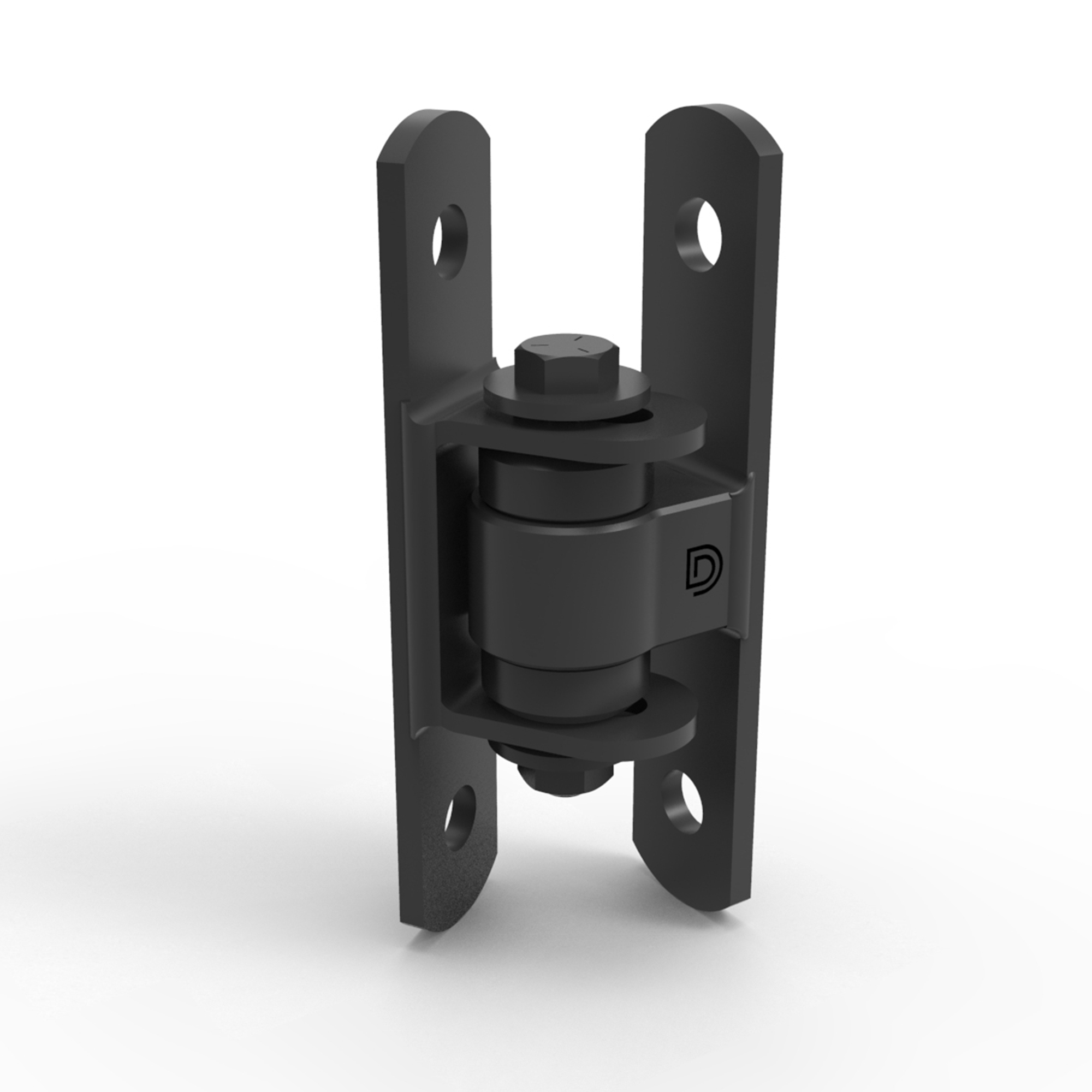

shutit badass bolt on ci3700b hero2 black powder coated ddtech
Description

The Bolt-On BadAss was designed to be used on gates where welding the hinges to the gate and the end post is not an option. Due to Shut It's unique bushing design The Bolt-On BadAsses, like all other Shut It gate hinges, produces near frictionless movement with maintenance free usage.



Key Features
  • Designed for gates where welding is not an option
  • Two sealed maintenance-free bearings
  • Adjustable barrel for precise installations
  • Flat, bolt-on brackets for through bolting
  • Zinc plated
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3700
  • Gate Type - Non-Self -Closing
  • Gate Material - Steel/Ornamental Iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/Post Shape - Square to Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 74-86mm
  • Fixing Method - Bolt-On
  • Colour/ Finish - Zinc
